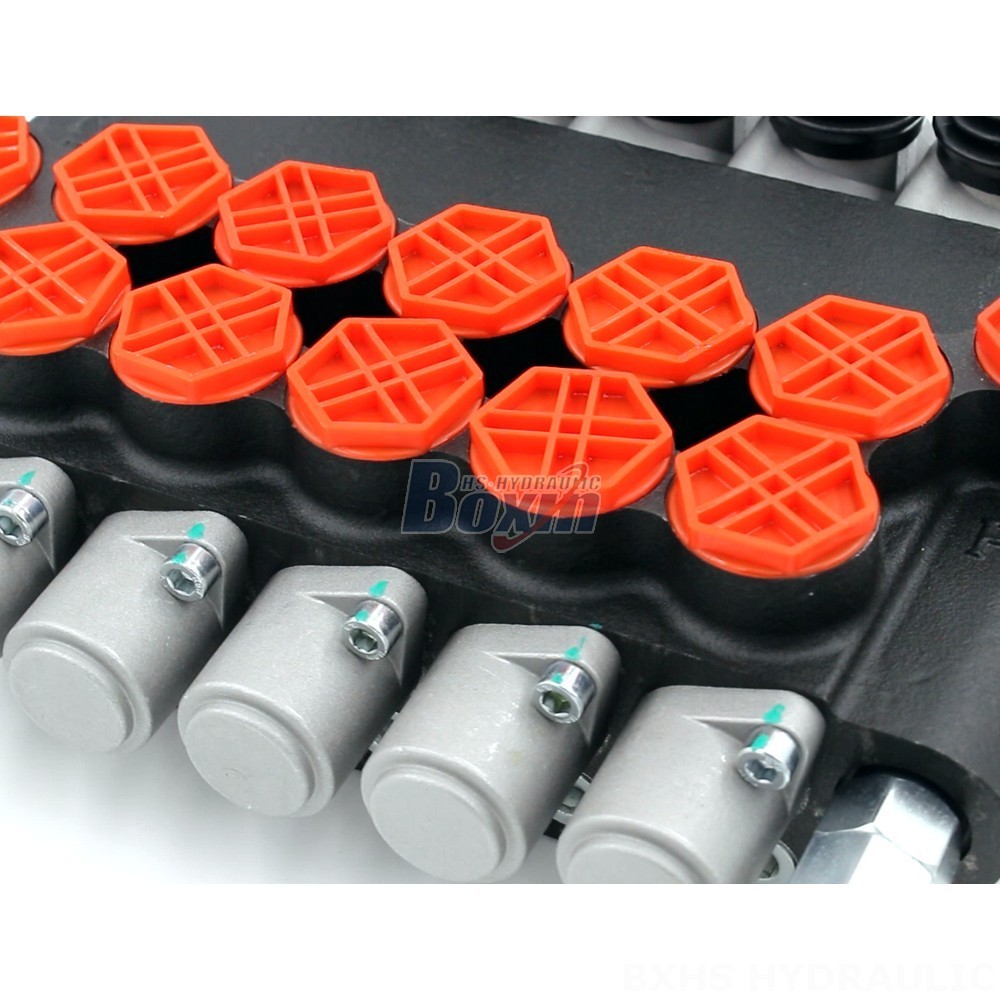

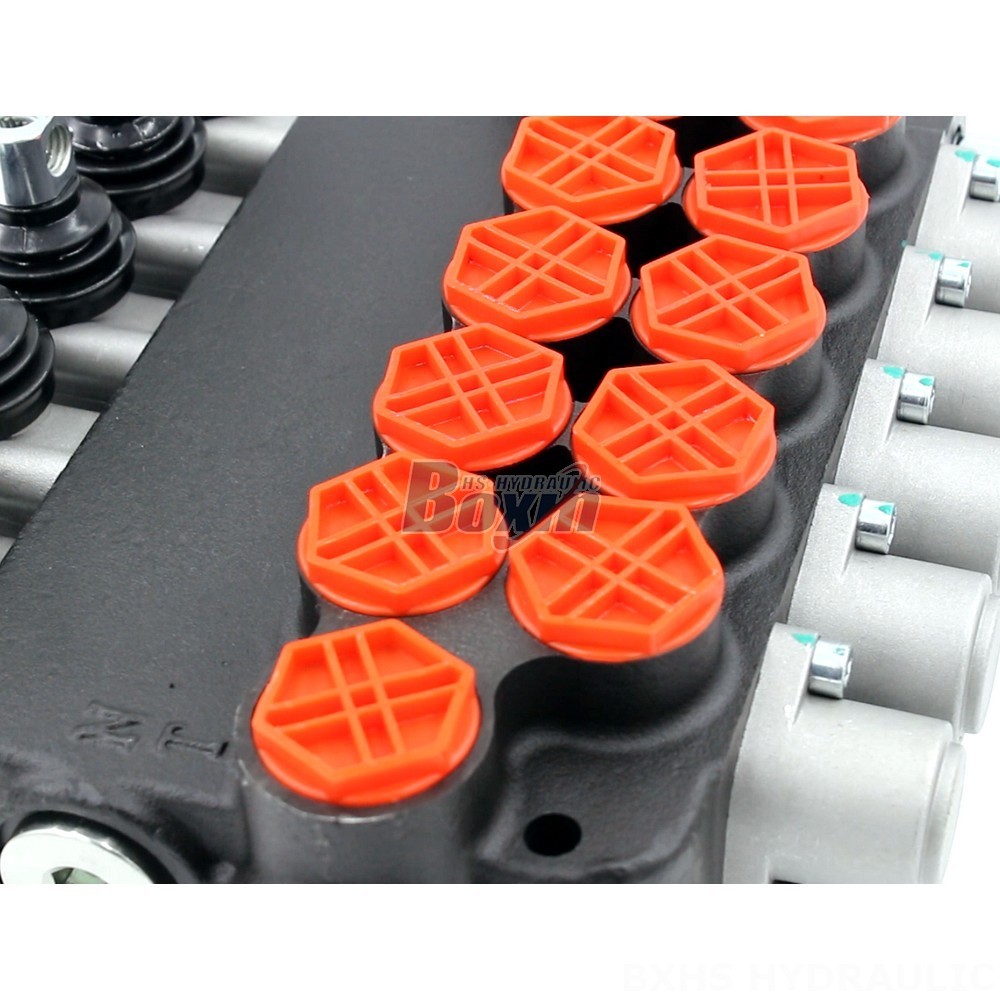

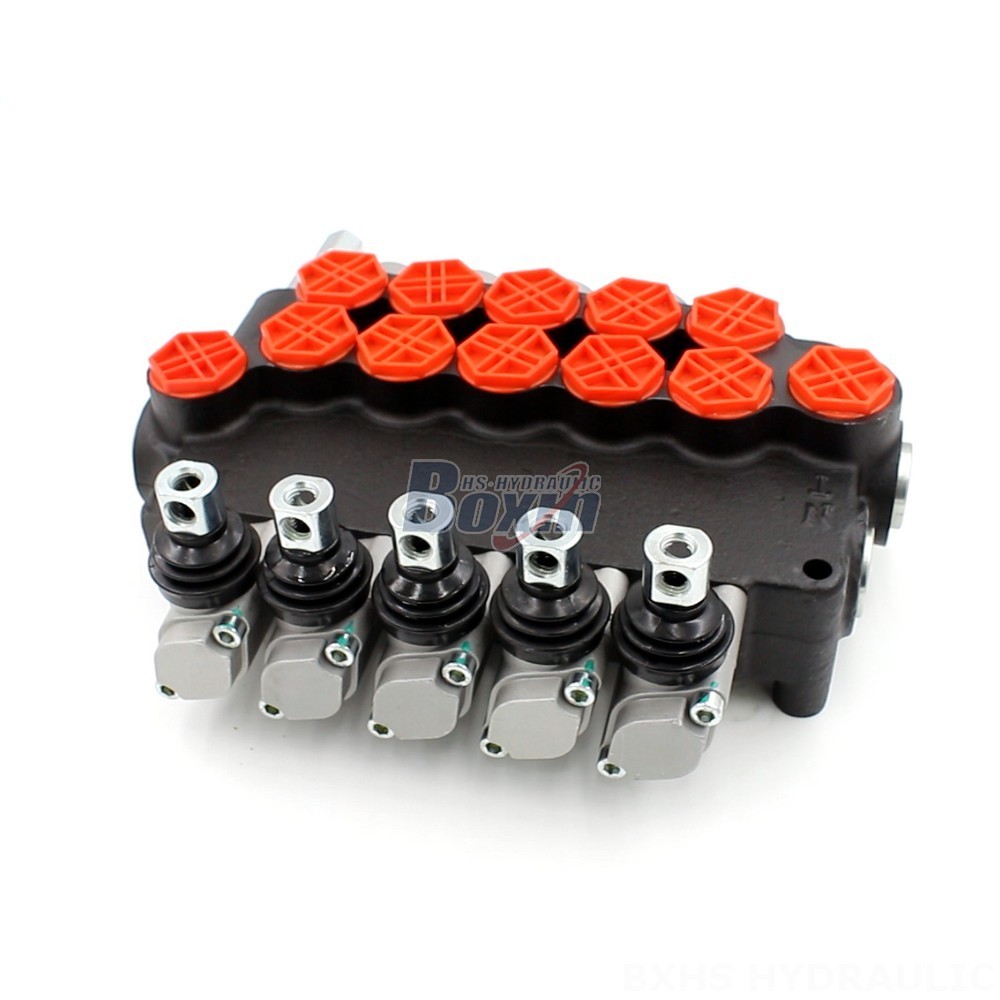

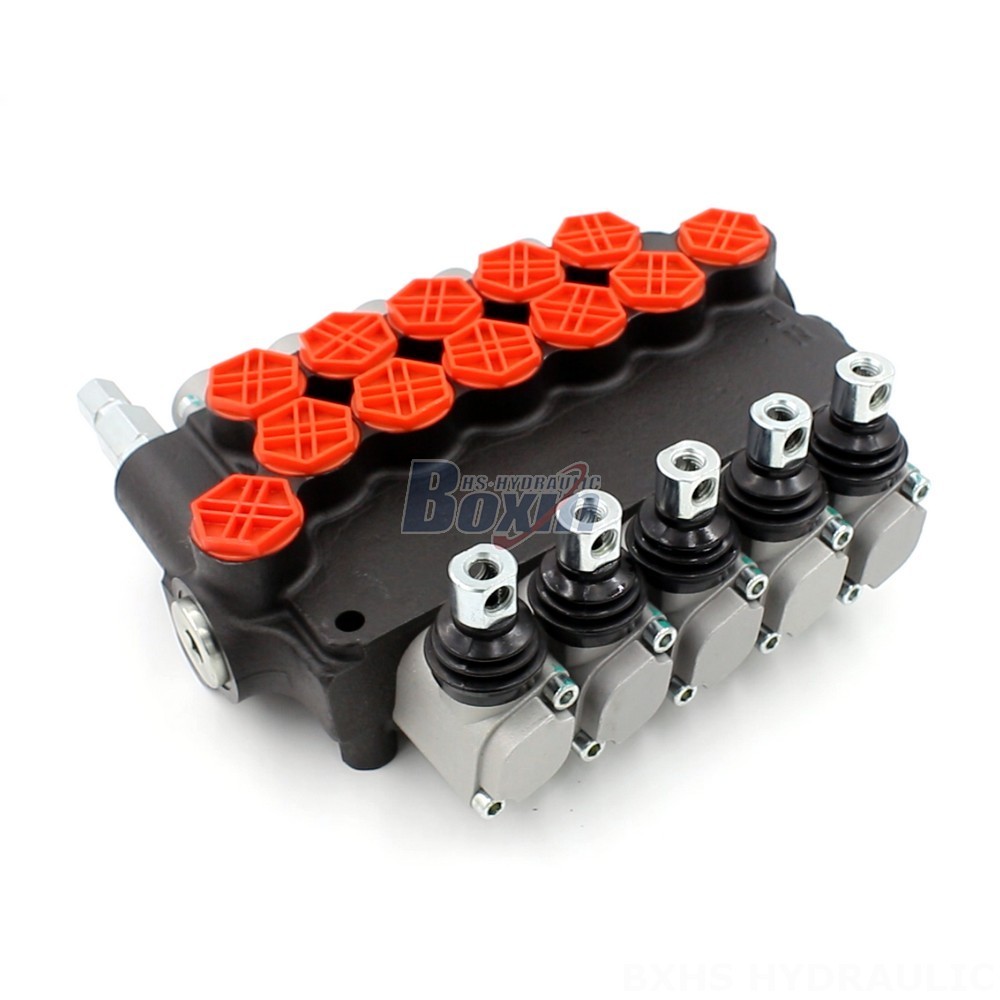

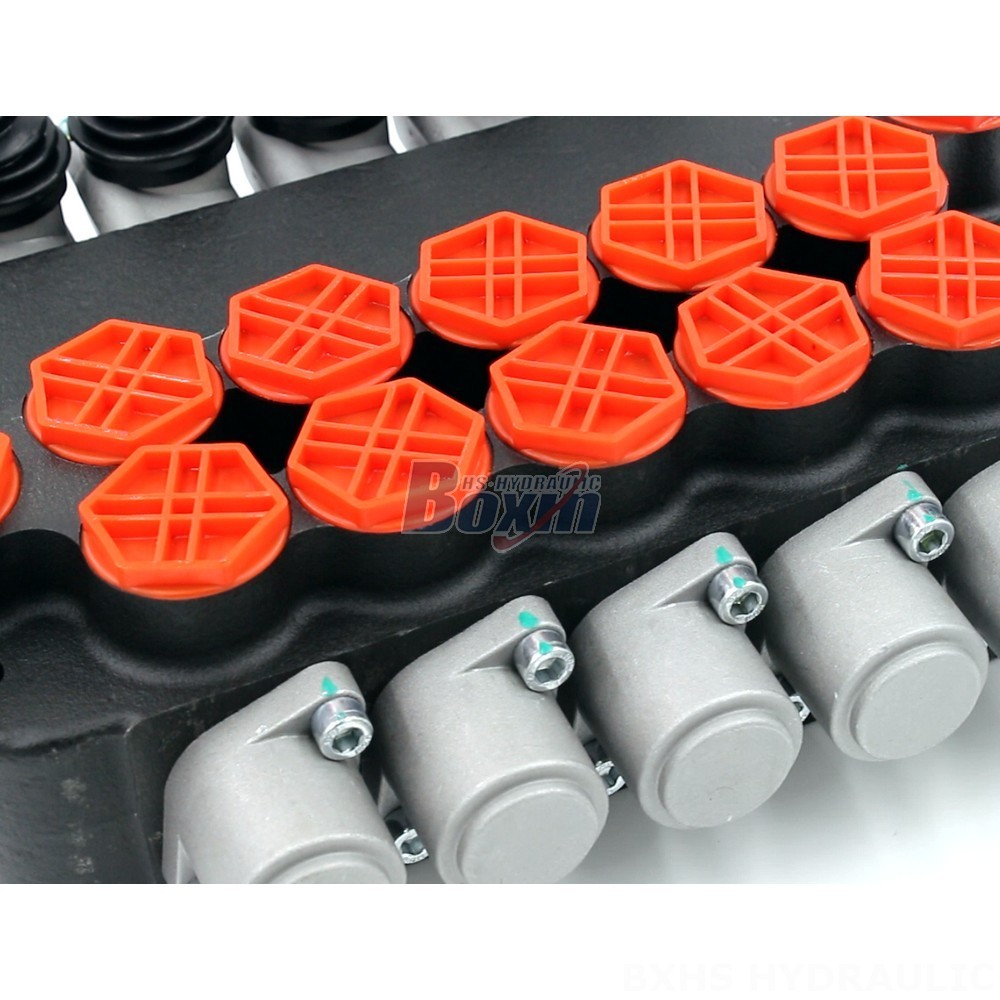

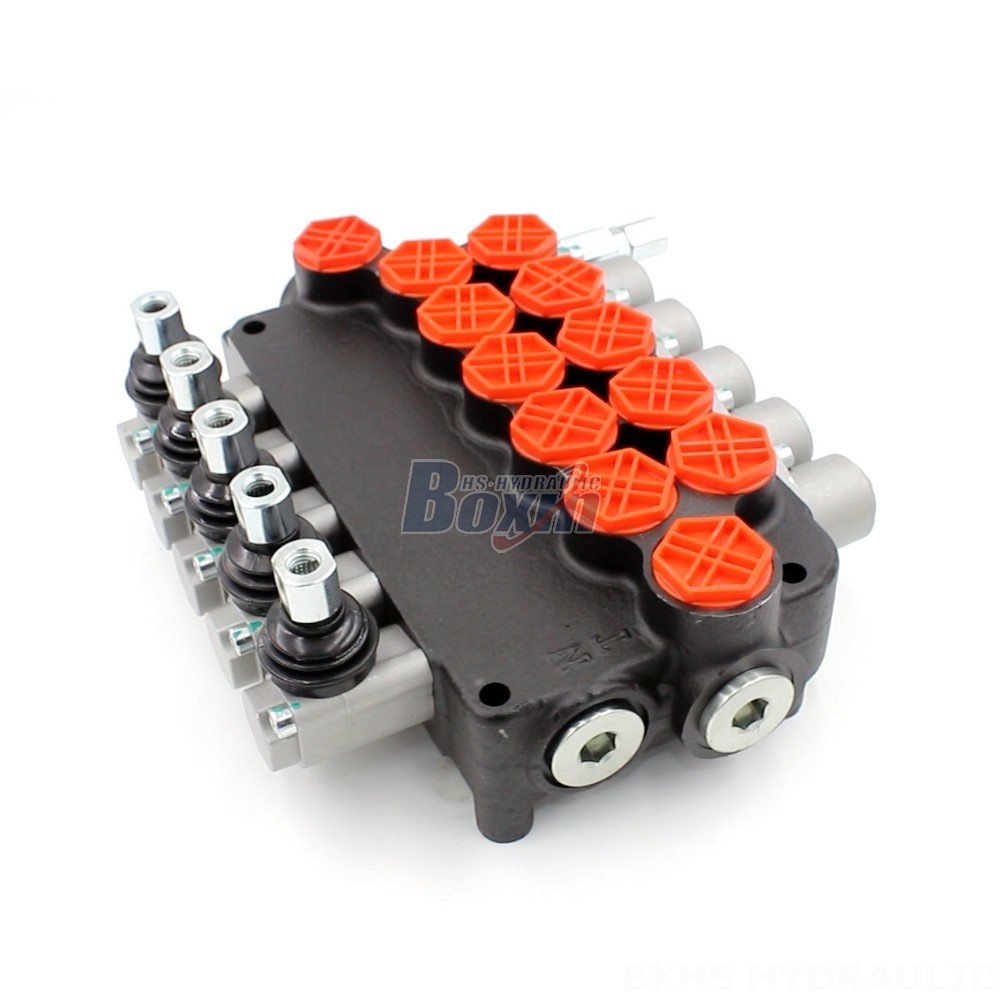

This is a high-quality, 5-spool, electric hydraulic control valve from the P80 series. It is designed for use in various applications, including material handling, construction, agriculture, and industrial vehicles. The valve is manufactured with high-quality materials and processes to ensure durability and reliability.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This 2-Spool Electric Hydraulic Control Valve P80-G34-5OT is a directional valve with a 5-section monoblock structure. It features a manual control method and is rated for a flow of 80 L/min. The valve can withstand a maximum pressure of 250 bar and operates effectively within a viscosity range of 15 to 75 mm²/s. It is suitable for use in various applications, including material handling, construction, agriculture, and industrial vehicles. Our company is a reputable manufacturer and supplier of hydraulic products, offering factory direct and wholesale options. We also provide OEM, ODM, and customized services to meet specific customer requirements. Contact us today to learn more about our products and services.
