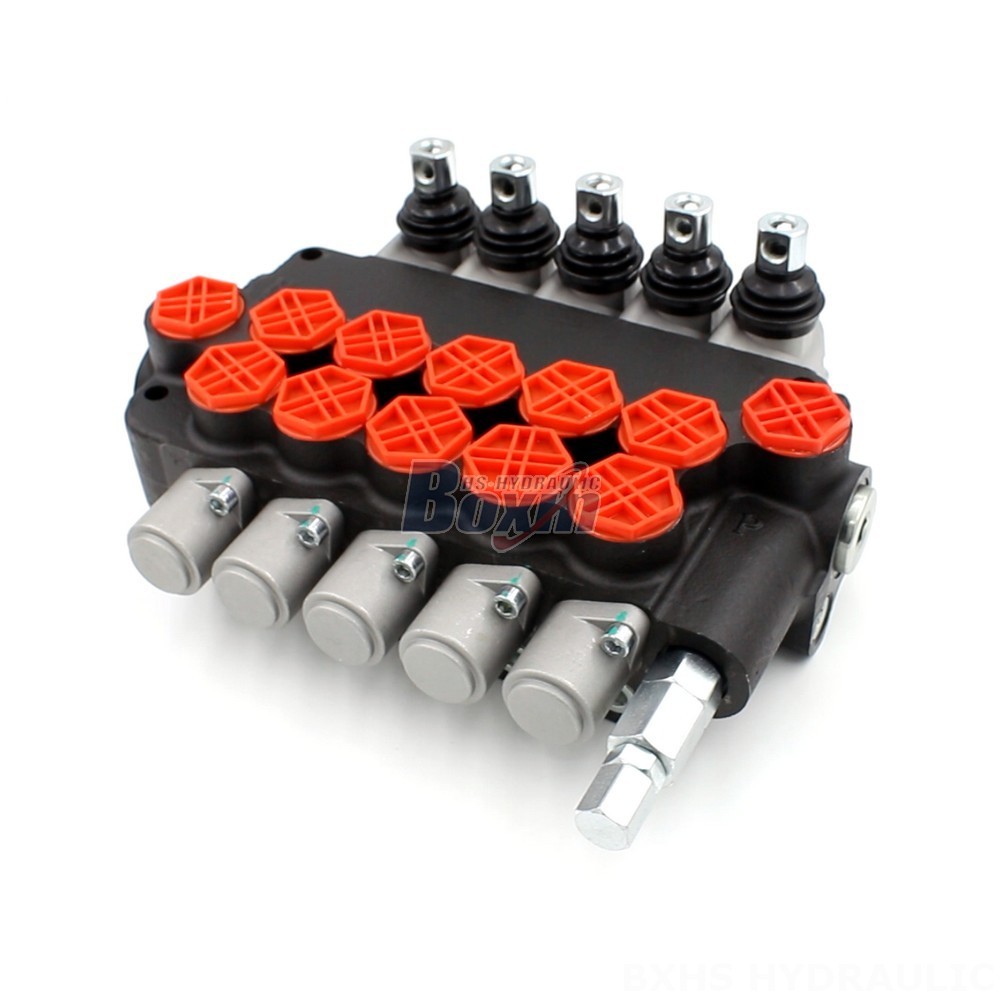

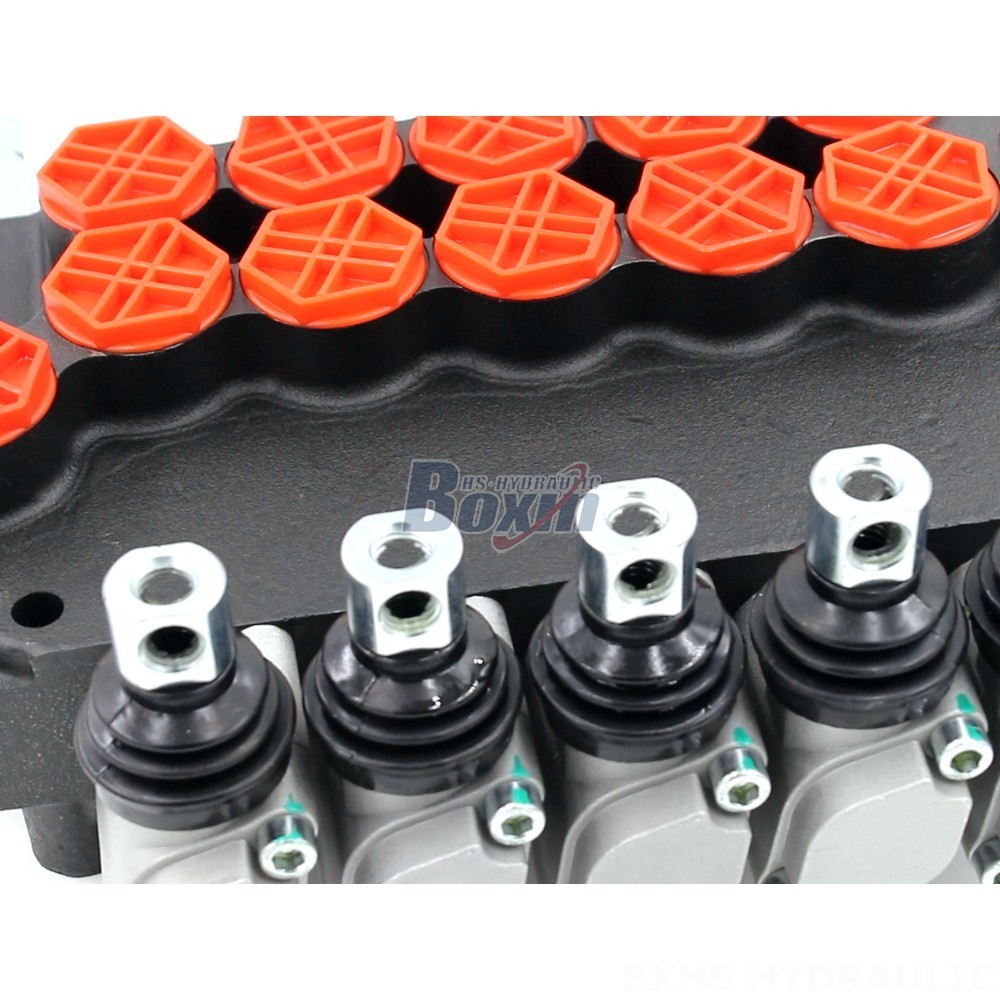

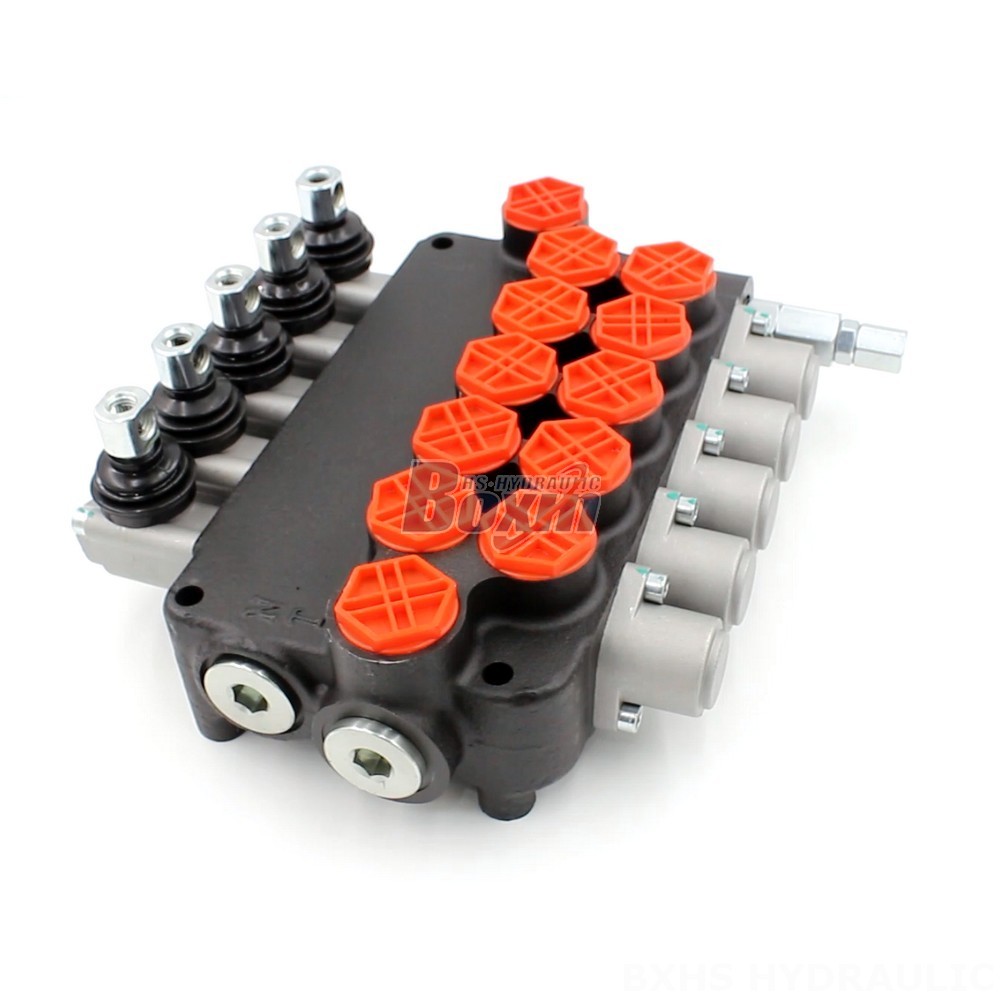

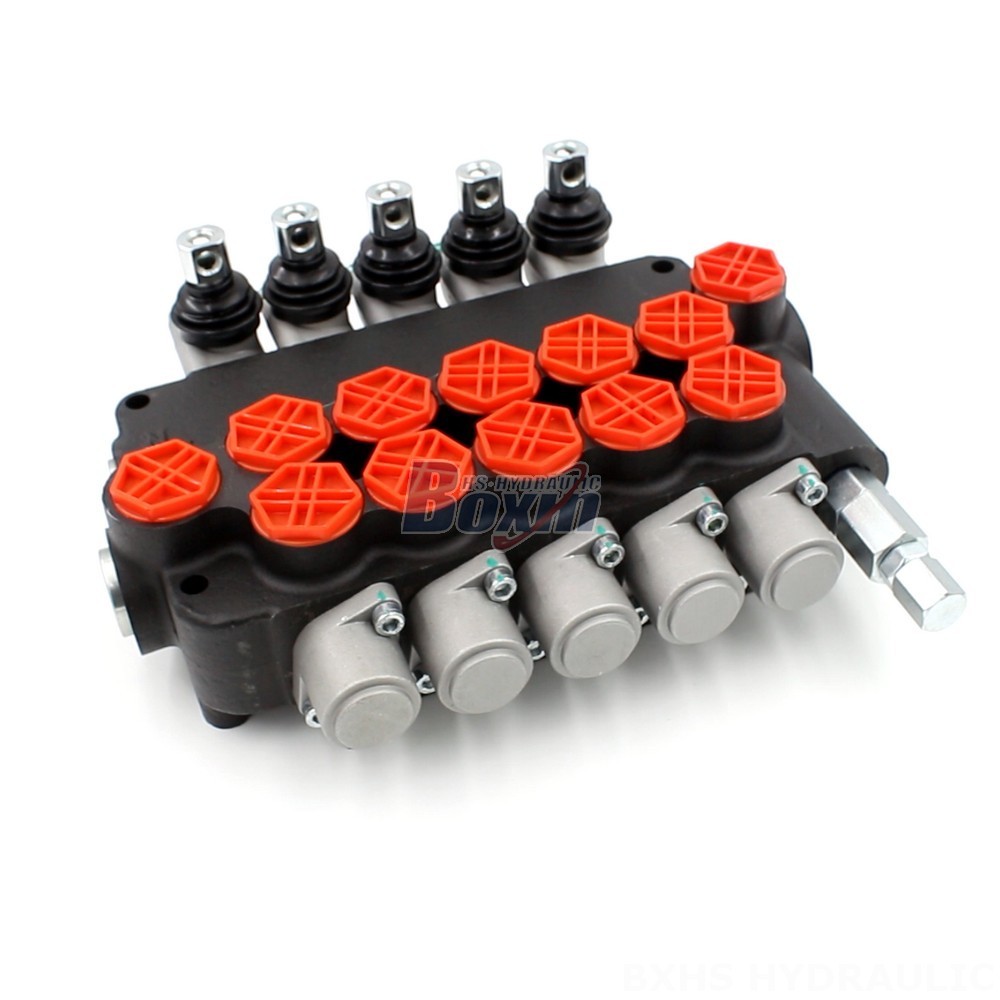

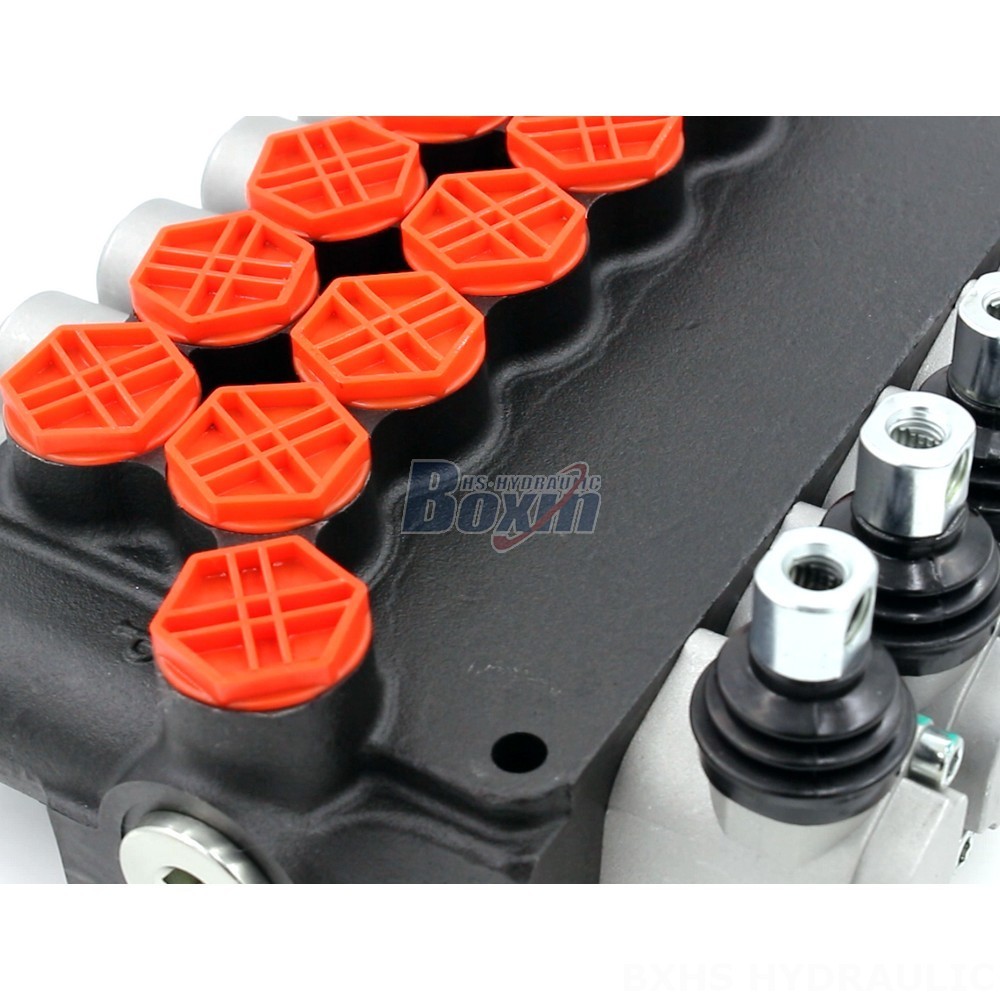

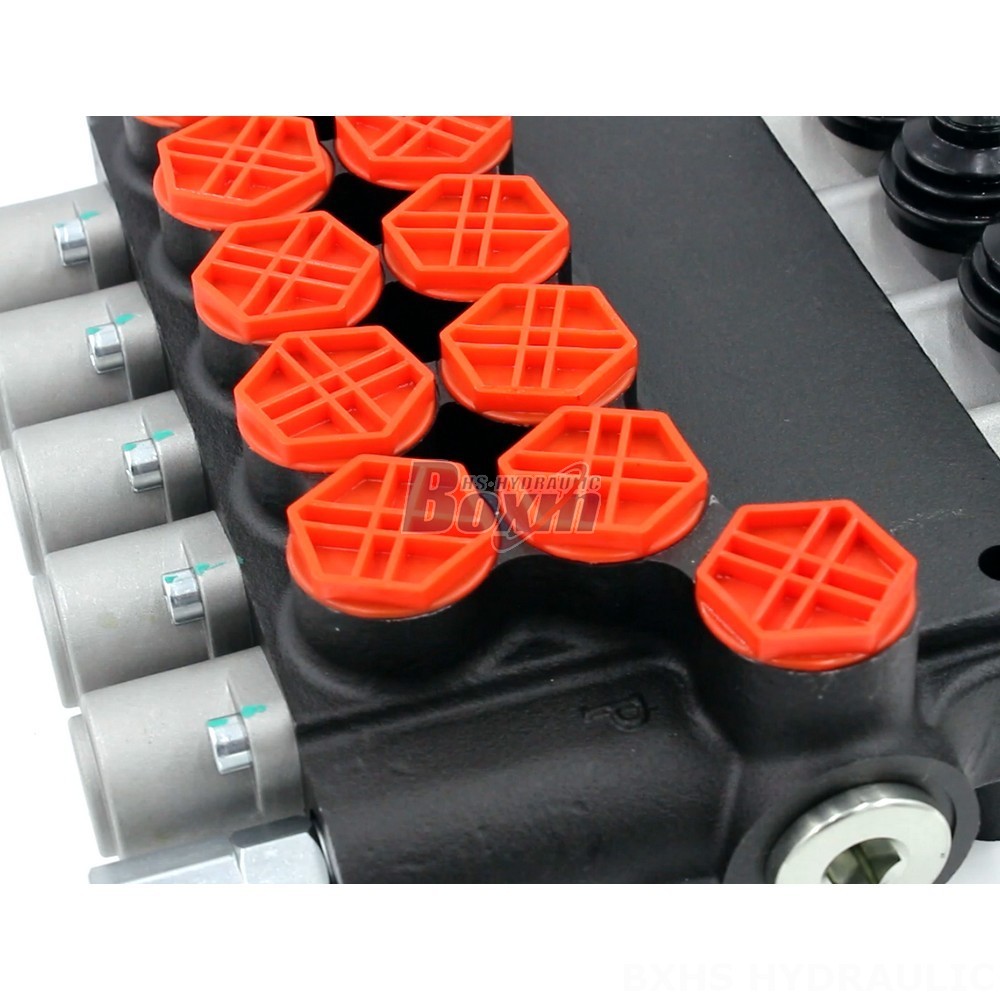

The P80-G34-5OT Manual 5 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of construction and material handling equipment. This 5-section valve offers a rated flow of 80 L/min and a maximum pressure of 250 bar, making it ideal for demanding applications.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G34-5OT is a manual, 5-section monoblock directional valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. It features a 5-spool design and is suitable for a wide range of applications, including telehandlers, forklifts, excavators, loaders, dumpers, cranes, and more. The valve is manufactured in China and is available for global distribution. Contact us for more information on this reliable and durable hydraulic valve.
