The P80-G34 6-Spool Hydraulic Directional Valve is a precision-engineered hydraulic valve designed for demanding applications in various industries. It features a robust monoblock construction, manual control, and a high flow rate of up to 80 L/min. The valve can withstand pressures up to 250 bar and operates within a wide viscosity range. Its versatility makes it suitable for material handling, construction, agriculture, and industrial vehicles.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

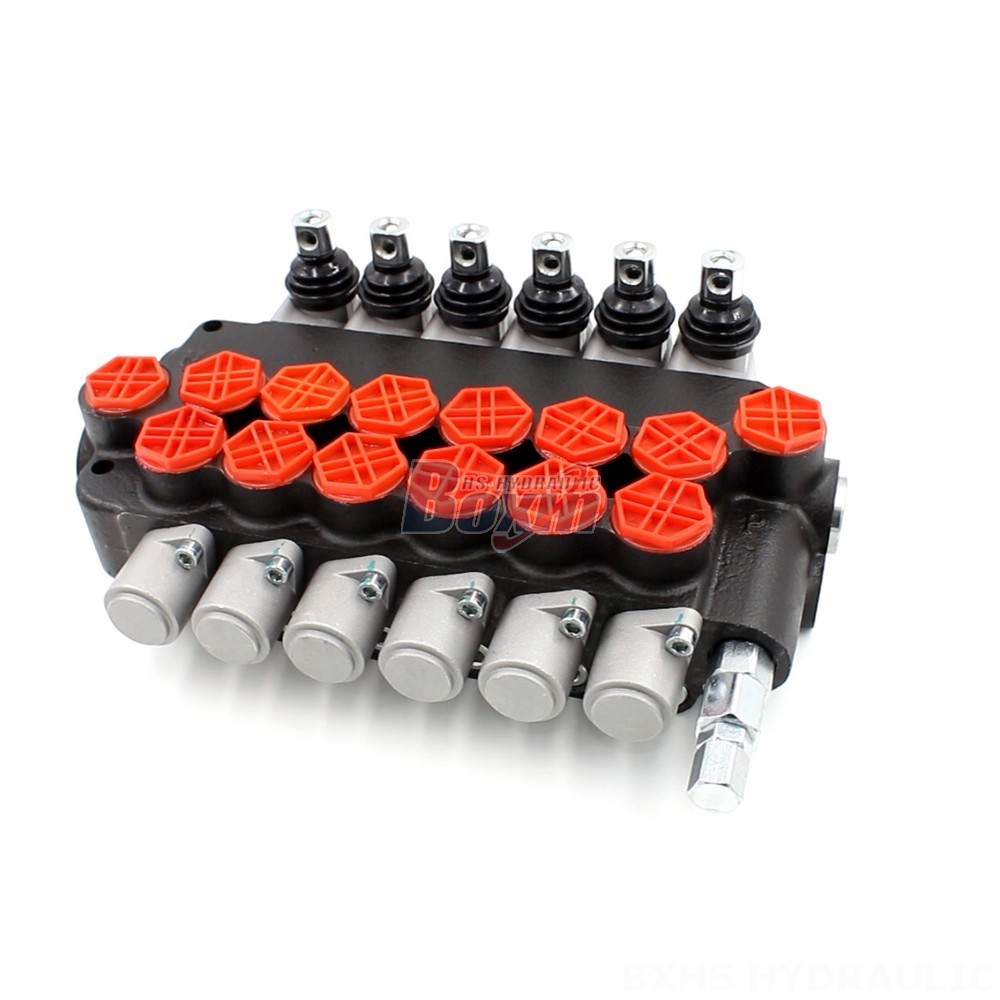

**P80-G34 6-Spool Hydraulic Directional Valve**
**Key Features:**
* Monoblock construction for durability and compactness
* Manual control for precise operation
* High flow rate of up to 80 L/min (21.2 US gpm)
* Max pressure of 250 bar (3600 psi)
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F)
* 6 spool design for versatile flow control
**Applications:**
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders
This Hydraulic Directional Valve is an essential component for hydraulic systems in a wide range of industries, offering precise flow control, reliability, and performance.
