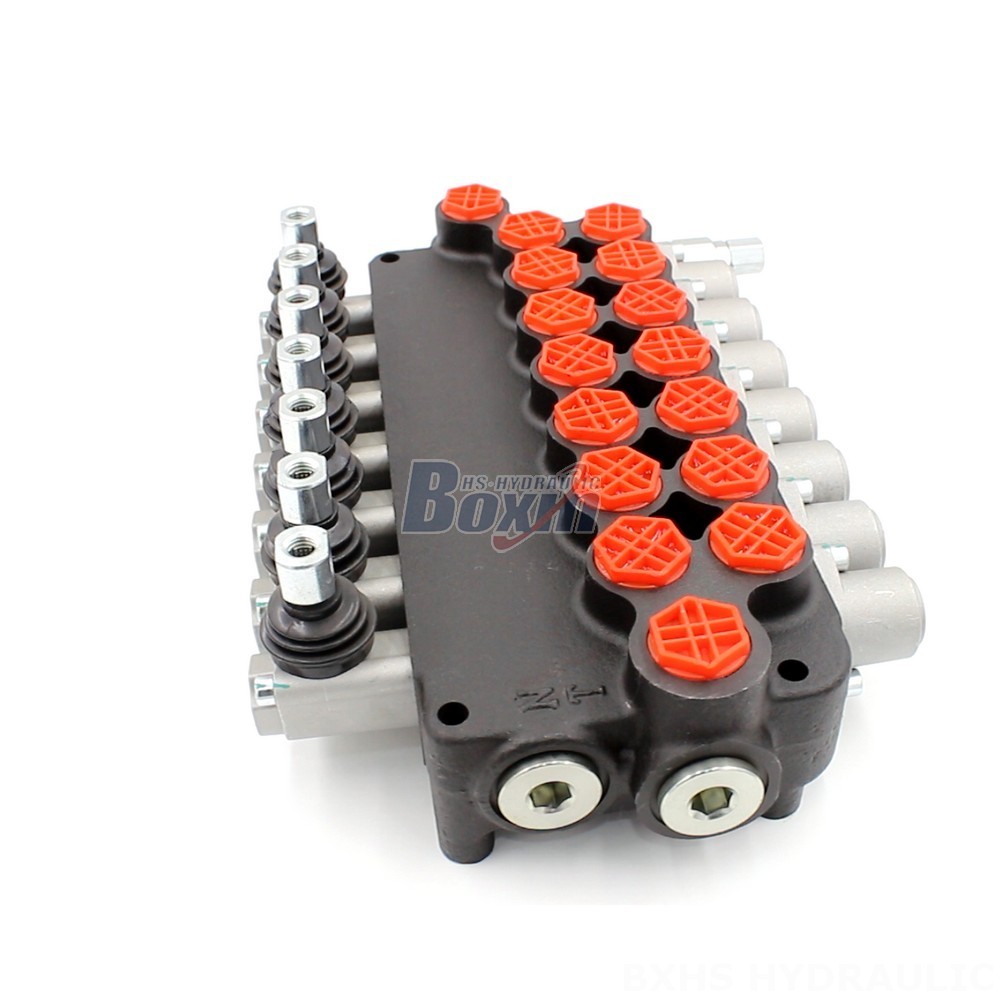

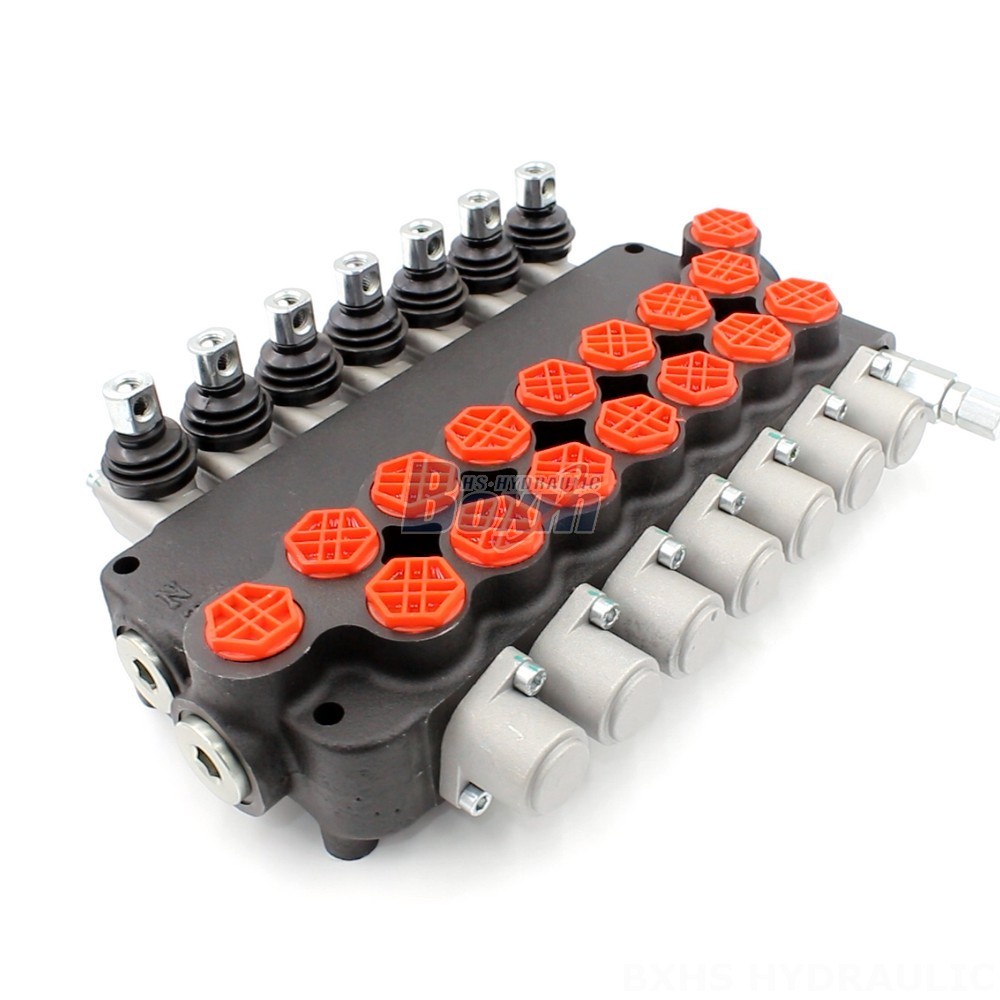

P80-G34-7OT 7-Spool Hydraulic Directional Valve is a high-performance valve designed for demanding applications in various industries. It features a monoblock construction, manual control, and a rated flow of 80 L/min at a maximum pressure of 250 bar.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G34-7OT 7-Spool Hydraulic Directional Valve offers precise control over hydraulic systems in industrial, construction, agricultural, and material handling applications. Its compact design and robust construction ensure durability and reliability in harsh operating conditions. Key features include:
* Manual control for direct and responsive operation
* Monoblock construction for increased strength and reduced leakage
* 80 L/min rated flow to handle high hydraulic flow demands
* 250 bar maximum pressure for demanding applications
* Versatile 7-spool design to accommodate diverse system requirements
* Wide operating temperature range of -40°C to +80°C for use in extreme environments
* Compatibility with various hydraulic systems in telehandlers, forklifts, cranes, stackers, aerial platforms, and other industrial vehicles.
