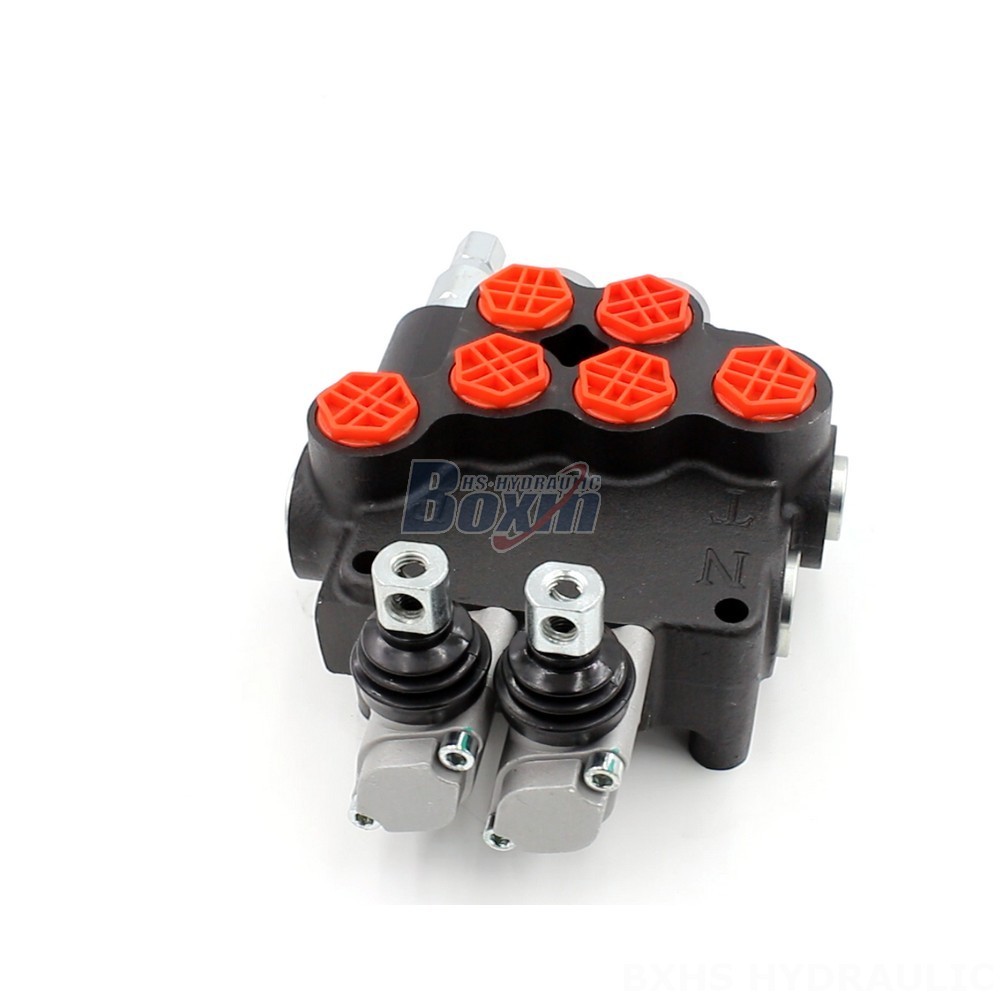

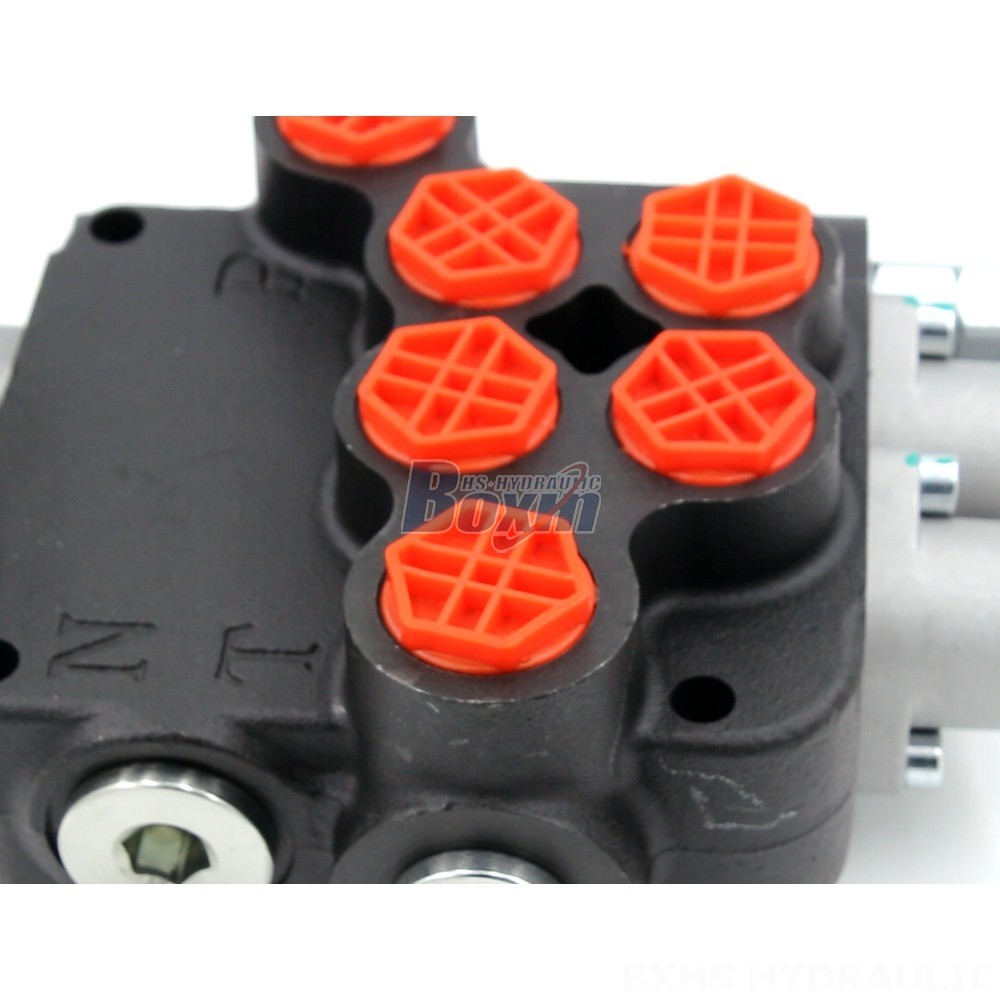

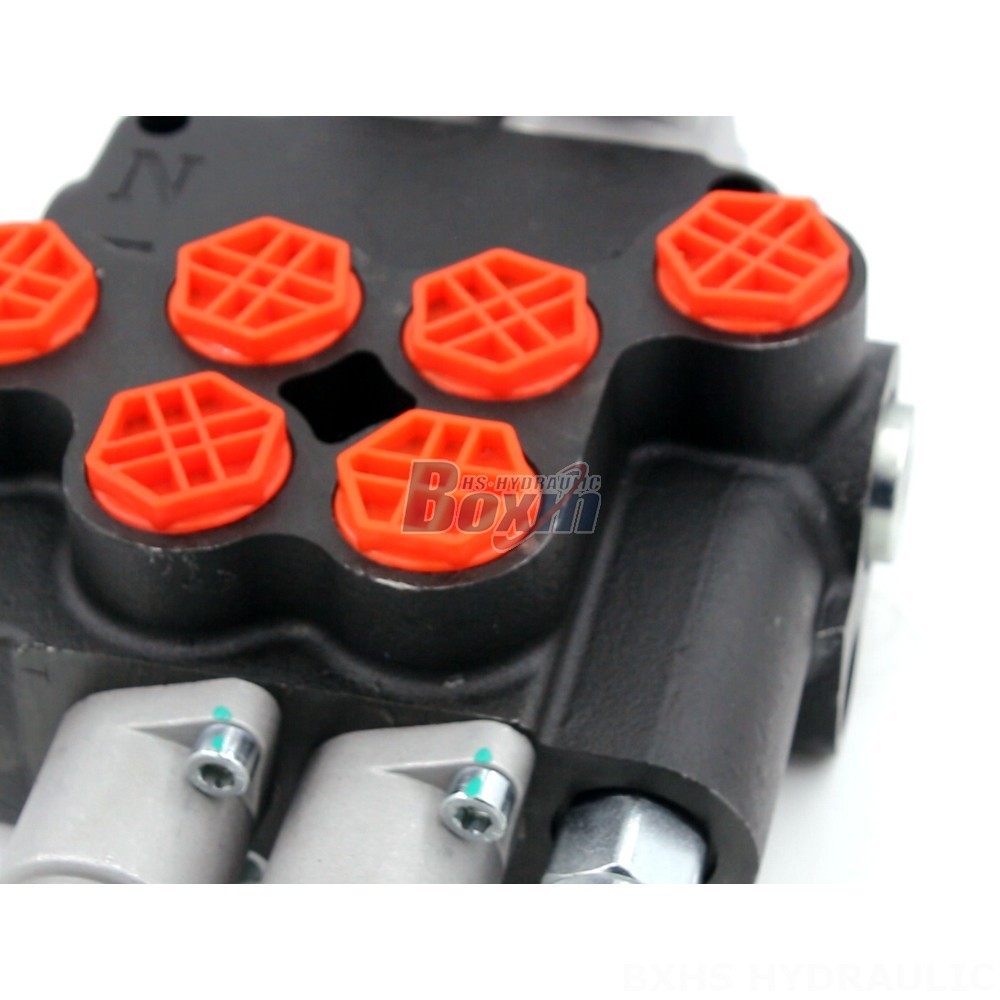

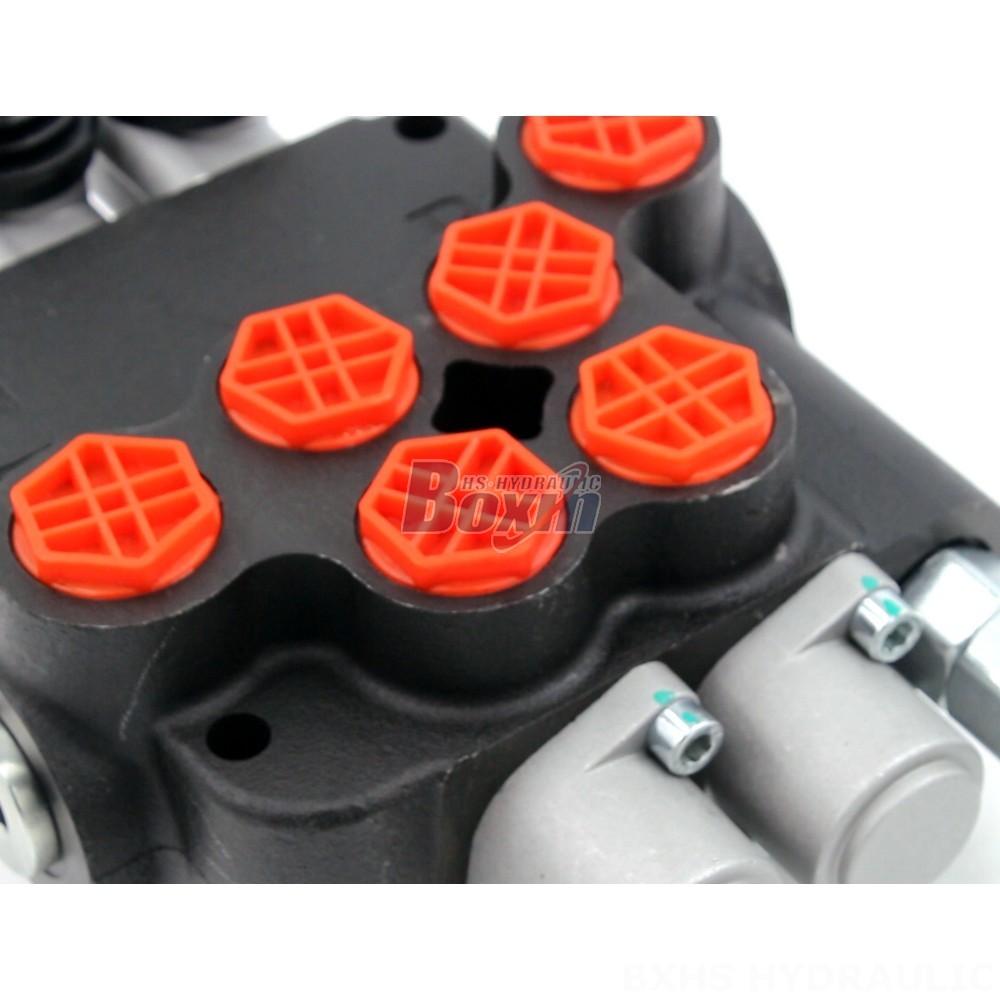

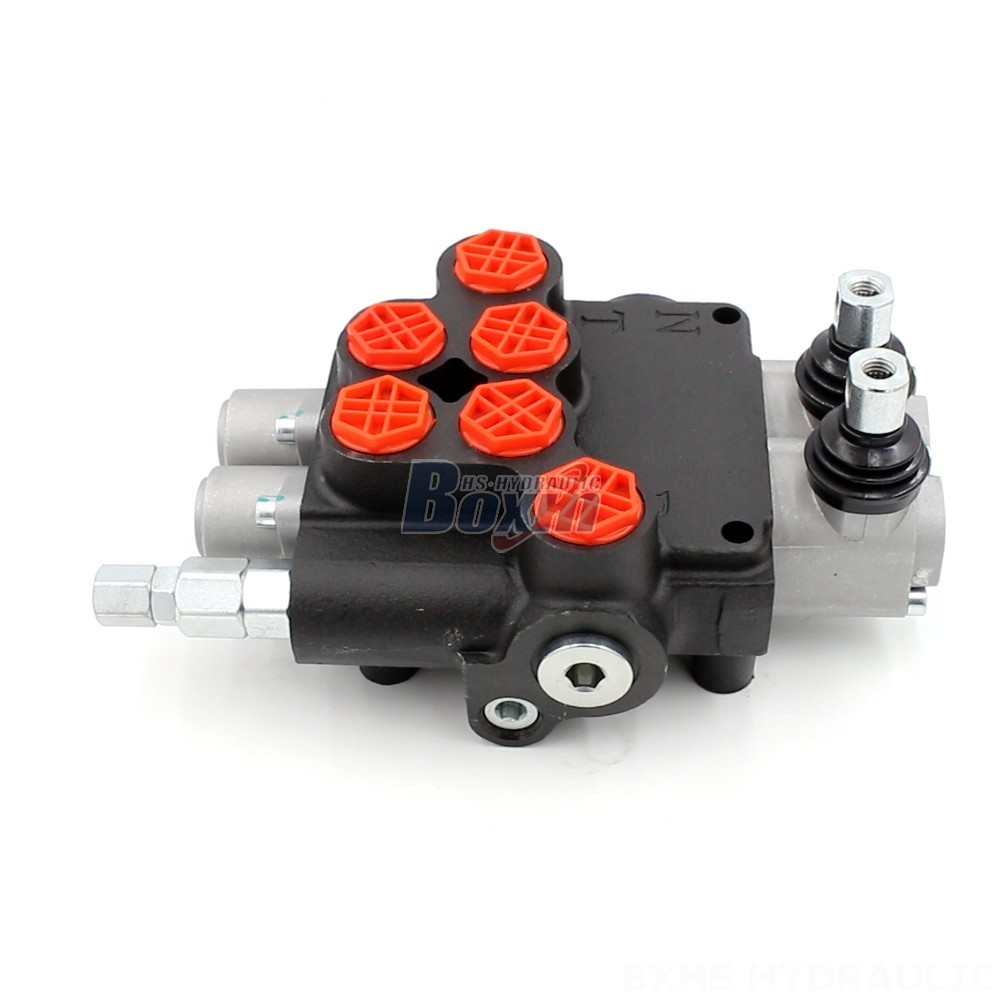

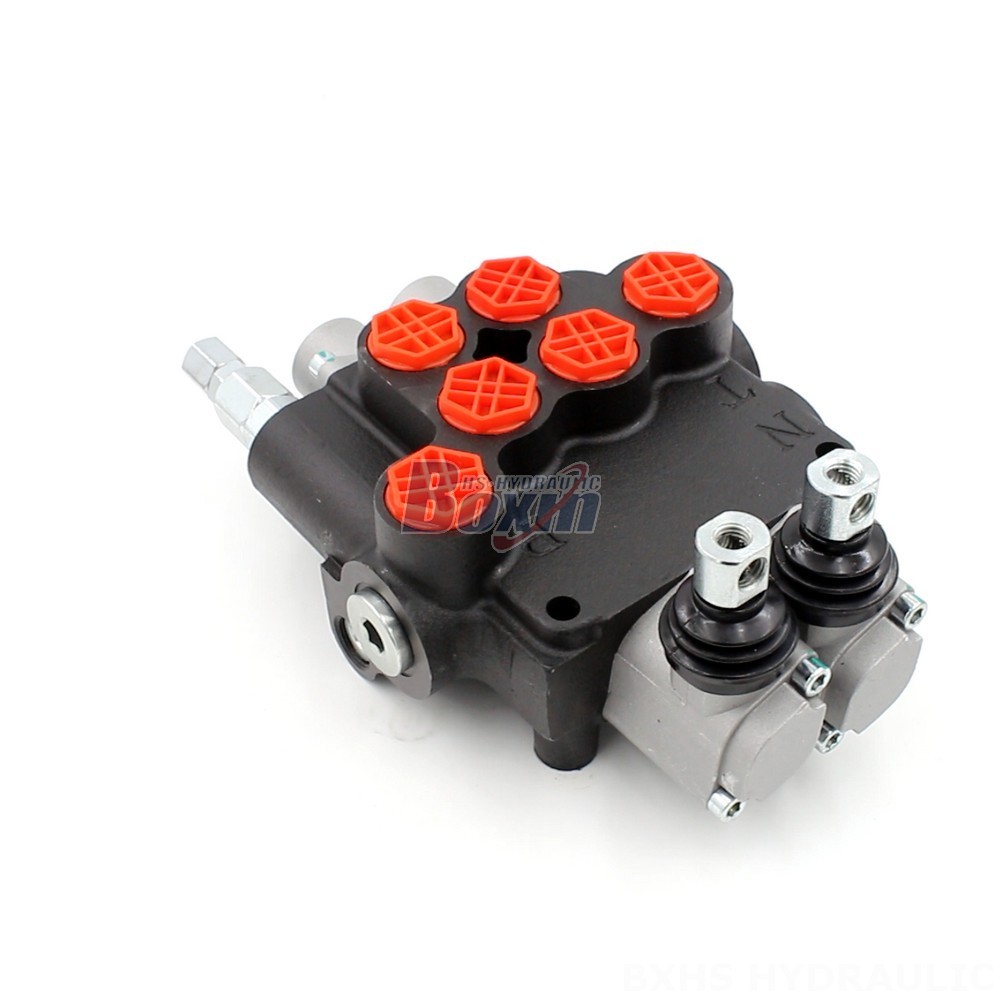

Introducing our P80-G34-G12 2-Spool Hydraulic Directional Valve, a robust and reliable solution for a wide range of industrial applications. Manufactured with precision, this valve offers exceptional performance and durability, ensuring efficient and precise fluid control.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
* Manual Control for precise and responsive operation
* Monoblock Valve construction for compact and leak-proof performance
* Rated Flow of 80 L/min (21.2 US gpm) for high-volume flow applications
* Max Pressure of 250 bar (3600 psi) for demanding pressure requirements
* Operating Viscosity Range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluid types
* Ambient Temperature Range of -40°C to +80°C (-40°F to +176°F) for reliable operation in harsh environments
**Applications:**
Our P80-G34-G12 2-Spool Hydraulic Directional Valve finds application in diverse industries including:
* Material Handling: Telehandlers, Forklifts
* Construction and Earth Moving: All Terrain Cranes, Stackers
* Agriculture: Aerial Platforms, Motor Graders
* Industrial Vehicles: Midi-Excavators, Mini-Excavators, Skid Steer Loaders, Compact Wheel Loaders
As a factory direct supplier, we offer customization options to meet your specific requirements. Contact us for tailored solutions and exceptional support.
