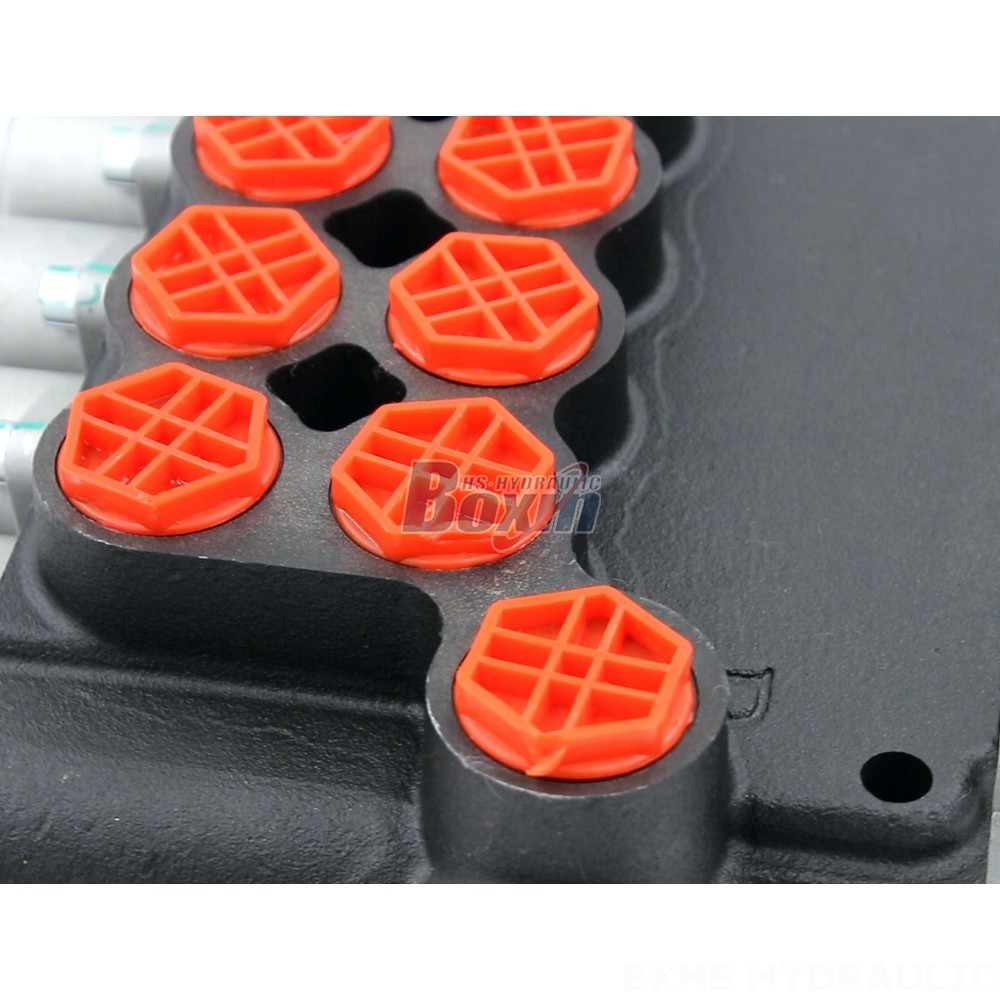

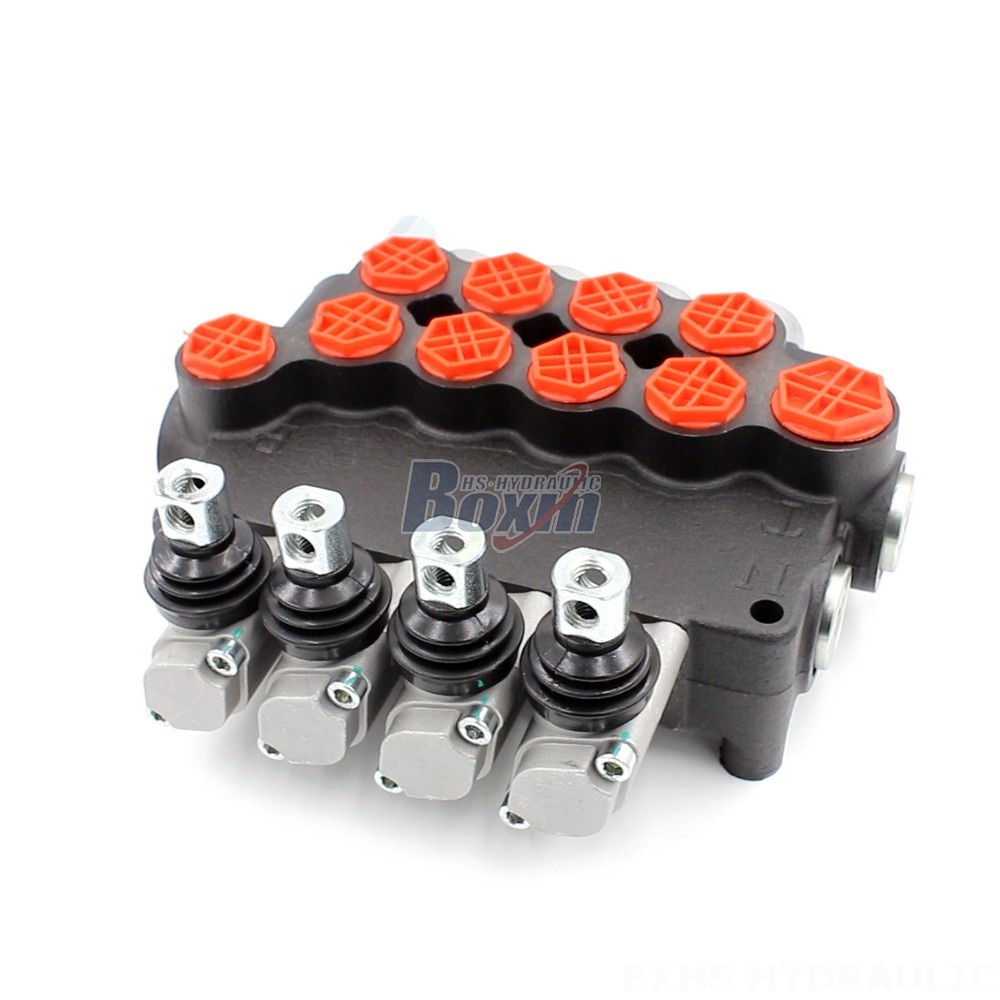

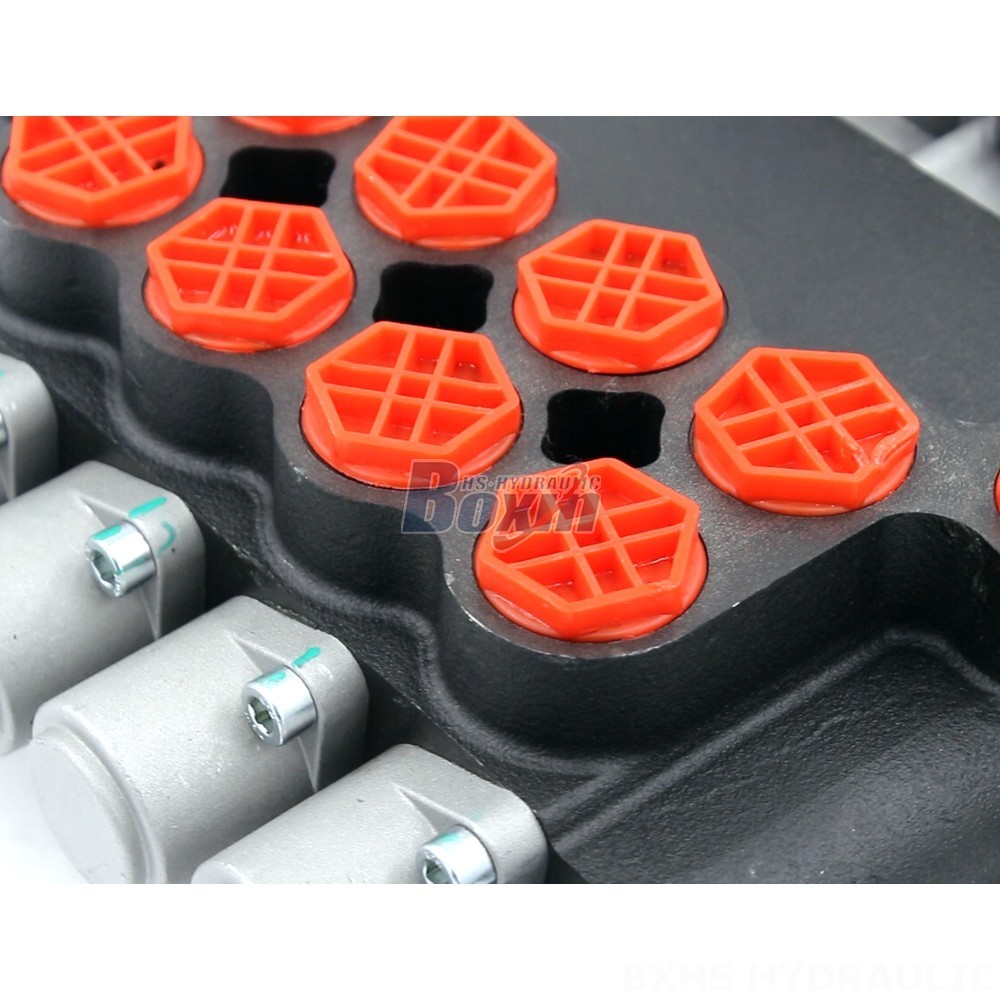

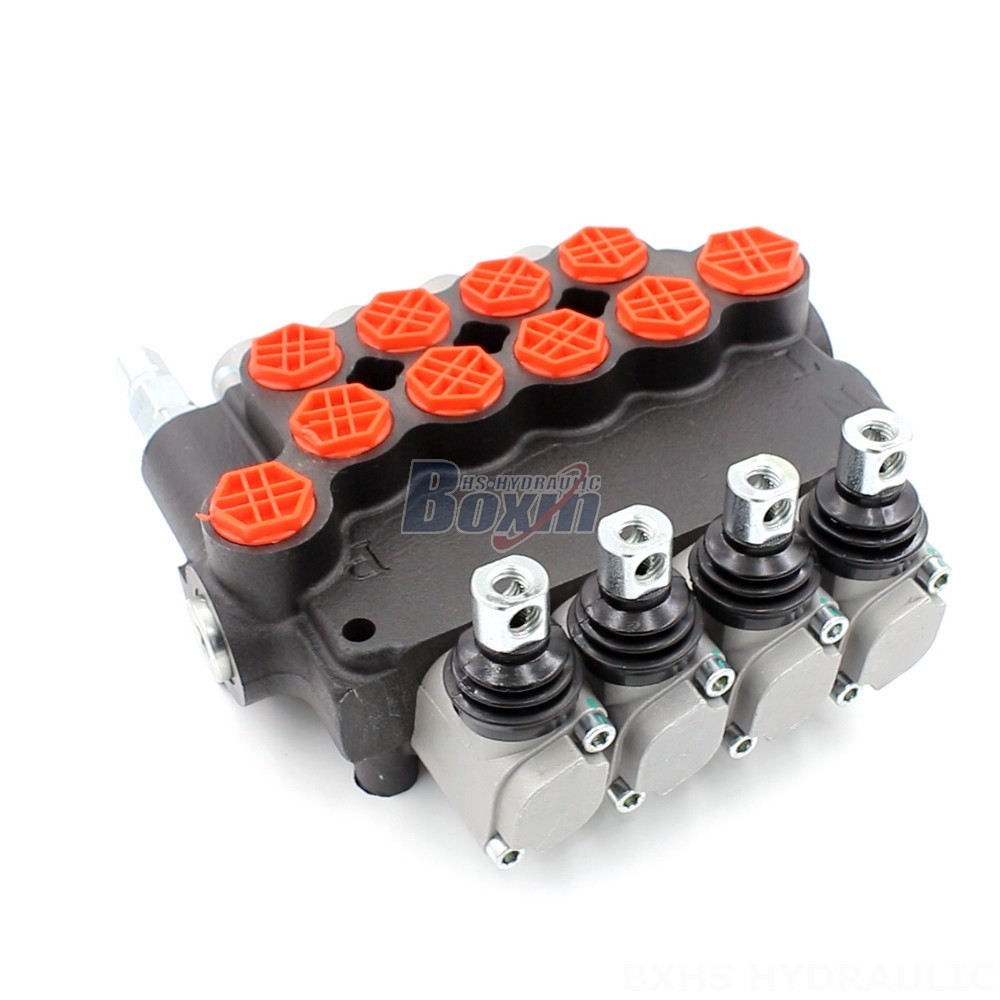

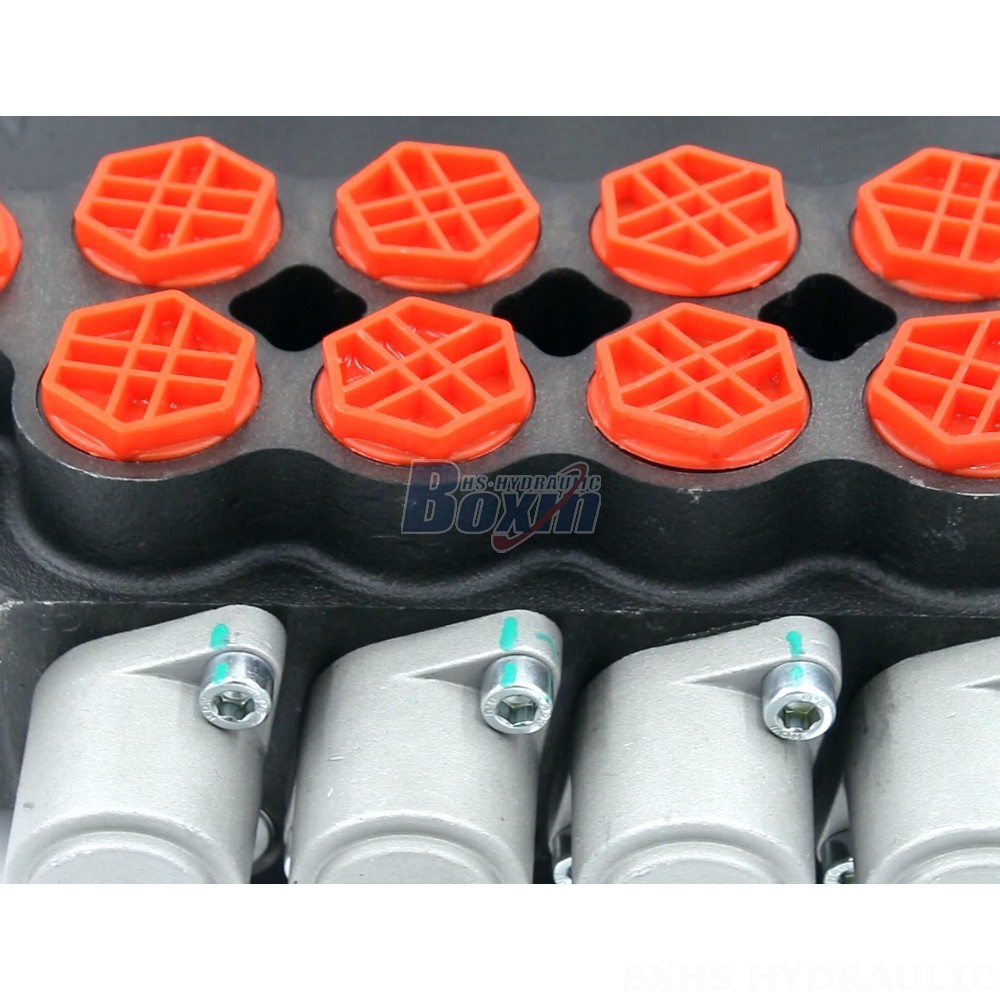

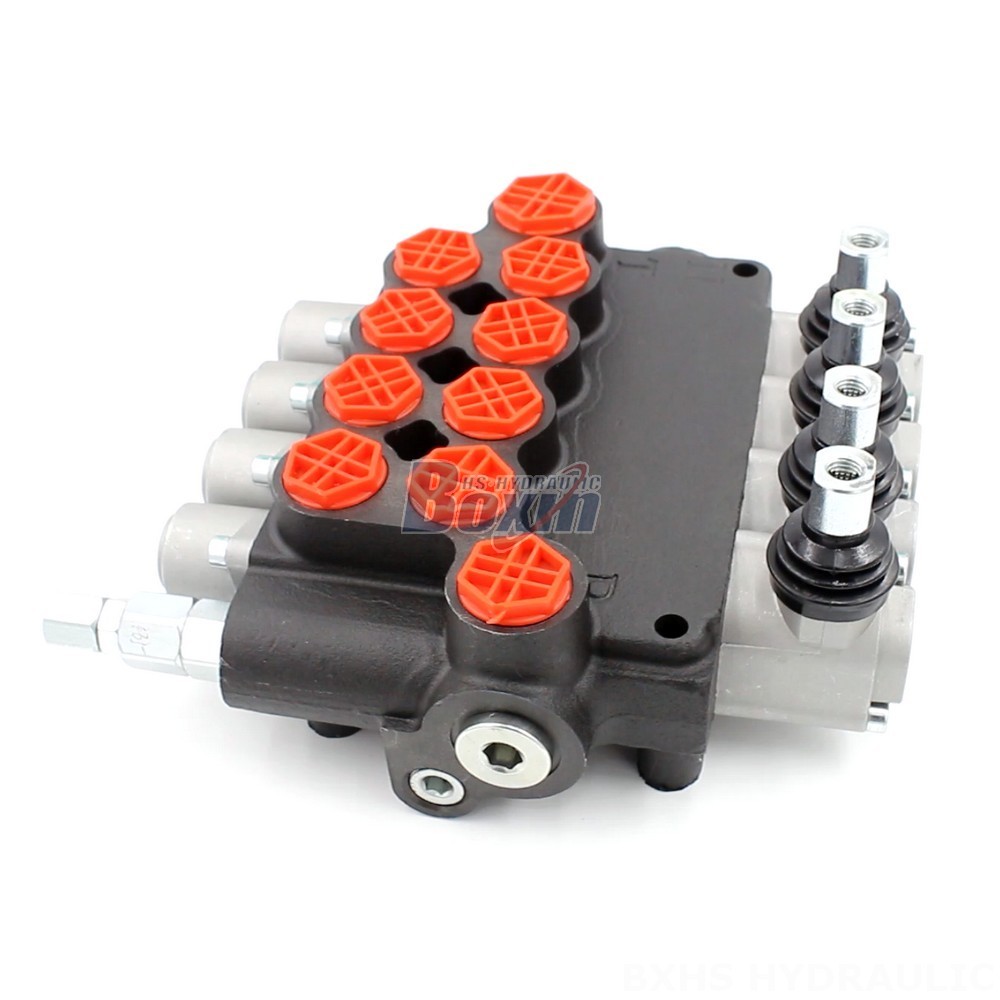

P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve

Metode Kontrol:Buku Panduan

Spul:4 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G3/4

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:26*27*11

Kelas kotor:13.40 kg

Ketersediaan: Tersedia

1339 Pandangan Mencari Produk Ini

P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve

P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve

P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve drawing image

The P80-G34-G12-4OT is a 4-section, manual control, 3-way, monoblock hydraulic directional valve with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). It is designed for heavy duty applications in material handling, construction, earth moving, agriculture, and industrial vehicles.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This high-performance hydraulic valve is ideal for controlling various hydraulic functions in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. Its 4-spool design allows for precise control of multiple hydraulic functions. The monoblock construction provides durability and reliability. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is capable of handling high-pressure, high-flow hydraulic systems. The manual control method allows for easy operation and adjustment. The P80-G34-G12-4OT is a robust and reliable hydraulic valve that meets the demanding requirements of a wide range of applications.
