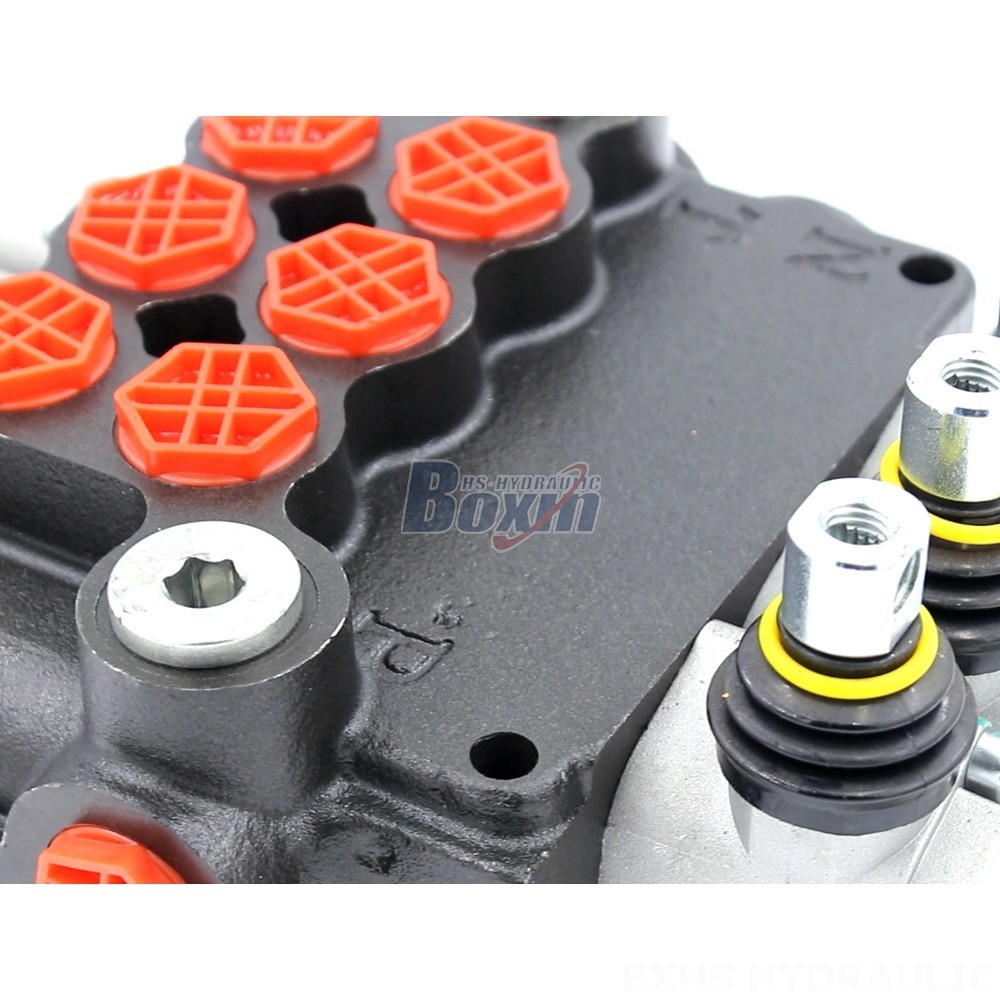

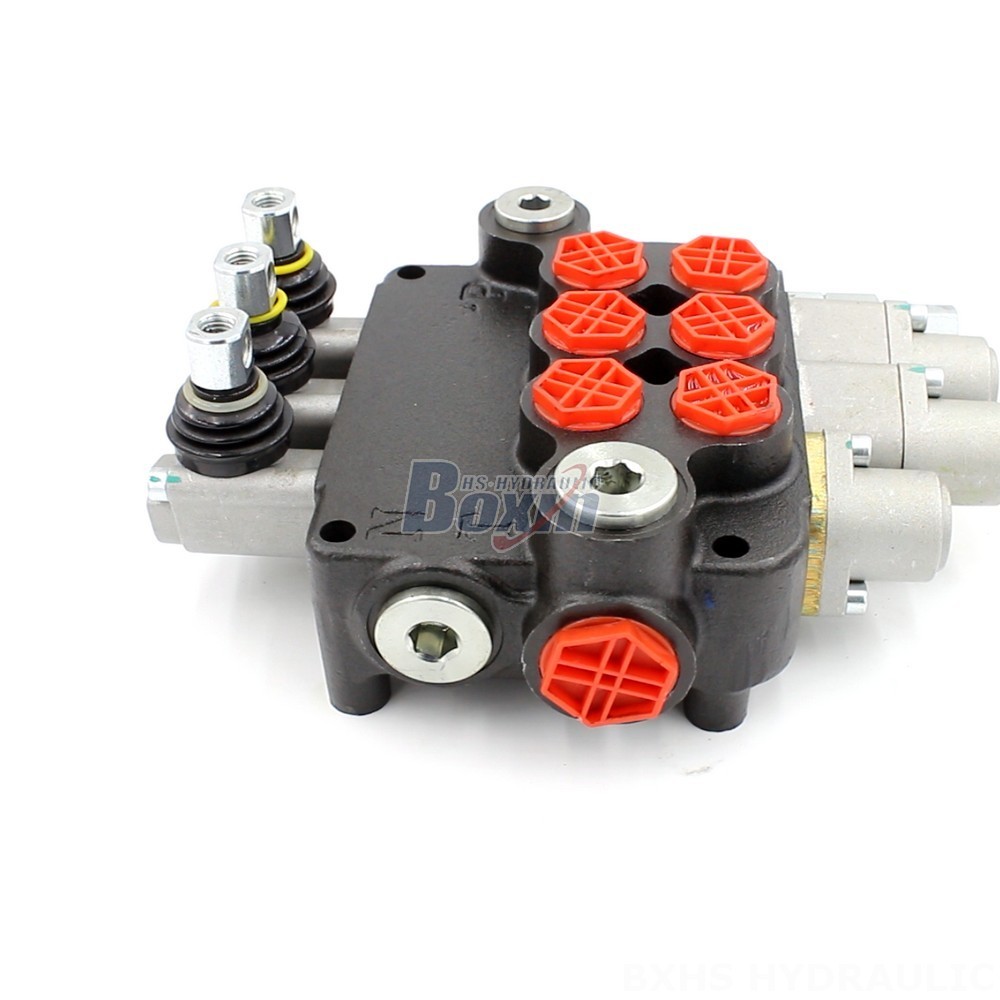

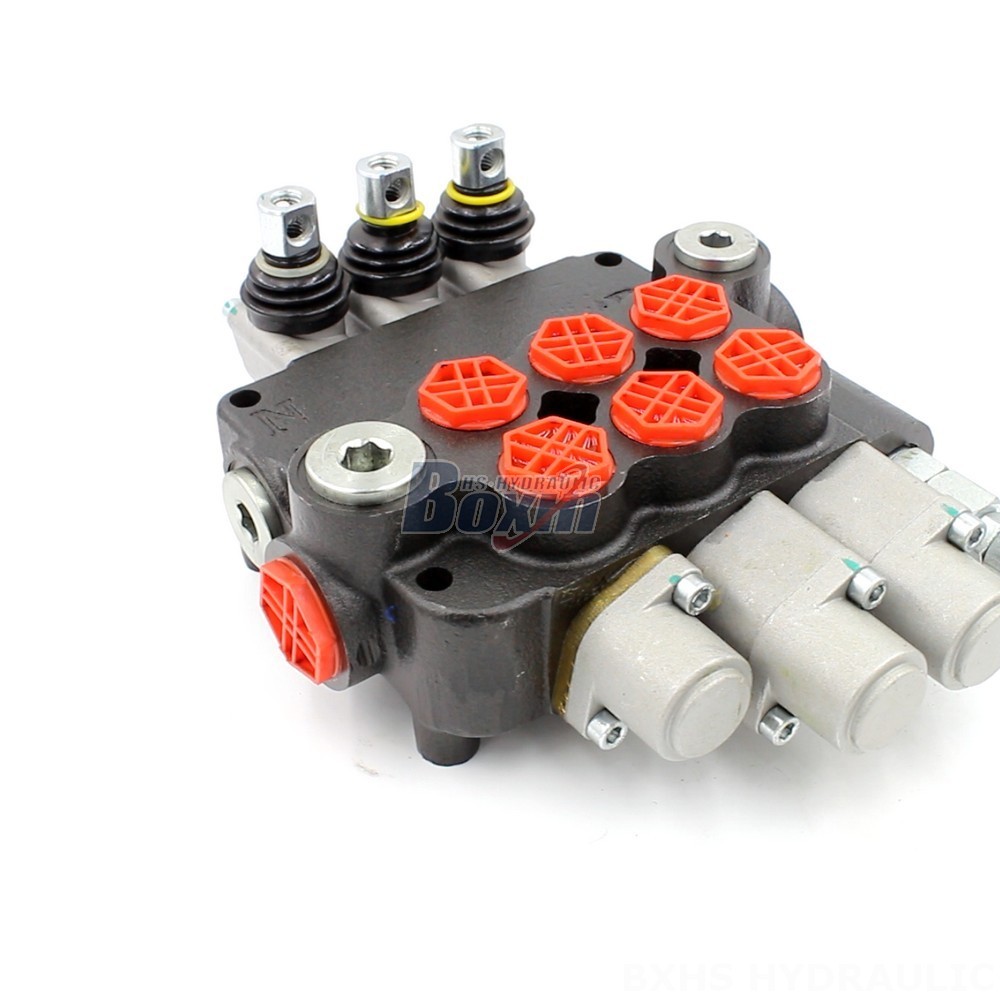

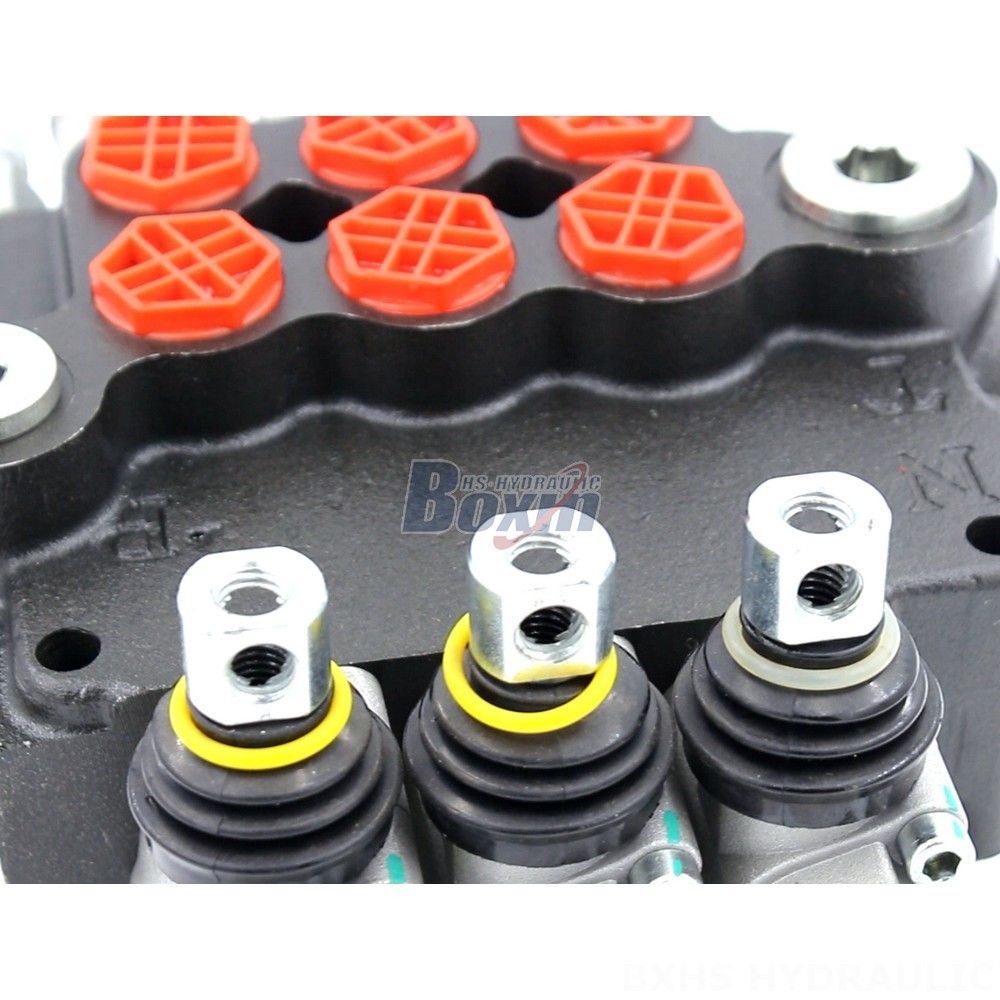

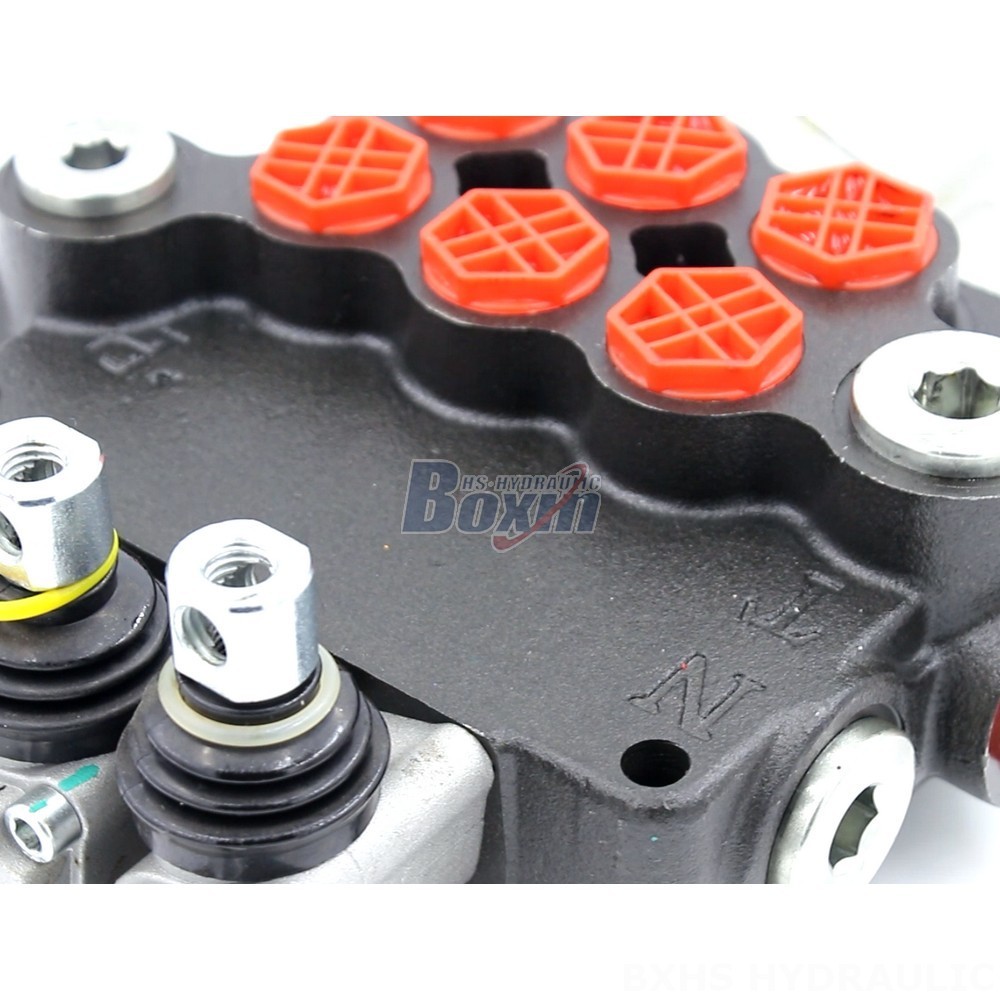

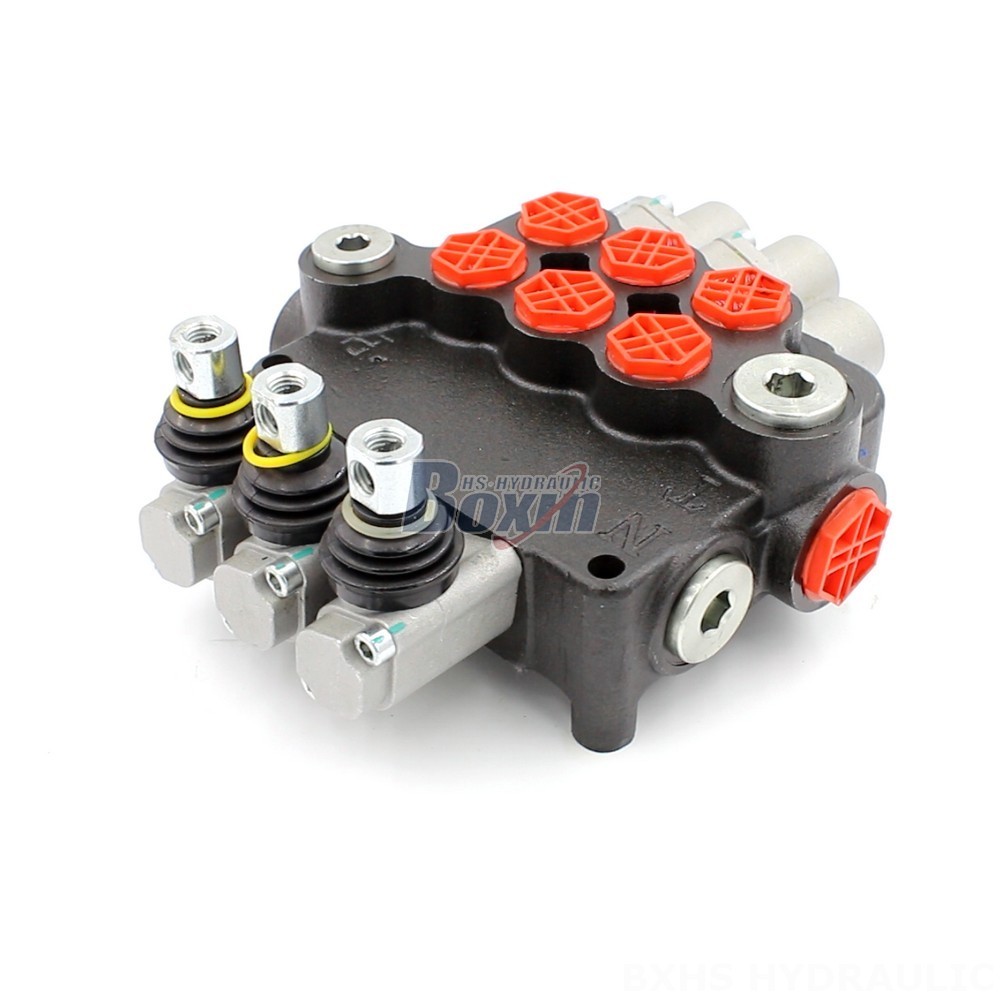

Introducing the P80-G34-G12 Hydraulic Directional Control Valve, expertly crafted for superior performance in demanding hydraulic systems. This robust, 3-section monoblock valve boasts a rated flow of 80 L/min and a remarkable maximum pressure of 250 bar. Its wide operating viscosity range (15 - 75 mm²/s) and ambient temperature tolerance (-40°C to +80°C) ensure exceptional adaptability to diverse operating conditions. With 3 spools and compatibility with a wide range of applications, including material handling, construction, agriculture, and industrial vehicles, this directional control valve delivers unparalleled versatility and reliability.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
* Manual control for precise and responsive operation
* Monoblock construction for enhanced structural integrity
* High-pressure capability (up to 250 bar) for demanding applications
* Wide viscosity range compatibility (15 - 75 mm²/s) for use with various hydraulic fluids
* Extended ambient temperature range (-40°C to +80°C) for operation in extreme conditions
* 3 spools for versatile flow control
* Compact design for easy integration into space-constrained systems
* Durable construction for extended service life
**Applications:**
* Material handling equipment: forklifts, cranes, stackers, aerial platforms
* Construction and earth moving machinery: excavators, motor graders, skid steer loaders, compact wheel loaders
* Agricultural machinery: tractors, harvesters, irrigation systems
* Industrial vehicles
