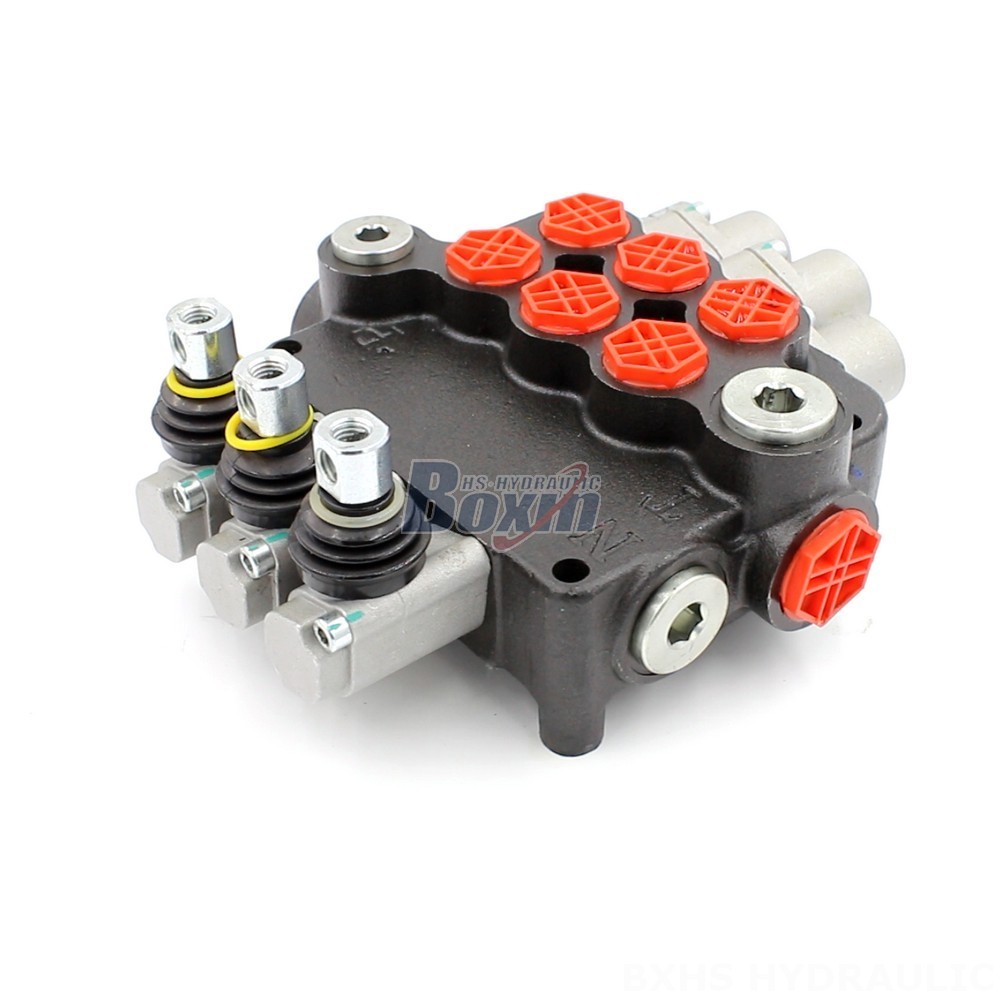

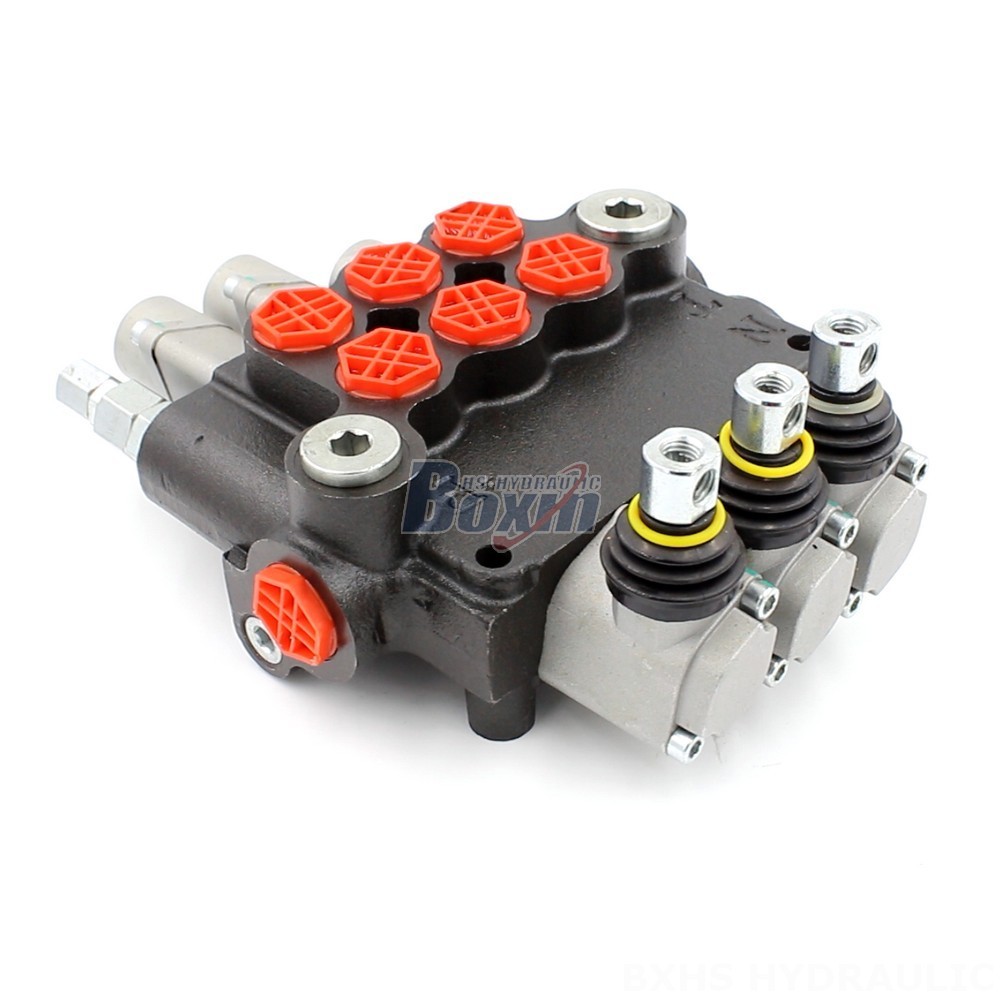

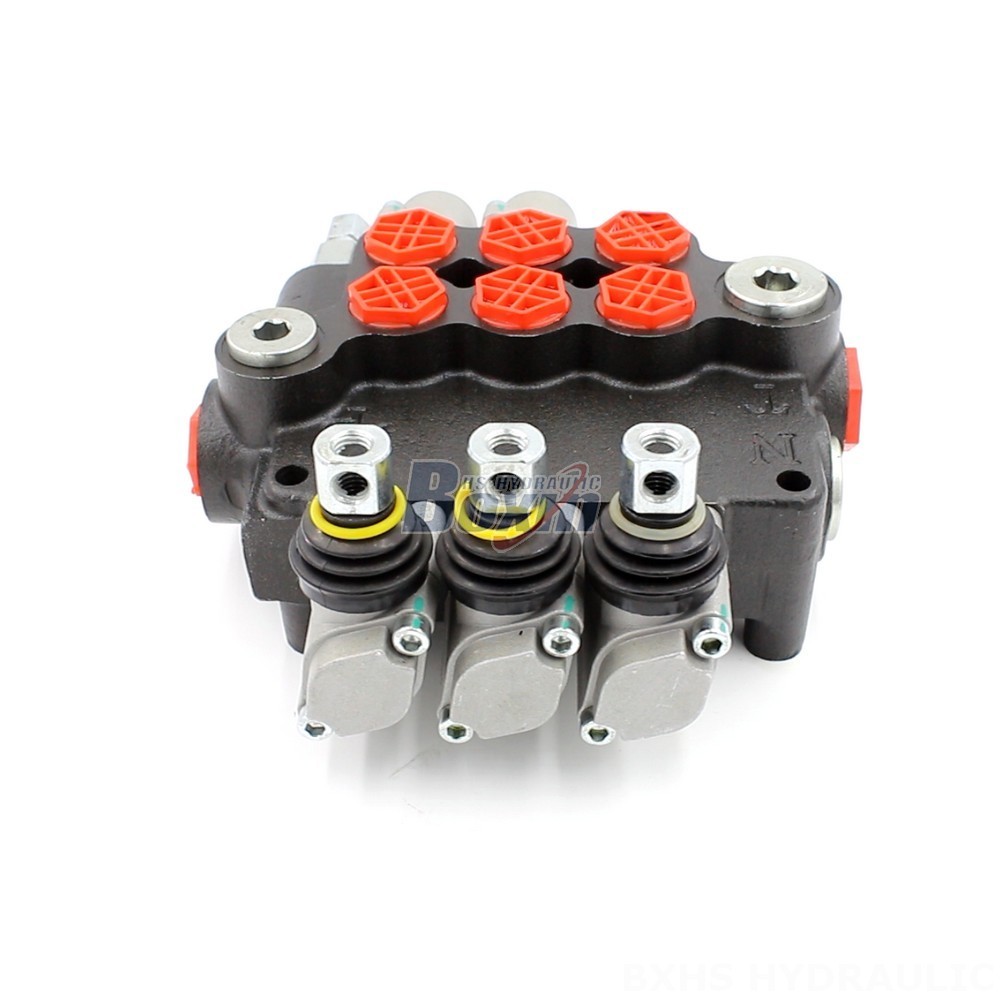

P80-G34-G12 Hydraulic Valve: Reliable Control for Industrial Fluid Power

Metode Kontrol:Buku Panduan

Spul:3 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:26*23*11

Kelas kotor:10.70 kg

Ketersediaan: Tersedia

1137 Pandangan Mencari Produk Ini

P80-G34-G12 Hydraulic Valve: Reliable Control for Industrial Fluid Power

P80-G34-G12 Hydraulic Valve: Reliable Control for Industrial Fluid Power

P80-G34-G12 Hydraulic Valve: Reliable Control for Industrial Fluid Power drawing image

The P80-G34-G12 hydraulic valve is a reliable and durable control solution for industrial applications. It is designed for high performance and long service life. This 3-section monoblock valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of applications in construction, material handling, and agriculture.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80-G34-G12 spool valve is a high-quality hydraulic valve designed for demanding industrial applications. It offers a reliable and efficient way to control fluid power in a variety of machines. This 3-section monoblock valve is designed for high performance and durability. It features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of applications in industries such as construction, material handling, and agriculture. The valve's operating viscosity range of 15-75 mm²/s ensures reliable operation in a variety of conditions. Its wide ambient temperature range of -40°C to +80°C makes it suitable for use in a variety of climates. The P80-G34-G12 valve is also compatible with a wide range of machines, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its 3-spool design provides versatility and precision control for complex hydraulic systems. The P80 series is known for its reliability, durability, and performance. This valve is a great choice for any application requiring high-quality hydraulic control.
