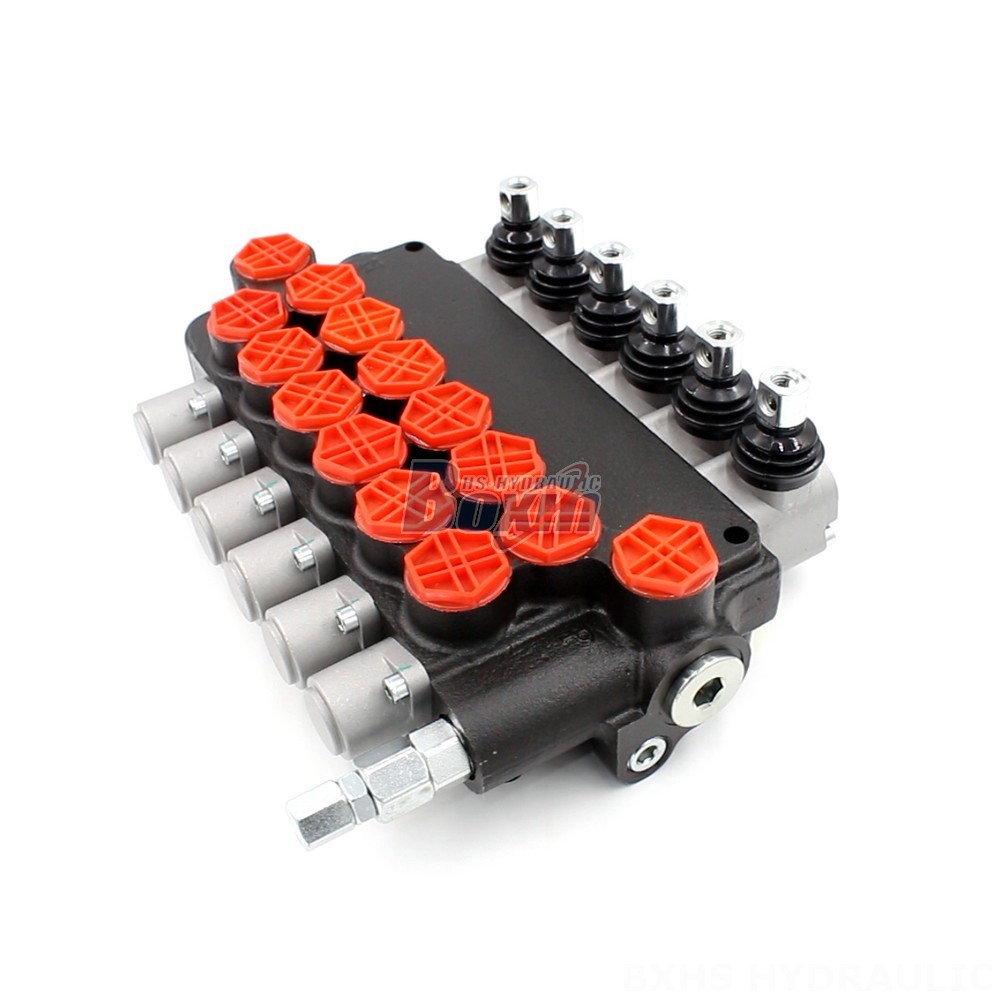

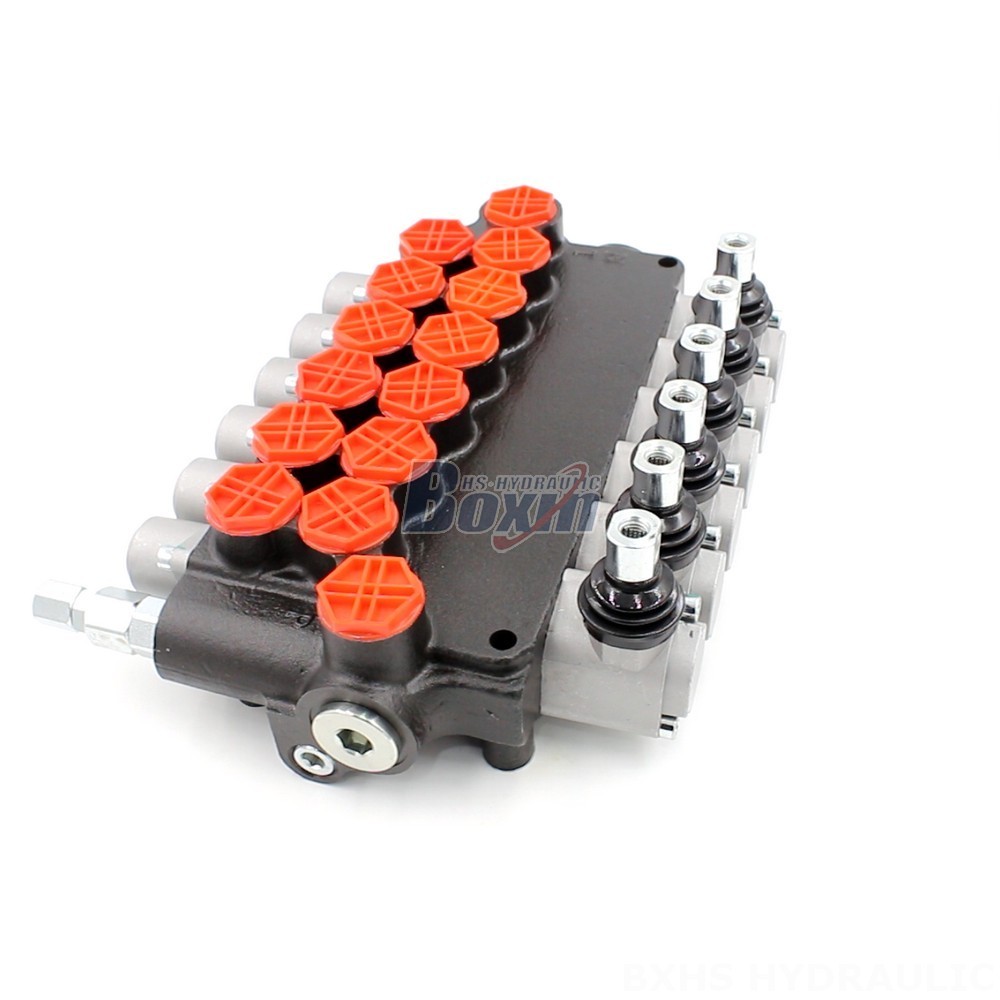

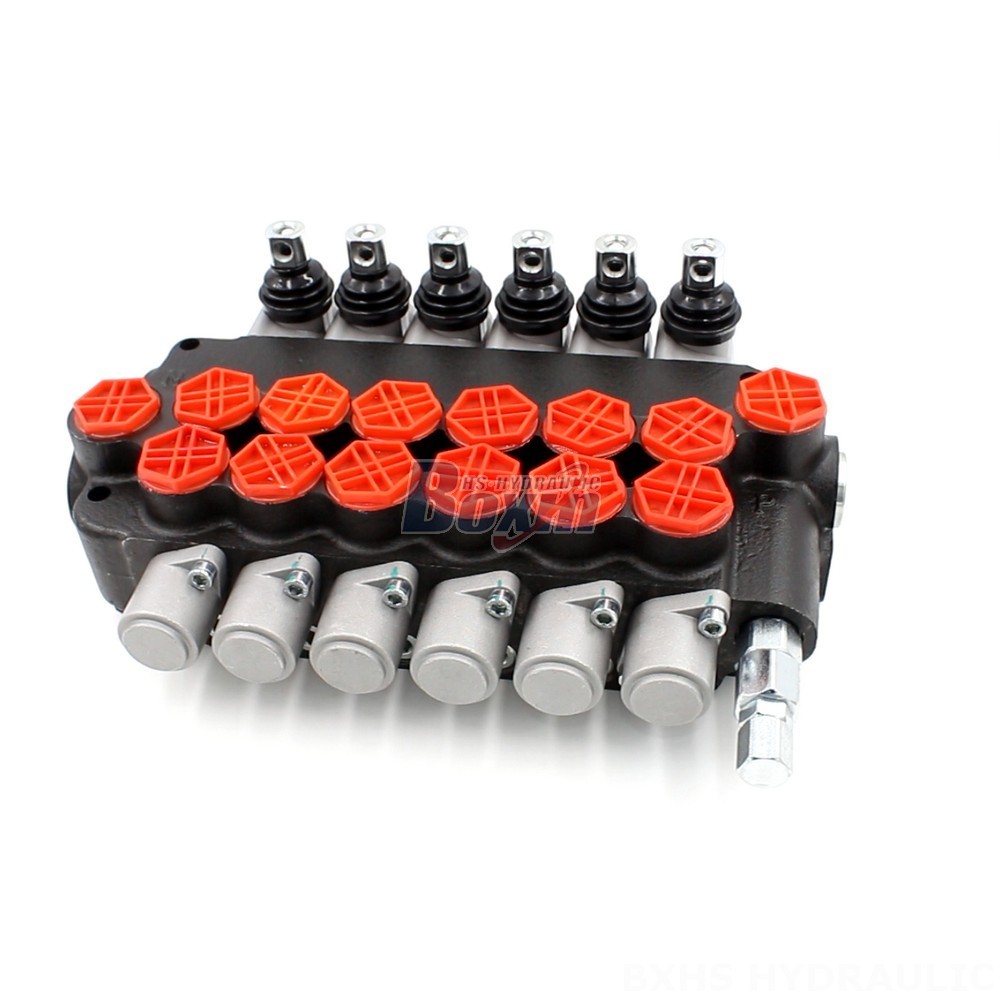

The Hydraulic Distipar P80-G34 Monoblock Valve is a high-performance, 6-section valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Offering manual control and a rated flow of 80 L/min, this robust valve can handle pressures up to 250 bar. Built for durability, it features a wide operating temperature range and is compatible with various equipment types.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This P80 series monoblock valve provides reliable hydraulic control for a range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, and compact wheel loaders. Its 6-spool design allows for precise and efficient fluid management. With a maximum pressure rating of 250 bar (3600 psi) and a flow rate of 80 L/min (21.2 US gpm), this valve can handle demanding hydraulic systems. Its wide operating viscosity range (15 - 75 mm²/s) and temperature range (-40°C to +80°C) ensure reliable operation in various environments.
