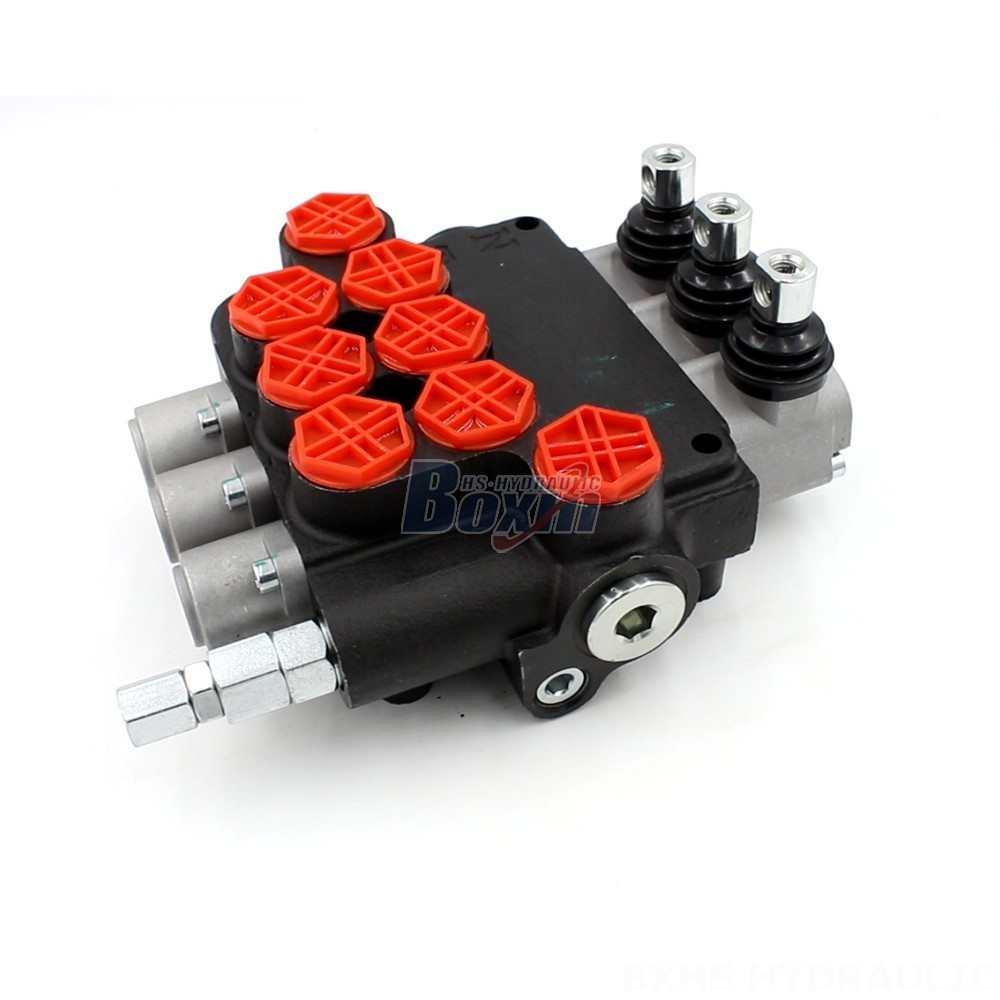

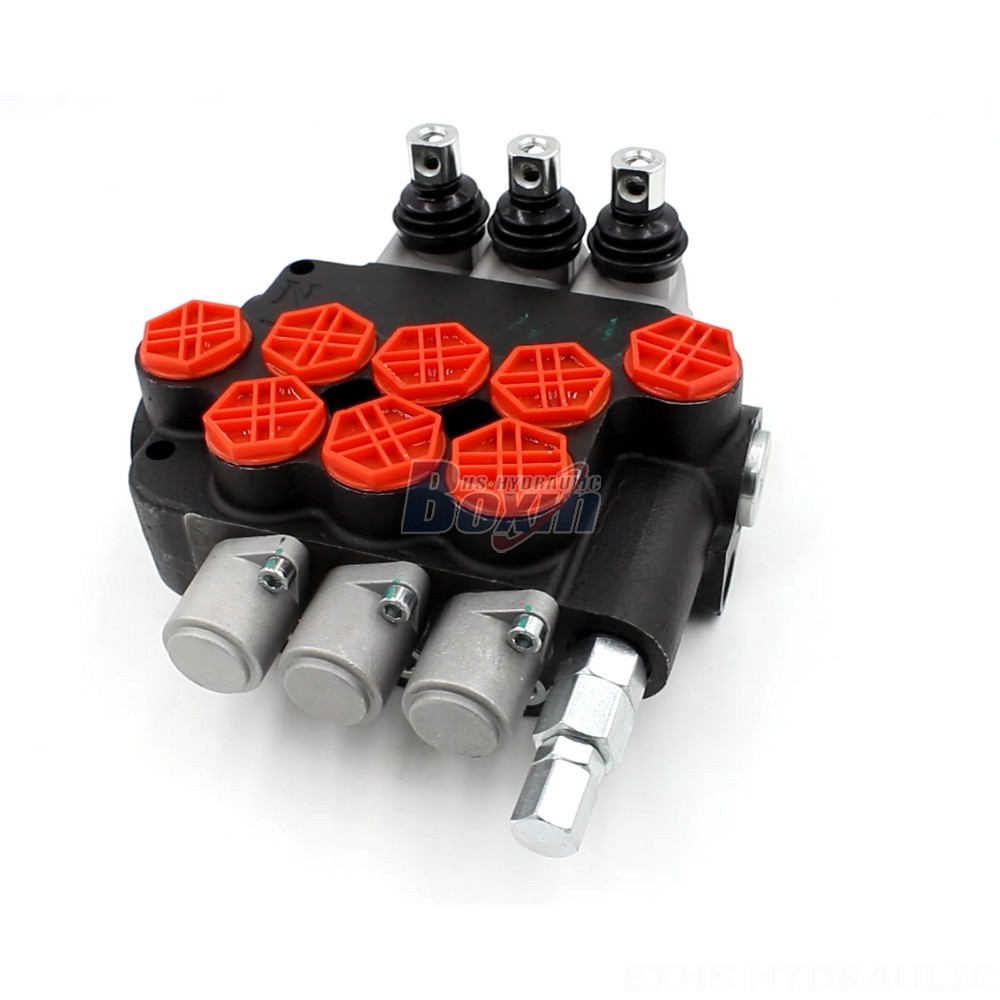

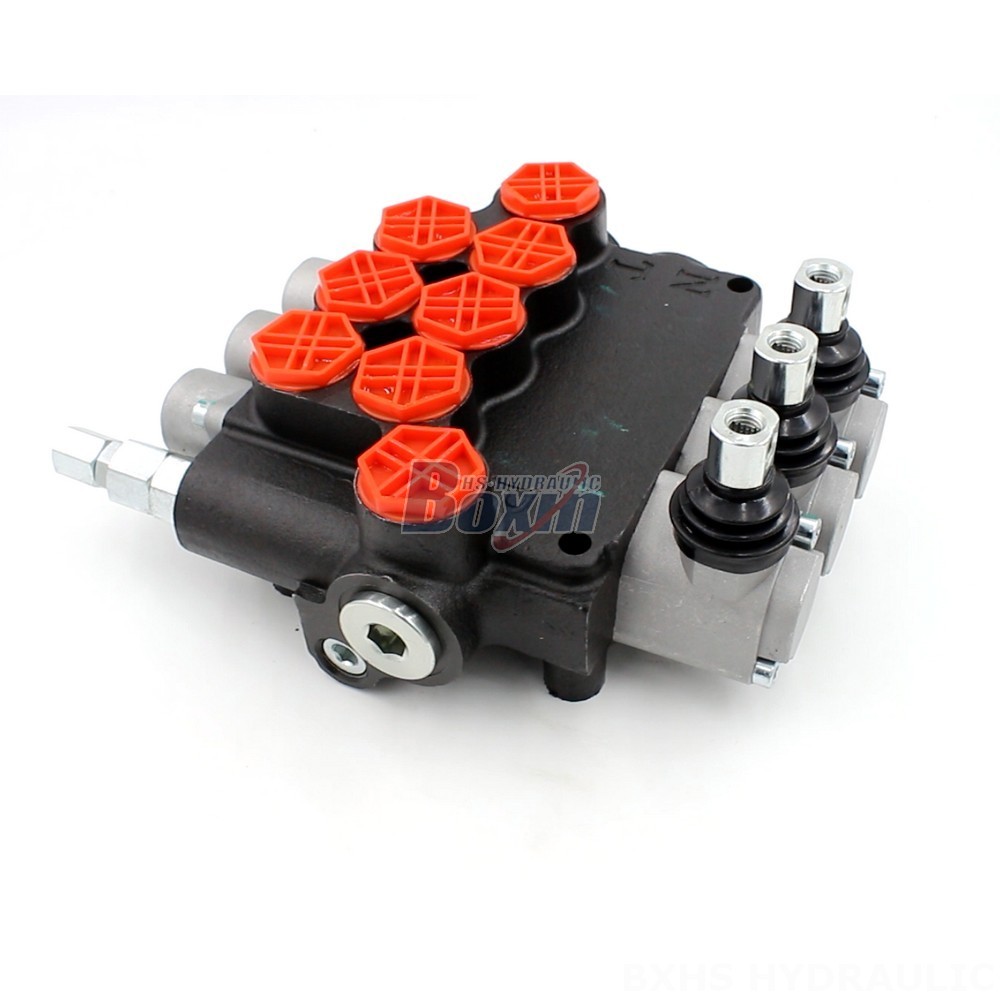

P80-G34-OT Manual 3 Spool Monoblock Directional Valve

Metode Kontrol:Buku Panduan

Spul:3 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G3/4

Port Keluar:G3/4

Ukuran Port:G3/4

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:26*23*11

Kelas kotor:10.70 kg

Ketersediaan: Tersedia

1222 Pandangan Mencari Produk Ini

P80-G34-OT Manual 3 Spool Monoblock Directional Valve

P80-G34-OT Manual 3 Spool Monoblock Directional Valve

P80-G34-OT Manual 3 Spool Monoblock Directional Valve drawing image

The Hydraulic Flow Control Valve with Relief P80-G34-OT Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in construction, material handling, and industrial vehicles. This manual control, 3-section, monoblock valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi).

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80 series hydraulic flow control valve is a 3-spool monoblock directional valve with manual control. It is designed to regulate the flow of hydraulic fluid in various applications such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling equipment, and crushers. This valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). It operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This reliable and durable hydraulic valve is ideal for demanding applications in construction, material handling, and industrial settings.
