Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1036 Pandangan Mencari Produk Ini
The P80-G34-OT Manual 7 Spool Monoblock Directional Valve is a high-performance hydraulic control solution designed for demanding applications in various industries. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it provides exceptional flow capacity and pressure handling capabilities.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

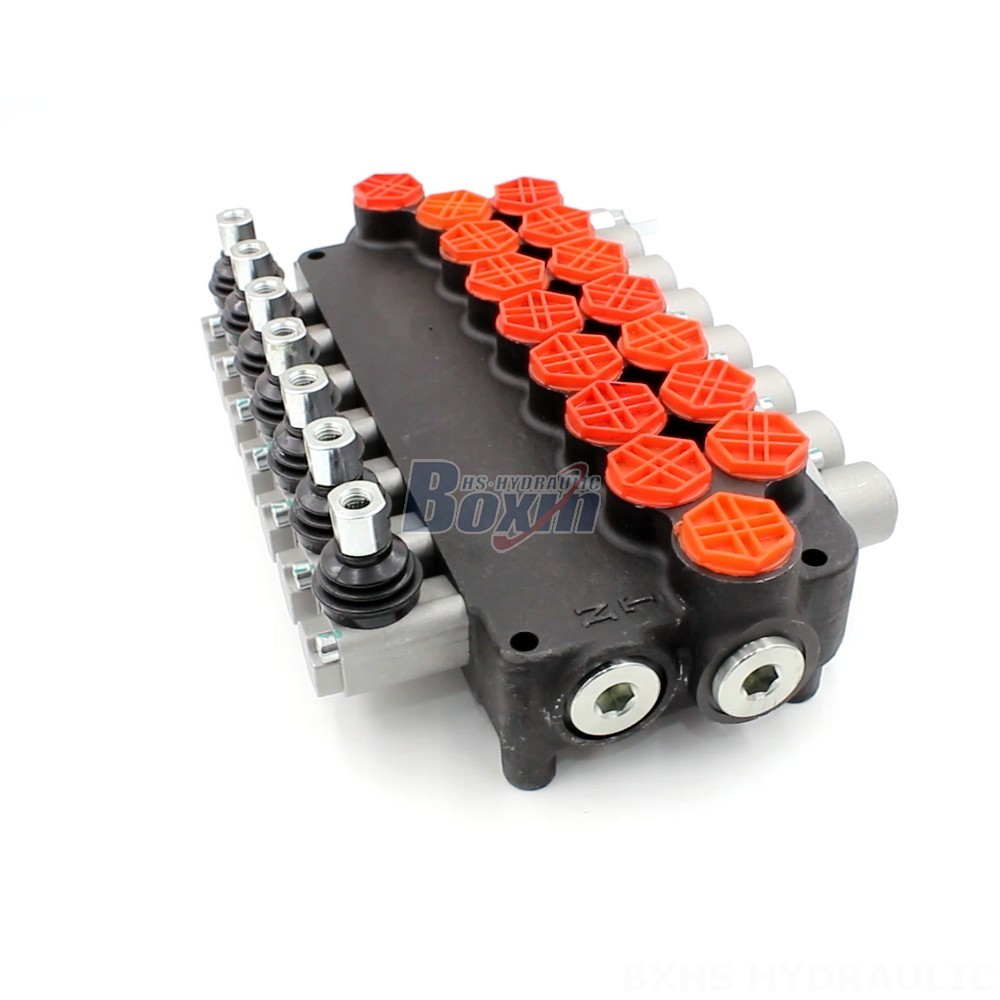

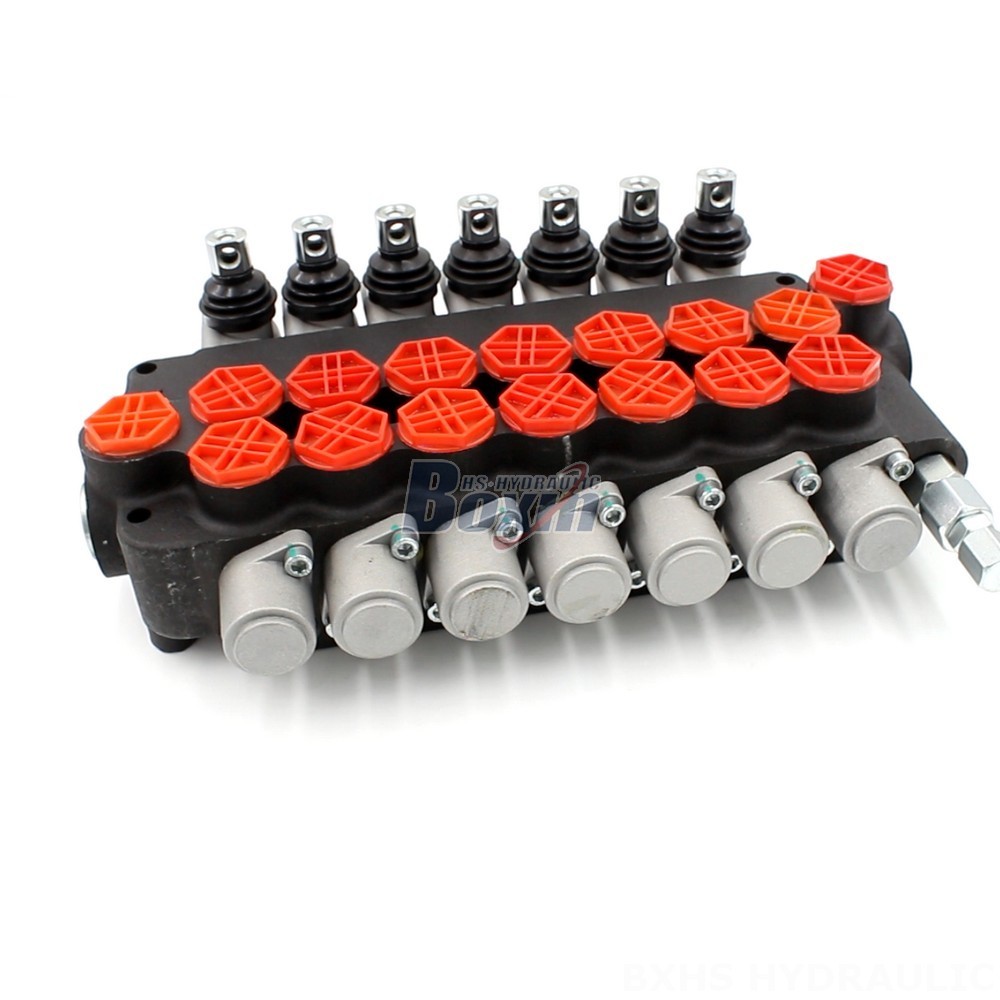

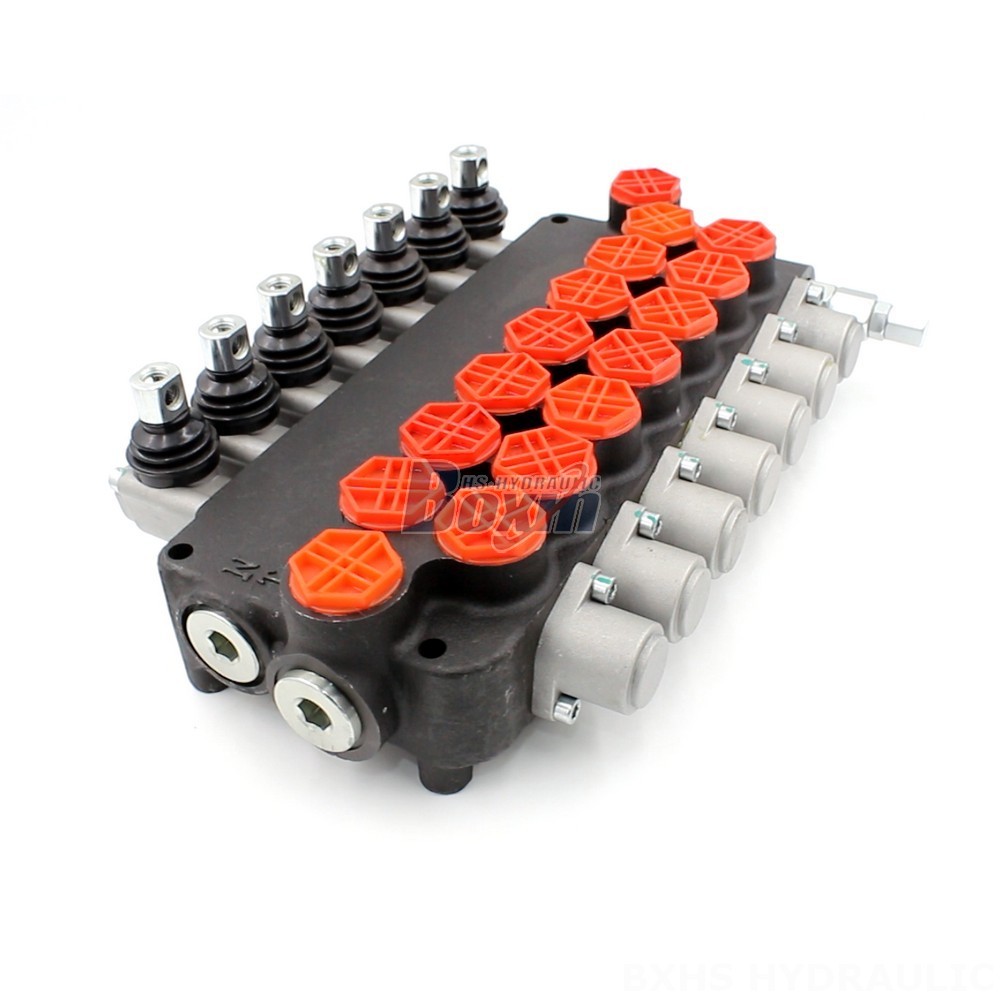

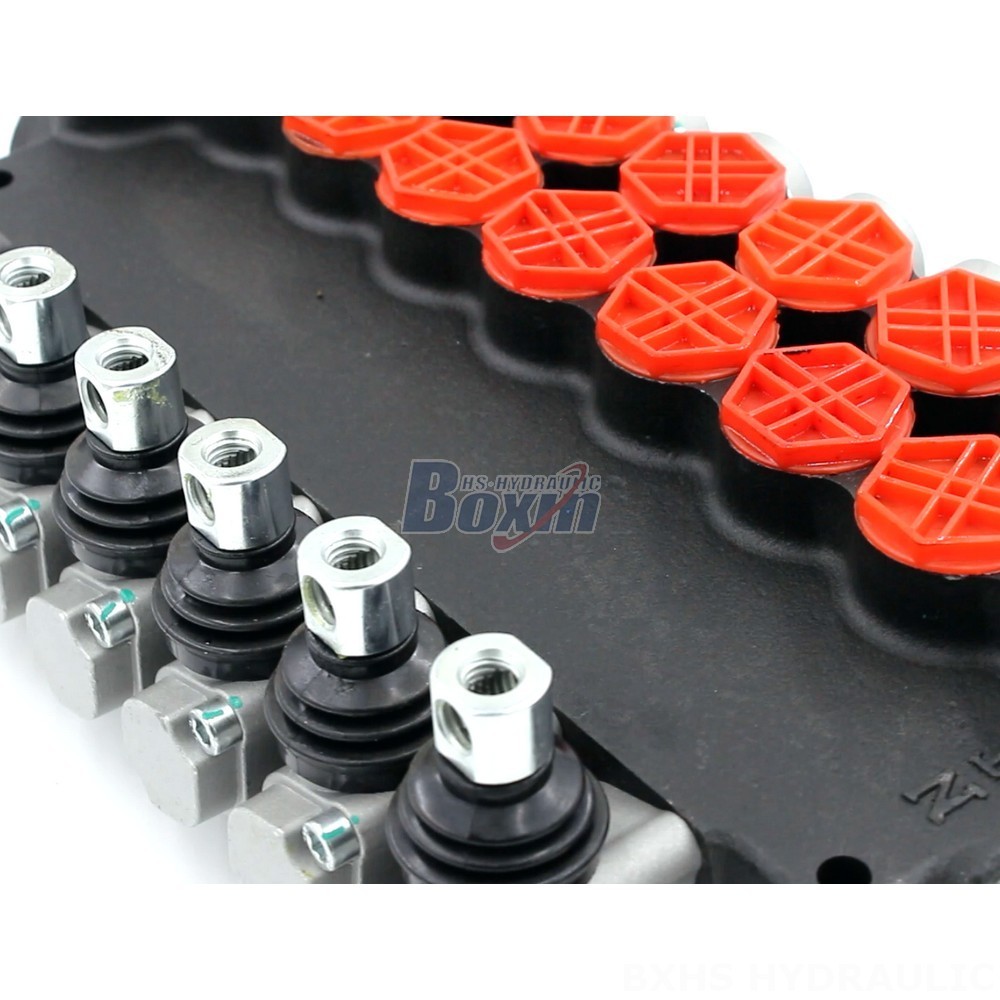

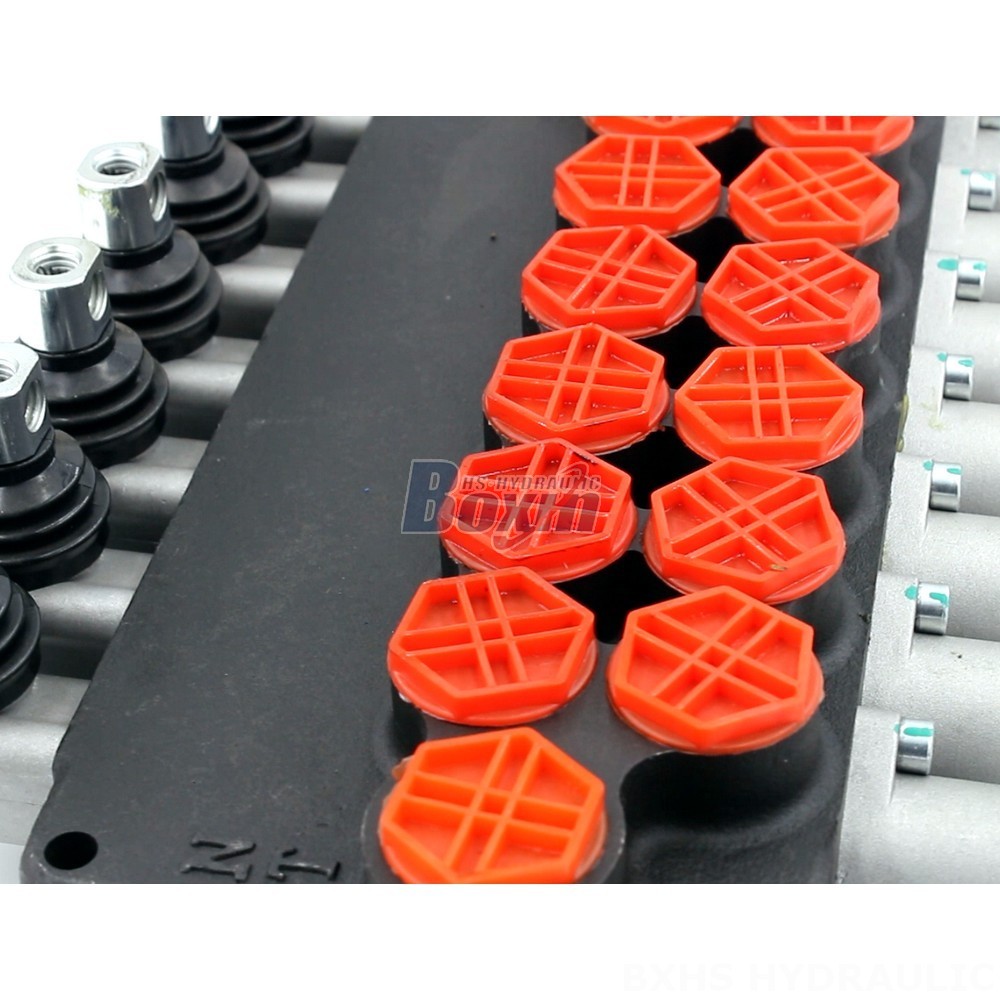

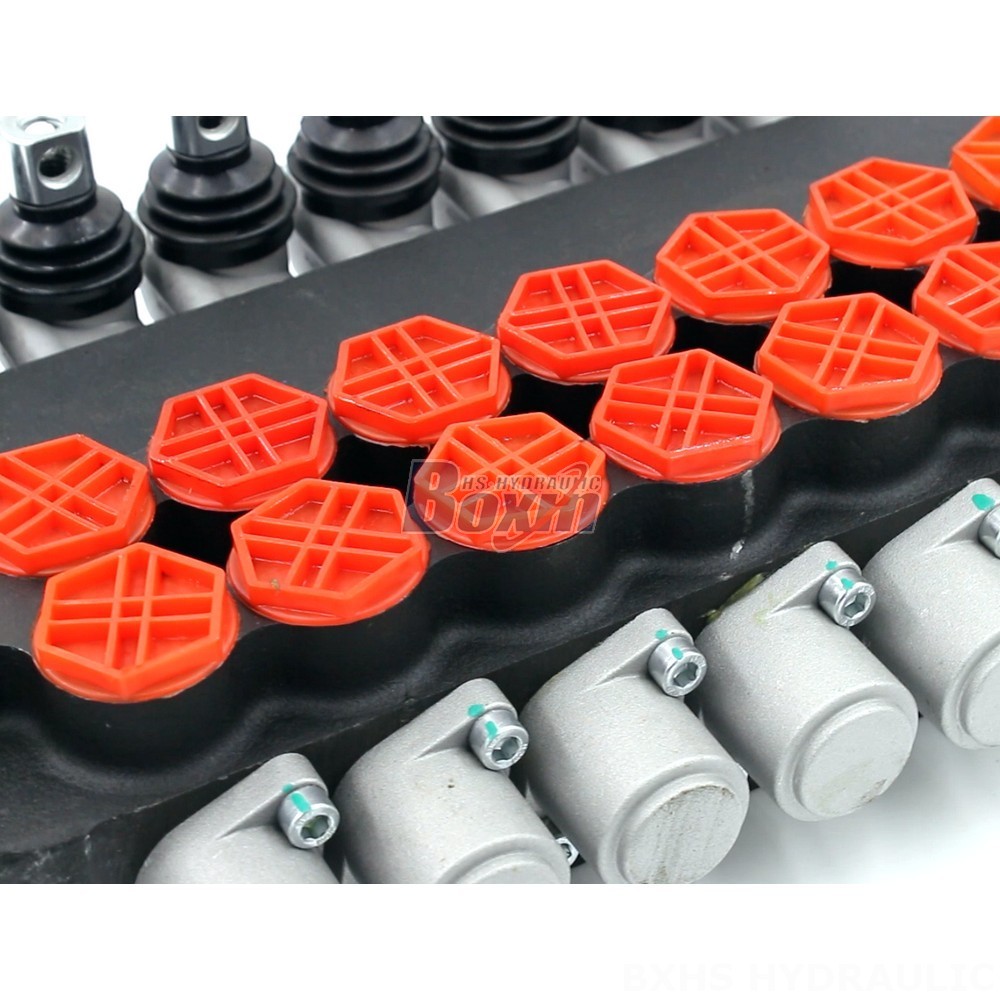

**P80-G34-OT Manual 7 Spool Monoblock Directional Valve**
The P80-G34-OT Manual 7 Spool Monoblock Directional Valve is a robust and reliable hydraulic control component engineered for precision and efficiency. Key features and specifications include:
* **Manual Control:** Allows for precise and responsive operation of the valve.
* **7 Spool Design:** Provides versatile flow control with multiple spool configurations.
* **Monoblock Construction:** Offers a compact and integrated design for space optimization.
* **High Flow Capacity:** Rated flow of 80 L/min ensures efficient fluid transfer.
* **Exceptional Pressure Handling:** Maximum pressure of 250 bar enables operation in high-pressure hydraulic systems.
* **Wide Viscosity Range:** Suitable for applications with operating viscosities ranging from 15 to 75 mm²/s.
* **Durable Construction:** Manufactured with high-quality materials and components for extended service life.
* **Versatile Applications:** Ideal for demanding hydraulic systems in industries such as material handling, construction, agriculture, and industrial vehicles.
