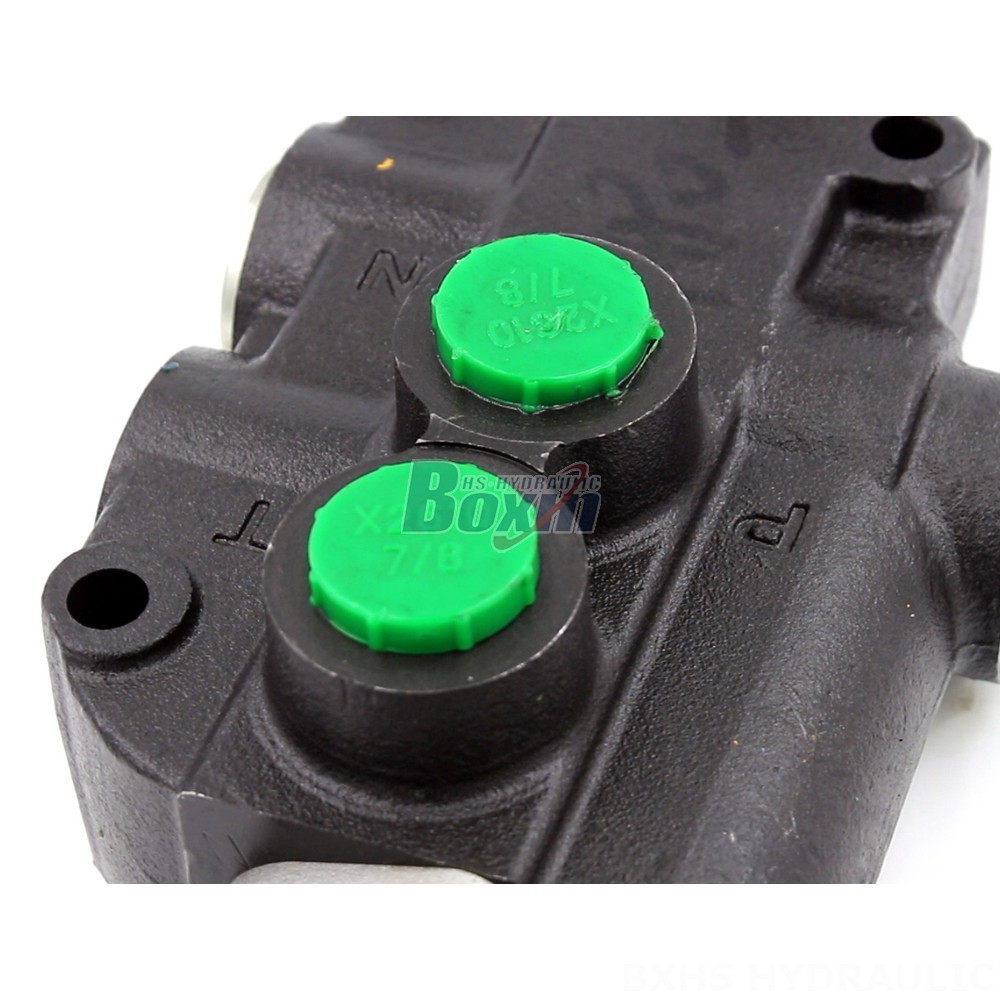

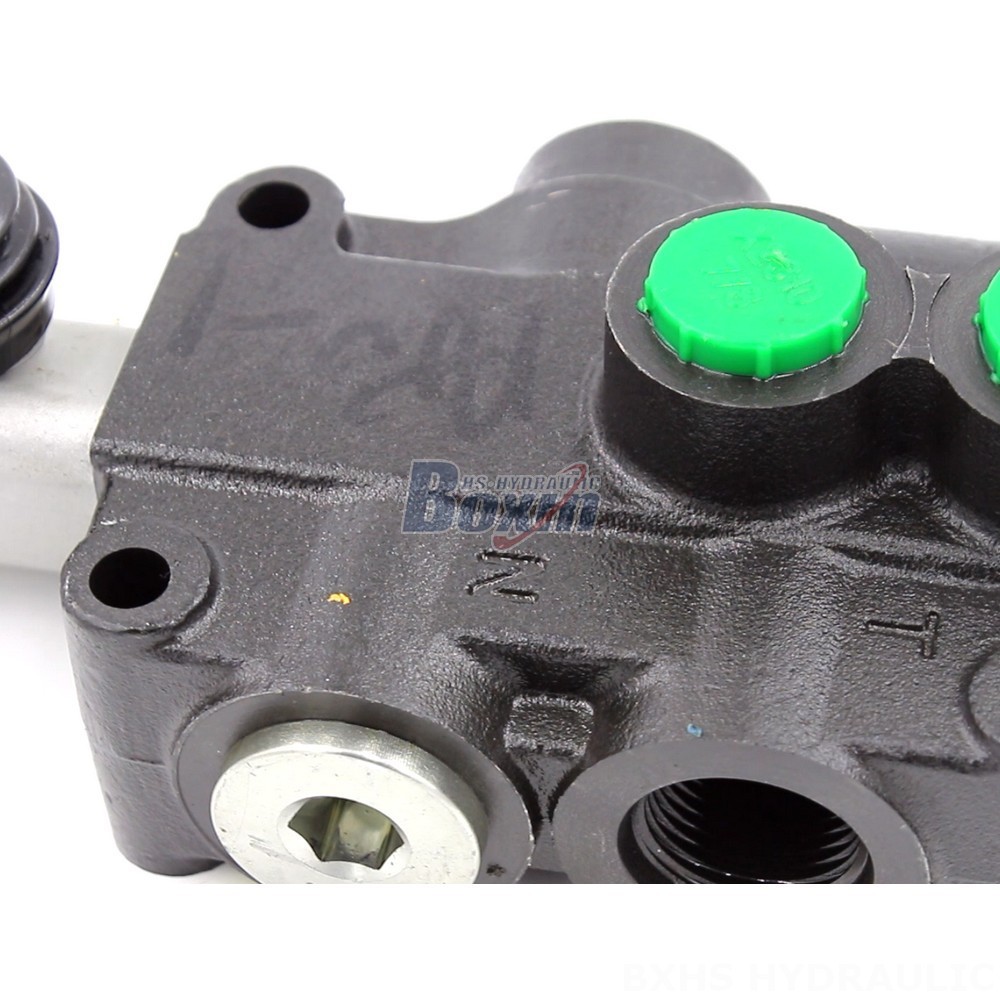

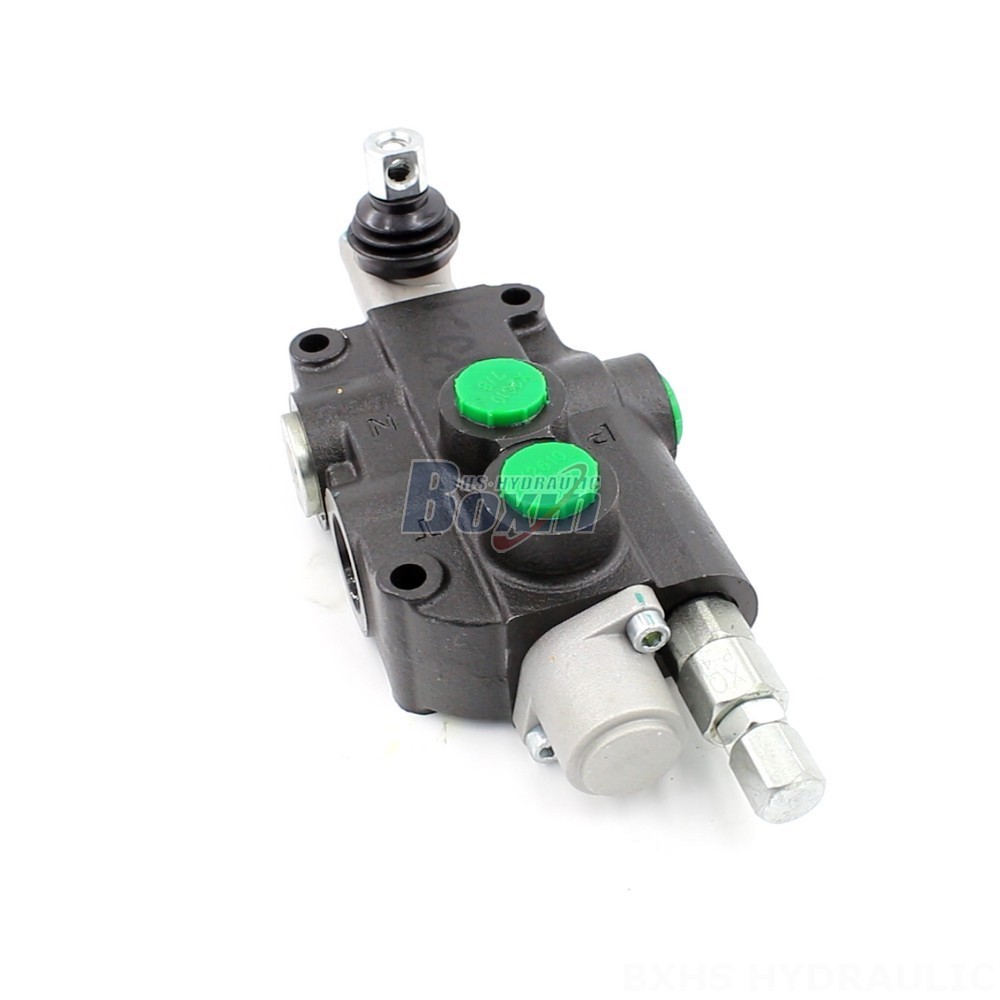

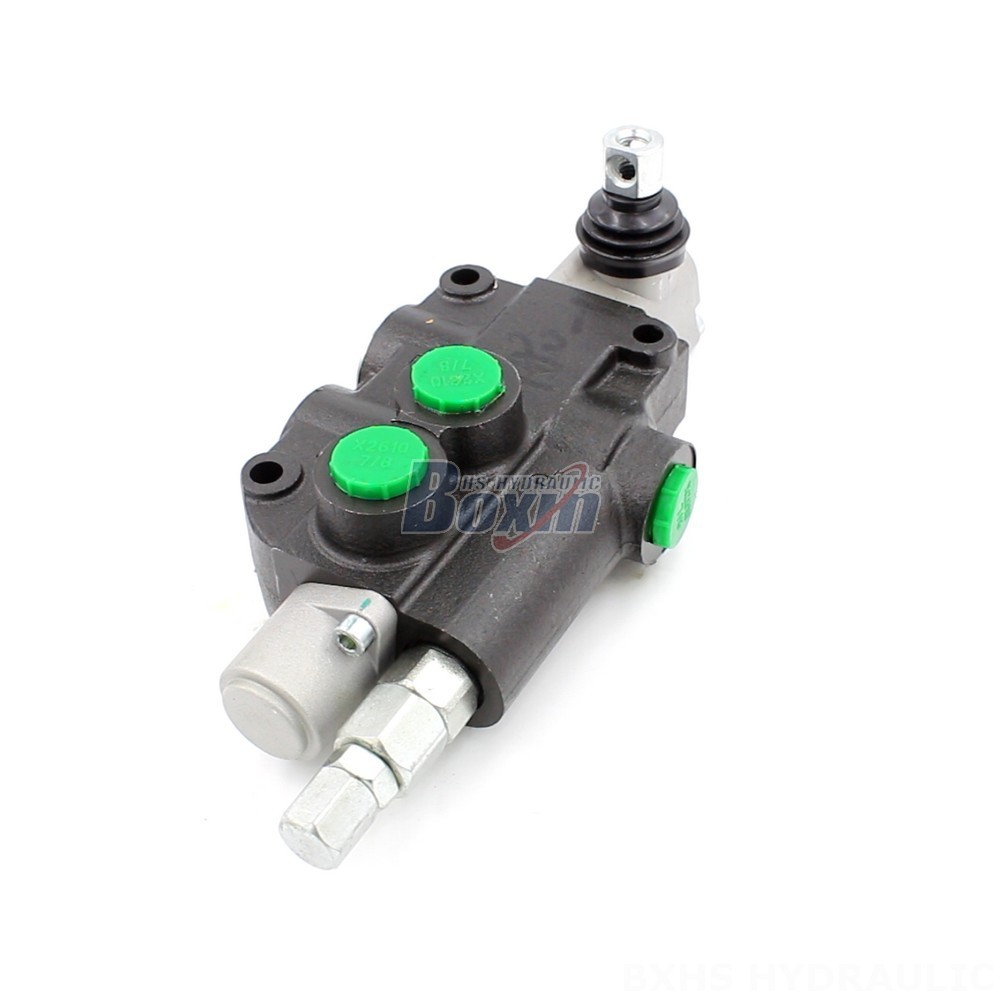

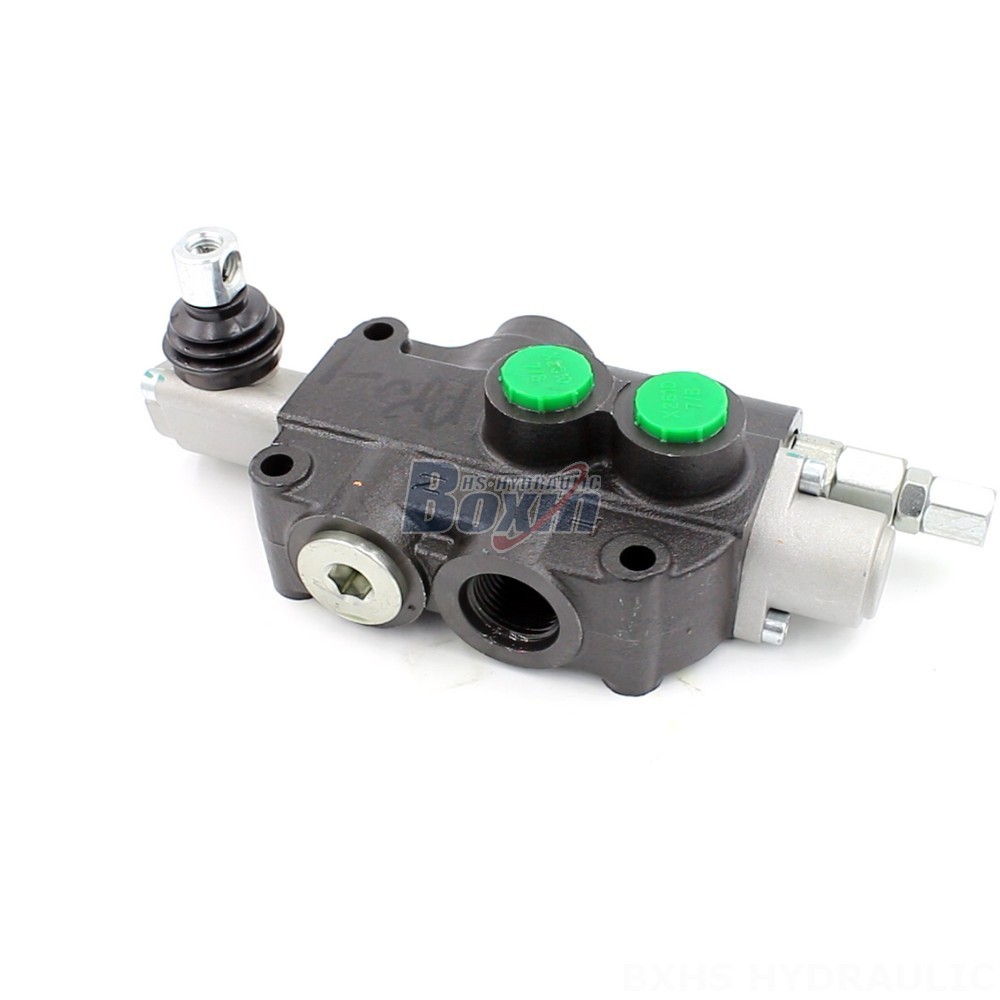

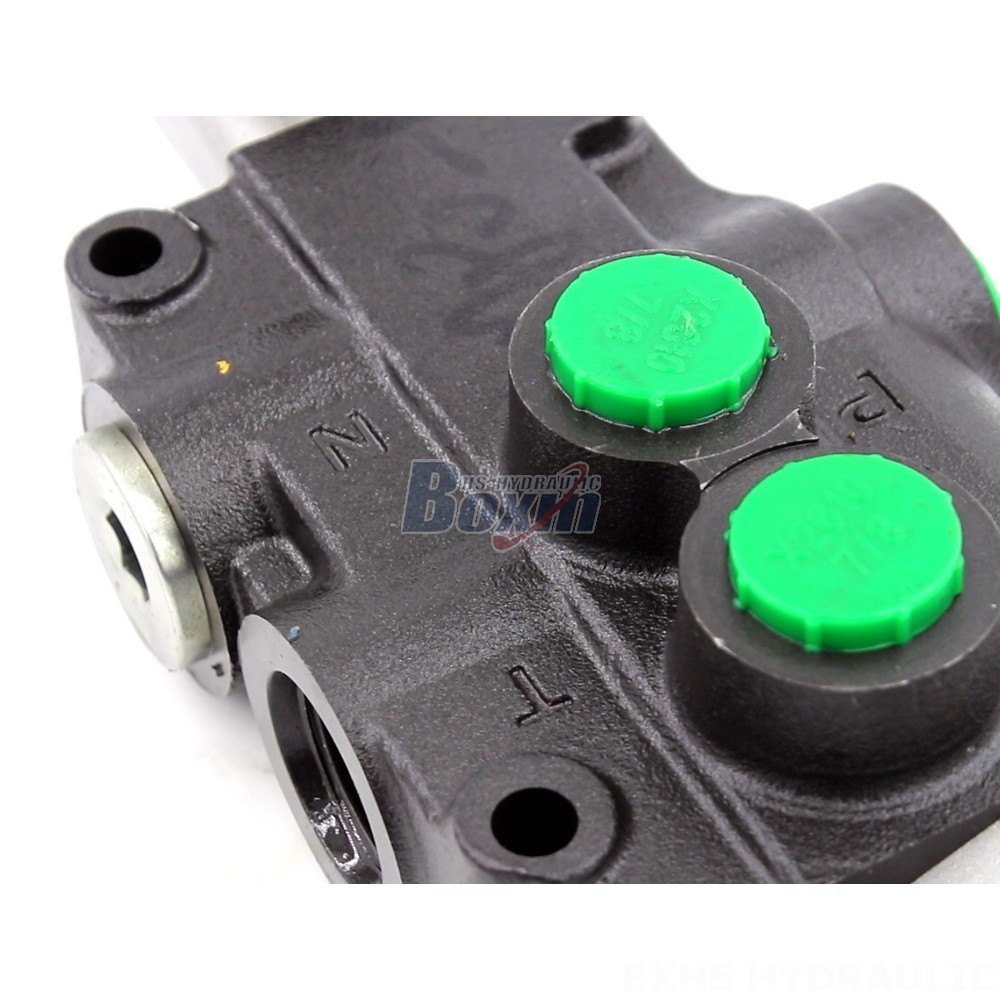

The P80-LDG-U78-OT Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve provides exceptional flow control and pressure regulation capabilities.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
- Manual control for precise and responsive operation
- Monoblock construction for durability and compact size
- 80 L/min rated flow for high-volume applications
- 250 bar maximum pressure for demanding hydraulic systems
- Operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
- Ambient temperature range of -40°C to +80°C for use in harsh environments
- 1 spool for simple and efficient flow control
- P80 Series for compatibility with other P80 valves and components
**Applications:**
- MATERIAL HANDLING: Forklifts, telehandlers, stackers, aerial platforms
- CONSTRUCTION AND EARTH MOVING: Excavators, motor graders, skid steer loaders, compact wheel loaders
- AGRICULTURE: Tractors, harvesters, sprayers, irrigation systems
- INDUSTRIAL VEHICLES: Cranes, boom trucks, lift trucks, mobile work platforms
