Introducing the P80 Solenoid 5 Spool Monoblock Directional Valve, an exceptional hydraulic component engineered to fulfill the diverse demands of various industries. This monoblock valve showcases a compact design, integrating multiple valve functions into a single unit. Its robust construction and high-quality materials ensure durability and reliable operation even in harsh environments.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

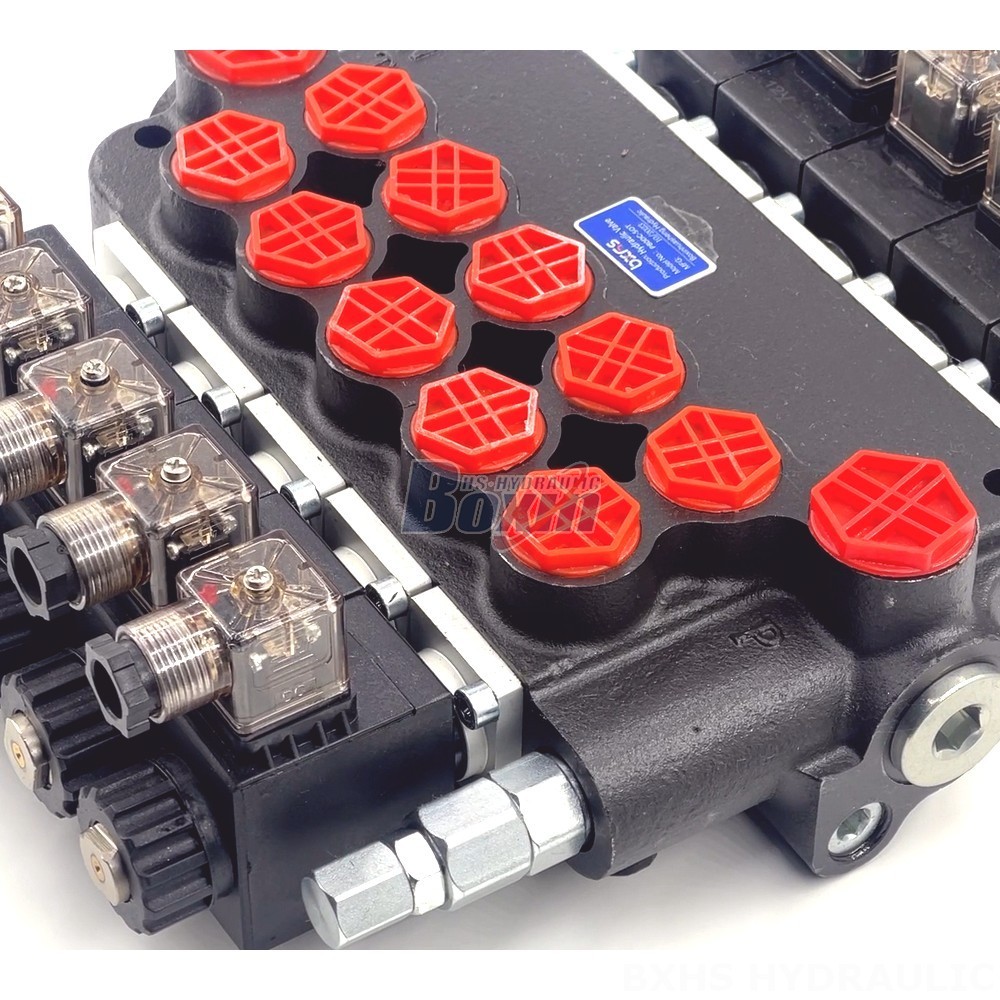

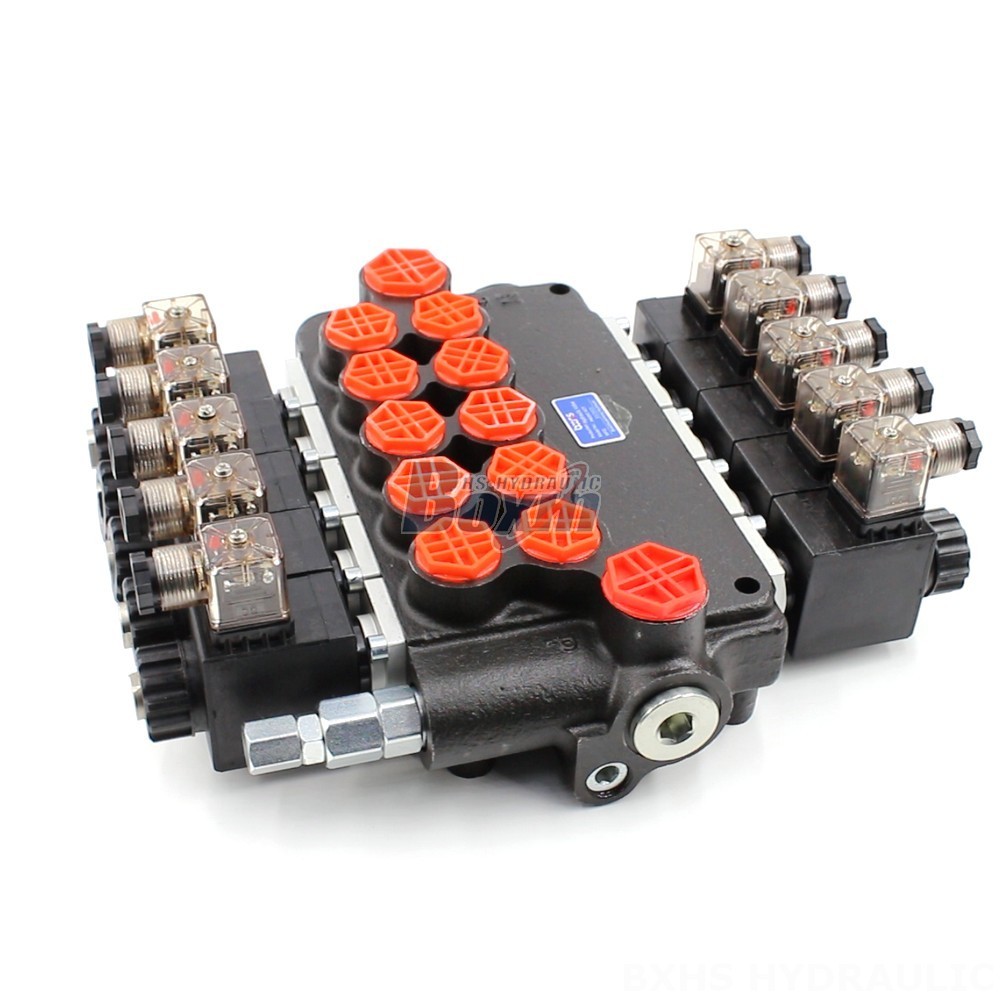

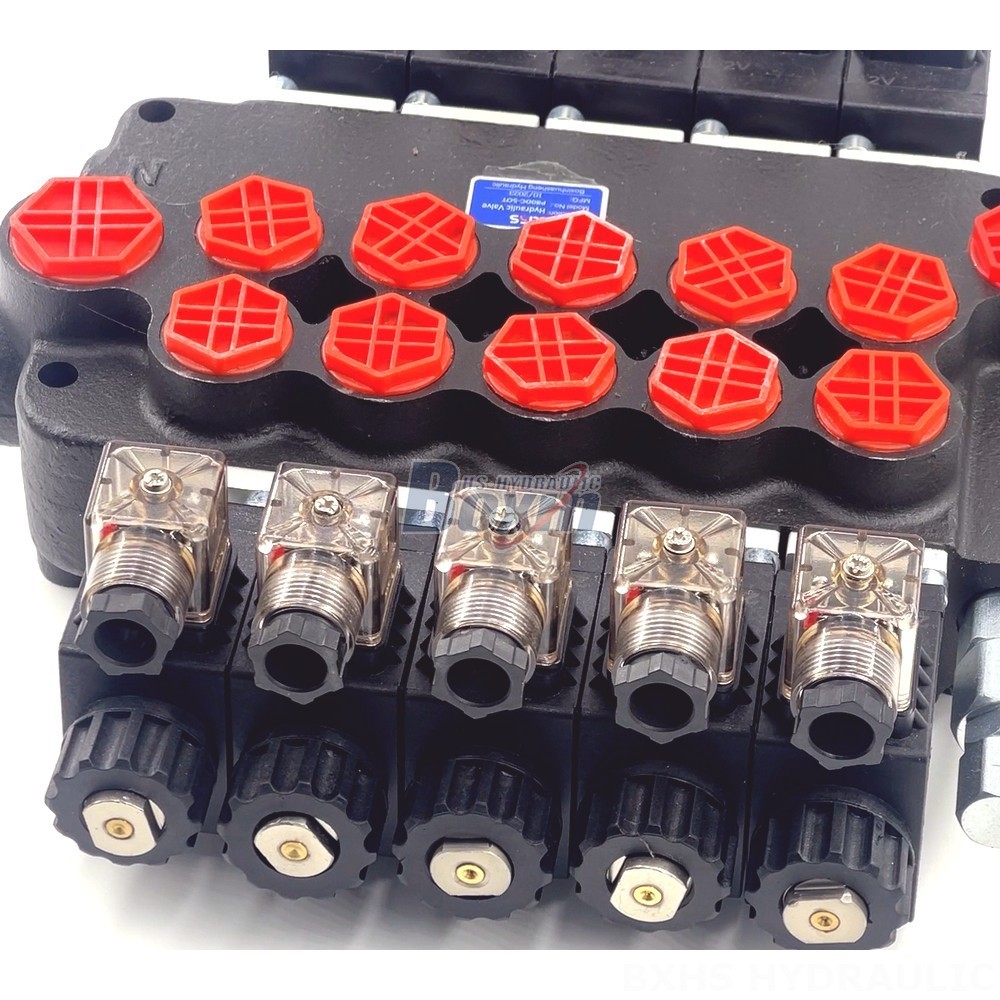

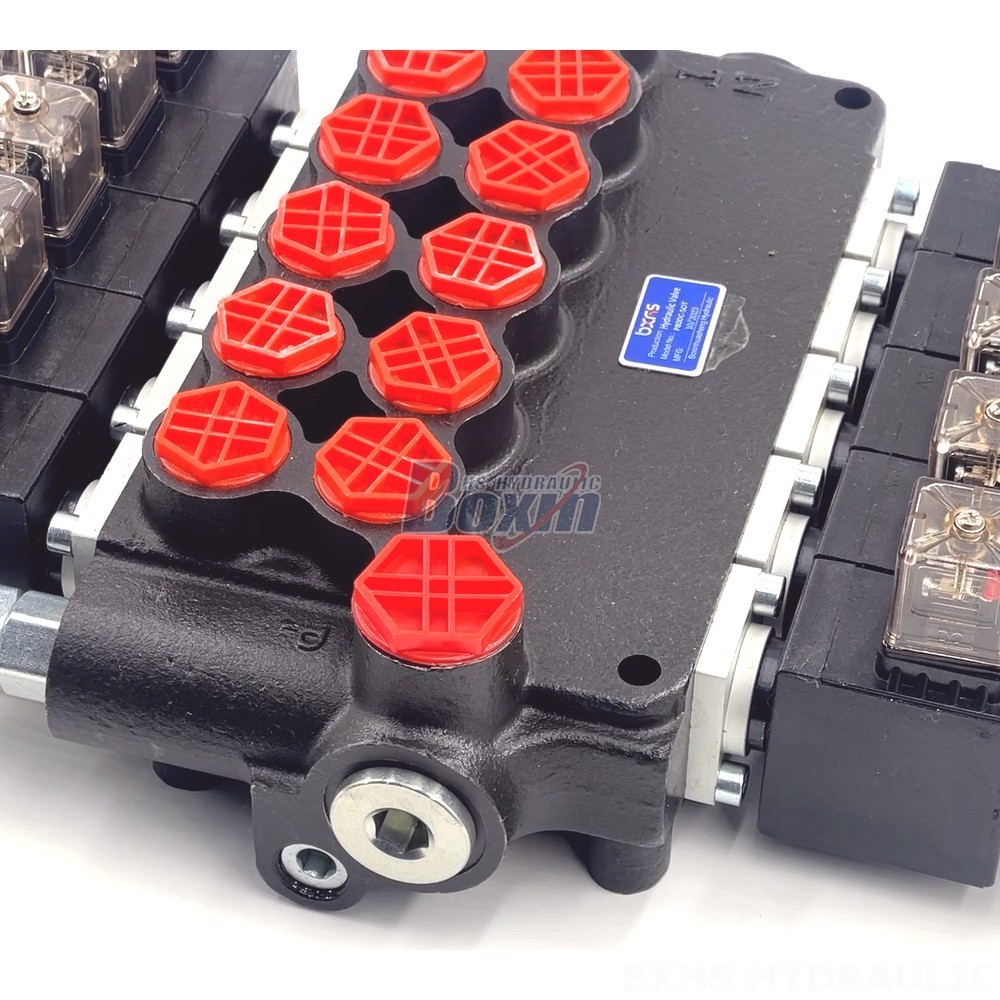

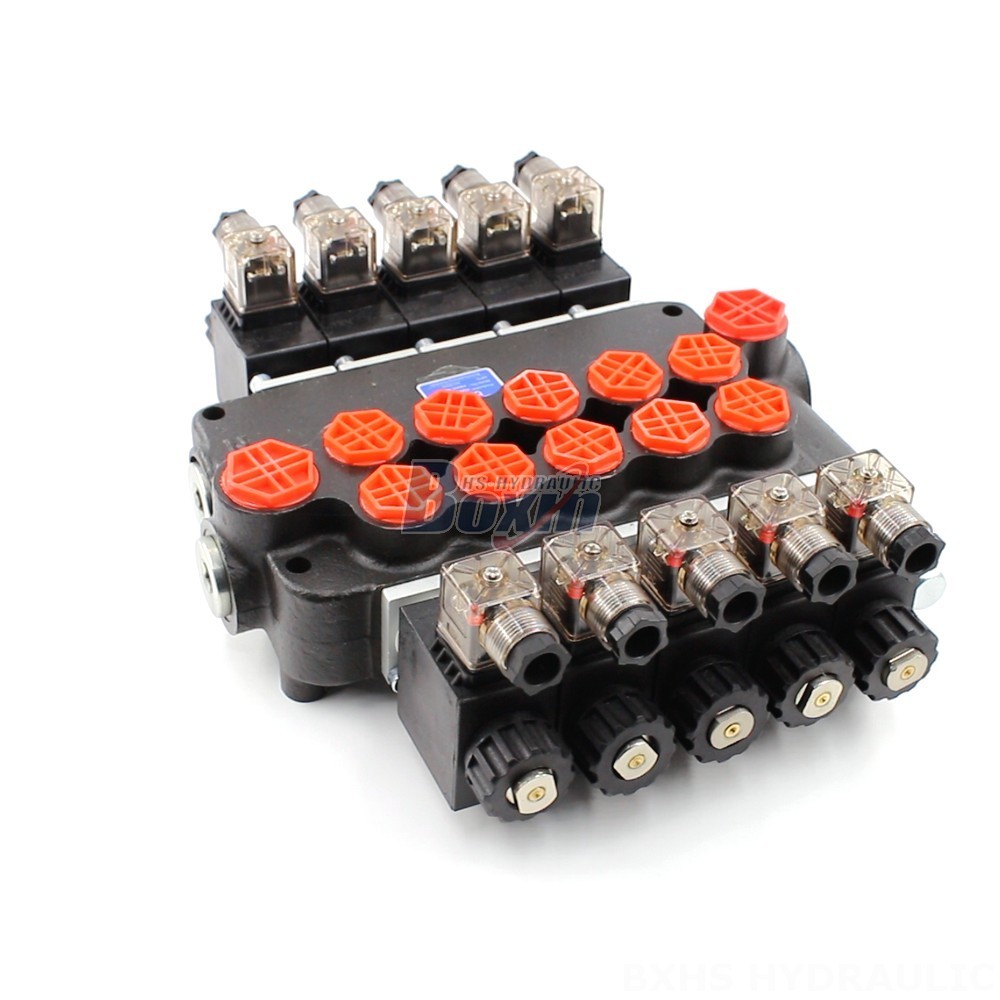

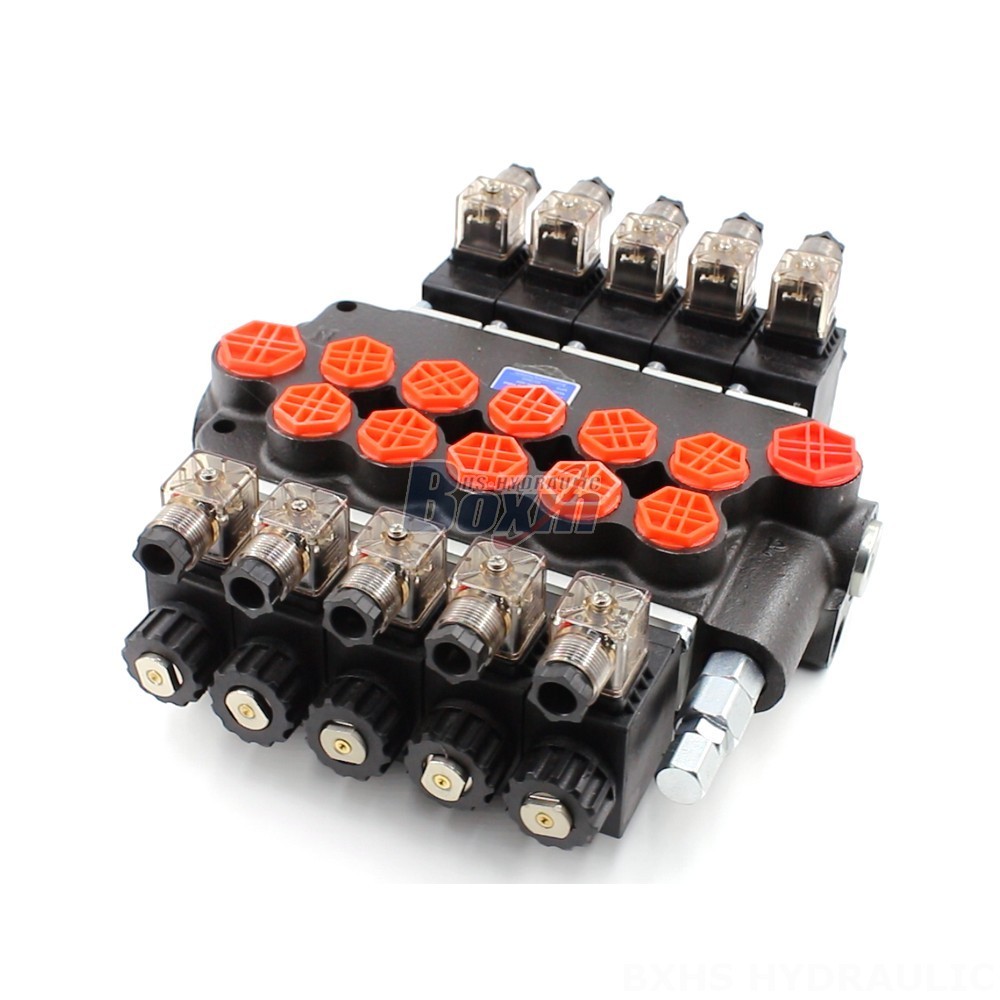

**P80 Solenoid 5 Spool Monoblock Directional Valve**
**Control Method:** Solenoid
**Section:** 5 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 5 Spool
**Series:** P80 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER
The P80 valve's exceptional performance capabilities make it ideally suited for a wide spectrum of applications in construction equipment, earthmoving machinery, material handling systems, and industrial vehicles. Its advanced design ensures precise control over hydraulic functions, offering enhanced efficiency and productivity in demanding operating conditions.
As a leading manufacturer, we take pride in adhering to the highest quality and safety standards. Our P80 Solenoid Directional Valve is meticulously crafted to meet industry certifications, including CE, ISO, DIN, and SAE. With a global presence and a commitment to customer satisfaction, we offer customized solutions and OEM/ODM services to cater to your specific requirements. Forge a partnership with us and leverage our expertise to elevate your hydraulic system designs.
