Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1001 Pandangan Mencari Produk Ini

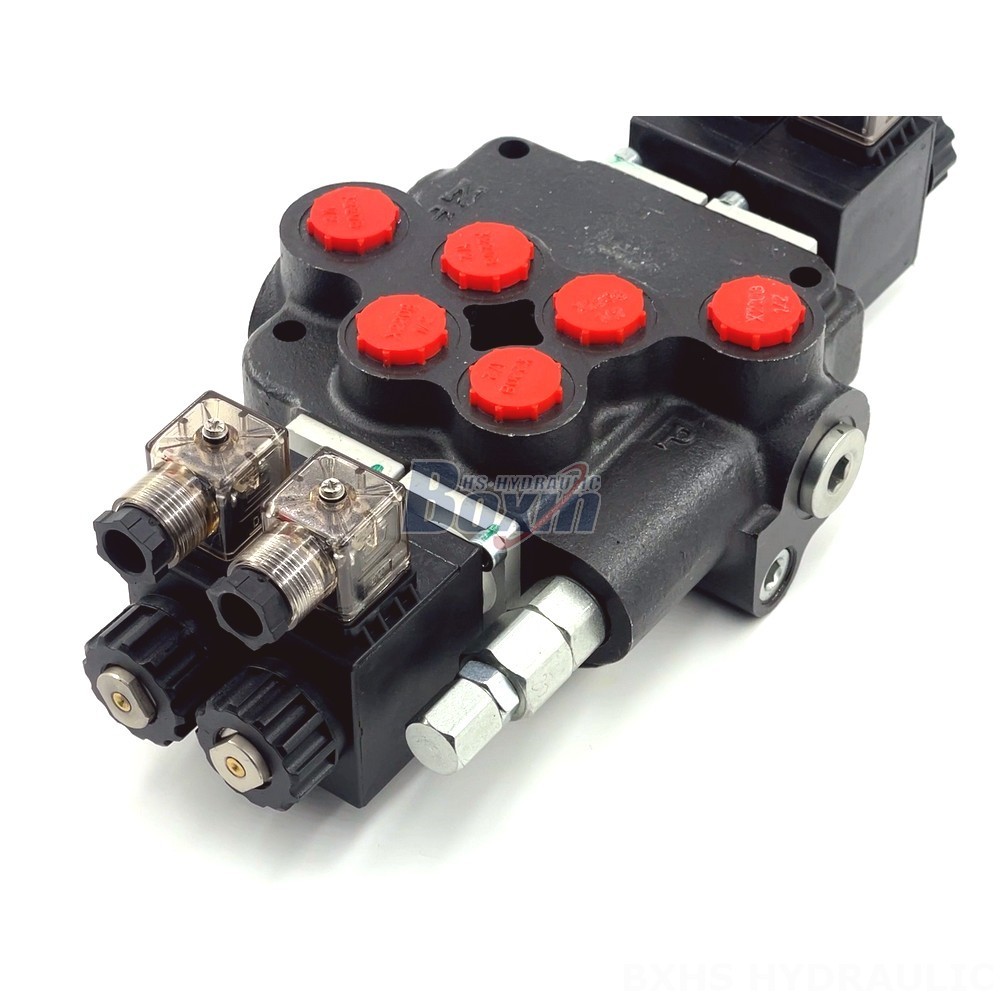

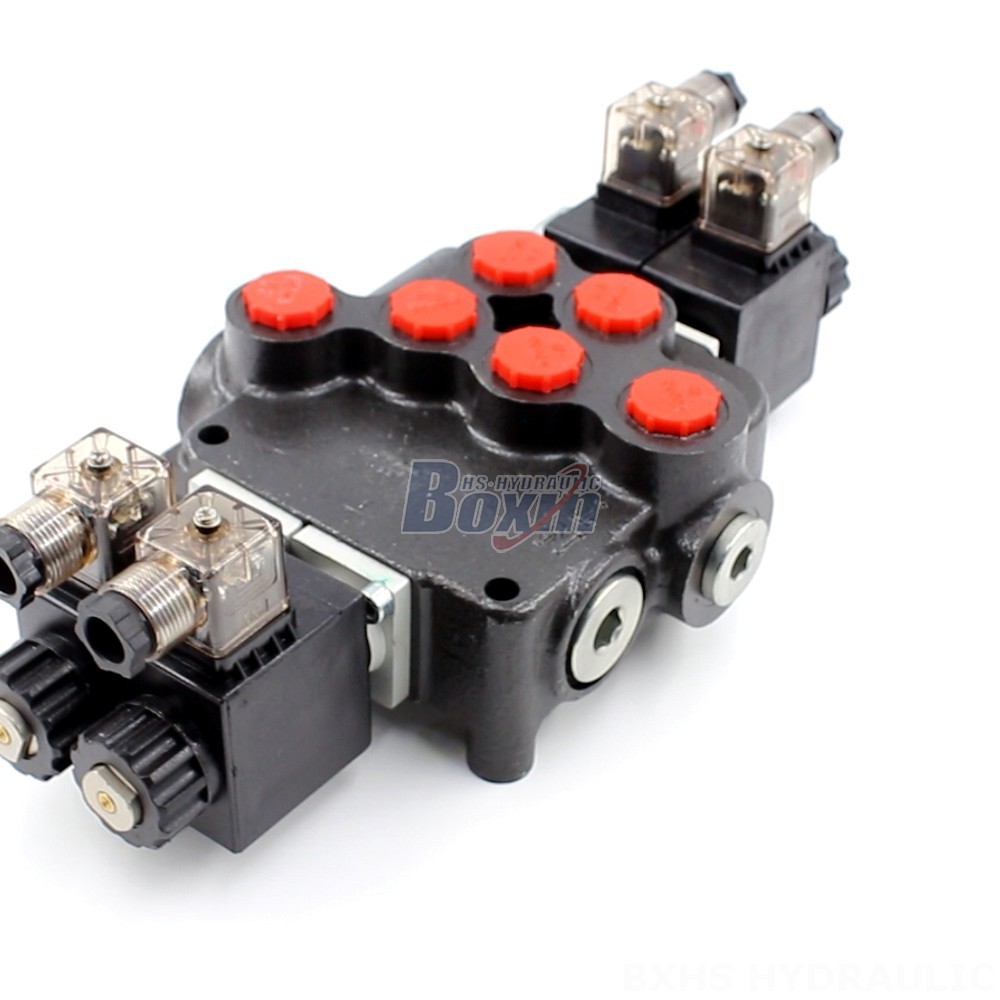

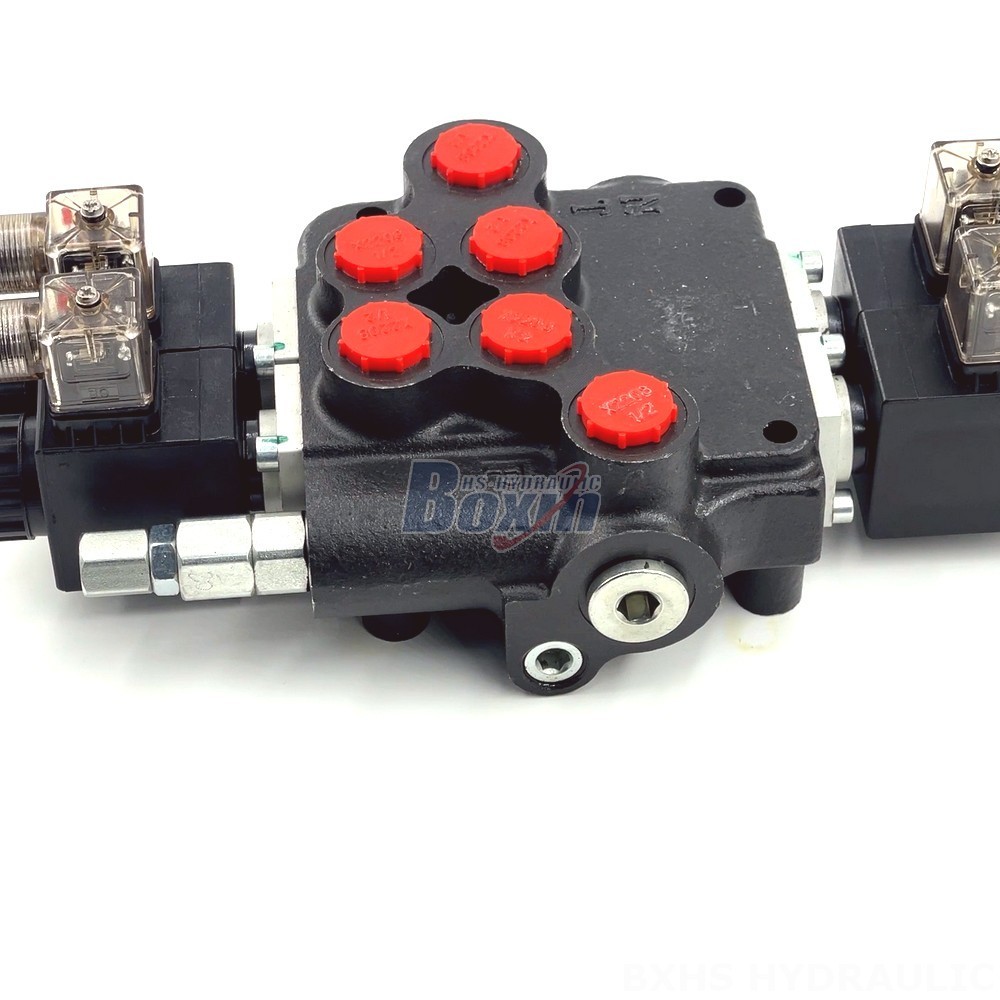

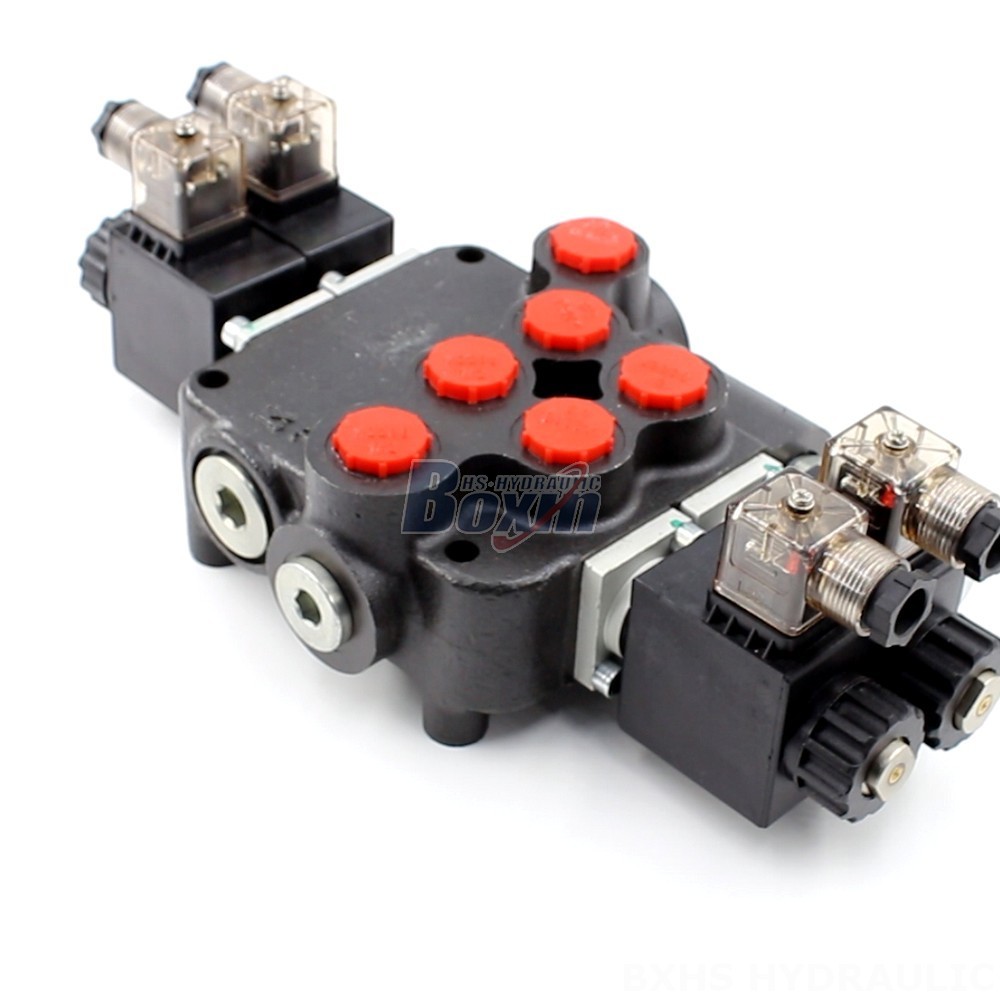

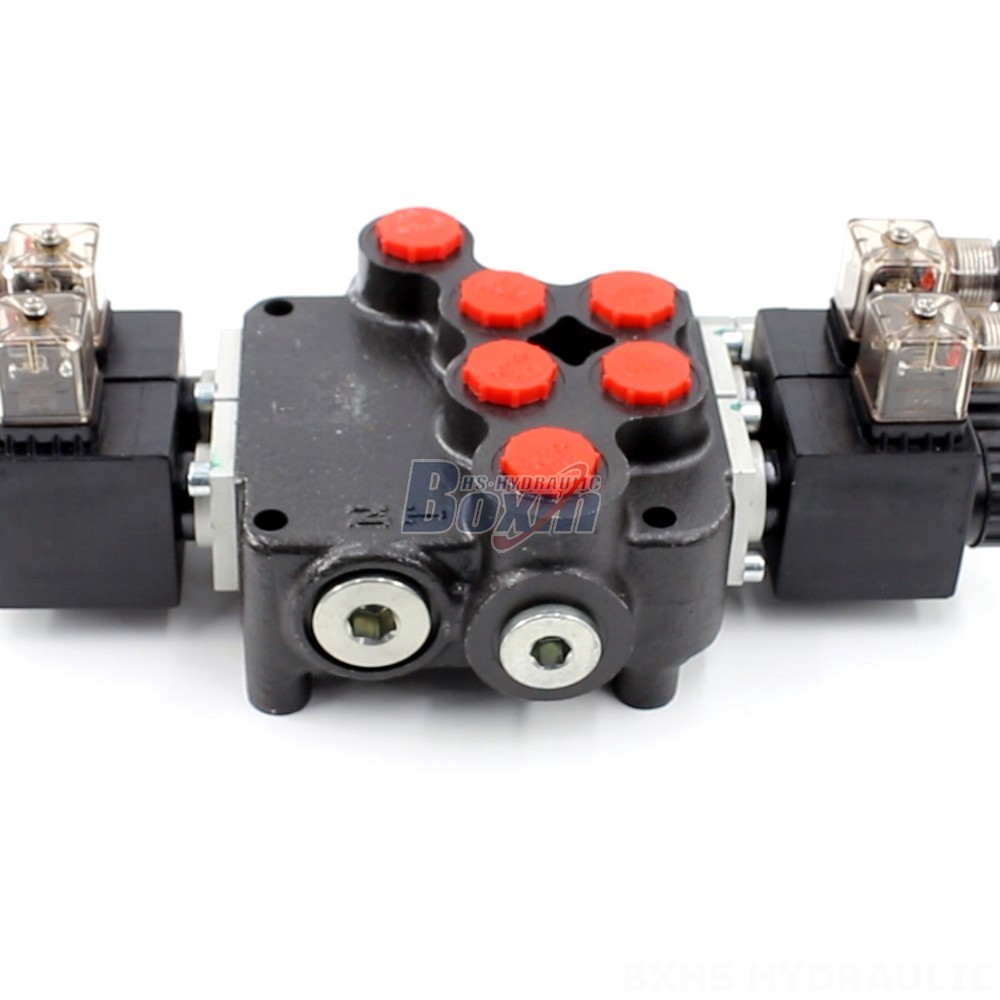

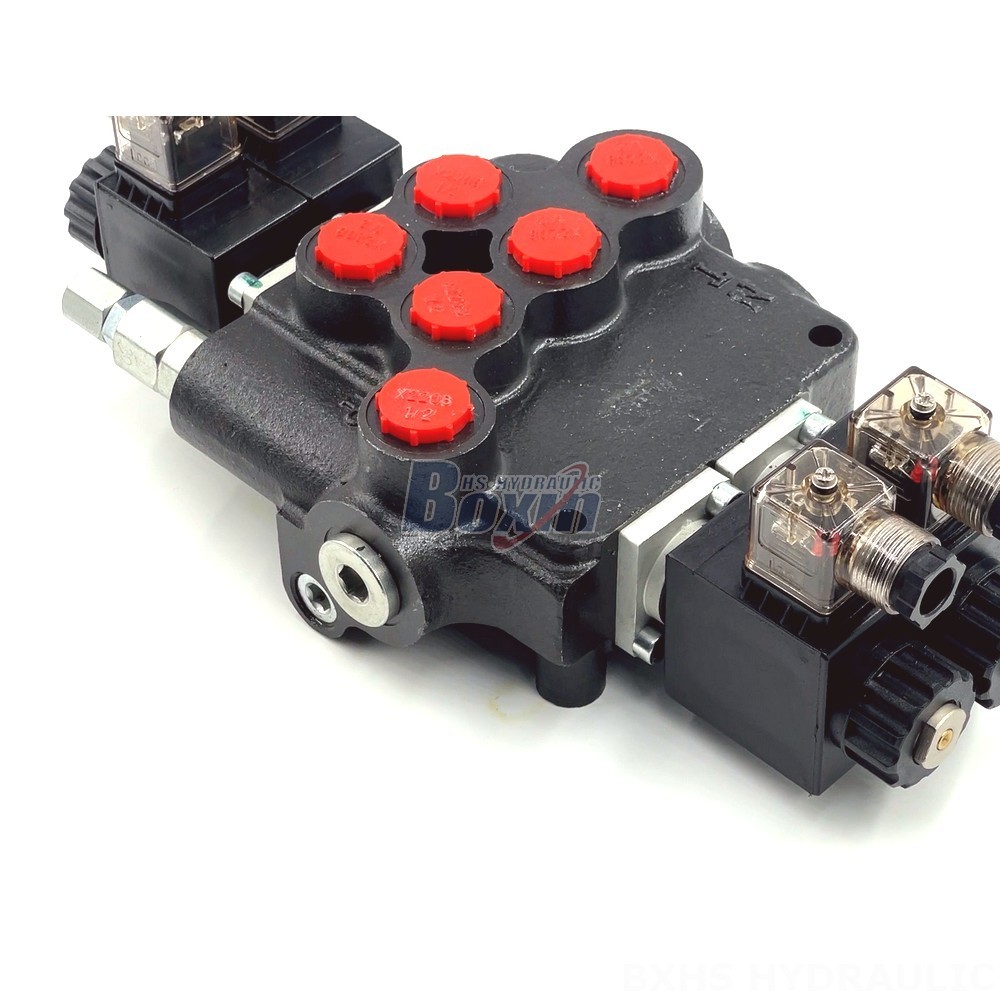

The P80 Solenoid Valve is a high-performance hydraulic valve designed for use in construction equipment, material handling, and industrial vehicles. It features a robust monoblock design, 2 sections, and a rated flow of 80 L/min. With a maximum pressure of 250 bar, this valve is ideal for demanding applications. Available for factory direct supply and global distribution.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80 Series Hydraulic Valve Control Solenoid is a high-quality, reliable valve designed for use in various applications, including construction equipment, material handling, and industrial vehicles. This 2-section monoblock valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for demanding operations. With a wide operating viscosity range and ambient temperature range, the P80 Solenoid Valve offers versatility and durability. As a manufacturer of hydraulic products, we offer factory direct supply, global distribution, and various options including OEM, ODM, and customization. We are also seeking distributors, wholesalers, agents, and traders to join our global network. Contact us today to learn more about this reliable and high-performance hydraulic valve.
