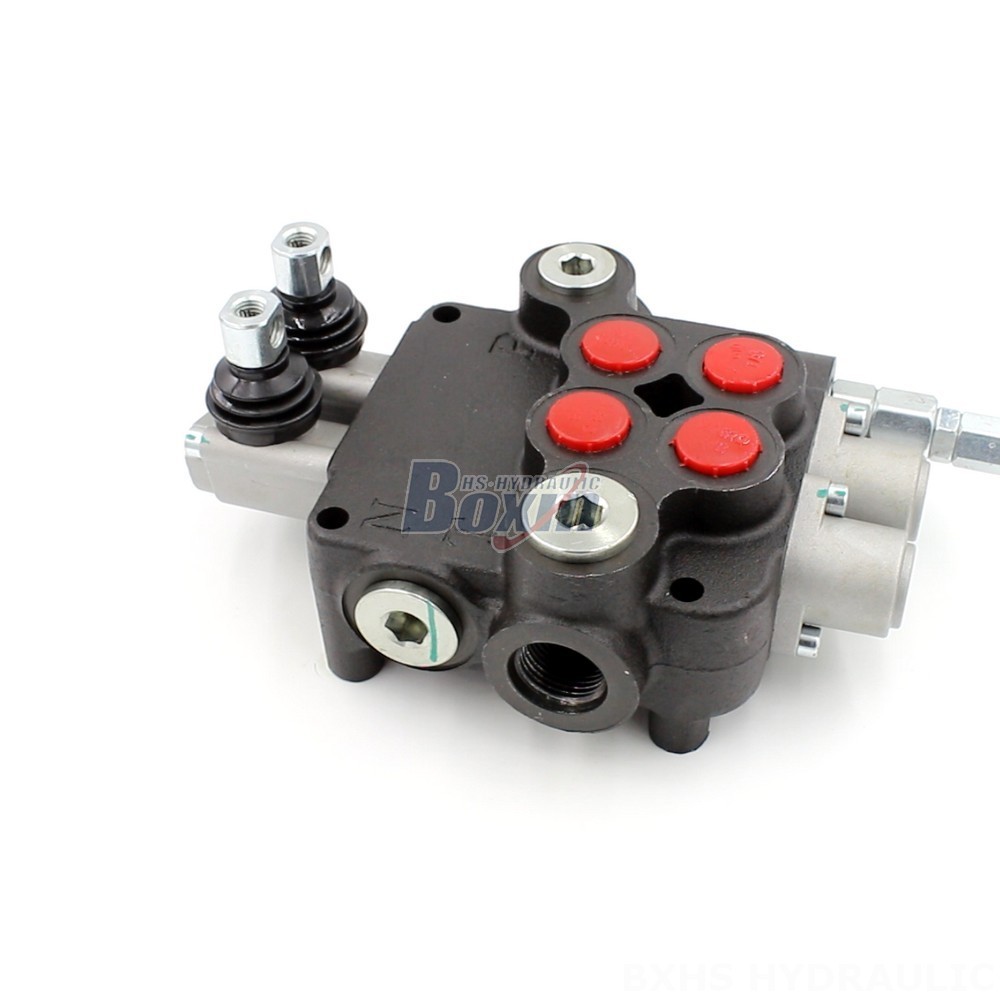

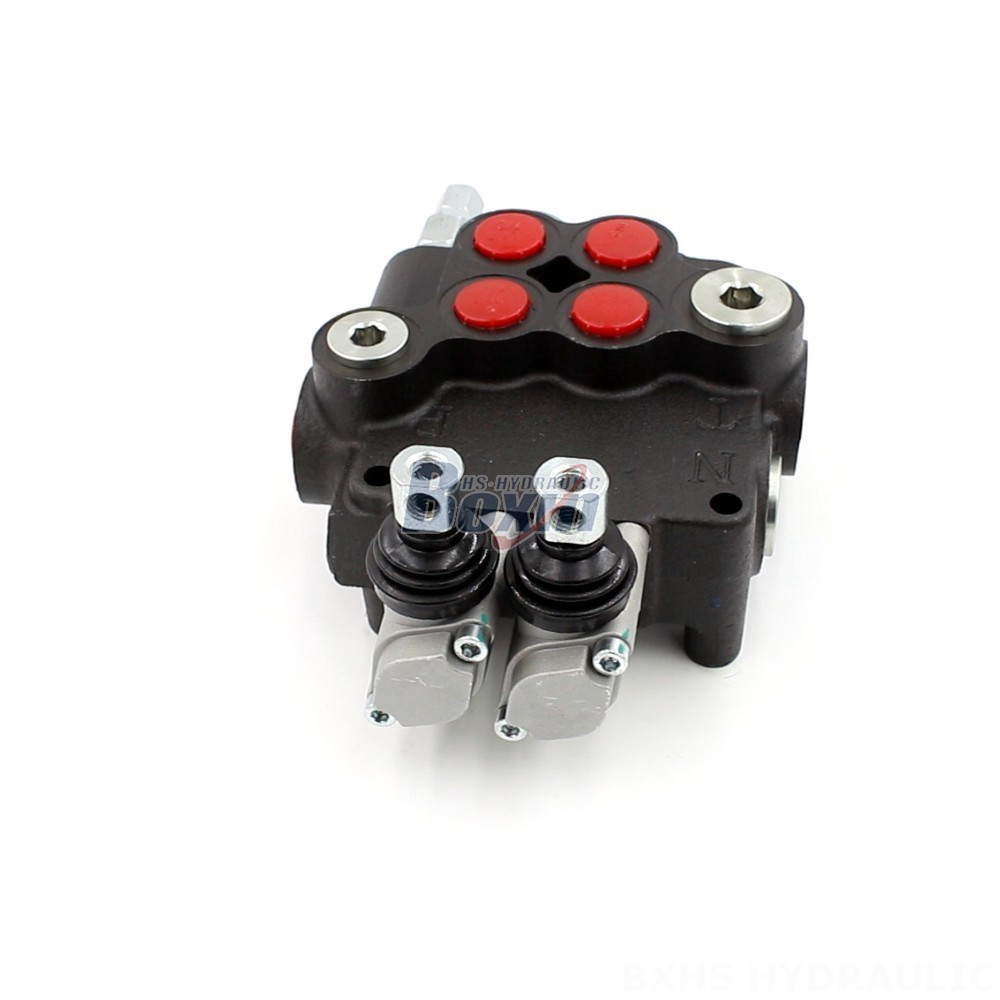

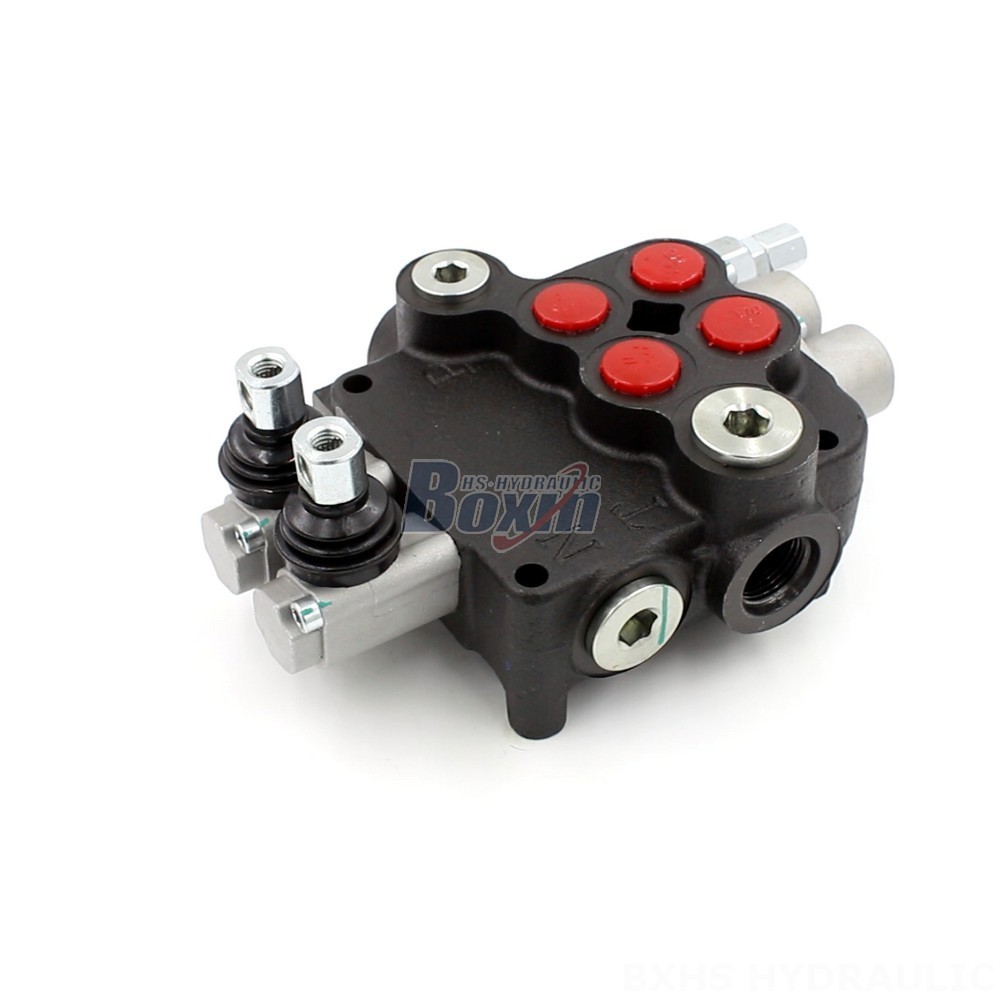

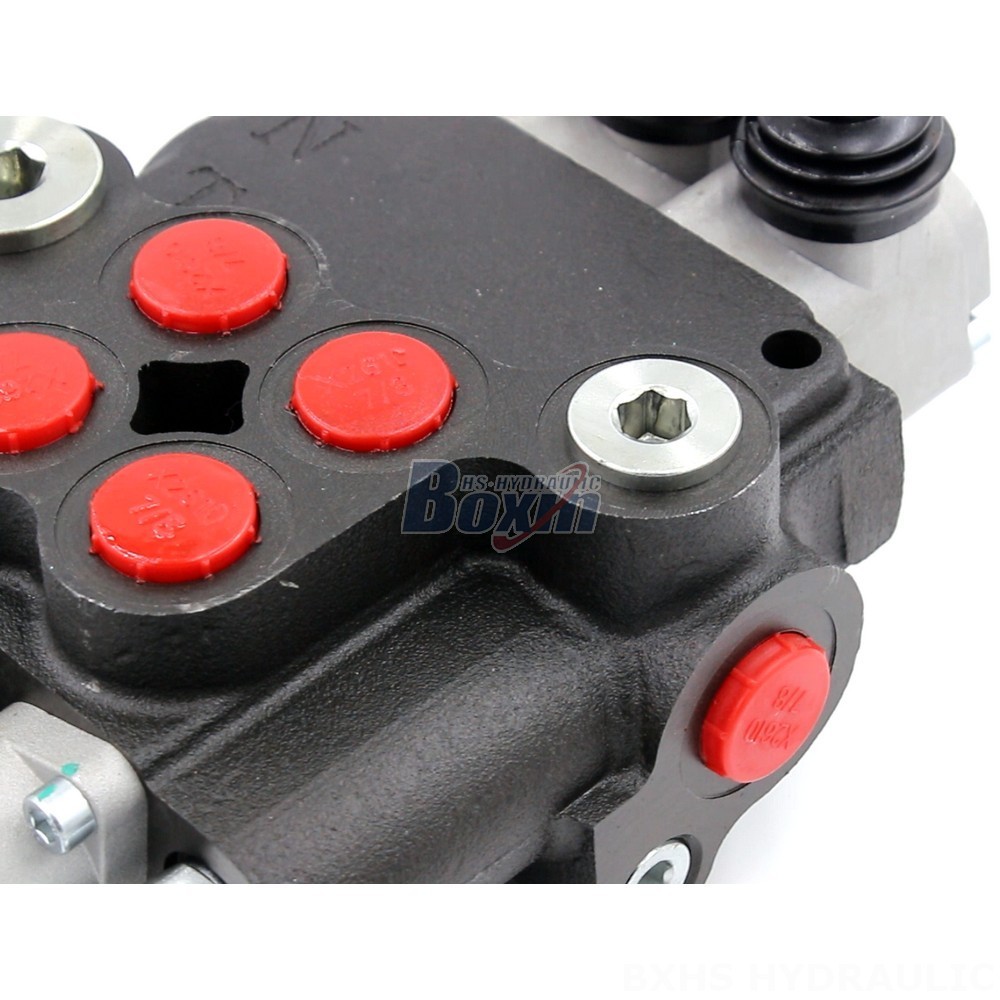

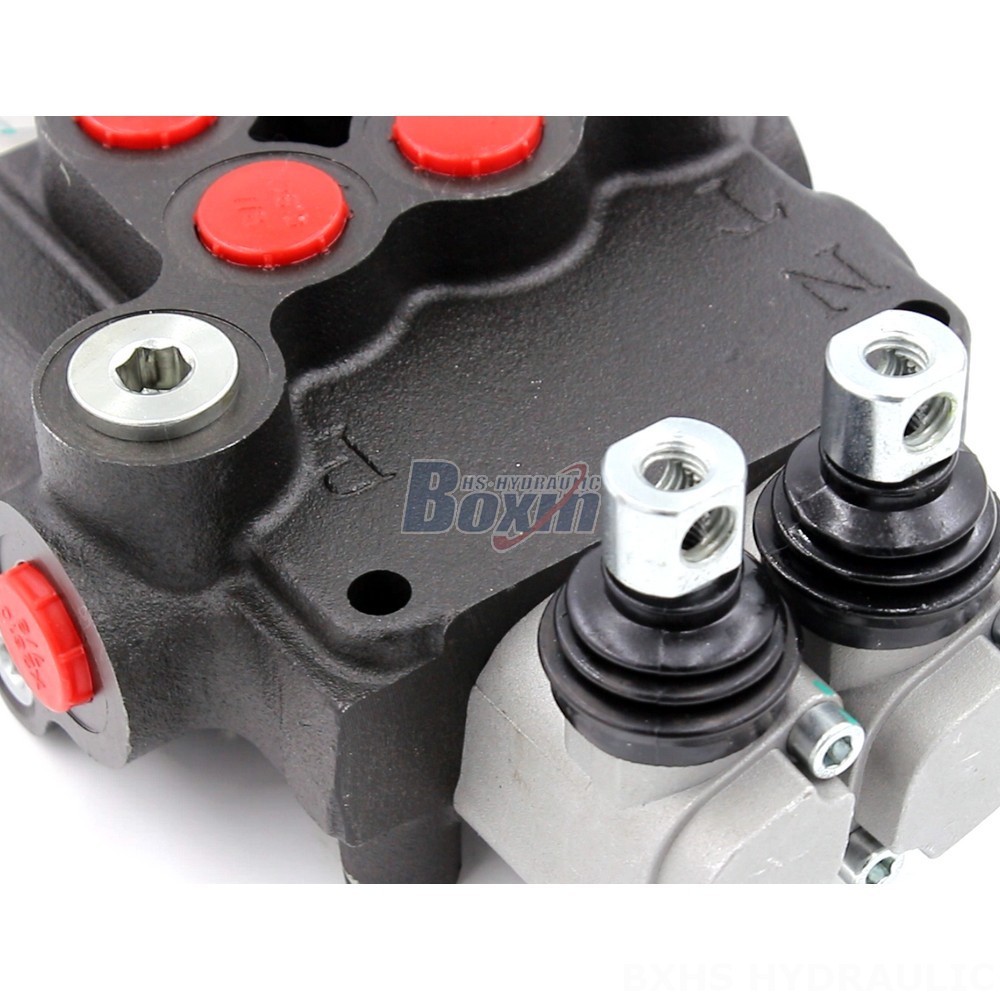

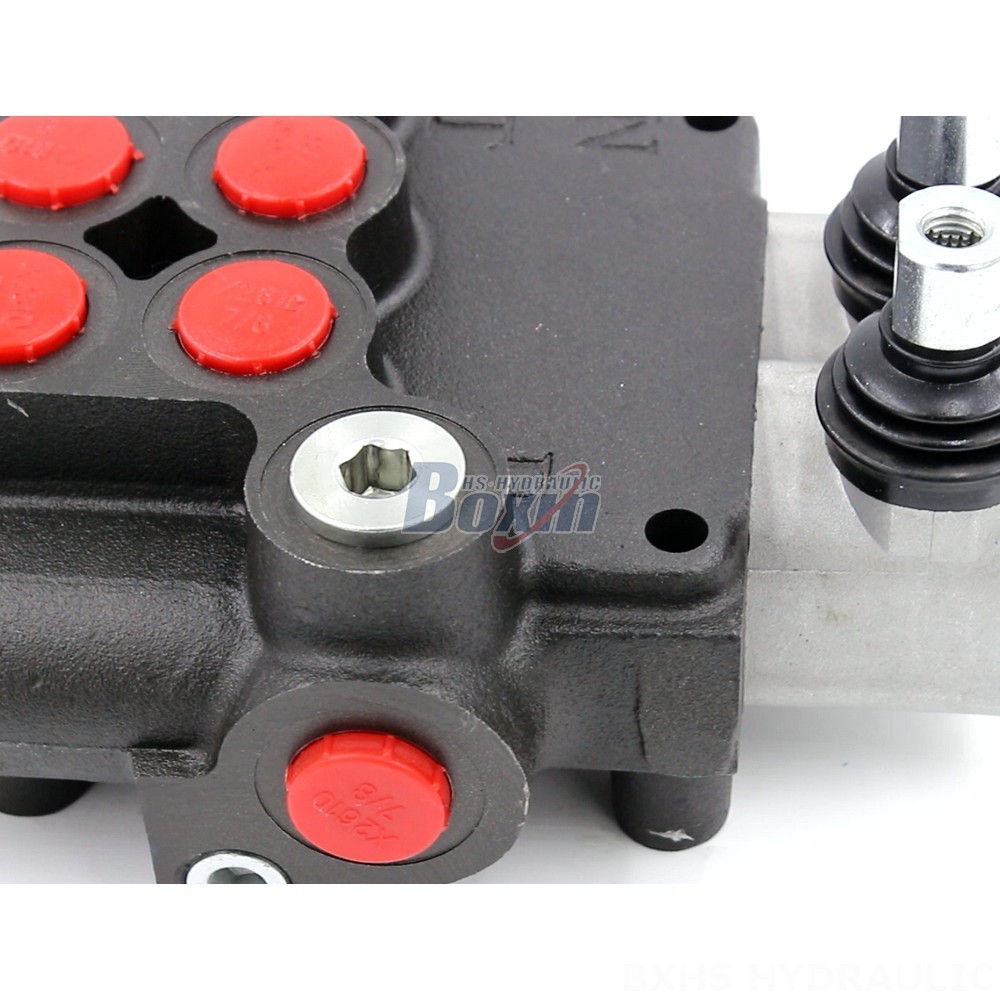

P80-U116-U78-2OT Hydraulic Valve: Private Label & Bespoke Production

Metode Kontrol:Buku Panduan

Spul:2 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:SAE 10

Port Keluar:SAE 12

Ukuran Port:SAE 10

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:26*18*11

Kelas kotor:8.00 kg

Ketersediaan: Tersedia

962 Pandangan Mencari Produk Ini

P80-U116-U78-2OT Hydraulic Valve: Private Label & Bespoke Production

P80-U116-U78-2OT Hydraulic Valve: Private Label & Bespoke Production

P80-U116-U78-2OT Hydraulic Valve: Private Label & Bespoke Production drawing image

The P80 Series Pressure Reducing Valve is a high-performance hydraulic valve designed for use in a variety of applications, including construction equipment, material handling, agriculture, and industrial vehicles. It features a manual control, monoblock construction, and a rated flow of 80 L/min (21.2 US gpm). The valve is also available with private label and bespoke production options.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80-U116-U78-2OT Hydraulic Valve is a pressure reducing valve designed for precise control of hydraulic pressure in a variety of applications. This manual control valve features a compact monoblock construction and a rated flow of 80 L/min (21.2 US gpm). It is designed to withstand a maximum pressure of 250 bar (3600 psi) and operates within a viscosity range of 15-75 mm²/s (15 cSt to 75 cSt). The valve is suitable for a wide range of ambient temperatures, from -40°C to +80°C (-40°F to +176°F). The P80 Series valve is ideal for use in construction equipment, material handling, agriculture, and industrial vehicles. Specifically, it is compatible with telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and other similar machines. This valve offers private label and bespoke production options, allowing customization to meet specific requirements. This makes it an excellent choice for manufacturers seeking to differentiate their products and provide tailored solutions to their customers.
