Manual 5 Spool Monoblock Directional Valve, part of the P80 series, is ideally suited for various industries including material handling, construction, and agriculture. With a rated flow of 80 l/min and a max pressure of 250 bar, it ensures efficient and reliable operation in demanding applications.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

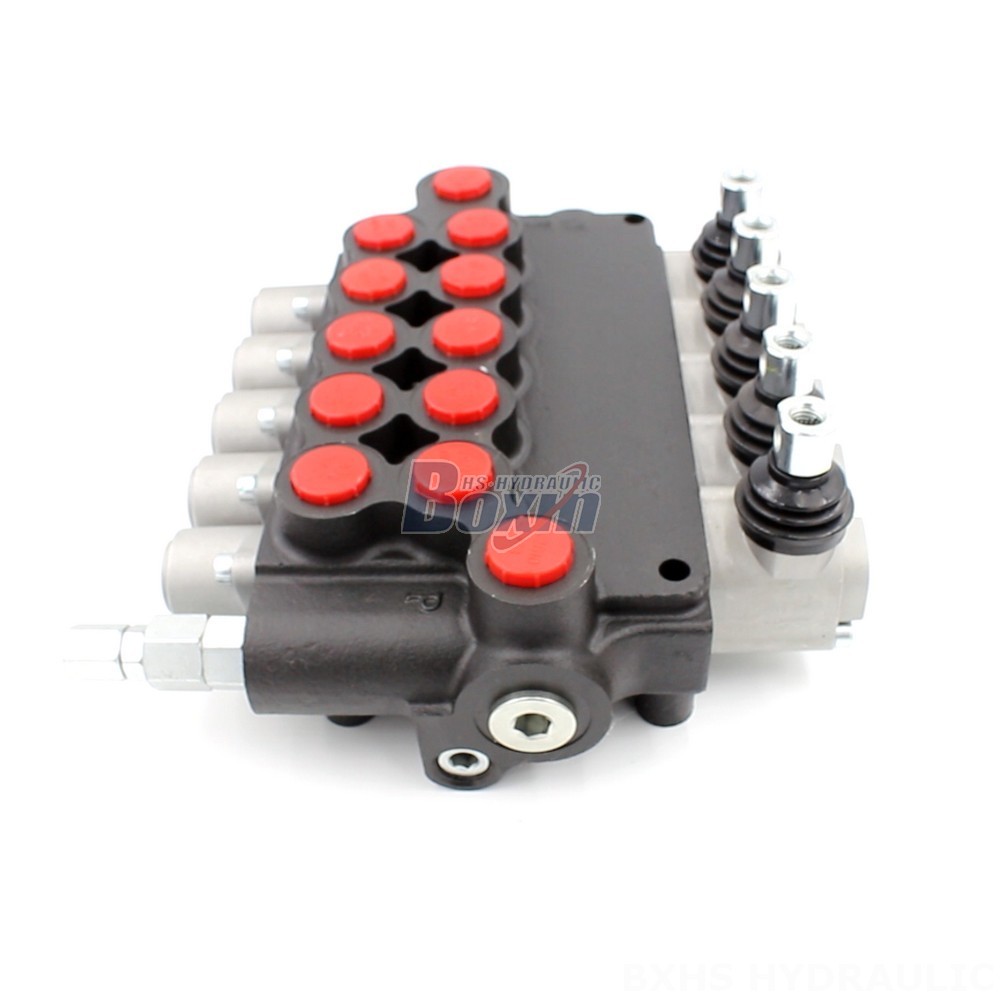

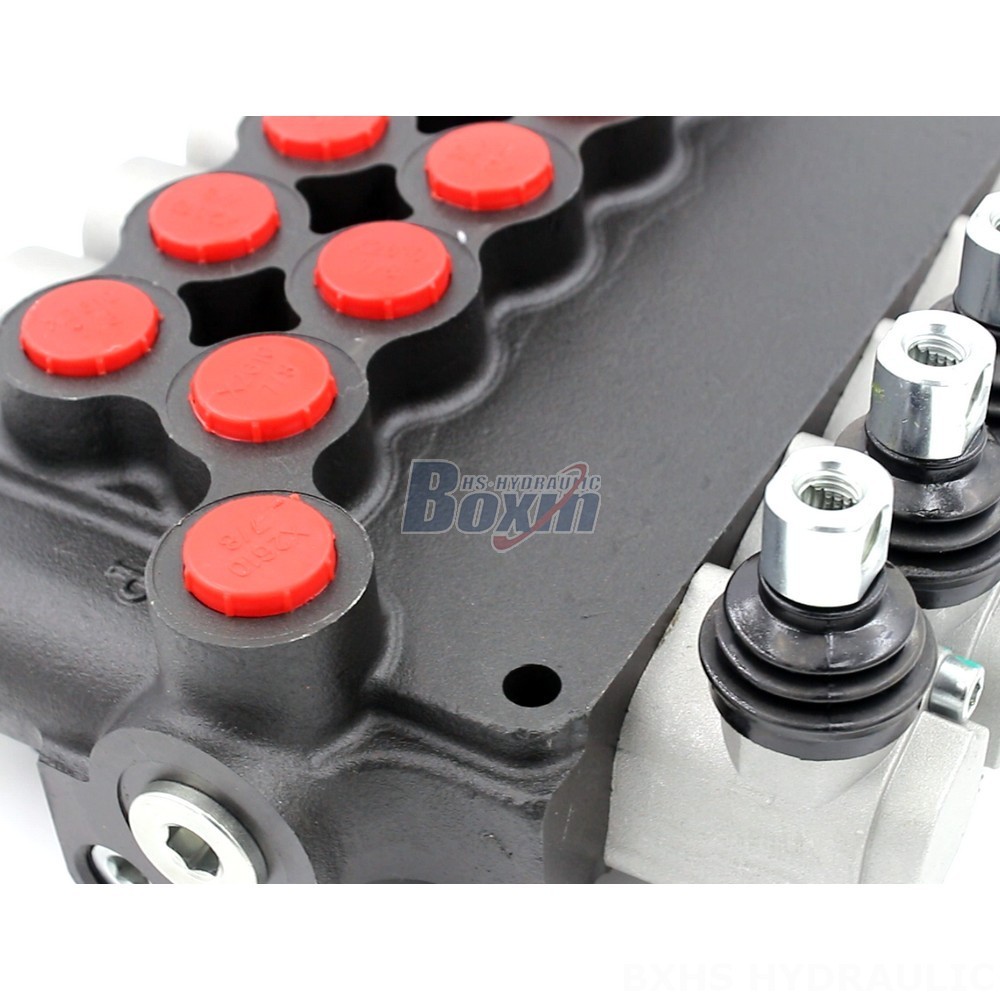

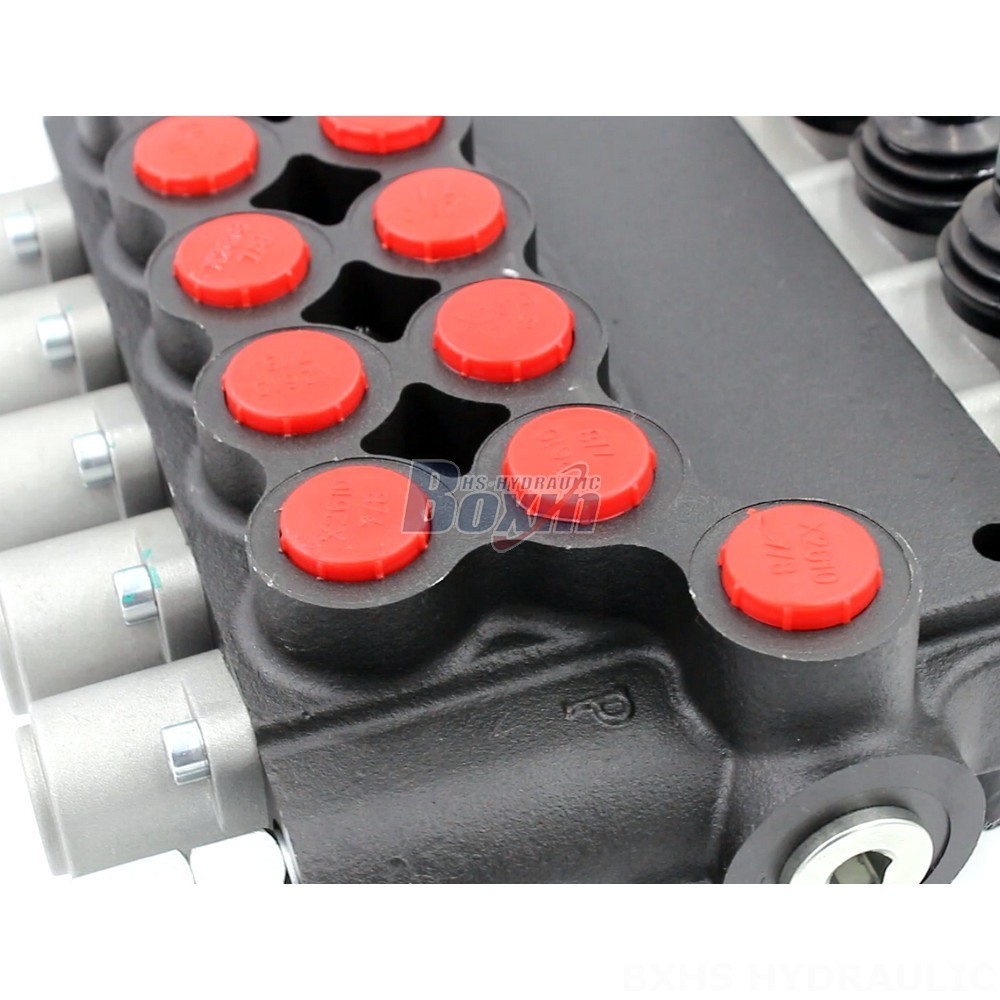

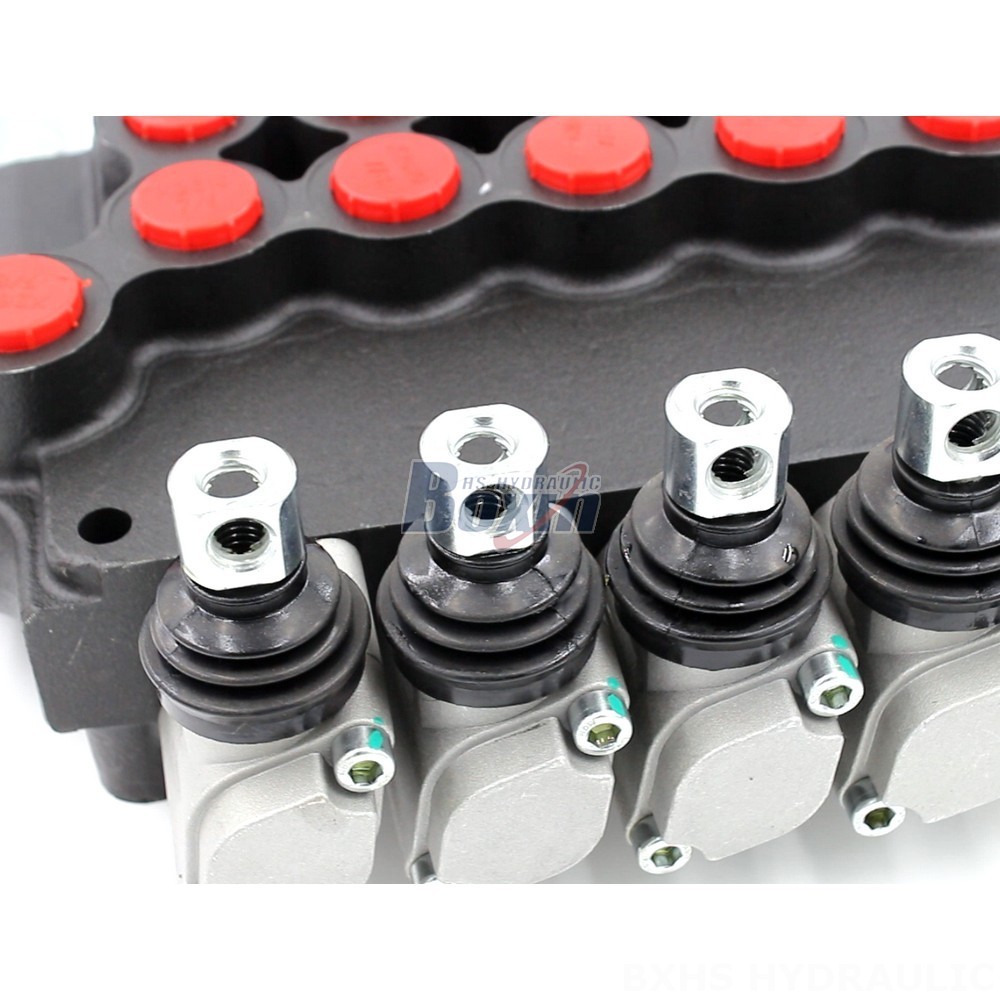

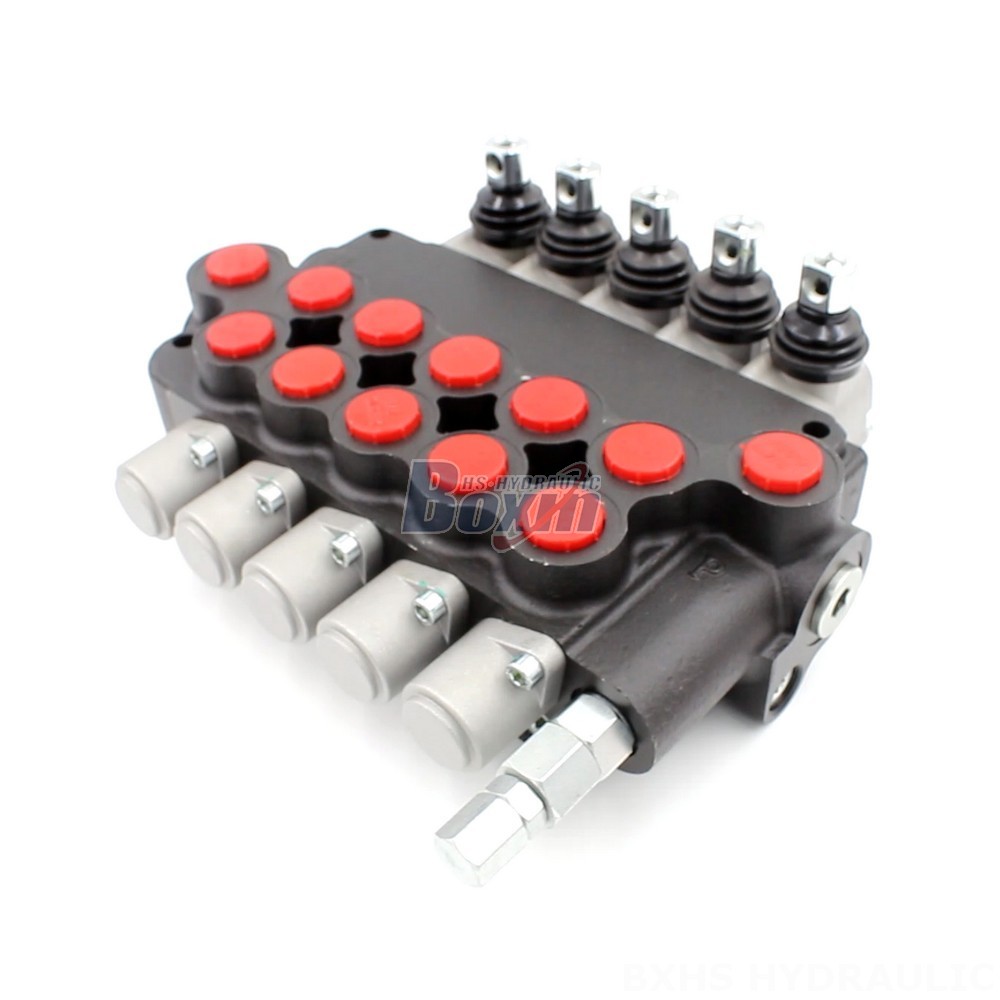

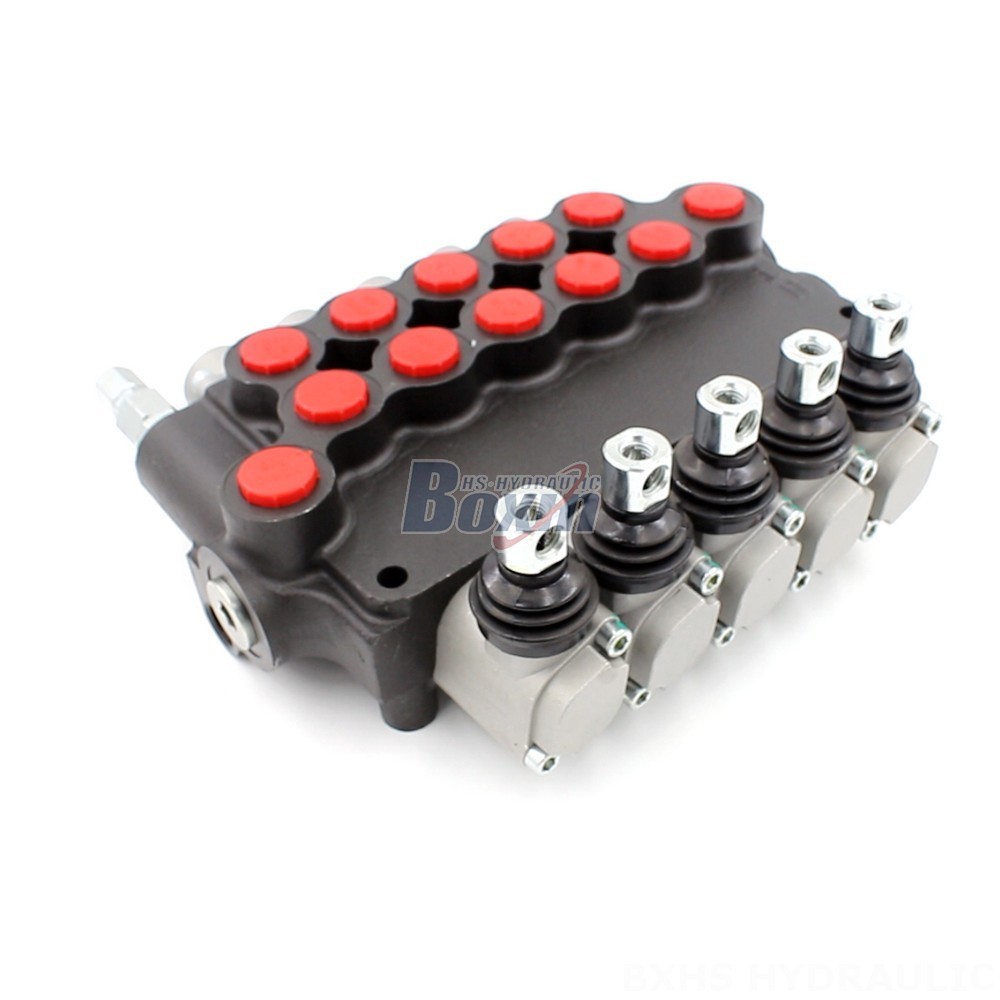

**P80-U116-U78-OT Manual 5 Spool Monoblock Directional Valve**
This valve features a manual control method and a monoblock structure, providing high durability and ease of maintenance. It boasts a 5 section design, enabling precise control of multiple hydraulic functions simultaneously. The valve's operating viscosity range (15 - 75 mm²/s) and ambient temperature range (-40°C to +80°C) ensure optimal performance in diverse operating conditions.
**Key Features:**
- Manual control method for precise operation
- Monoblock design for enhanced durability and compactness
- 5 spool configuration for versatile hydraulic control
- Rated flow of 80 l/min for efficient hydraulic system operation
- Max pressure of 250 bar for demanding applications
- Wide operating viscosity range (15 - 75 mm²/s) for adaptability to various hydraulic fluids
- Extended ambient temperature range (-40°C to +80°C) for reliable performance in harsh environments
**Applications:**
This valve finds application in a wide range of industries, including:
- Material handling: forklifts, telehandlers, stackers
- Construction and earth moving: excavators, wheel loaders, motor graders
- Agriculture: tractors, harvesters, sprayers
- Industrial vehicles: aerial platforms, sweepers, scrubbers
