Produksi & Pengiriman
Waktu Produksi 15-30 Hari
963 Pandangan Mencari Produk Ini

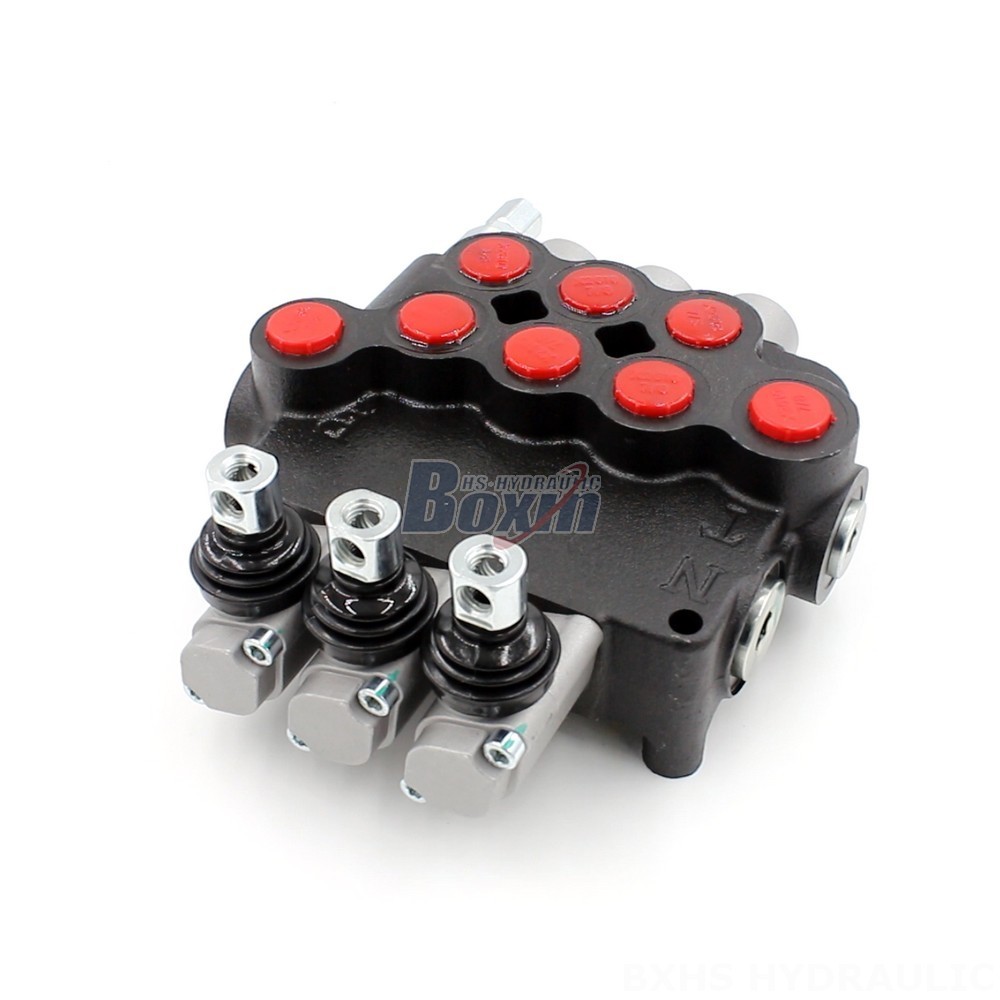

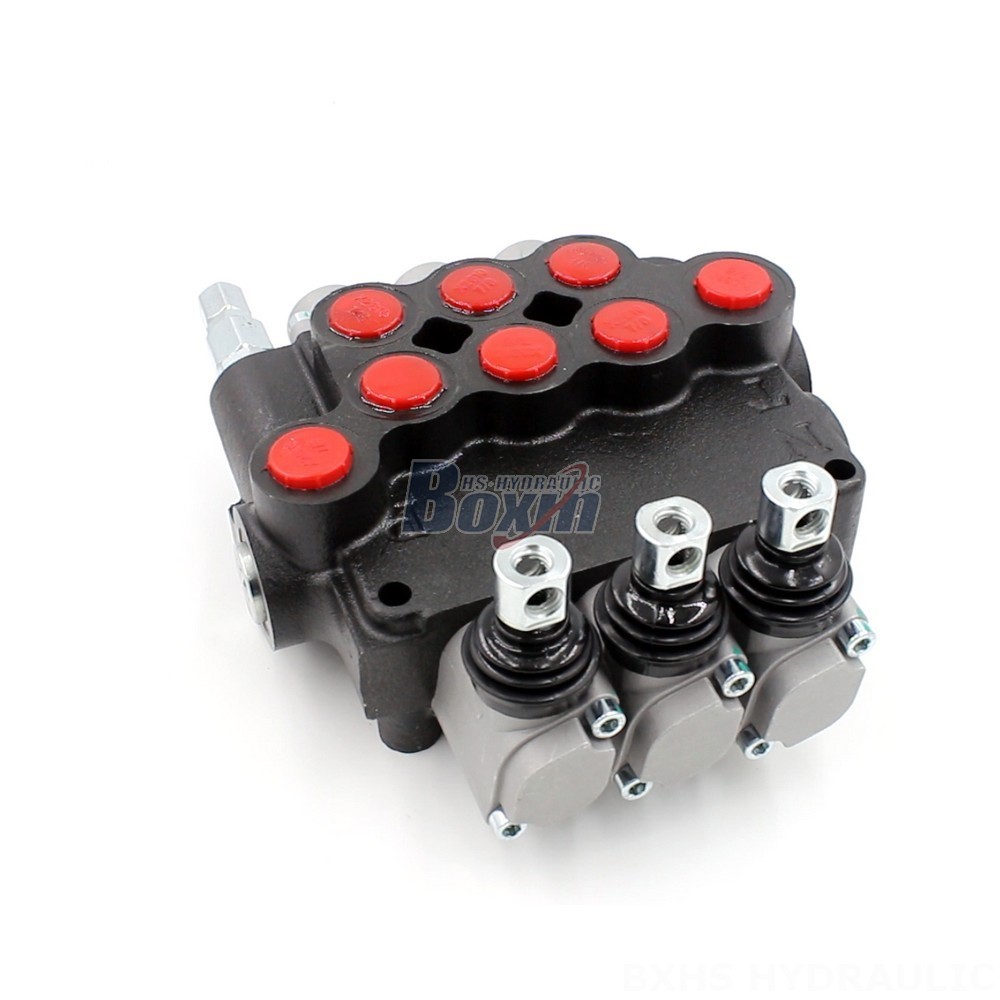

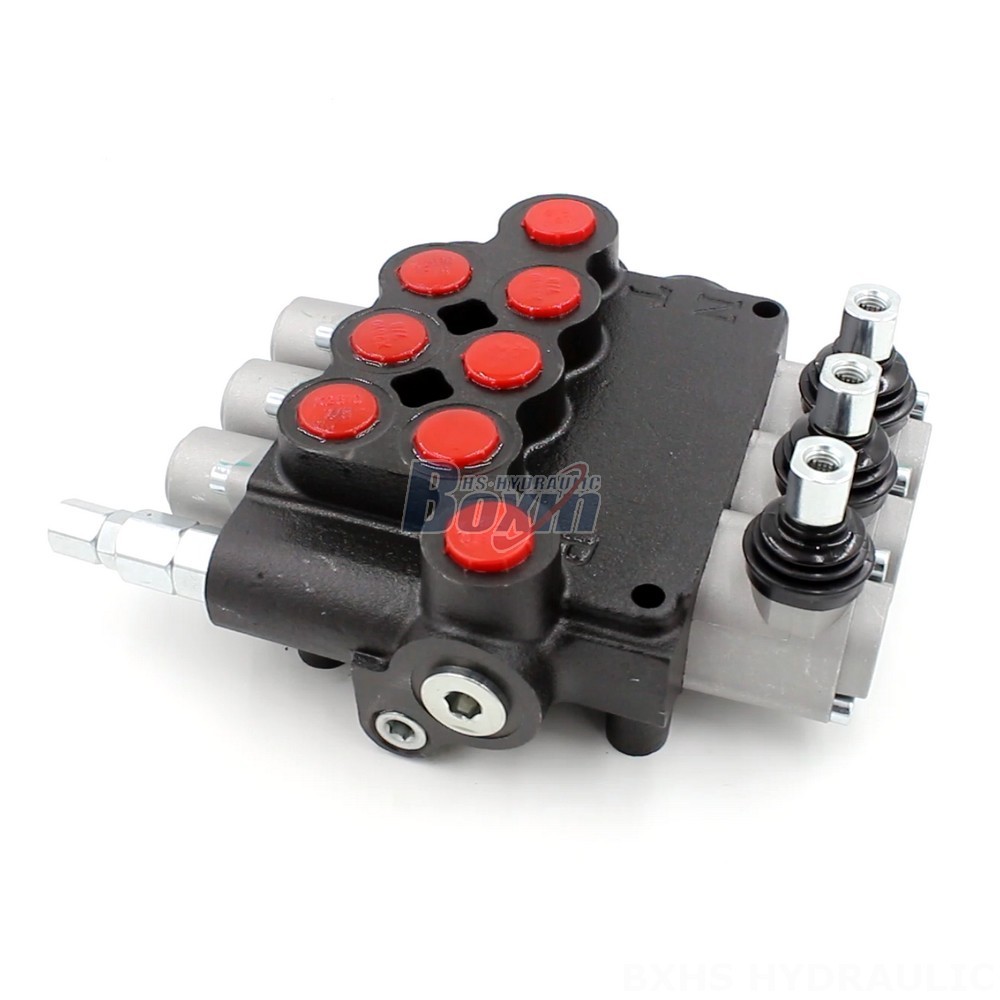

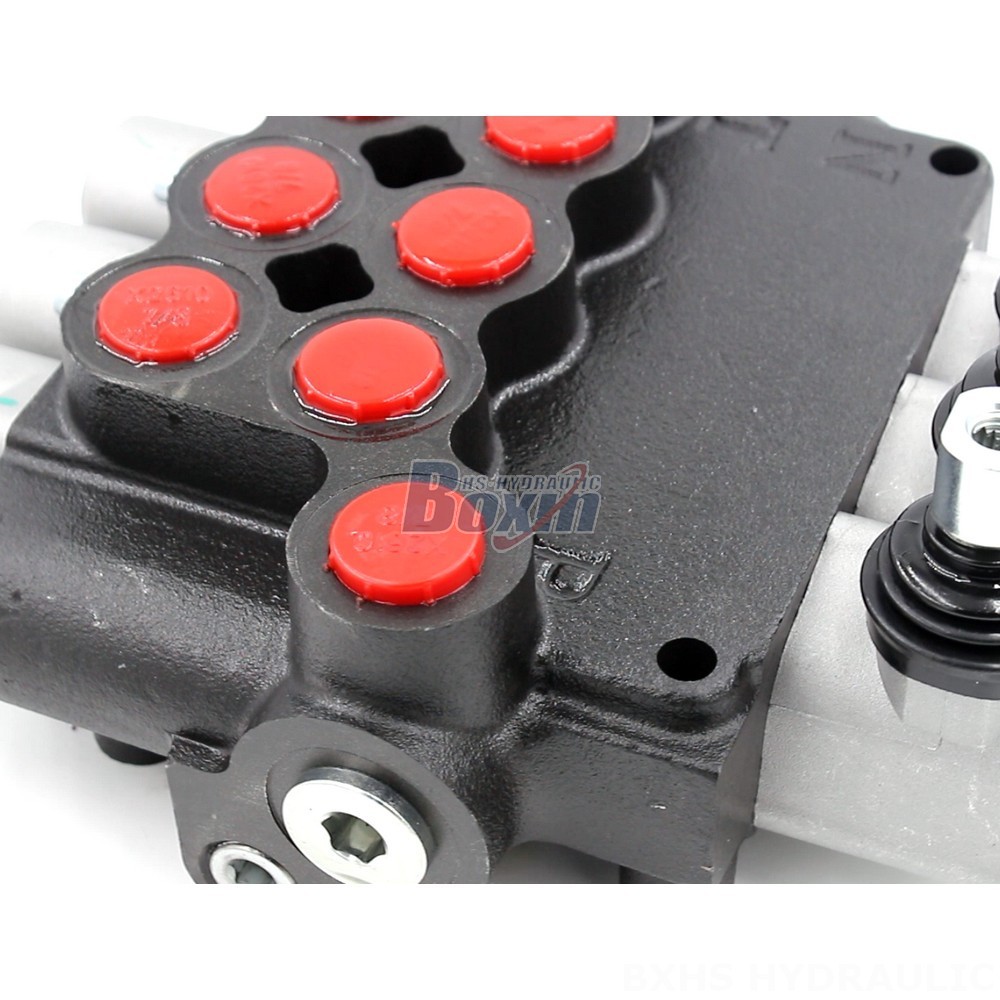

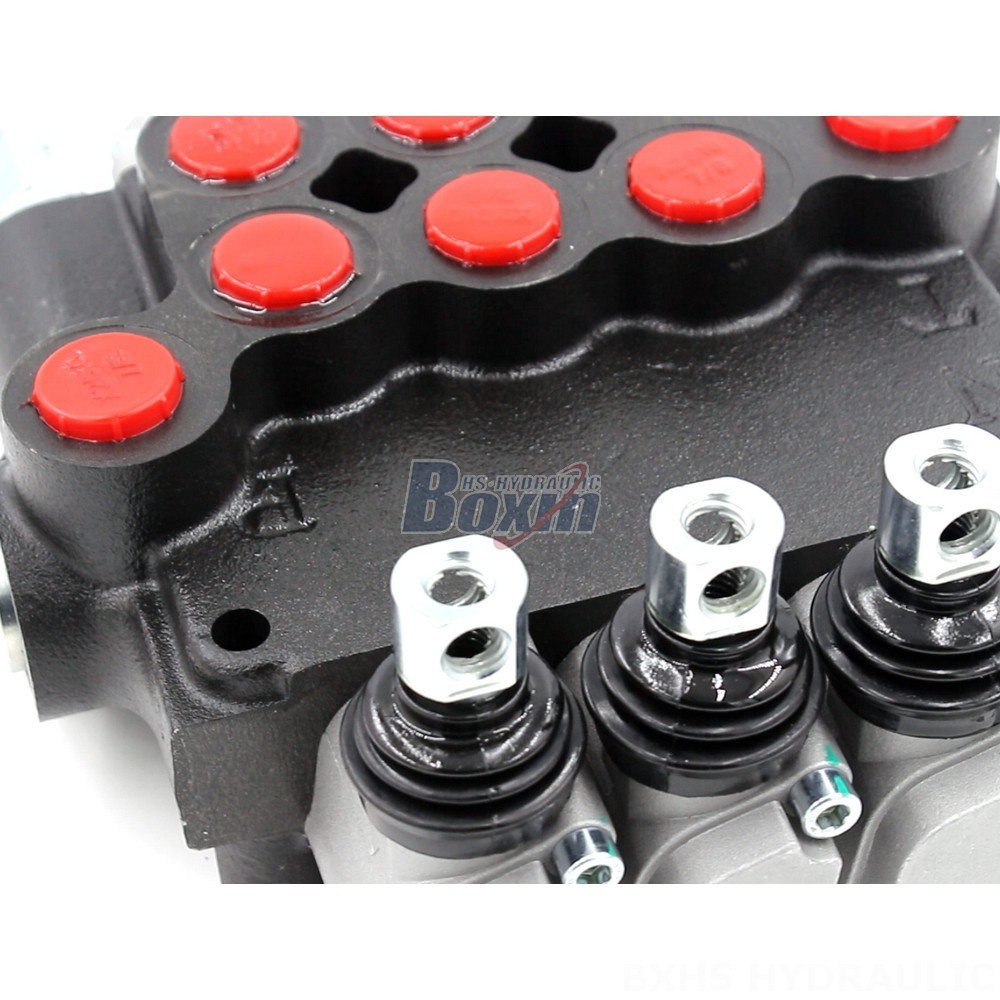

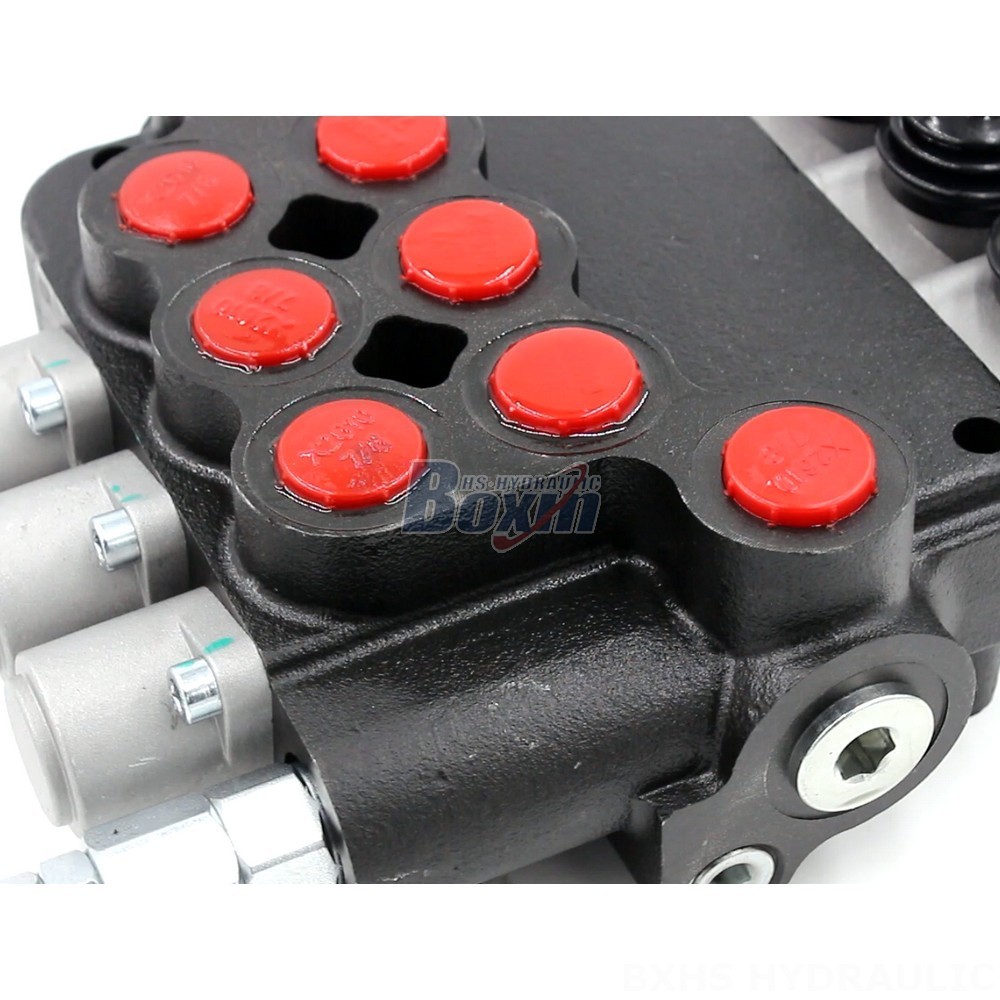

P80-U78-3OT Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications. With its monoblock construction, manual control, and 80 L/min rated flow, it offers exceptional flow control and pressure handling capabilities. Ideal for industrial vehicles, construction, and agricultural equipment.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
P80-U78-3OT Manual 3 Spool Monoblock Directional Valve features:
- Manual control for precise flow management
- Monoblock construction for compact and durable design
- 3 spool design for versatile flow control
- Rated flow of 80 L/min (21.2 US gpm) for efficient flow handling
- Maximum pressure of 250 bar (3600 psi) for demanding applications
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
- Wide ambient temperature range of -40°C to +80°C (-40°F to +176°F) for reliable operation in diverse environments
- Suitable for a range of applications, including material handling, construction, agriculture, and industrial vehicles.
