P80 Valve Distribution Opportunities: Profitable Partnerships Await

Metode Kontrol:Selenoid

Spul:2 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:200 bar (2900 psi)

Port Masuk:G3/4

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:37*18*11

Kelas kotor:9.50 kg

Ketersediaan: Tersedia

1591 Pandangan Mencari Produk Ini

P80 Valve Distribution Opportunities: Profitable Partnerships Await

P80 Valve Distribution Opportunities: Profitable Partnerships Await

P80 Valve Distribution Opportunities: Profitable Partnerships Await drawing image

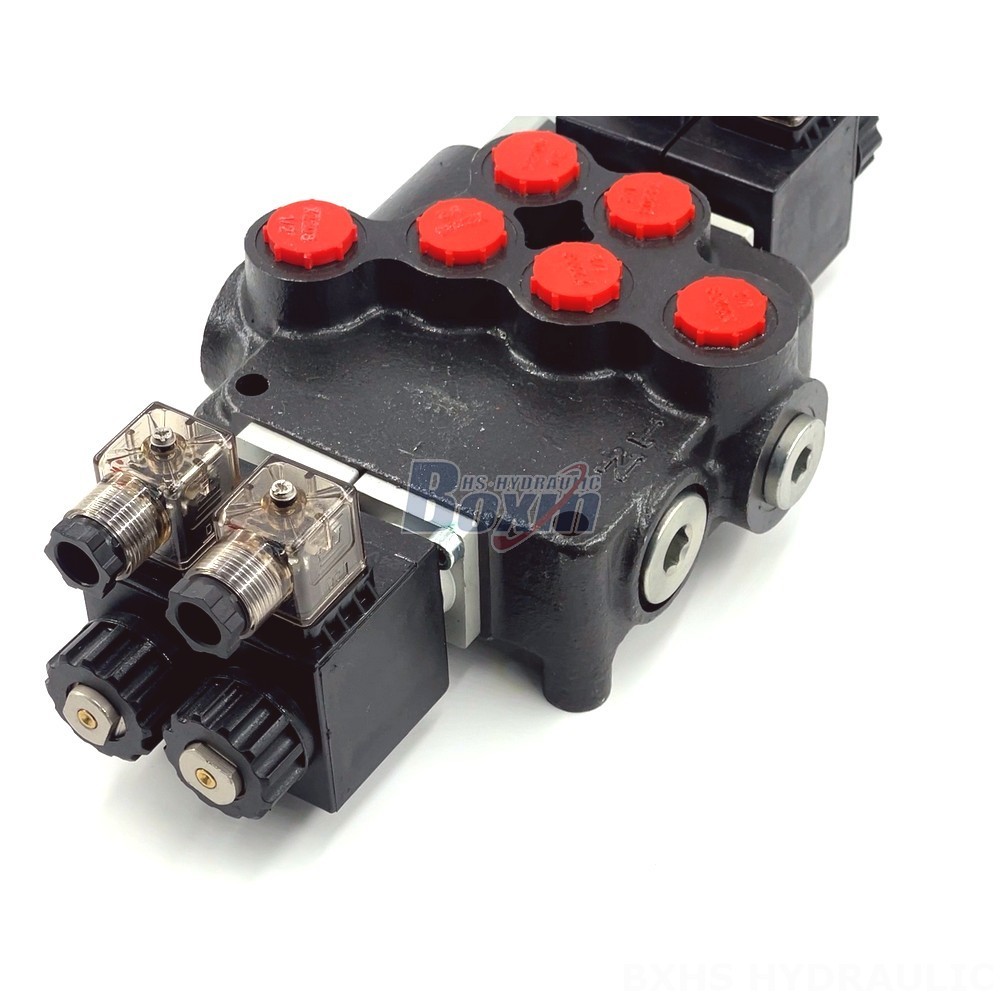

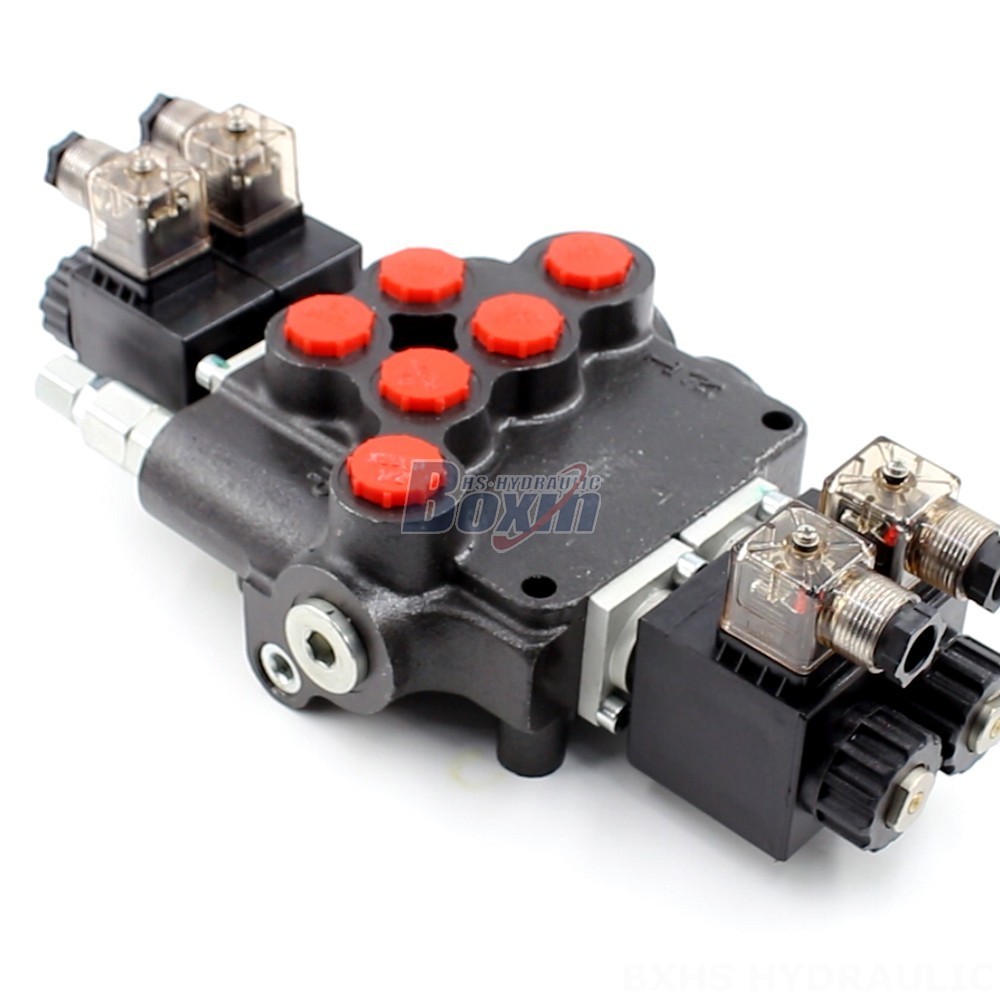

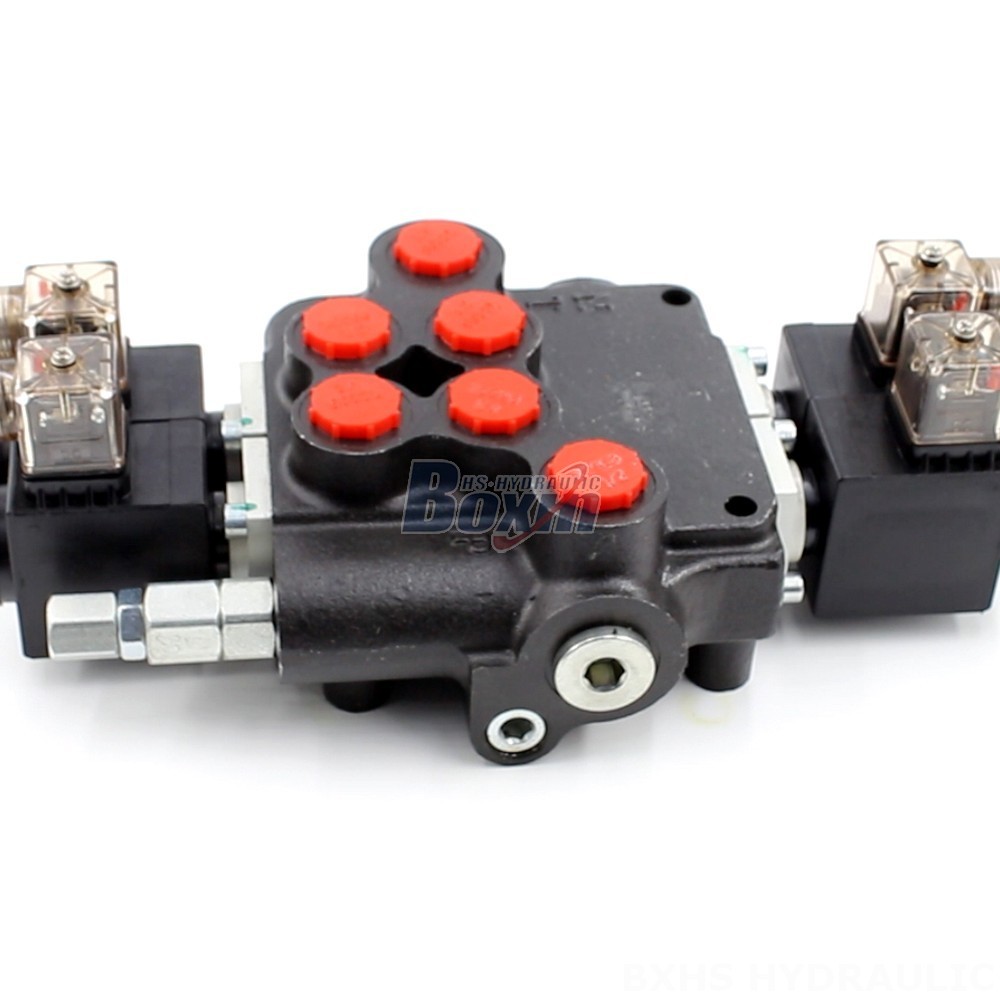

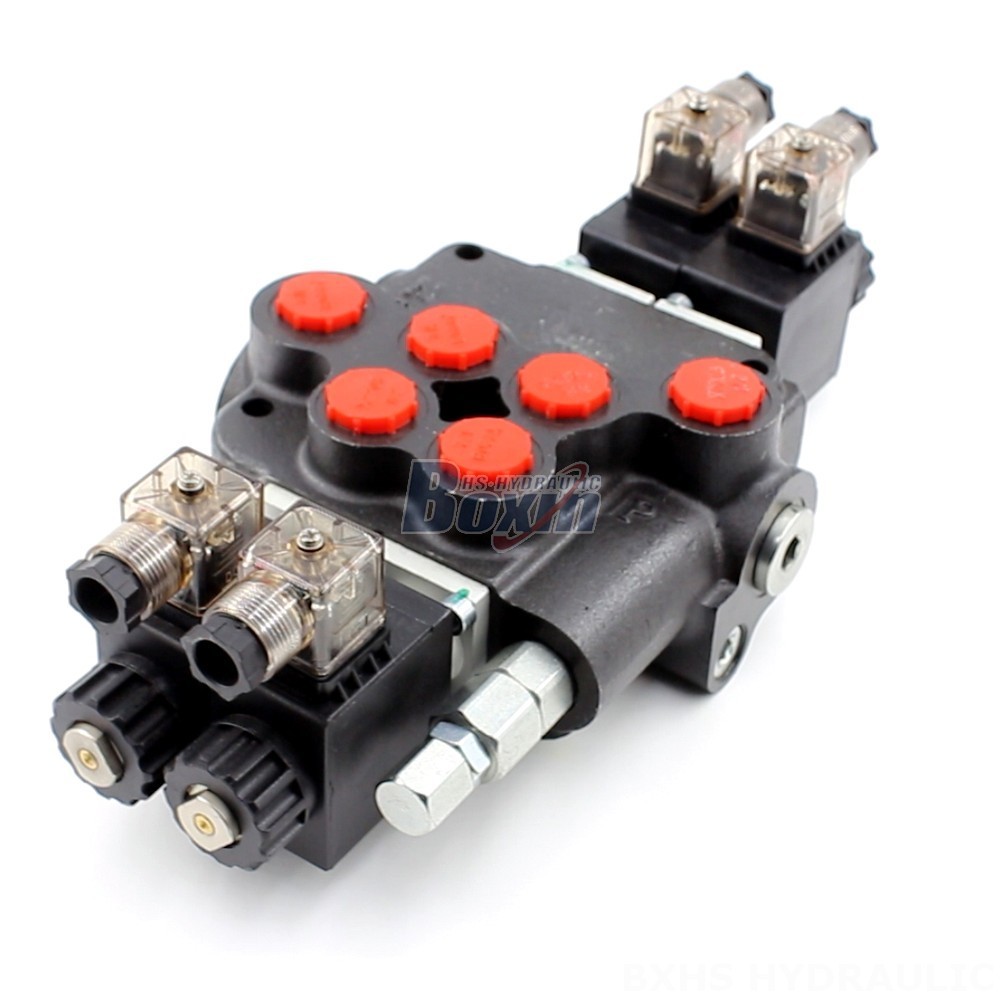

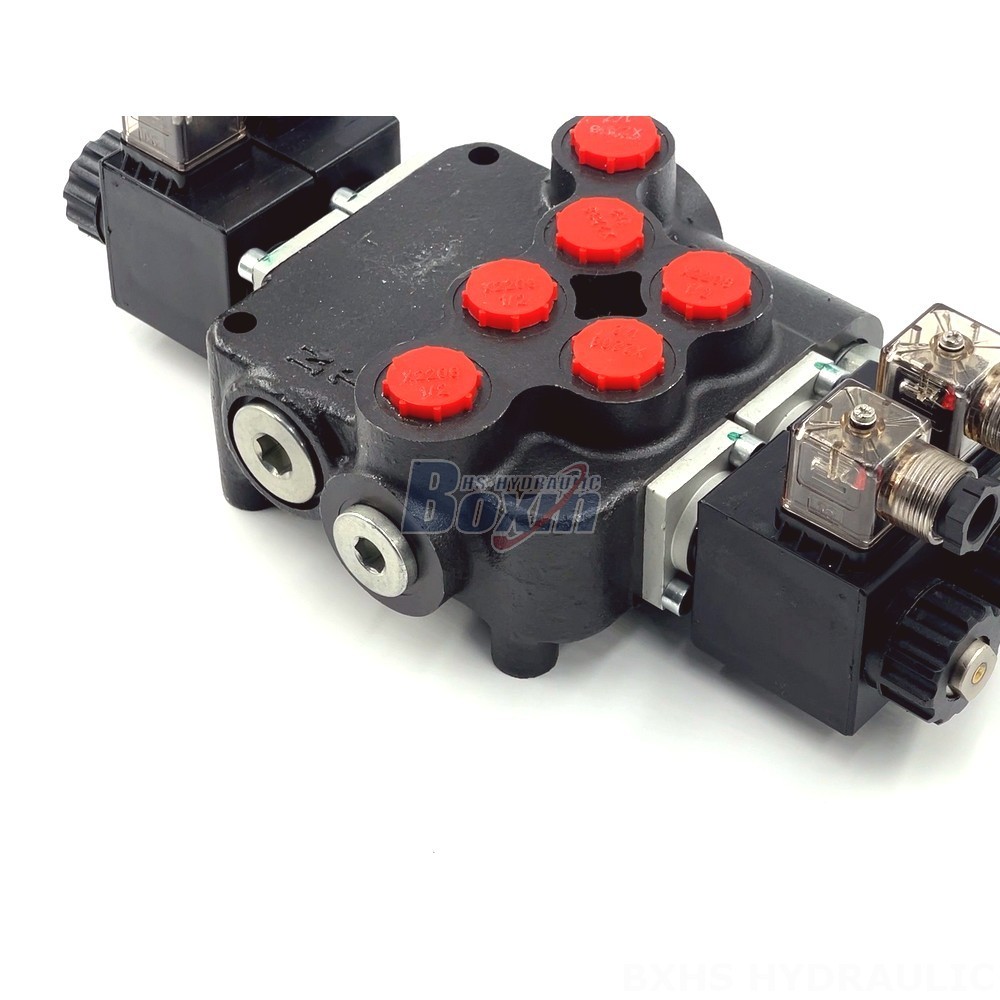

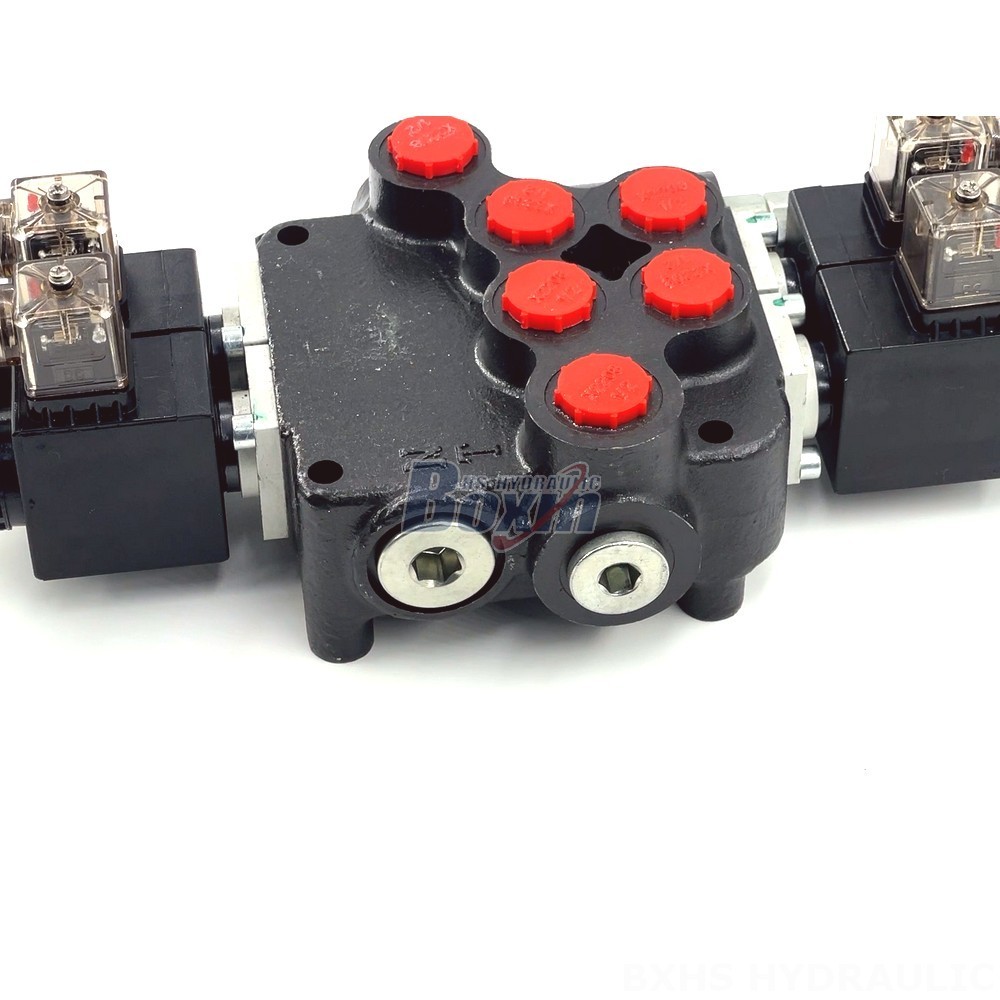

Our P80 Series Control Unit with Solenoids is a high-performance, reliable hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. With its 2-section monoblock design, 80 L/min flow rate, and 250 bar pressure rating, this valve offers exceptional control and efficiency.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This Control Unit with Solenoids is part of our P80 Series and features a 2-section monoblock design. It boasts a flow rate of 80 L/min and a maximum pressure rating of 250 bar, making it suitable for various applications in material handling, construction, agriculture, and industrial vehicles. The valve operates with a solenoid control method and features a 2-spool design. It's designed to withstand demanding environments with its -40°C to +80°C operating temperature range and is compatible with a wide viscosity range of 15 - 75 mm²/s. We offer this valve as a manufactured product, OEM component, private label item, and custom solution. We're actively seeking distributors, wholesalers, dealers, and traders to expand our global reach and offer our high-quality products to a wider audience. Contact us today to explore profitable partnership opportunities.
