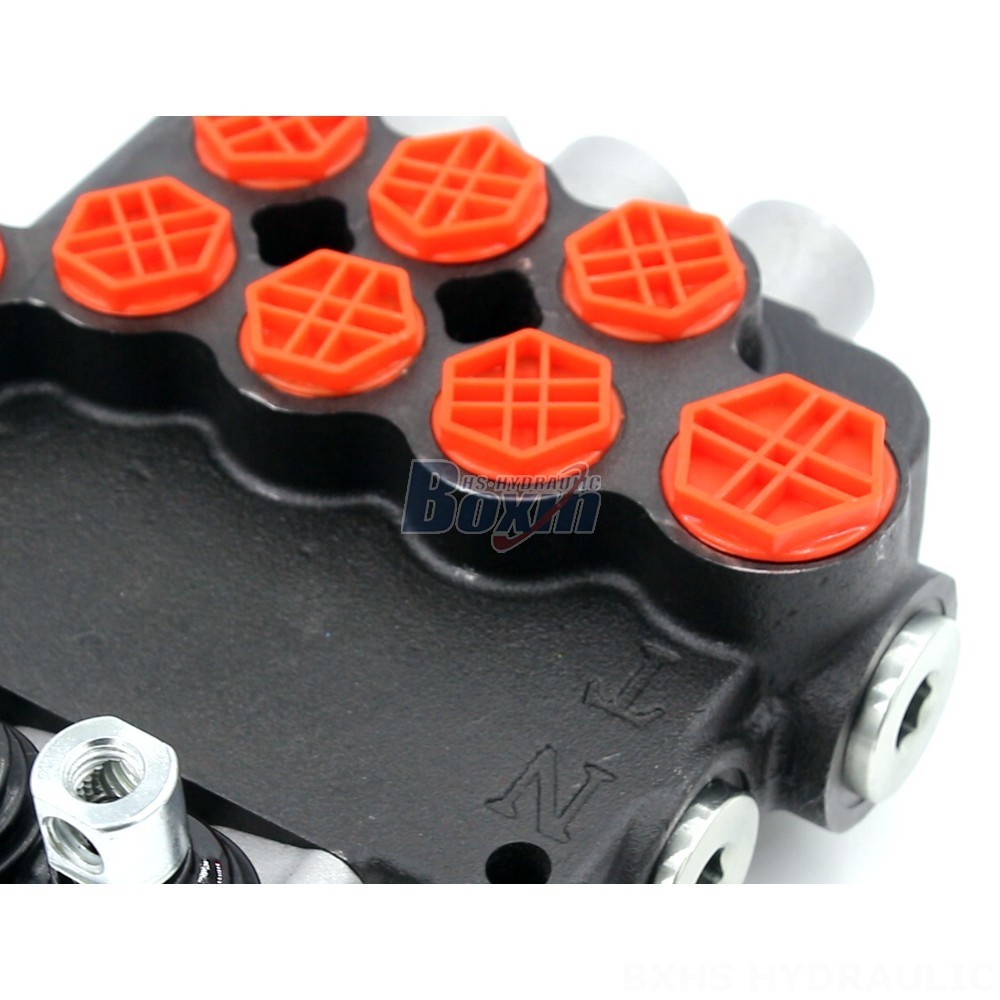

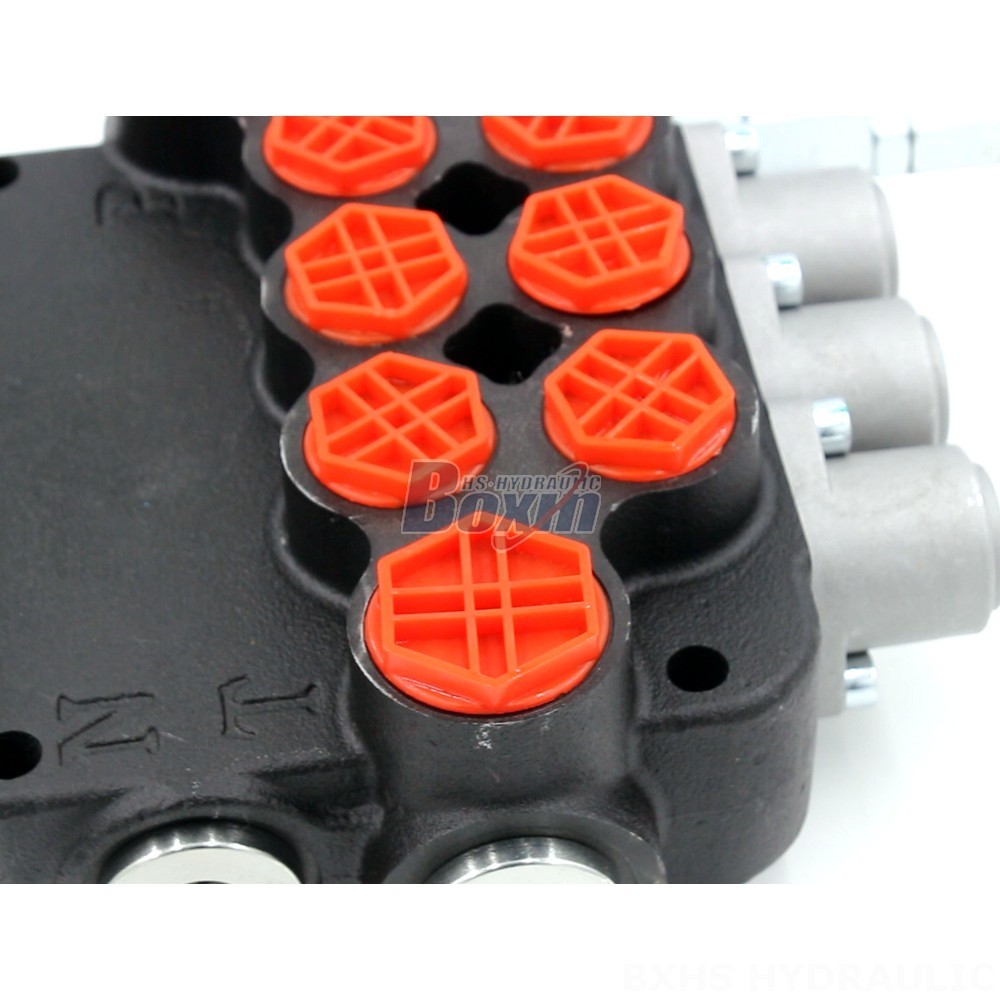

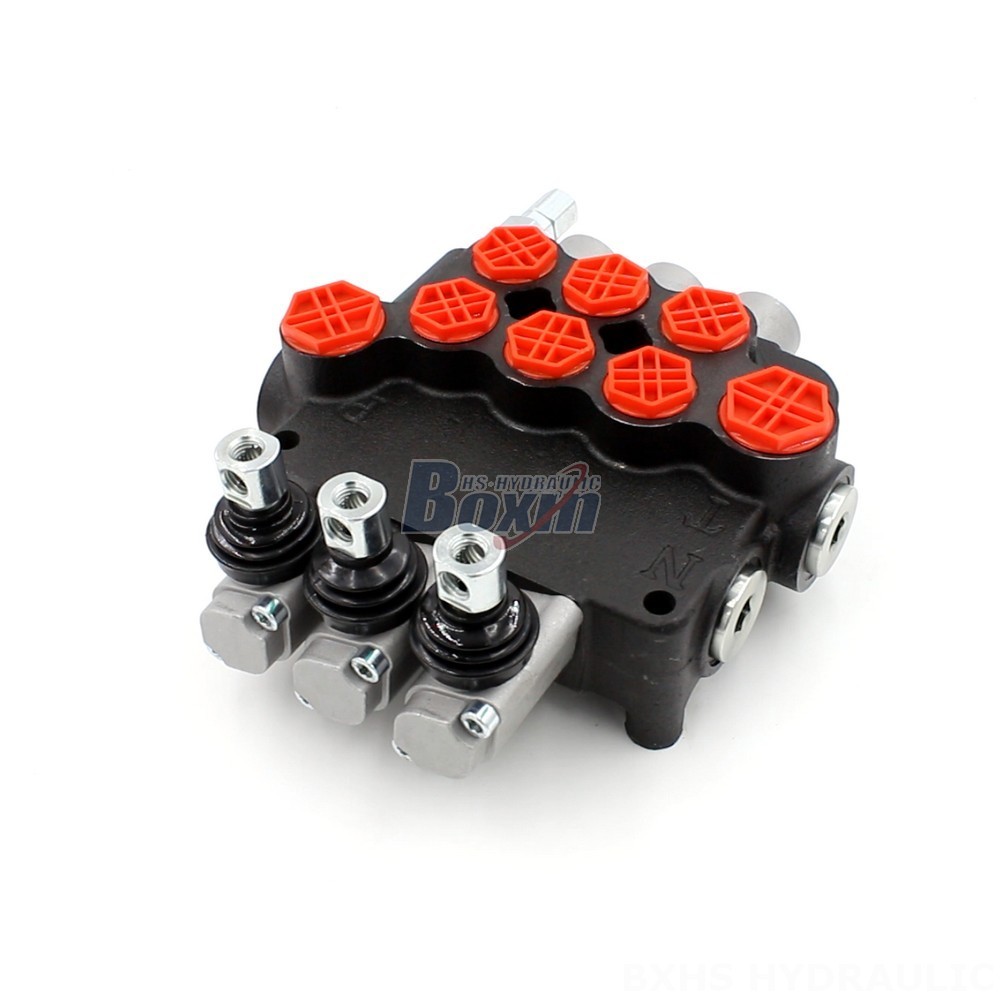

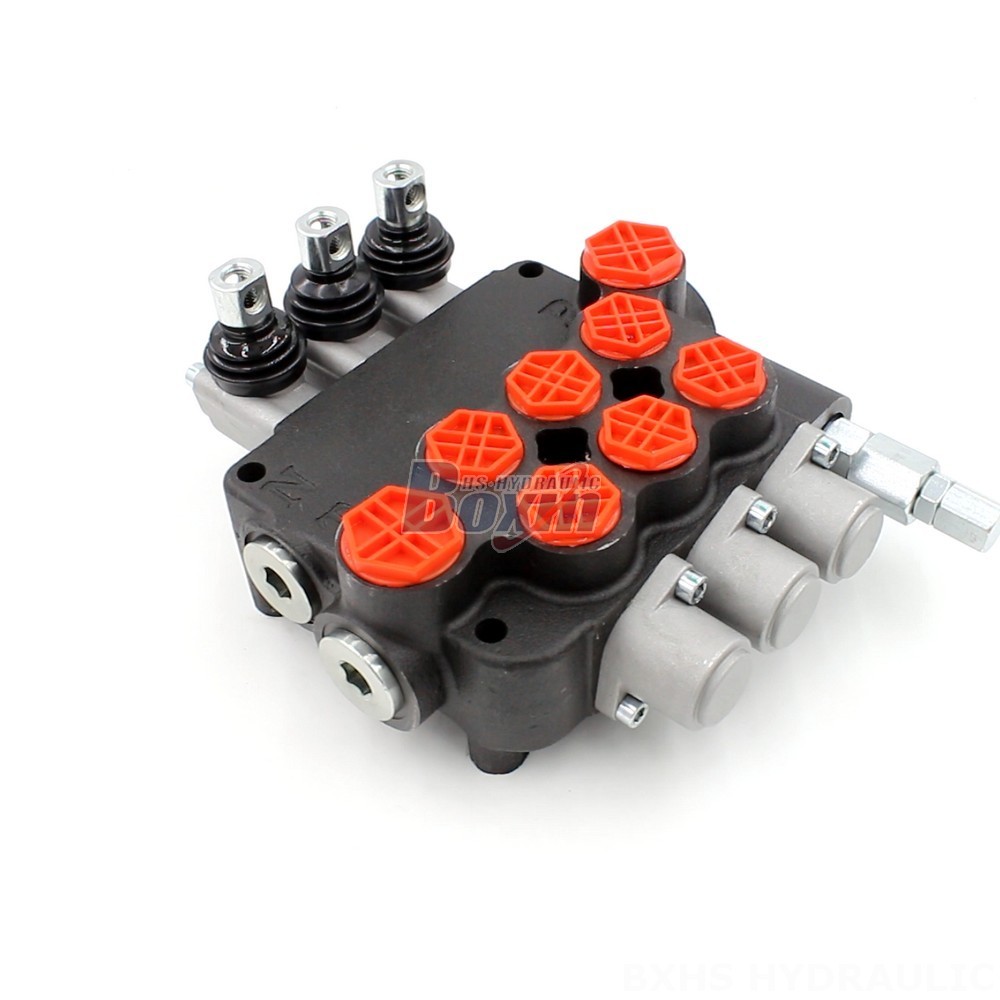

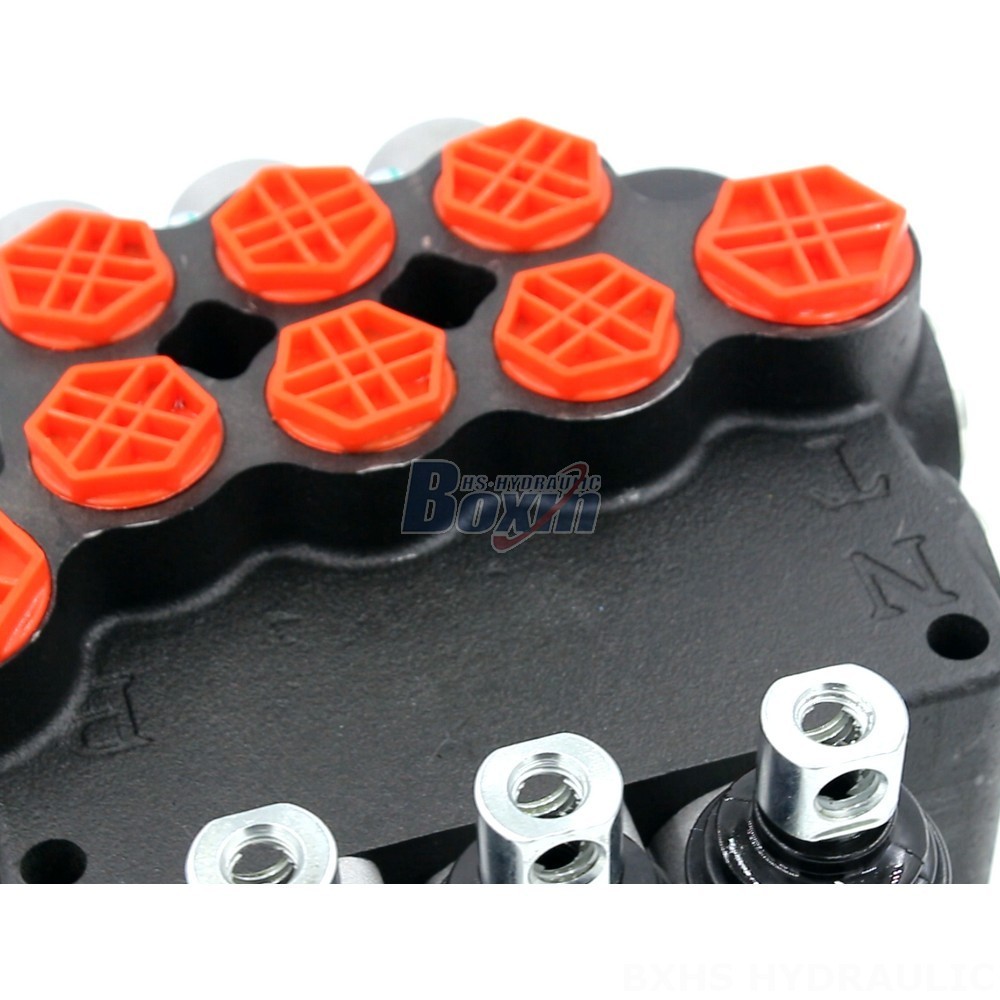

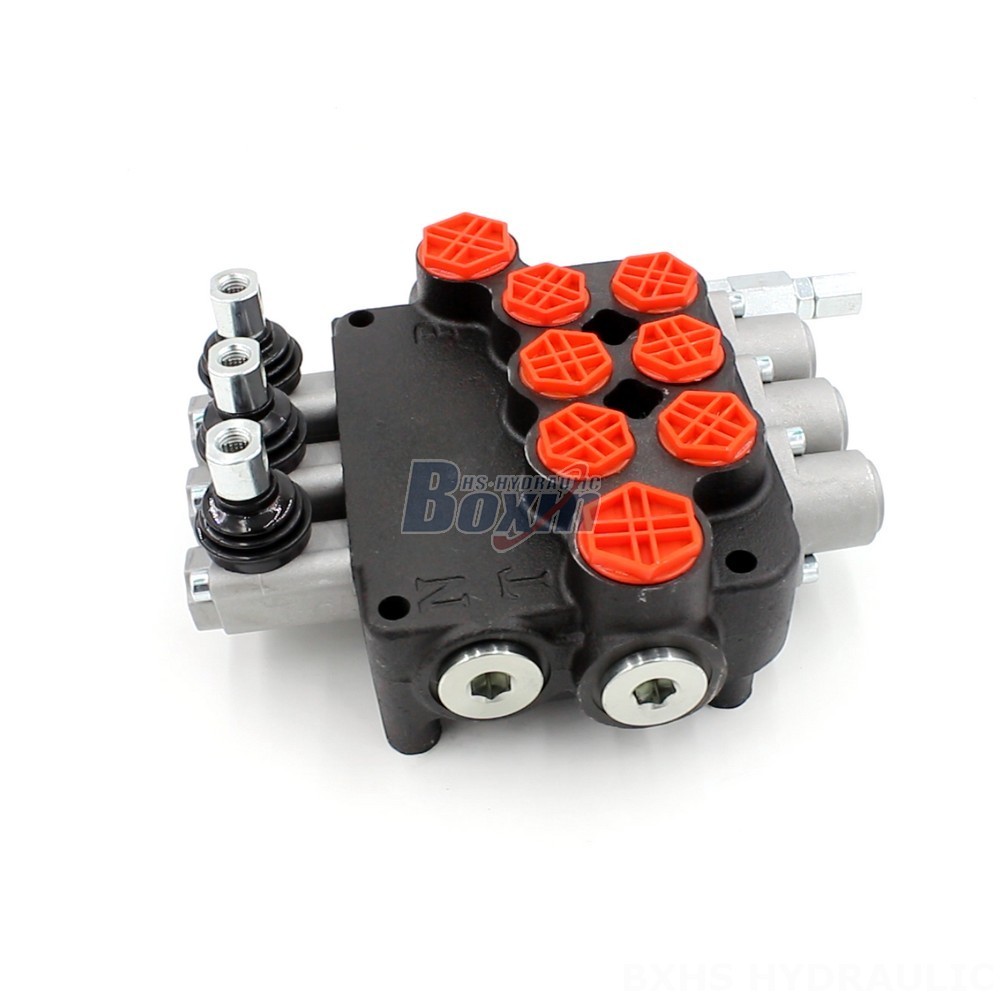

P80A Hydraulic Valve: High-Performance & Reliable

Metode Kontrol:Buku Panduan

Spul:3 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G3/4

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:26*23*11

Kelas kotor:10.70 kg

Ketersediaan: Tersedia

1193 Pandangan Mencari Produk Ini

P80A Hydraulic Valve: High-Performance & Reliable

P80A Hydraulic Valve: High-Performance & Reliable

P80A Hydraulic Valve: High-Performance & Reliable drawing image

The P80A 3 Spool Hydraulic Directional Control Valve is a high-performance and reliable valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve offers a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for demanding environments.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This 3-section, manual control P80A Hydraulic Directional Control Valve is a high-performance and reliable solution for controlling hydraulic systems. Featuring a monoblock structure, this valve offers a rated flow of 80 L/min and a maximum pressure of 250 bar. Its operating viscosity range is 15 - 75 mm²/s, and it can withstand ambient temperatures from -40°C to +80°C. Designed for demanding applications in material handling, construction, agriculture, and industrial vehicles, this valve is compatible with telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Its 3-spool design provides precise control over hydraulic fluid flow, ensuring optimal performance in various operating conditions.
