What is the primary application of the P80AZ Hydraulic Outrigger Control Valve - Factory Direct?

The P80AZ Hydraulic Outrigger Control Valve - Factory Direct is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

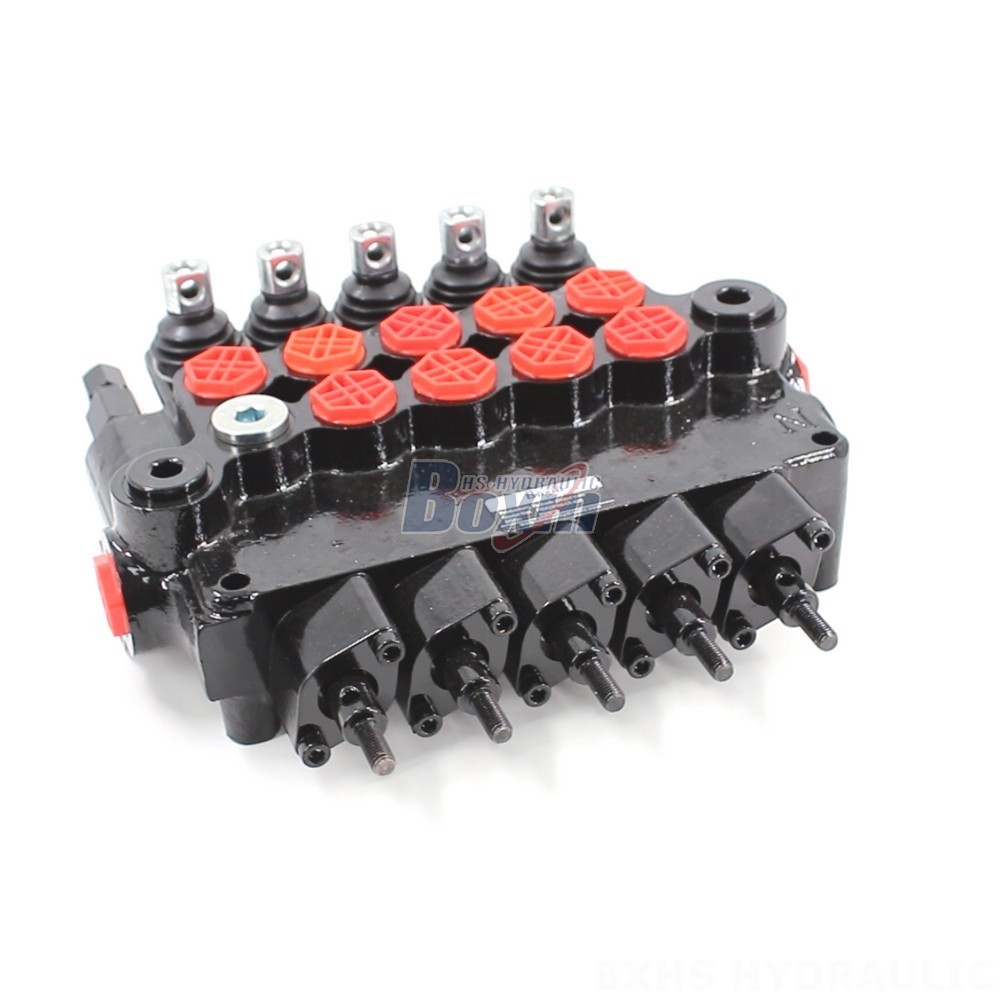

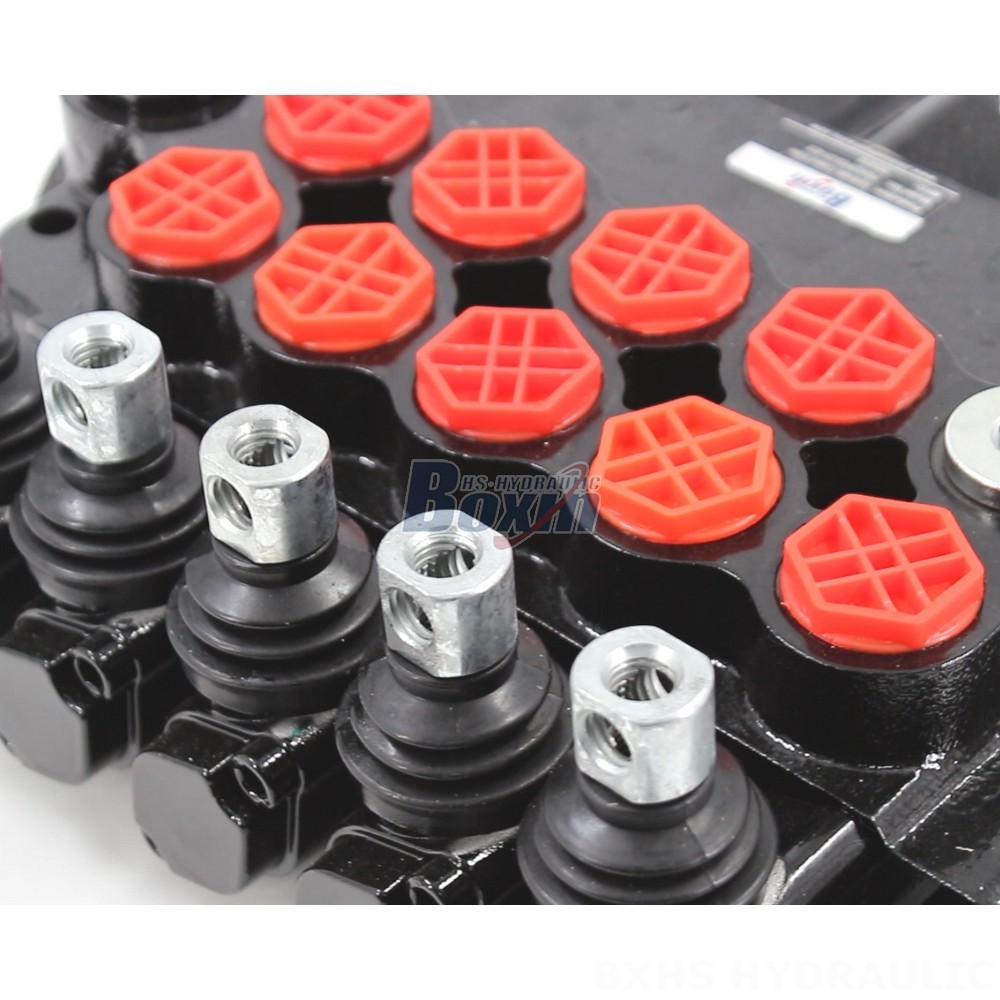

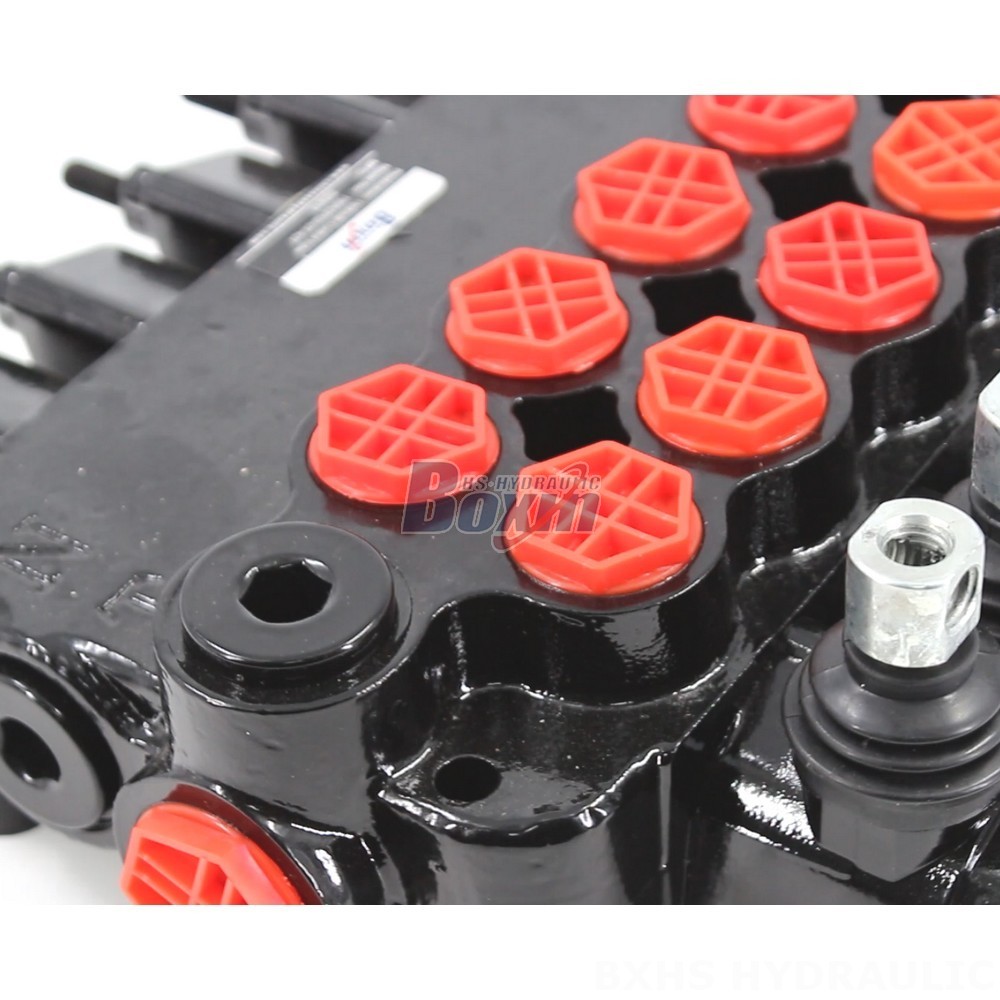

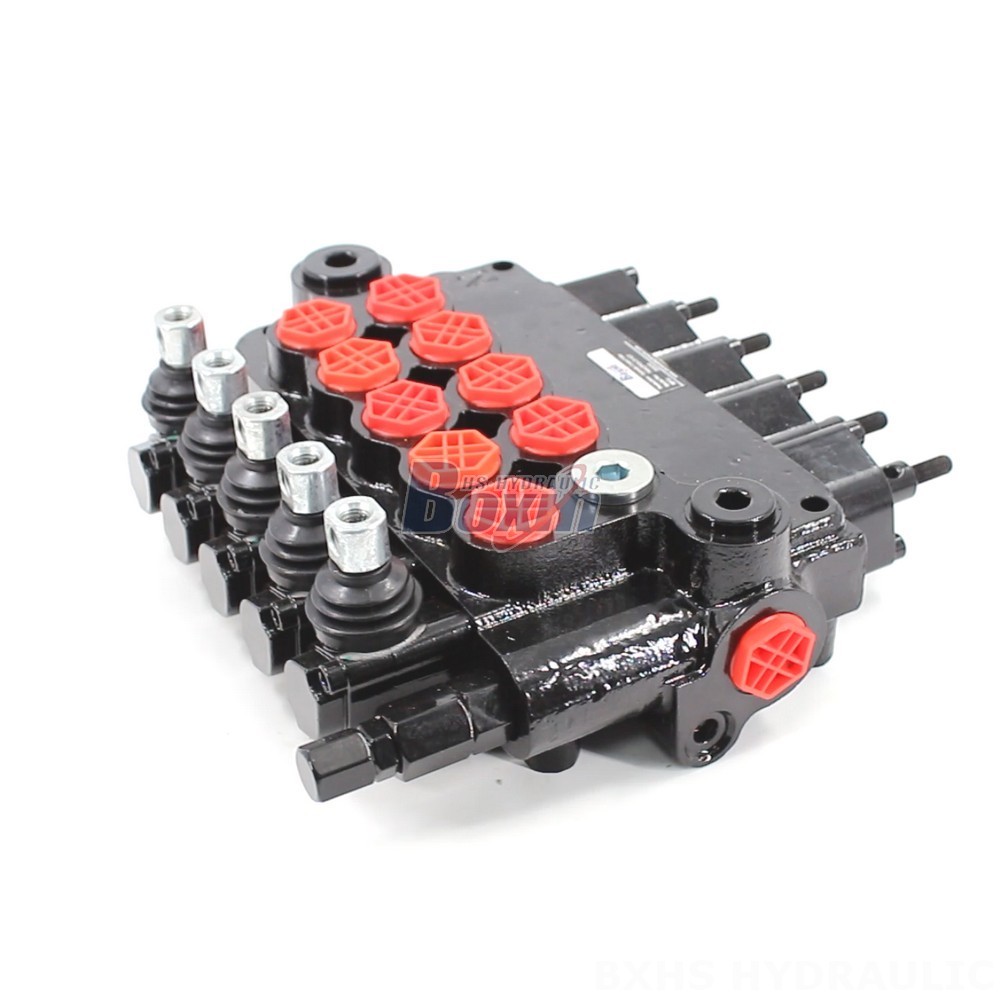

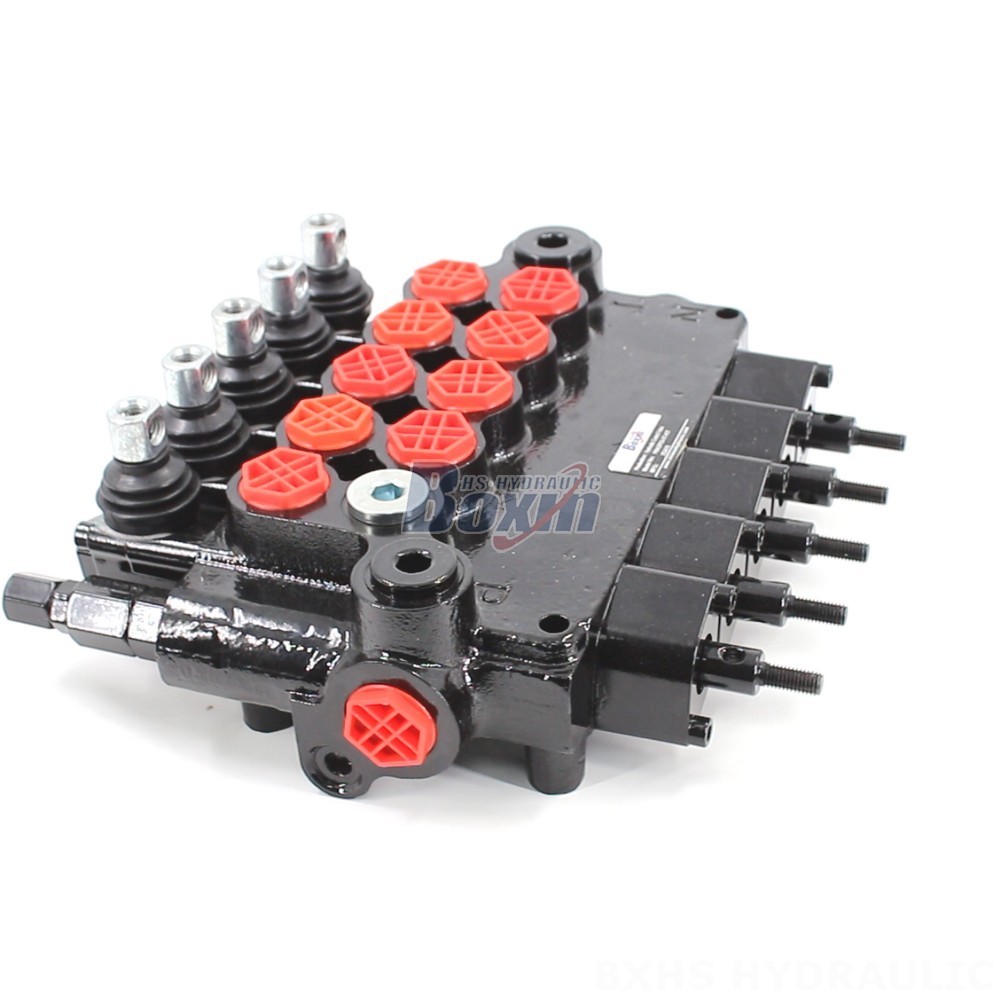

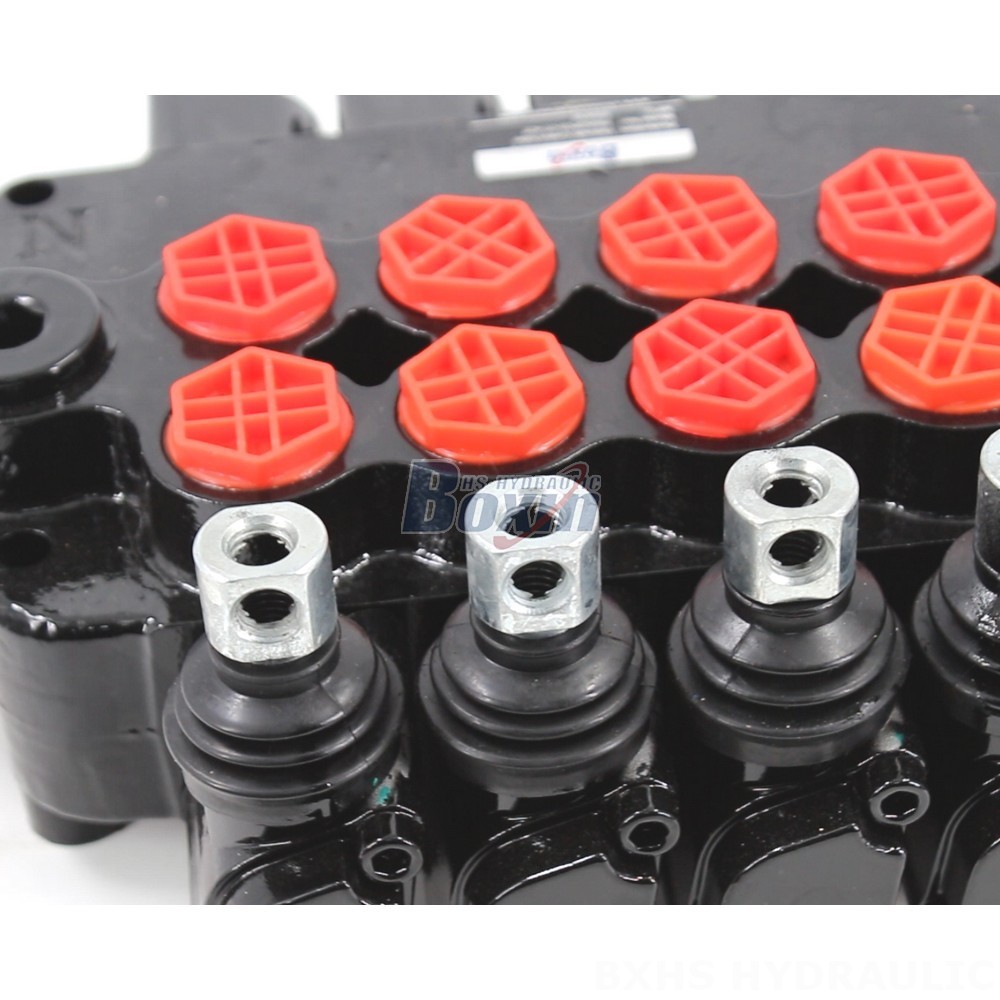

P80AZ Hydraulic Outrigger Control Valve - Factory Direct

Metode Kontrol:Buku Panduan

Spul:5 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk: 23 Katup Pengendali Outrigger

Seri Produk:P80AZ Series 23 Katup Pengendali Outrigger

Ukuran kemasan:26*30*11

Kelas kotor:17.00 kg

Ketersediaan: Tersedia

Deskripsi

P80AZ Hydraulic Outrigger Control Valve - Factory Direct

P80AZ Hydraulic Outrigger Control Valve - Factory Direct drawing image

P80AZ Series 5-section monoblock hydraulic outrigger control valve, rated at 80 L/min and 250 bar, ideal for material handling, construction, and industrial vehicles. Factory direct supply, OEM/ODM available.

P80AZ Series 23 Katup Pengendali Outrigger Parameter
Metode Kontrol	Buku Panduan
Spul	5 Spool
Aliran Terukur	80 L/menit (21,2 US gpm)
Tekanan Maksimum	250 bar (3600 psi)
Port Masuk	G3/4, M22×1.5, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar	G1/2, G3/4, M22×1.5, SAE 10, SAE 12, 3/4 NPT
Ukuran Port	G1/2, G3/4, M22×1.5, SAE 10, SAE 12, 3/4 NPT
Bagian	5 Bagian
Tipe Struktur	Katup monoblok
Kisaran Suhu Sekitar	-40°C hingga +80°C (-40°F hingga +176°F)
Kisaran Viskositas Operasional	15 - 75 mm²/dt (15 cSt hingga 75 cSt)

The P80AZ Hydraulic Outrigger Control Valve is a high-performance, 5-section monoblock valve designed for demanding applications in material handling, construction, and industrial vehicles. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve offers exceptional control and reliability. Its robust design ensures long-term performance in diverse operating conditions, ranging from -40°C to +80°C (-40°F to +176°F). The valve features both hydraulic and manual control methods, providing flexibility and ease of operation. Suitable for a wide range of equipment, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, tractors, harvesters, balers, wood splitters, and sweepers.

**Key Features:**
* **High Flow Rate:** 80 L/min (21.2 US gpm)
* **High Pressure:** 250 bar (3600 psi)
* **5-Section Monoblock Design:** Robust and reliable
* **Hydraulic & Manual Control:** Versatile operation
* **Wide Operating Temperature Range:** -40°C to +80°C (-40°F to +176°F)
* **Wide Application:** Material Handling, Construction, Industrial Vehicles, Agriculture

**We are a leading manufacturer of hydraulic products, offering:**
* **Factory Direct Supply:** Competitive pricing and quality assurance.
* **OEM/ODM Services:** Customized solutions to meet your specific requirements.
* **Wholesale Pricing:** Significant discounts for bulk orders.

**We are actively seeking:**
* **Distributors**
* **Wholesalers**
* **Agents**
* **Trading Companies**

Partner with us to access a high-quality, reliable hydraulic outrigger control valve and tap into a growing global market. Contact us today to discuss your needs and explore mutually beneficial collaboration opportunities. Our factory provides wholesale pricing and guarantees factory-direct quality. We offer OEM and ODM services to meet your specific branding and customization needs. This robust hydraulic control valve is perfect for various applications such as material handling, construction, and more.
