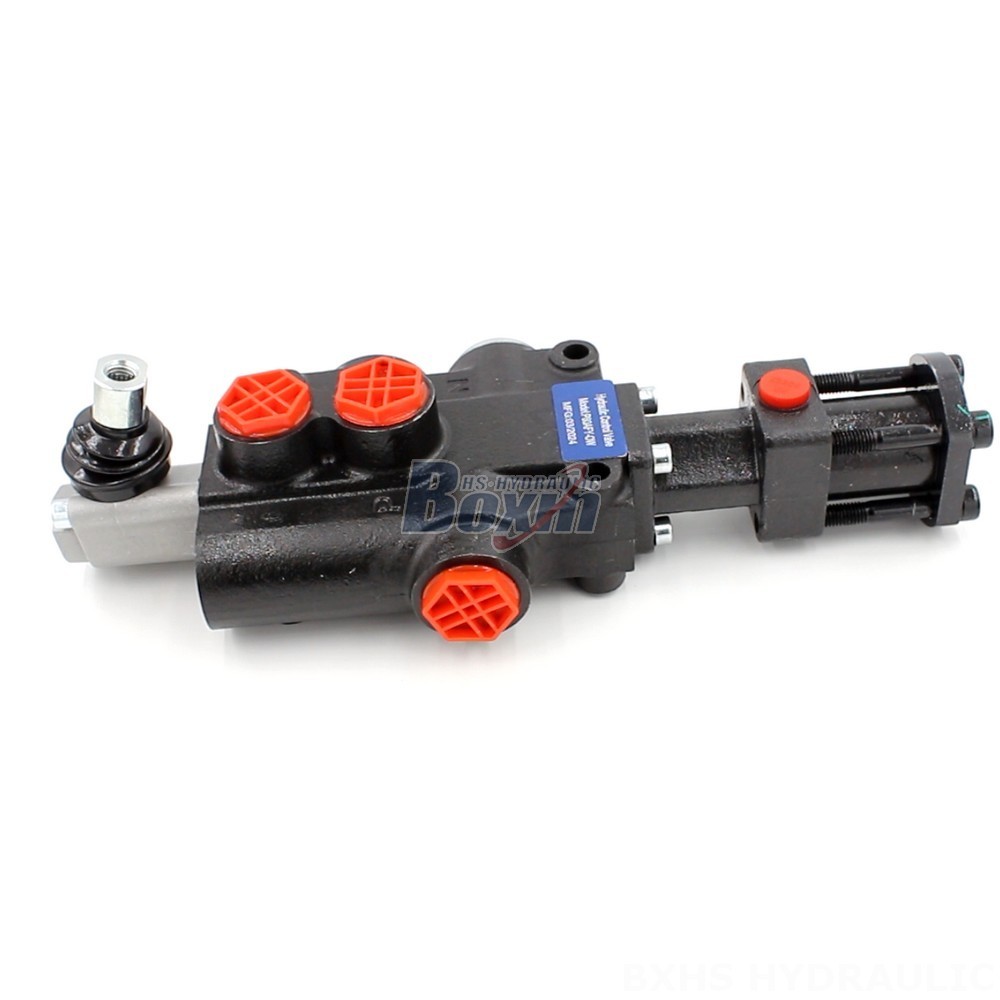

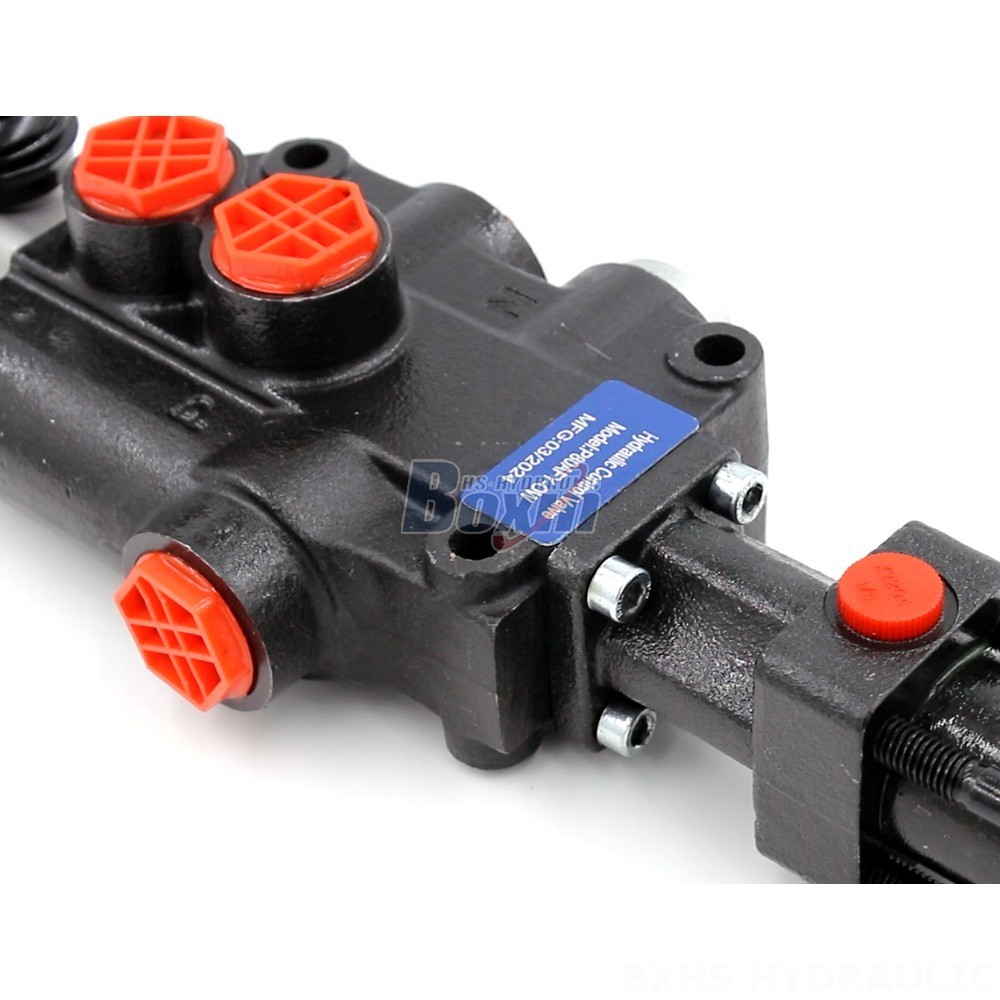

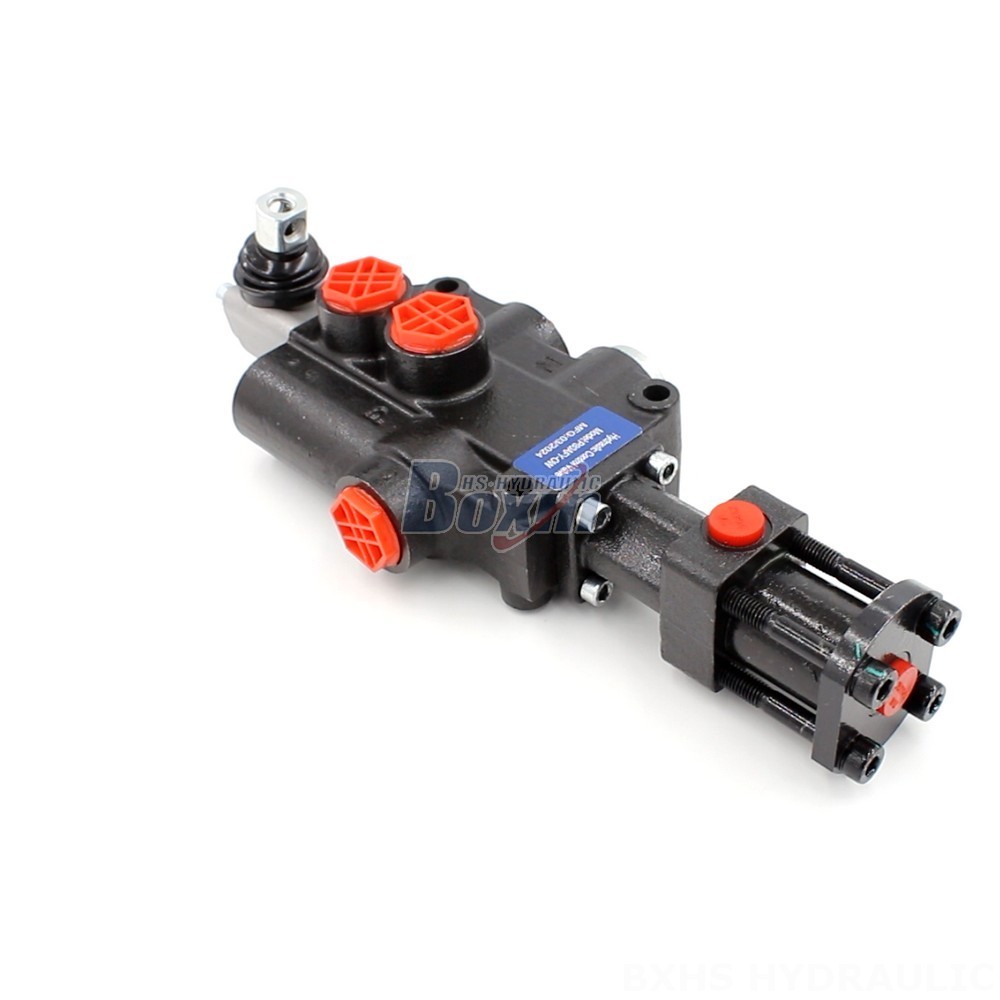

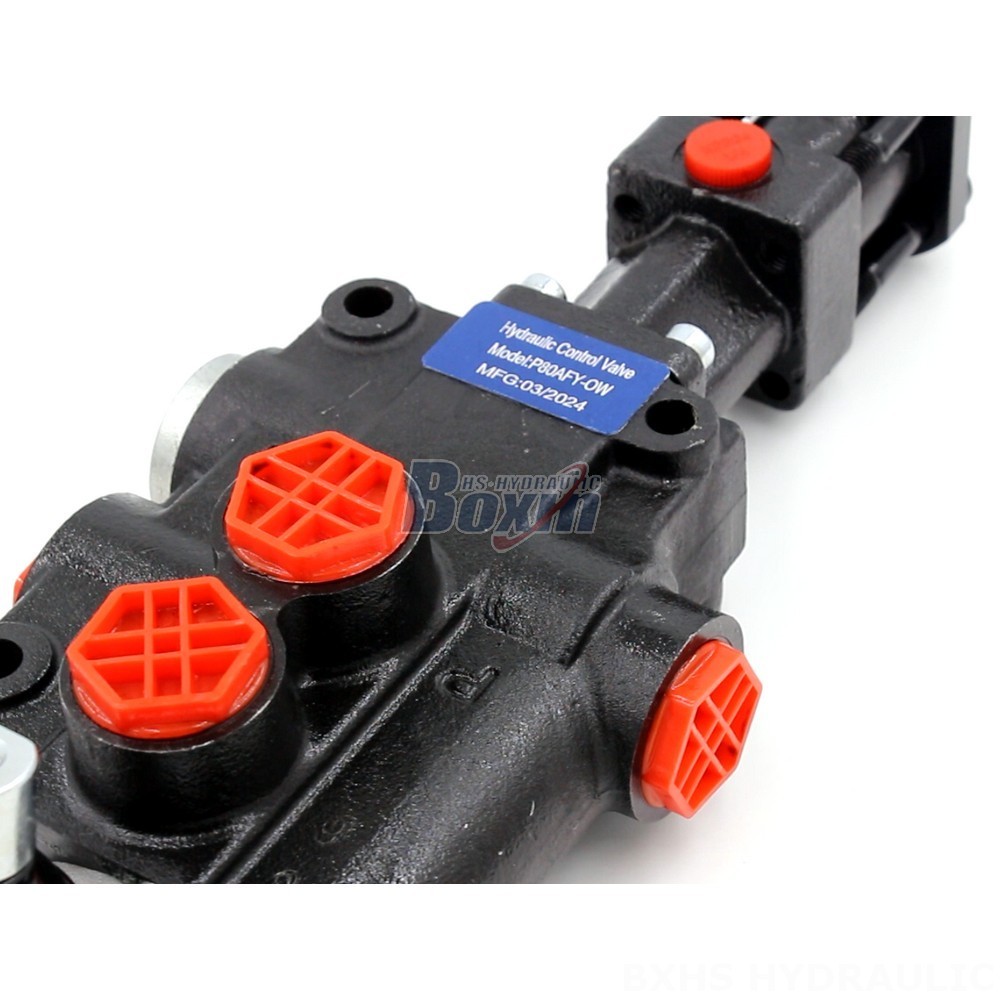

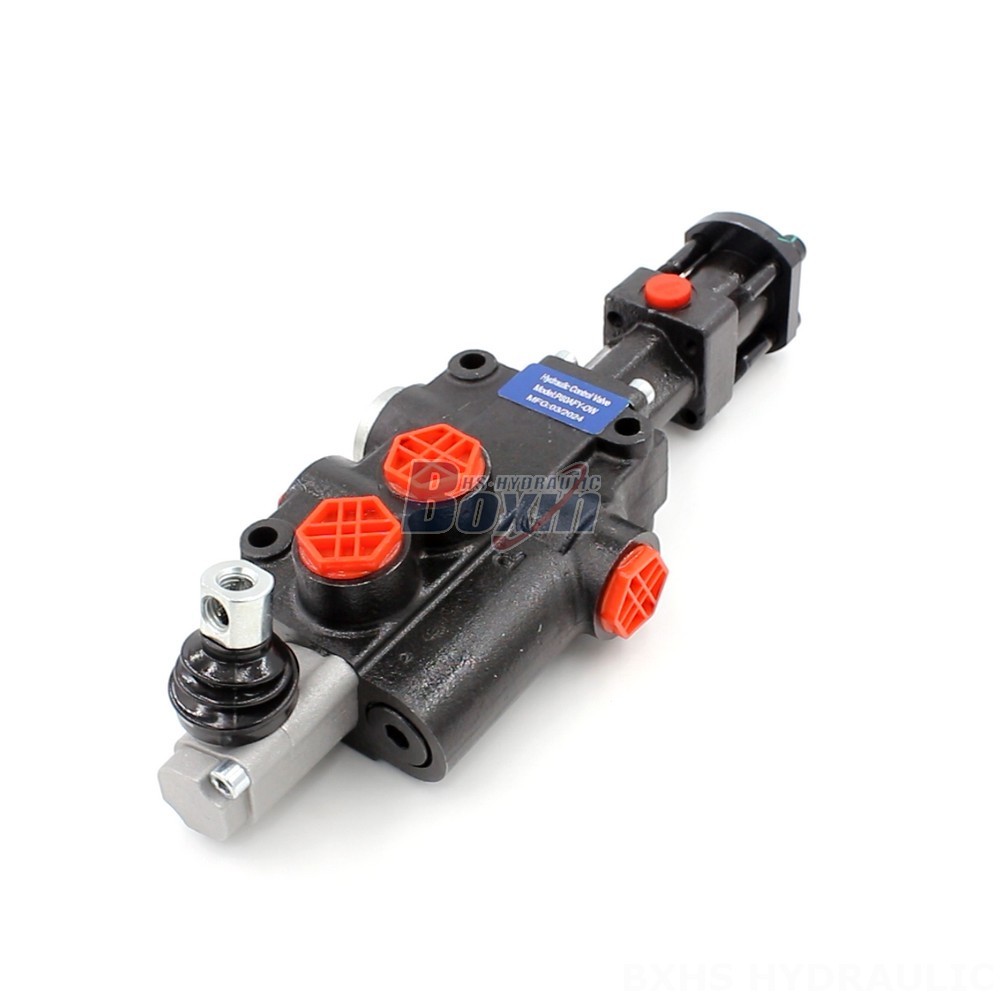

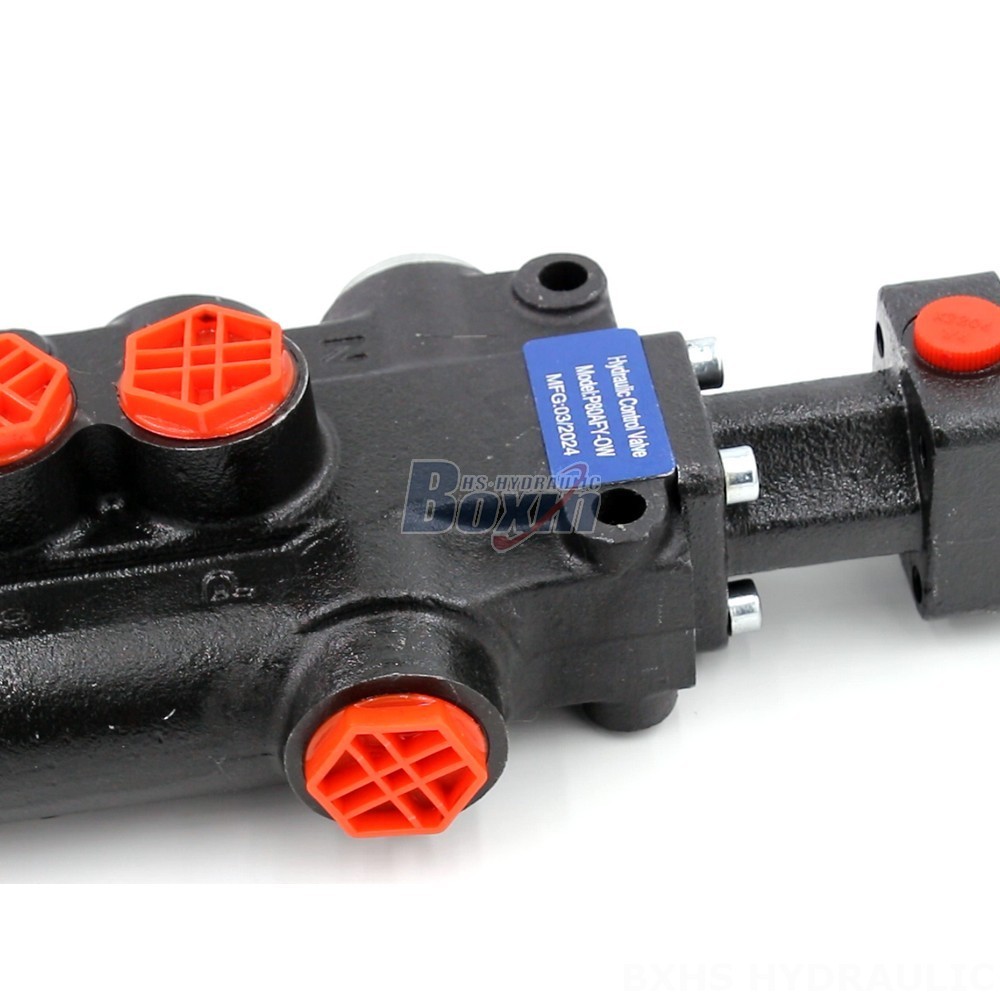

The P80F-G34 Directional Control Valve is a high-performance, heavy-duty hydraulic valve designed for demanding applications in construction equipment, material handling, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it delivers reliable control and exceptional durability.
| Seri P80F Katup Arah Monoblok Parameter | |
|---|---|
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Ukuran Port | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tipe Struktur | Katup monoblok |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
The P80F-G34 Directional Control Valve is a monoblock valve featuring a single spool and a rated flow of 80 L/min. It is designed for high-pressure operation up to 250 bar. This valve is ideal for a wide range of applications in construction, material handling, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, excavators, loaders, dumpers, drilling rigs, and more. The P80F-G34 is built for durability and reliability, with an operating viscosity range of 15 to 75 mm²/s and an ambient temperature range of -40°C to +80°C. This valve is also available as part of turnkey project solutions, offering customized designs and manufacturing options.
