P80F-G34 Hydraulic Valve Manufacturer: Factory Direct Sales & Support

Metode Kontrol:Hidraulis

Spul:1 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G3/4

Port Keluar:G3/4

Ukuran Port:G3/4

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80F Katup Arah Monoblok

Ukuran kemasan:26*15*11

Kelas kotor:5.50 kg

Ketersediaan: Tersedia

1163 Pandangan Mencari Produk Ini

P80F-G34 Hydraulic Valve Manufacturer: Factory Direct Sales & Support

P80F-G34 Hydraulic Valve Manufacturer: Factory Direct Sales & Support

P80F-G34 Hydraulic Valve Manufacturer: Factory Direct Sales & Support drawing image

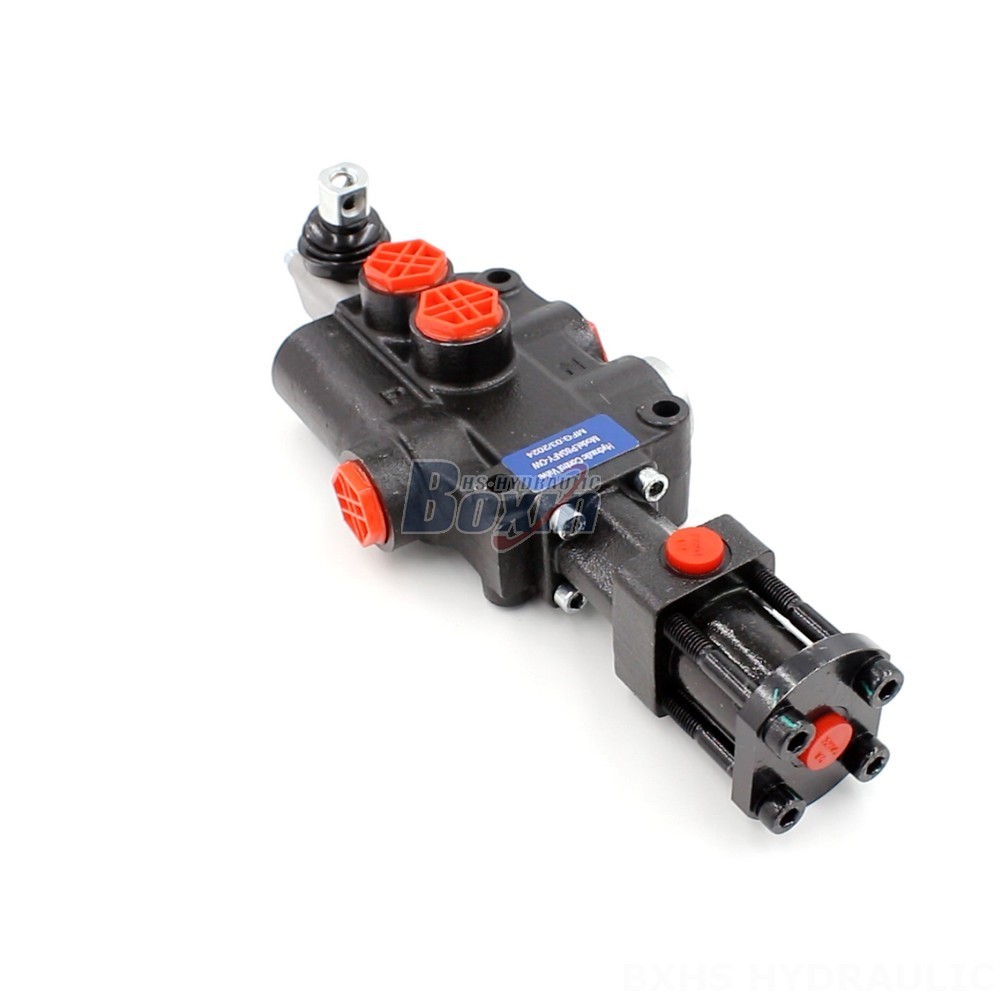

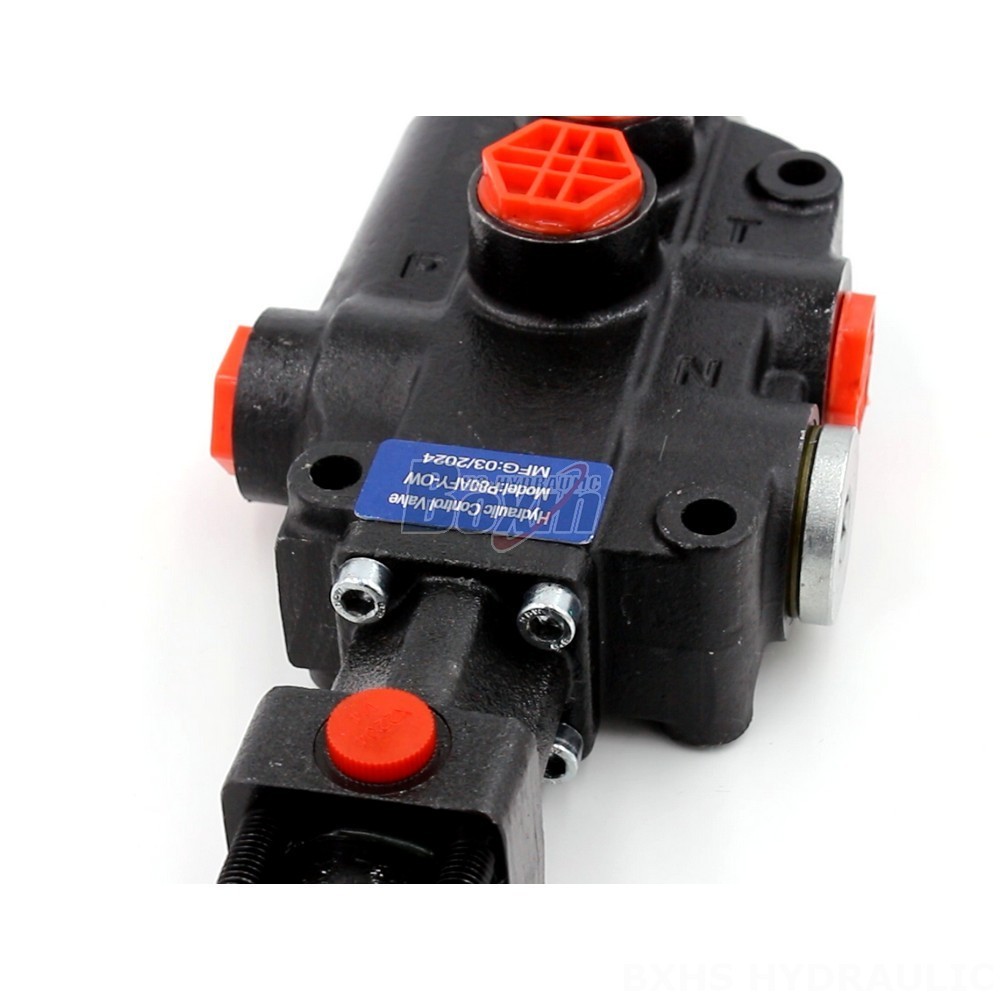

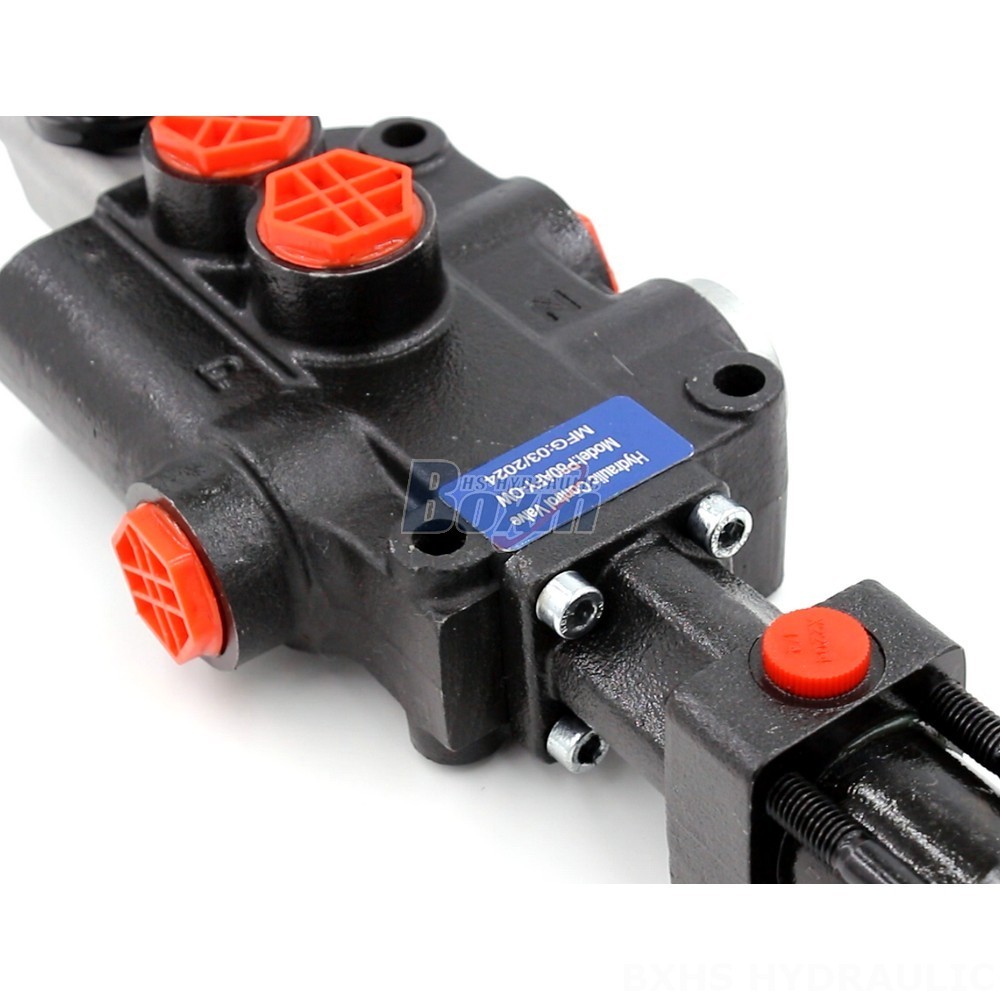

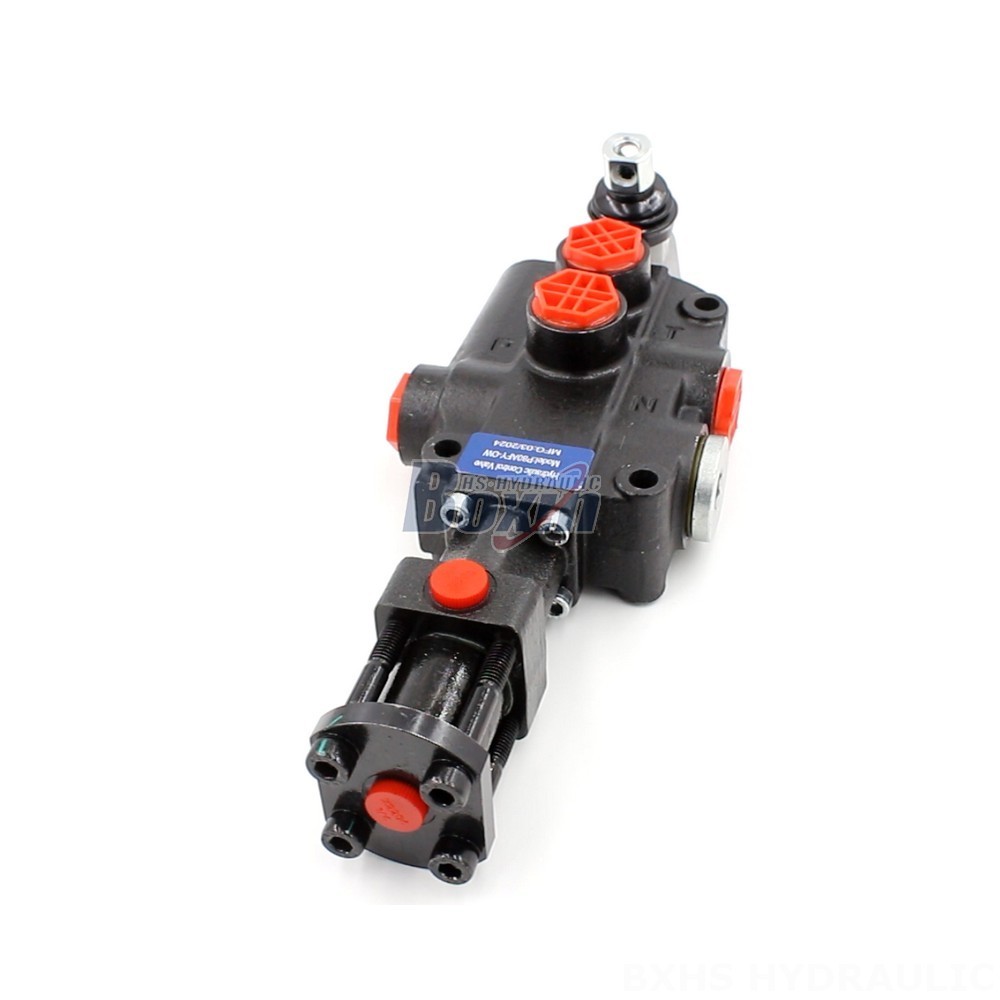

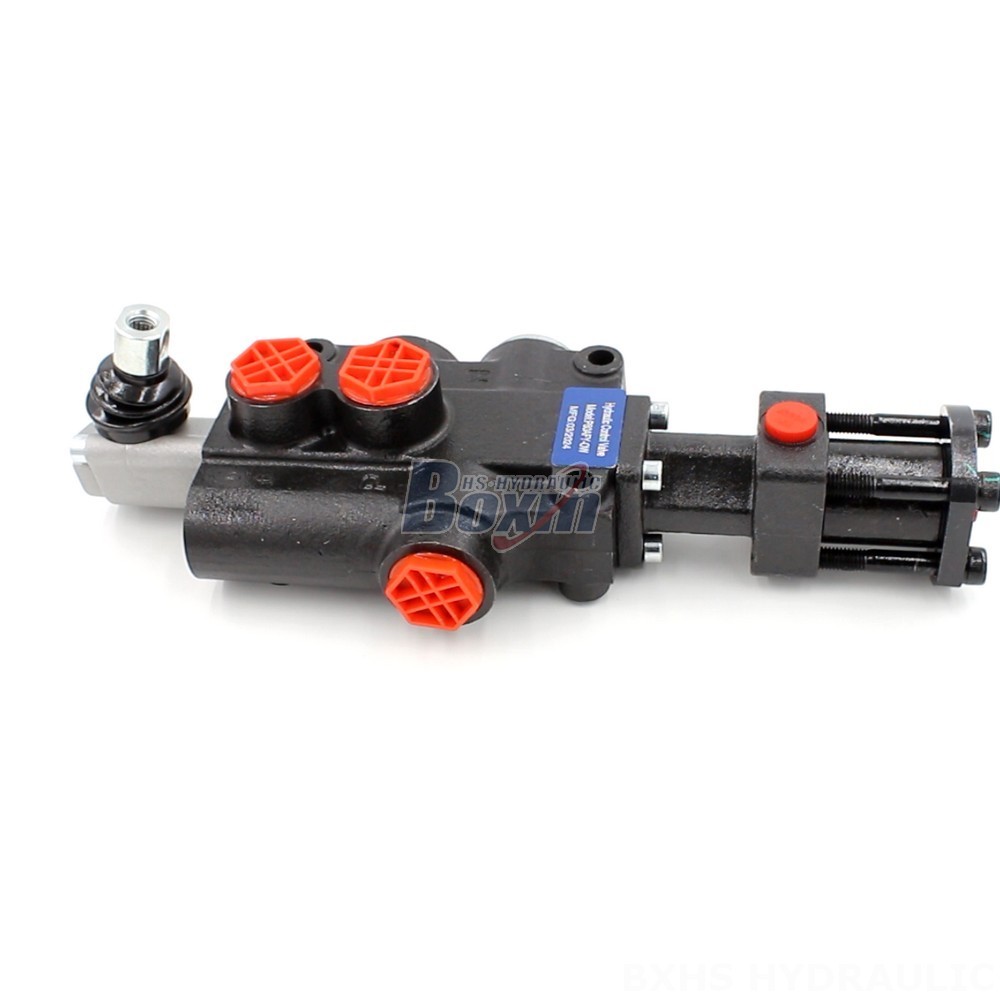

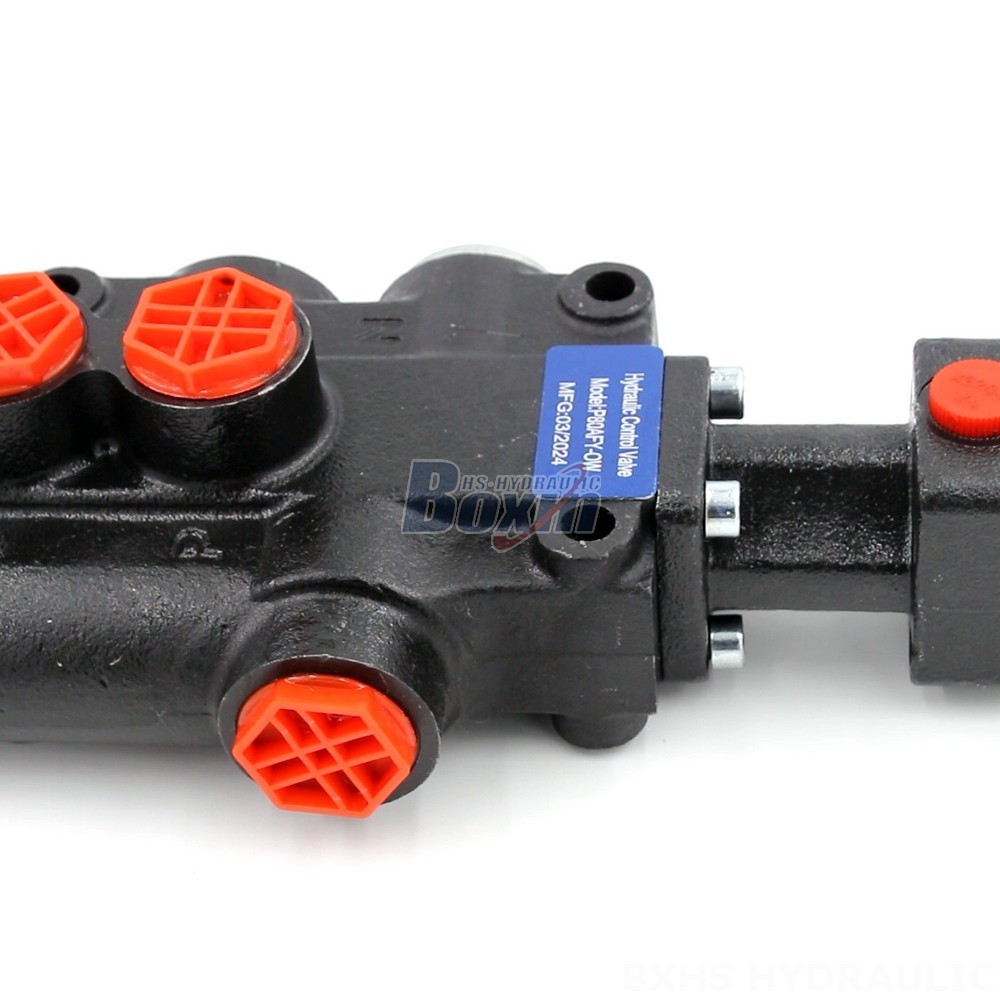

The P80F-G34 Hydraulic Distributor is a high-performance, monoblock valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It offers a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for demanding tasks.

Seri P80F Katup Arah Monoblok Parameter
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol
Ukuran Port G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT
Tekanan Maksimum 315 bar (4600 psi)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tipe Struktur Katup monoblok
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

This Hydraulic Distributor is manufactured by a reputable factory and is available for direct sales and wholesale orders. As a manufacturer, we provide full support and customization options. The P80F-G34 is a robust and reliable valve with a compact design and ease of installation. It features a single spool and operates within a wide temperature range of -40°C to +80°C (-40°F to +176°F). Our P80F Series is designed to meet the specific needs of various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling rigs, crushers, and stone cutters. Contact us for more information about our factory direct sales and wholesale opportunities.
