Metode Kontrol:Buku Panduan

Spul:1 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:1/2 NPT

Port Keluar:1/2 NPT

Ukuran Port:1/2 NPT

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80J Katup Arah Monoblok

Ukuran kemasan:26*15*11

Kelas kotor:5.00 kg

Ketersediaan: Tersedia

1206 Pandangan Mencari Produk Ini

P80J Directional Control Valve: Distributors & Partners Wanted

P80J Directional Control Valve: Distributors & Partners Wanted

P80J Directional Control Valve: Distributors & Partners Wanted drawing image

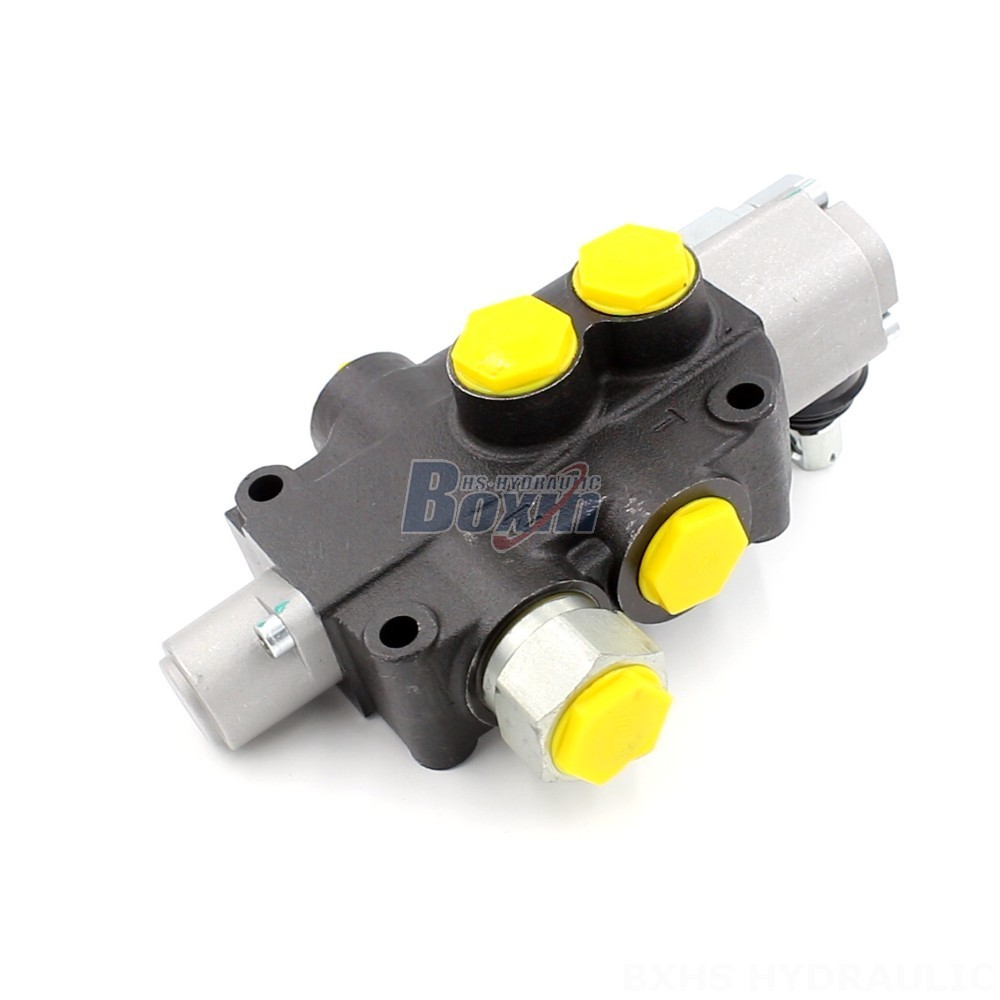

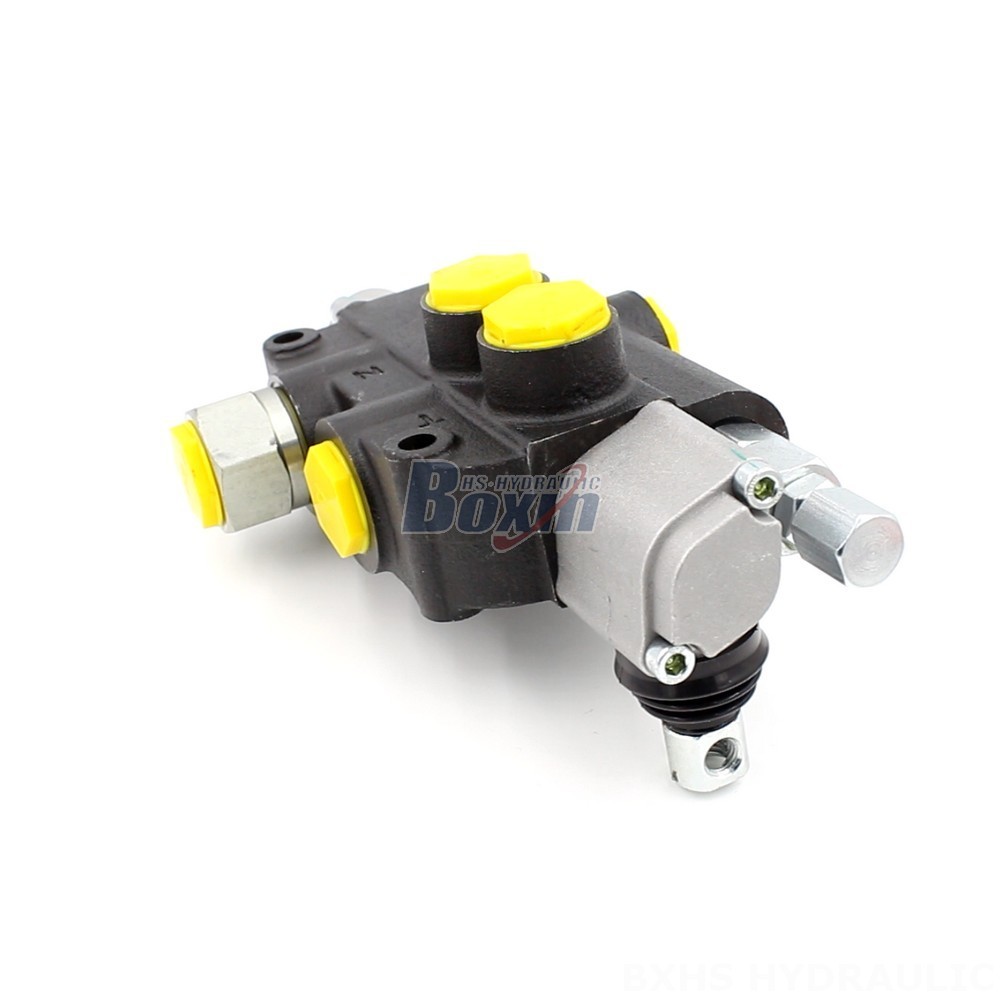

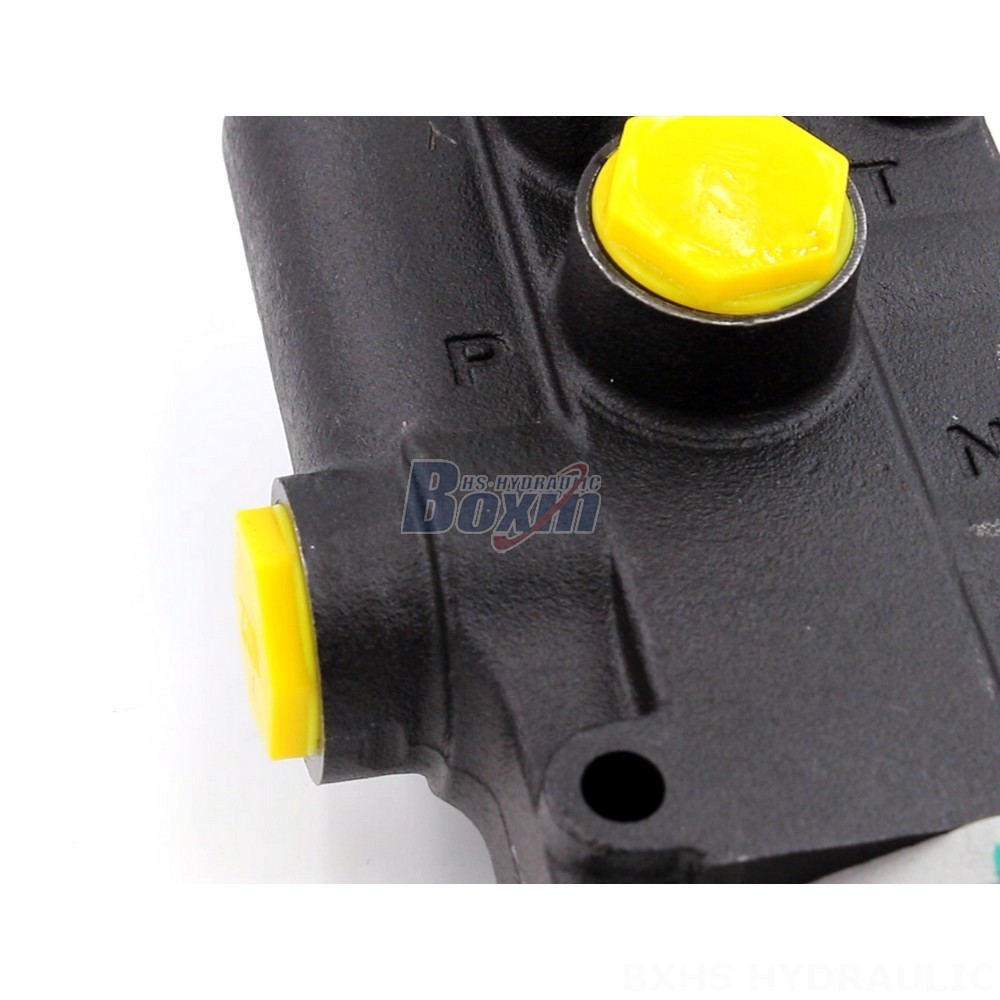

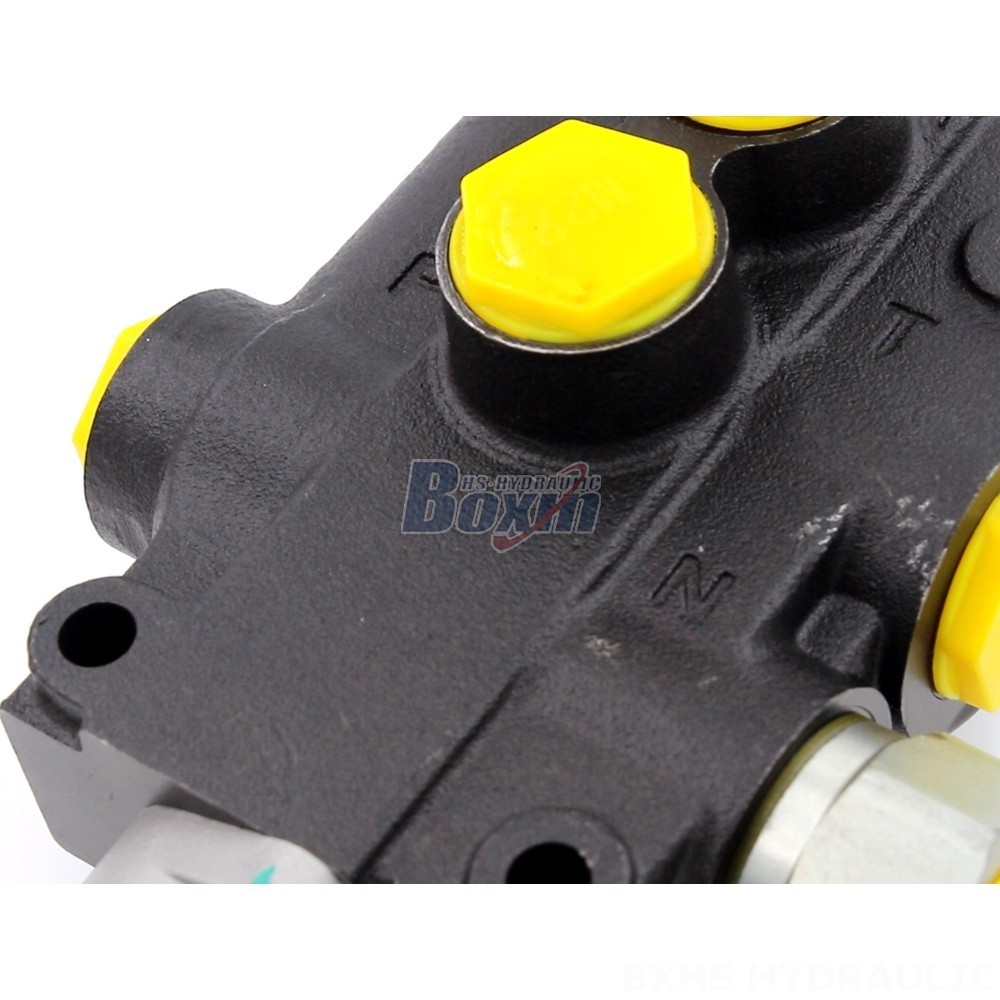

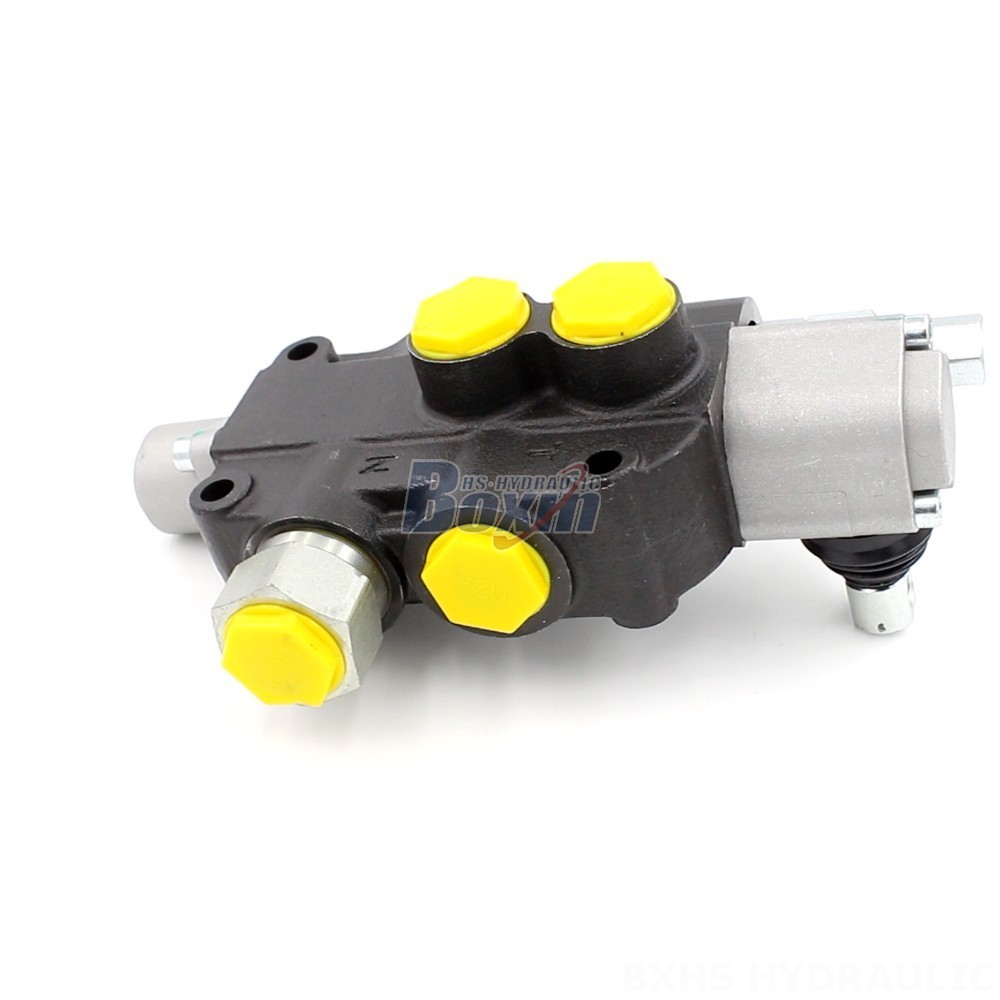

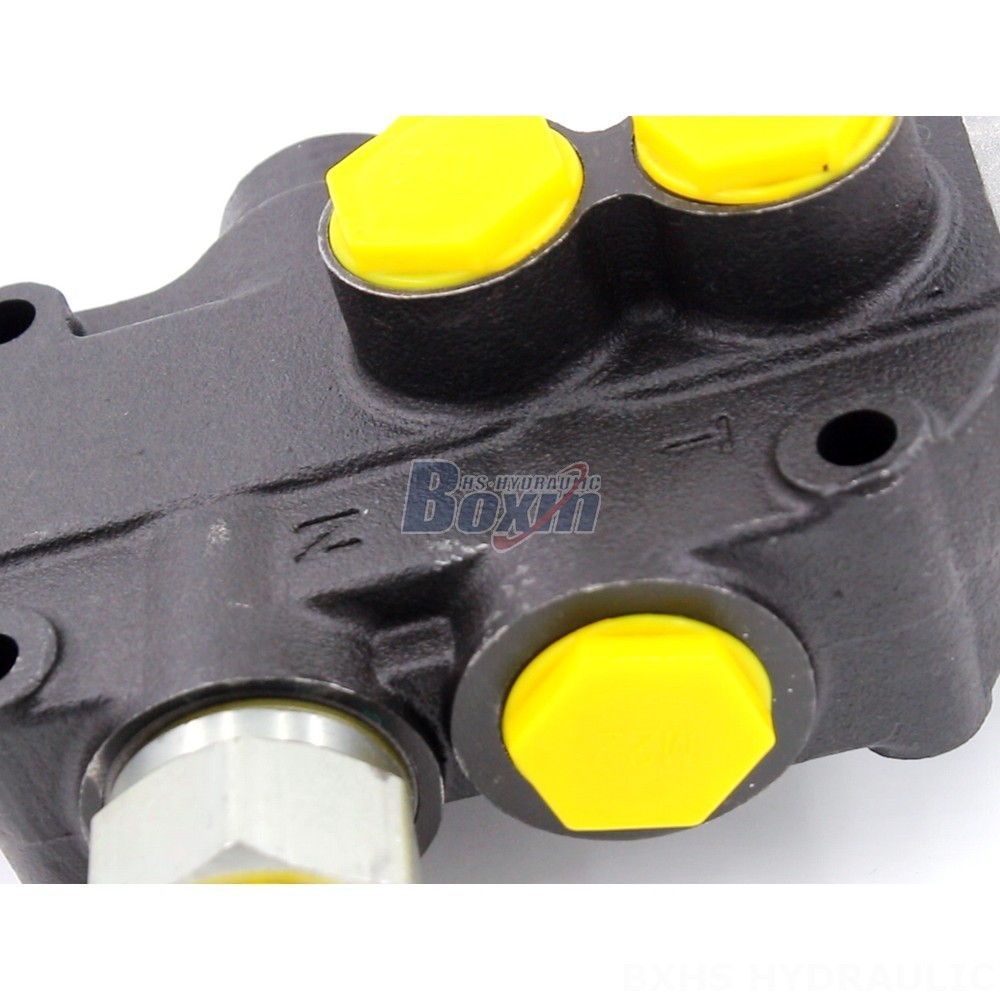

The P80J Series Closed Center Log Splitter Valve is a high-performance, manual control directional control valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. It features a robust monoblock construction, a rated flow of 80 L/min, and a maximum pressure rating of 250 bar.

Seri P80J Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Listrik, Solenoid dan Manual, Selenoid dan Joystick, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M20×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M20×1.5, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

The P80J Series Closed Center Log Splitter Valve is a reliable and durable hydraulic valve ideal for controlling the hydraulic systems of heavy-duty equipment. It features a robust monoblock construction, ensuring long-lasting performance. The valve is designed for manual operation and offers a high flow rate of 80 L/min (21.2 US gpm), making it suitable for demanding applications. It can withstand a maximum pressure of 250 bar (3600 psi), ensuring reliable operation under high-pressure conditions. The valve is specifically designed for use in log splitter applications, but it is also compatible with a wide range of material handling, construction, agricultural, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. This versatile valve offers a reliable solution for controlling hydraulic systems in various applications.
