Partner with us and distribute the P80 Solenoid 5 Spool Monoblock Directional Valve, engineered for demanding hydraulic applications. This robust valve offers precise control, high flow capacity (80 L/min), and durability under extreme conditions (-40°C to +80°C). Ideal for material handling, construction, agriculture, and industrial vehicles, it seamlessly integrates into various systems, including telehandlers, forklifts, and excavators.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

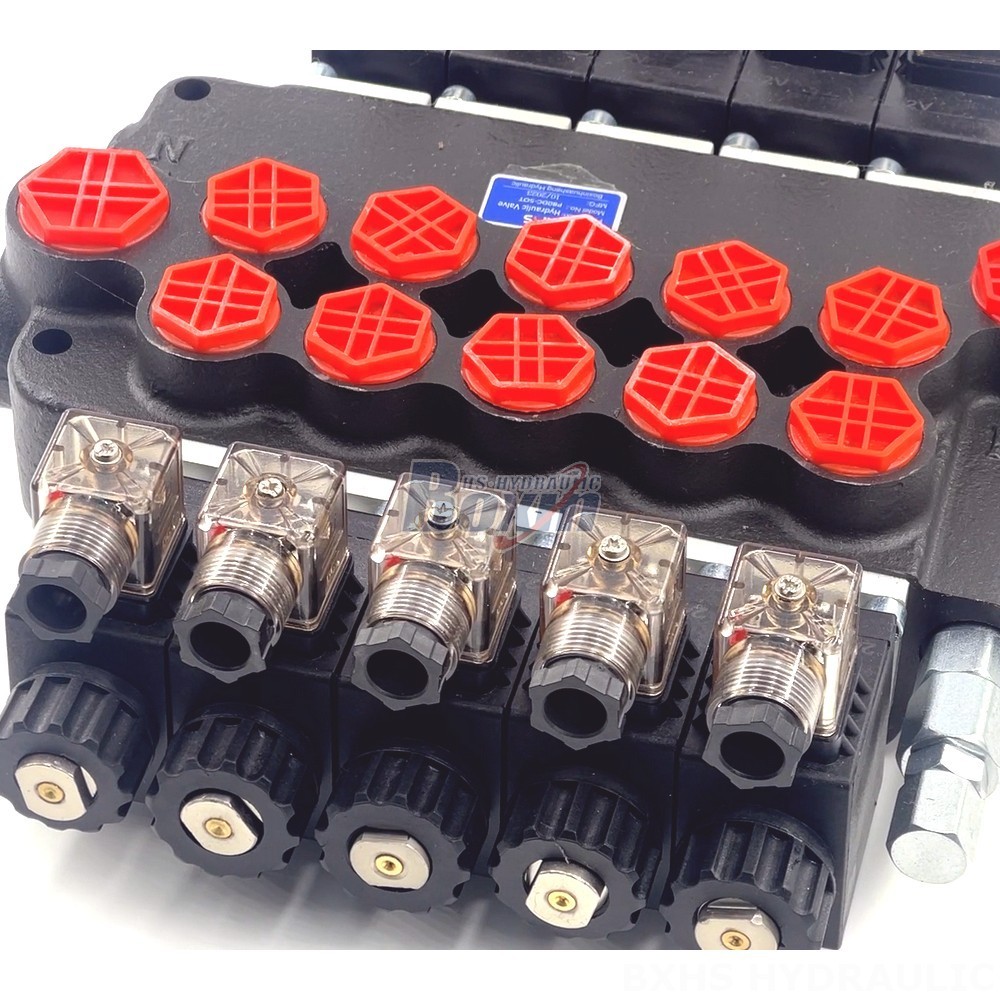

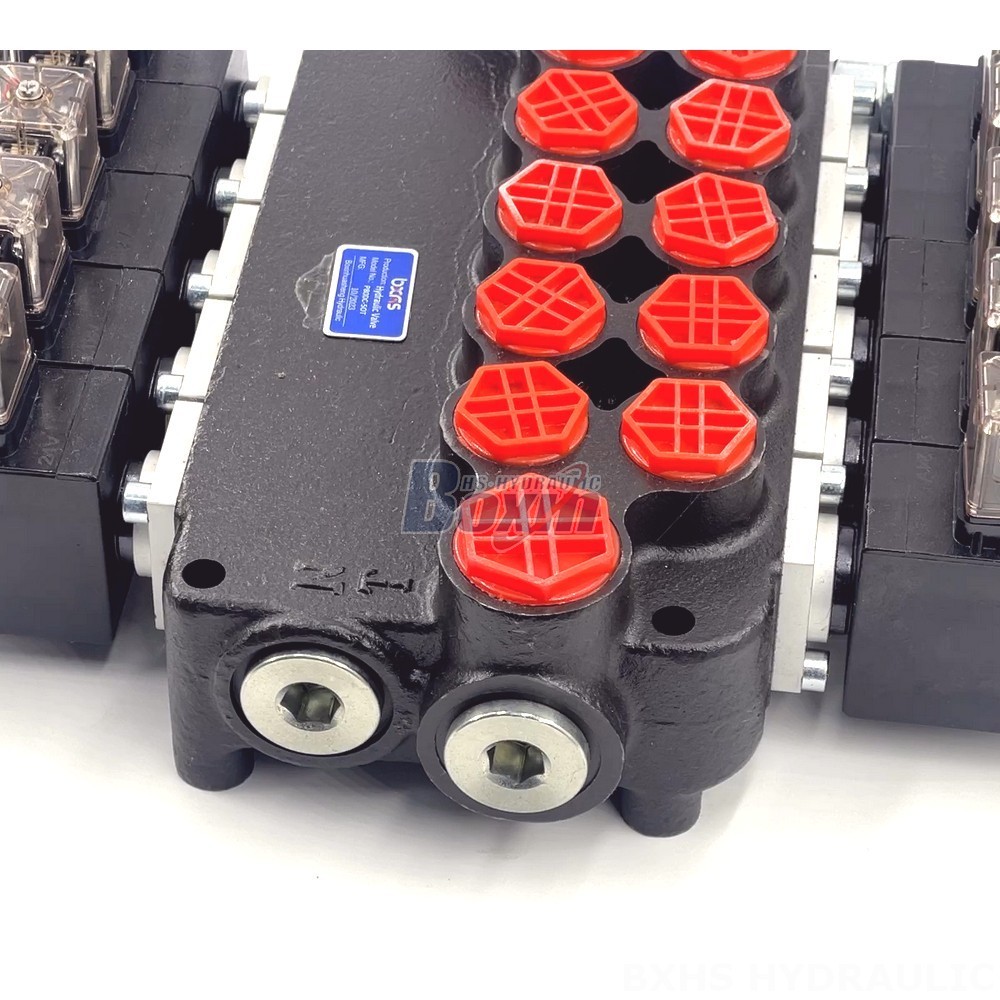

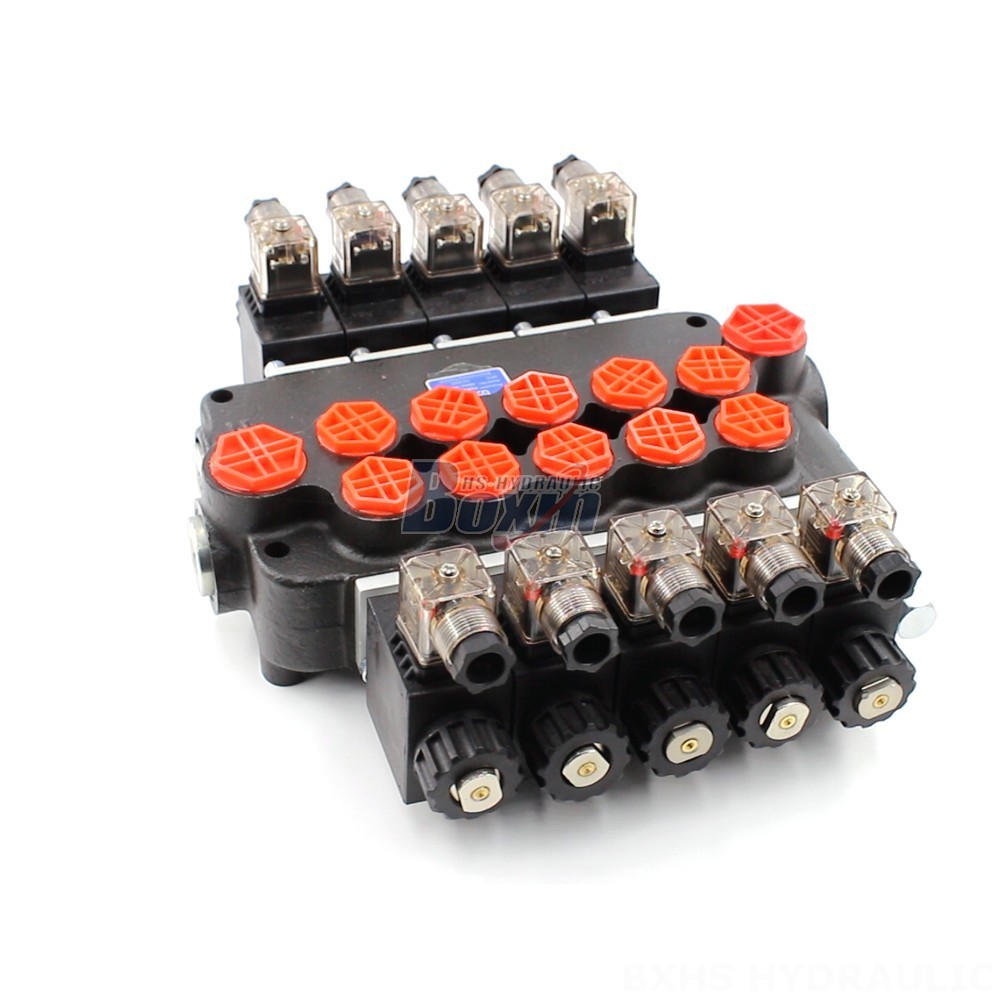

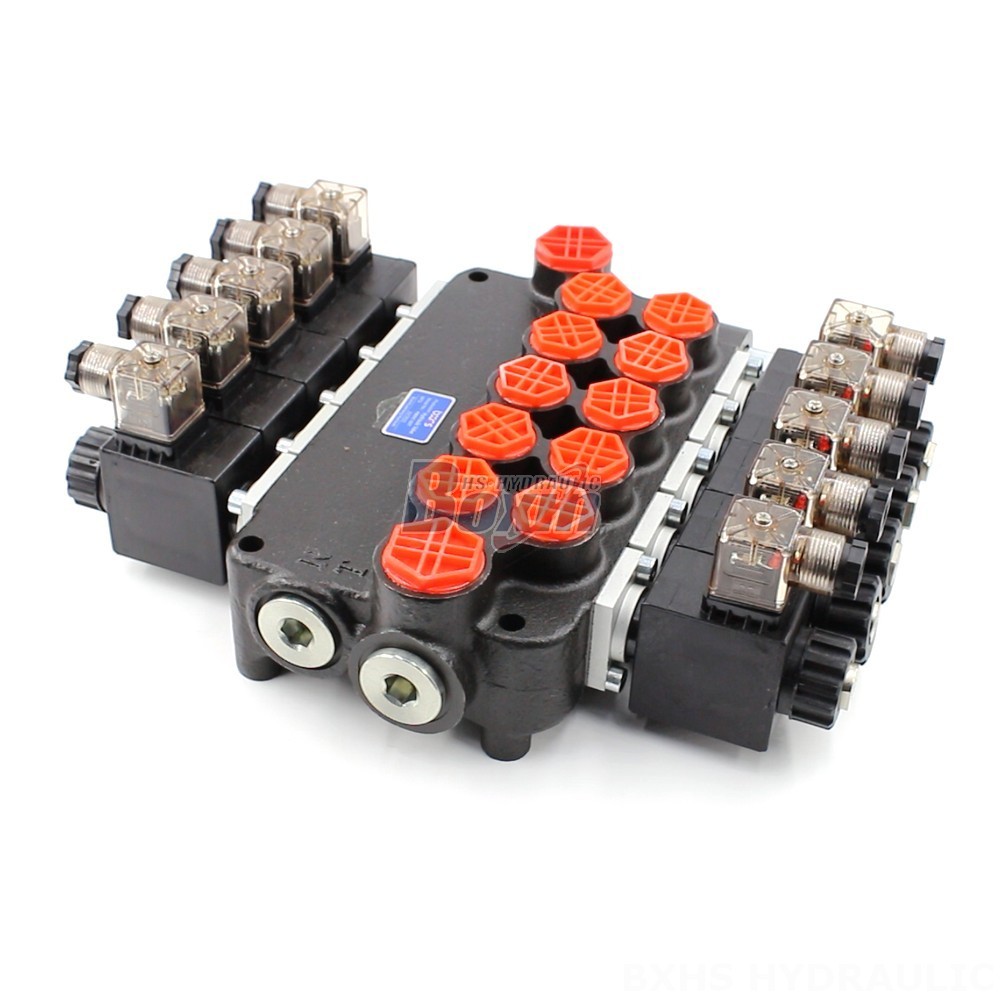

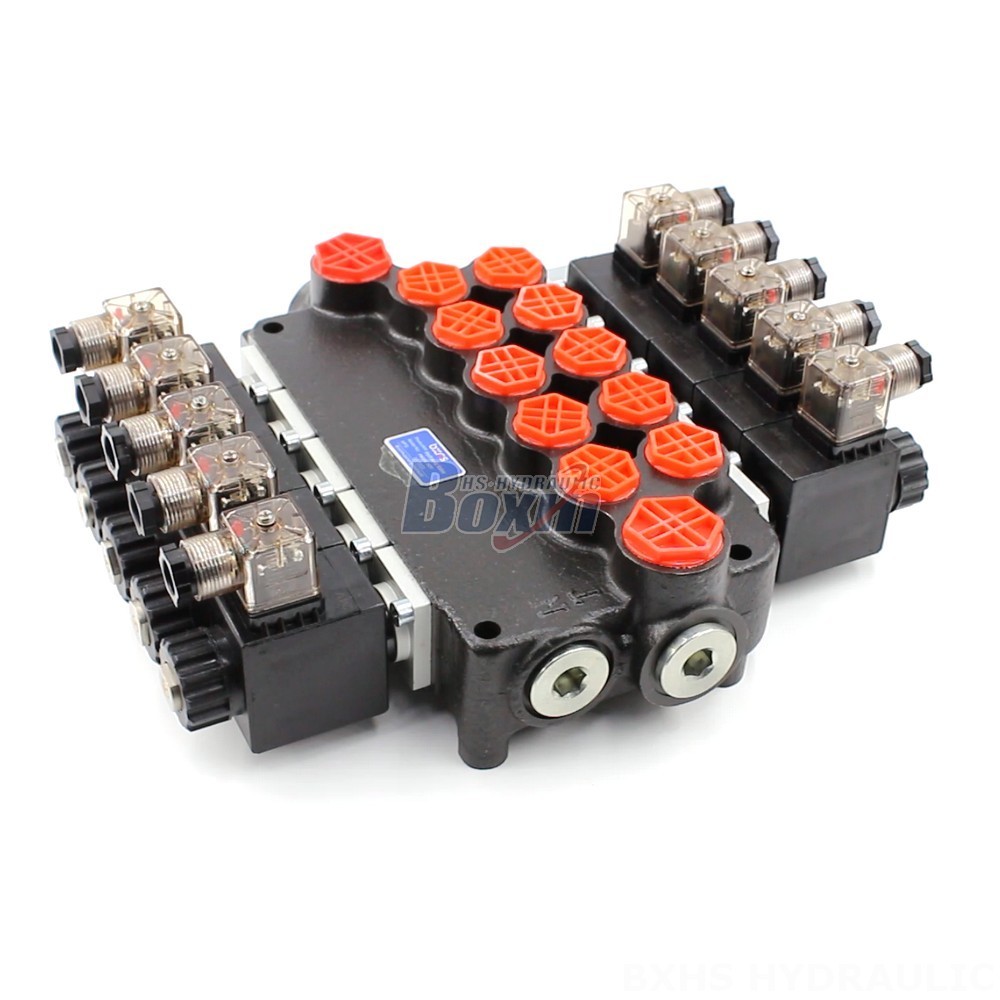

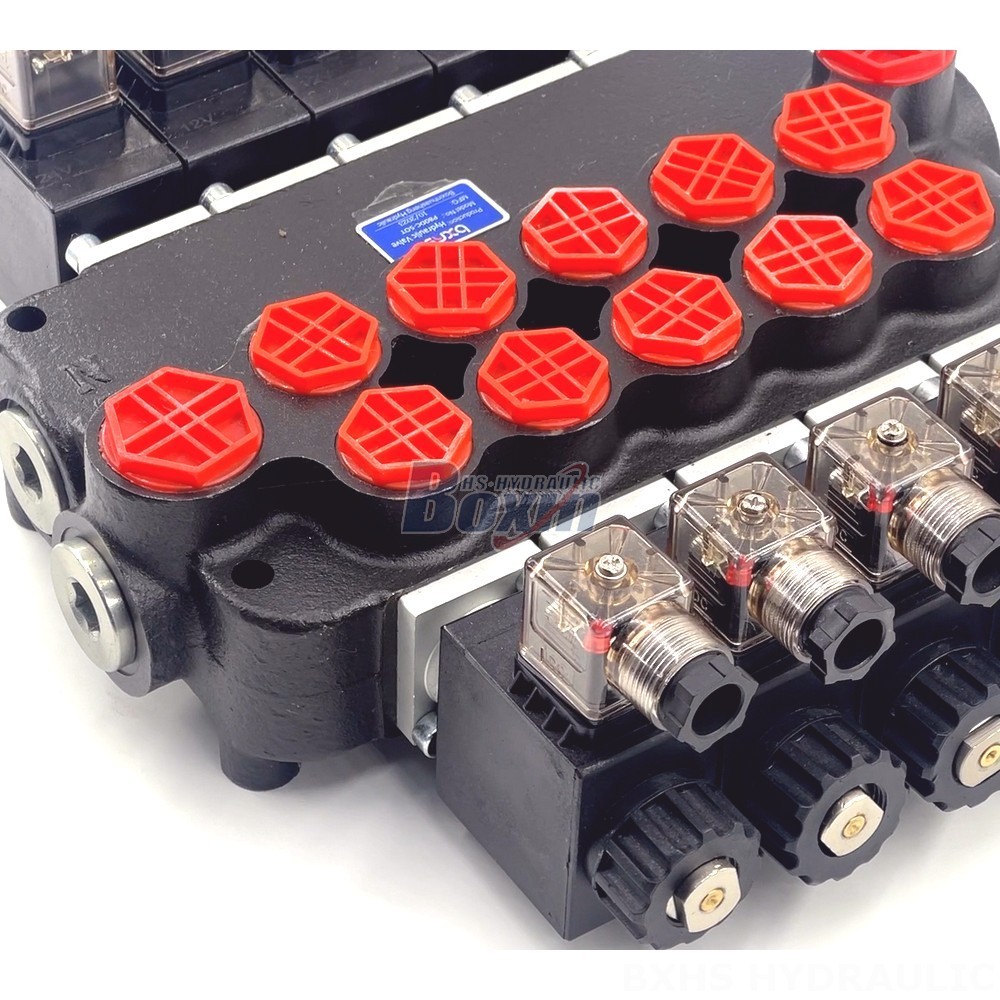

**P80 Solenoid 5 Spool Monoblock Directional Valve**
**Key Features:**
* Solenoid control for precise operation
* 5 spool design for versatile flow management
* Monoblock construction for compact and reliable performance
* Rated flow of 80 L/min (21.2 US gpm) for efficient hydraulic systems
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for reliable operation in harsh environments
**Application Areas:**
* Material Handling: Telehandlers, forklifts, stackers
* Construction and Earth Moving: All-terrain cranes, motor graders, excavators
* Agriculture: Tractors, harvesters, sprayers
* Industrial Vehicles: Sweepers, scrubbers, aerial platforms
**Partnership Opportunities:**
We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach. Our flexible partnership models include:
* Distribution agreements
* Private label (OEM) manufacturing
* Custom engineering solutions
* Technical support and training
Contact us today to explore the opportunities and collaborate in delivering cutting-edge hydraulic solutions to your customers.
