Produksi & Pengiriman
Waktu Produksi 15-30 Hari
868 Pandangan Mencari Produk Ini

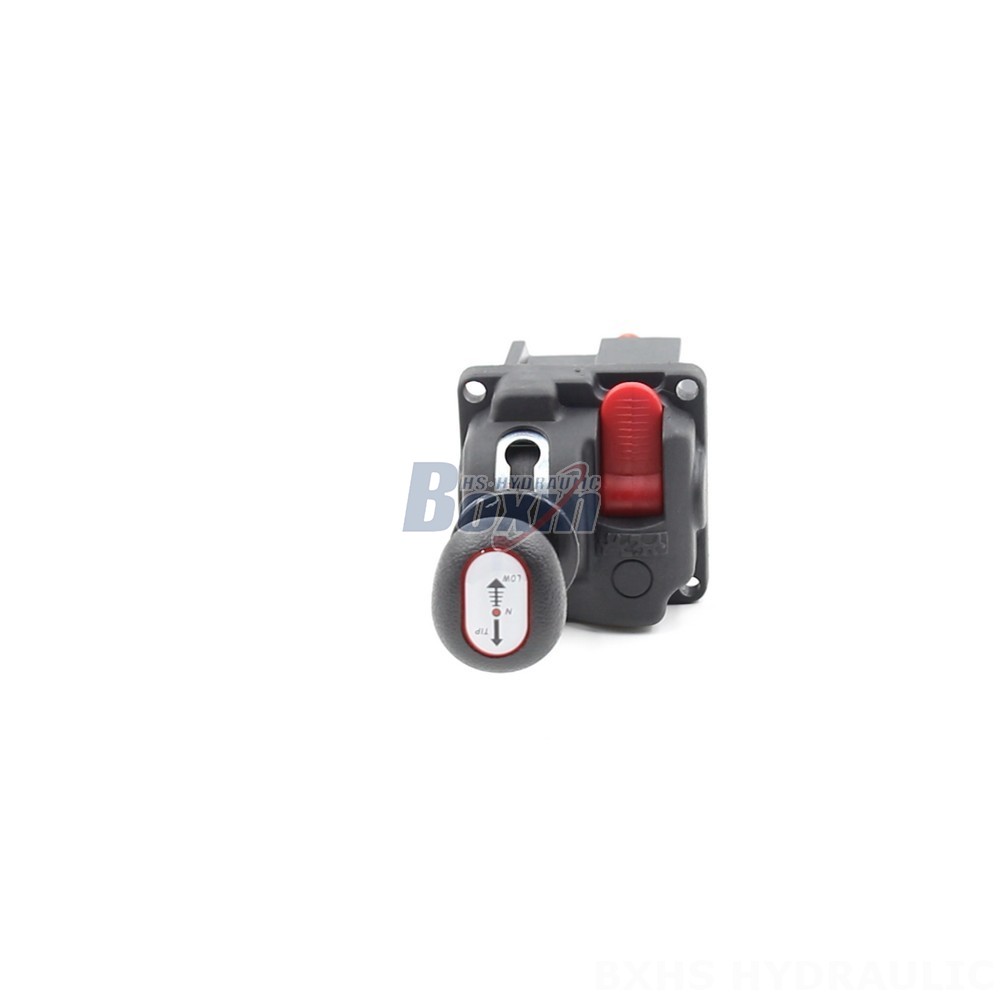

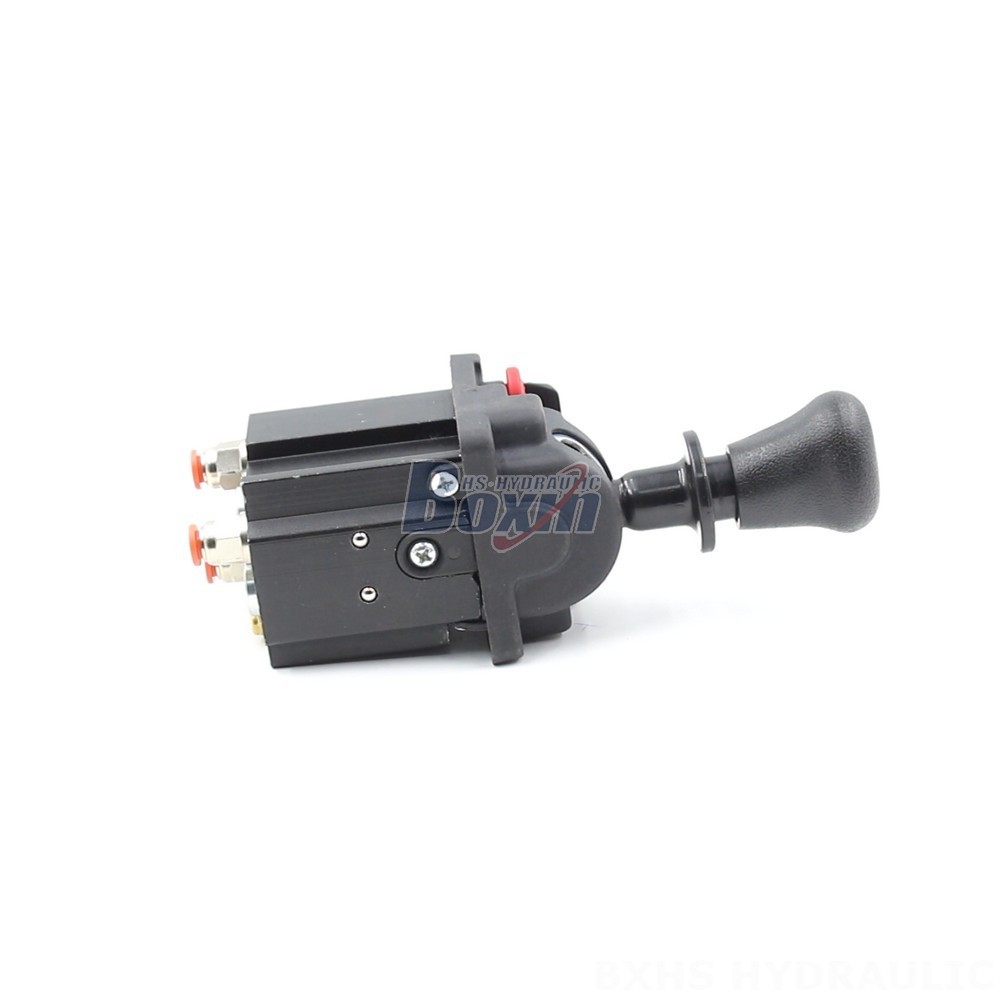

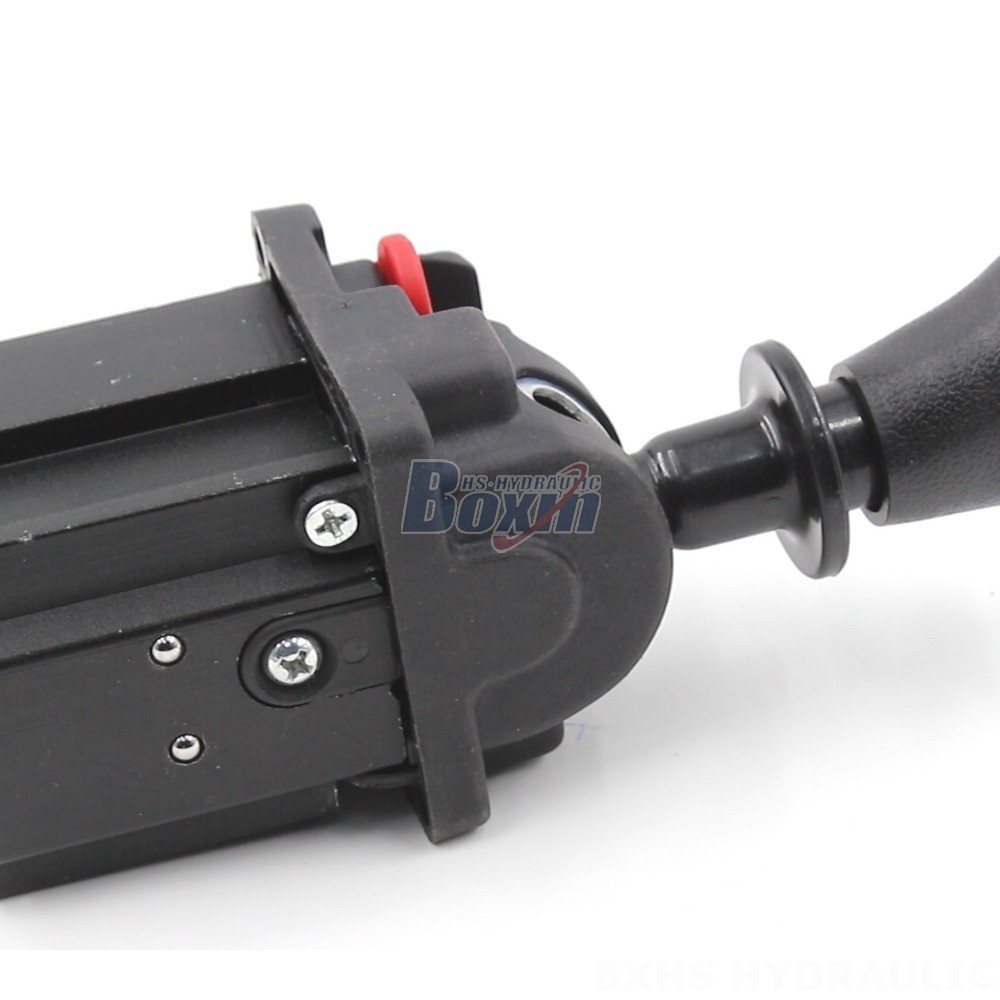

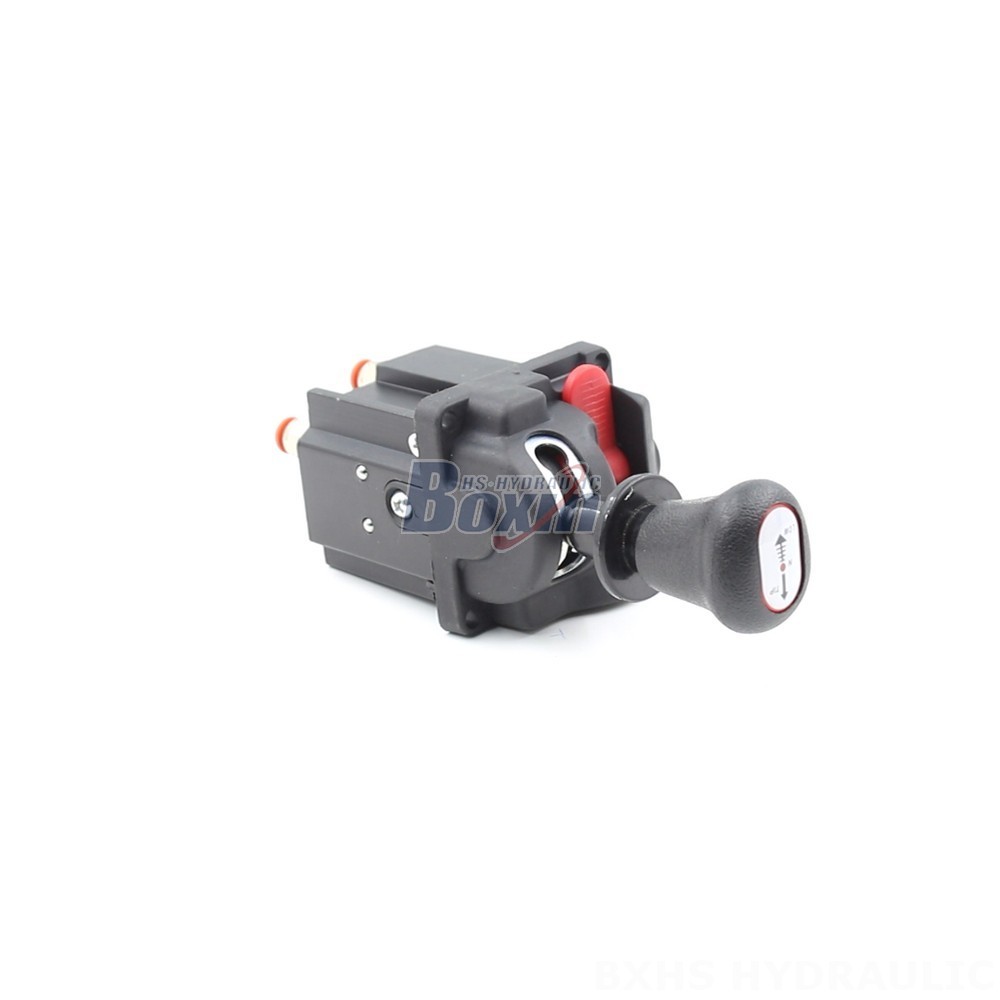

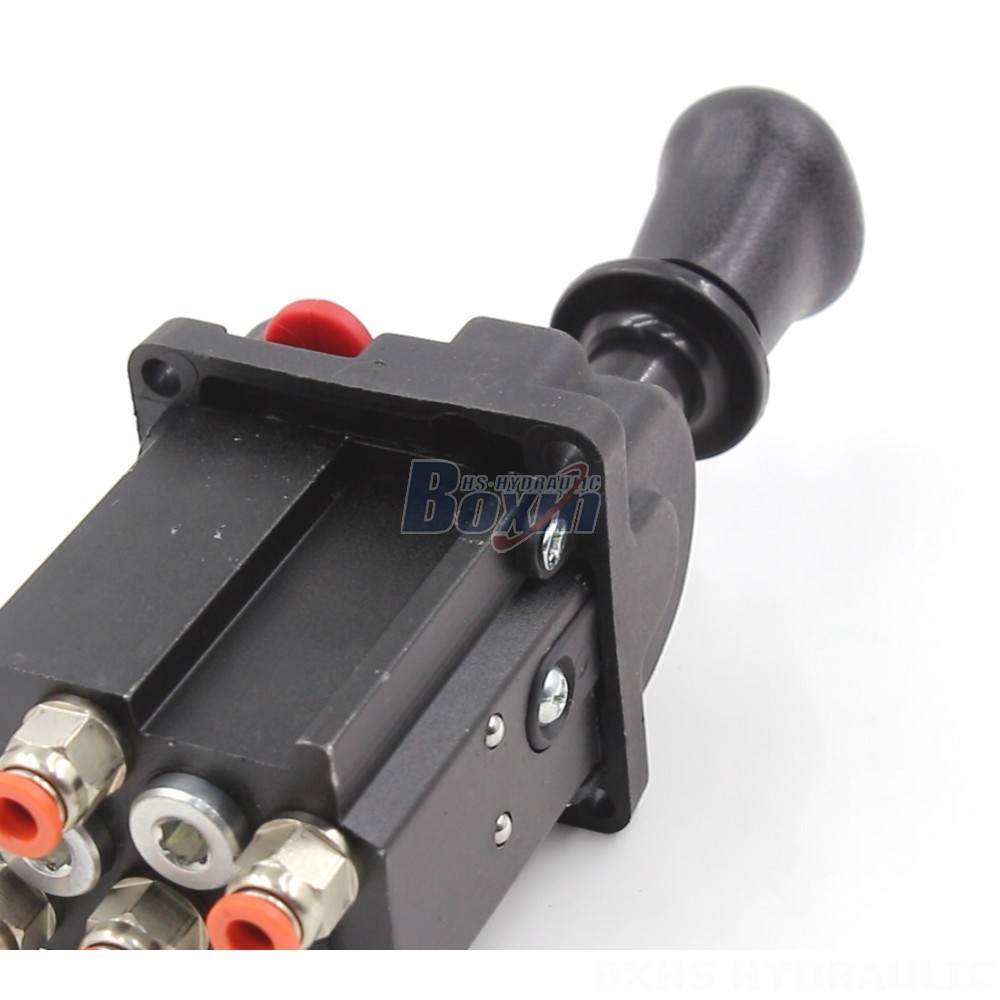

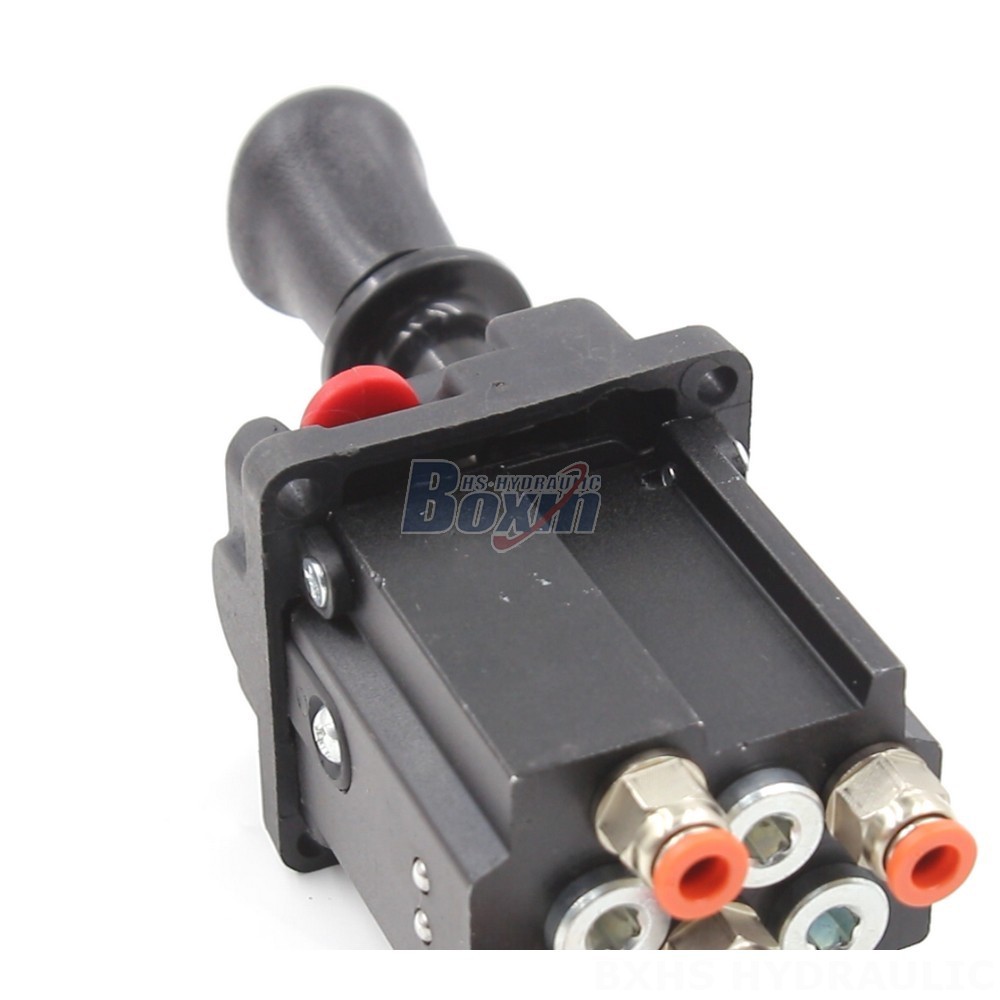

This 3-way electric hydraulic diverter valve with pneumatic control is a reliable and versatile solution for a wide range of applications, including construction, material handling, agriculture, and industrial vehicles.
| Seri BKQF34 Katup Kontrol Pneumatik Parameter | |
|---|---|
| Metode Kontrol | Pneumatik |
| Spul | 1 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | Tekanan Dinilai |
| Port Masuk | G1/4 |
| Port Keluar | G1/4 |
| Ukuran Port | G1/4 |
This BKQF34 series 3-way electric hydraulic diverter valve with pneumatic control features a monoblock valve construction with a single spool. It offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 1 MPa (145 psi). The operating viscosity range is 12 - 400 mm²/s (12 cSt to 400 cSt), and the ambient temperature range is -40°C to +80°C (-40°F to +176°F). This versatile valve is ideal for applications in construction equipment such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, and backhoe loaders.
