Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1562 Pandangan Mencari Produk Ini

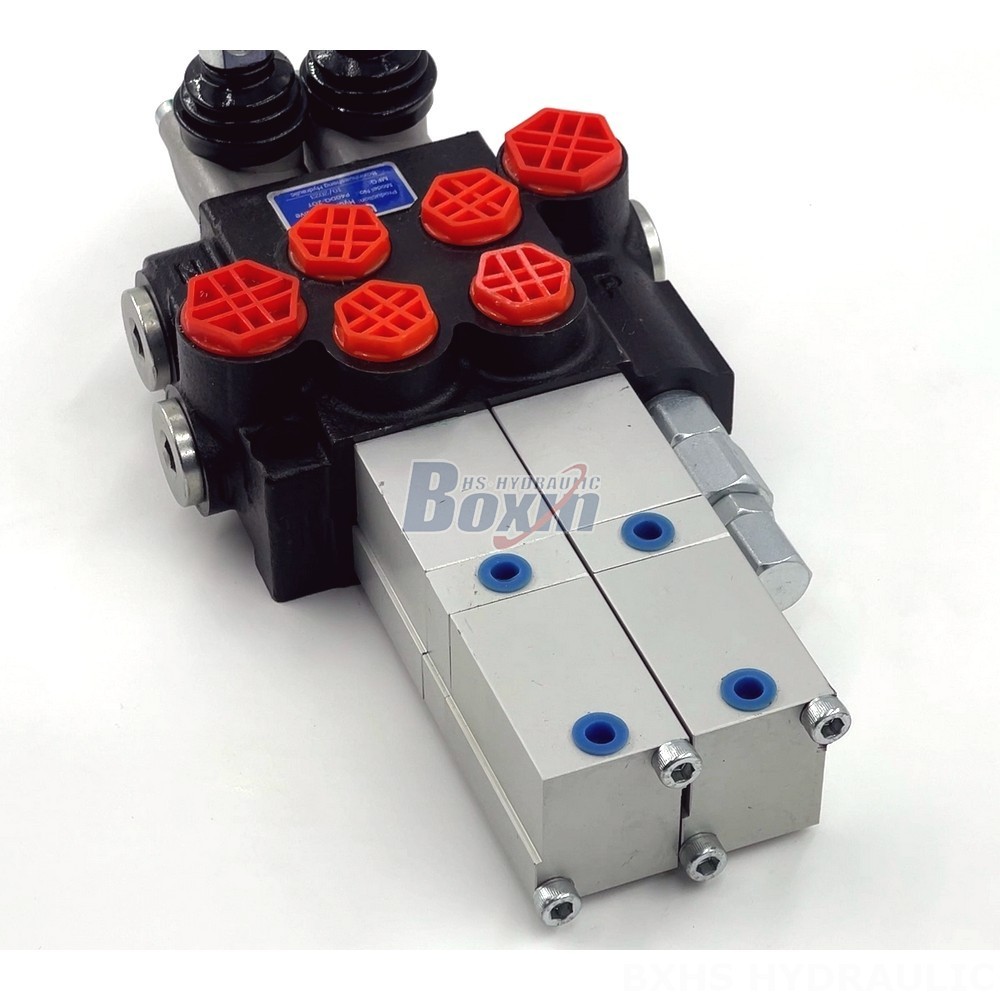

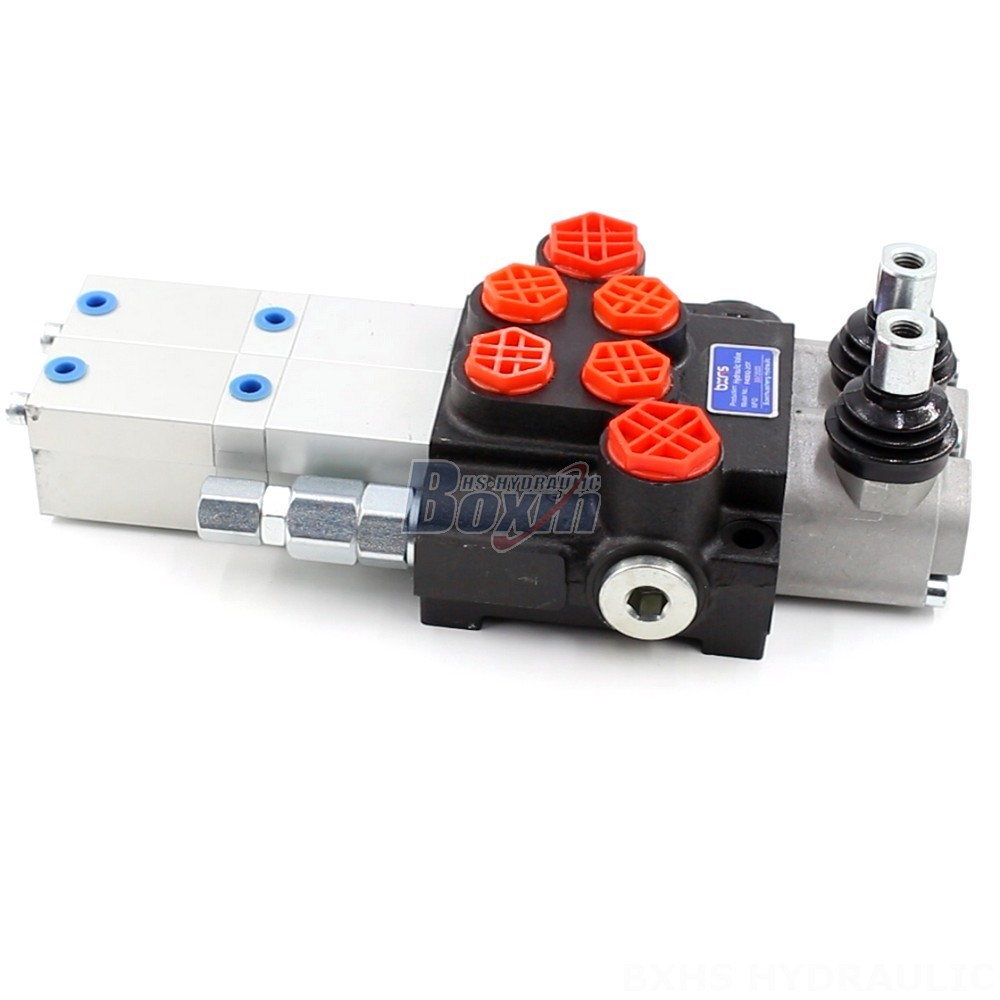

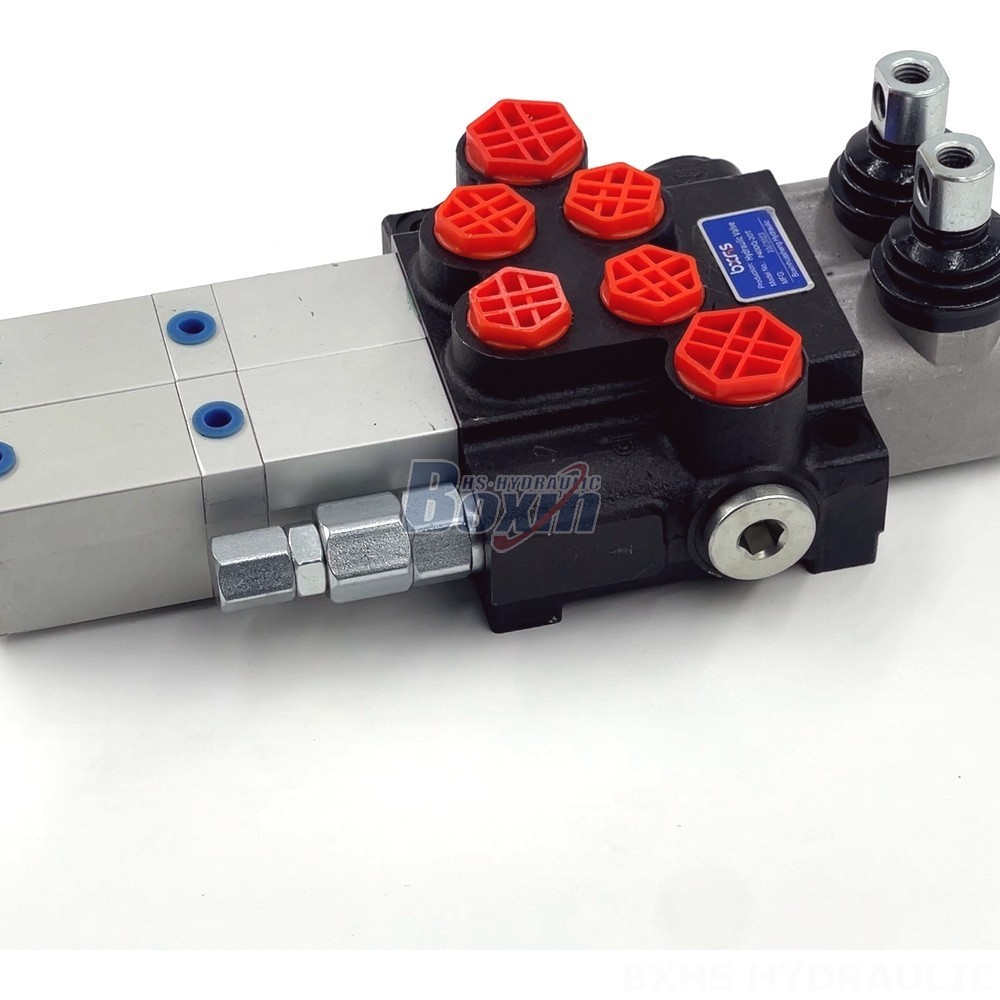

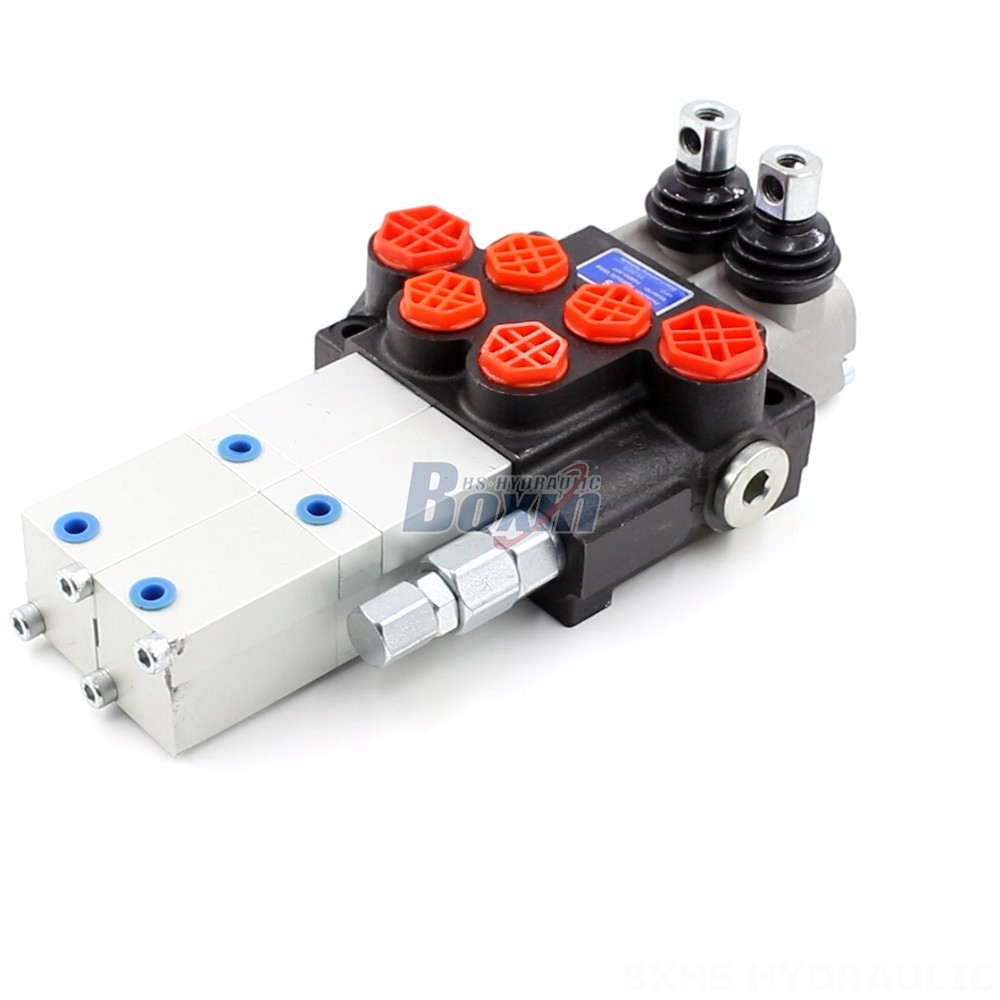

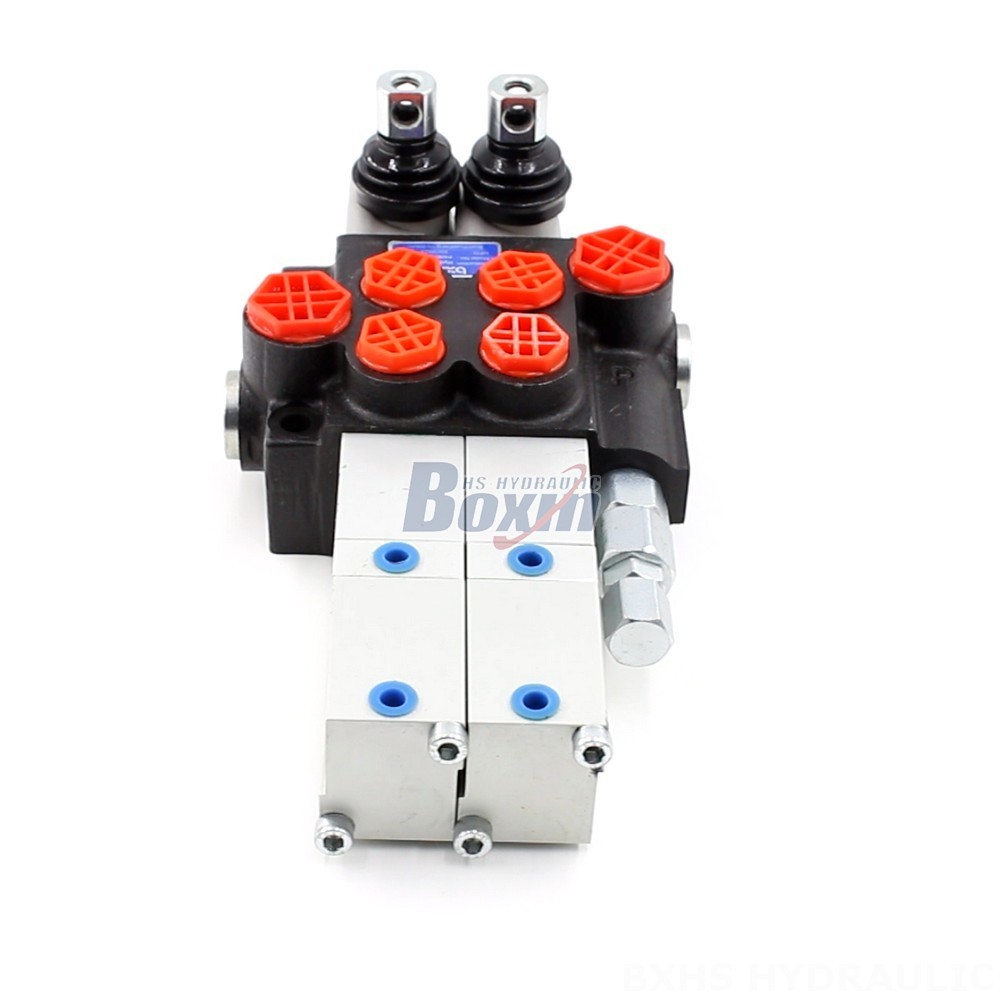

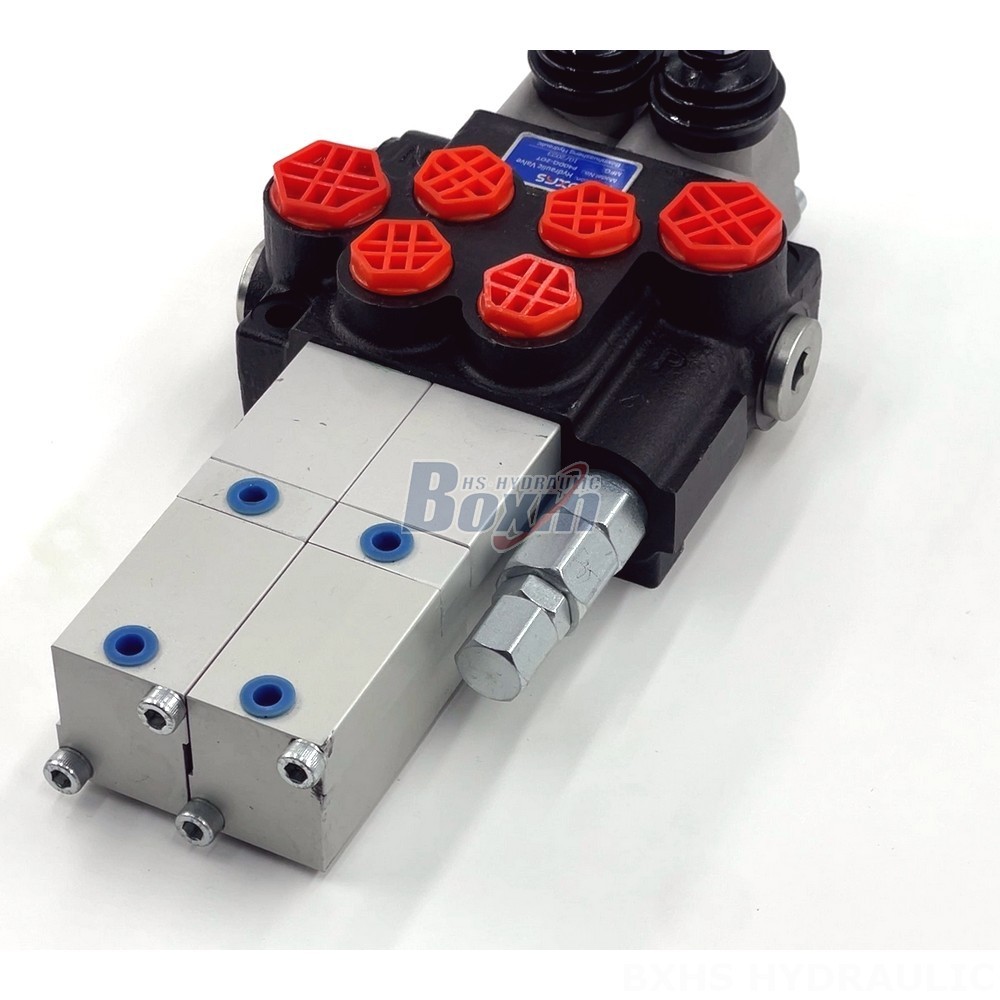

The P40 Series Proportional Directional Control Valve is a high-performance, 2 spool valve designed for use in a variety of material handling, construction and industrial applications. It features pneumatic control, a monoblock valve structure, and a rated flow of 40 L/min (10.5 US gpm).
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series Proportional Directional Control Valve is a 2 spool, monoblock valve designed for precise and reliable control of hydraulic circuits in a variety of applications. It features pneumatic control, allowing for smooth and responsive actuation. The valve has a rated flow of 40 L/min (10.5 US gpm) and a maximum operating pressure of 250 bar (3600 psi). It is designed to operate in a wide range of temperatures, from -40°C to +80°C (-40°F to +176°F). This robust valve is ideally suited for use in material handling, construction, and industrial vehicles, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
