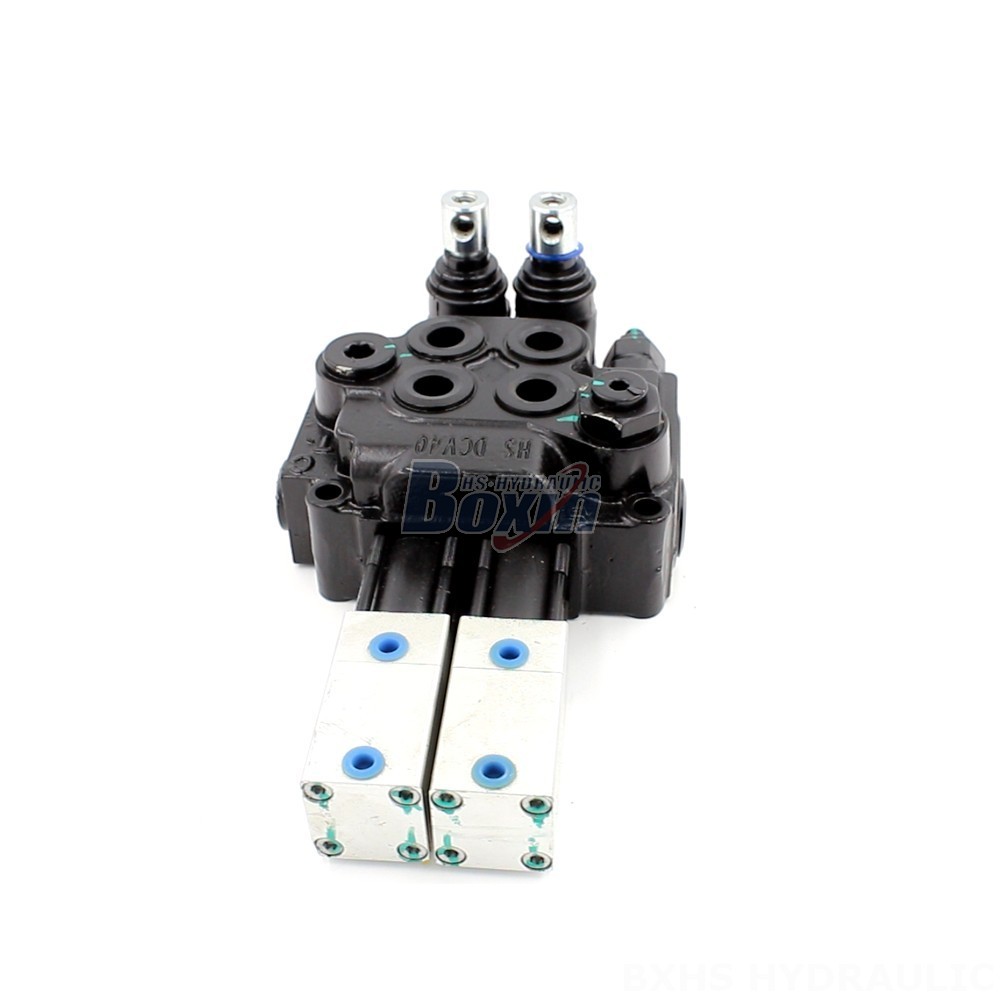

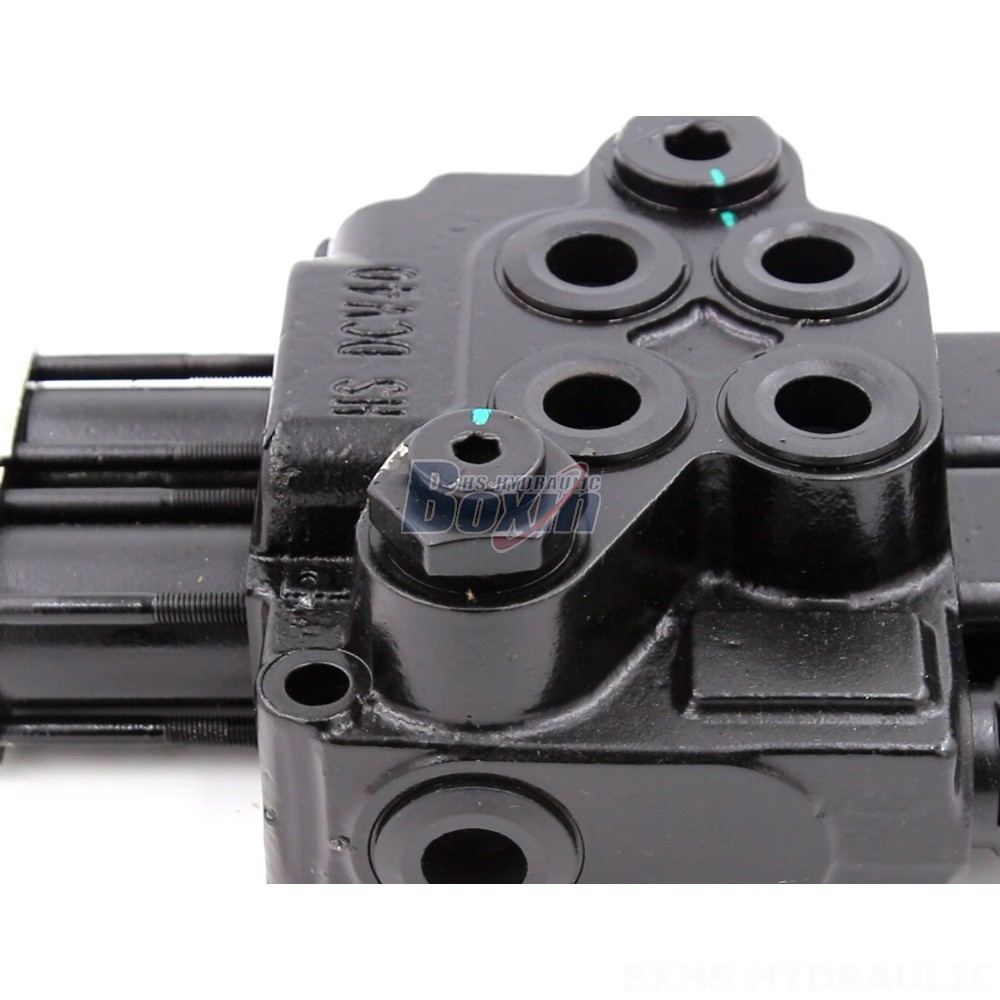

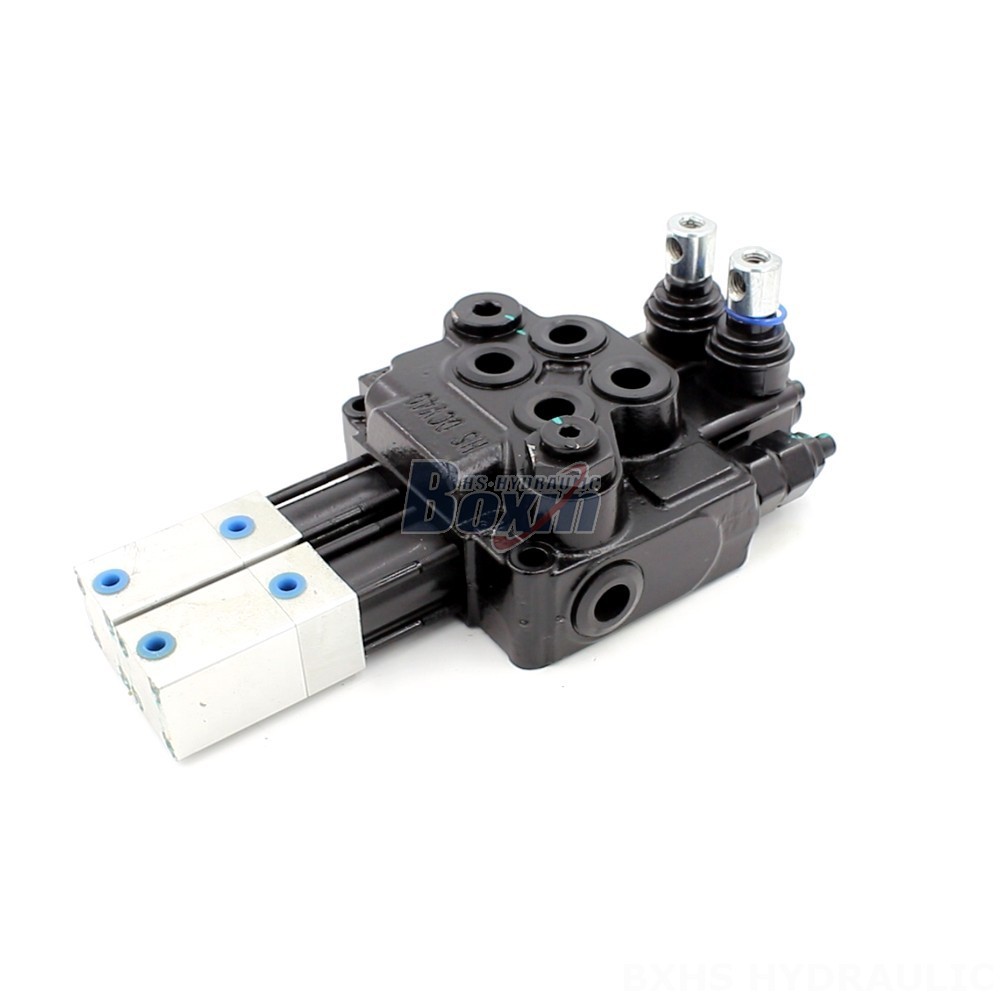

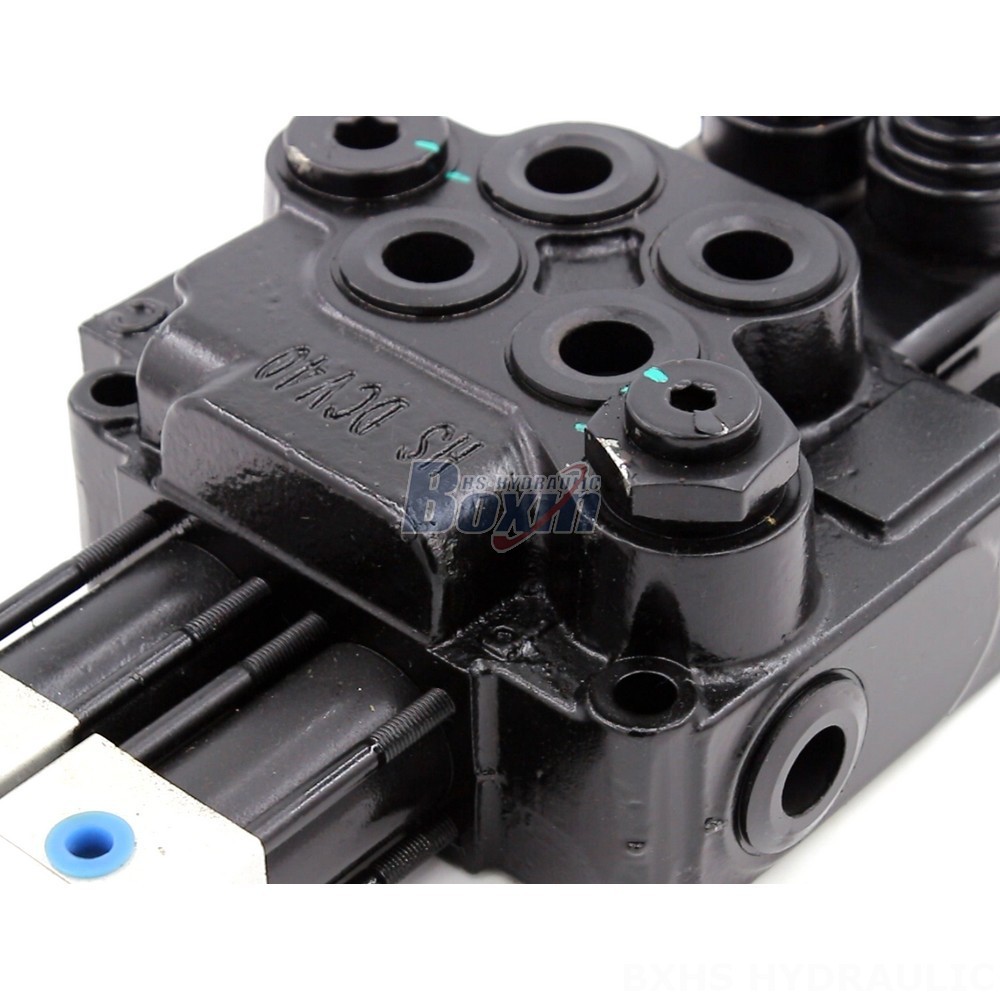

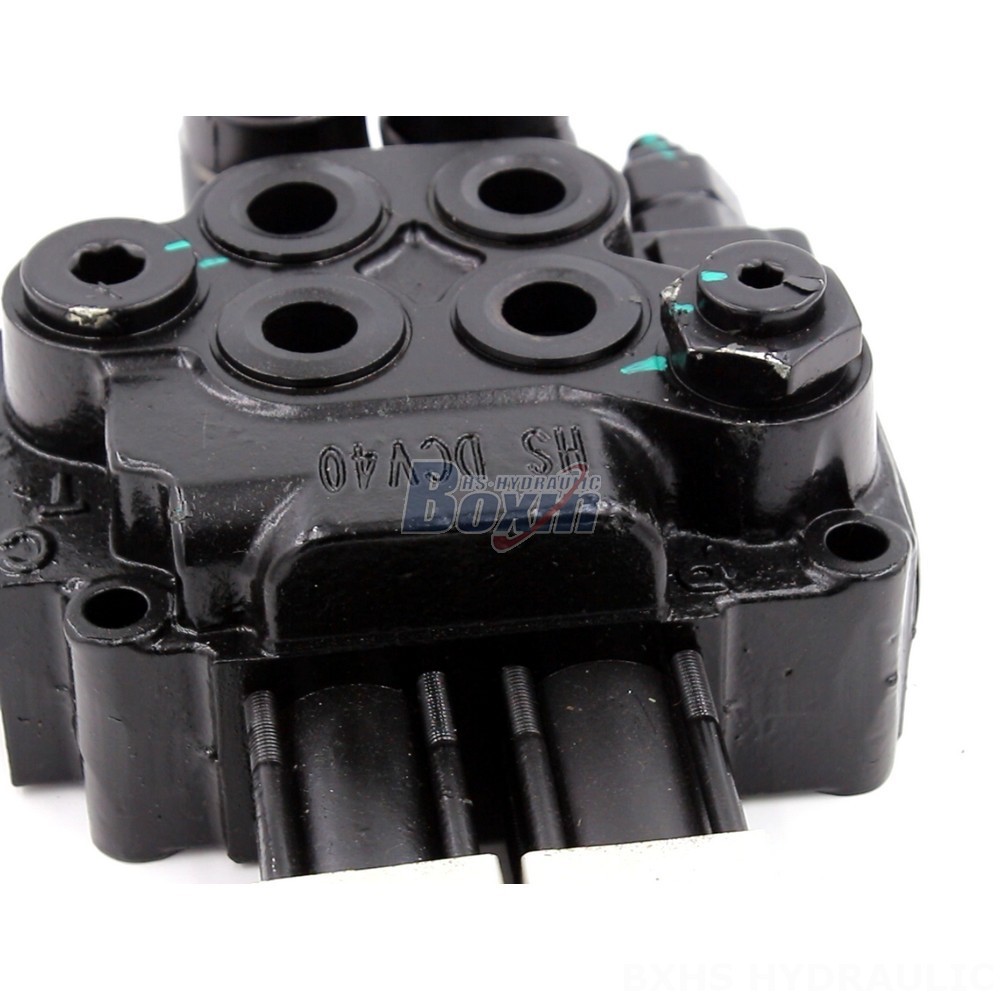

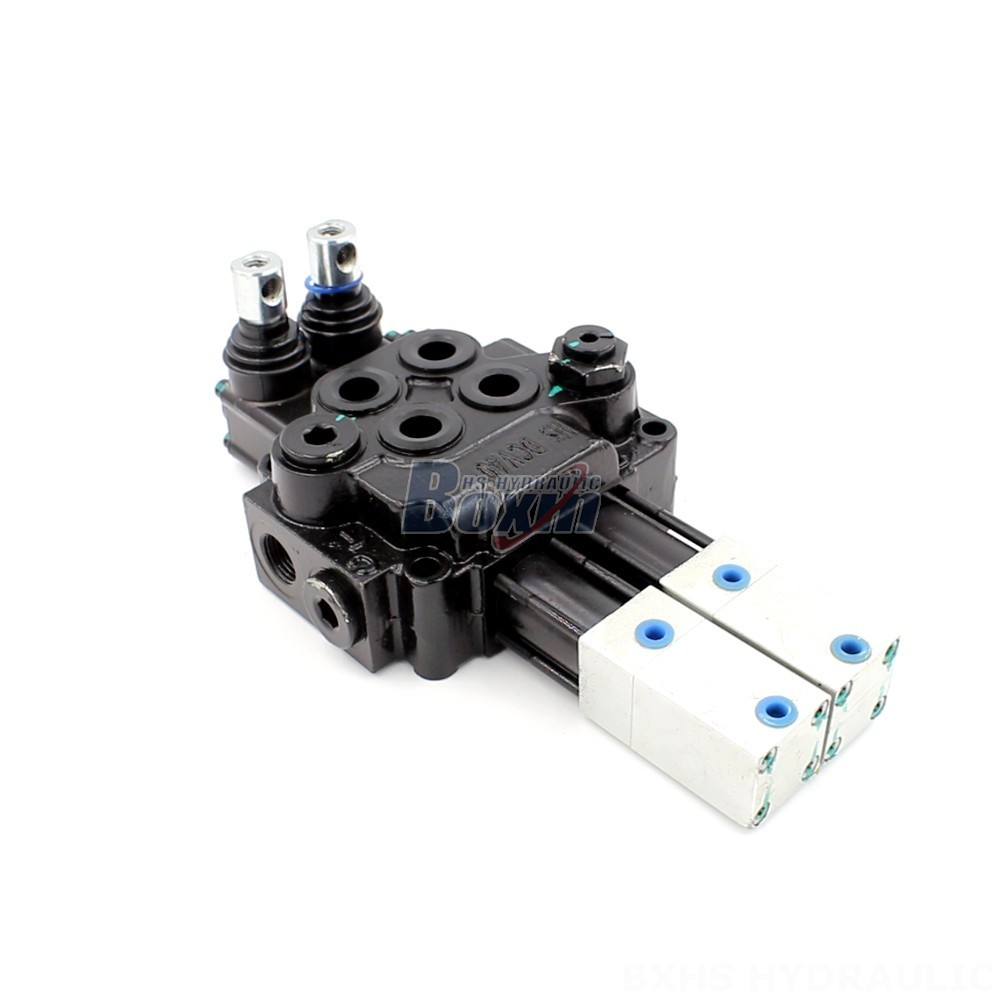

The DCV40 Directional Valve from Pneumatic Control Solutions is a high-performance valve designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. With its compact design, high flow capacity, and robust construction, the DCV40 offers exceptional control and reliability.
| Seri DCV40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Solenoid dan Manual, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 350 bar (5100 psi) |
| Port Masuk | G3/8, G1/2, SAE 8, SAE 14, 3/8 NPT, 1/2 NPT |
| Port Keluar | G1/2, M18×1.5, M22×1.5, SAE 8, SAE 14, 1/2 NPT |
| Ukuran Port | G1/2, M18×1.5, M22×1.5, SAE 8, SAE 14, 3/8 NPT, 1/2 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
The DCV40 Directional Valve features a monoblock design for increased durability and reduced leakage. Its two sections provide independent control of fluid flow, while the two spools ensure precise and responsive operation. The valve's rated flow capacity of 40 L/min (10.5 US gpm) and maximum pressure of 350 bar (5100 psi) make it suitable for a wide range of applications. Additionally, the DCV40 has an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F), ensuring reliable operation in various environmental conditions.
