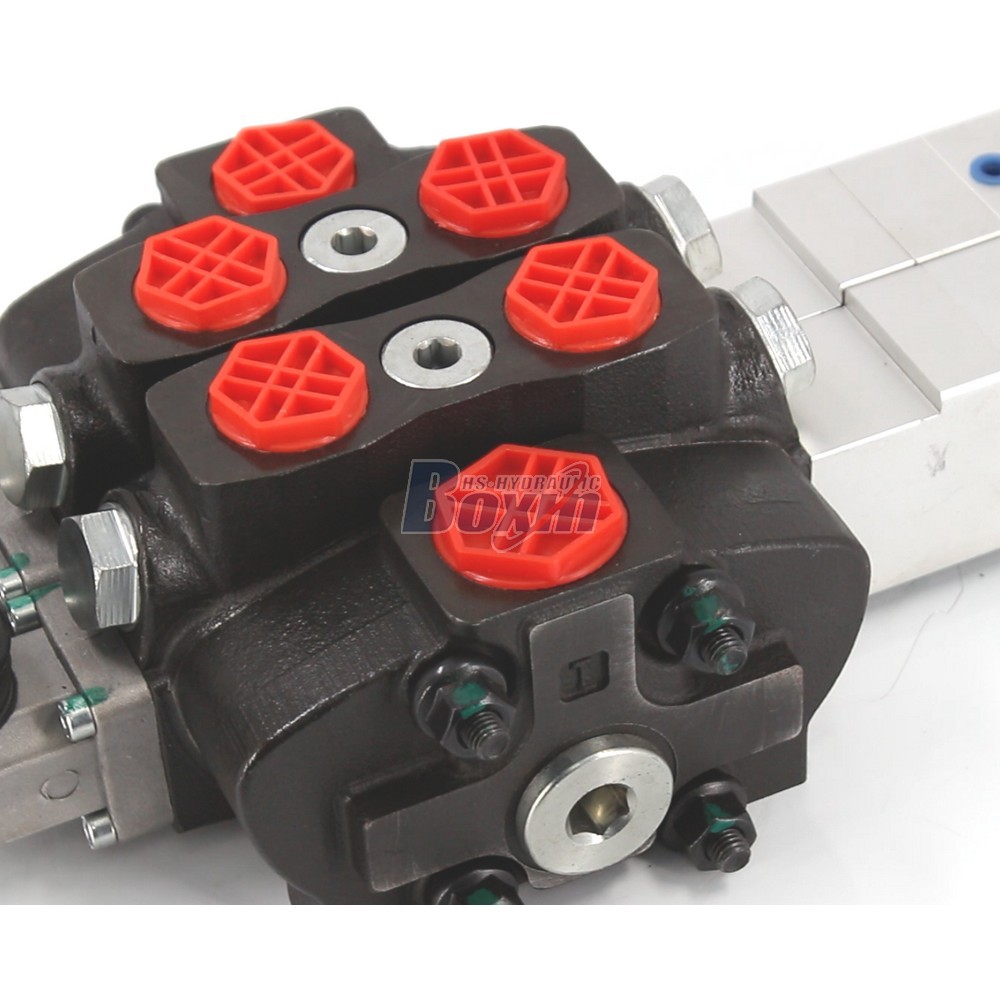

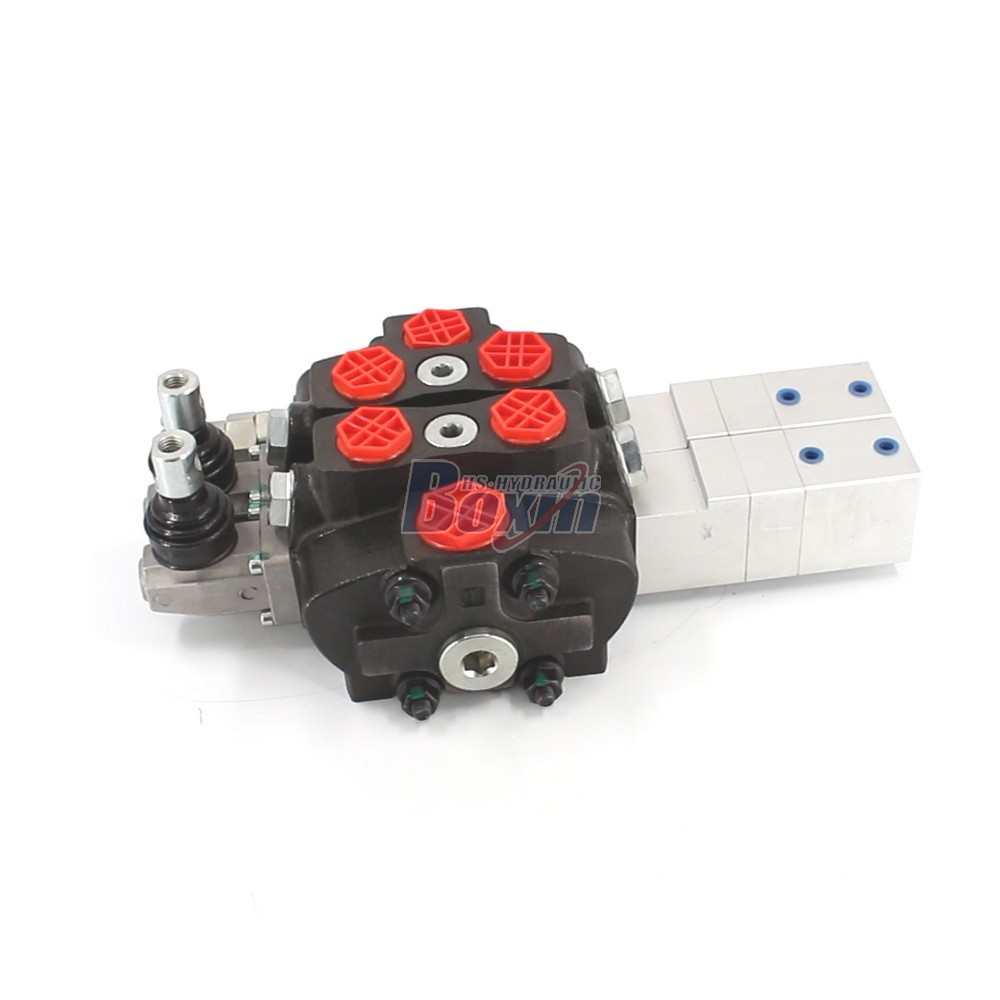

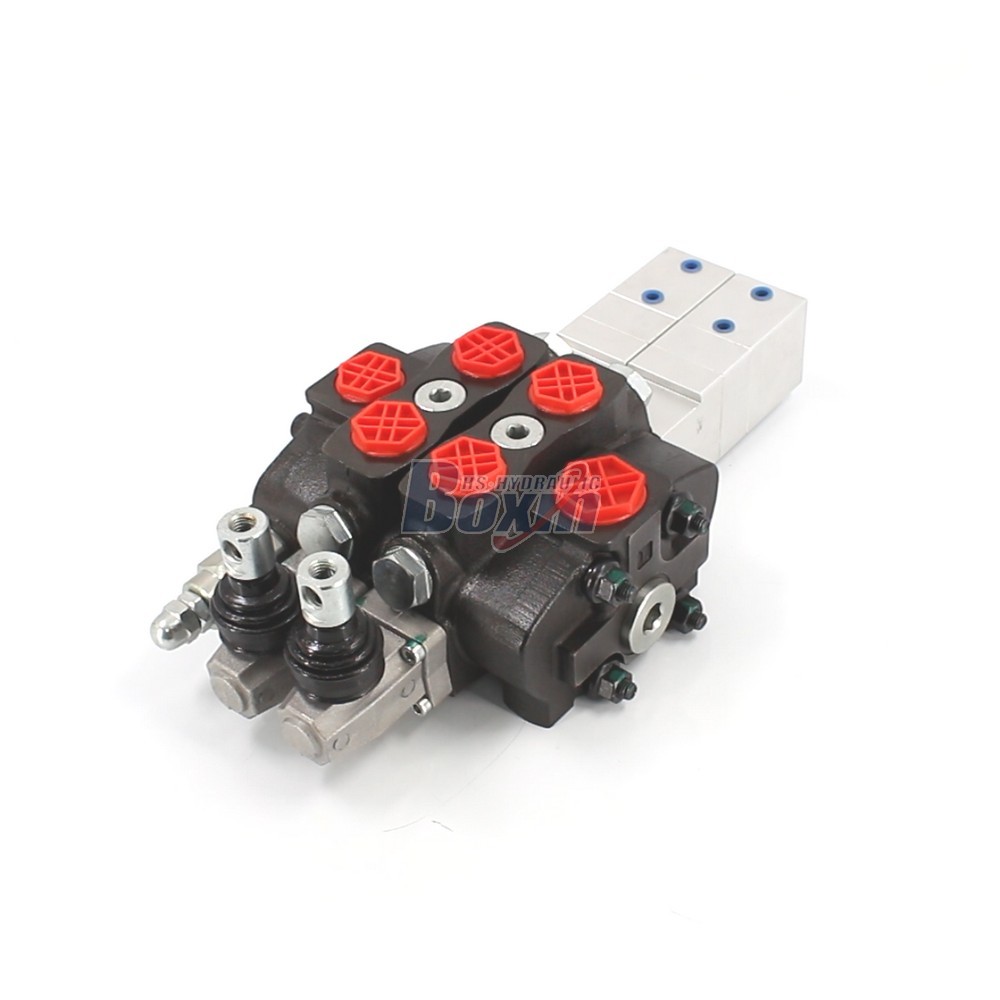

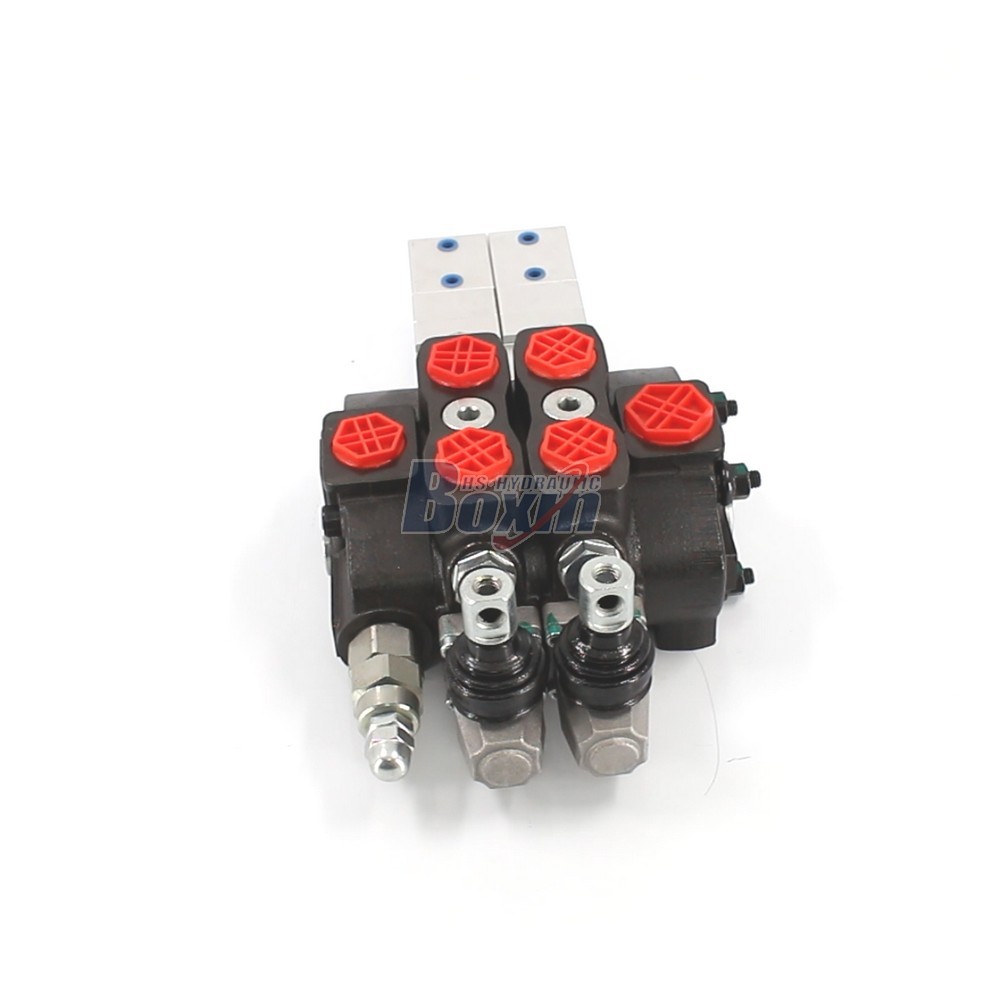

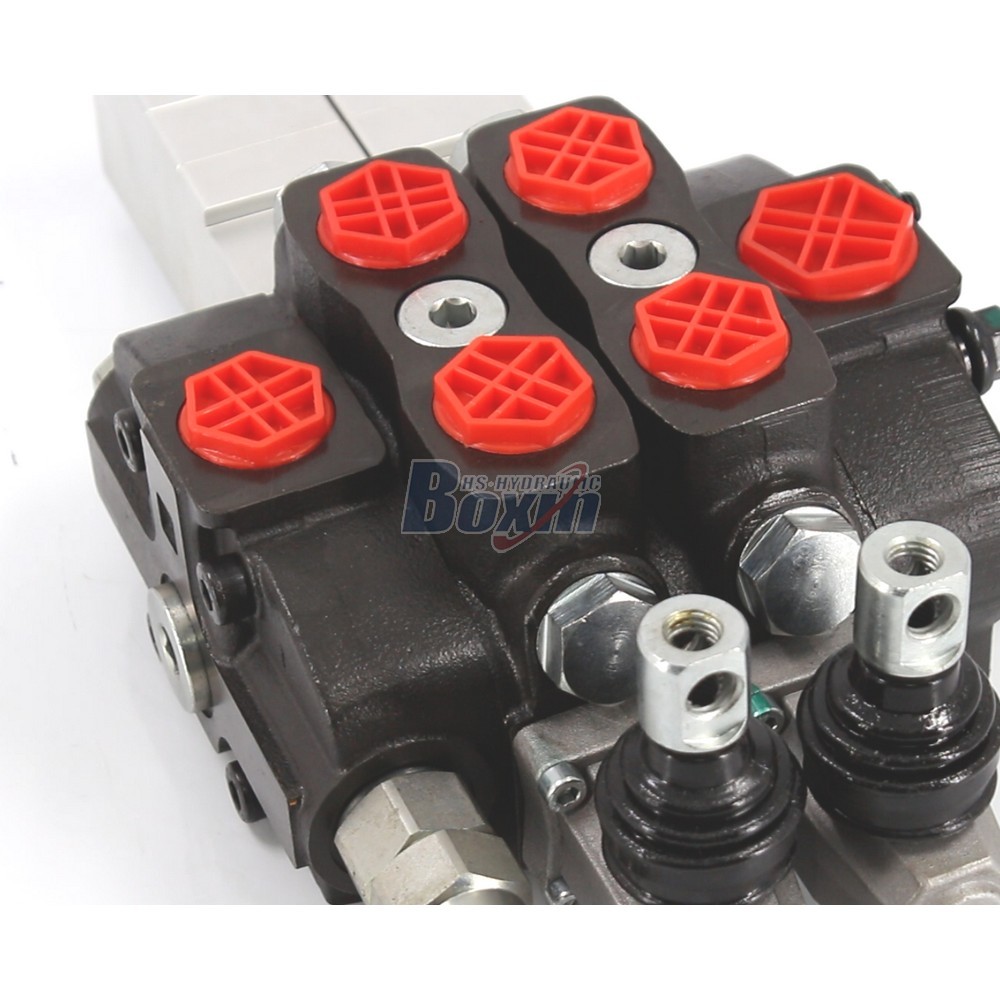

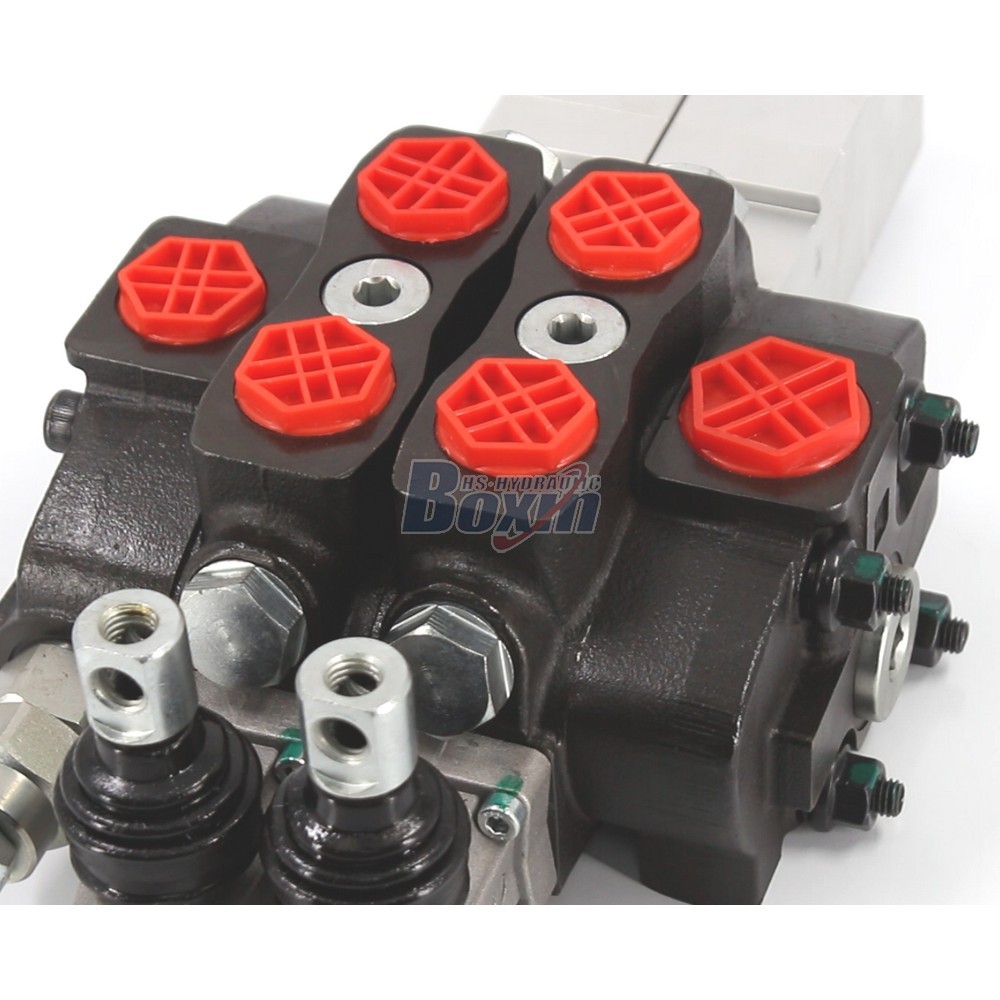

Pneumatic Sectional Directional Valve SD8 2 Spool Design

Metode Kontrol:Pneumatik

Spul:2 Spool

Aliran Terukur:90 L/menit (23,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:SAE 10

Port Keluar:SAE 10

Ukuran Port:SAE 10

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri SD8 Kran Arah Bagian

Ukuran kemasan:34*24*15.5

Kelas kotor:12.50 kg

Ketersediaan: Tersedia

99 Pandangan Mencari Produk Ini

Pneumatic Sectional Directional Valve SD8 2 Spool Design

Pneumatic Sectional Directional Valve SD8 2 Spool Design

Pneumatic Sectional Directional Valve SD8 2 Spool Design drawing image

As a leading hydraulic manufacturer, we offer the SD8 Series Pneumatic Sectional Directional Valve featuring a 2-spool design. Engineered for high-precision control in mobile and industrial machinery, this valve handles a rated flow of 80 L/min and operating pressures up to 350 bar. It is ideal for material handling, agriculture, and construction equipment.

Seri SD8 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian
Kisaran Viskositas Operasional 12 - 400 mm²/dt (12 cSt hingga 400 cSt)
Aliran Terukur 90 L/menit (23,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, SAE 10
Port Keluar G1/2, G3/4, SAE 10, 3/4 NPT
Ukuran Port G1/2, SAE 10

Our factory specializes in high-performance hydraulic solutions, presenting the SD8 Series 2 Spool Pneumatic Sectional Directional Valve. Built for versatility and durability, this valve supports a rated flow of 80 L/min (21.2 US gpm) and reaches a maximum pressure of 350 bar. It features G1/2 inlet and G3/4 outlet ports, making it suitable for a wide range of applications including forklifts, mini-excavators, tractors, and waste compactors. As a large-scale manufacturer, we provide comprehensive OEM, ODM, and customized manufacturing services to meet specific technical requirements. We offer competitive wholesale pricing directly from our factory, ensuring cost-effective supply for large-scale projects. We are actively seeking global partners including distributors, wholesalers, agents, and traders to expand our international presence. Whether you need private labeling (white label) services or bulk wholesale supply, our facility is equipped to deliver reliable hydraulic components for construction, forestry, and agricultural machinery.
