Produksi & Pengiriman
Waktu Produksi 15-30 Hari

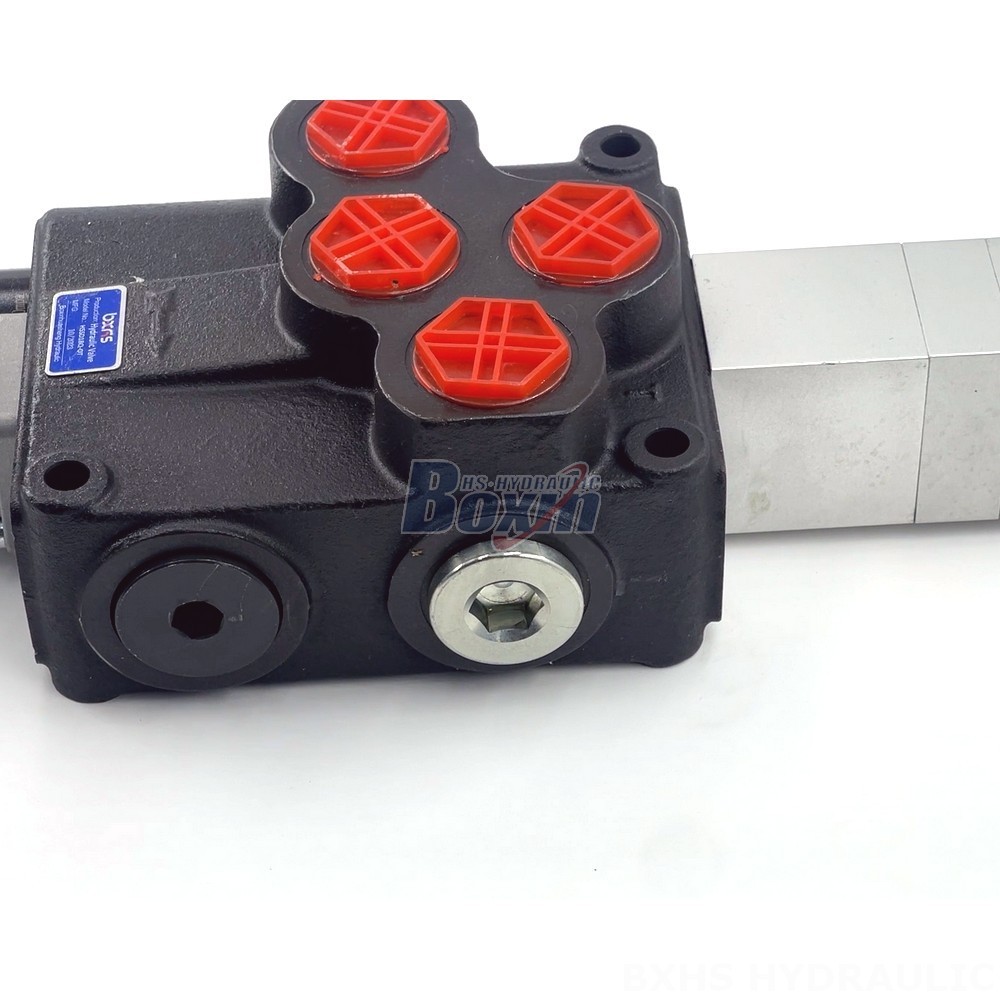

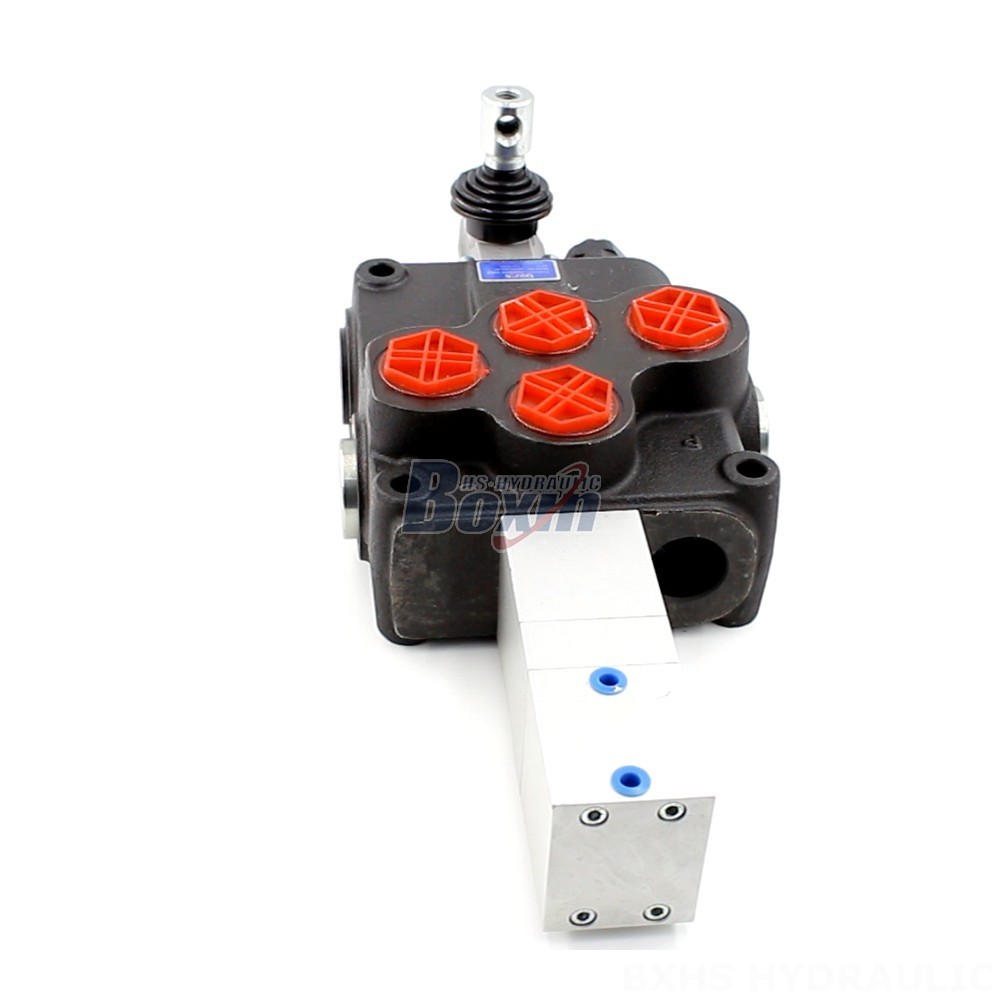

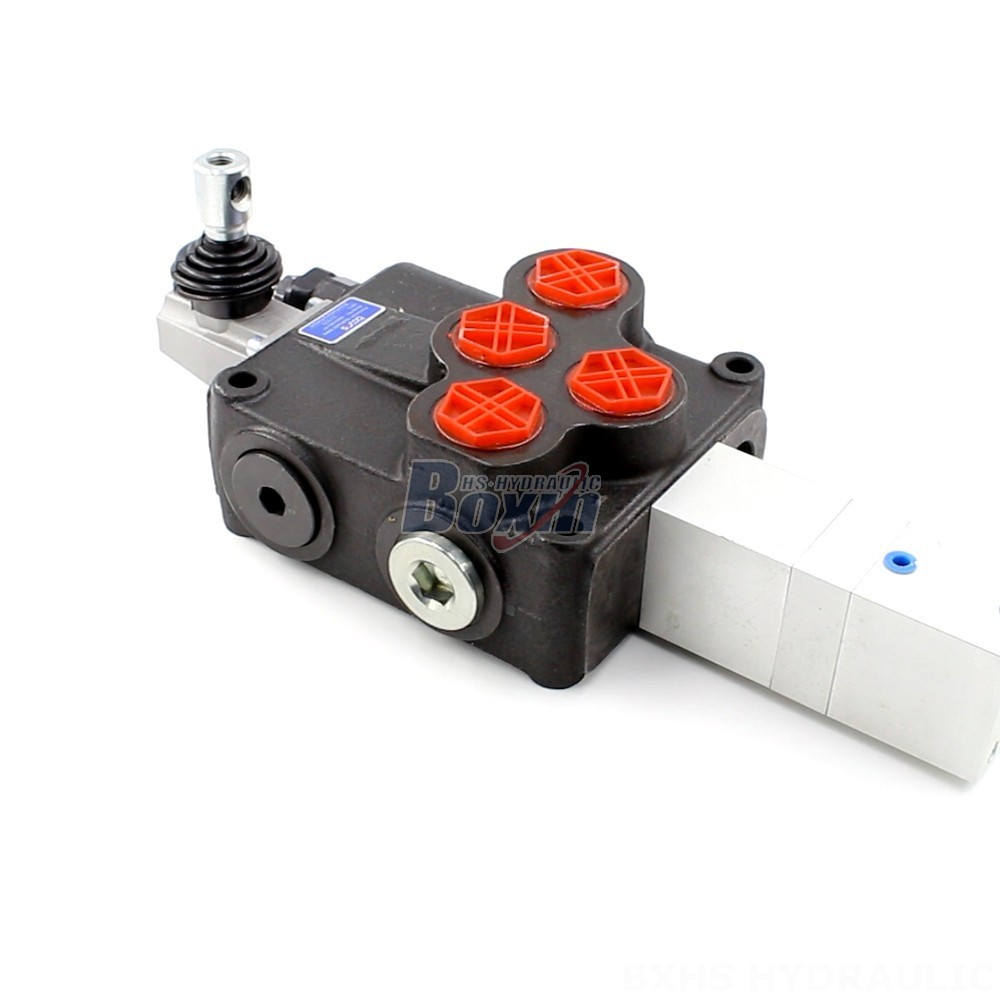

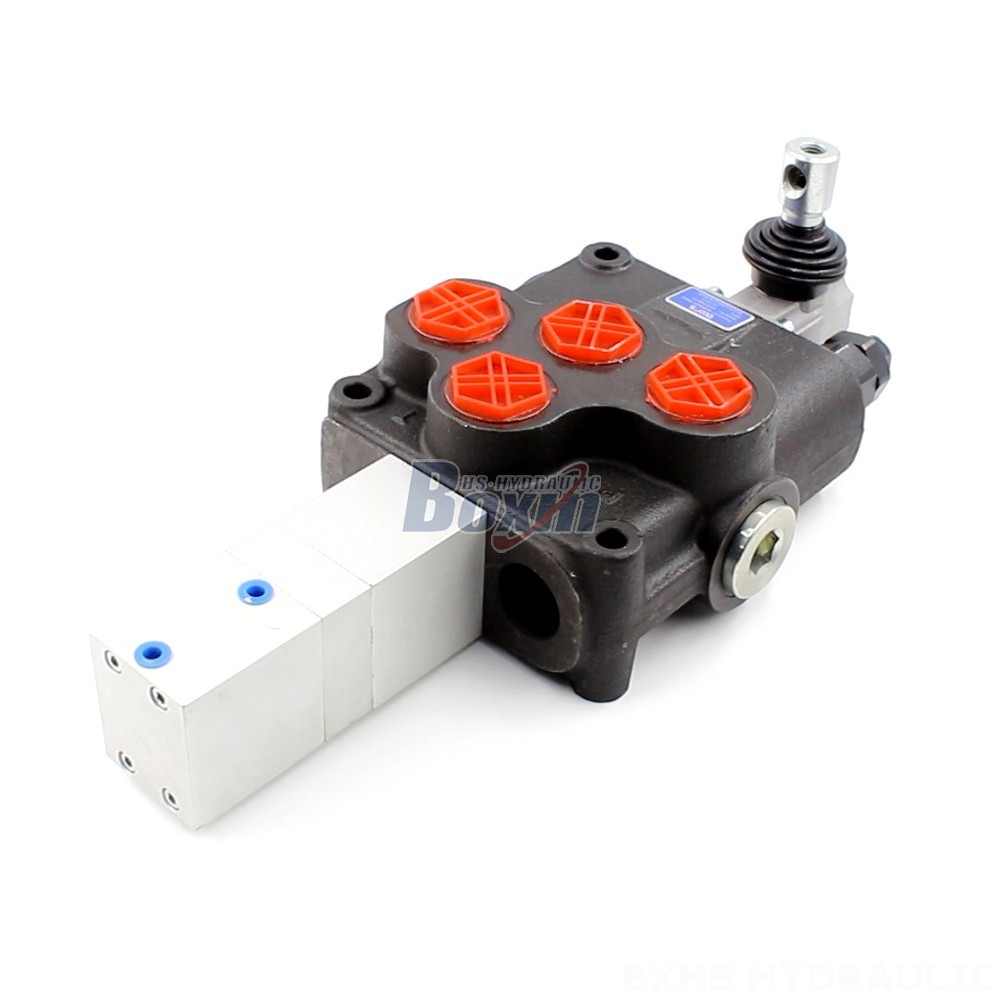

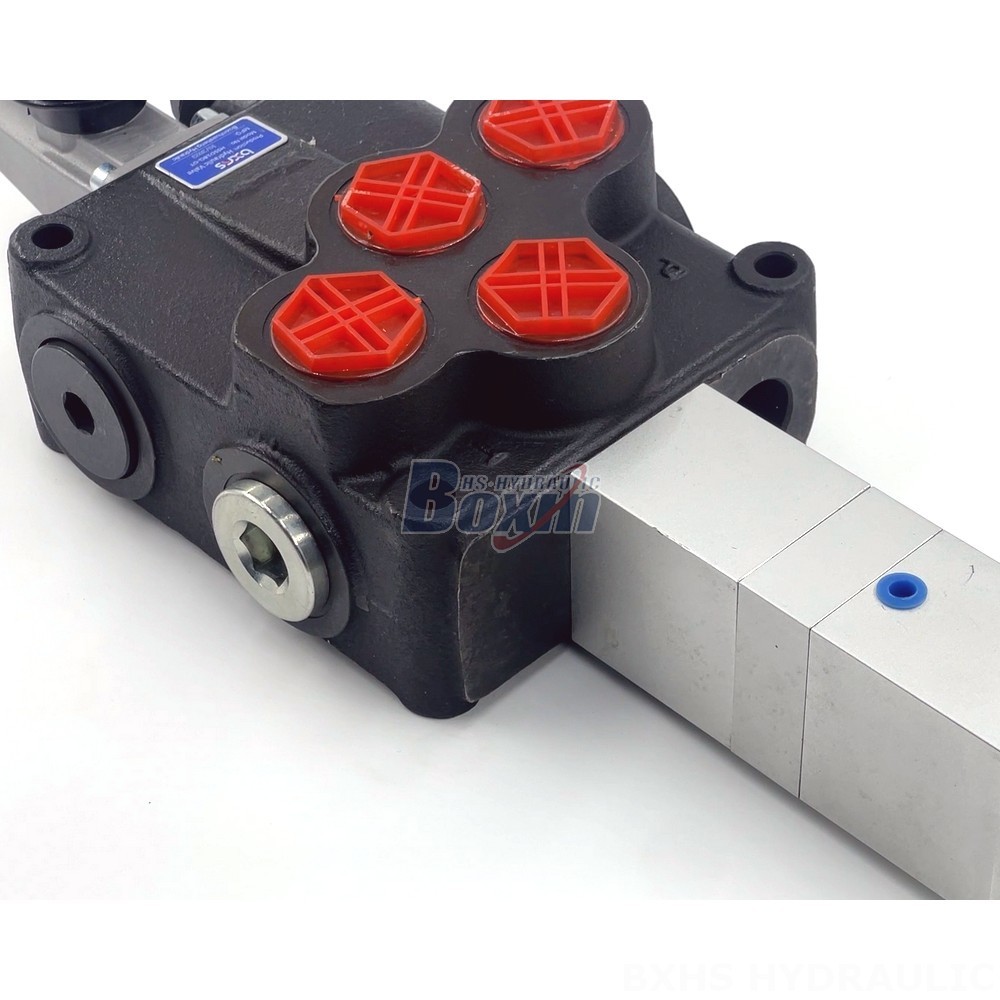

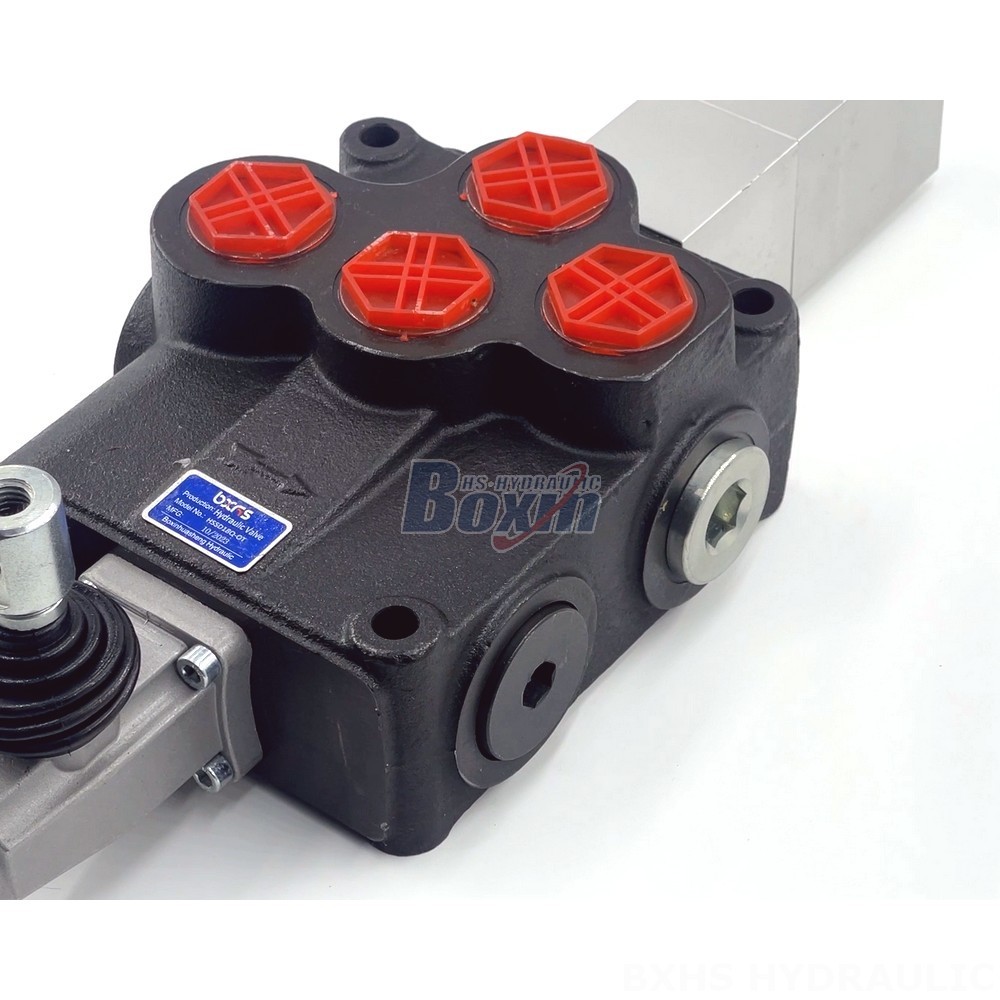

The SD18 Series Hydraulic Direction Control Valve is a pneumatic, monoblock valve designed for a variety of applications including material handling, construction, agriculture, and industrial vehicles. This high-performance valve offers a rated flow of 120 L/min and a maximum pressure of 315 bar.
| Seri SD18 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 160 L/menit (42,2 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G1/2, G1, SAE 16 |
| Port Keluar | G1, SAE 16 |
| Ukuran Port | G1, SAE 16 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
This SD18 Series Hydraulic Direction Control Valve is a robust and reliable solution for controlling hydraulic systems. Its pneumatic control method provides precise and responsive operation. The monoblock valve construction ensures durability and minimizes leakage. With a rated flow of 120 L/min and a maximum pressure of 315 bar, this valve is suitable for various applications in material handling, construction, agriculture, and industrial vehicles. It is compatible with a range of equipment including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The valve features a wide operating viscosity range and can withstand a wide range of ambient temperatures.
