Pneumatic Valve

Metode Kontrol:Pneumatik

Spul:2 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:23*18*13

Kelas kotor:6.00 kg

Ketersediaan: Tersedia

1248 Pandangan Mencari Produk Ini

Pneumatic Valve

Pneumatic Valve

Pneumatic Valve drawing image

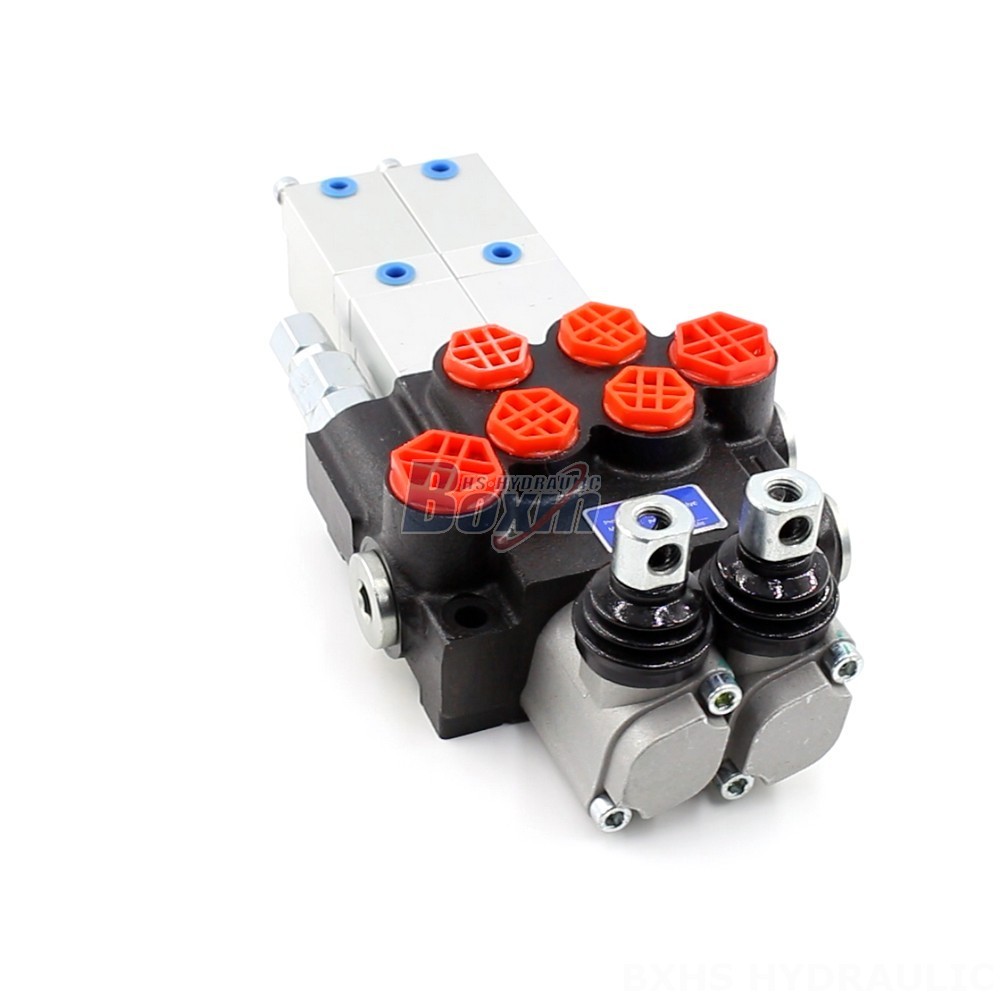

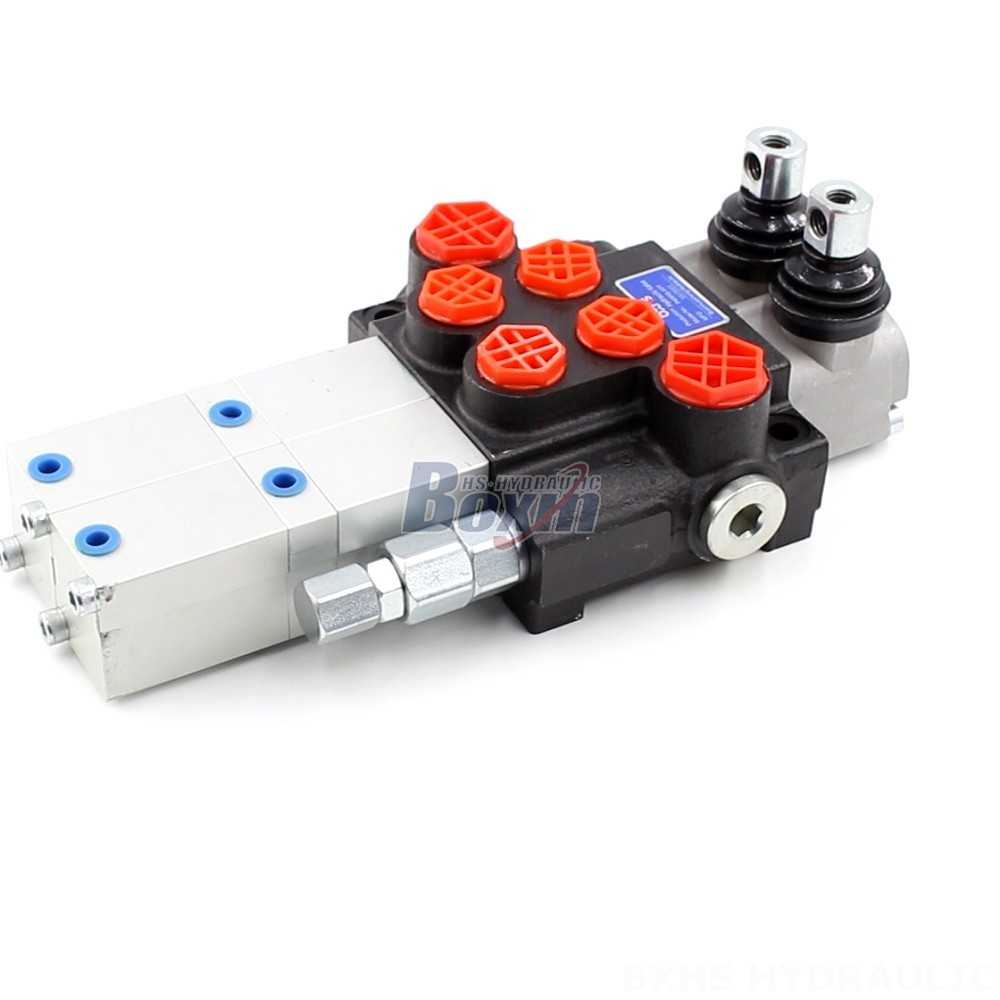

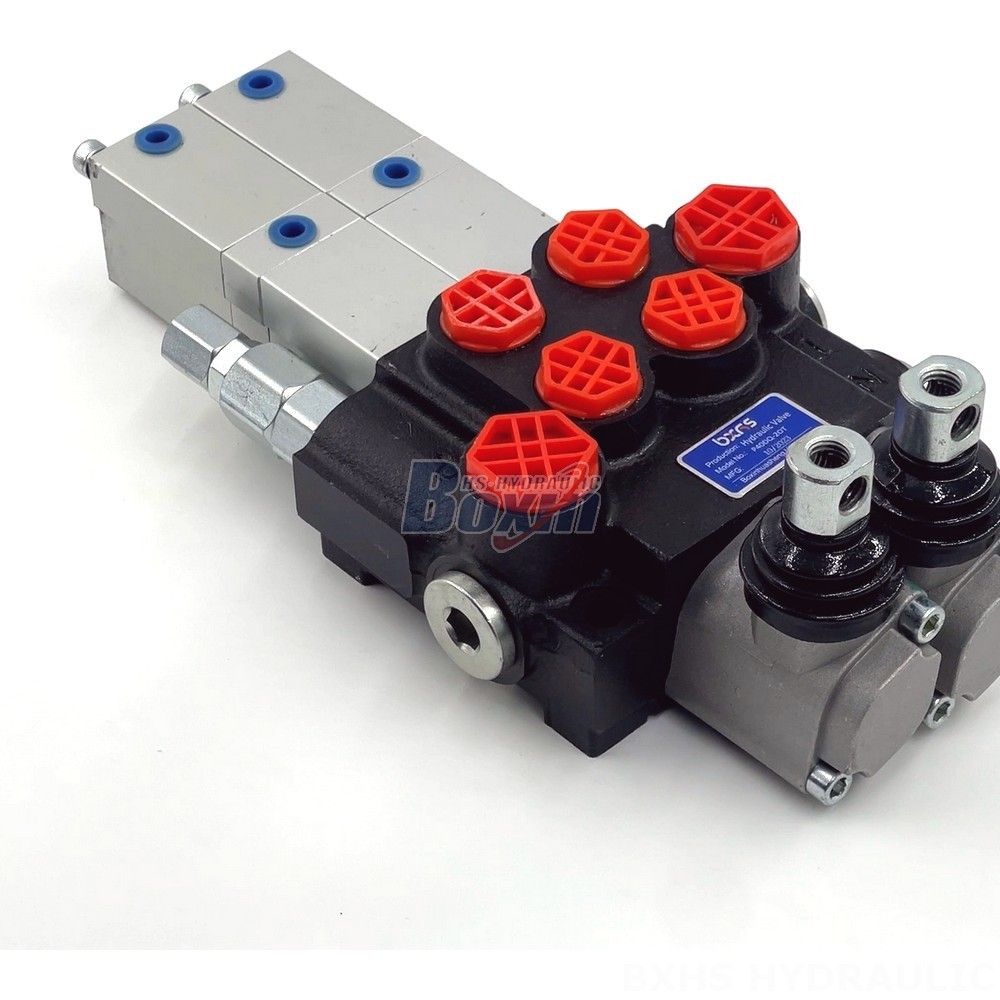

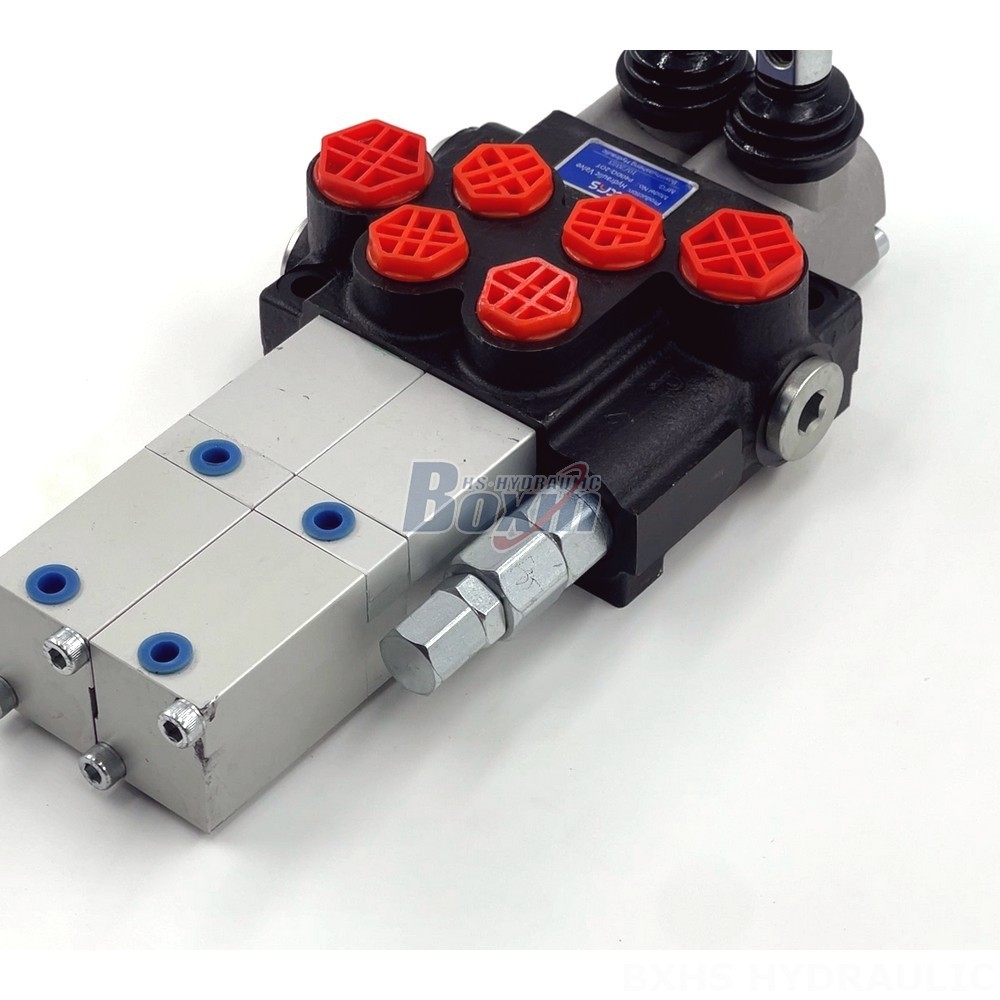

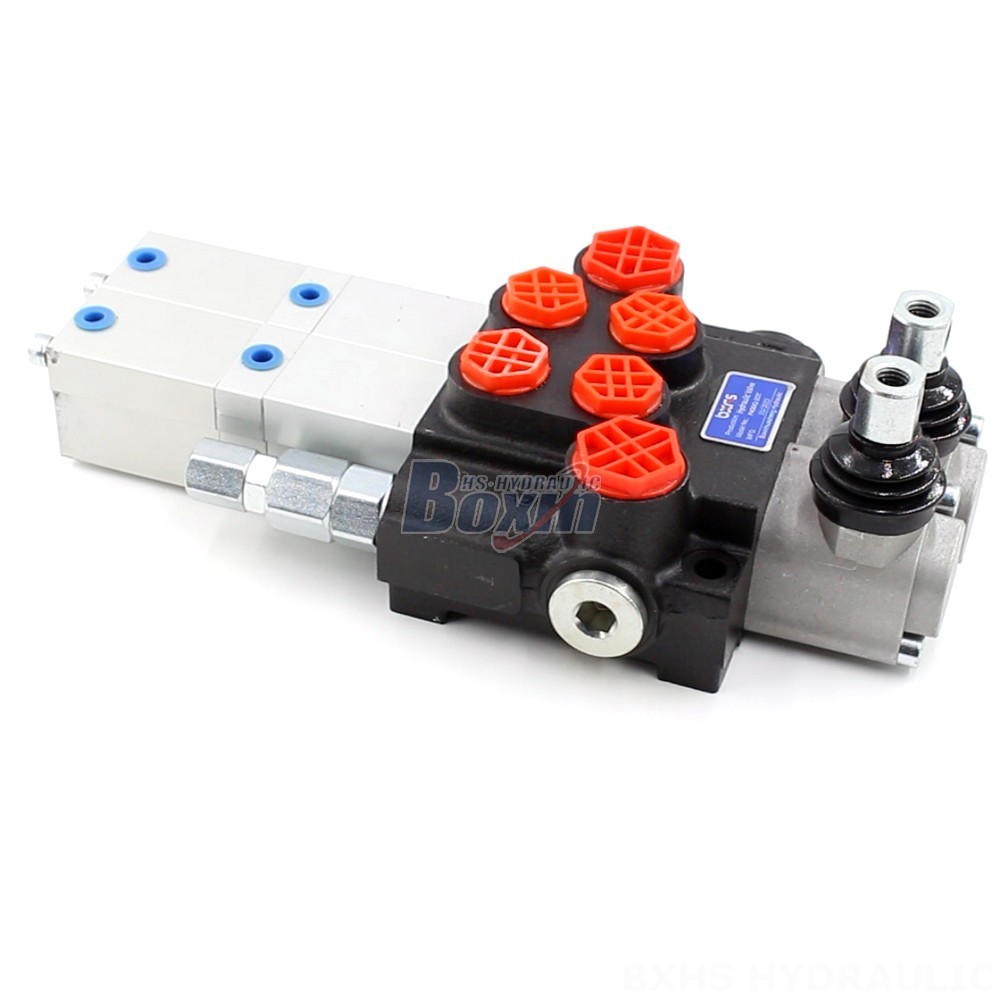

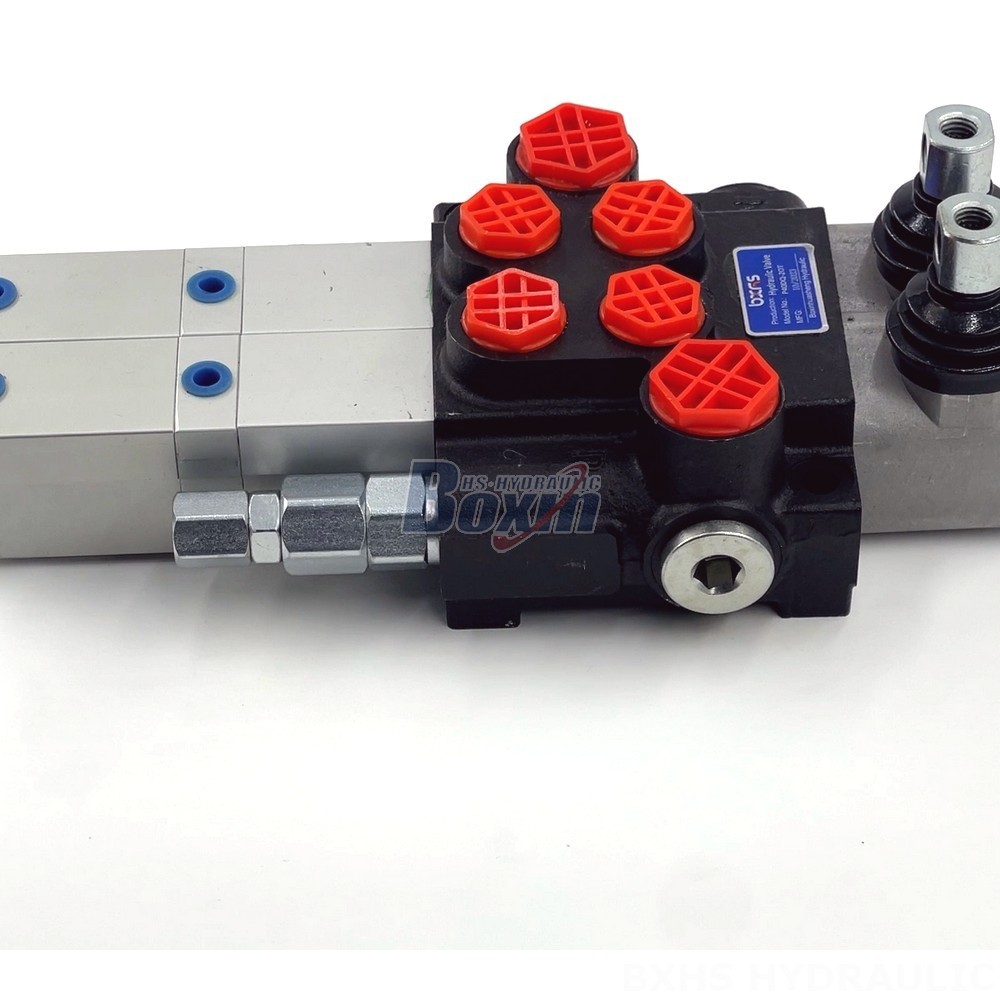

This P40 Series 6 Port Solenoid Diverter Selector Valve is a high-performance hydraulic valve designed for various applications in material handling, construction, and industrial vehicles. It features a monoblock structure, pneumatic control, and a rated flow of 40 L/min.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This Hydraulic 6 Port Solenoid Diverter Selector Valve is a robust and reliable valve designed for demanding applications in material handling, construction, and industrial vehicles. It features a 2-section monoblock structure for durability and efficiency. The valve is controlled pneumatically, allowing for precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it provides ample flow and pressure capabilities for a wide range of applications. It is suitable for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. The valve operates within a viscosity range of 15-75 mm²/s and can withstand temperatures from -40°C to +80°C. This valve is a versatile and reliable solution for controlling hydraulic circuits in a variety of applications.
