The P40-DKL Precision Directional Control Valves are a high-performance solution for industrial applications. These 4-section monoblock valves feature a solenoid control method, a rated flow of 40 L/min, and a maximum pressure of 250 bar. With their wide operating viscosity range and temperature range, these valves are suitable for a variety of applications in material handling, construction, earth moving, agriculture, and industrial vehicles.
| P40-DKL Series Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |

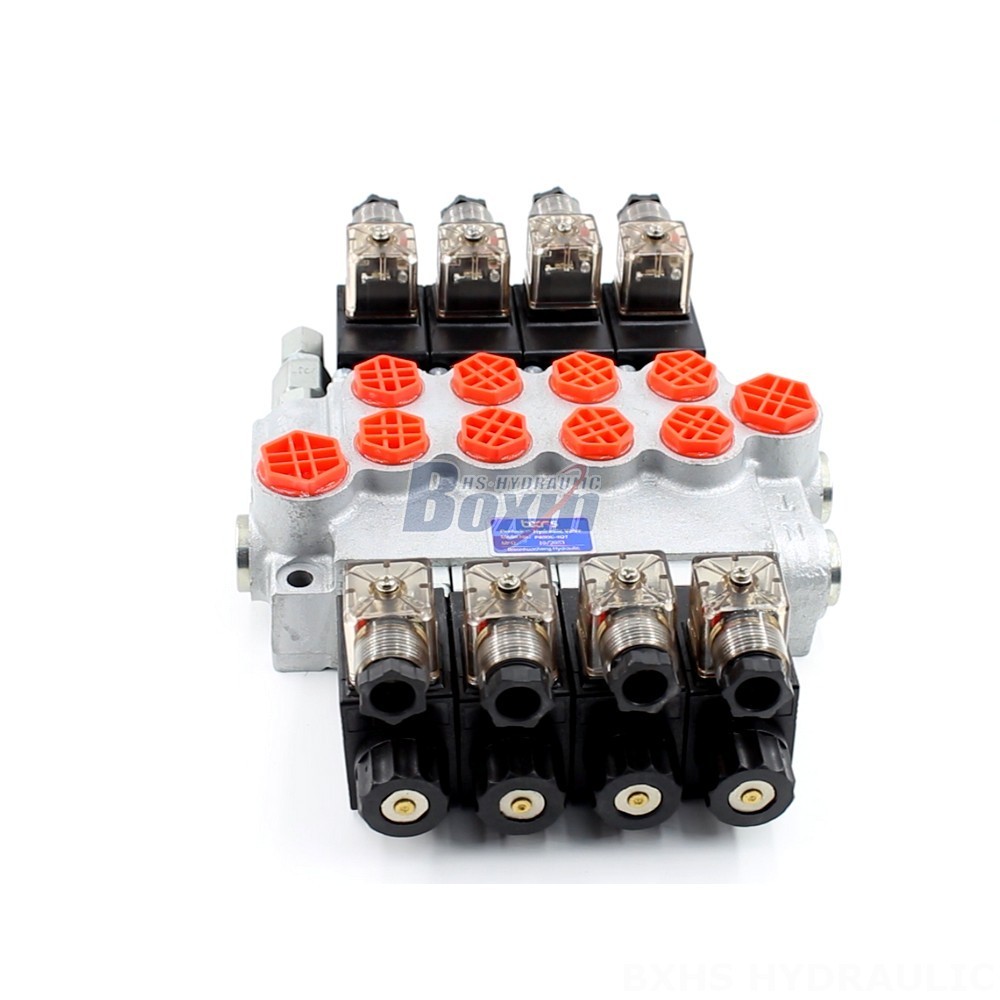

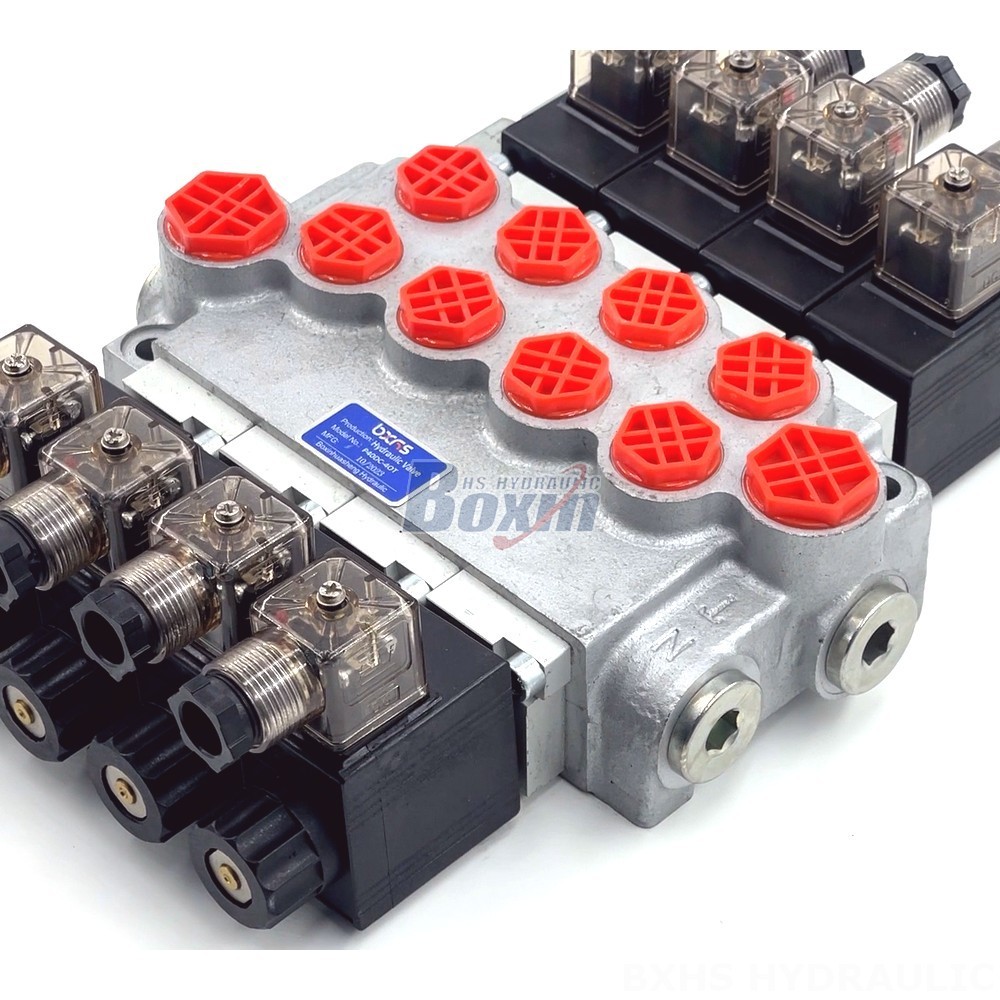

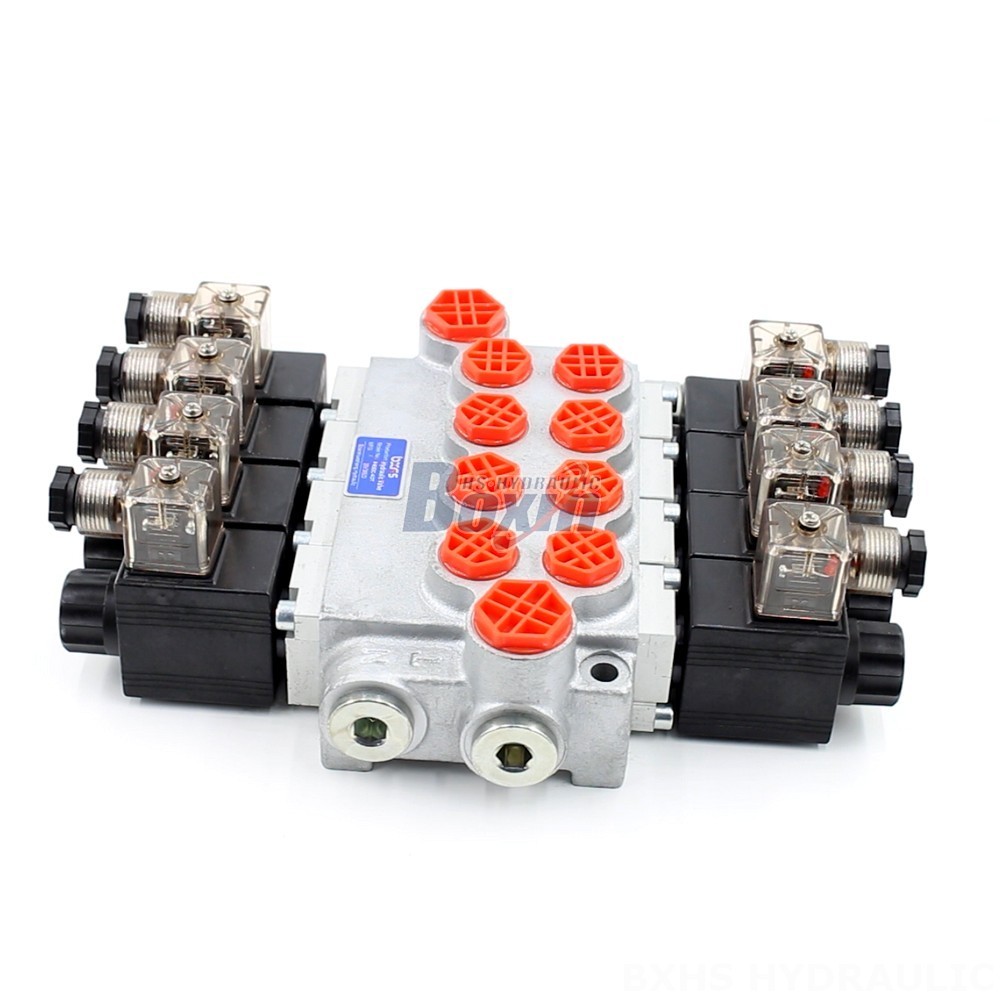

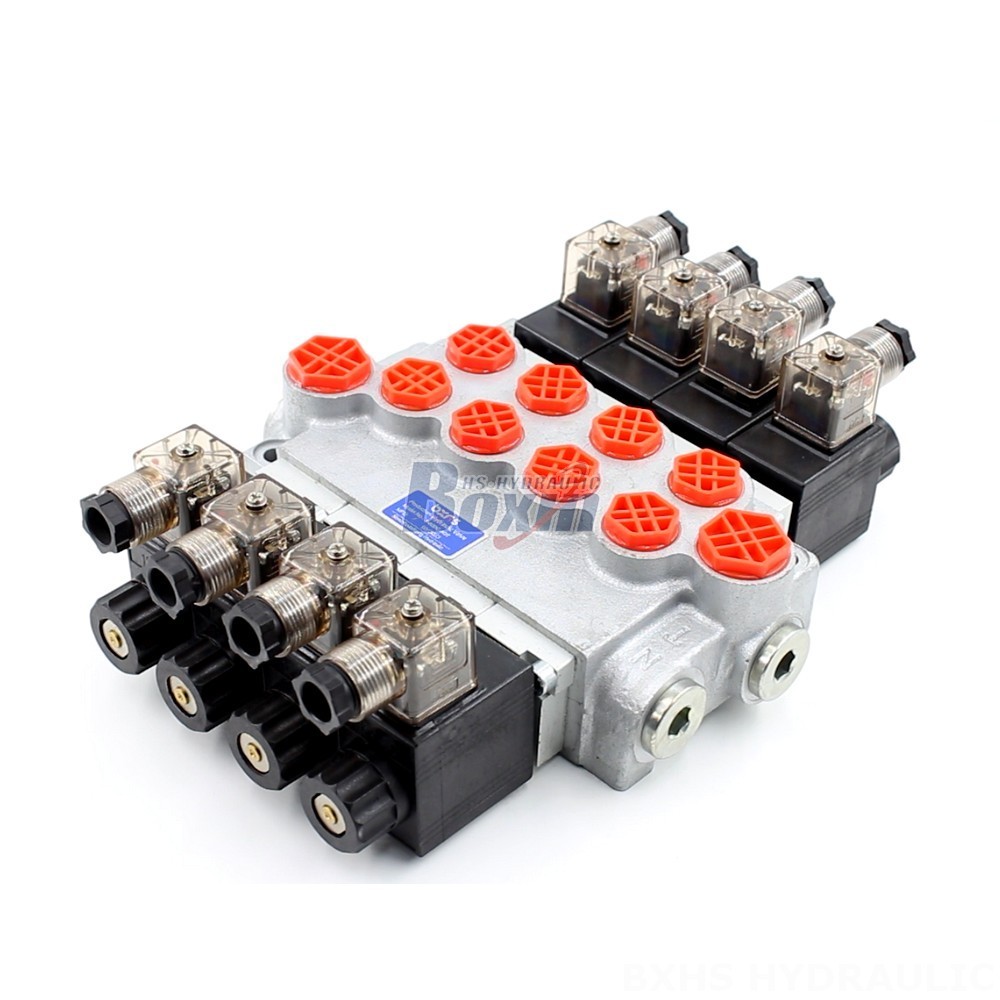

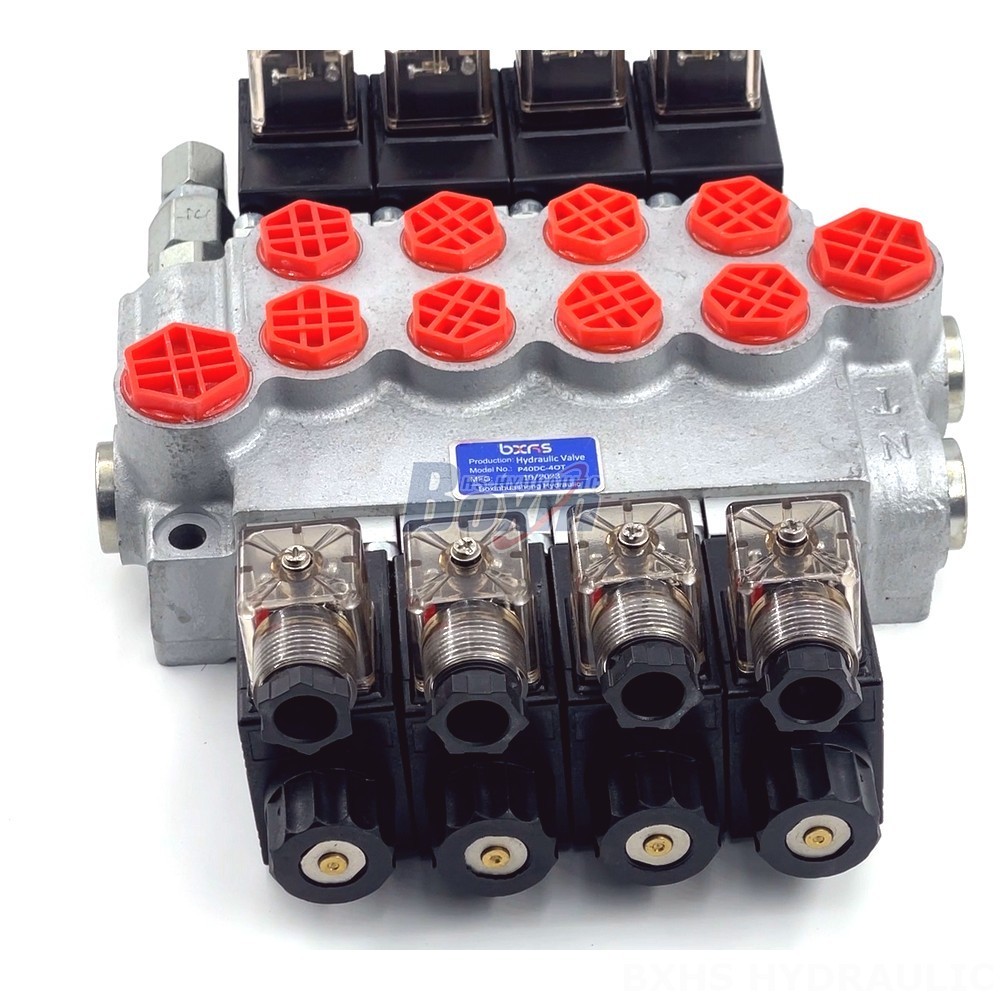

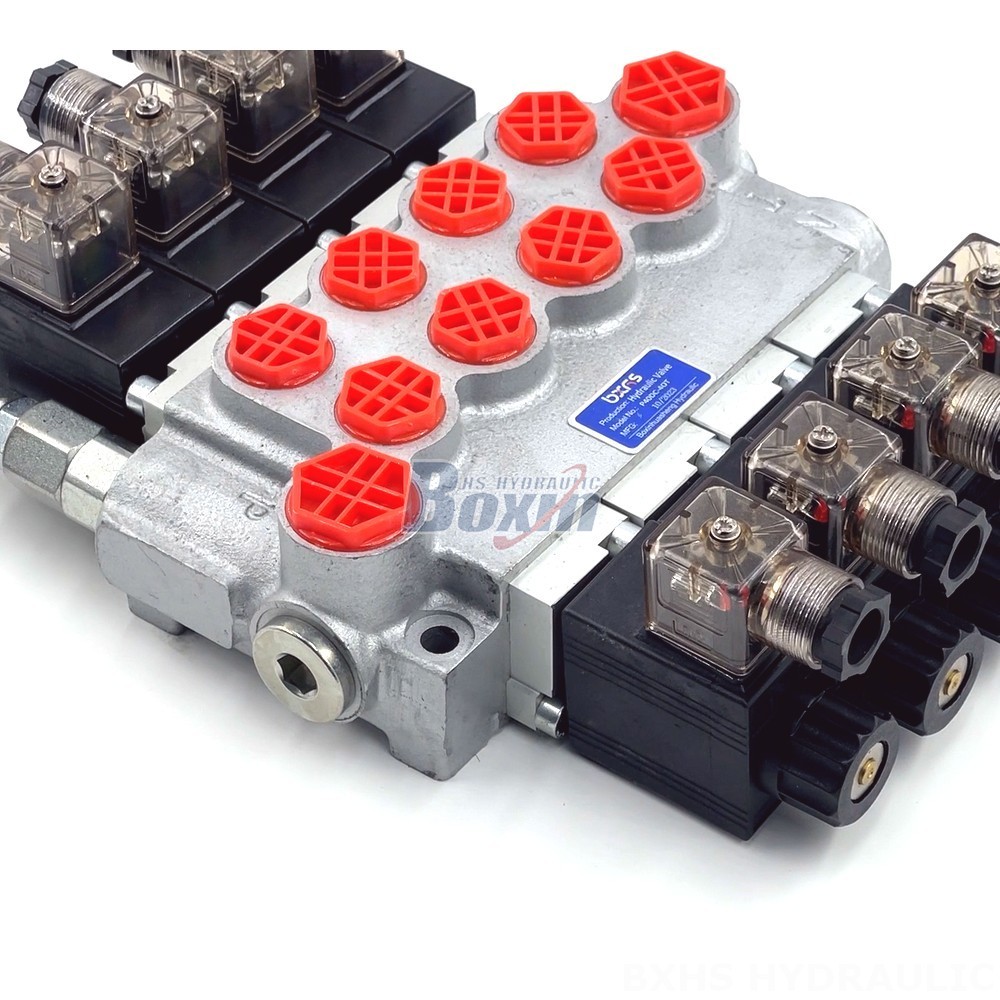

**P40-DKL Precision Directional Control Valves**
The P40-DKL Precision Directional Control Valves are designed for demanding industrial applications. These valves feature a robust monoblock construction and a solenoid control method for precise and reliable operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, these valves can handle high-pressure hydraulic systems. They also have a wide operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, making them suitable for various operating conditions.
**Key Features:**
* 4-section monoblock valve
* Solenoid control method
* Rated flow: 40 L/min
* Maximum pressure: 250 bar
* Operating viscosity range: 15 - 75 mm²/s
* Ambient temperature range: -40°C to +80°C
* 4 spool
* Suitable for material handling, construction, earth moving, agriculture, and industrial vehicles
