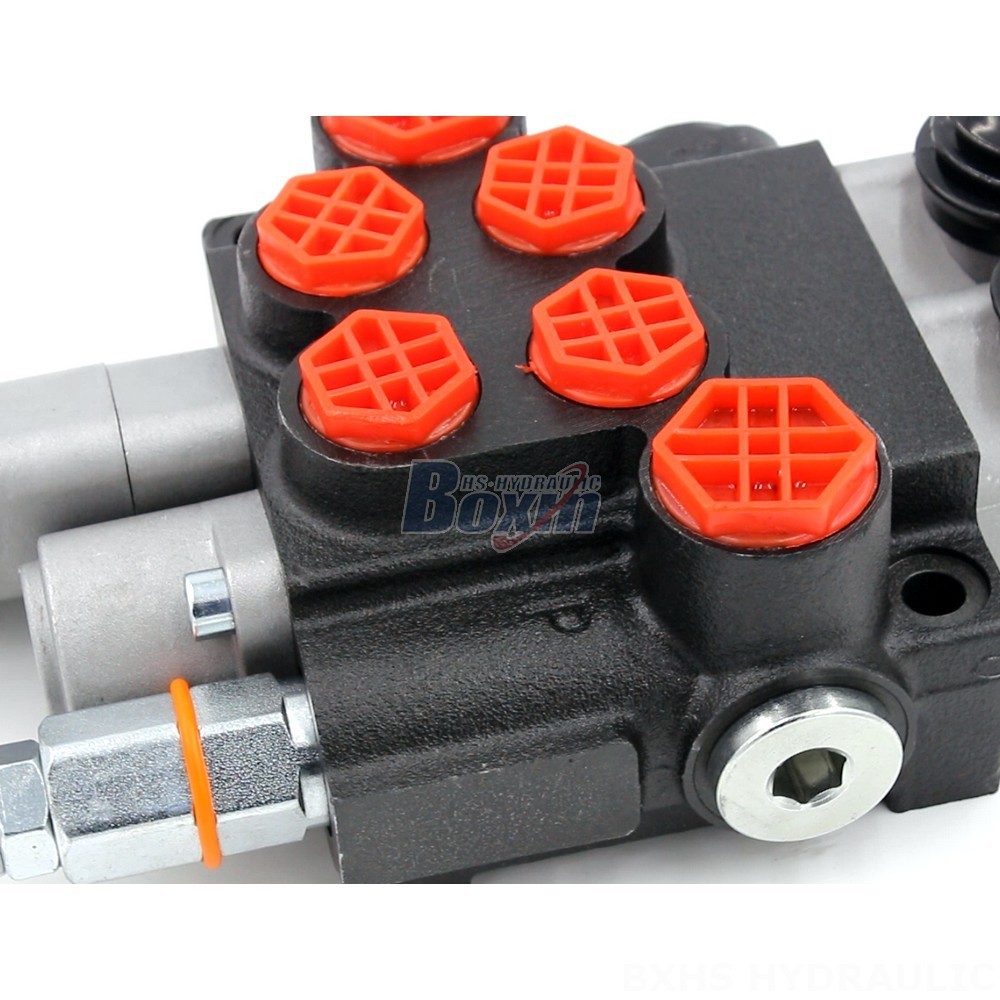

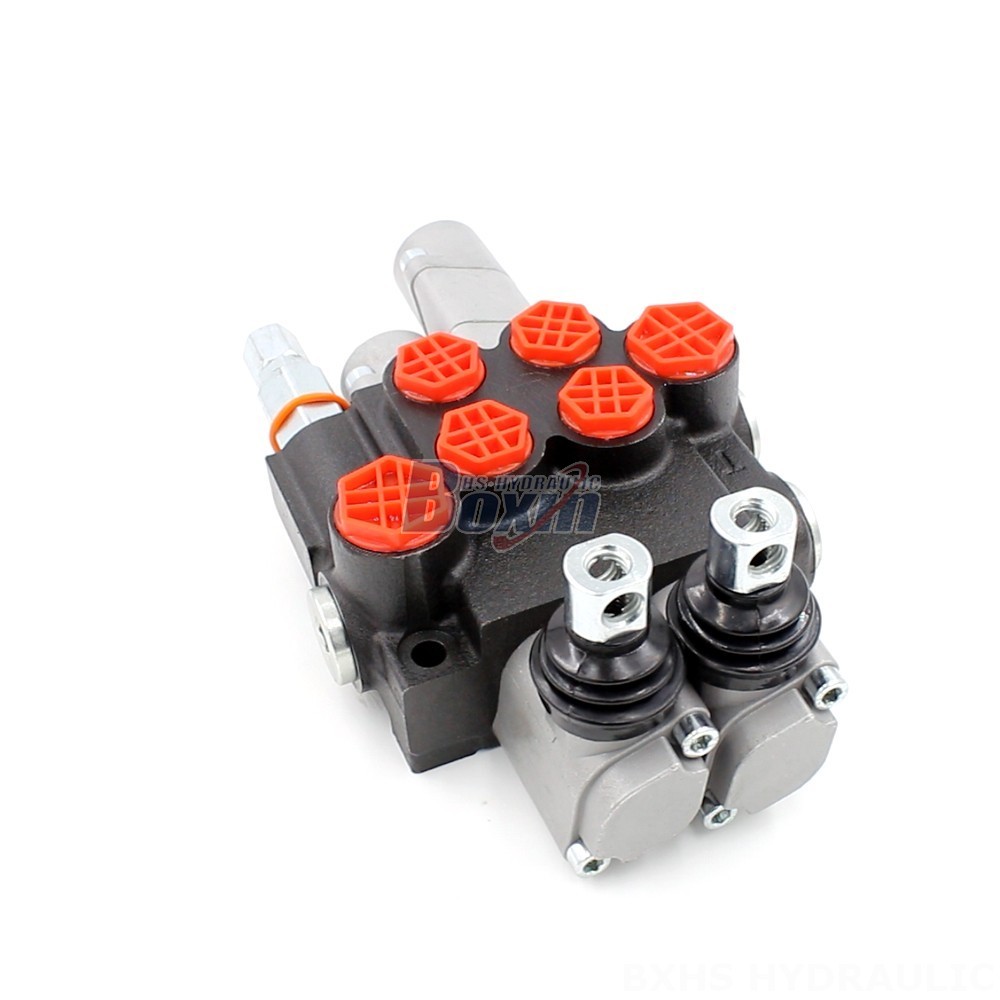

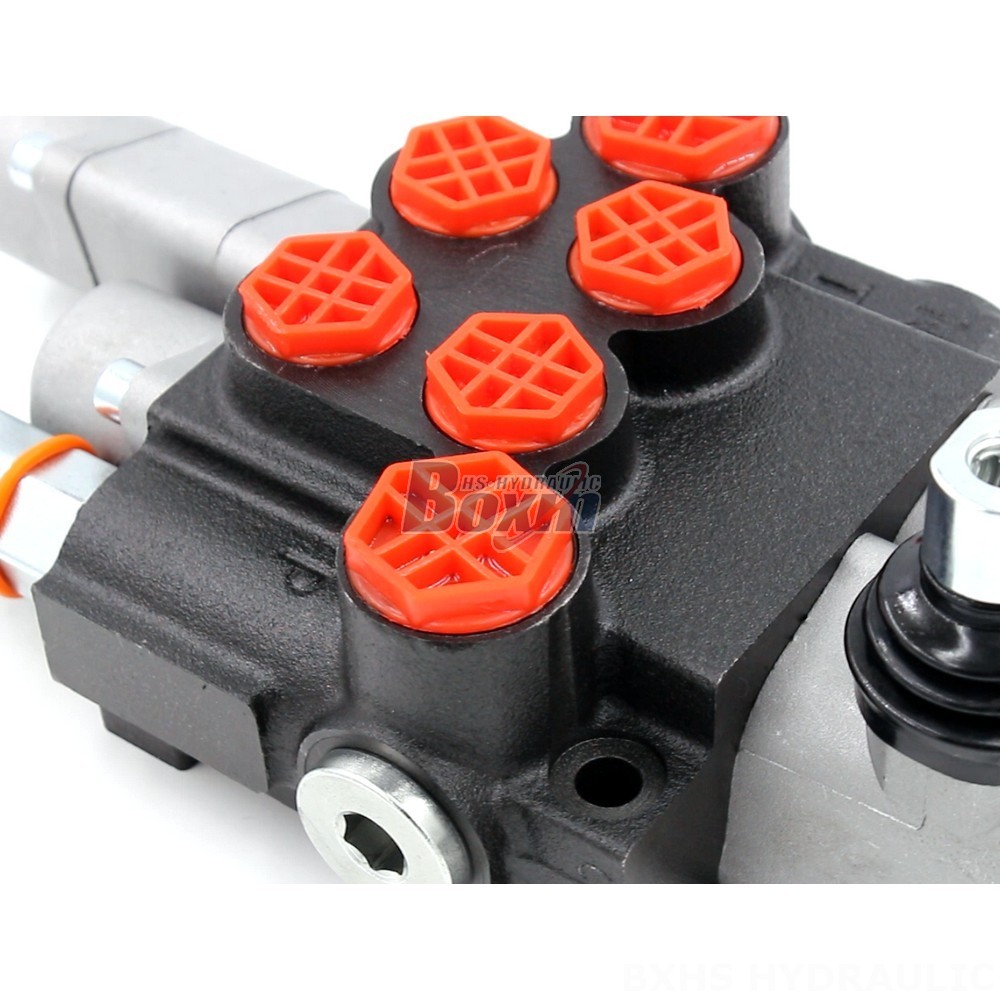

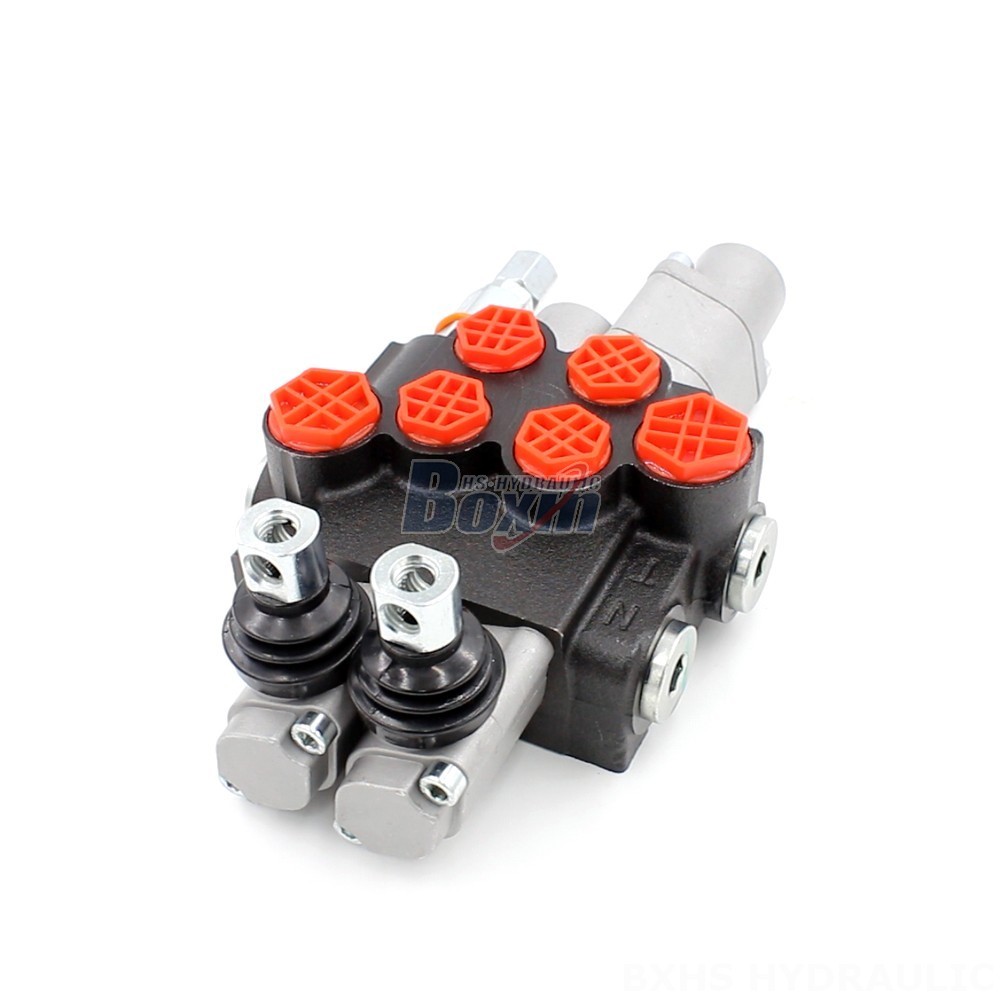

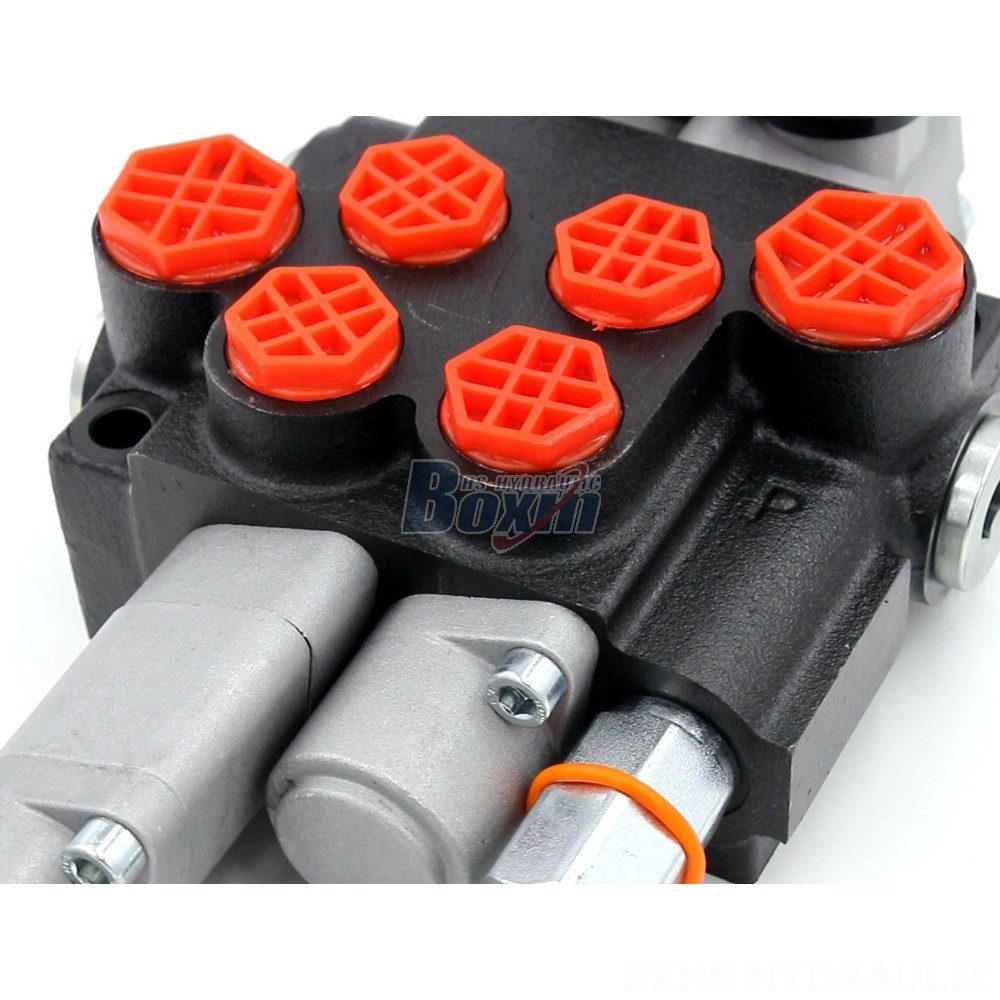

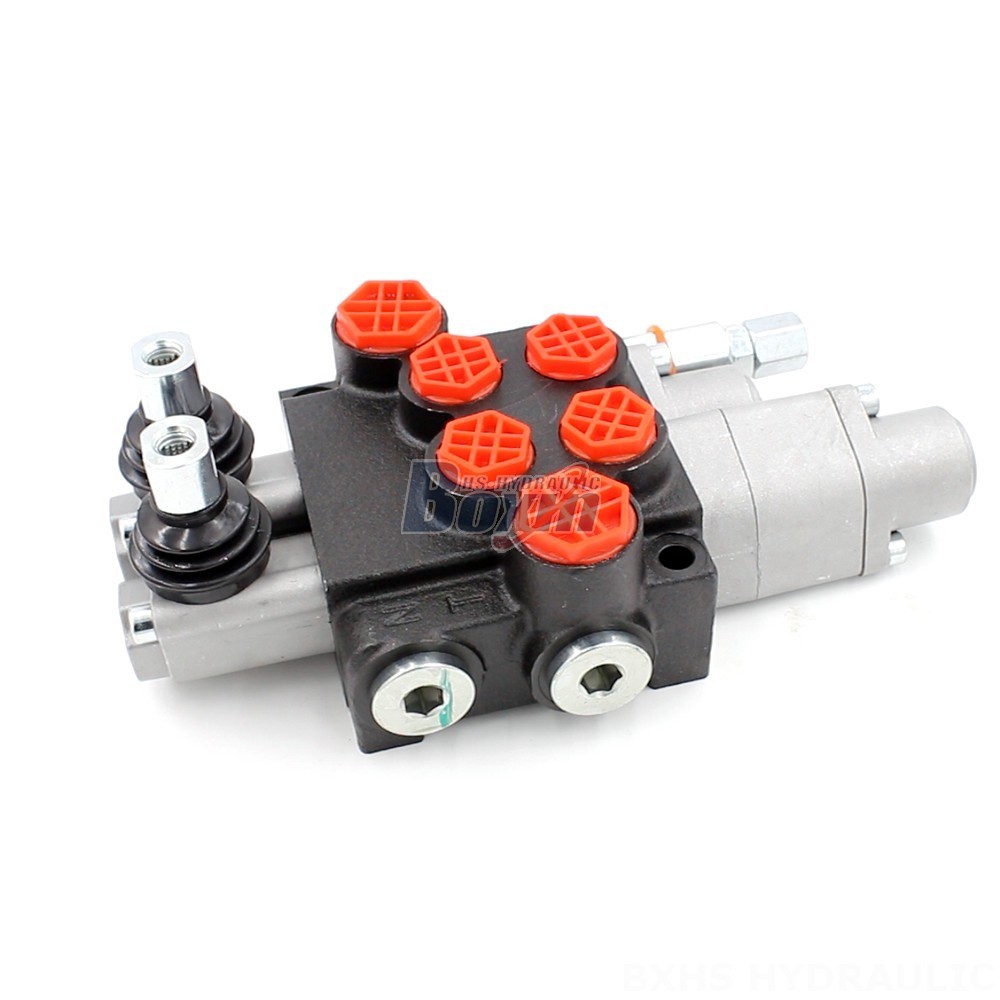

The P40-AQF-G38-G12 is a premium integral hydraulic valve designed for demanding applications in material handling, construction, earthmoving, agriculture, and industrial vehicles. This monoblock valve features manual control, a 2-section design, and a rated flow of 40 L/min, making it ideal for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and backhoe loaders.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-AQF-G38-G12 is a high-performance integral hydraulic valve designed for demanding applications in various industries. It features a robust monoblock valve design with manual control for precise operation. With a 2-section configuration and a rated flow of 40 L/min (10.5 US gpm), this valve can handle high flow rates and pressures. The P40-AQF-G38-G12 is capable of operating at pressures up to 250 bar (3600 psi) and can handle a wide viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). This valve is designed for reliable performance even in extreme environments, with an operating temperature range of -40°C to +80°C (-40°F to +176°F). It is specifically suited for use in various heavy-duty applications including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and backhoe loaders. The P40-AQF-G38-G12 combines premium quality, high performance, and versatility, making it an ideal choice for demanding hydraulic applications.
