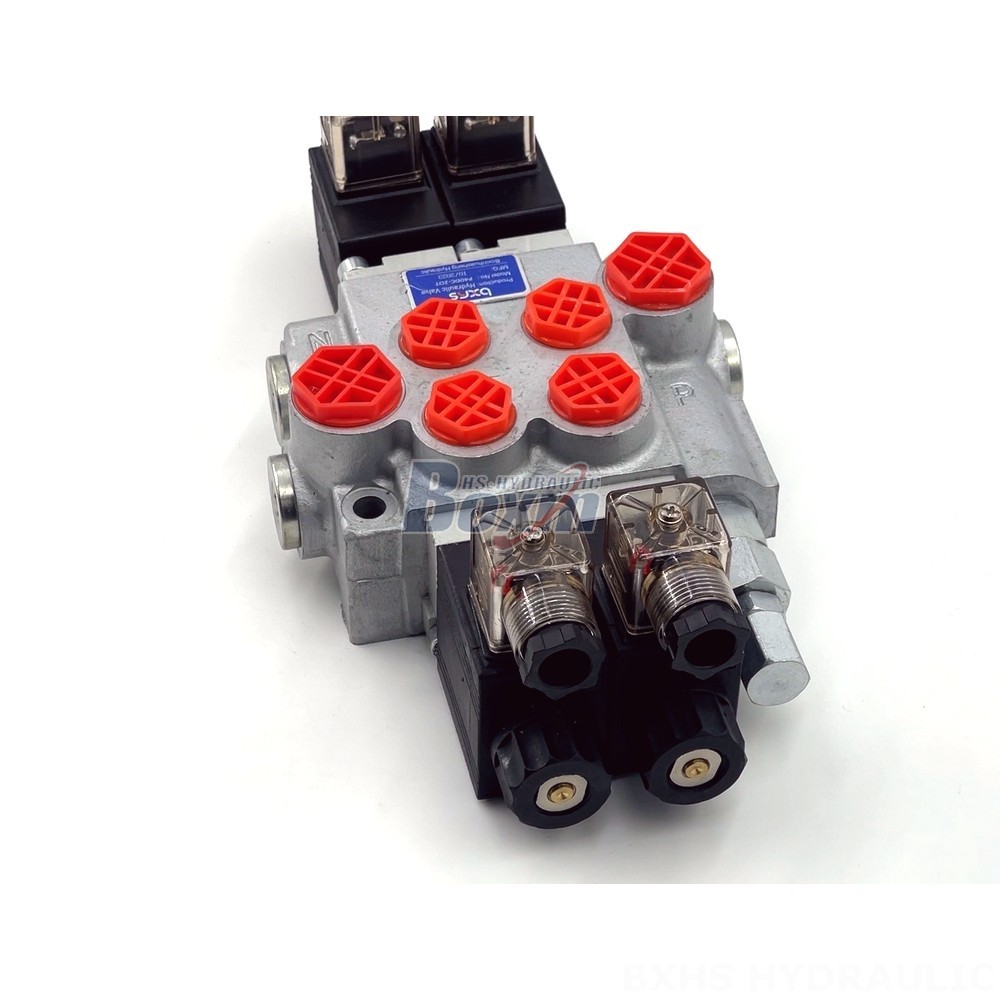

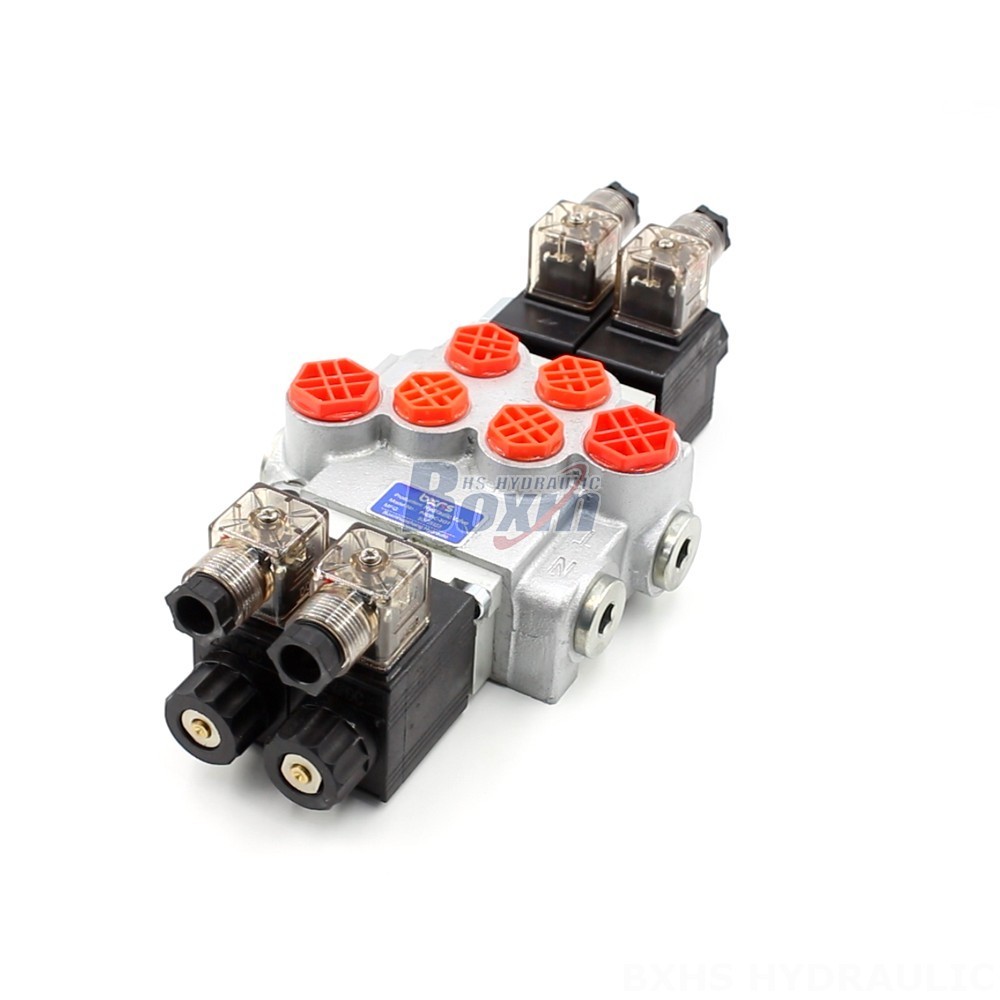

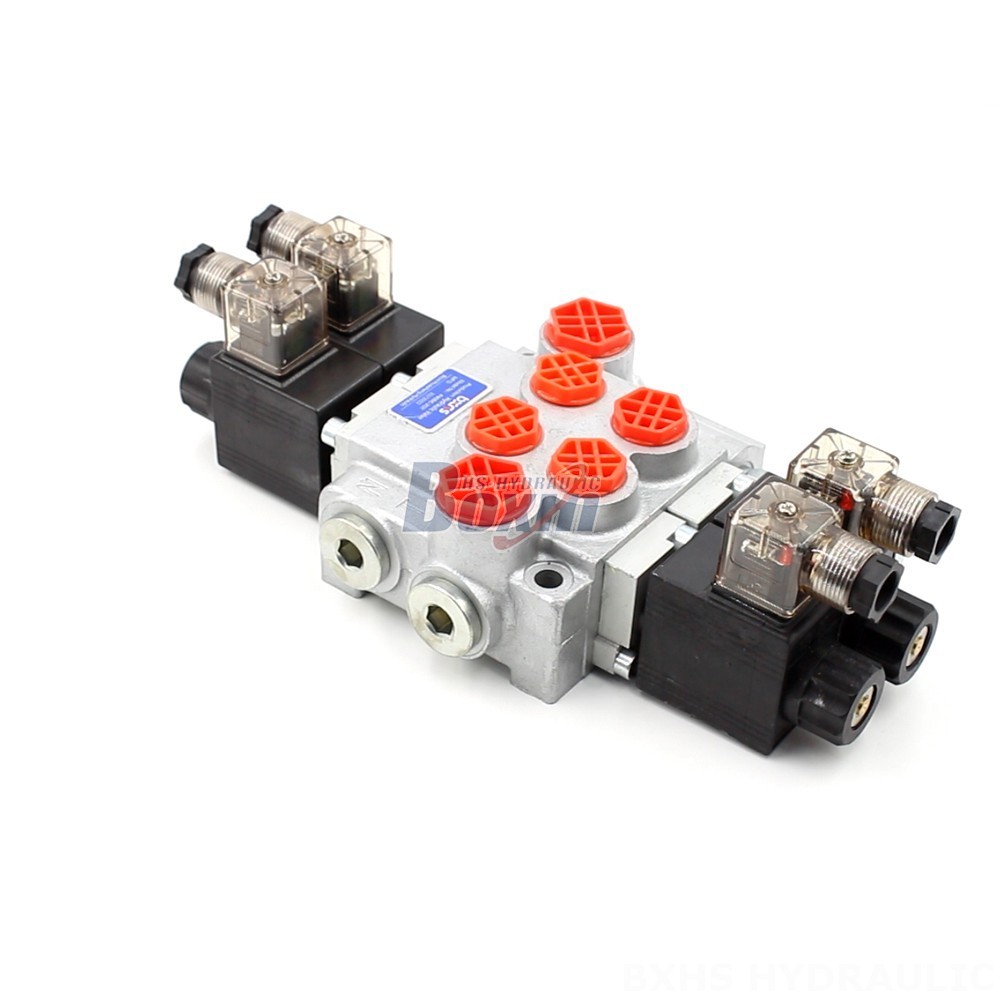

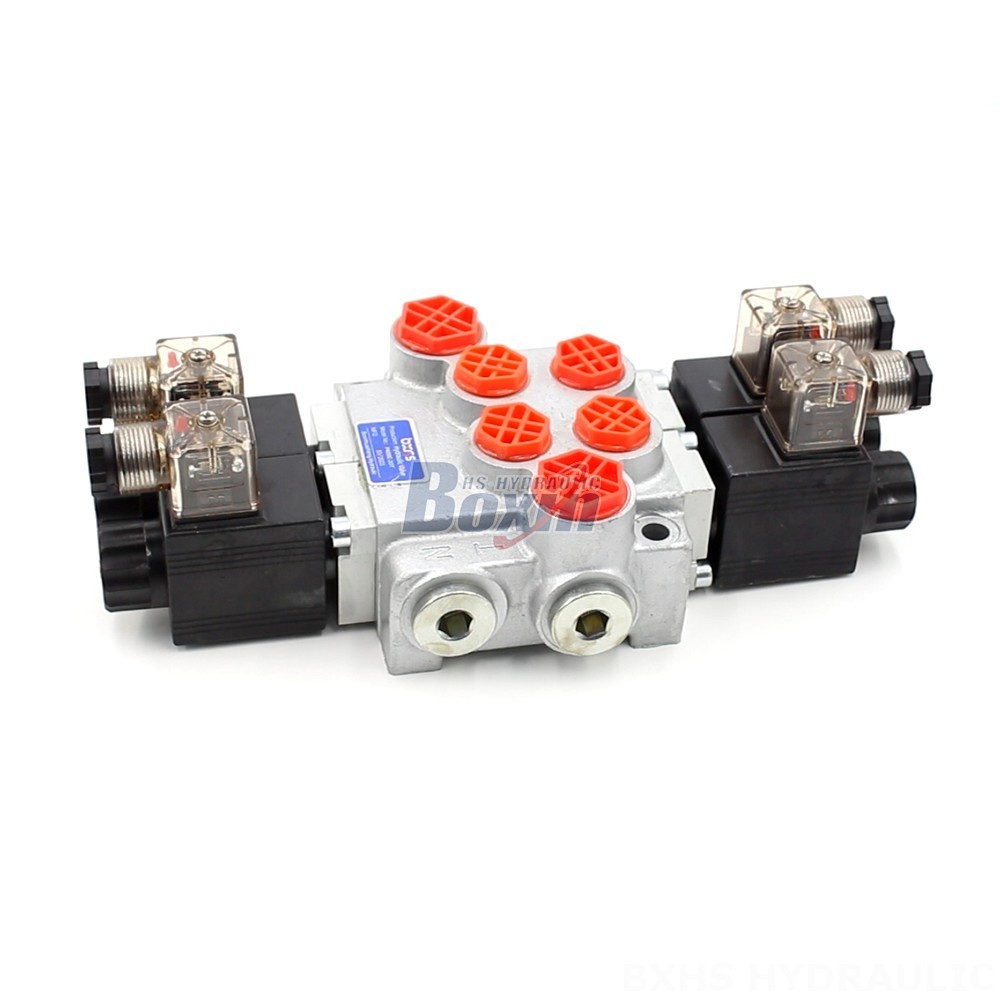

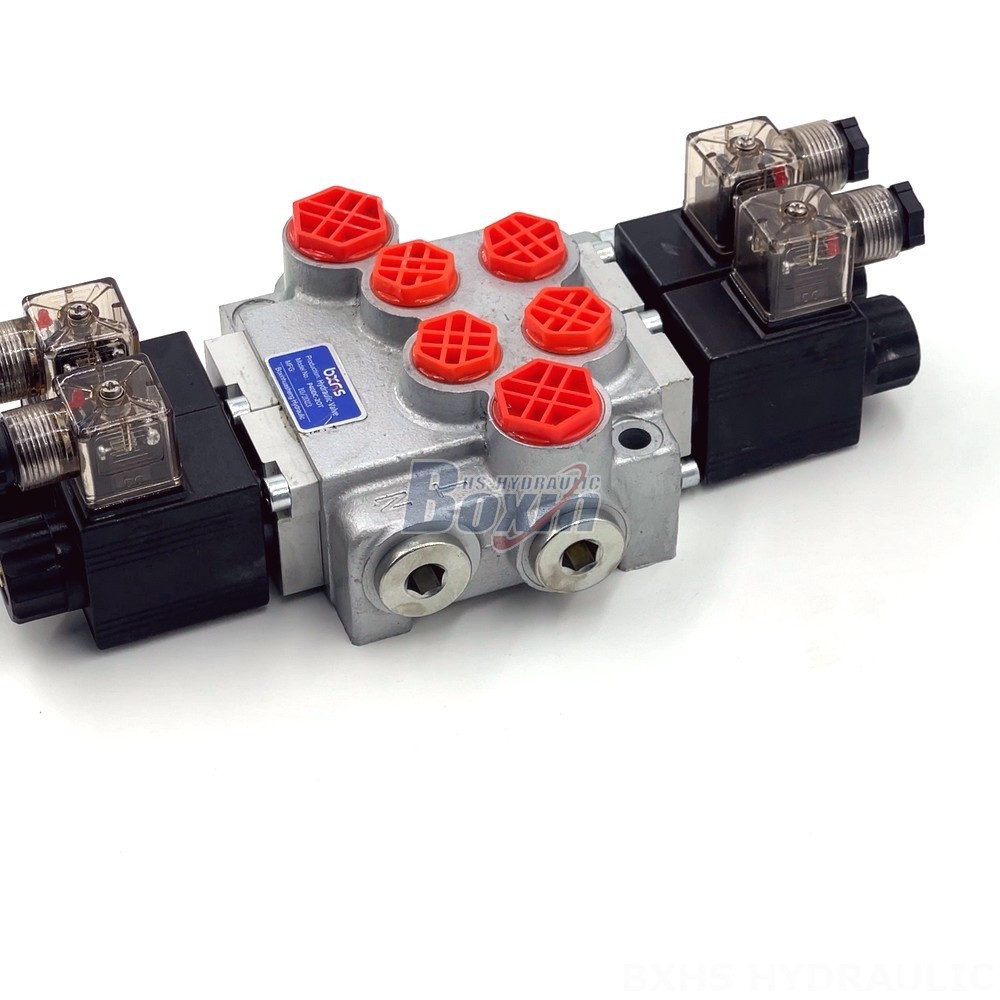

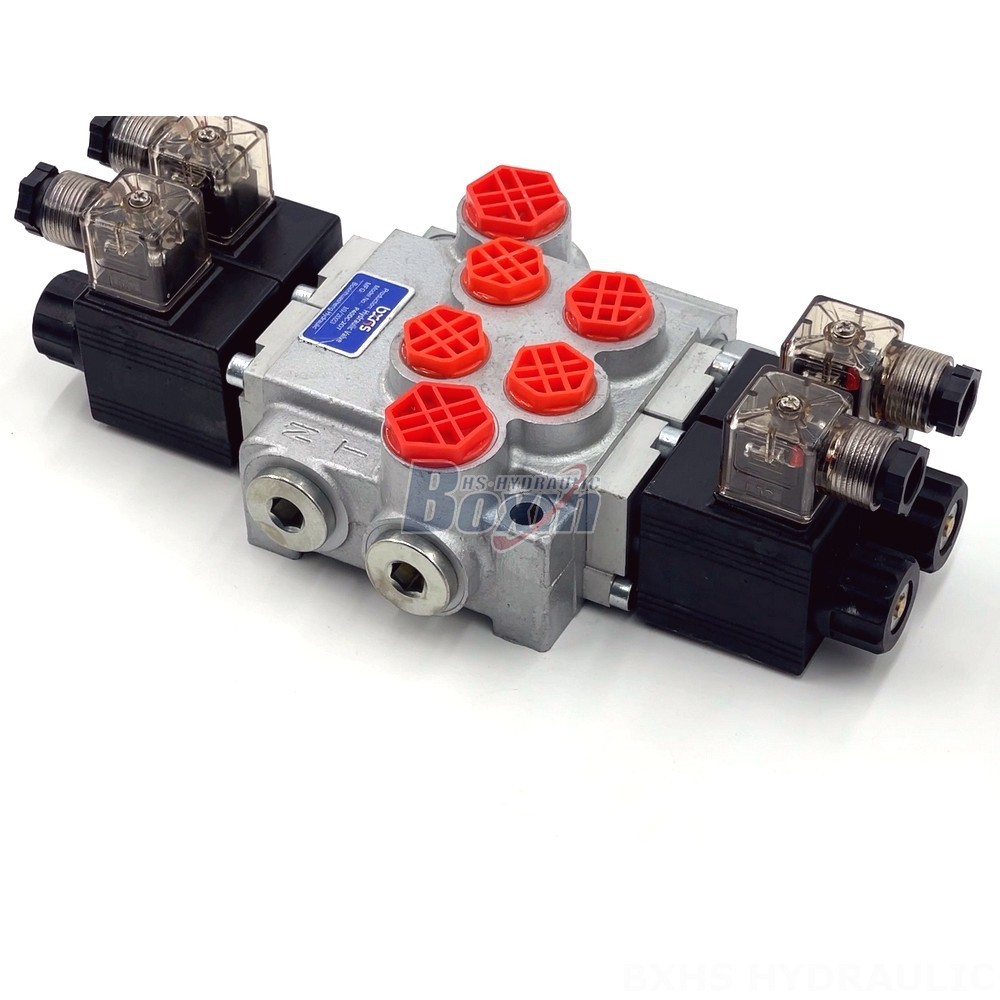

The P40-DKL series spool control valve is a premium hydraulic component designed for use in a wide range of construction and material handling equipment. This 2-section monoblock valve features a solenoid control method, 40 L/min rated flow, and 250 bar maximum pressure. It is a reliable and durable solution for demanding applications.
| P40-DKL Series Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
The P40-DKL series spool control valve is a high-quality hydraulic component manufactured by a trusted supplier. This valve is designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. The P40-DKL features a solenoid control method and a monoblock structure, offering a compact and efficient design. It is rated for a flow of 40 L/min and a maximum pressure of 250 bar. The valve is suitable for use with a variety of fluids, including hydraulic oils with viscosities ranging from 15 to 75 mm²/s. The P40-DKL series is ideal for use in a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
