Produksi & Pengiriman
Waktu Produksi 15-30 Hari
947 Pandangan Mencari Produk Ini
This 24V hydraulic valve, part of the P40-G12 series, is a versatile and reliable solution for a variety of applications. Available for OEM, private label, and custom orders, this valve is perfect for construction, material handling, agriculture, and industrial vehicles.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

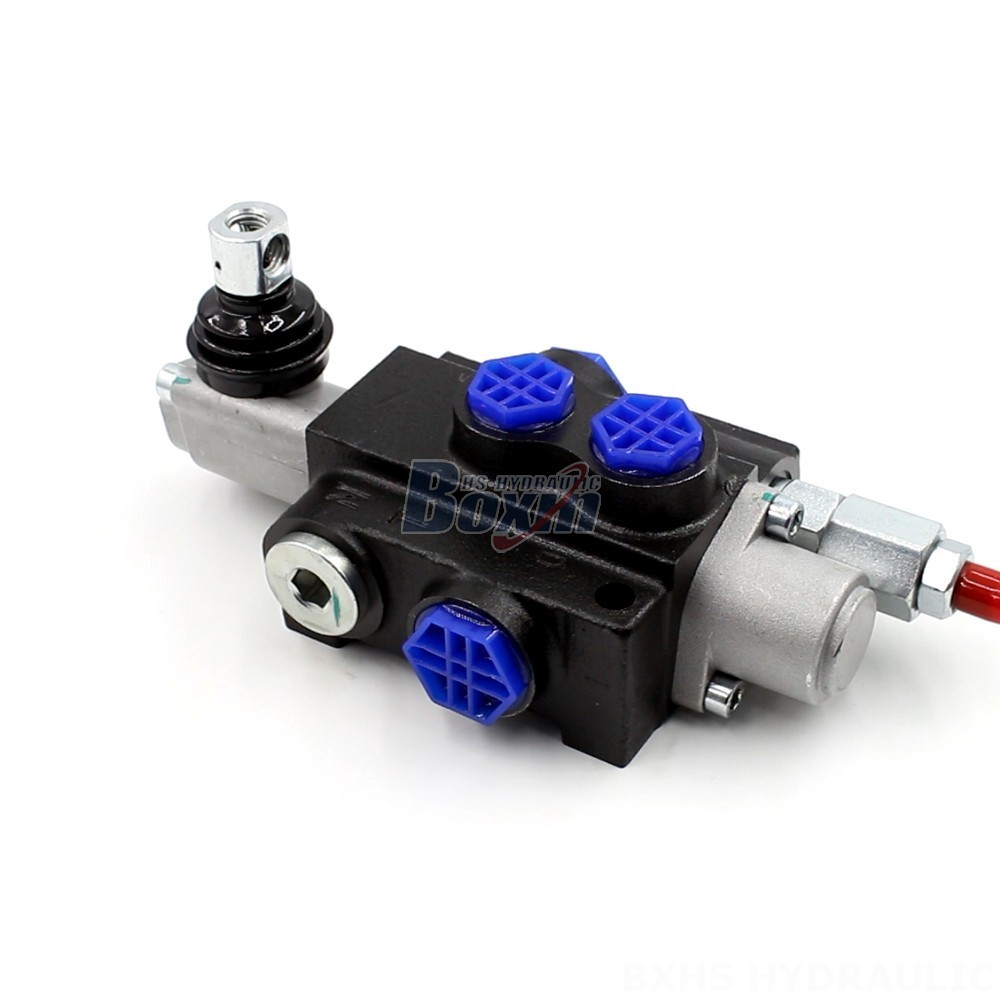

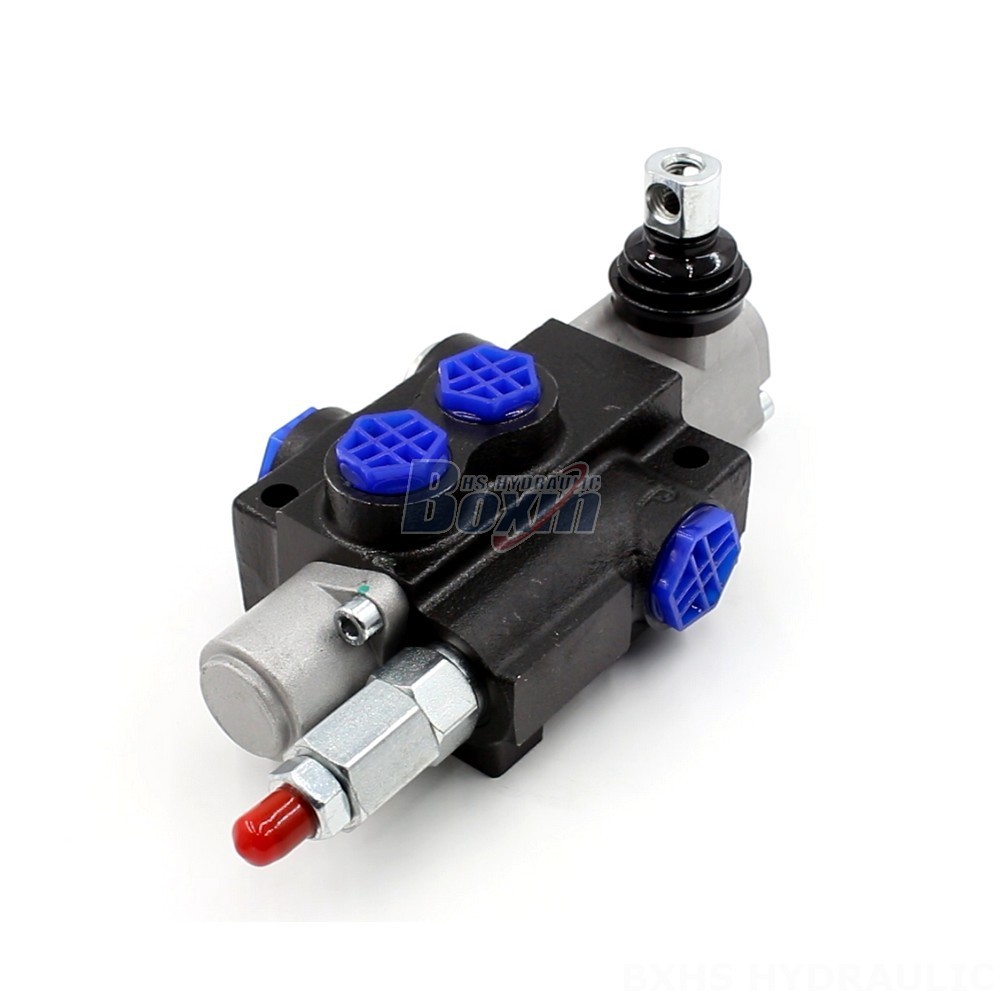

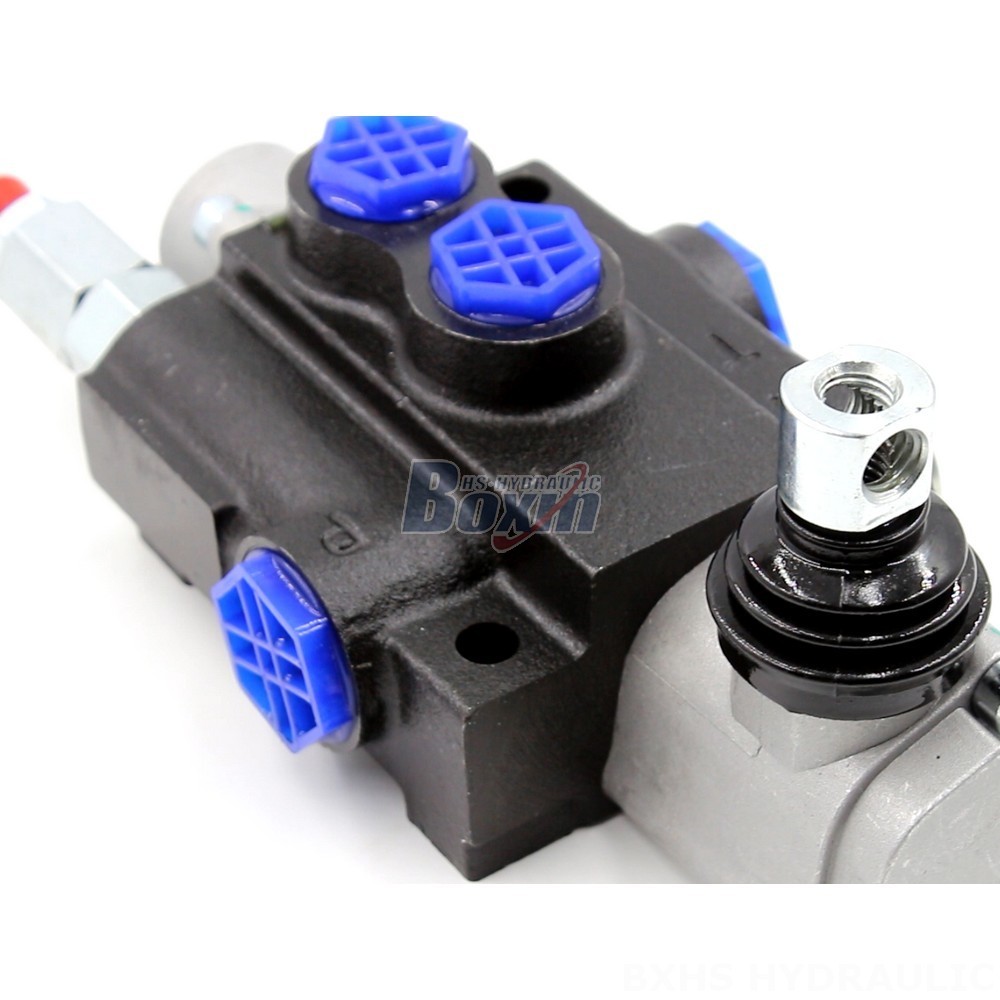

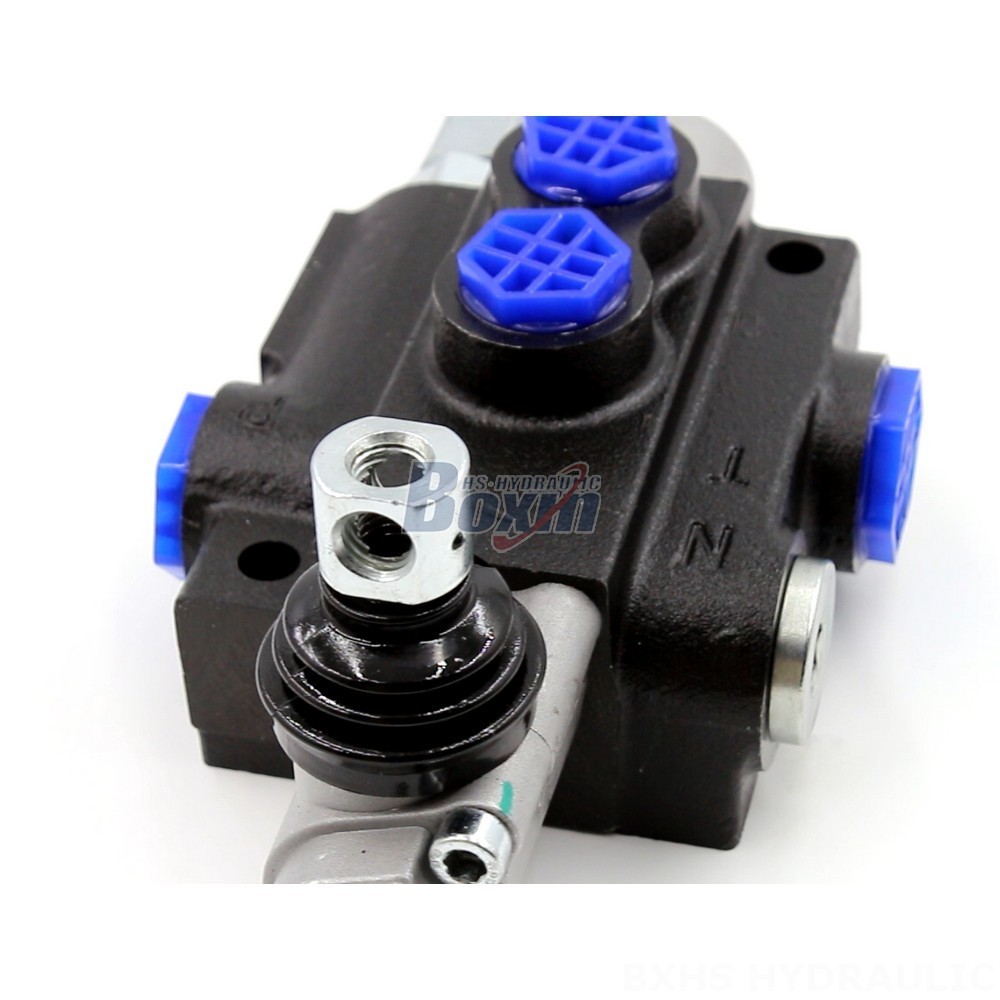

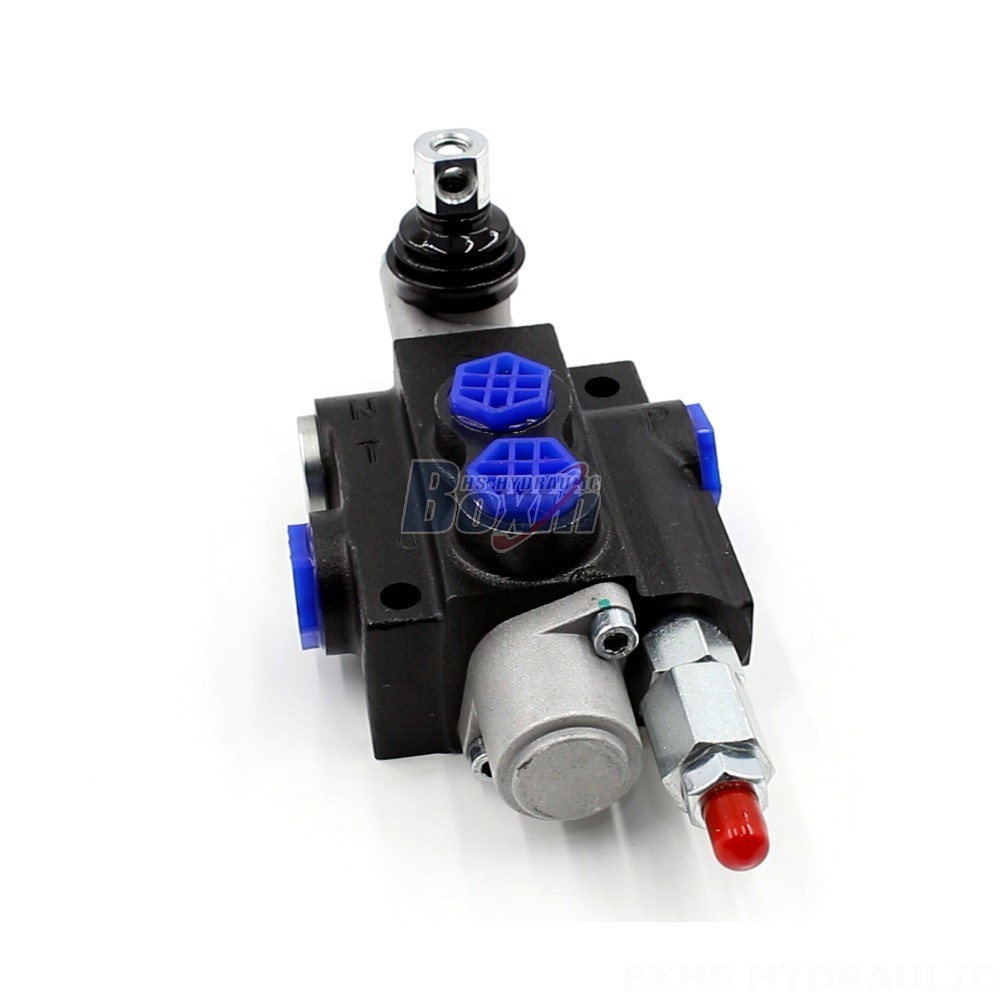

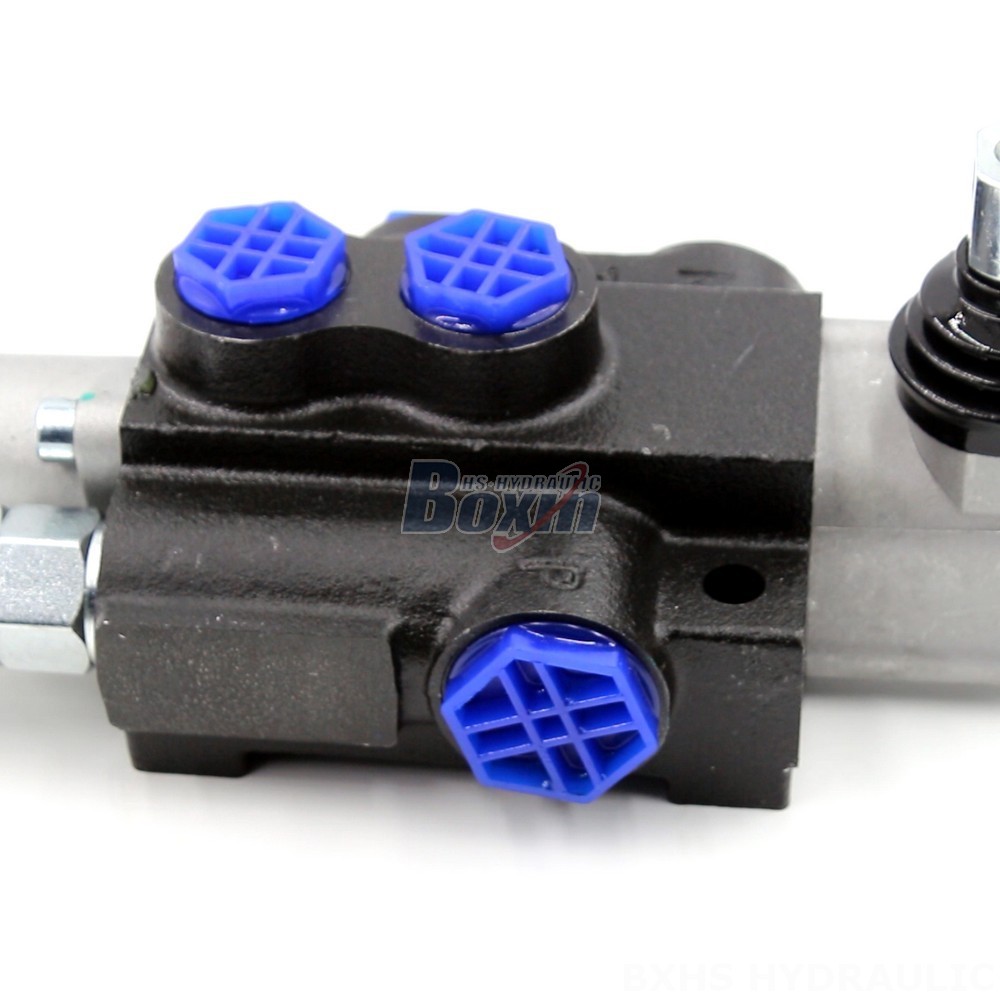

This 24V Hydraulic Valve (P40-G12 Series) is a high-performance, 2-position, manual control valve designed for heavy-duty applications. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is ideal for use in a wide range of mobile equipment, including telehandlers, forklifts, cranes, excavators, and loaders. We offer OEM, private label, and custom manufacturing services to meet your specific requirements. Whether you need a standard valve or a custom-designed solution, our team can help you find the perfect valve for your needs. Contact us today to learn more about our 24V Hydraulic Valve and our comprehensive manufacturing capabilities.
