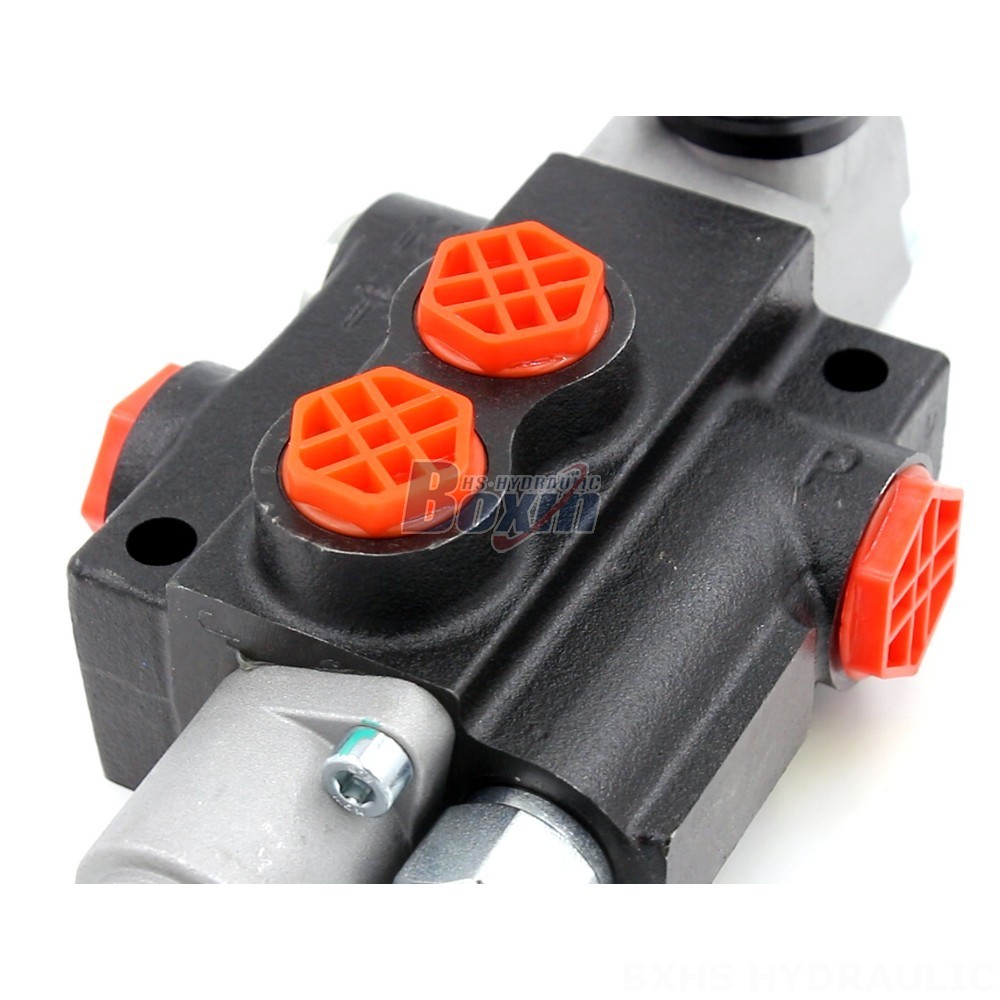

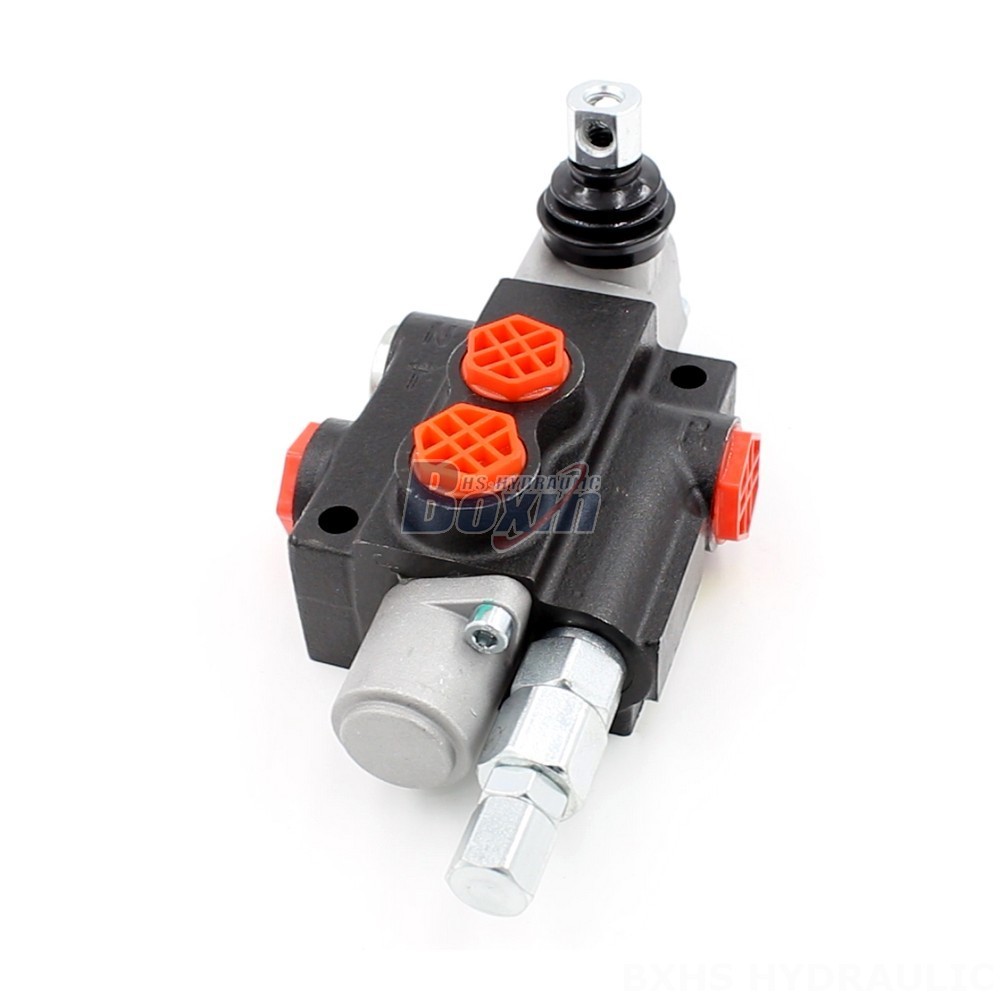

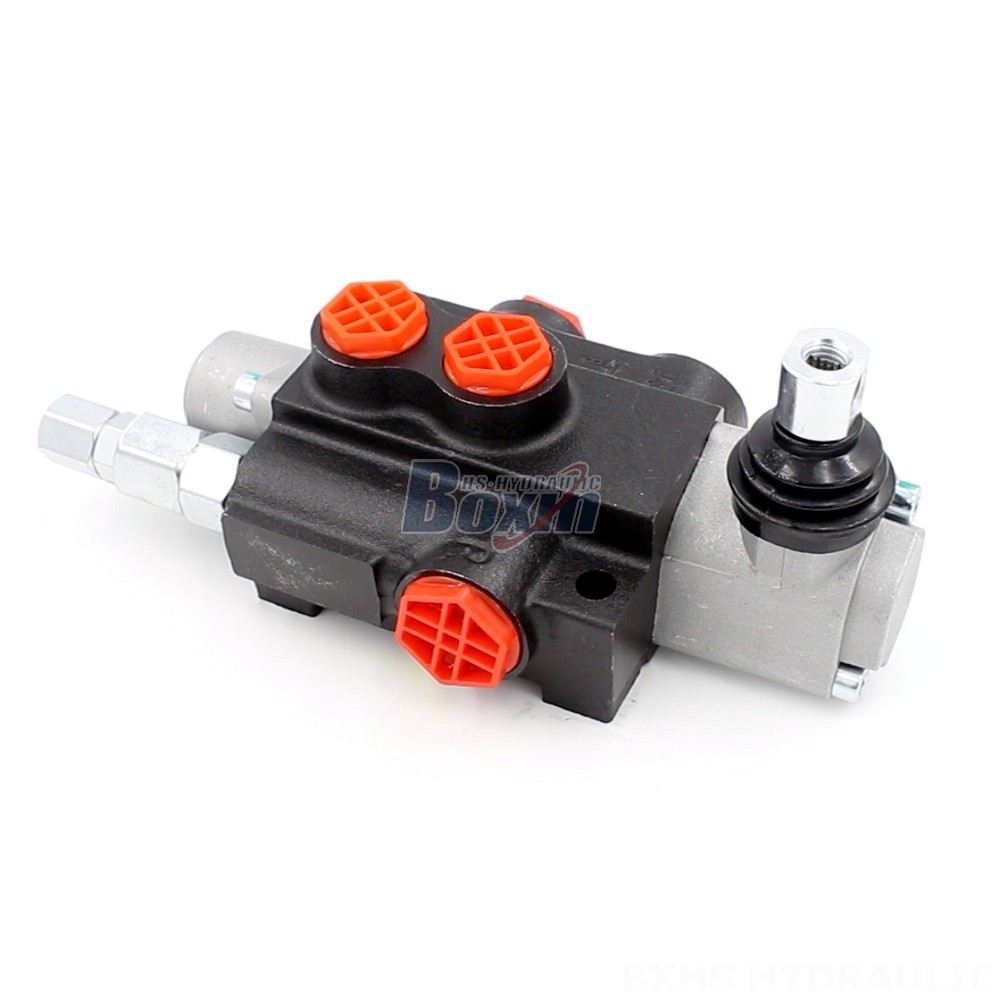

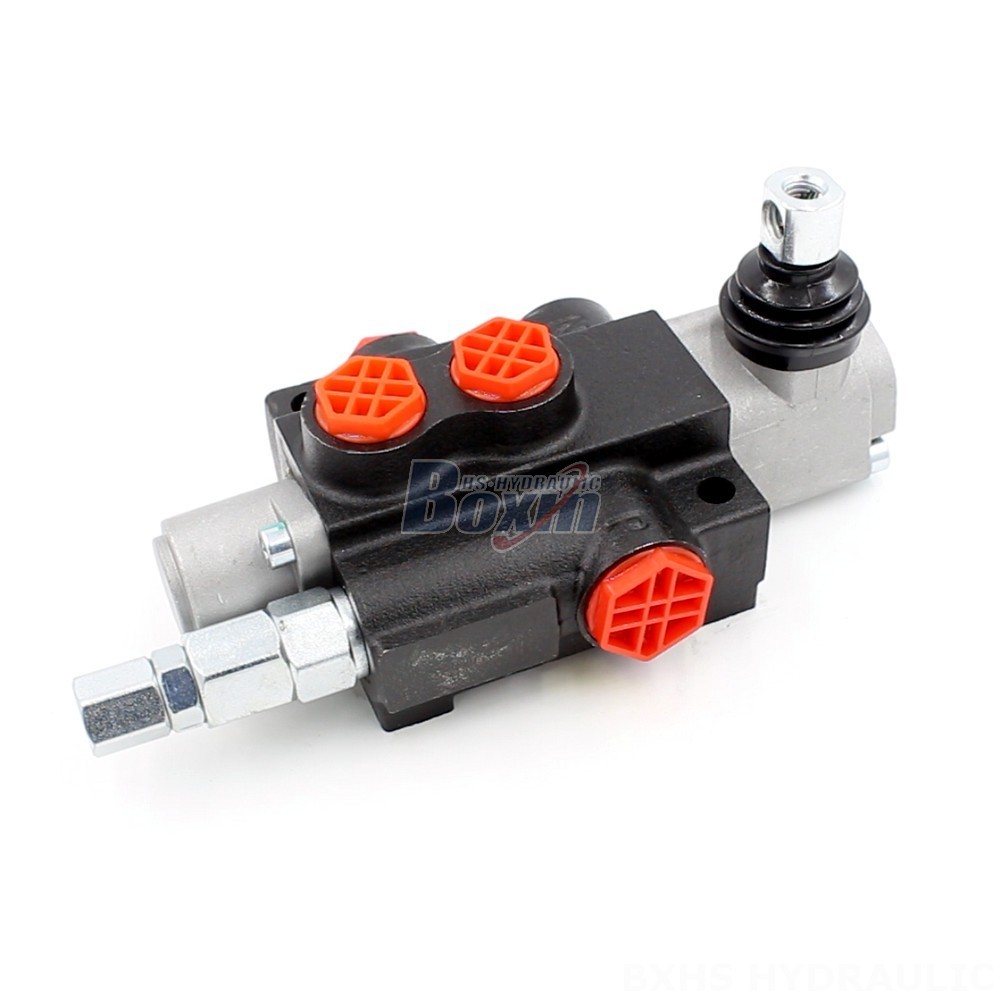

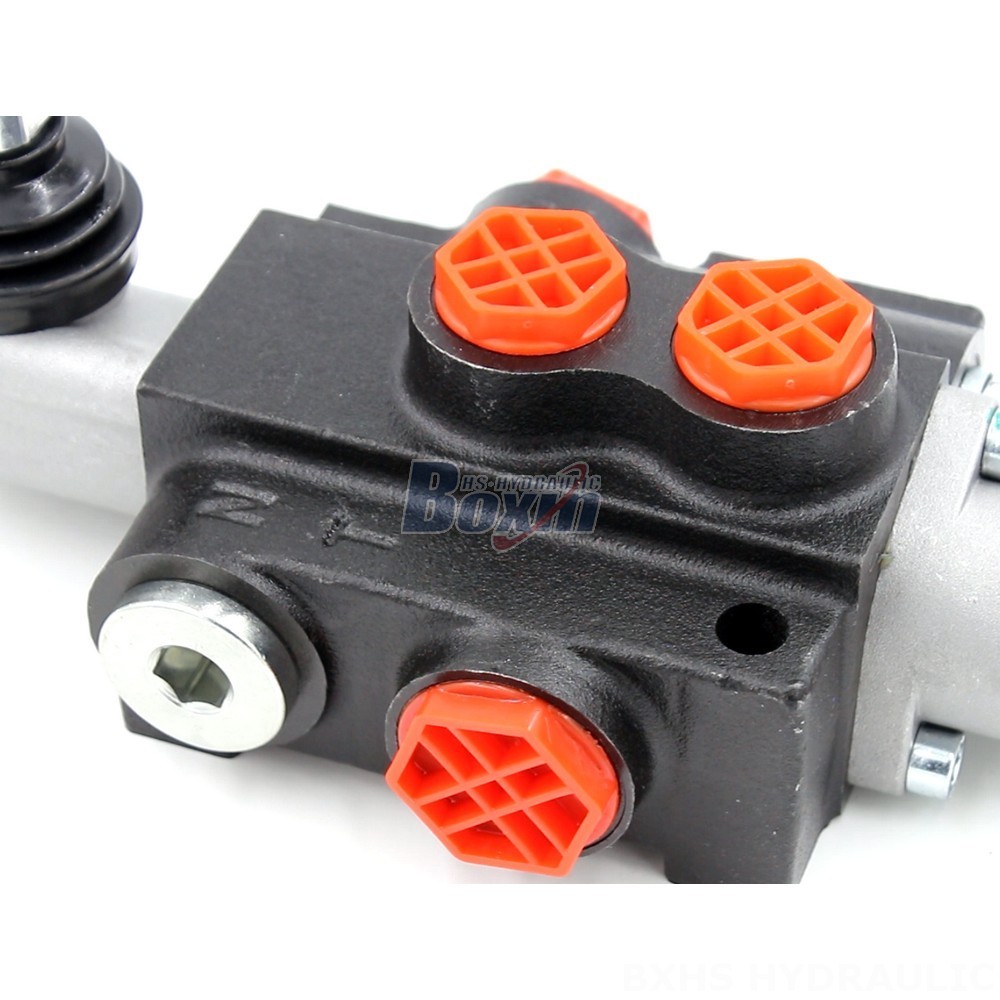

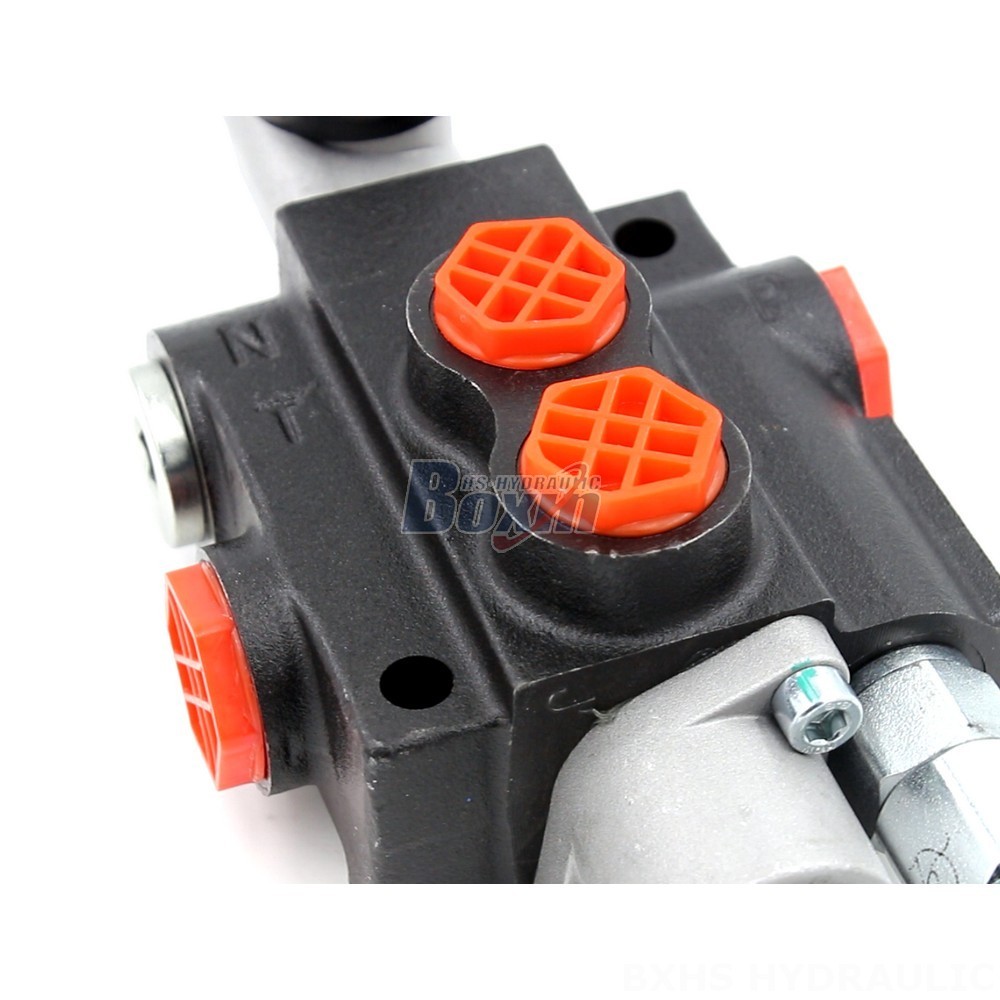

The P40-OT Series is a high-performance hydraulic joystick control valve designed for OEM partners. This manual control valve features a monoblock structure, 40 L/min rated flow, and 250 bar maximum pressure. Suitable for a wide range of applications in construction, material handling, agriculture, and industrial vehicles.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40-OT Series hydraulic joystick control valve offers a reliable and efficient solution for controlling hydraulic systems. It is a robust monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. The valve is designed for manual control and is suitable for a wide range of operating temperatures. We offer private label and OEM options, allowing you to customize the valve to meet your specific needs. We also provide manufacturing, contract manufacturing, and wholesale services. Our team is ready to collaborate with you to develop a tailored solution that meets your unique requirements. Contact us today to learn more.
