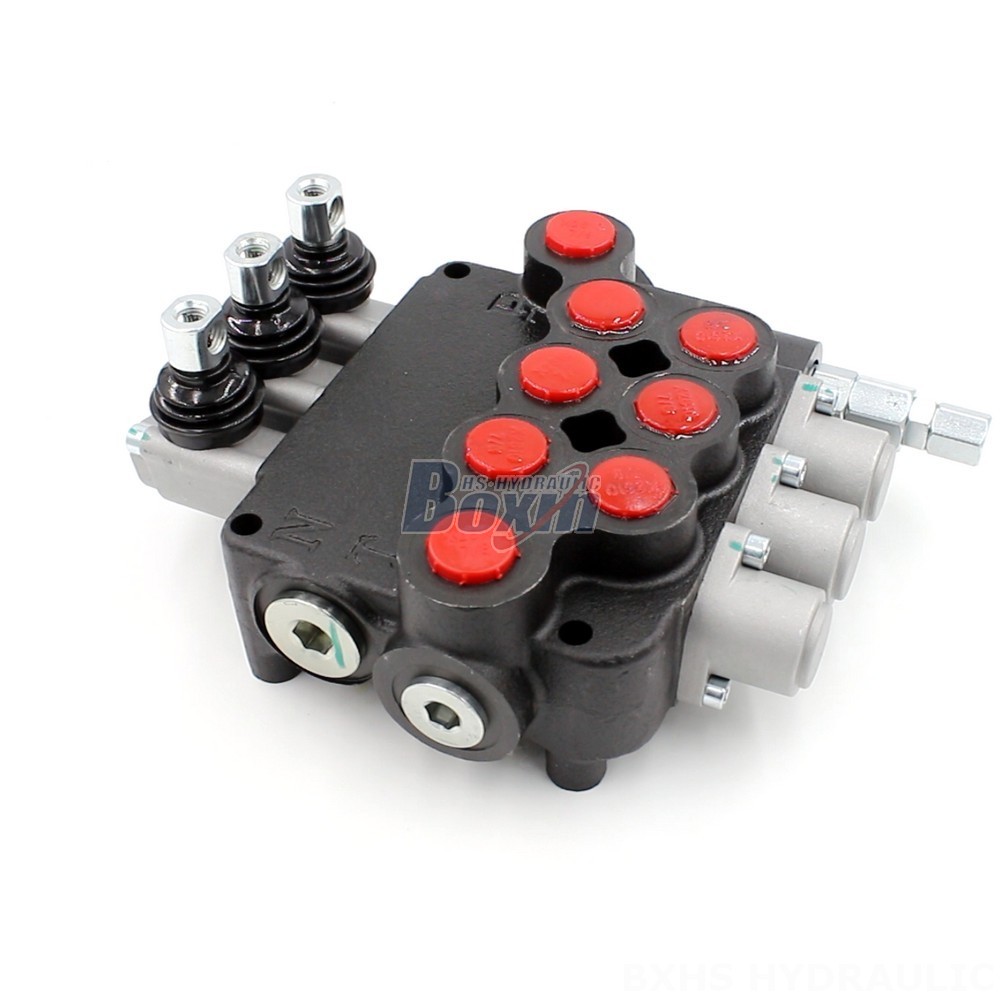

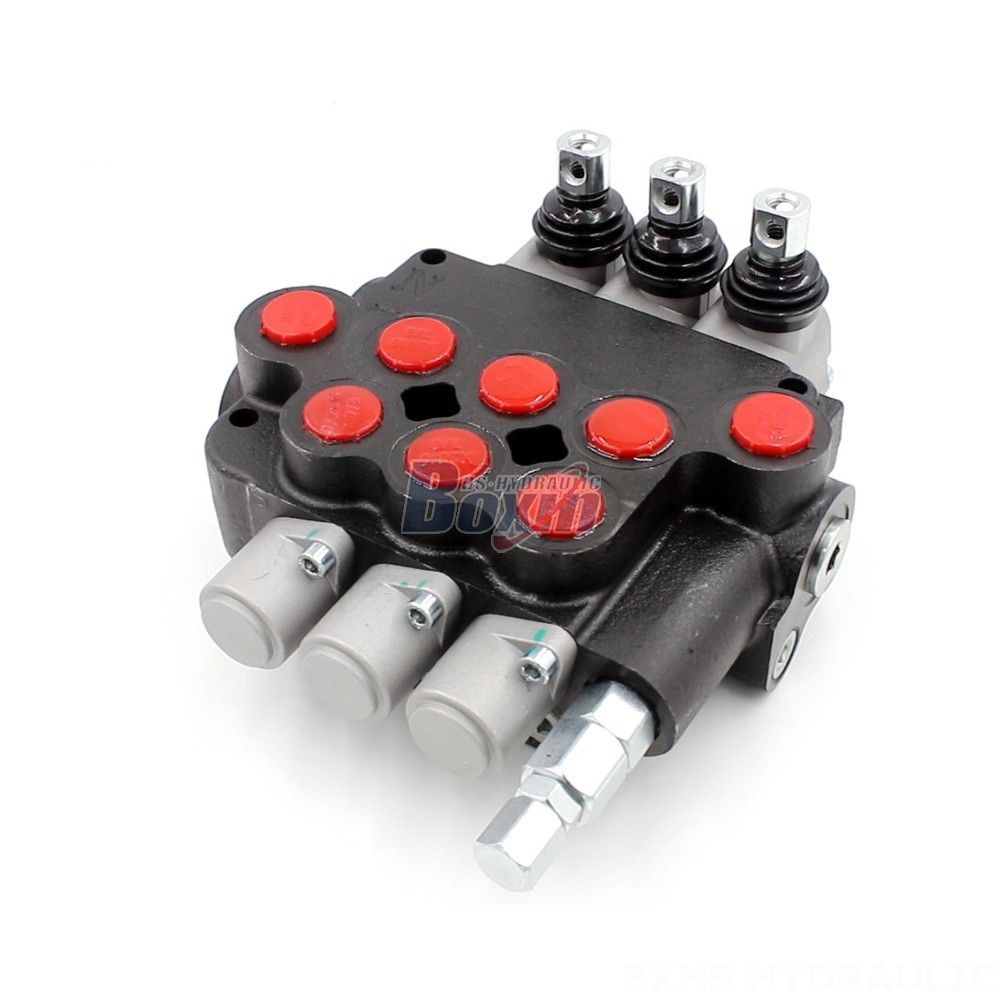

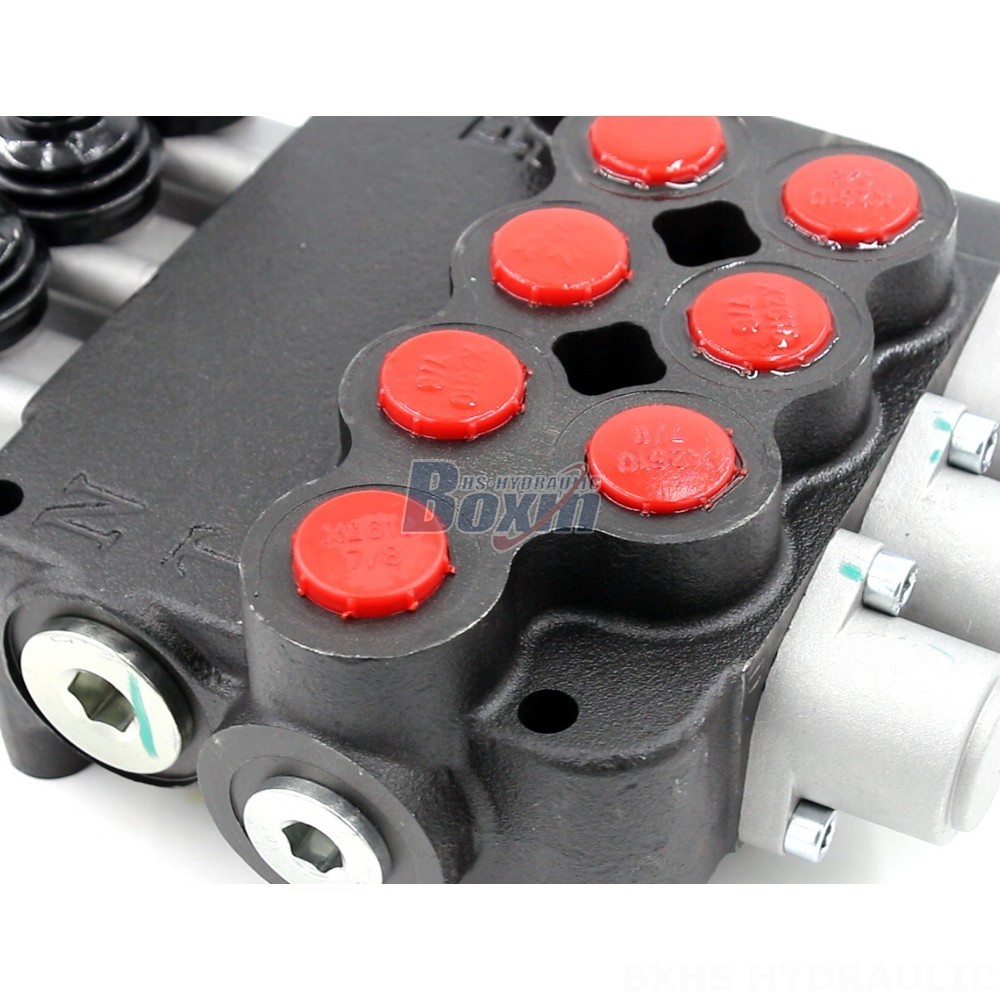

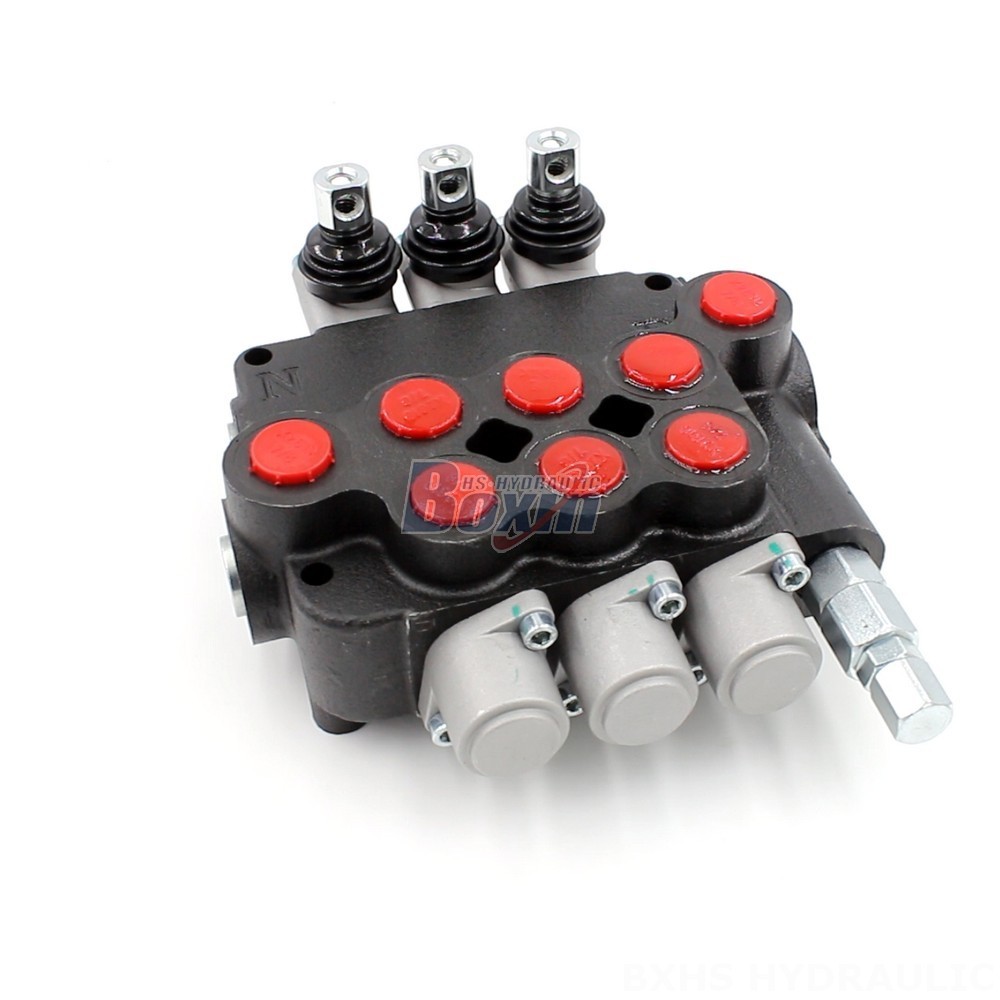

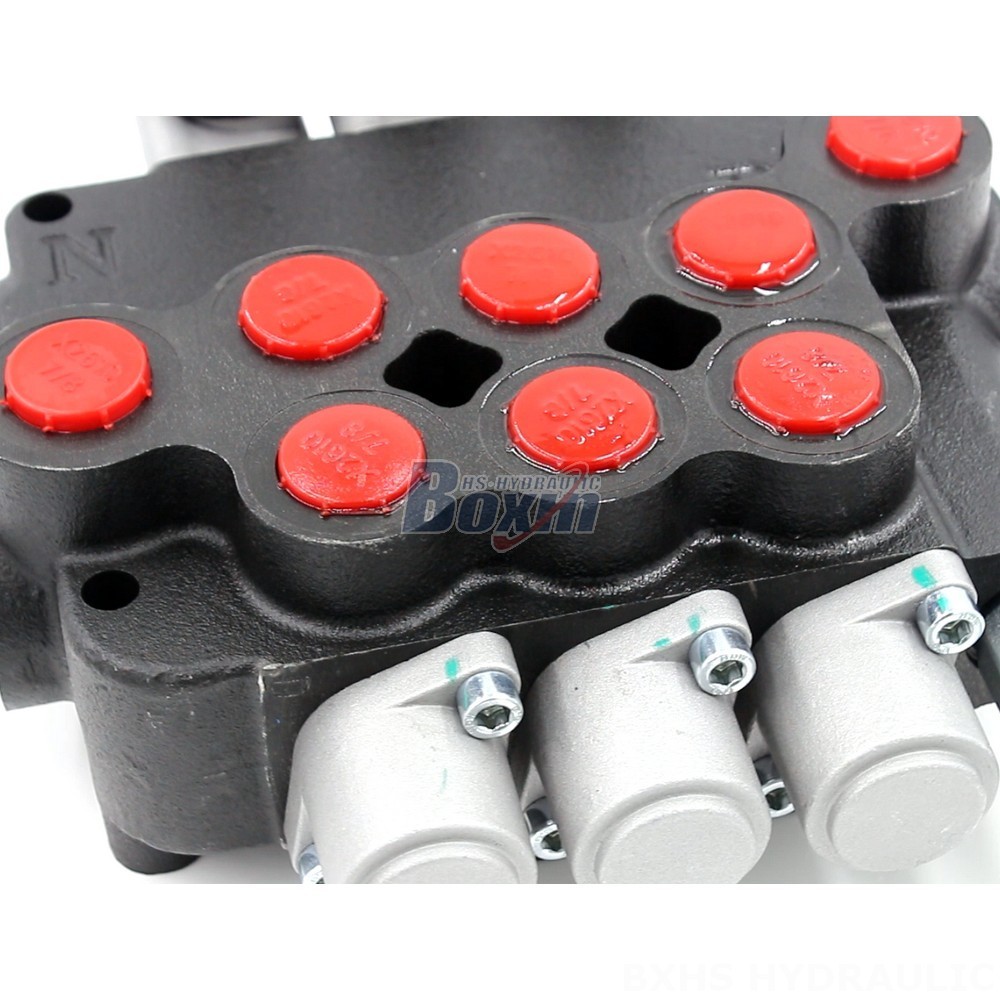

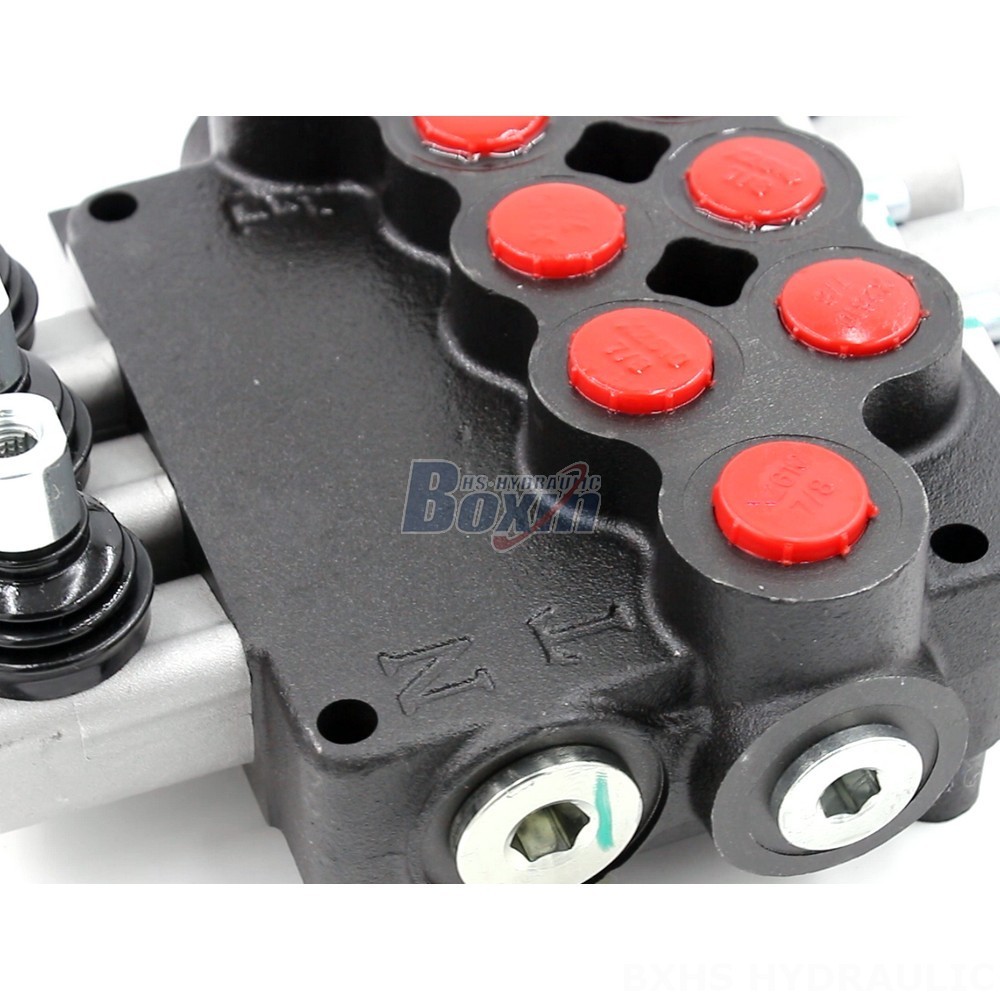

This P80-U78-3OT manual directional valve is a high-performance hydraulic flow diverter designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It offers reliable operation, durability, and a compact design, making it ideal for a wide range of equipment.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This P80-U78-3OT manual directional valve is a 3-section monoblock valve with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi). It features manual control, a 3-spool design, and is suitable for operating viscosities from 15 to 75 mm²/s (15 cSt to 75 cSt). The valve operates in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). We offer this valve as a private label product, allowing you to brand it with your own logo and specifications. We also provide OEM manufacturing, custom design and development, and wholesale options to meet your specific needs. Contact us today to discuss your requirements and explore our partnership opportunities.
