Produksi & Pengiriman
Waktu Produksi 15-30 Hari

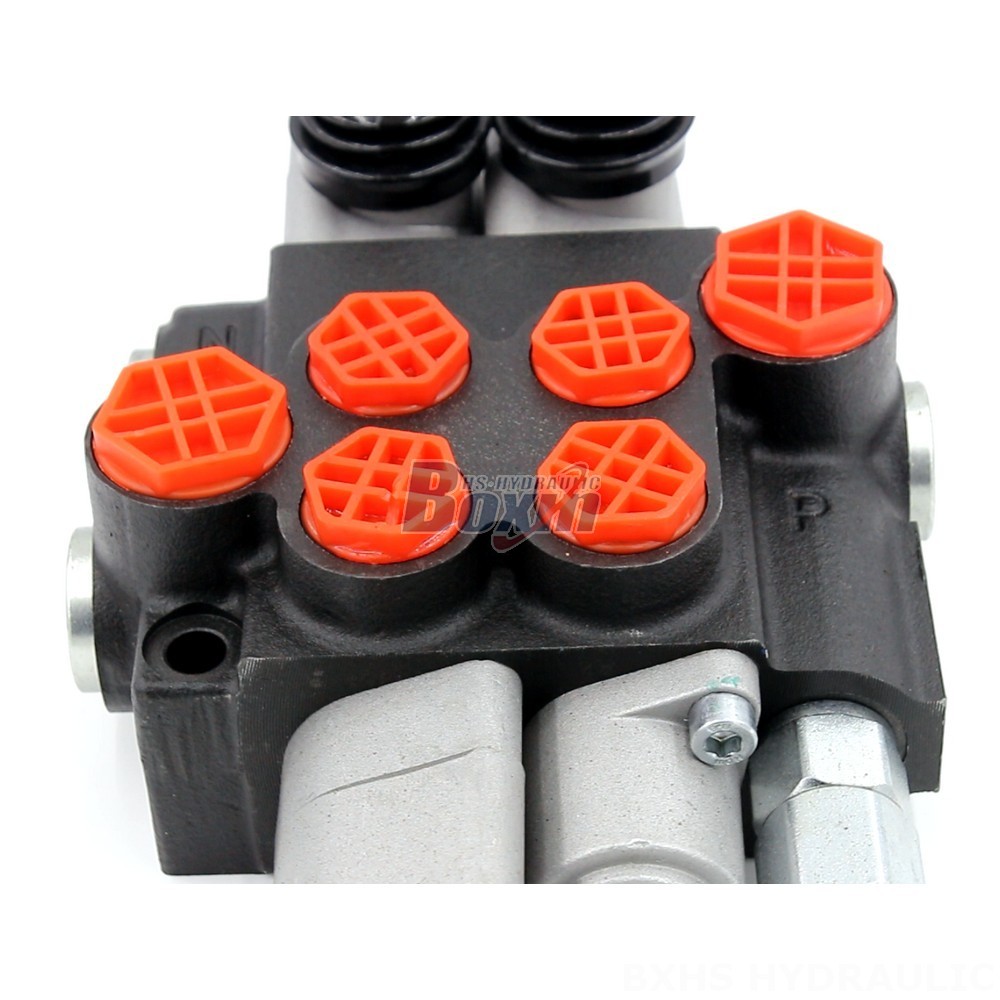

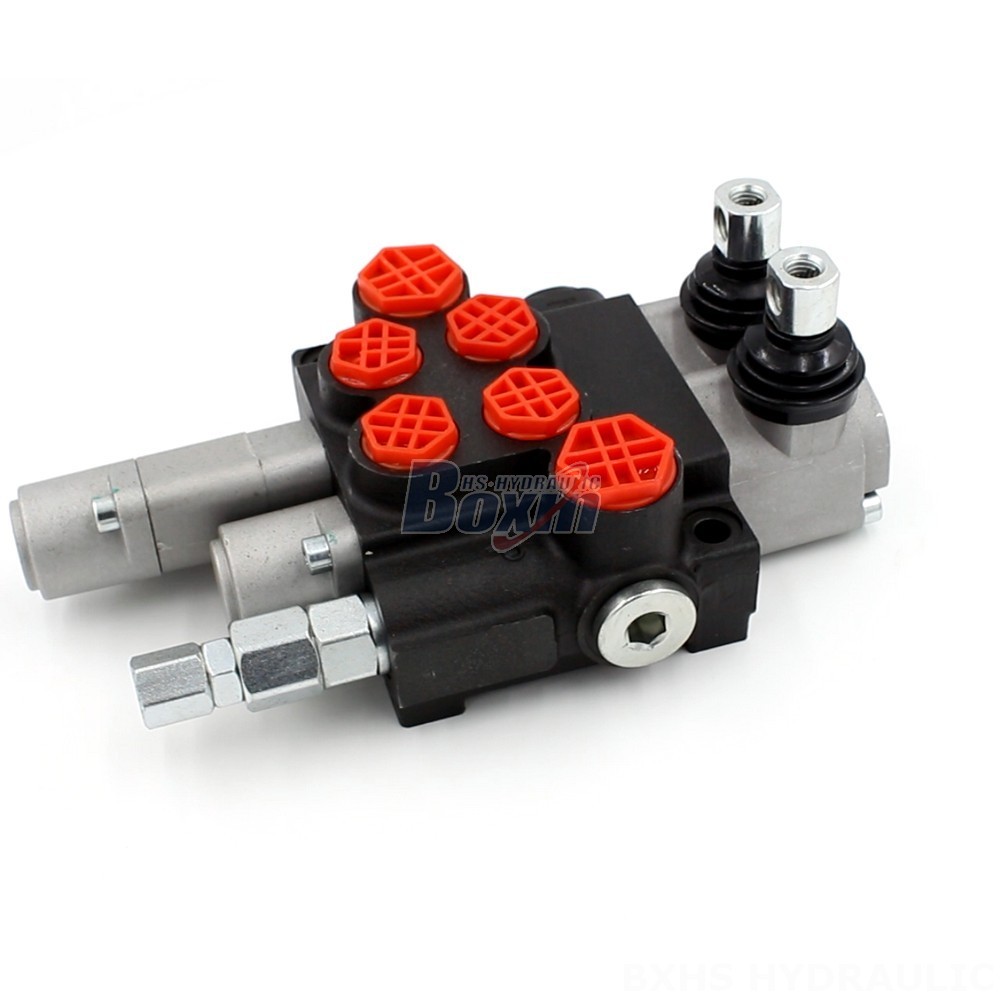

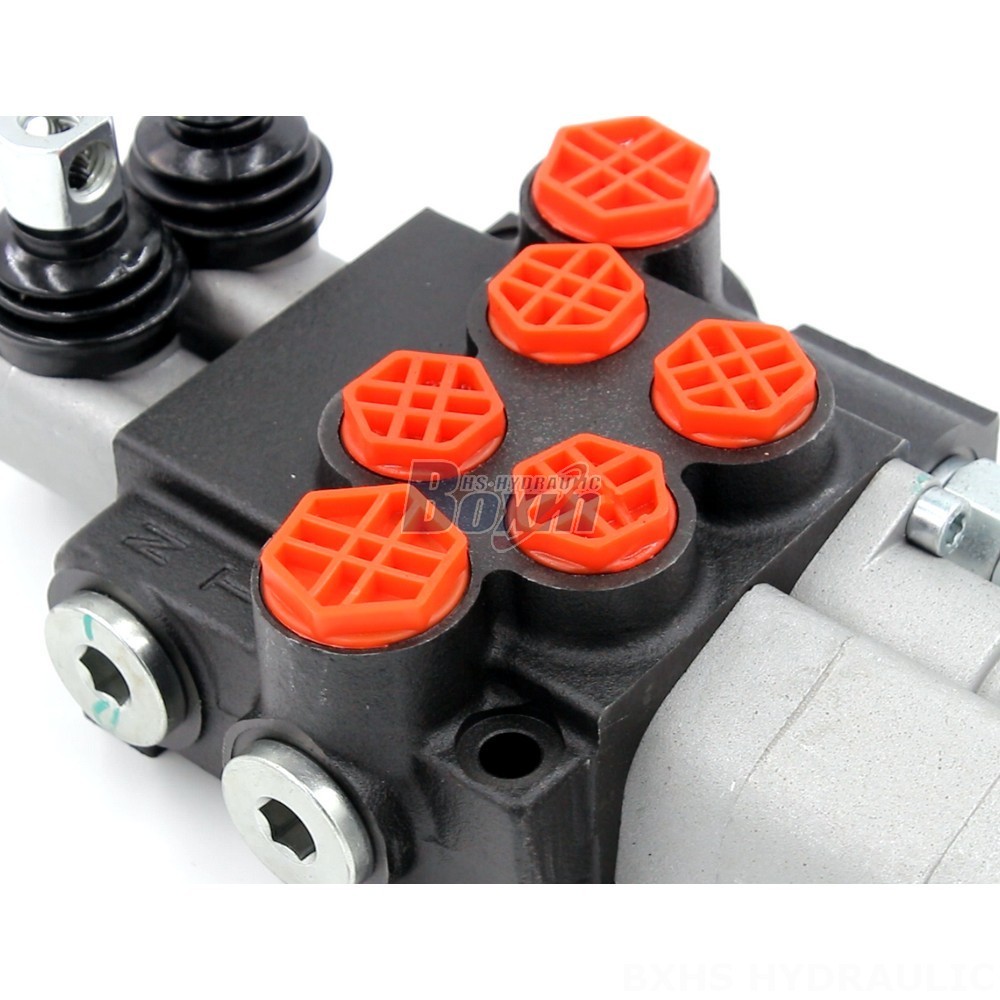

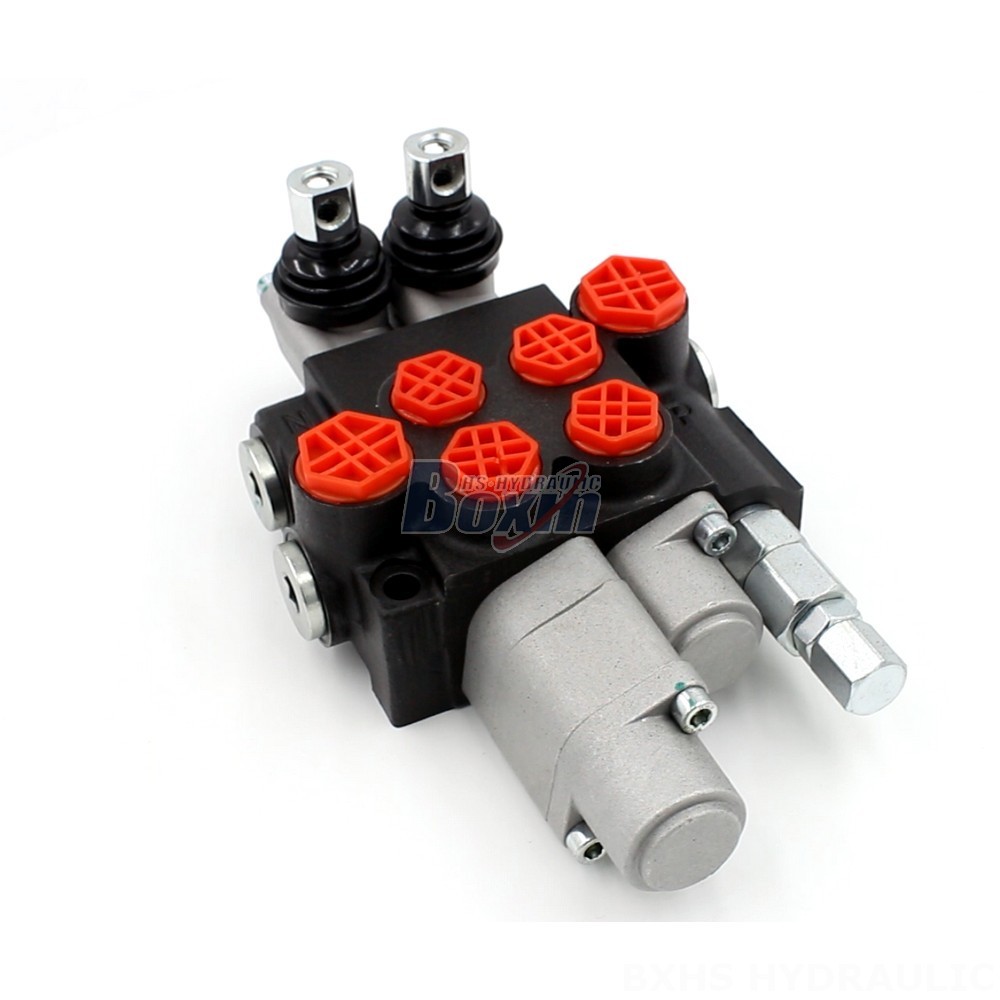

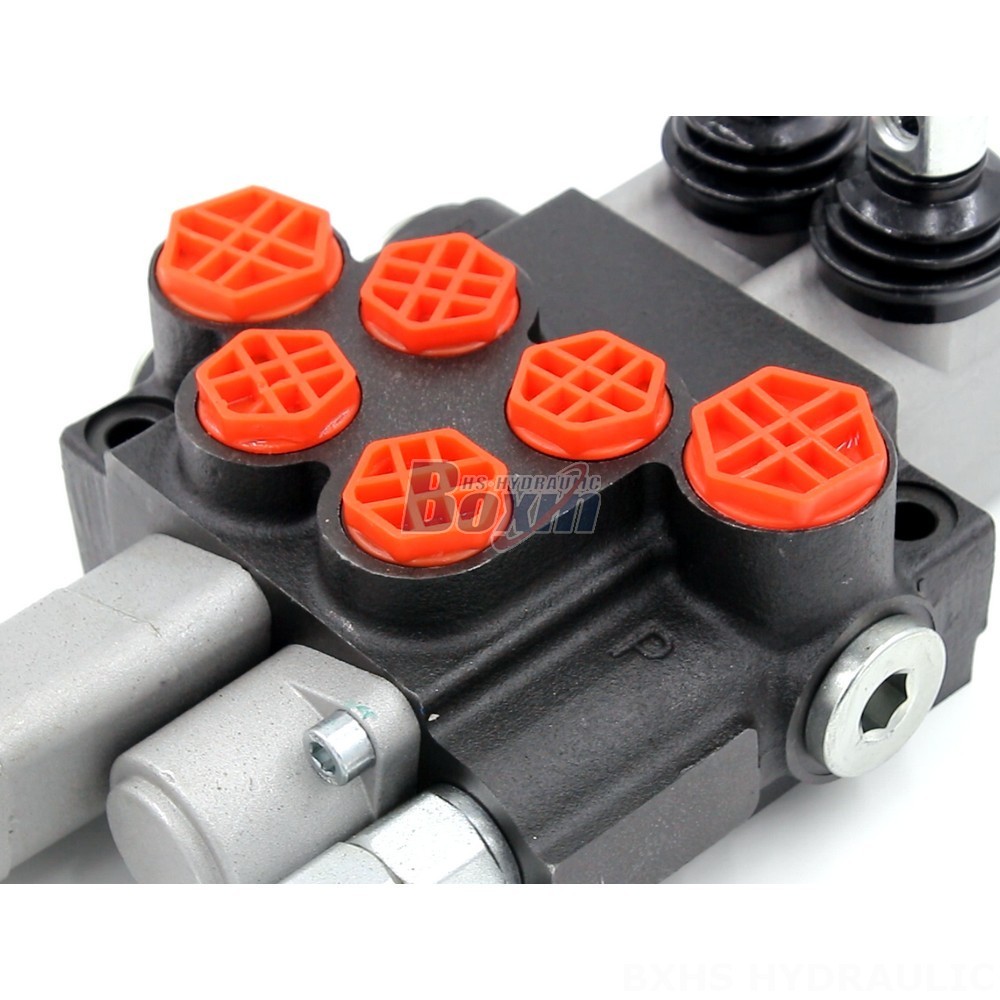

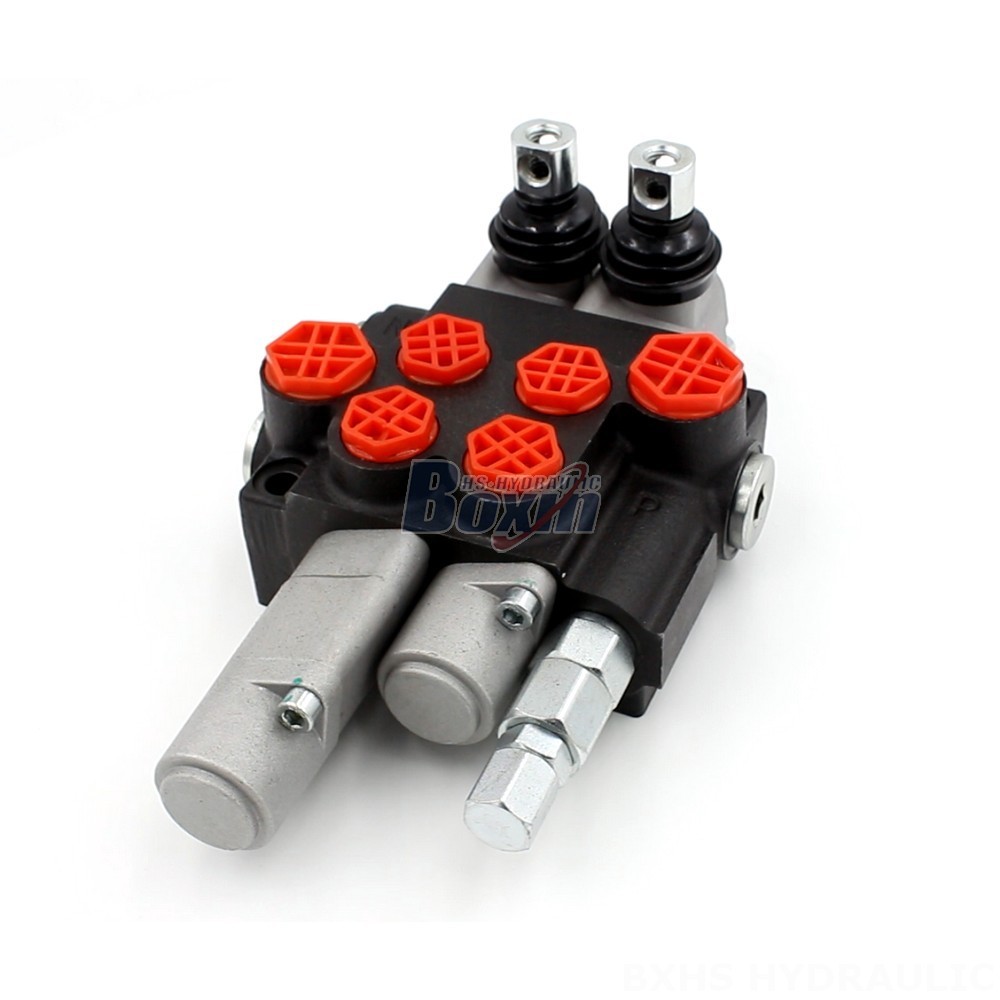

This 12V Hydraulic Spool Valve offers reliable control for various applications in material handling, construction, agriculture, and industrial vehicles. It features manual control, 2 sections, and a monoblock design. With a flow rate of 40 L/min and a maximum pressure of 250 bar, it provides robust performance. We offer OEM, private label, and customized solutions to meet your specific needs.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This 12V Hydraulic Spool Valve is a high-performance, reliable control solution for a wide range of applications in industries such as material handling, construction, agriculture, and industrial vehicles. Featuring manual control, 2 sections, and a monoblock design, this valve provides precise and efficient operation. It boasts a flow rate of 40 L/min and a maximum pressure of 250 bar, ensuring robust performance in demanding environments. With an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, this valve is designed for diverse conditions. Our expertise in manufacturing, OEM, private label, and custom solutions allows us to tailor this product to your specific requirements. We are committed to delivering high-quality hydraulic valves that meet your exact specifications and contribute to your brand's success.
