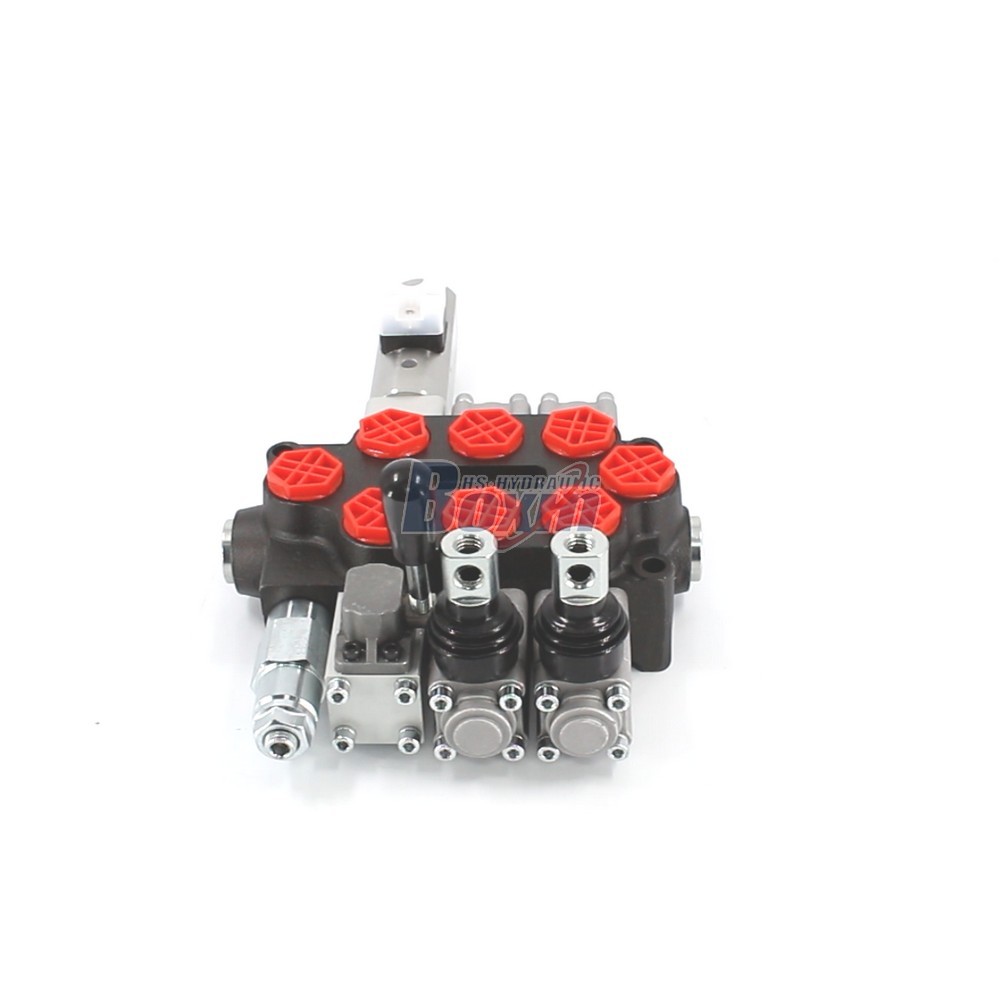

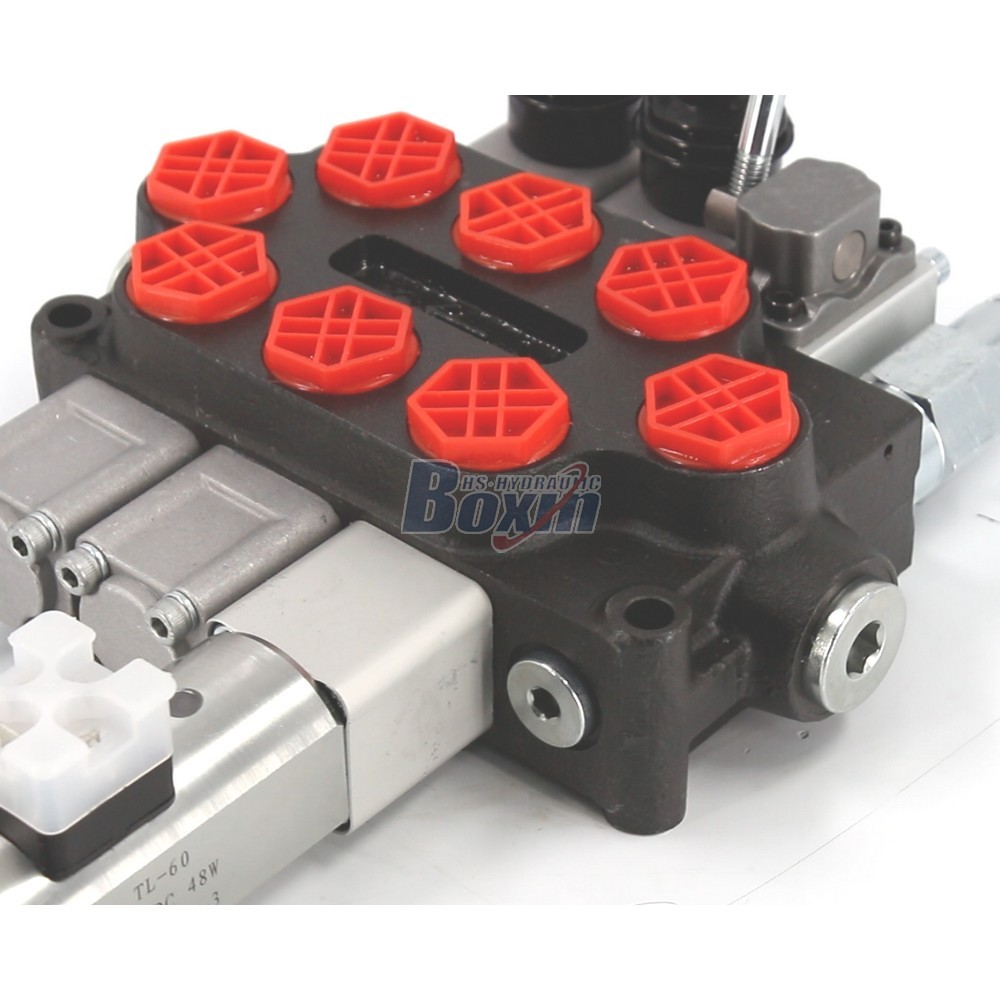

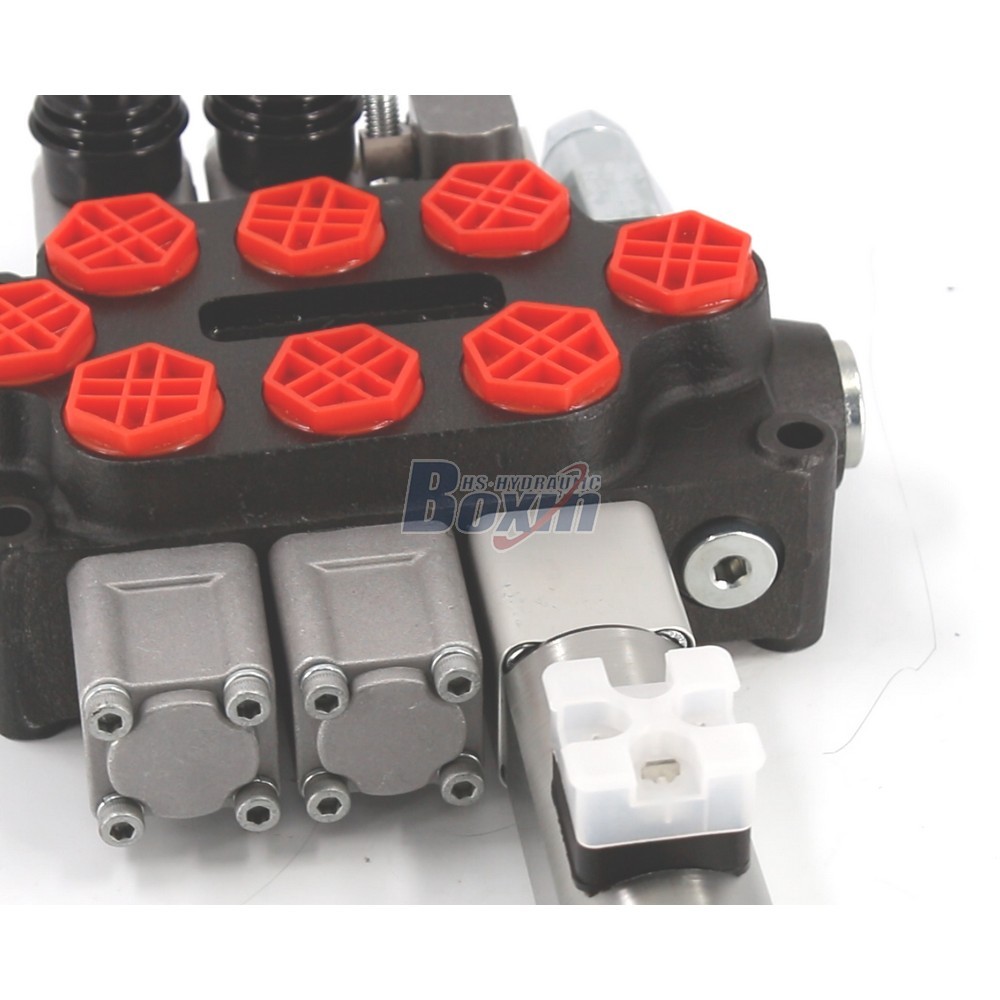

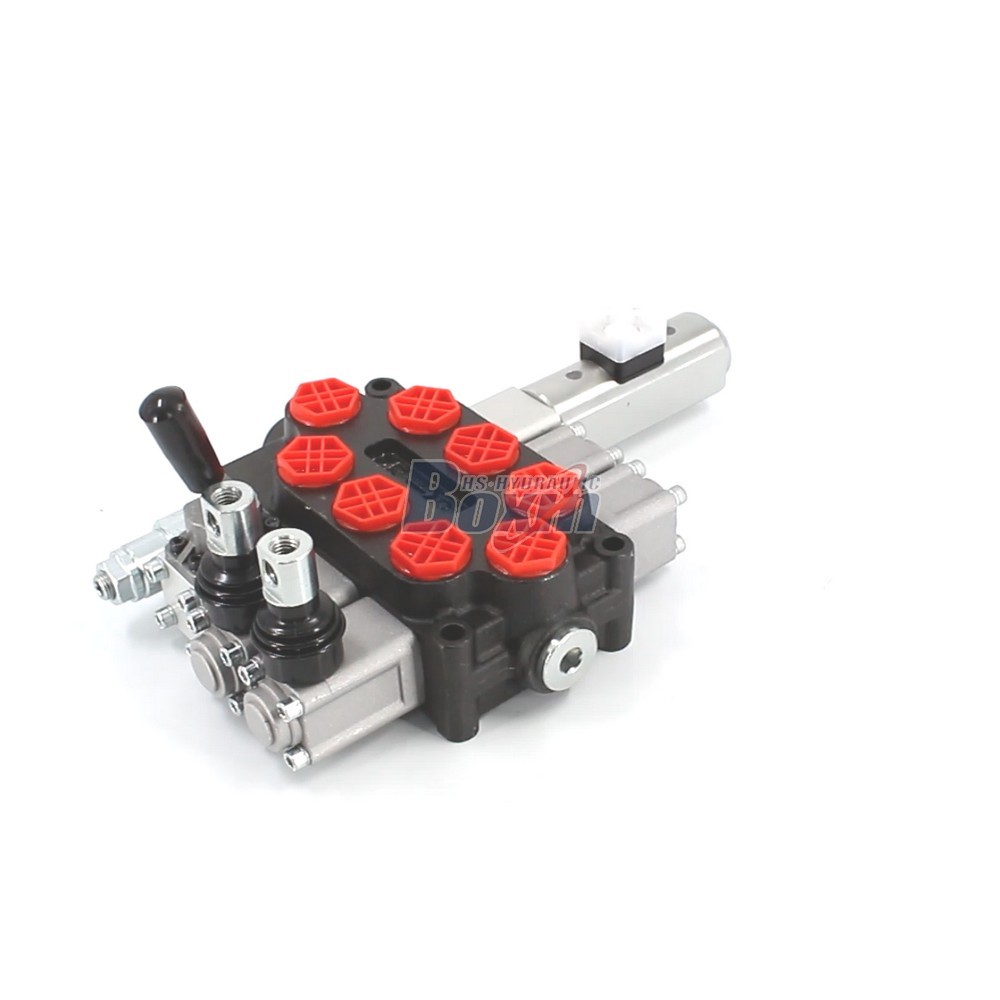

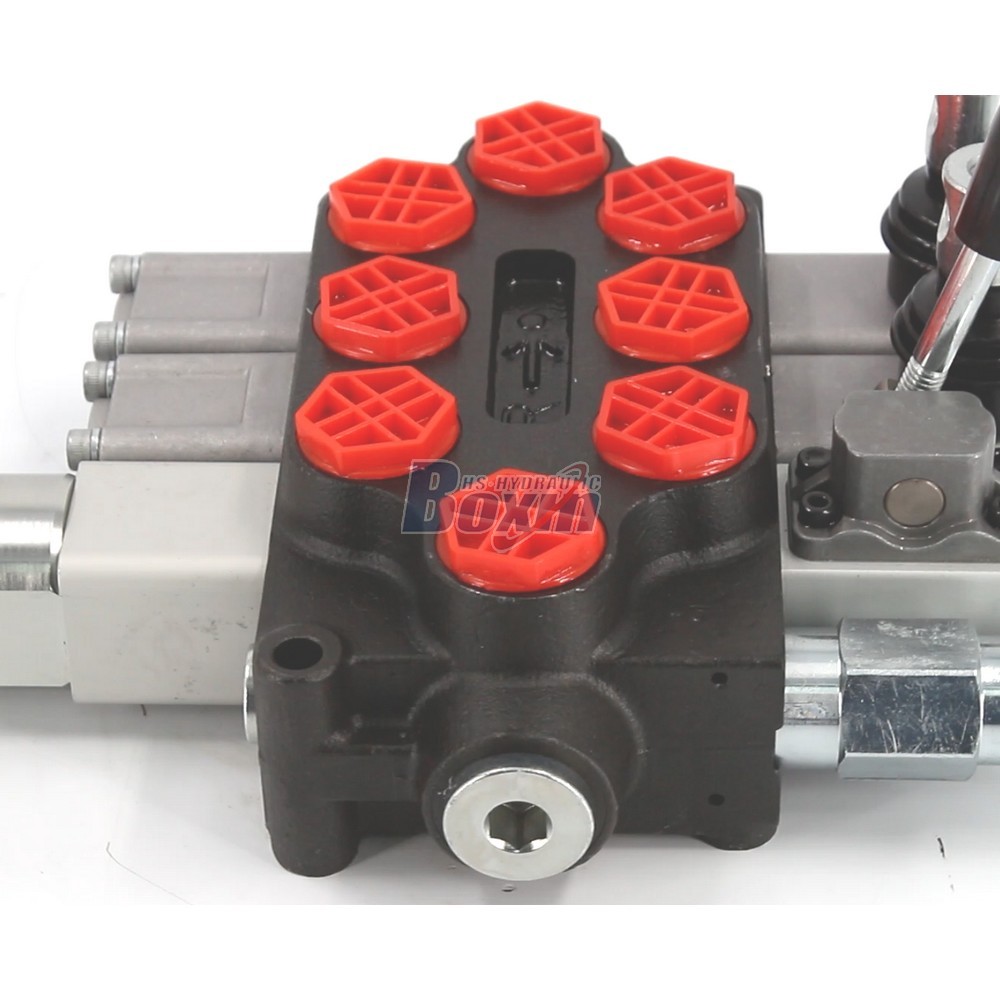

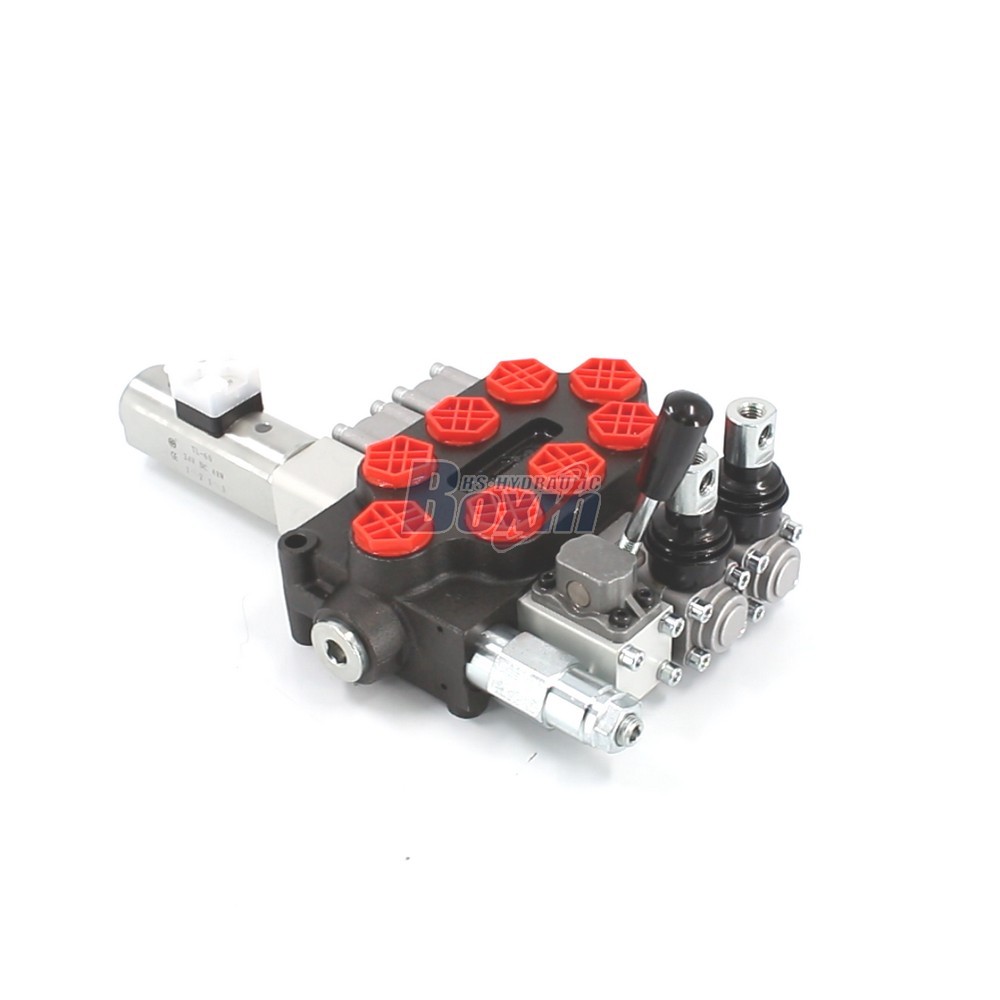

The Q45-DT-2OT is a versatile 3-spool monoblock directional control valve featuring both manual and push-pull electromagnet control. With a rated flow of 45 L/min and a maximum pressure of 315 bar, it is designed for precision and reliability in demanding mobile applications.
| Seri Q45 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Stik Kontrol, Solenoid dan Manual, Elektromagnet Manual dan Push-pull, Elektromagnet Push-pull |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -20°C hingga +80°C (-4°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 45 L/menit (11,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2 |
| Port Keluar | G1/2 |
| Ukuran Port | G1/2 |
As a leading manufacturer of high-performance hydraulic solutions, we offer the Q45-DT-2OT 3 Spool Monoblock Directional Valve for global markets. This valve integrates manual and push-pull electromagnet control methods, ensuring flexible operation for material handling, construction, and agricultural machinery. It handles a rated flow of 45 L/min (11.8 US gpm) and pressures up to 315 bar (4600 psi), featuring standard G1/2 ports. We provide comprehensive OEM, ODM, and customized manufacturing services to meet specific technical requirements. Our factory provides direct wholesale pricing and high-volume supply capabilities. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Whether you need reliable components for tractors, mini-excavators, or forklifts, our Q45 series offers robust quality and versatile functionality for industrial vehicle manufacturers and aftermarket suppliers.
