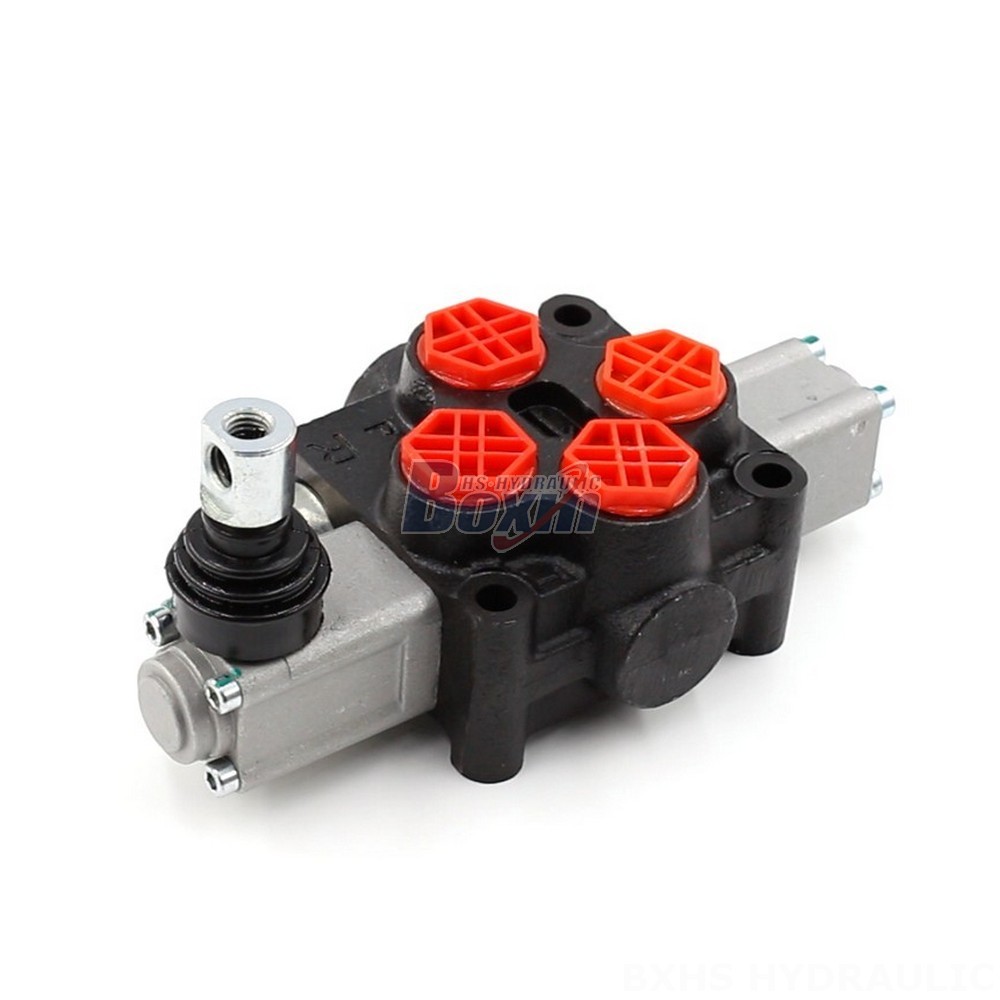

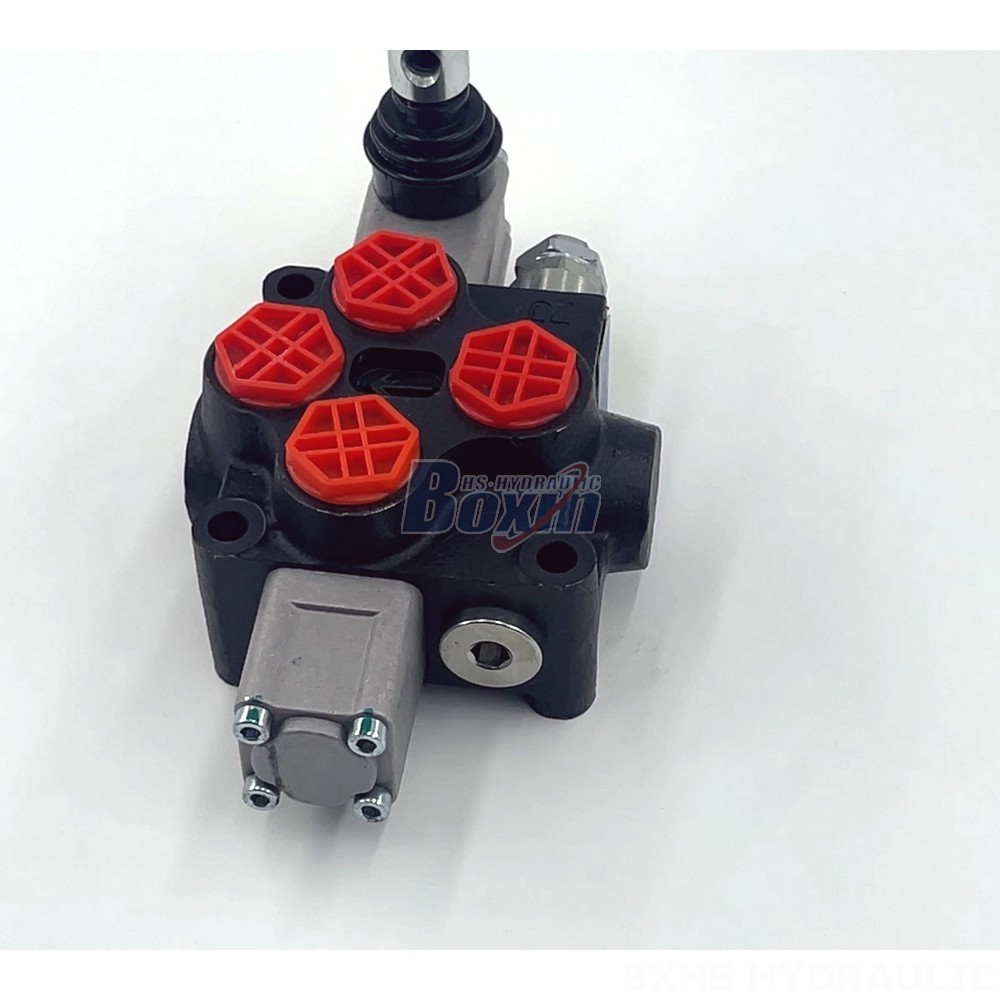

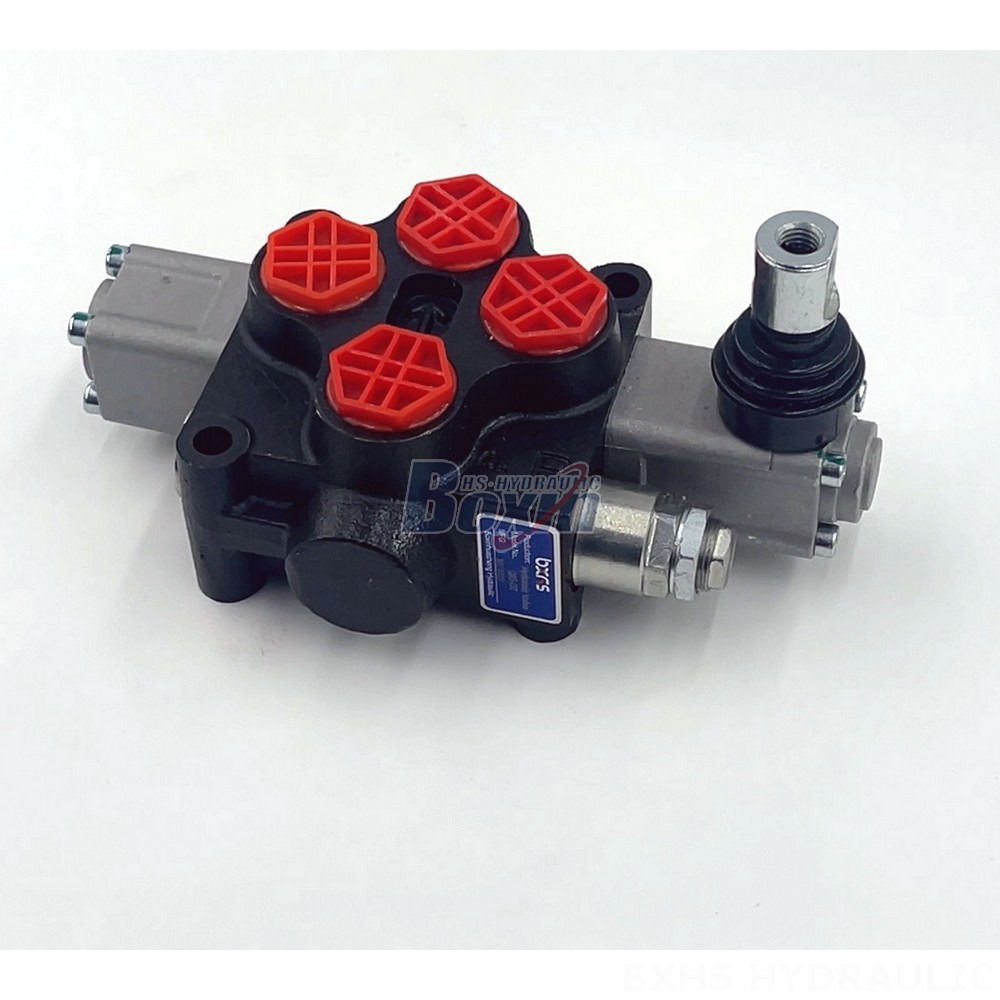

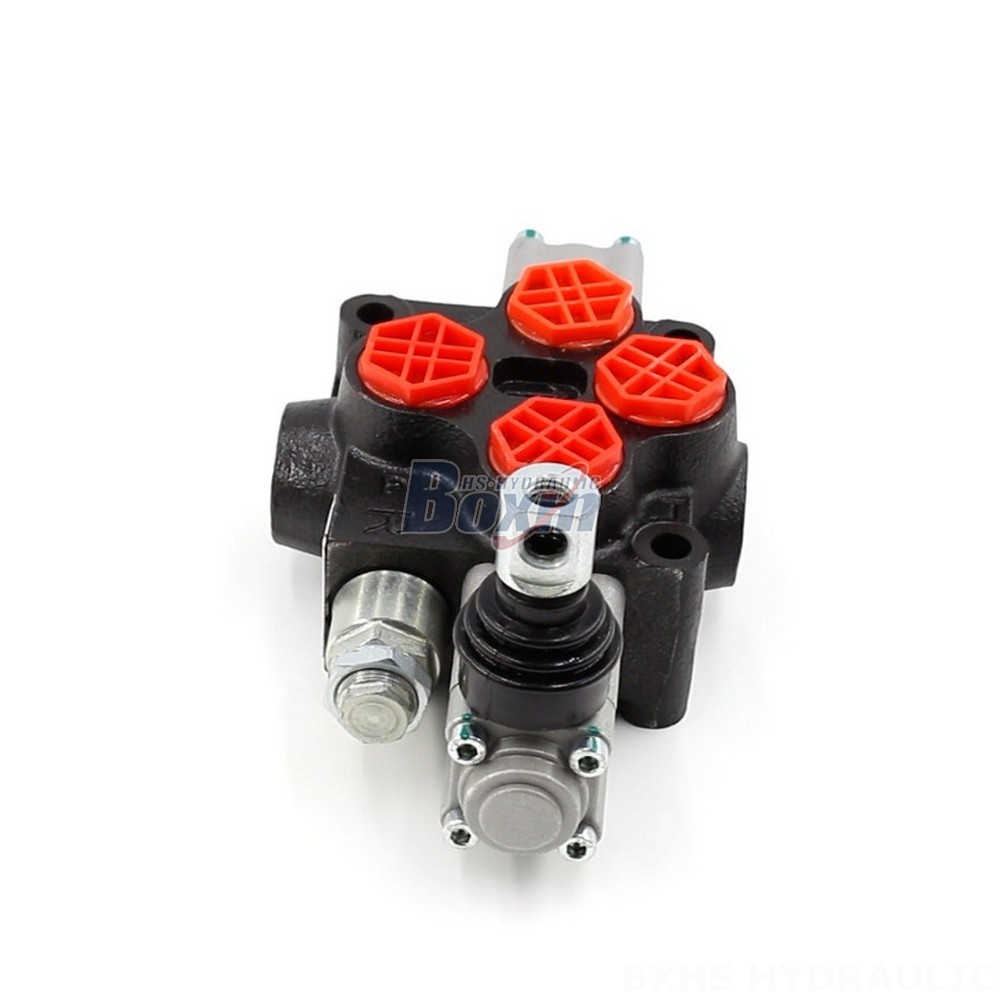

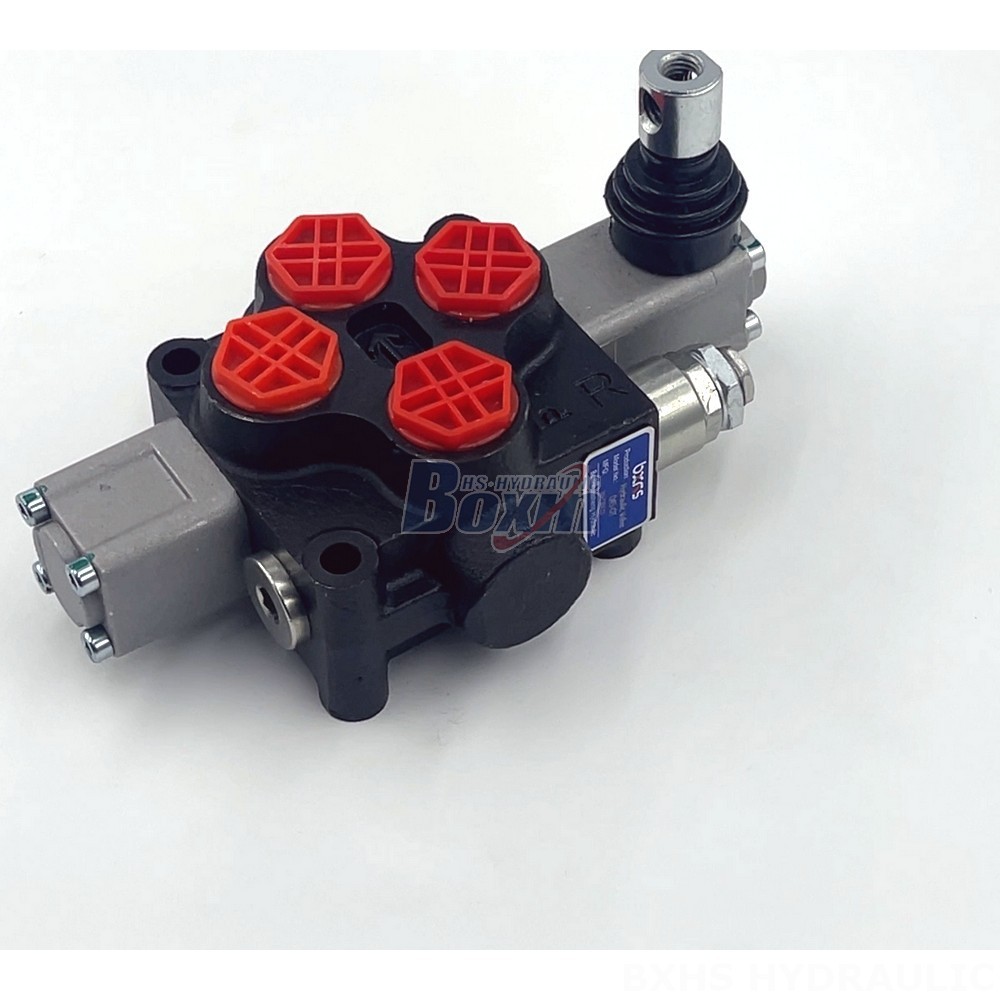

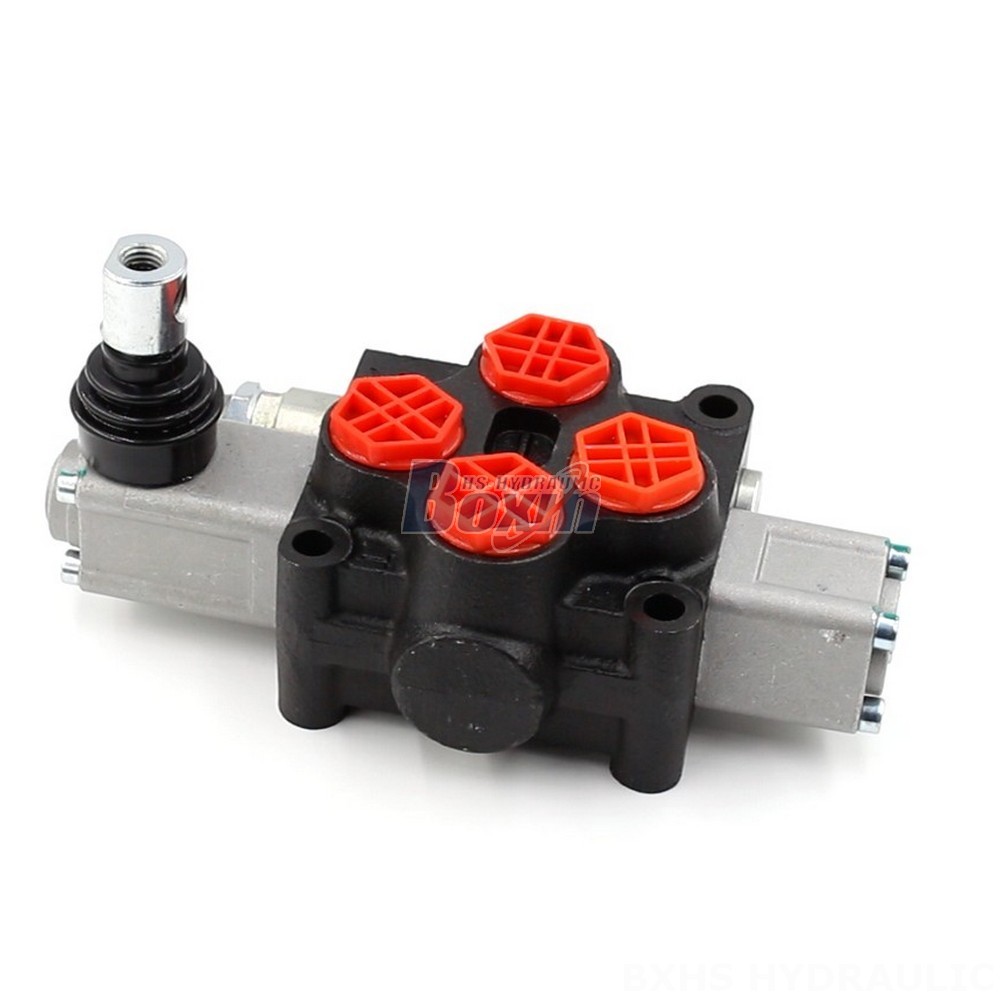

The Qingzhou Boxin Huasheng Hydraulic Technology Q45 Hydraulic Valve is a high-pressure, reliable monoblock valve with manual control. Designed for demanding applications in material handling, construction, agriculture, and industrial vehicles, it offers a rated flow of 45 L/min and a maximum pressure of 315 bar.
| Seri Q45 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Stik Kontrol, Solenoid dan Manual, Elektromagnet Manual dan Push-pull, Elektromagnet Push-pull |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -20°C hingga +80°C (-4°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 45 L/menit (11,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2 |
| Port Keluar | G1/2 |
| Ukuran Port | G1/2 |
The Q45 Series Hydraulic Valve features a single spool, 1 section design, and is suitable for various equipment including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. Its robust construction and reliable performance make it an ideal choice for demanding applications across a range of industries.
