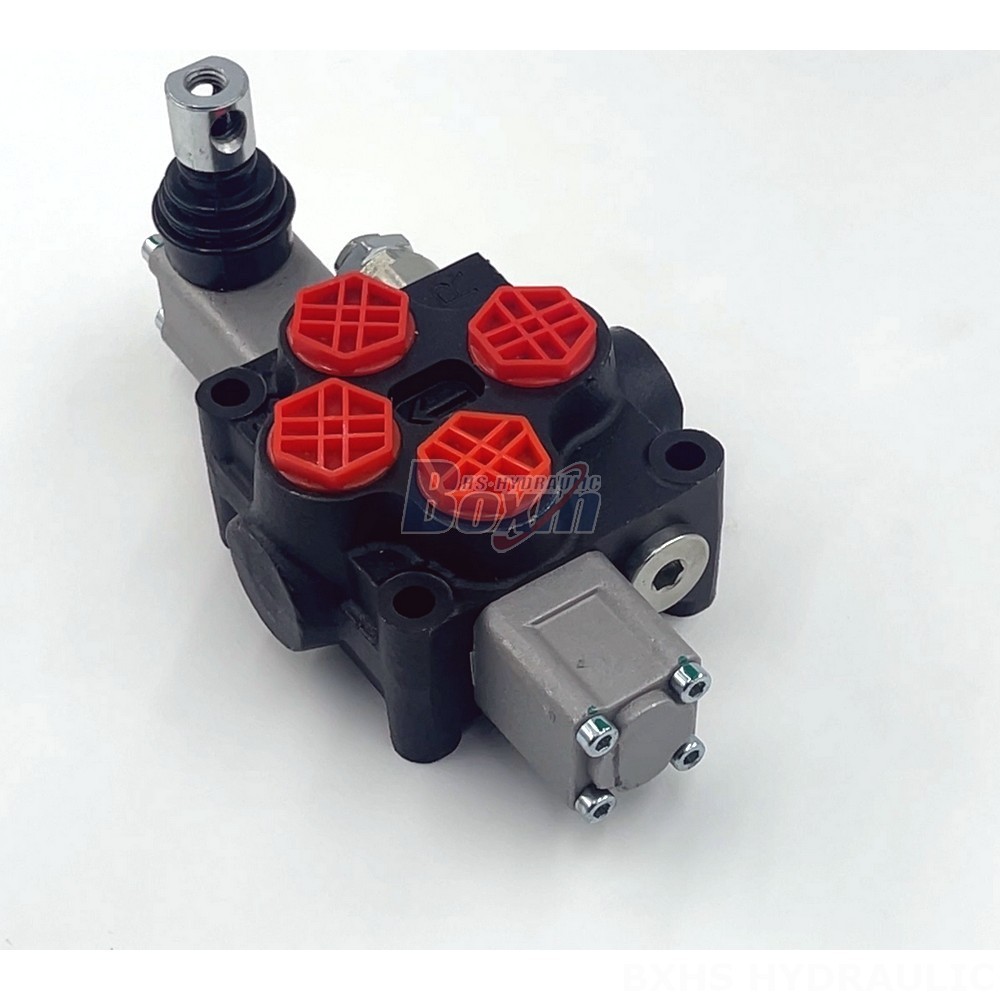

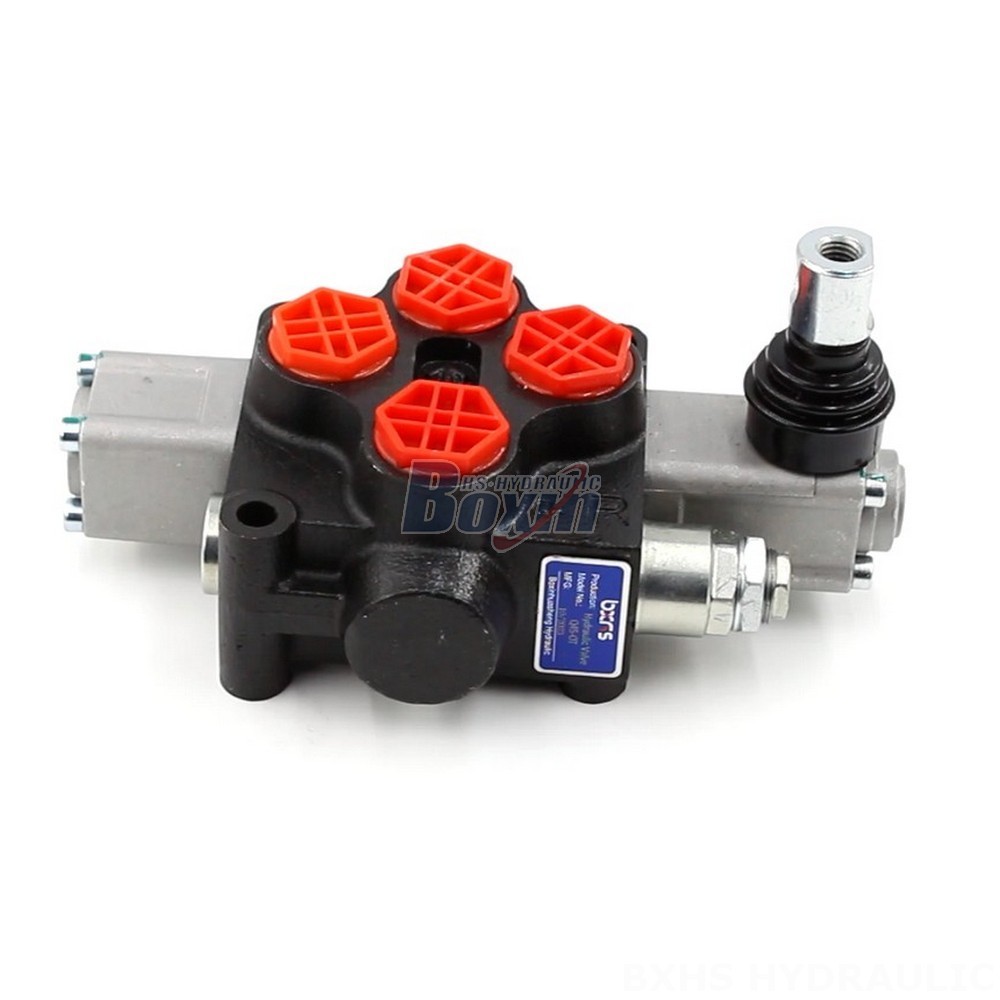

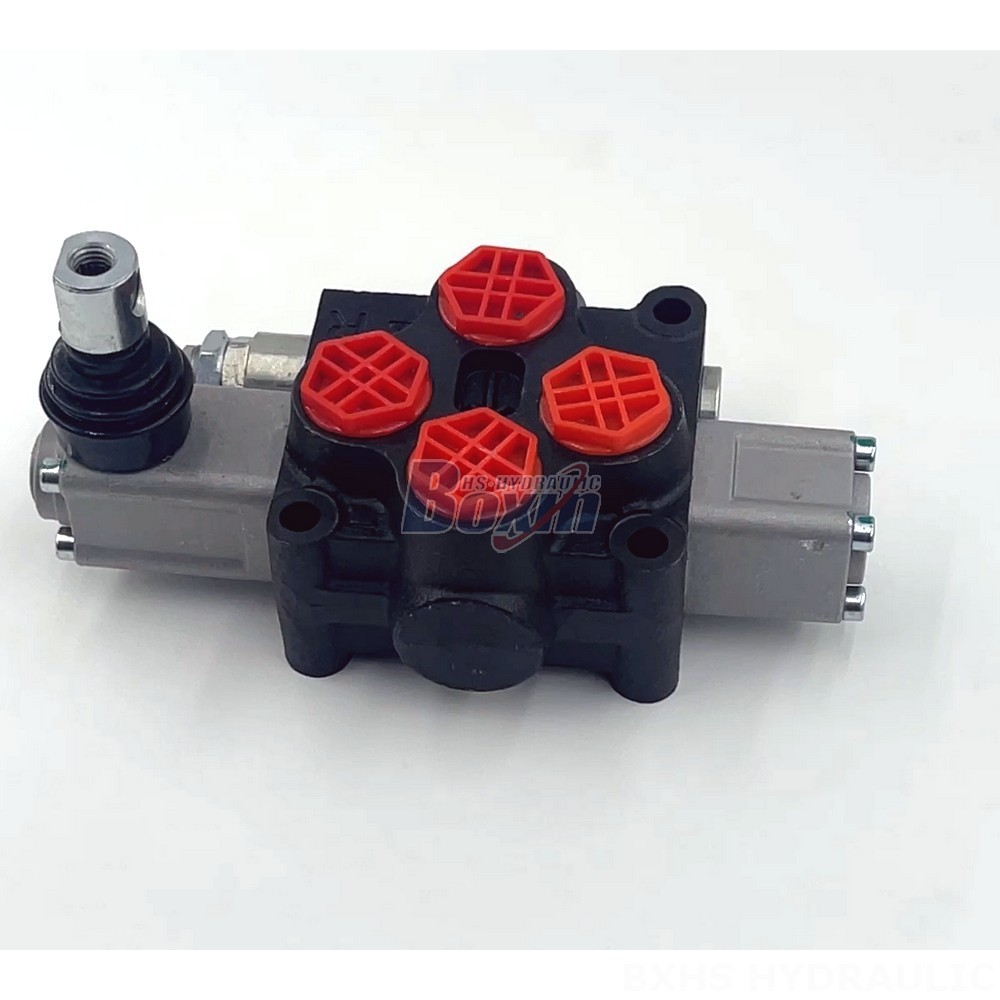

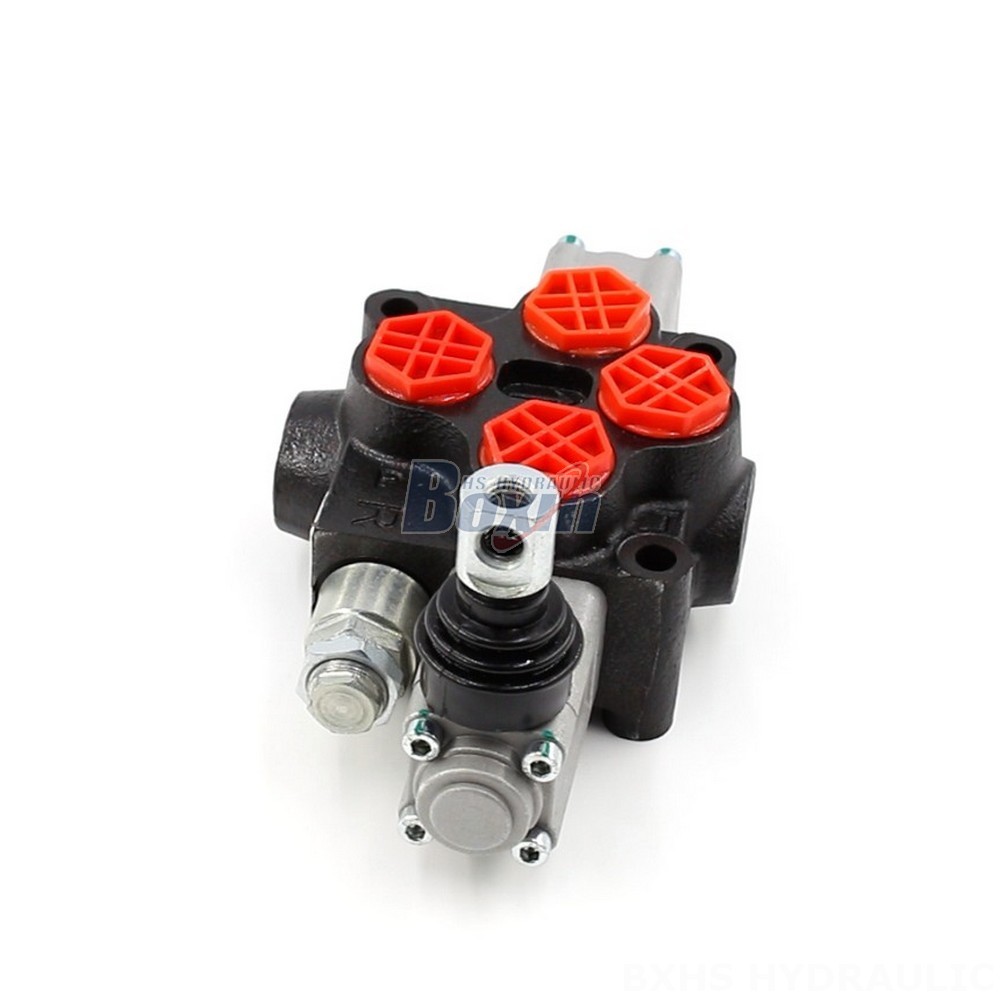

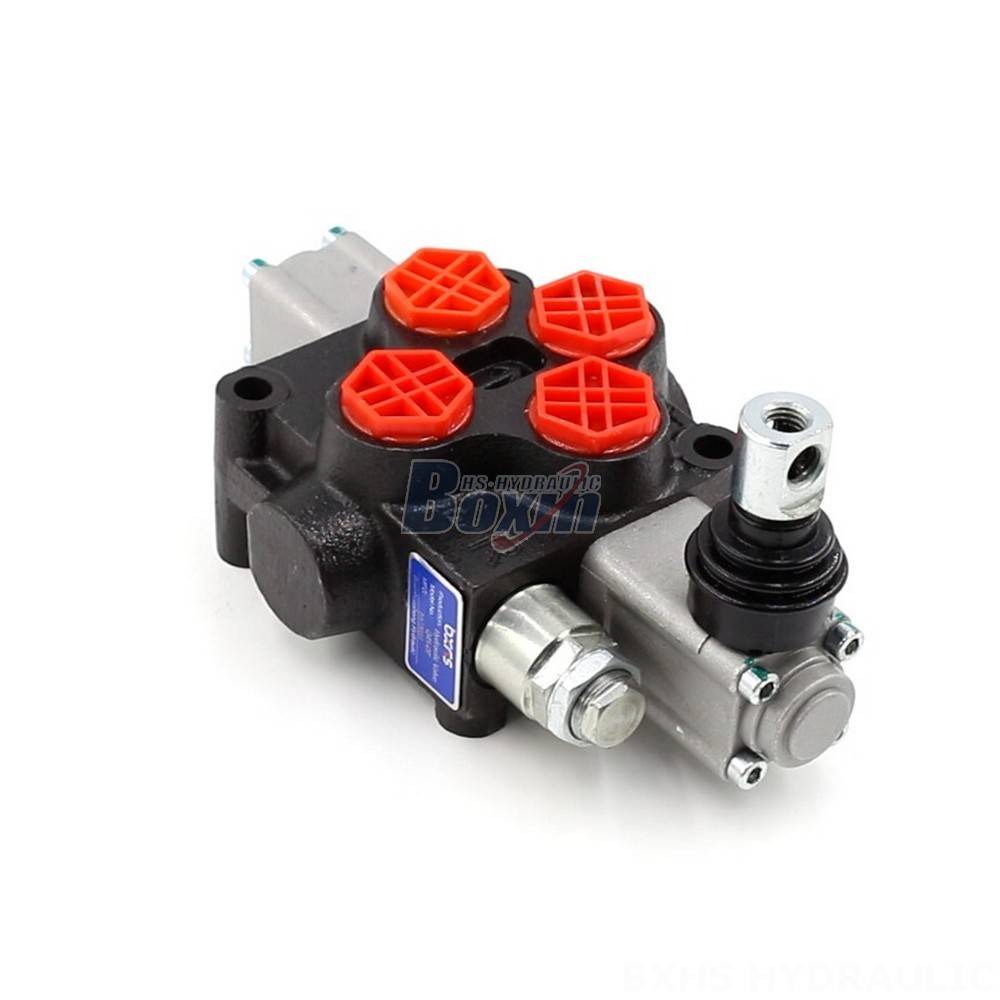

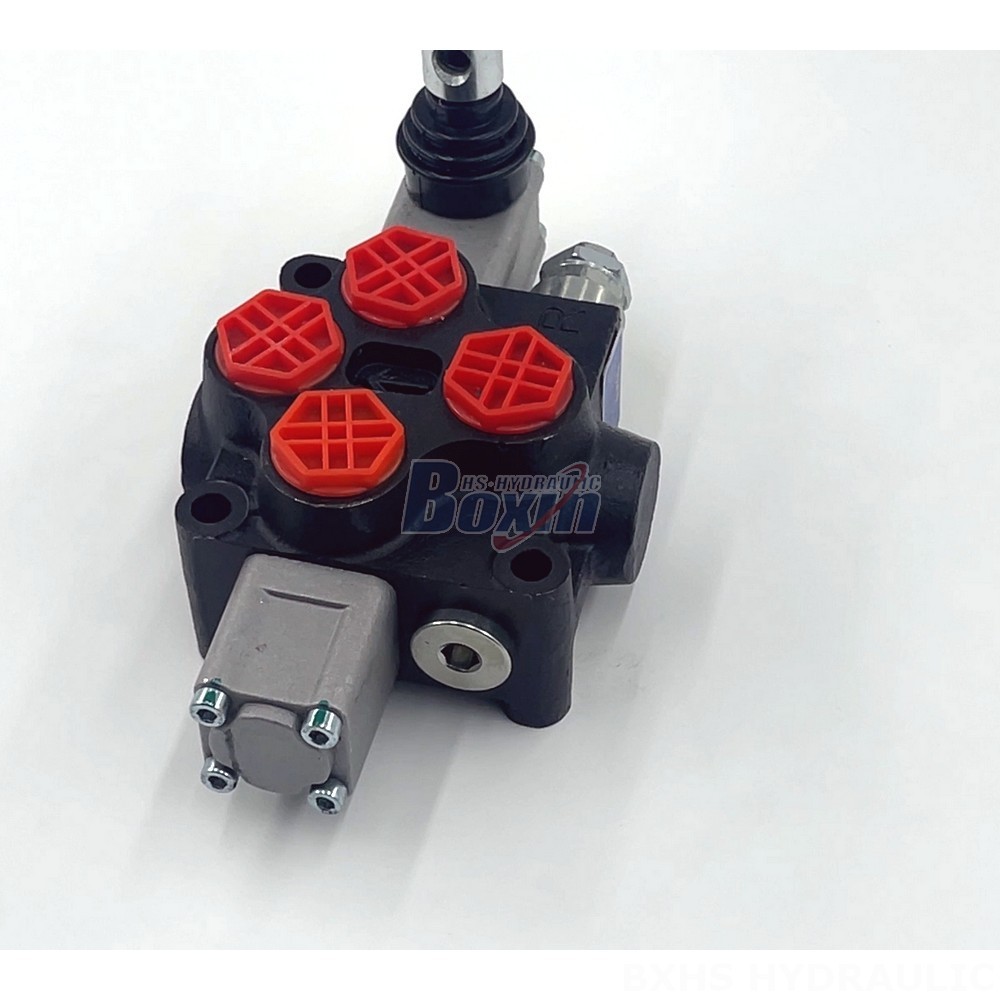

The Q45 Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in various industrial and mobile applications. Featuring a manual control method, single section design, and monoblock construction, this valve offers precise flow control and reliable operation.
| Seri Q45 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Stik Kontrol, Solenoid dan Manual, Elektromagnet Manual dan Push-pull, Elektromagnet Push-pull |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -20°C hingga +80°C (-4°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 45 L/menit (11,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2 |
| Port Keluar | G1/2 |
| Ukuran Port | G1/2 |
**Key Features:**
- Manual control for precise operation
- Monoblock construction for durability and compact size
- Rated flow of 45 L/min (11.8 US gpm)
- Maximum pressure of 315 bar (4600 psi)
- Single spool design for simple flow control
**Applications:**
- Material handling equipment
- Construction and earth moving machinery
- Agricultural vehicles
- Industrial vehicles
- Telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders
