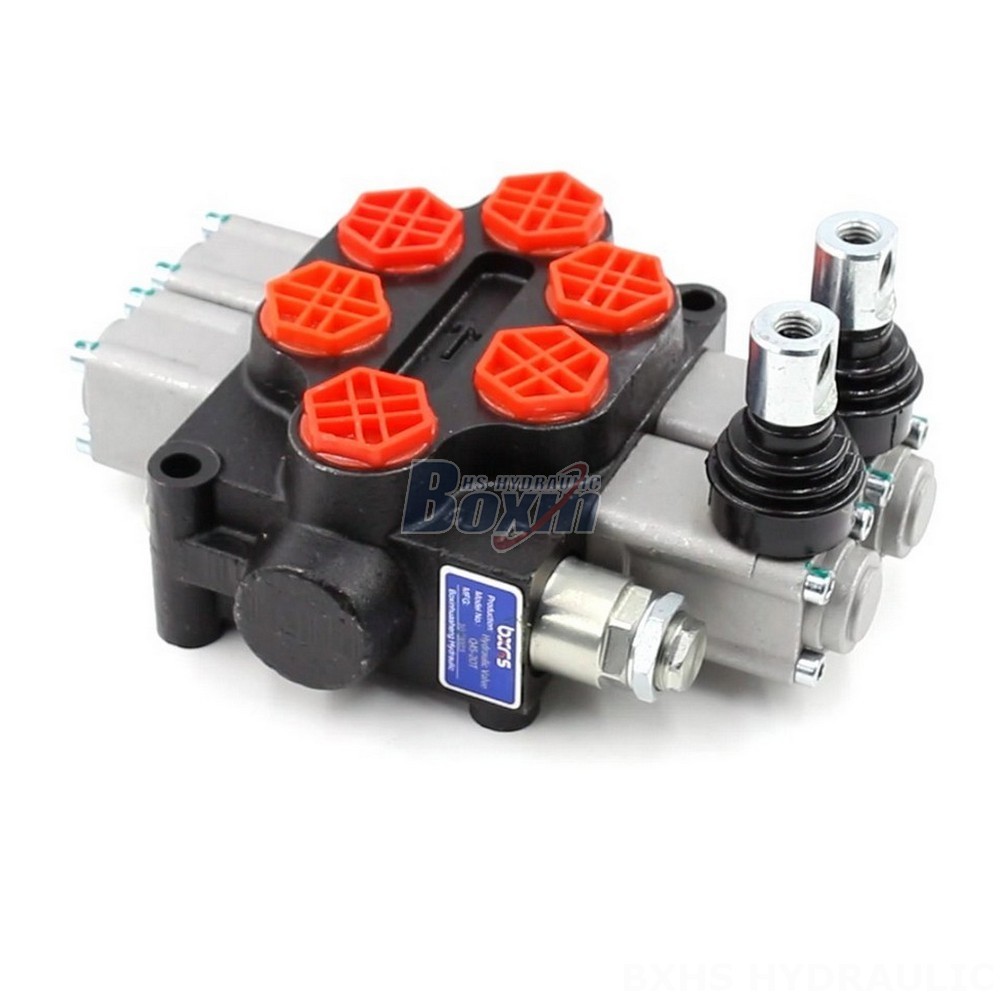

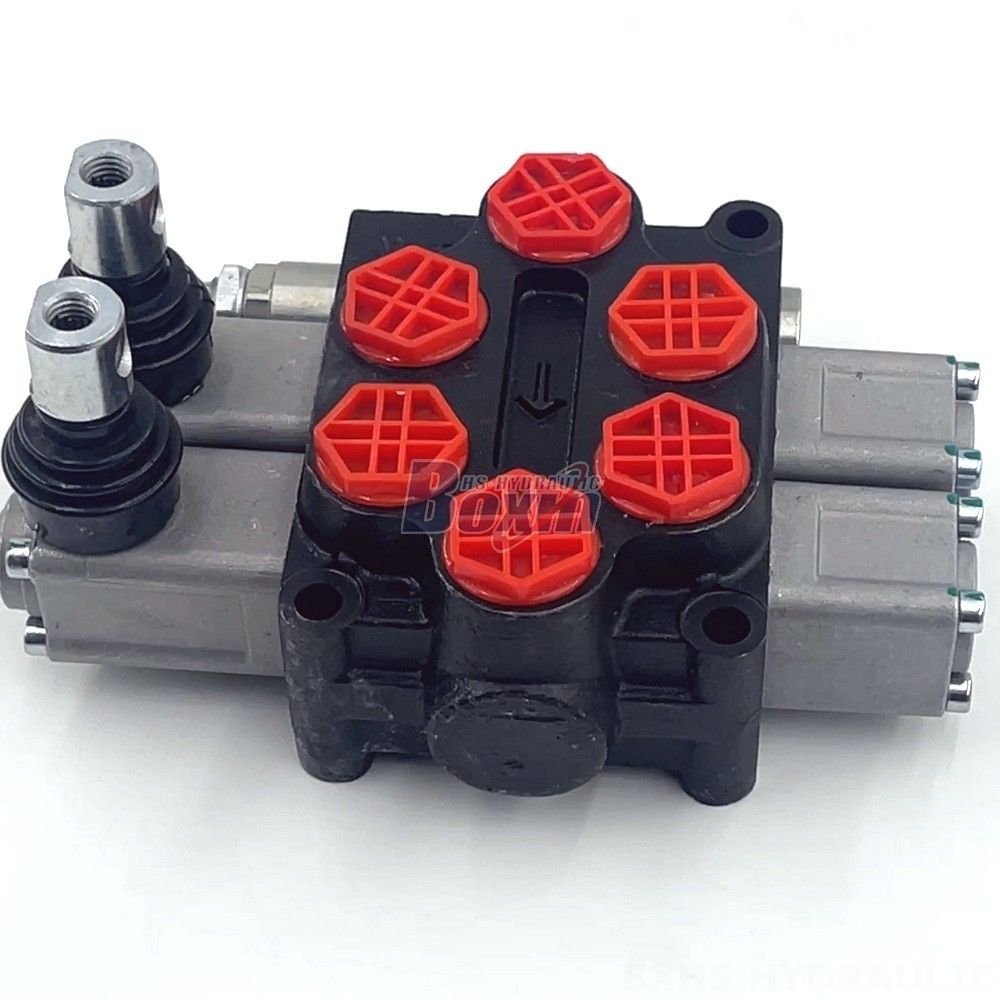

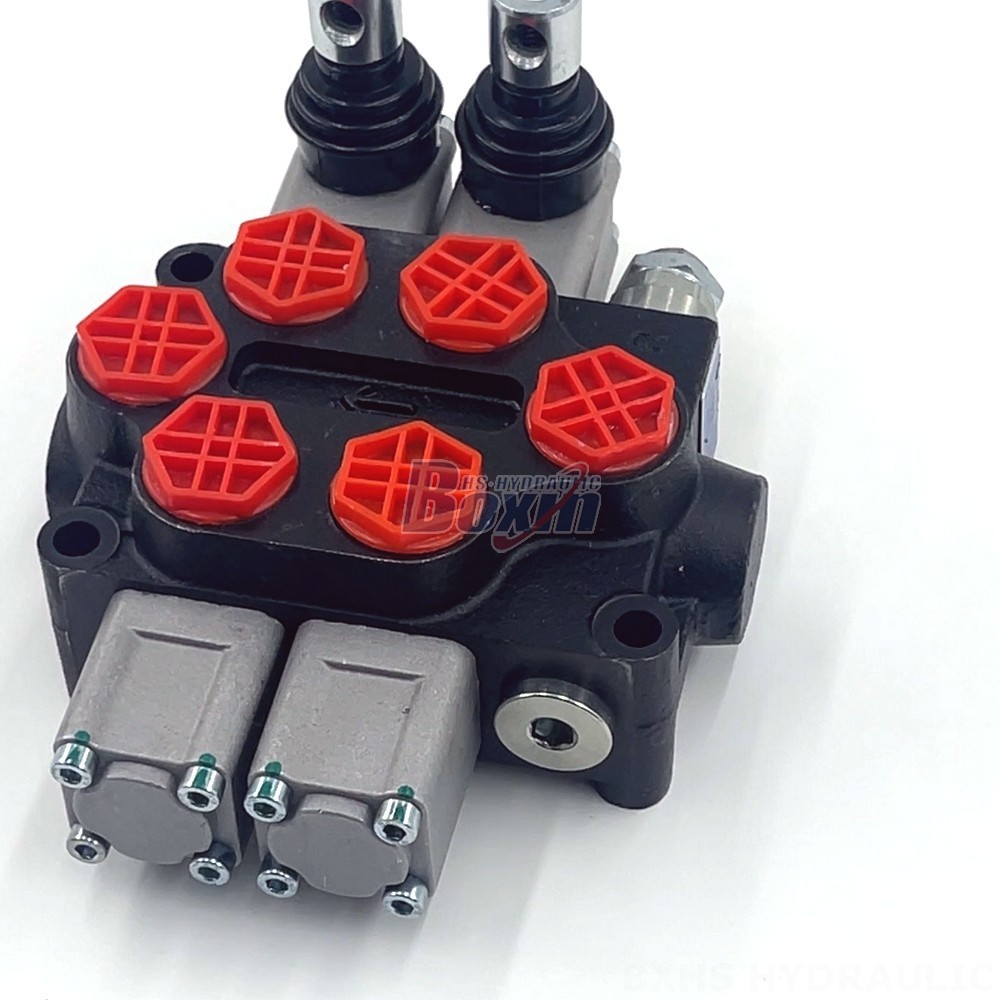

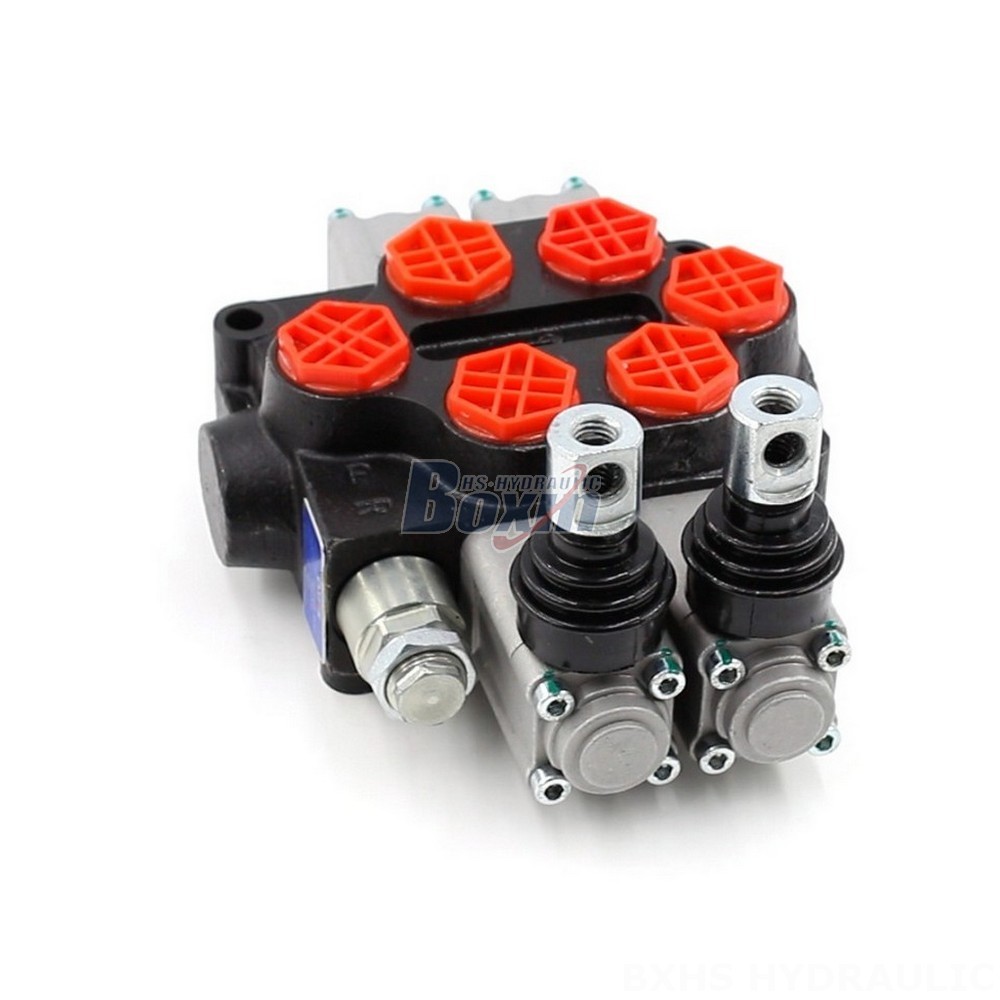

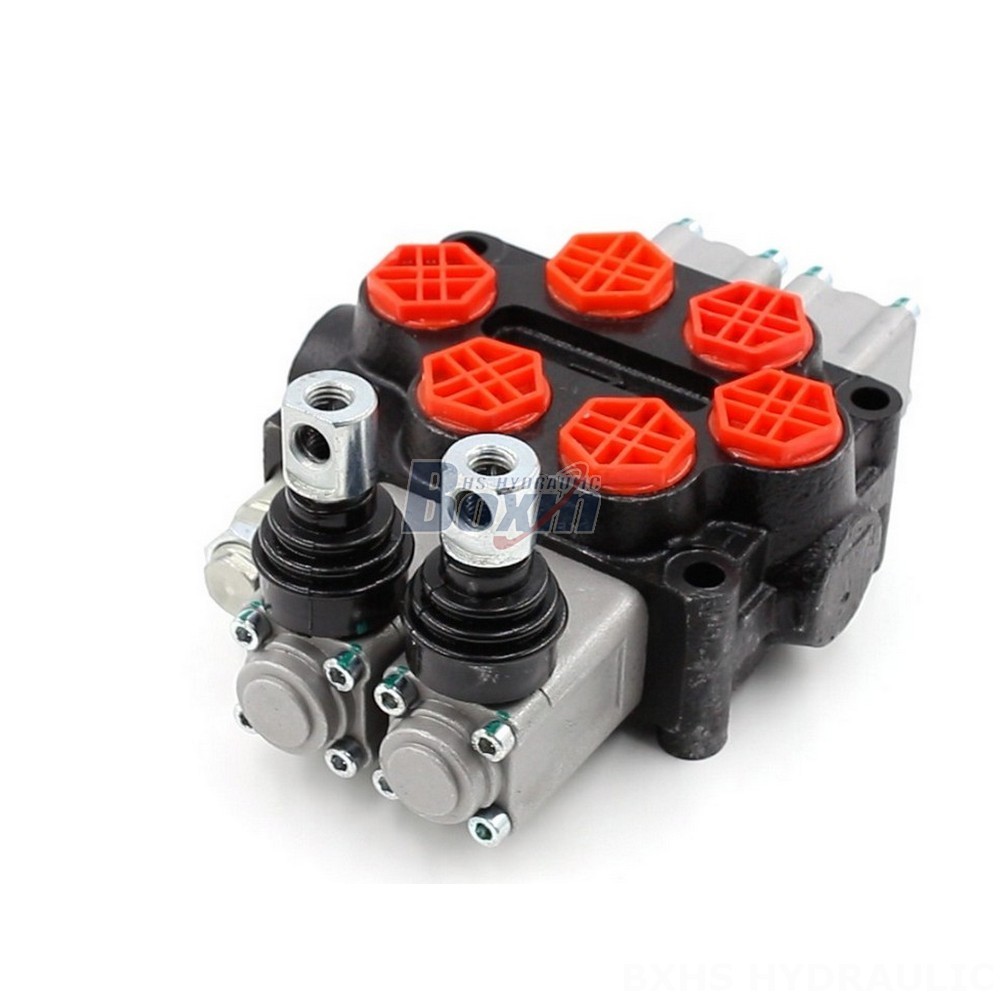

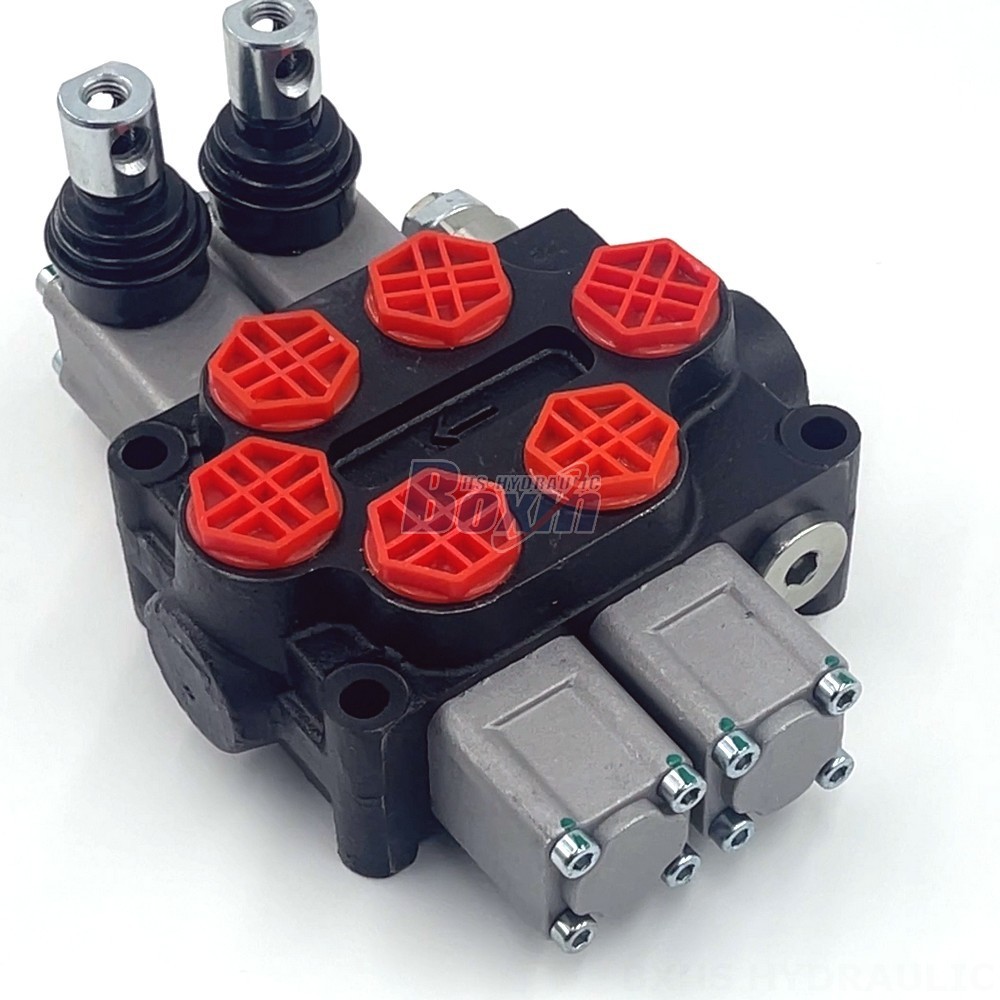

This is a high-performance Q45 Series Dual Spool Hydraulic Valve, designed for manual control in various applications. This 2-section monoblock valve offers a rated flow of 45 L/min and a maximum pressure of 315 bar. It is perfect for material handling, construction, agriculture, and industrial vehicles like telehandlers, forklifts, and excavators.
| Seri Q45 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Stik Kontrol, Solenoid dan Manual, Elektromagnet Manual dan Push-pull, Elektromagnet Push-pull |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -20°C hingga +80°C (-4°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 45 L/menit (11,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2 |
| Port Keluar | G1/2 |
| Ukuran Port | G1/2 |
This Dual Spool Hydraulic Valve, part of the Q45 series, is a manually controlled, 2-section monoblock directional valve. It offers a robust design with a rated flow of 45 liters per minute and a maximum operating pressure of 315 bar (4600 psi). This valve is specifically engineered for applications requiring precise control in material handling, construction, agriculture, and industrial vehicles. Ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
