Production & Delivery
15-30 Days Production Lead Time

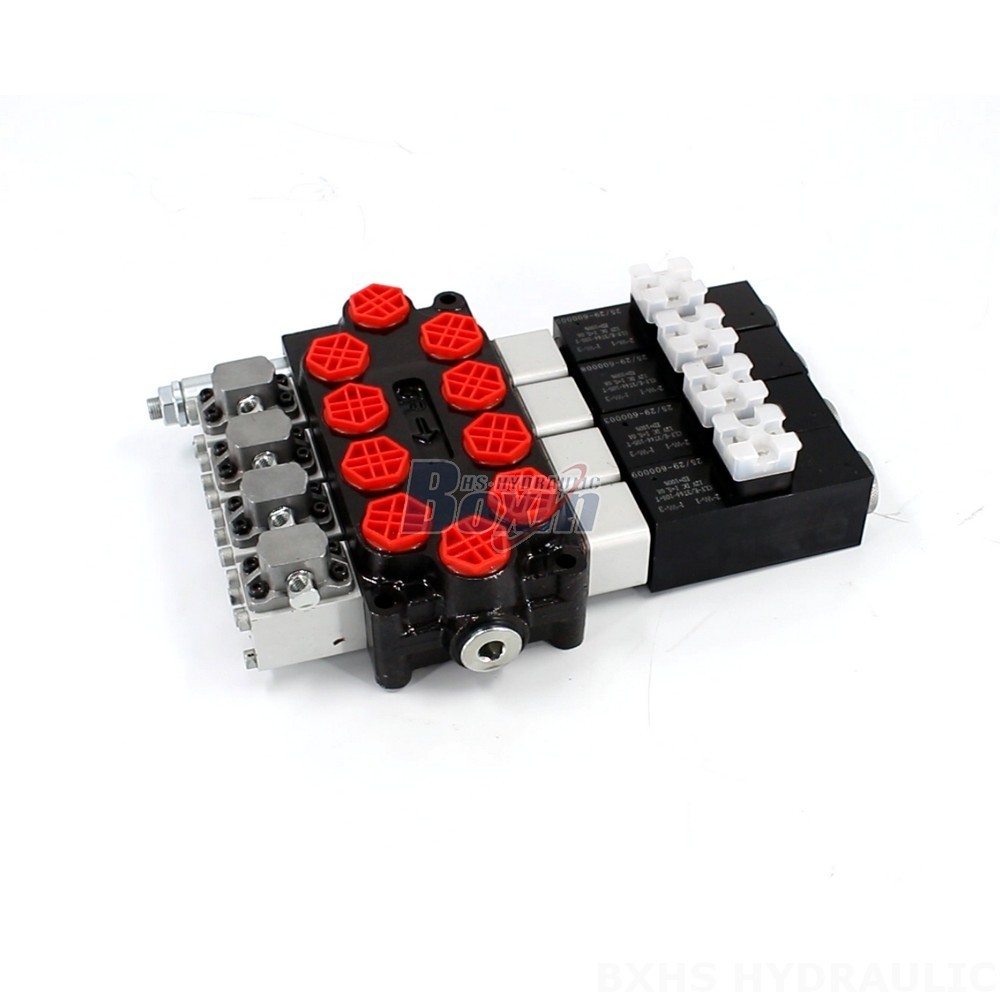

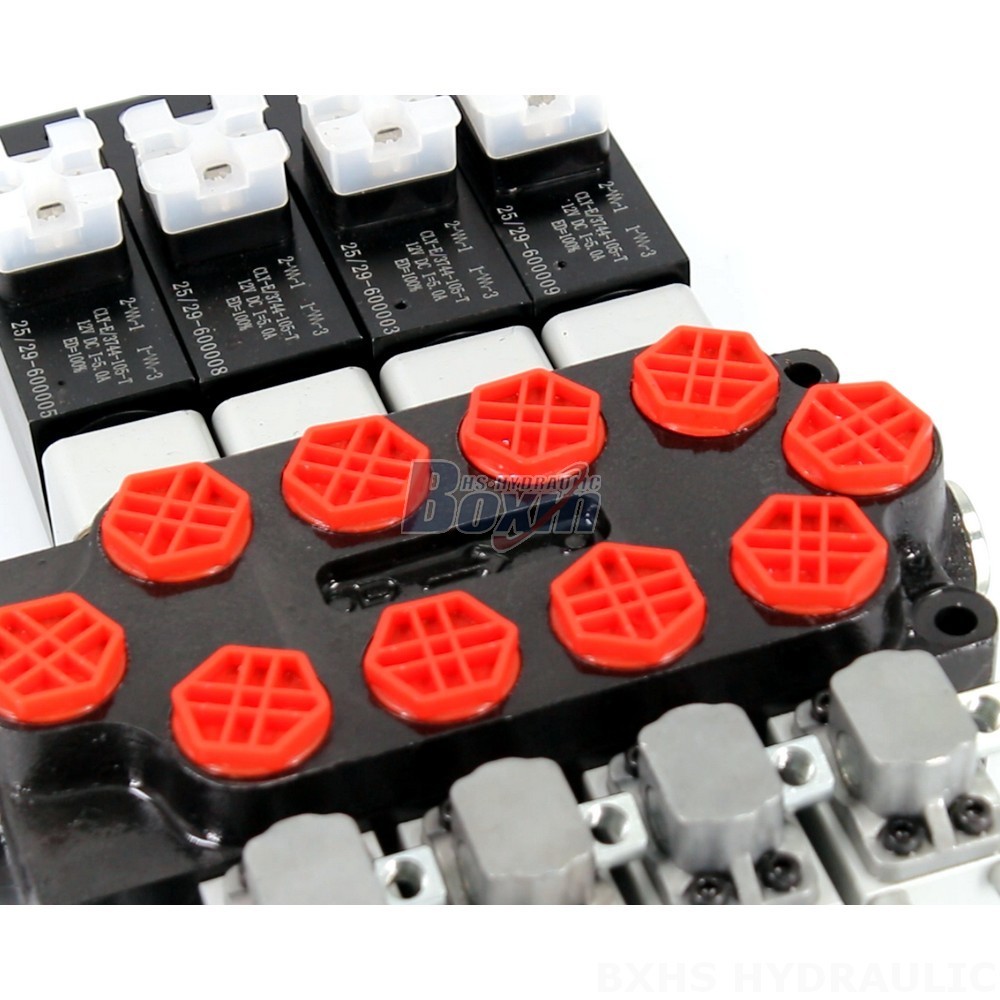

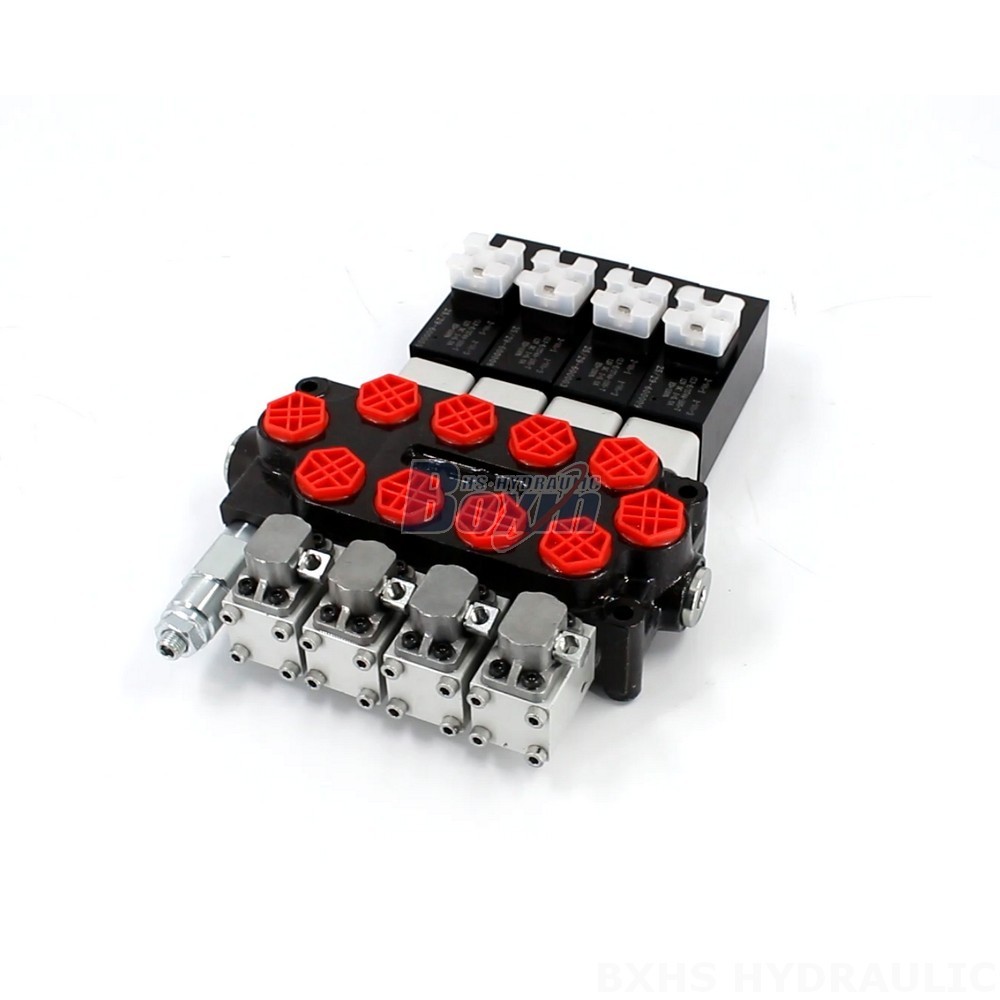

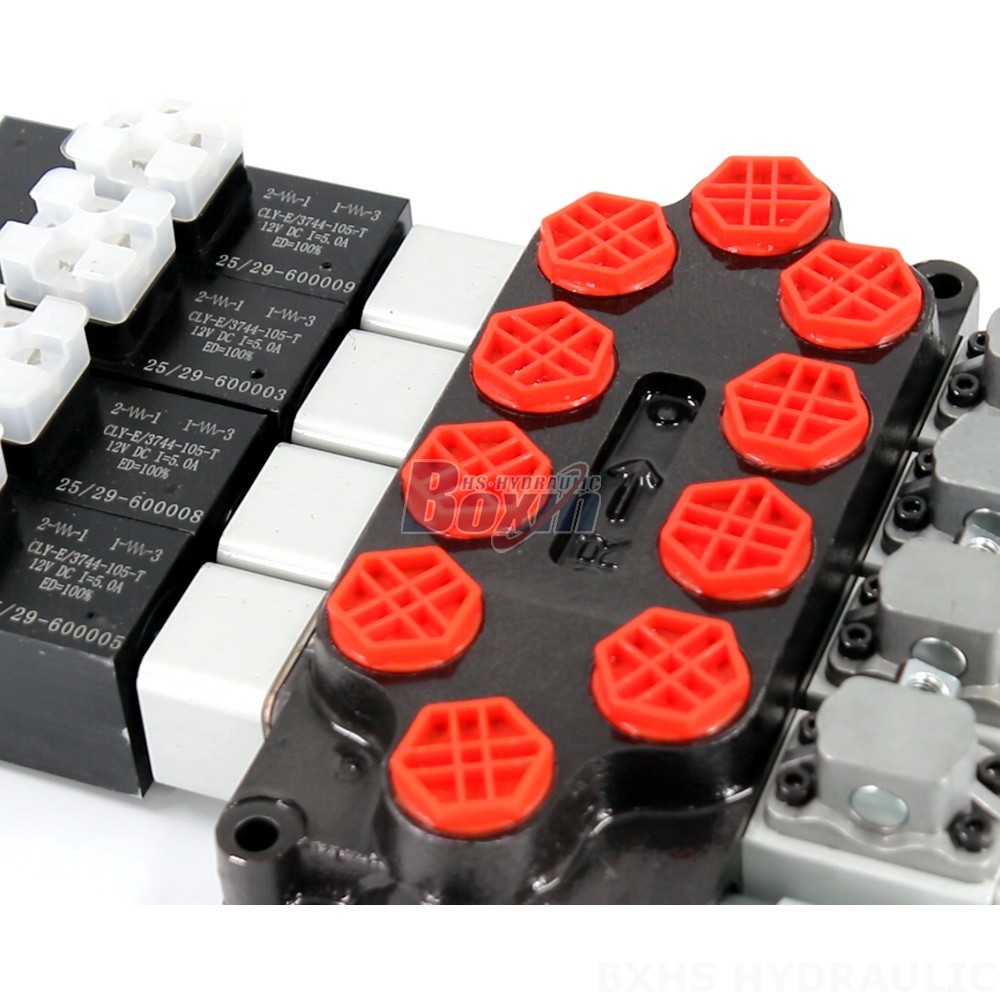

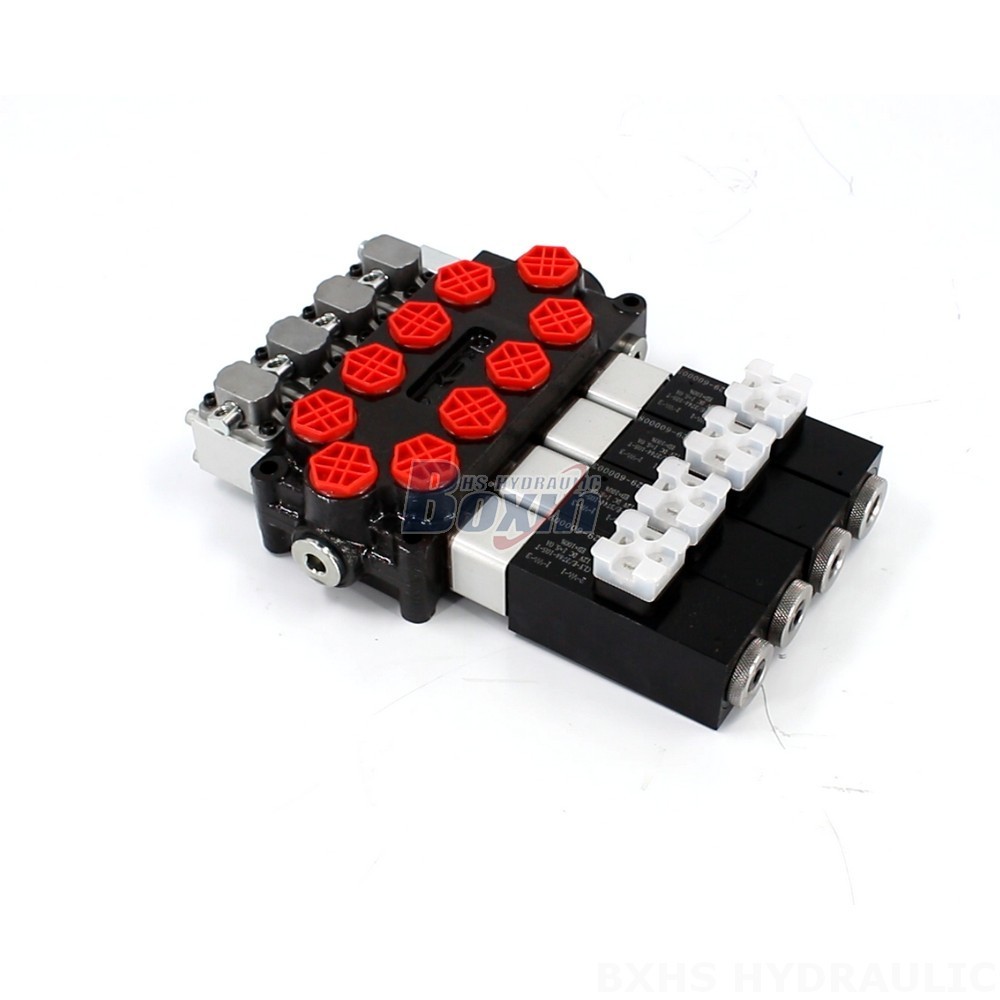

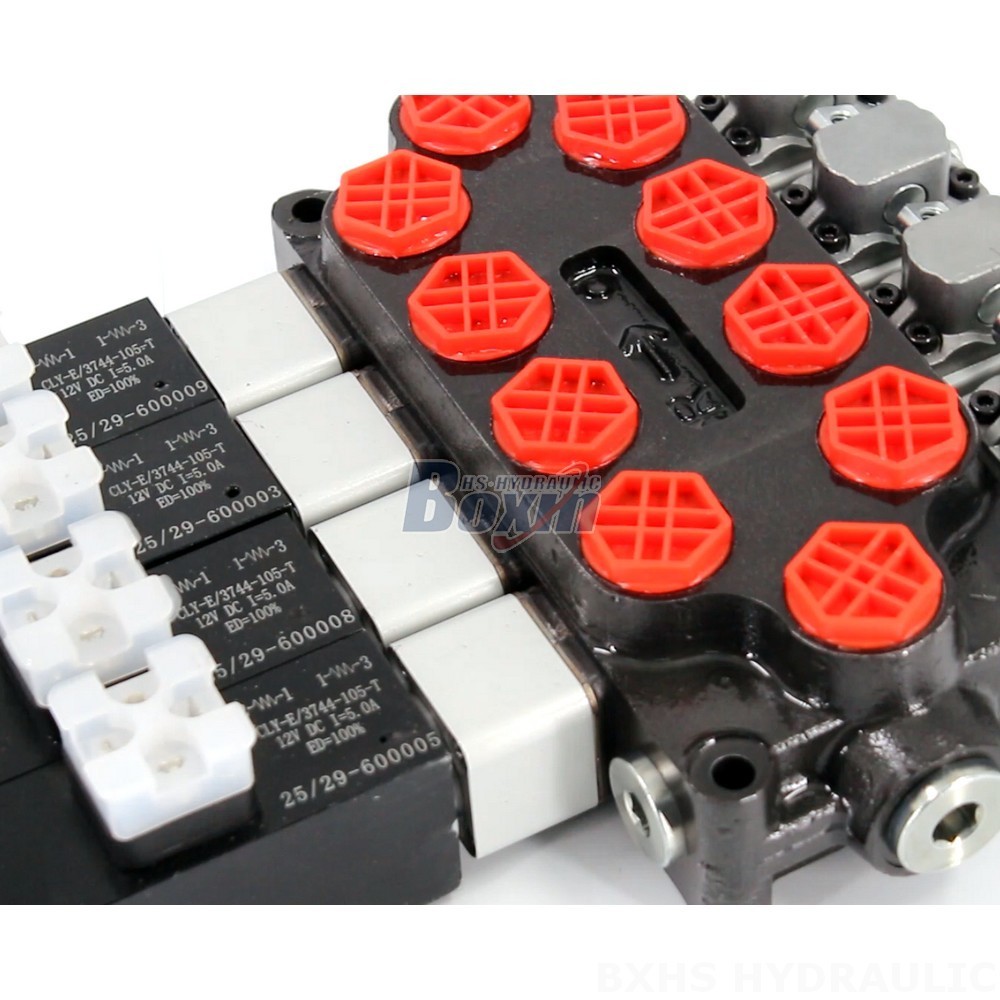

A versatile Q45 series monoblock hydraulic directional valve, featuring solenoid and manual control for precise flow management. With a 45 L/min rated flow and 315 bar pressure capacity, this 4-spool valve is suitable for a range of material handling, construction, agriculture, and industrial vehicle applications.
| Seri Q45 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Stik Kontrol, Solenoid dan Manual, Elektromagnet Manual dan Push-pull, Elektromagnet Push-pull |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -20°C hingga +80°C (-4°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 45 L/menit (11,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2 |
| Port Keluar | G1/2 |
| Ukuran Port | G1/2 |
As an experienced manufacturer of hydraulic products, we offer the Q45 Solenoid & Manual 4 Spool Monoblock Hydraulic Directional Valve for global markets. This robust **monoblock control valve** features both **solenoid and manual control**, providing versatile and precise **hydraulic directional** flow management. Engineered for demanding applications, it boasts a **45 L/min rated flow** and a **315 bar max pressure**, making it a reliable **high pressure valve**. The **4-spool hydraulic** design ensures adaptability across various machinery.
Our **Q45 series valve** is widely applicable in **material handling**, **construction equipment**, and **agriculture machinery**, including telehandlers, forklifts, mini-excavators, skid steer loaders, wheel loaders, backhoe loaders, tractors, harvesters, aerial platforms, and all-terrain cranes. This **mobile hydraulic valve** is a critical **hydraulic system part** for many **industrial vehicle** applications.
We specialize in comprehensive partnership opportunities. As a dedicated **hydraulic manufacturer**, we provide **OEM hydraulic** and **ODM hydraulic** services, **private label valve** solutions, and **custom hydraulic** options to meet specific client requirements. We also offer **wholesale hydraulic** products directly from our factory, ensuring competitive pricing and reliable supply.
We are actively seeking strong partnerships with **distributors**, **wholesalers**, **agents**, and **traders** worldwide. Benefit from direct **factory supply** and **factory wholesale** pricing. Contact us for inquiries about our **hydraulic components** and collaboration opportunities.
