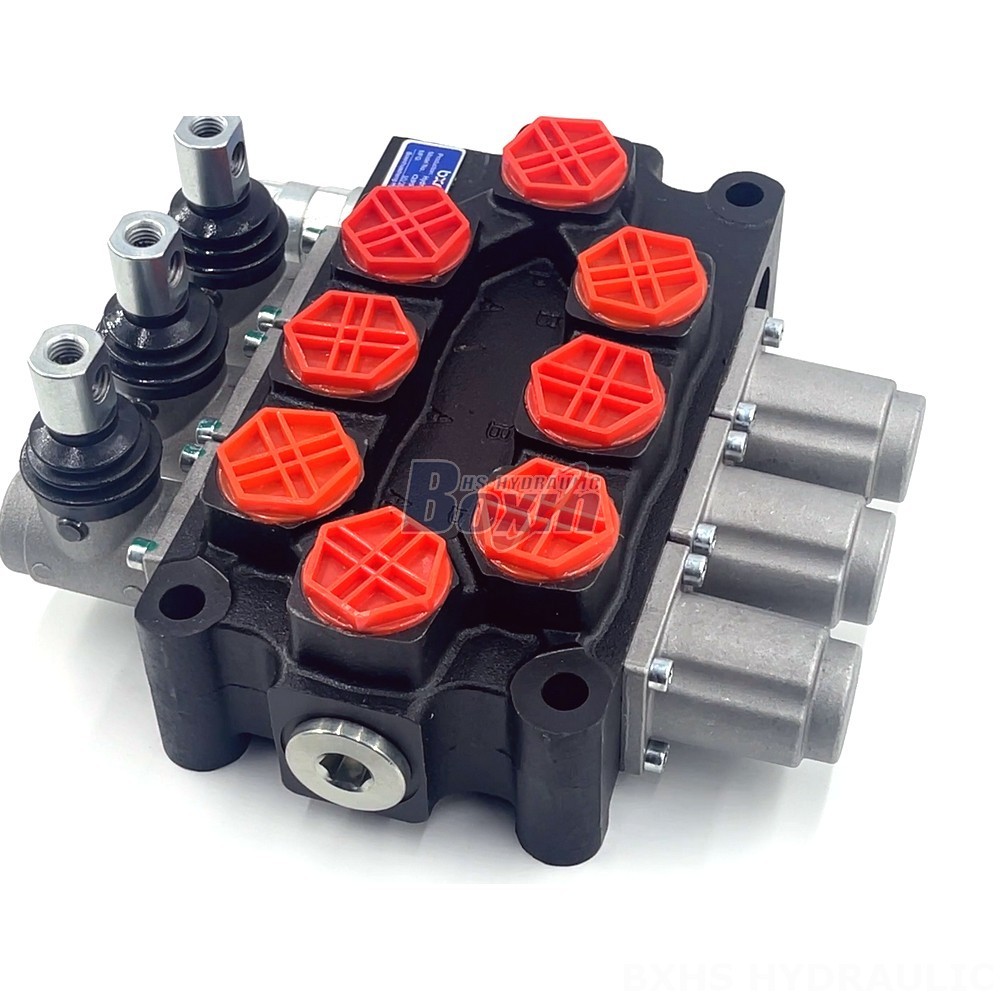

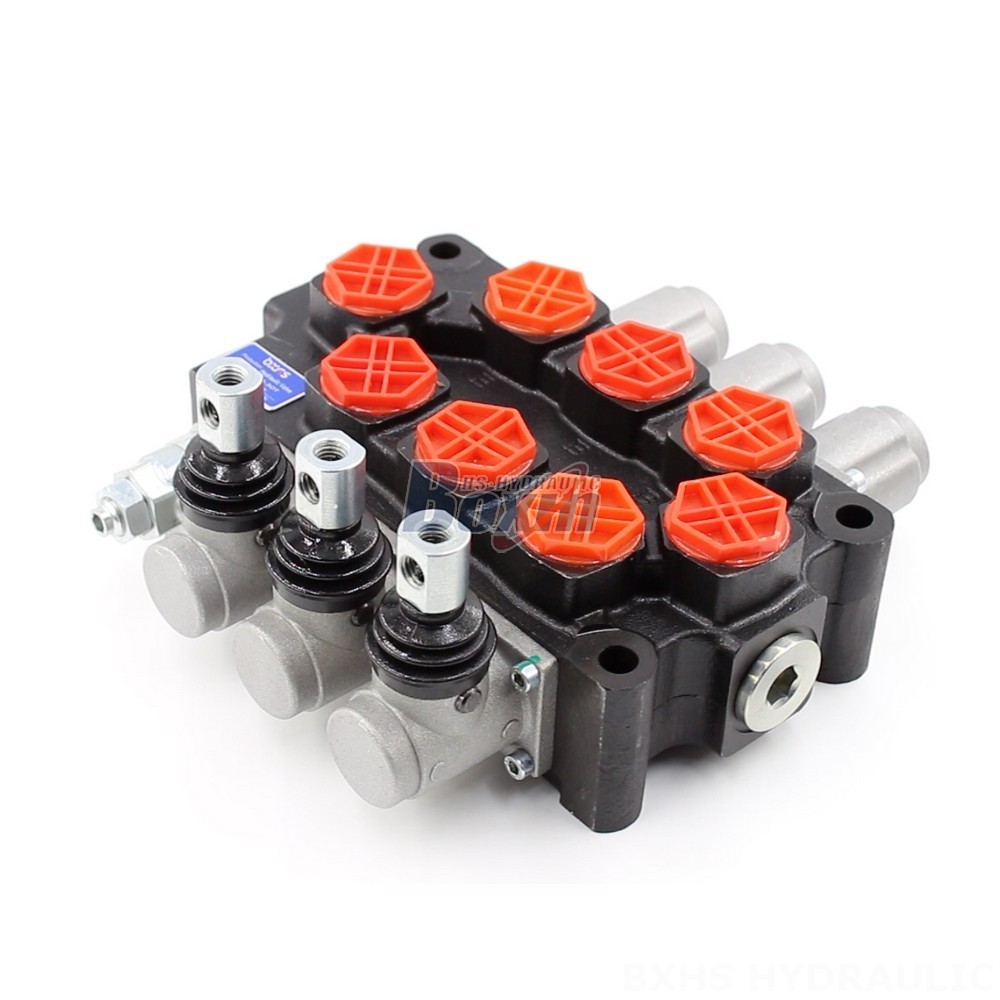

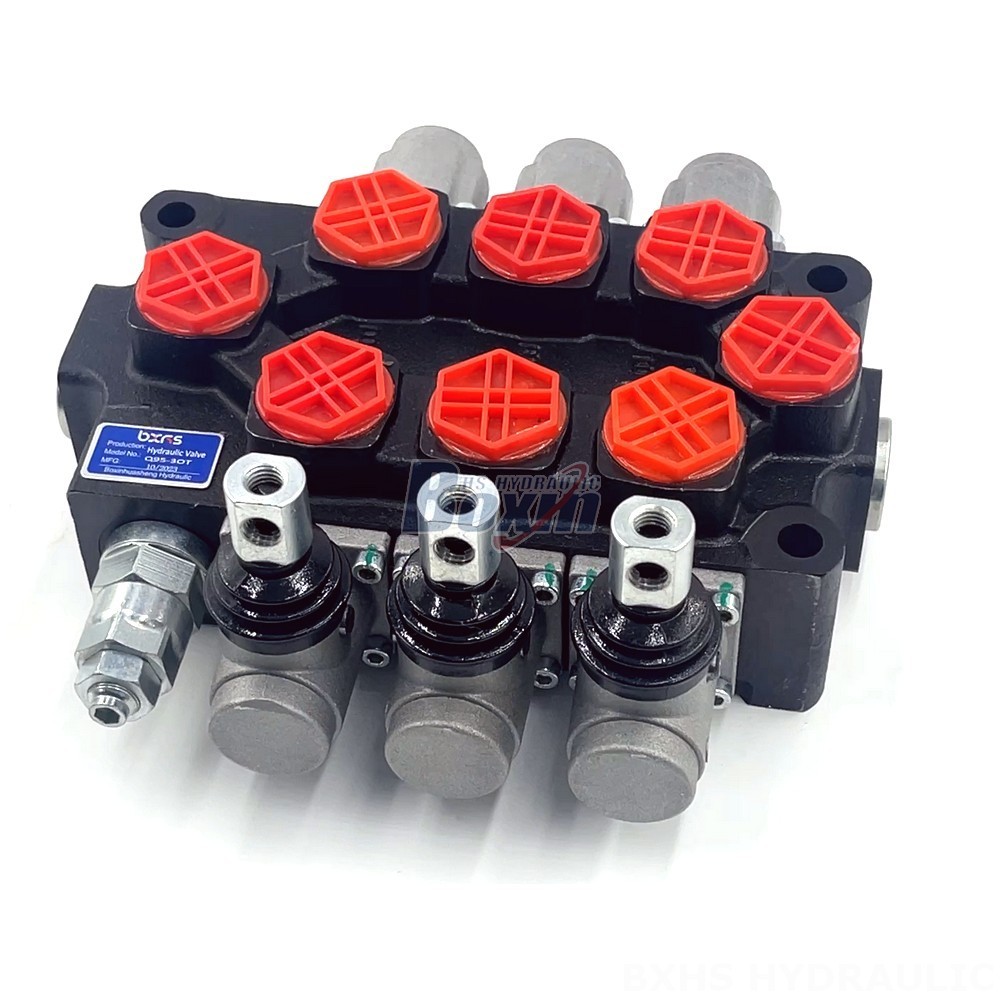

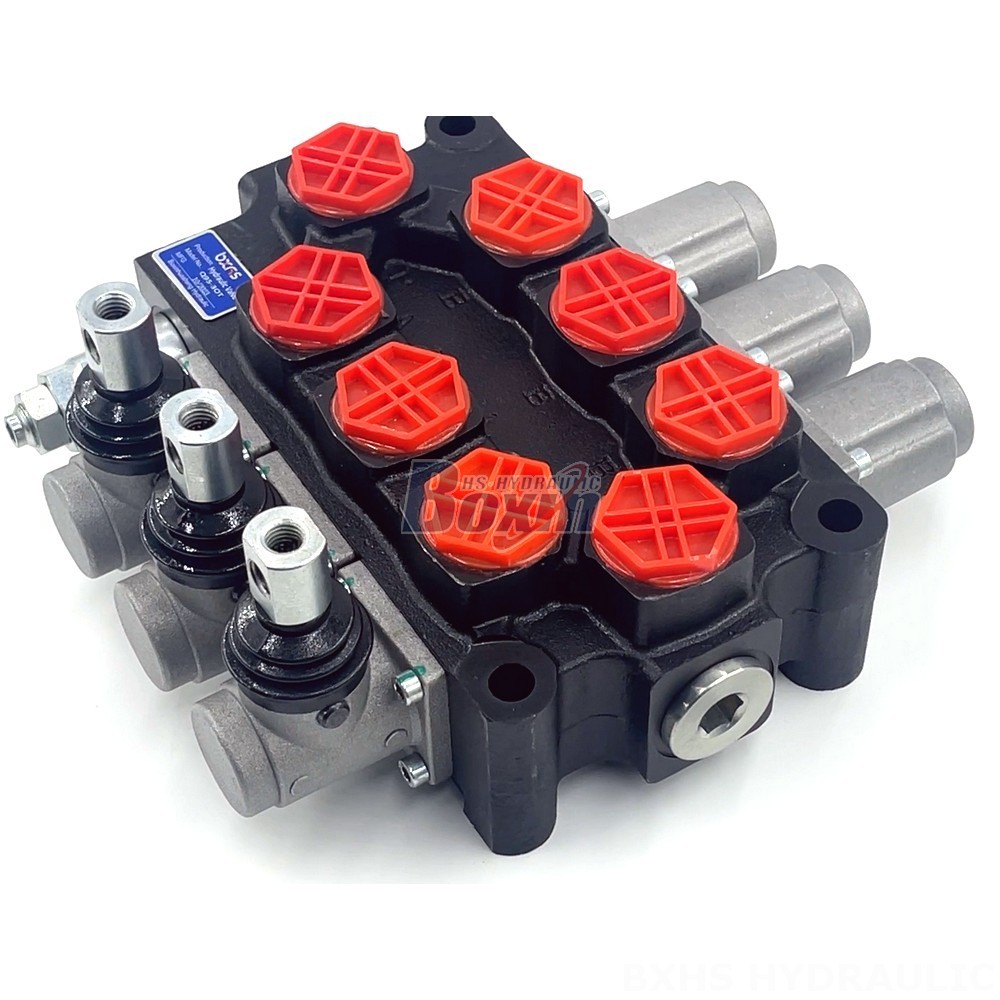

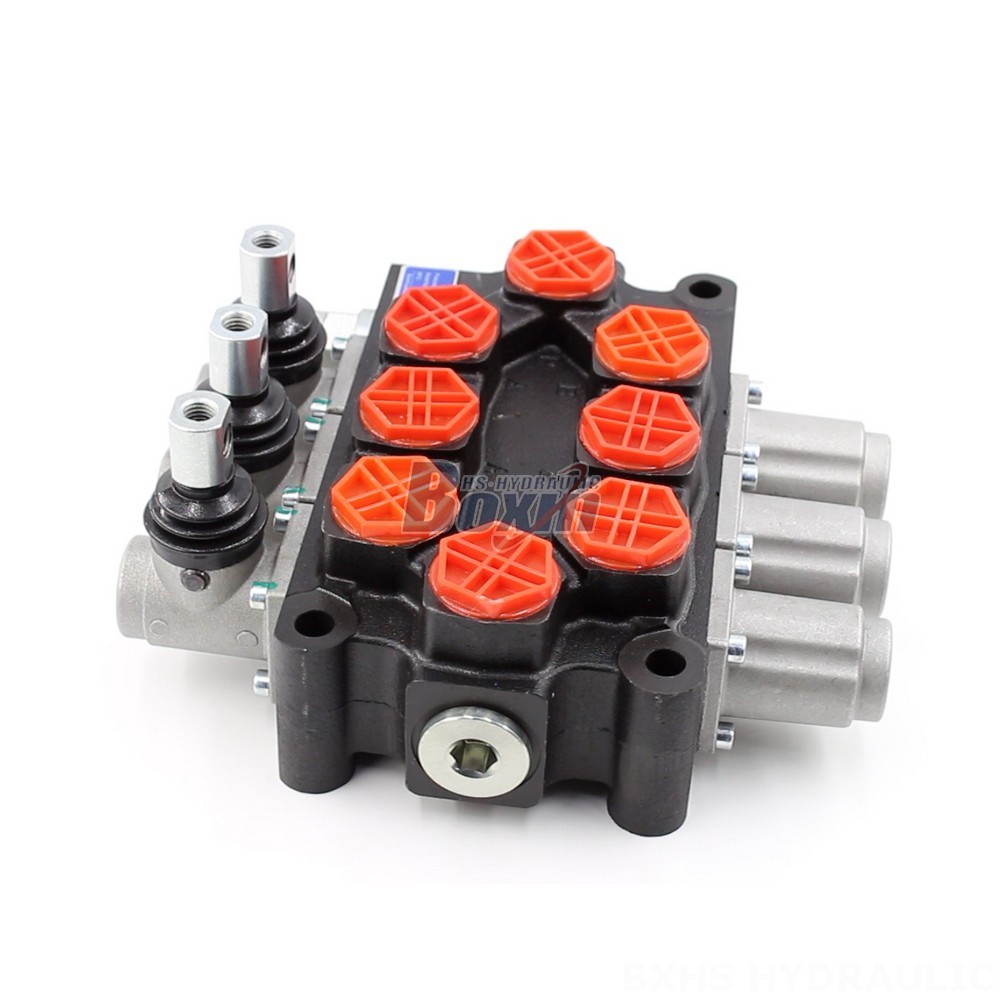

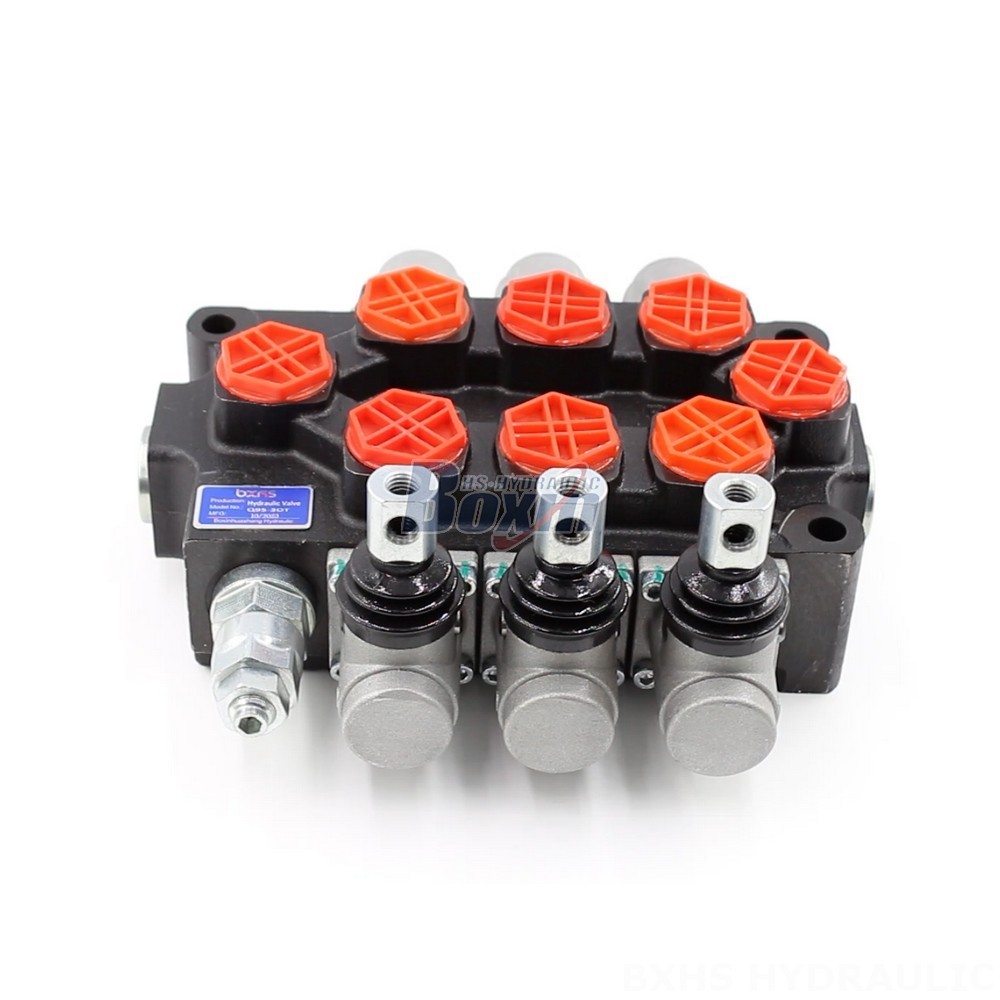

The Q95 Manual 3 Spool Monoblock Directional Valve is a precision-engineered hydraulic component designed for optimal fluid control in demanding applications. Its robust monoblock construction and high-quality materials ensure durability and reliability.
| Seri Q95 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Aliran Terukur | 95 L/menit (25,1 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/4 |
| Port Keluar | G3/4 |
| Ukuran Port | G3/4 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
**Key Features of the Q95 Manual 3 Spool Monoblock Directional Valve:**
* Manual control for precise fluid flow regulation
* Monoblock design for compact and leak-proof operation
* 3-spool configuration for versatility and control of multiple fluid paths
* Rated flow of 95 L/min (25.1 US gpm) for efficient fluid transfer
* Max pressure of 315 bar (4600 psi) for handling high-pressure hydraulic systems
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in diverse environments
* Wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles
