Quality Assured: Certified Production of P40-DKL Directional Valves

Metode Kontrol:Selenoid

Spul:1 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:P40-DKL Series Katup Arah Monoblok

Ukuran kemasan:31*16*17

Kelas kotor:5.30 kg

Ketersediaan: Tersedia

1199 Pandangan Mencari Produk Ini

Quality Assured: Certified Production of P40-DKL Directional Valves

Quality Assured: Certified Production of P40-DKL Directional Valves

Quality Assured: Certified Production of P40-DKL Directional Valves drawing image

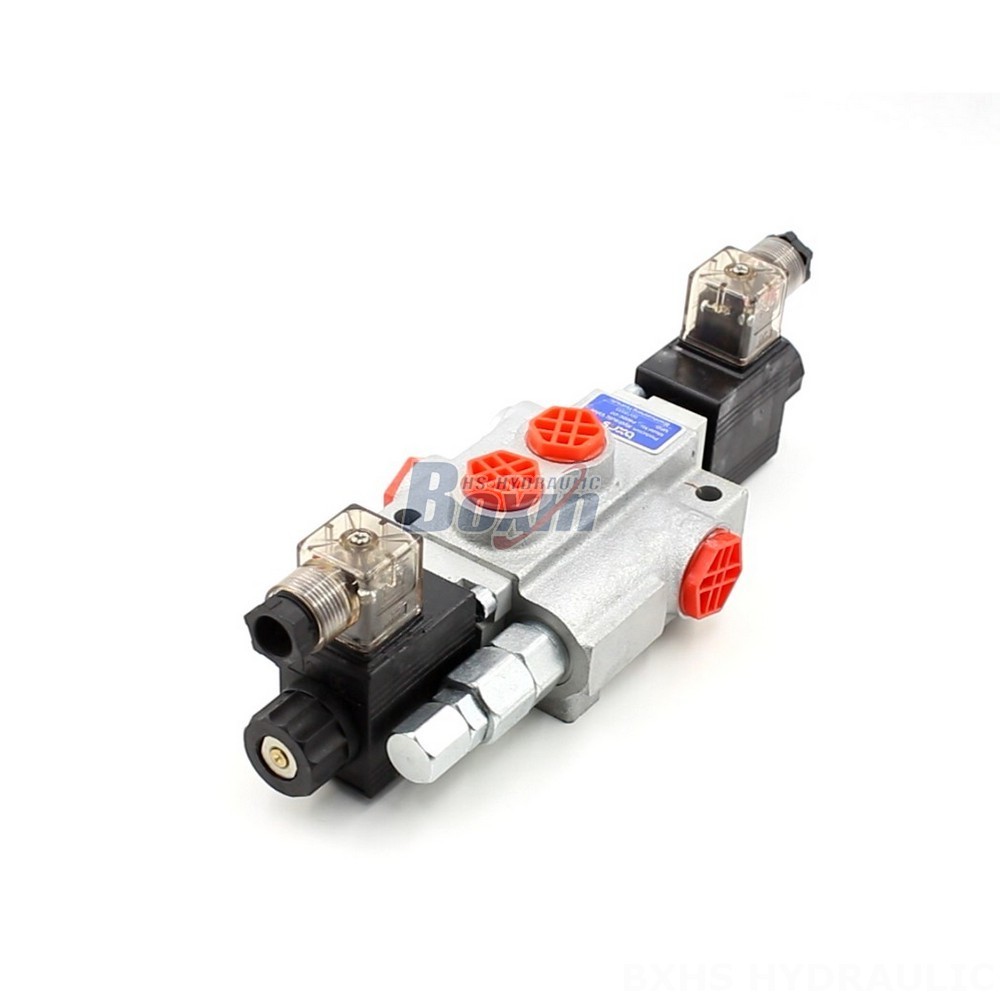

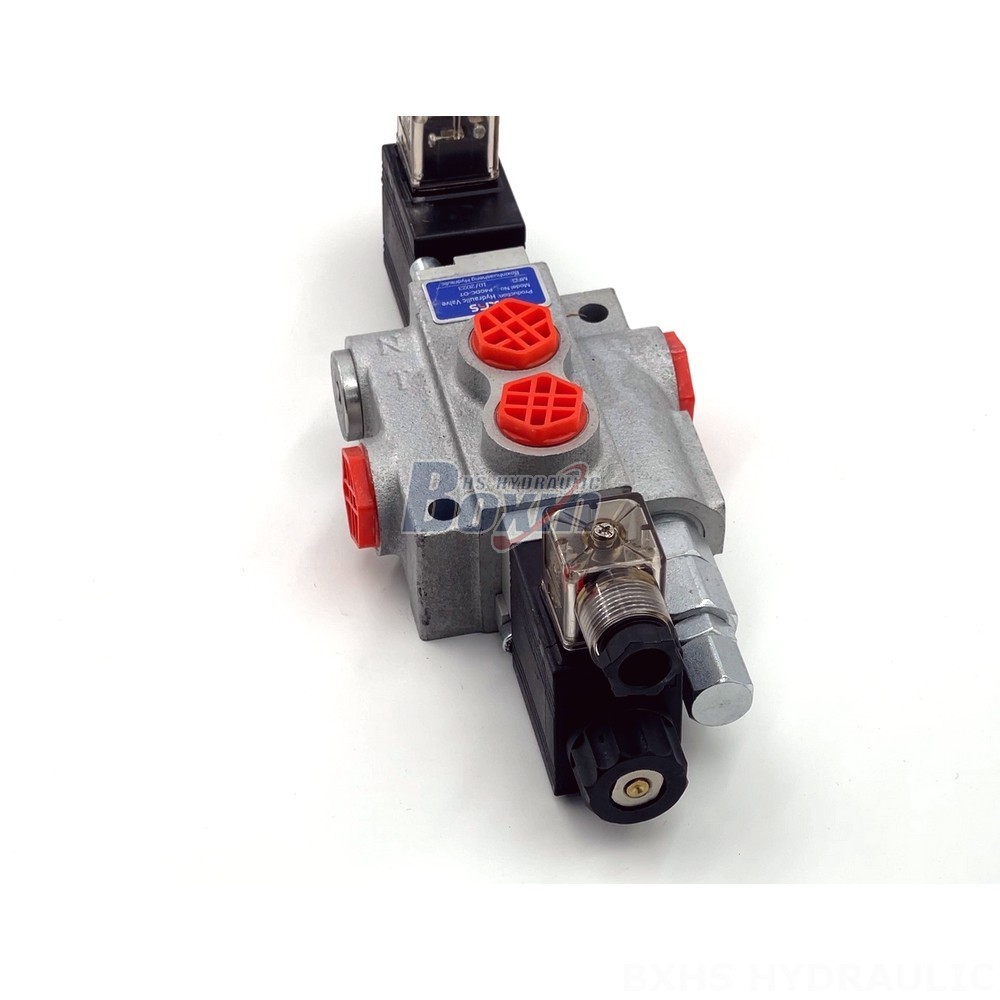

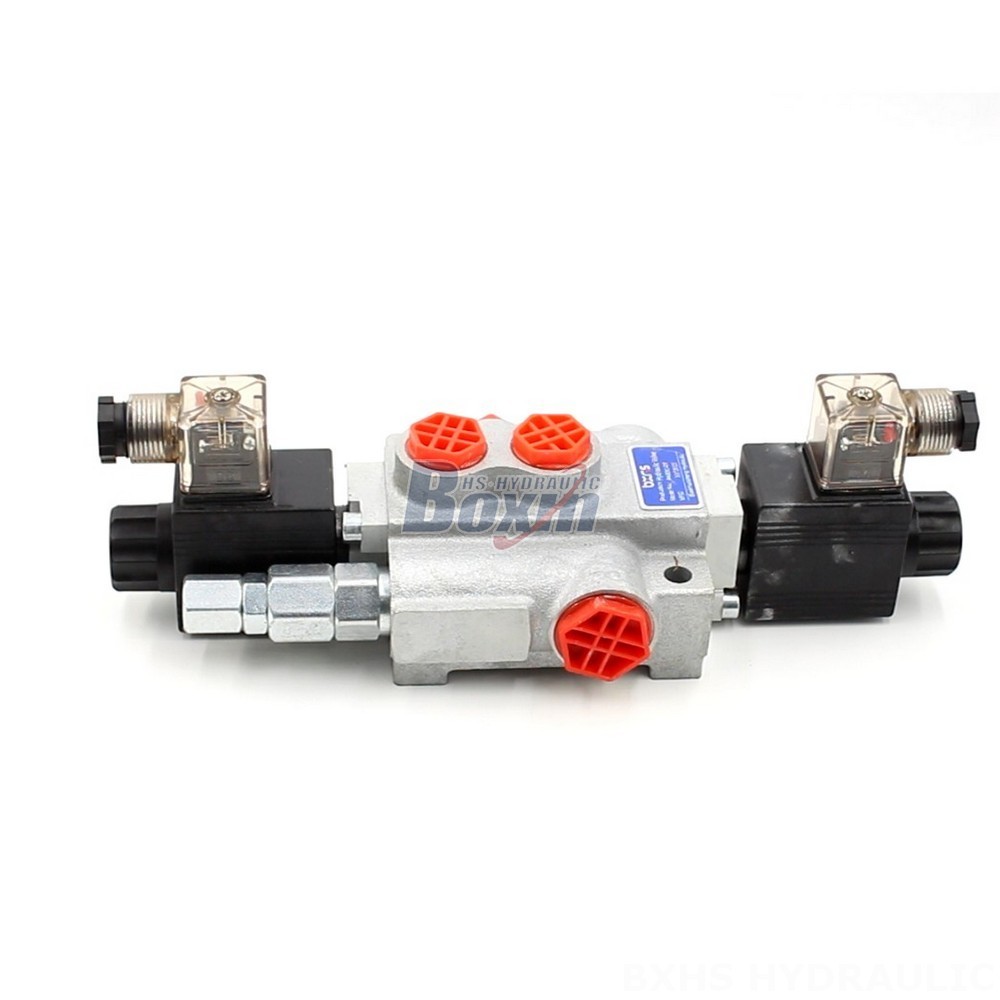

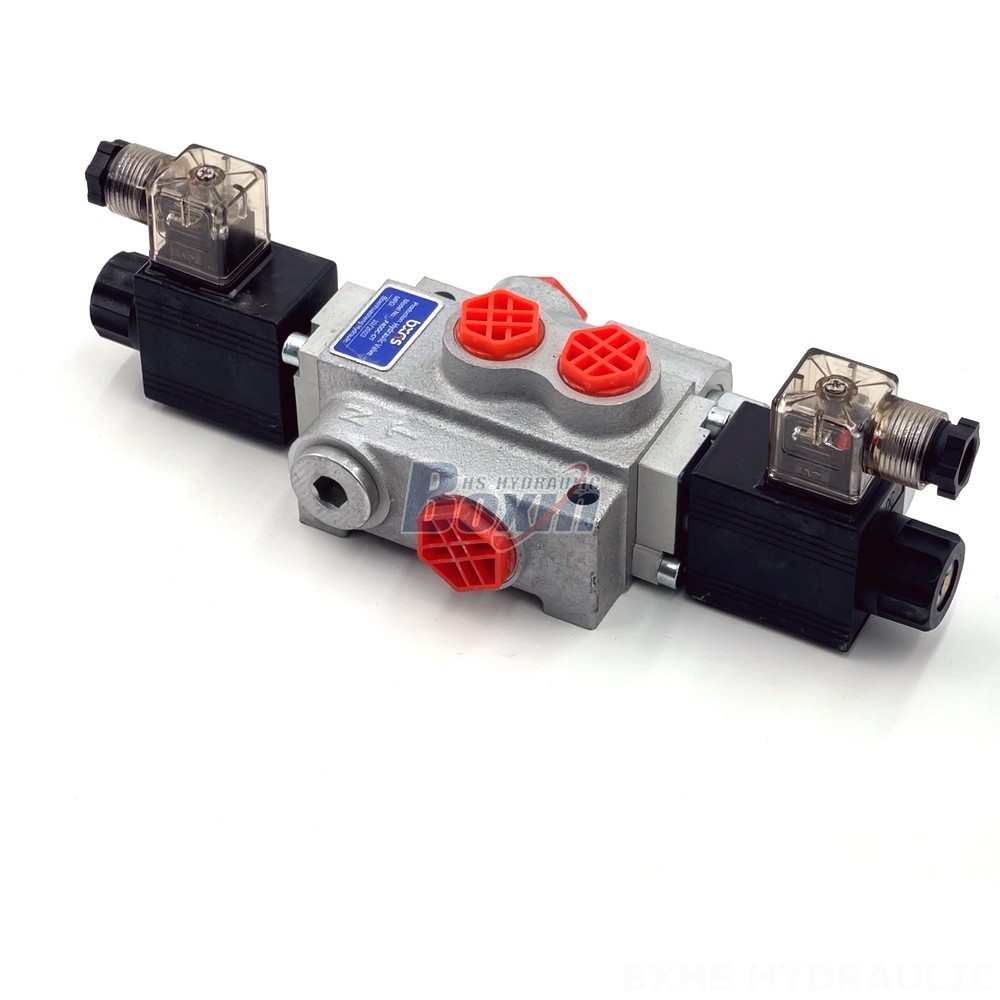

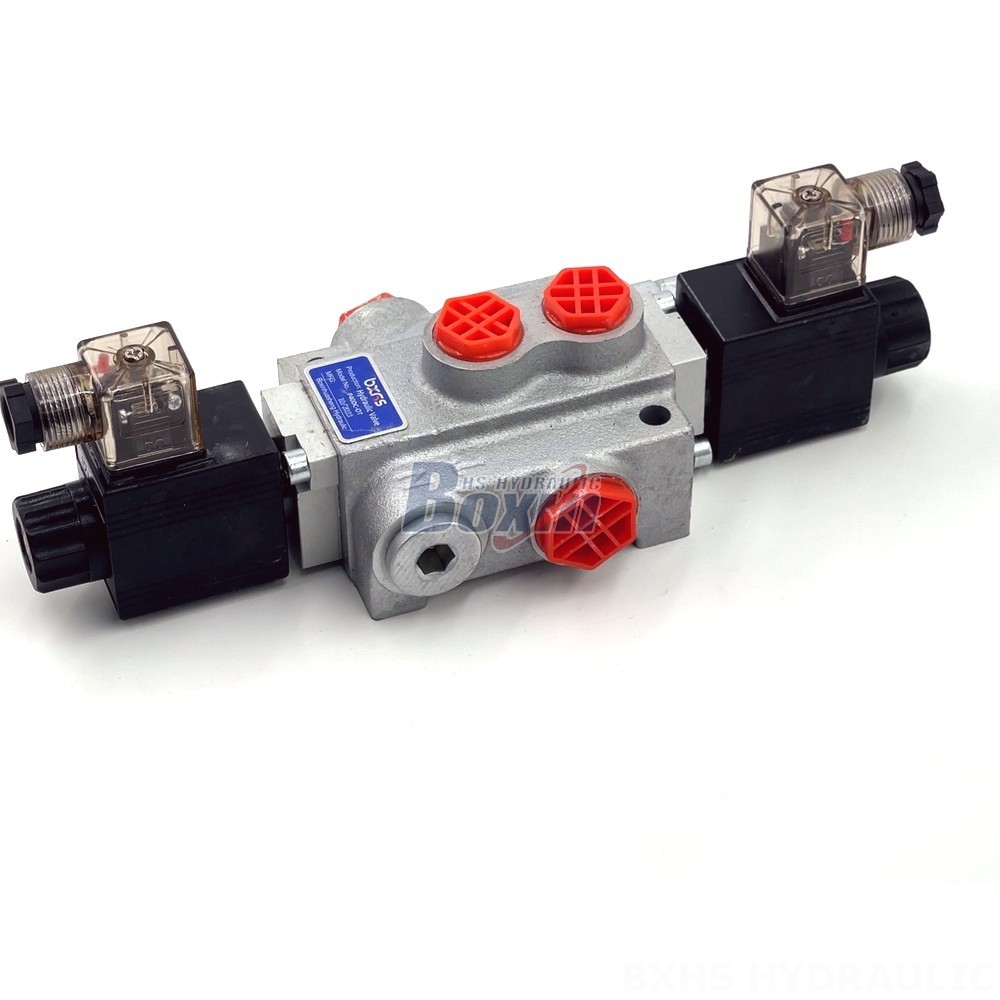

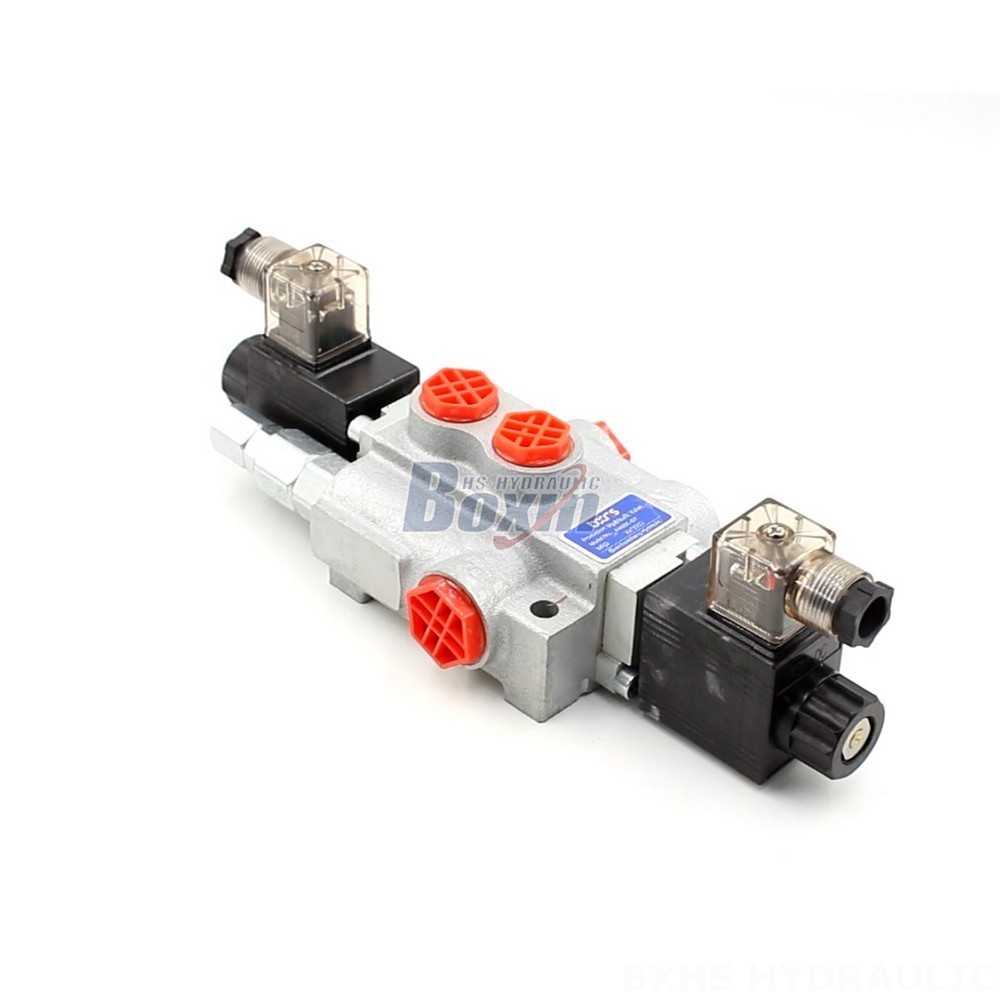

The Hydraulic Distributor R 80 is a high-quality, certified directional valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a monoblock design with solenoid control and a rated flow of 40 L/min.

P40-DKL Series Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Tipe Struktur Katup monoblok
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)

The Hydraulic Distributor R 80 is a P40-DKL series monoblock valve with solenoid control. This high-quality directional valve is certified for its reliable performance and durability. It features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve is designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. Specifically, it is suitable for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. The valve's compact design and robust construction make it ideal for demanding environments. Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and it can operate in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). The Hydraulic Distributor R 80 is a high-performance, reliable, and durable solution for your hydraulic system needs.
