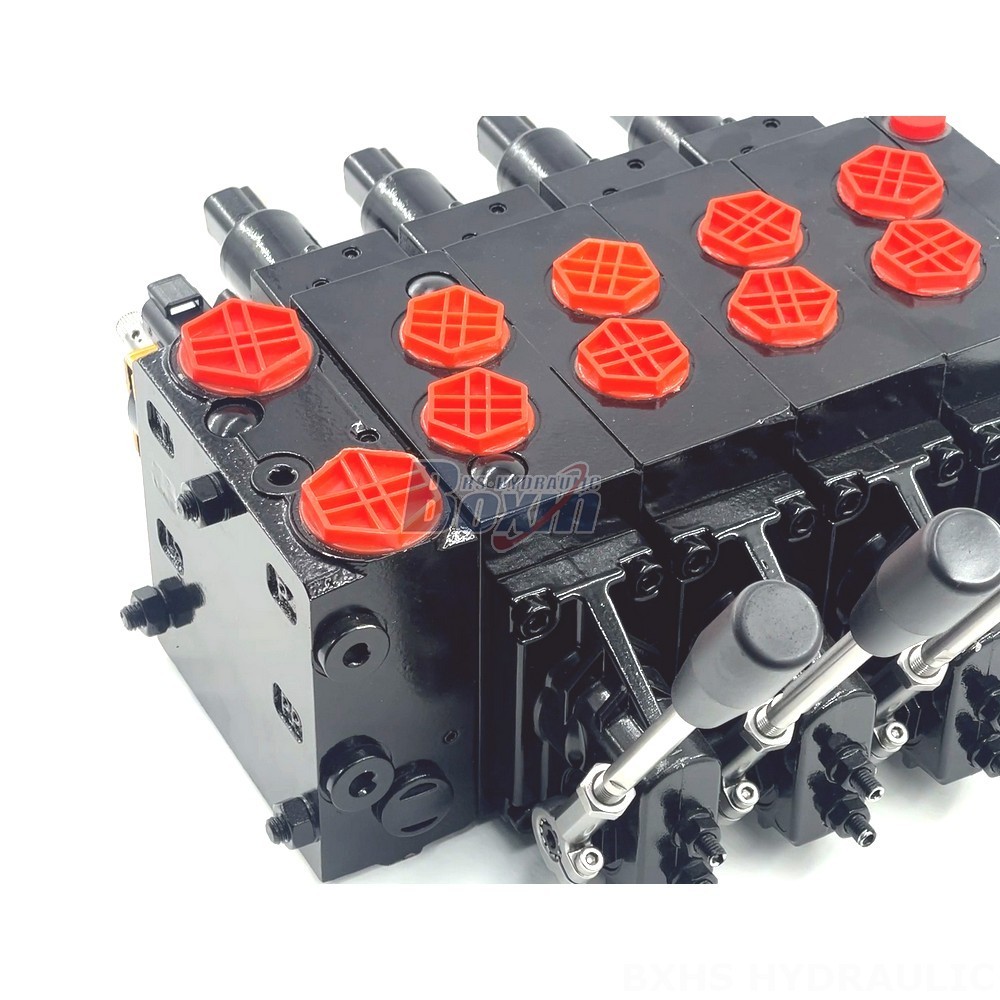

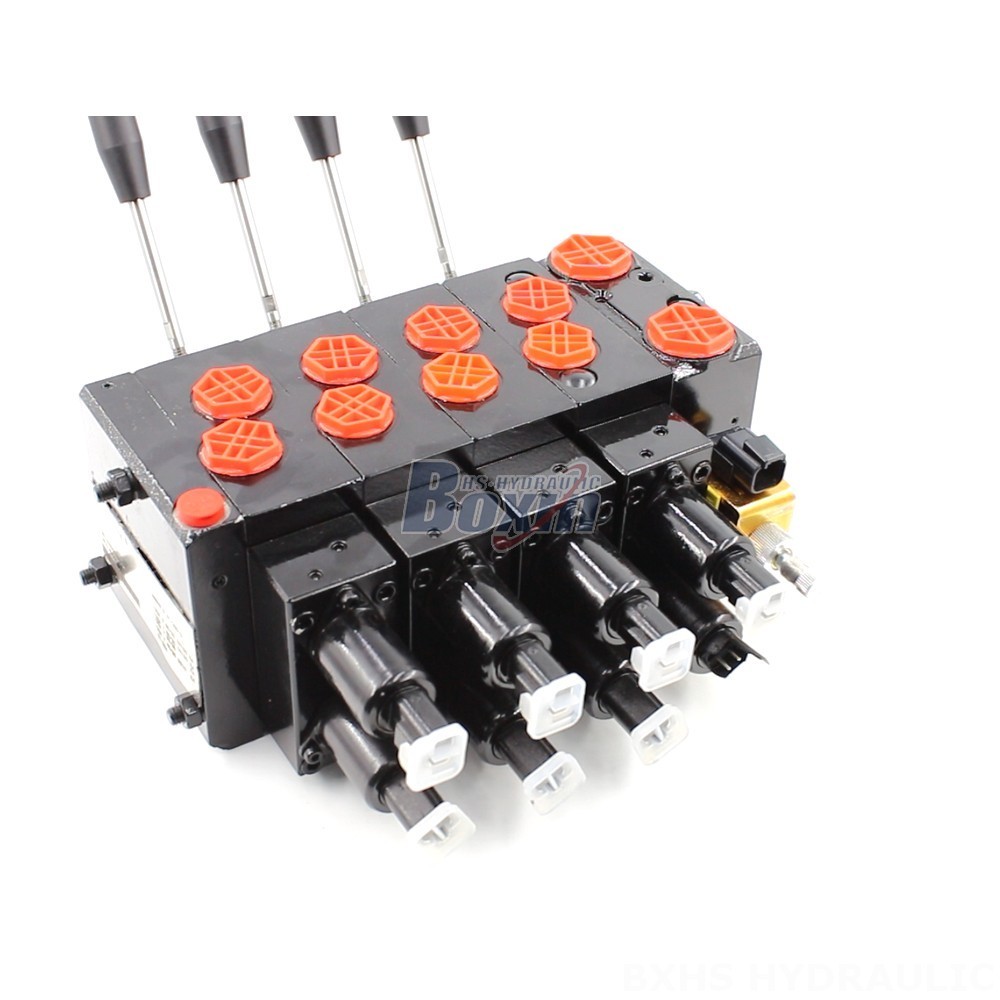

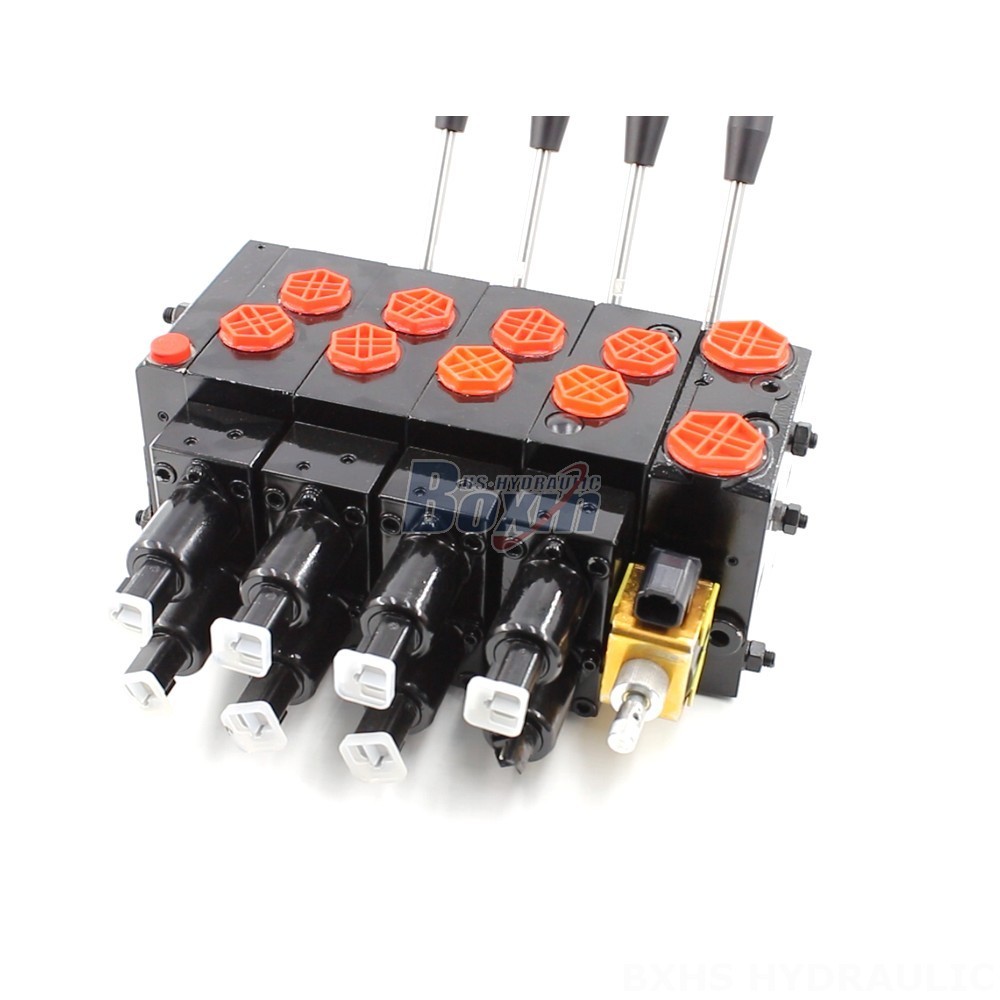

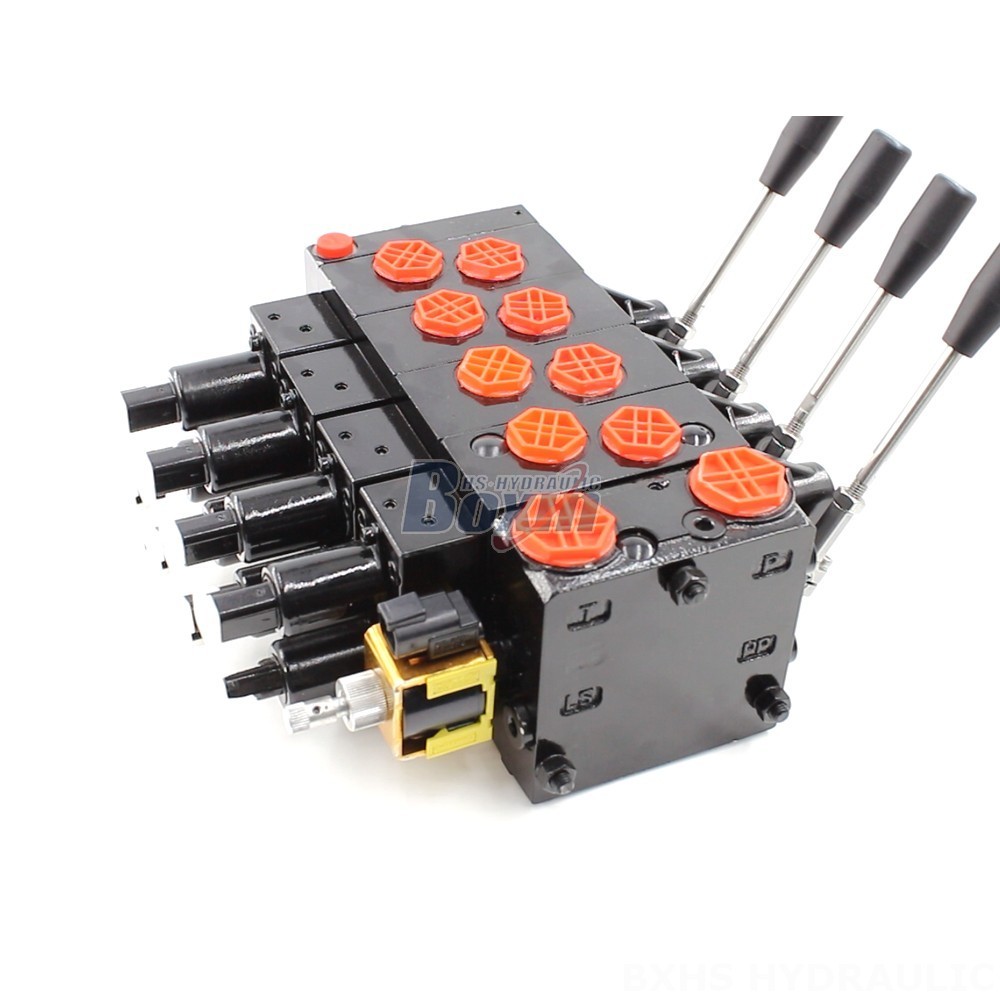

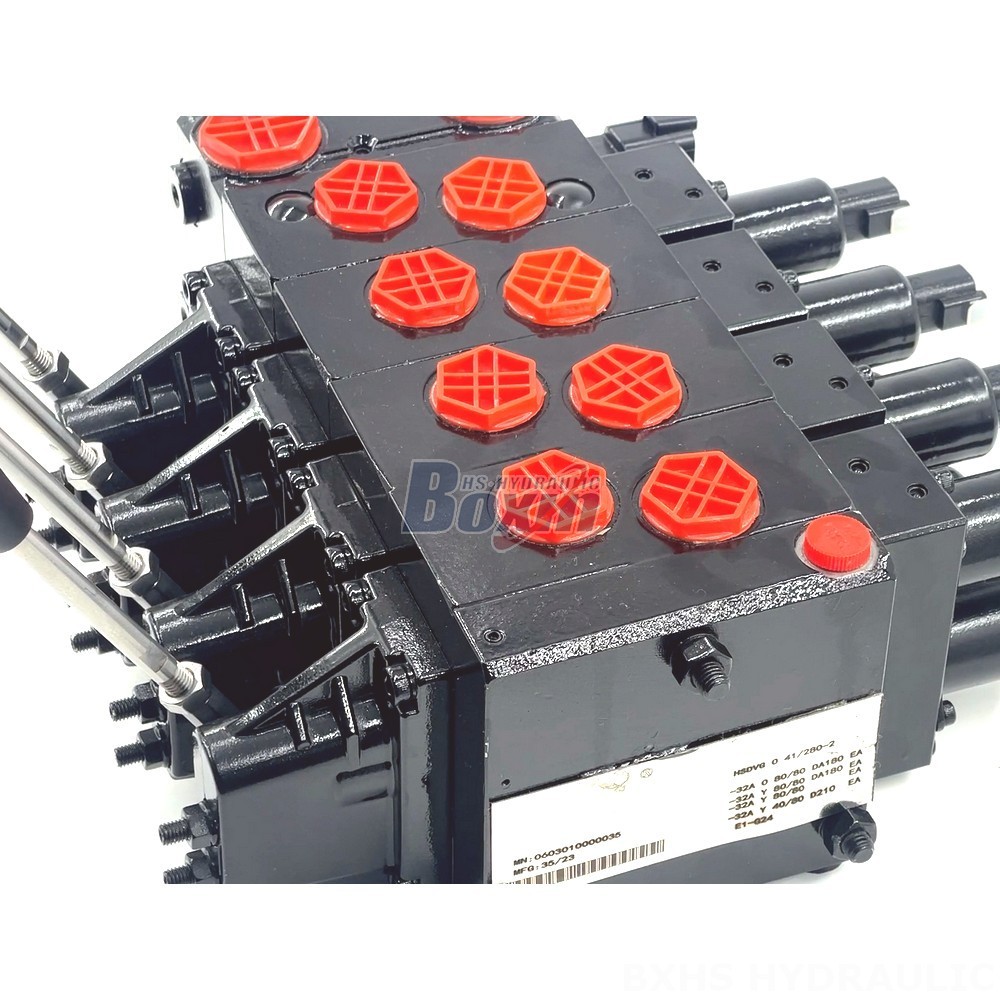

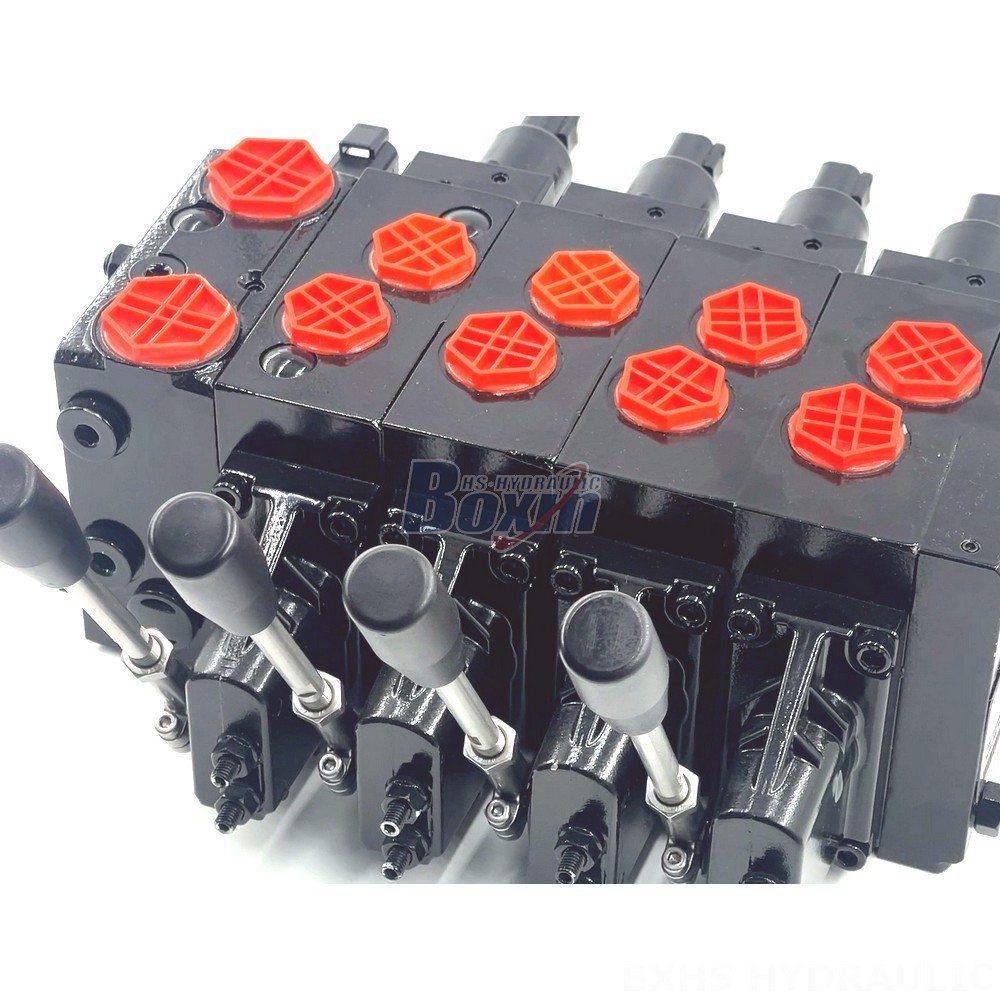

The HSDVG32 Electric Proportional Valves are reliable and efficient hydraulic control valves designed for various applications in material handling, construction, agriculture, and industrial vehicles. These 4-section, sectional valves offer precise electric proportional and manual control, providing a flow rate of up to 140 L/min and a maximum pressure of 315 bar. With an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, these valves ensure optimal performance in demanding operating conditions.
| Seri HSDVG32 Katup Kontrol Proporsional Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-hidraulik, Selenoid, Hidraulik dan Manual, Kabel, Proporsional listrik, Solenoid dan Manual, Proporsional listrik dan Manual |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 140 L/menit (37 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/4 |
| Port Keluar | G3/4 |
| Ukuran Port | G1/2, G3/4 |
**HSDVG32 Electric Proportional Valves**
**Control Method:** Electric proportional and Manual
**Section:** 4 Section
**Structure Type:** Sectional valve
**Rated Flow:** 140 L/min (37 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 4 Spool
**Series:** HSDVG32 Series
**Application Area:**
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Model:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- TELEHANDLER
- MIDI-EXCAVATOR
- MINI-EXCAVATOR
- SKID STEER LOADER
