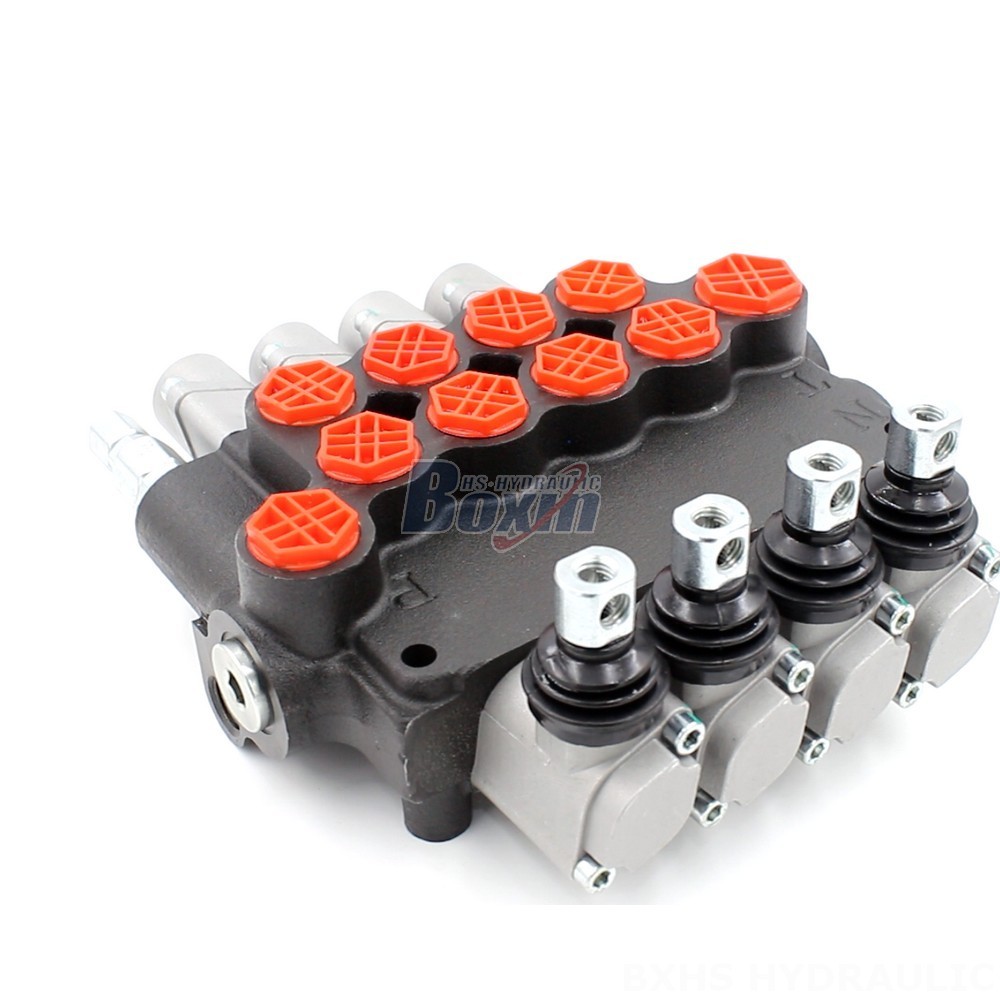

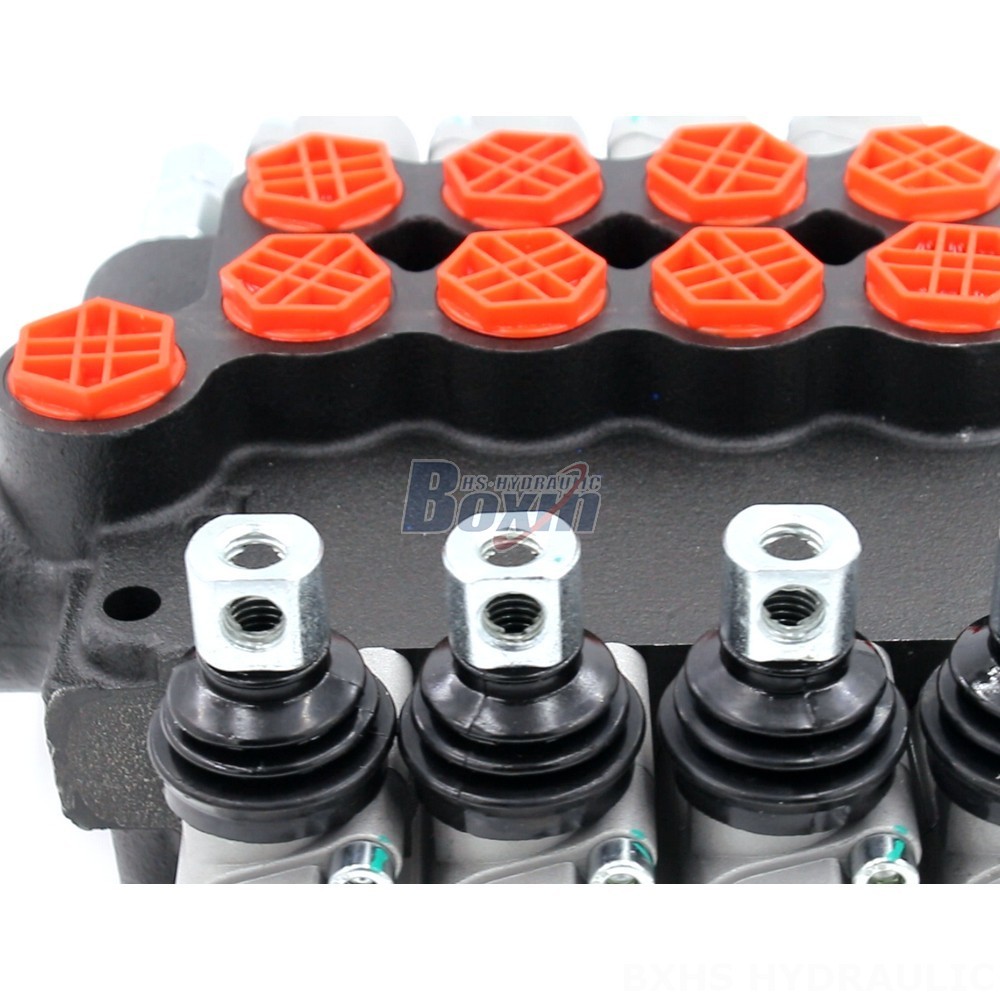

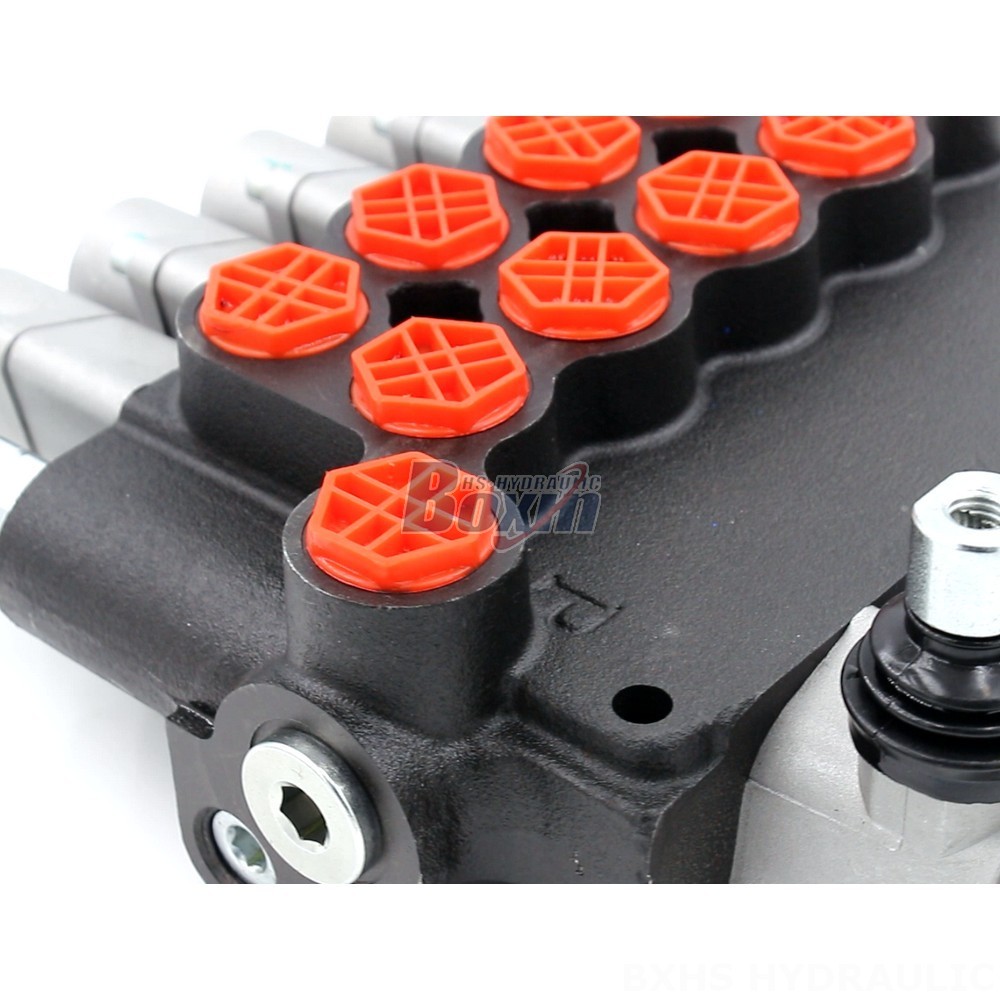

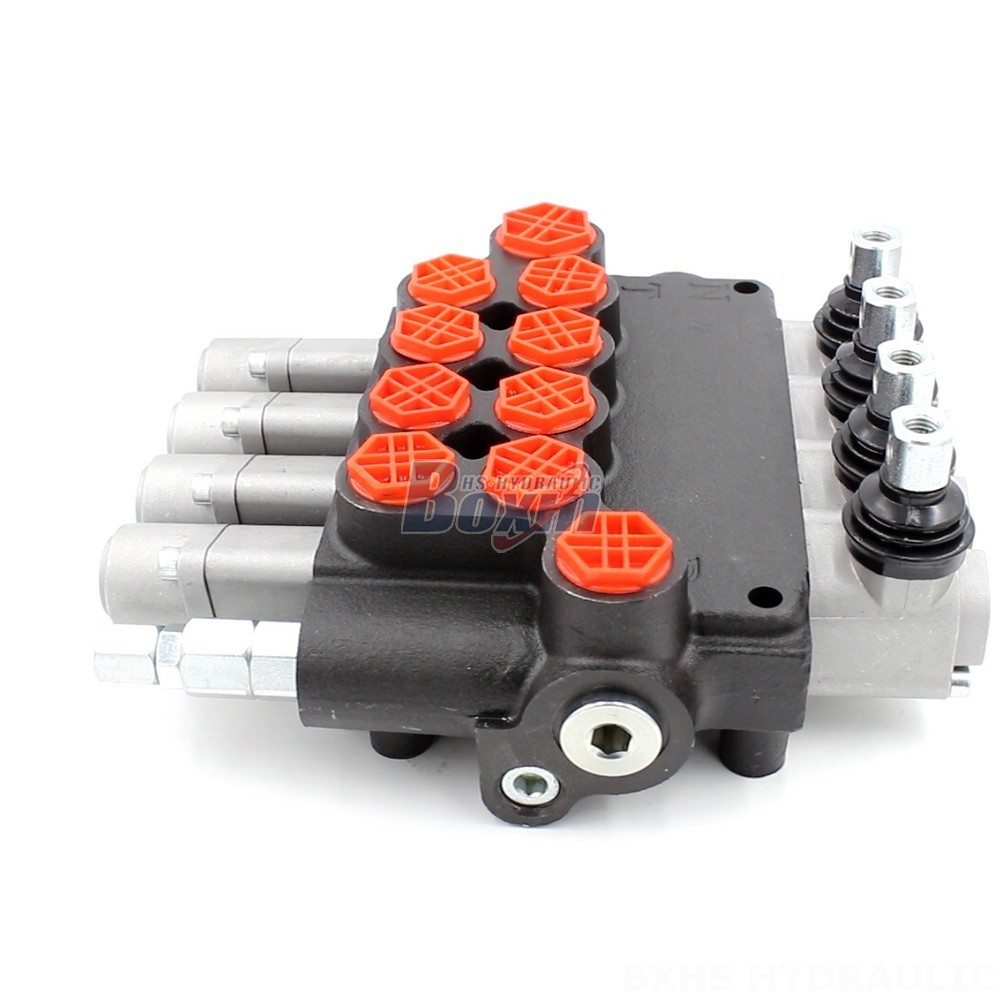

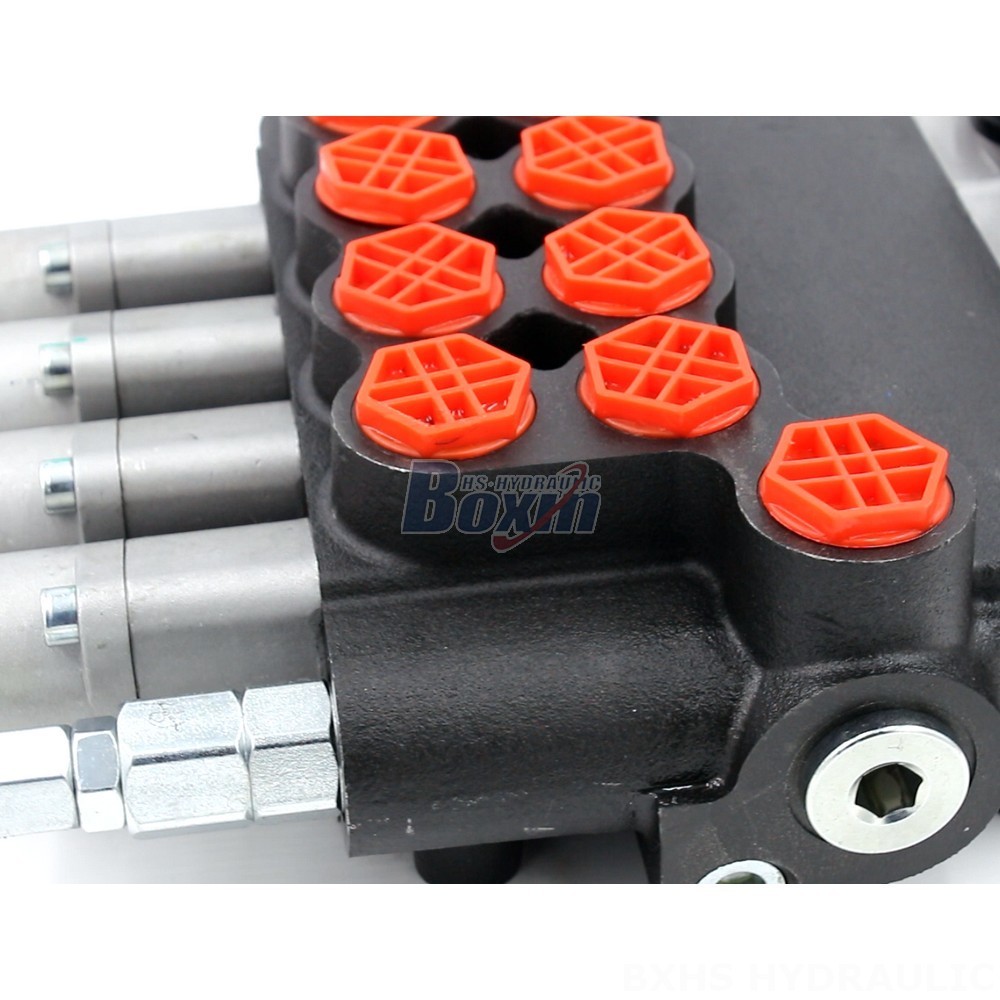

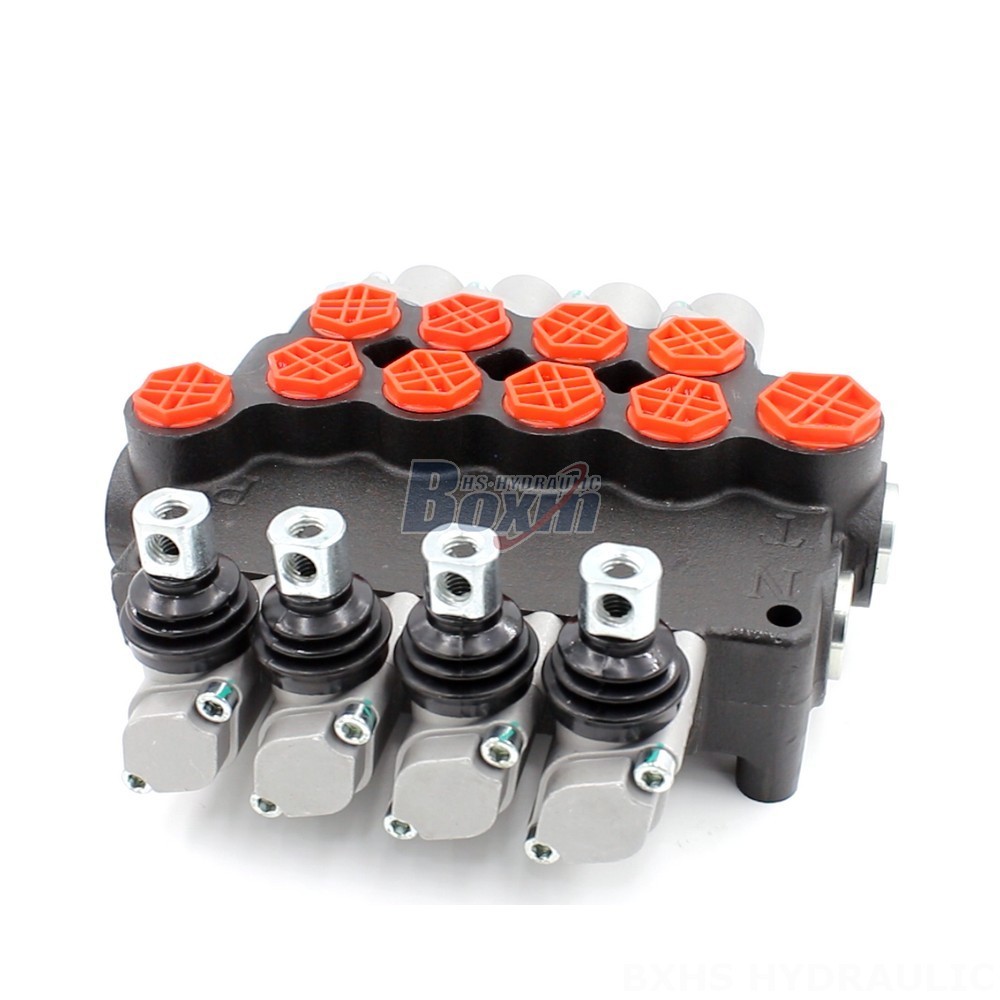

The Reliable and Efficient P80-G12-G34-OT Valve is a trusted hydraulic valve designed for various industries. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it ensures efficient operation. Its compact monoblock design and 4-section, 4-spool configuration provide versatility and adaptability.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**P80-G12-G34-OT Valve: A Reliable and Efficient Hydraulic Solution**
The P80-G12-G34-OT Valve is a high-performance hydraulic valve engineered to meet the demanding requirements of industries worldwide. Its key features include:
* **Monoblock Valve Design:** Compact and robust construction for durability and space optimization.
* **4 Section, 4 Spool Configuration:** Versatile valve body with multiple control options for complex hydraulic systems.
* **Rated Flow of 80 L/min:** Ensures efficient flow rates for demanding applications.
* **Maximum Pressure of 250 bar:** Handles high-pressure hydraulic systems with ease.
* **Manual Control:** Precise and reliable manual operation for precise control.
* **Wide Operating Viscosity Range (15 - 75 mm²/s):** Suitable for various hydraulic fluids and operating conditions.
* **Broad Temperature Range (-40°C to +80°C):** Performs effectively in extreme temperatures.
**Applications:**
The P80-G12-G34-OT Valve finds applications in diverse industries, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
This valve is compatible with a wide range of equipment, such as:
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
* Backhoe Loaders
**Trustworthy and Efficient:**
The P80-G12-G34-OT Valve is a reliable and efficient hydraulic component that meets the highest industry standards. Its exceptional performance, durability, and adaptability make it an ideal choice for demanding hydraulic applications.
