Produksi & Pengiriman
Waktu Produksi 15-30 Hari
238 Pandangan Mencari Produk Ini

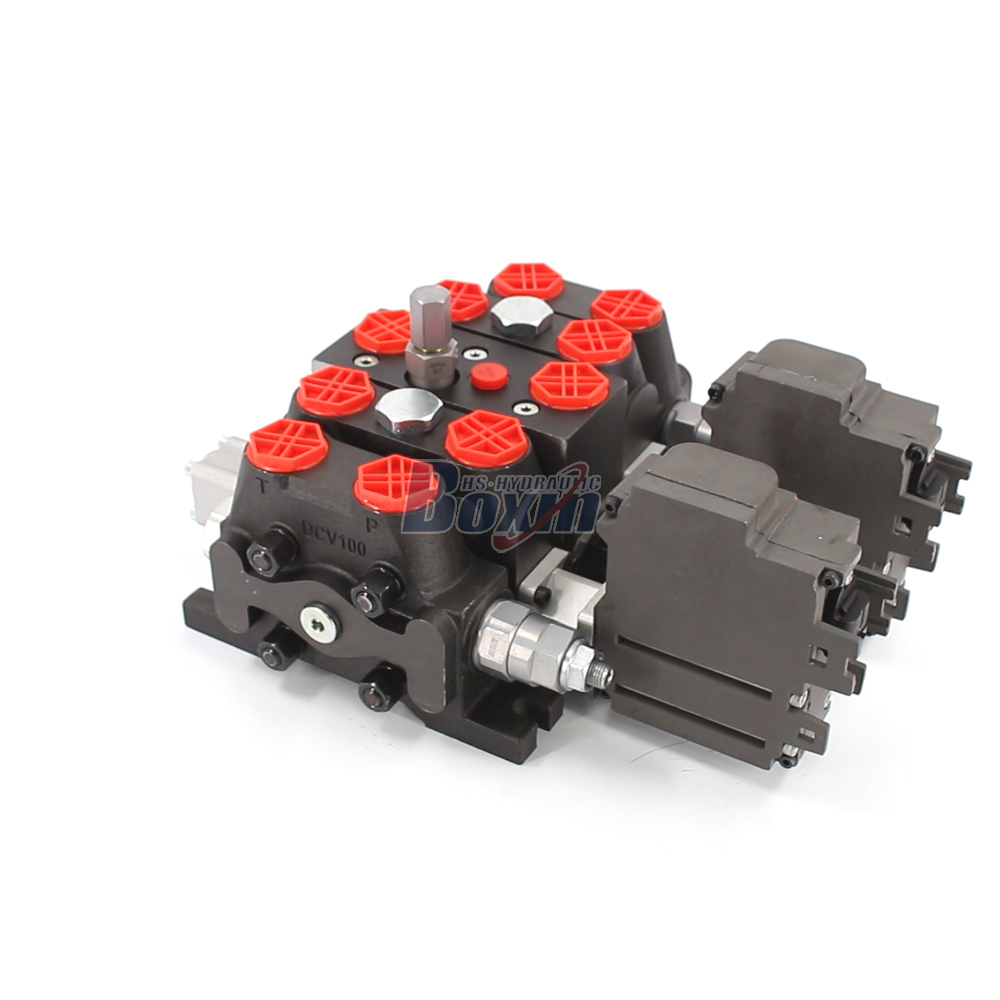

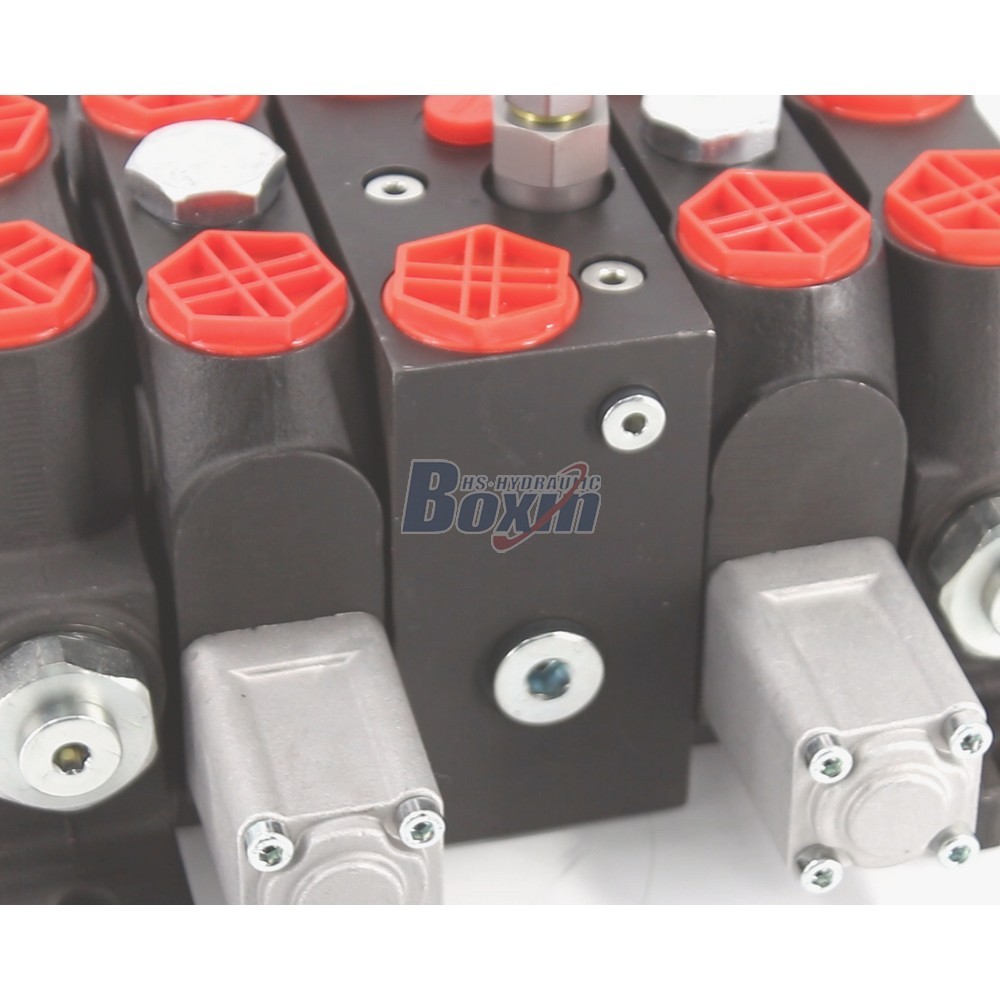

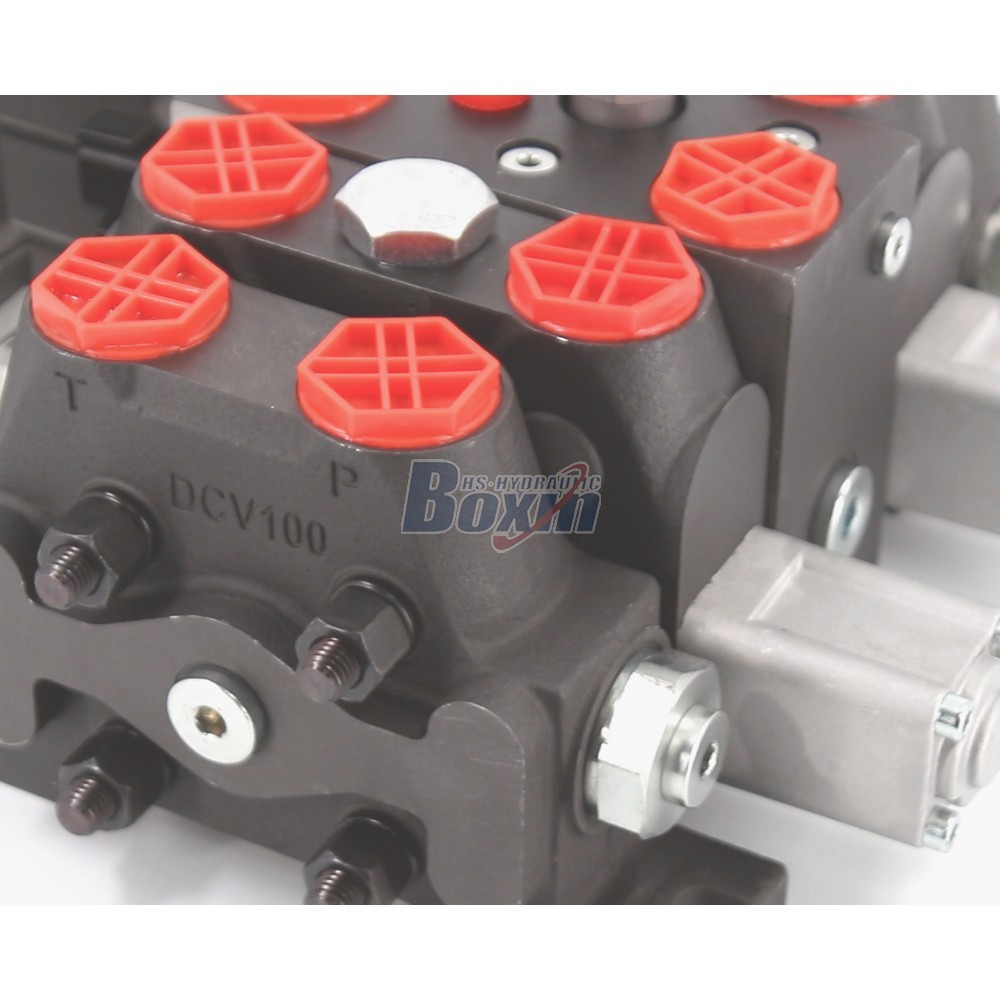

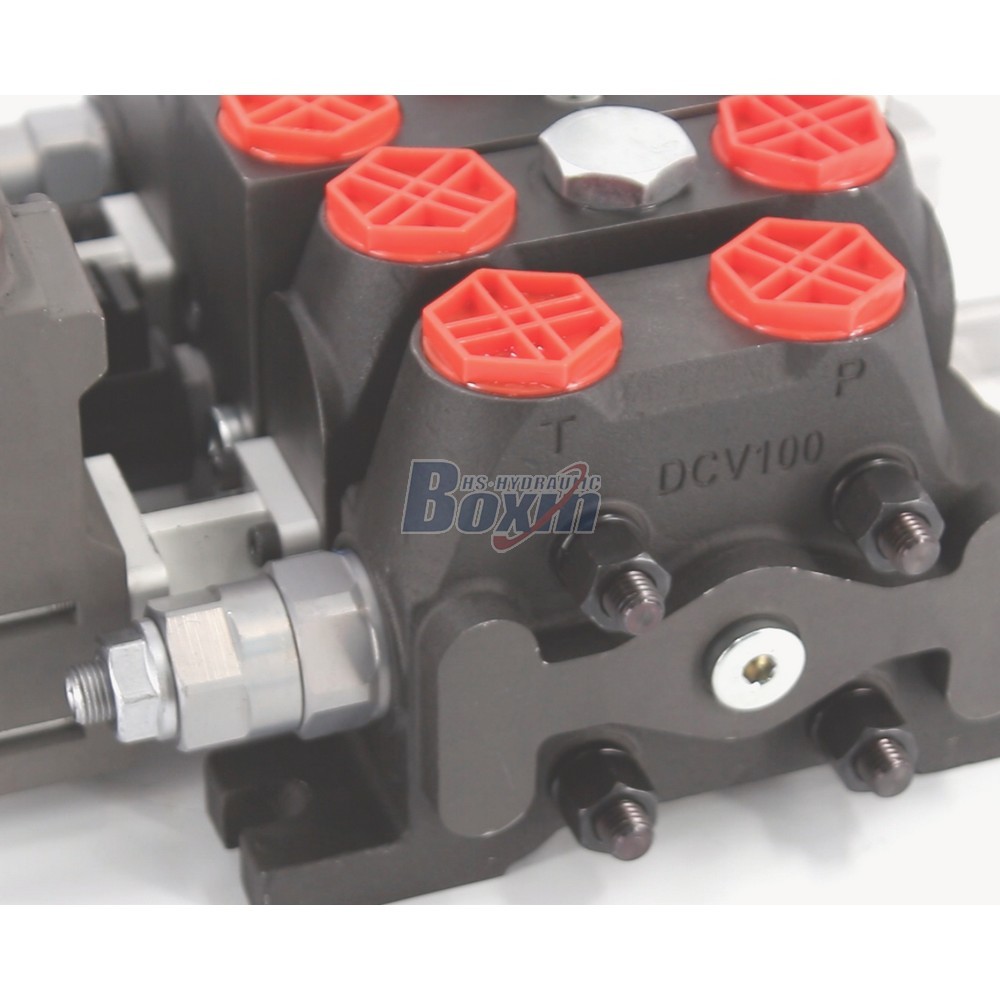

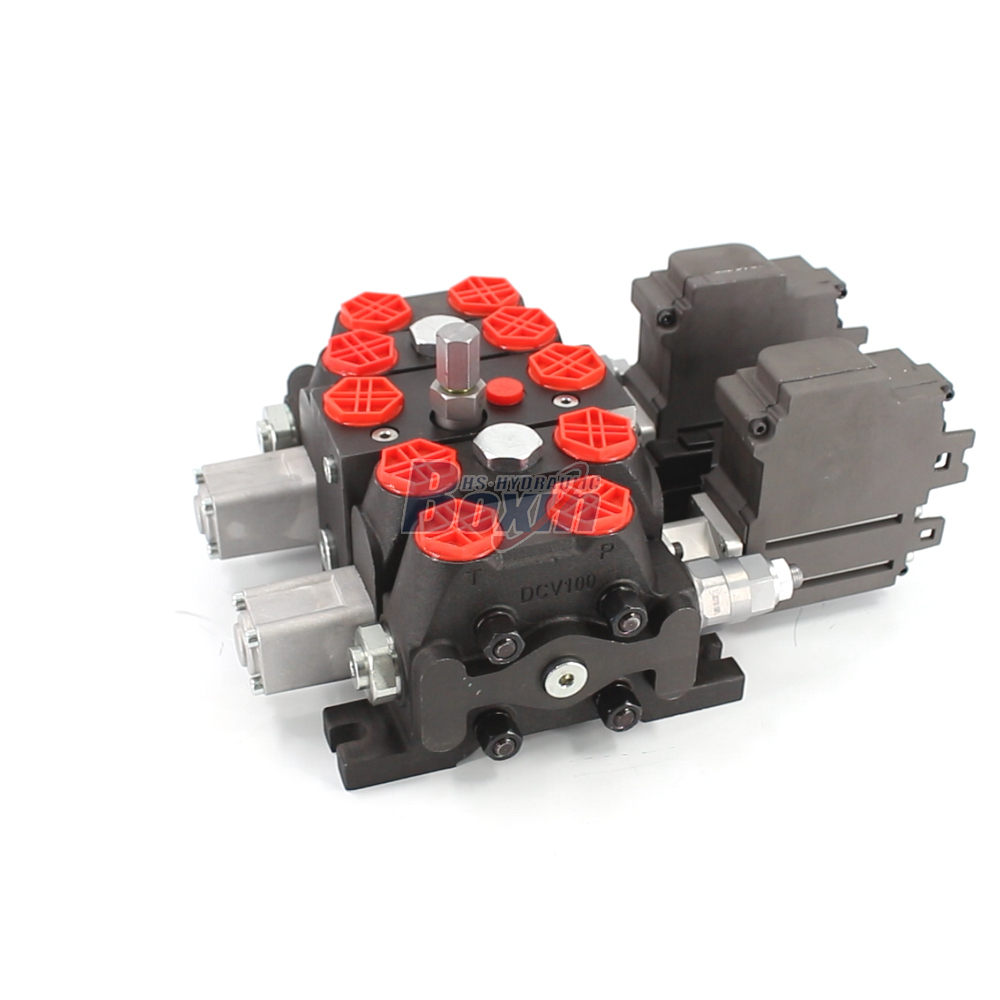

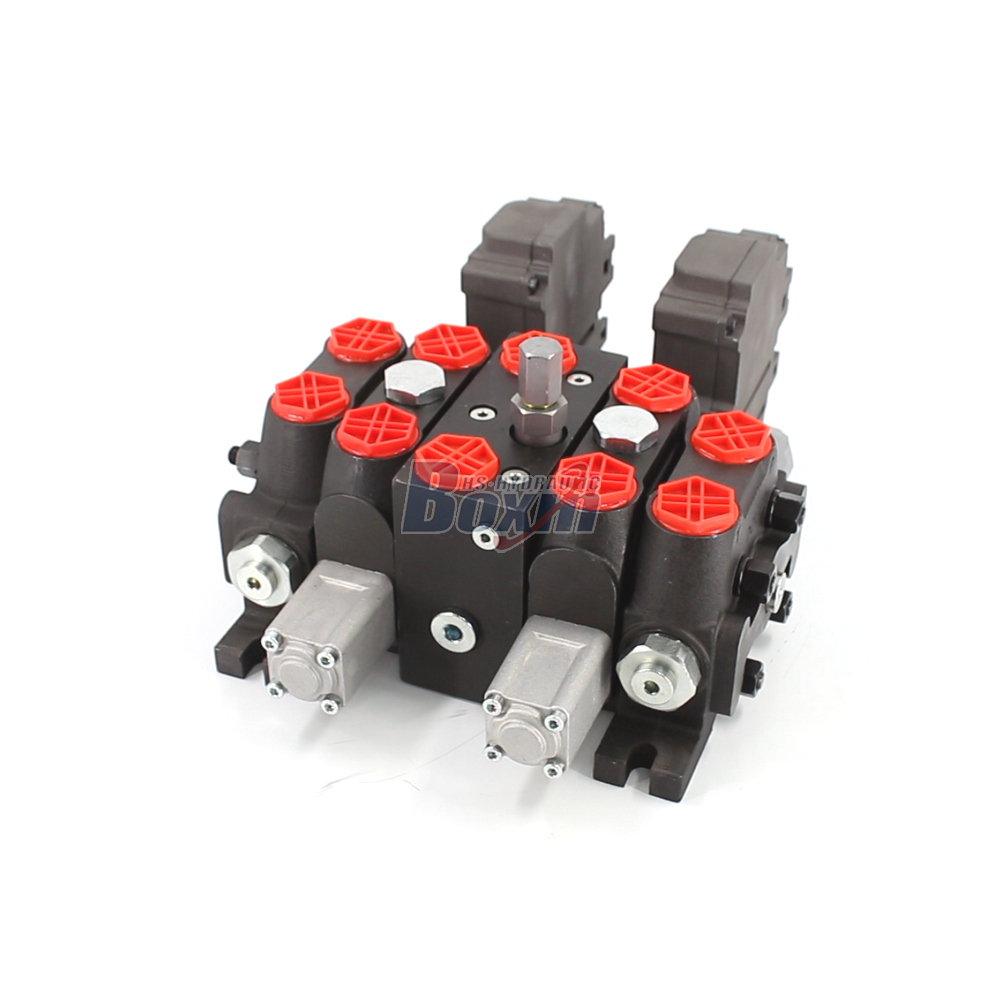

This DCV100 Series Sectional Directional Valve features a 2-spool electric motor control design, handling 100 L/min flow at 315 bar max pressure. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for forklifts, telehandlers, and construction machinery with full OEM/ODM support.
| Seri DCV100 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Kabel, Stik Kontrol, Manual dan Joystick, Manual dan Elektro-hidraulik, Motor listrik, Elektro-hidrolik dan Solenoid |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 100 L/menit (26,5 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Port Keluar | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Ukuran Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
**1. Factory Direct Sales of Sectional Directional Valve**
- Sourced directly from our 68,000 sqm manufacturing base with 25+ years of expertise, ensuring competitive wholesale pricing.
- Annual capacity of 1,500,000 units guarantees stable supply for large-scale distributors and OEM projects.
**2. Reliable Electric Hydraulic Control Valve Performance**
- Engineered for precise operation with electric motor control, supporting rated flow of 100 L/min (26.5 US gpm).
- Withstands max pressure of 315 bar (4600 psi), ideal for demanding applications in material handling and agriculture.
**3. Durable 2 Spool Directional Valve Construction**
- Features G3/4 inlet and outlet ports, designed for seamless integration into compact hydraulic systems.
- Rigorously tested via 100% bench pressure, flow, and sealing checks to prevent leaks and ensure longevity.
**4. OEM/ODM Available for DCV100 Series Valve**
- Supported by 35+ senior engineers, we offer custom casting, logo laser marking, and private label services.
- Fully compatible with international mainstream brands, providing a cost-effective alternative without compromising quality.
**5. Certified Quality for Global Export**
- Holds IATF 16949, CE, and SGS certifications, backed by 25+ autonomous patents for technical reliability.
- Packaged in heavy-duty wooden crates with anti-rust treatment, ensuring safe delivery for worldwide wholesale clients.
