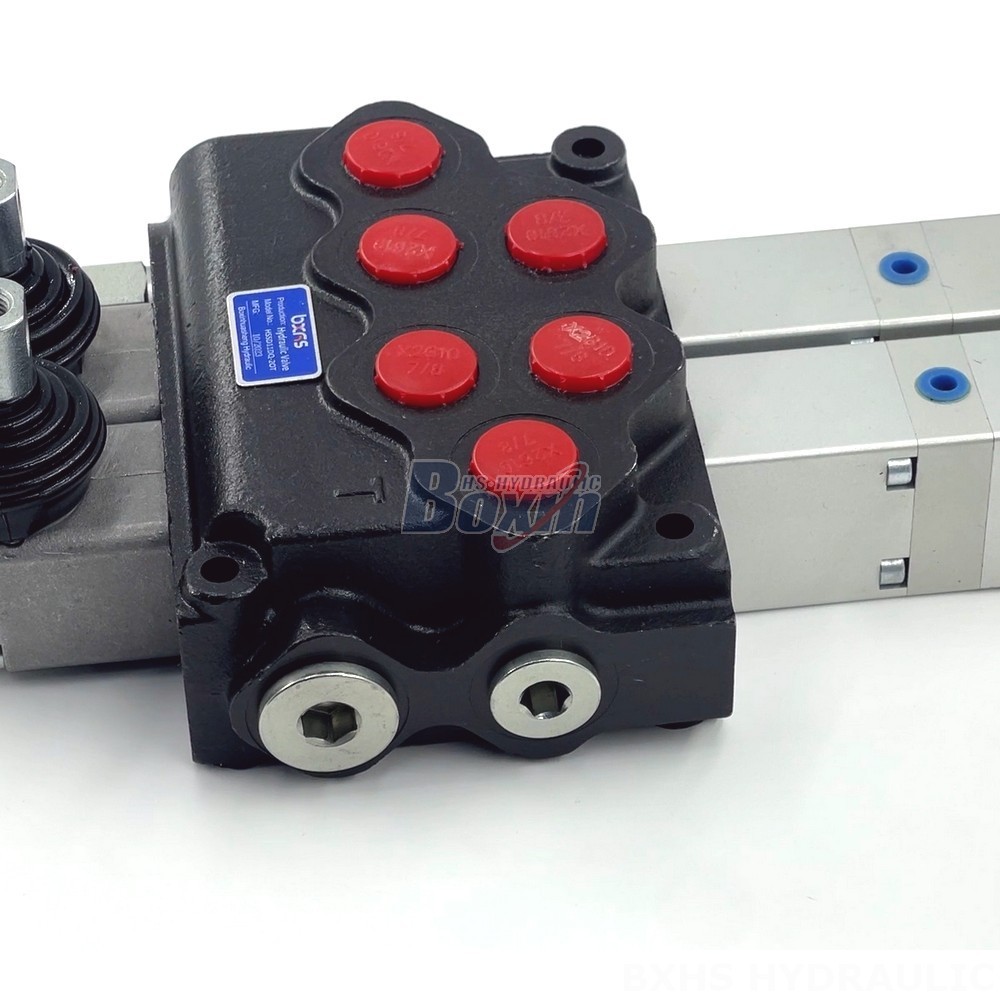

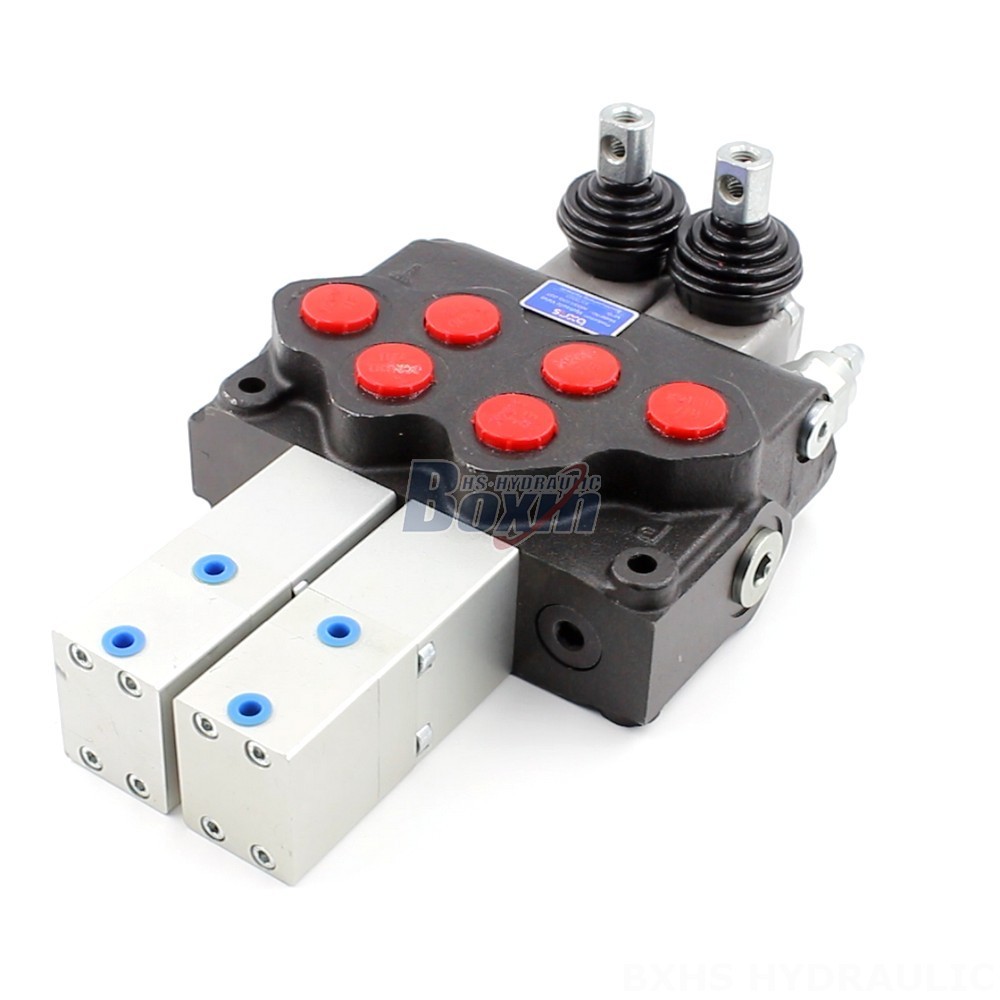

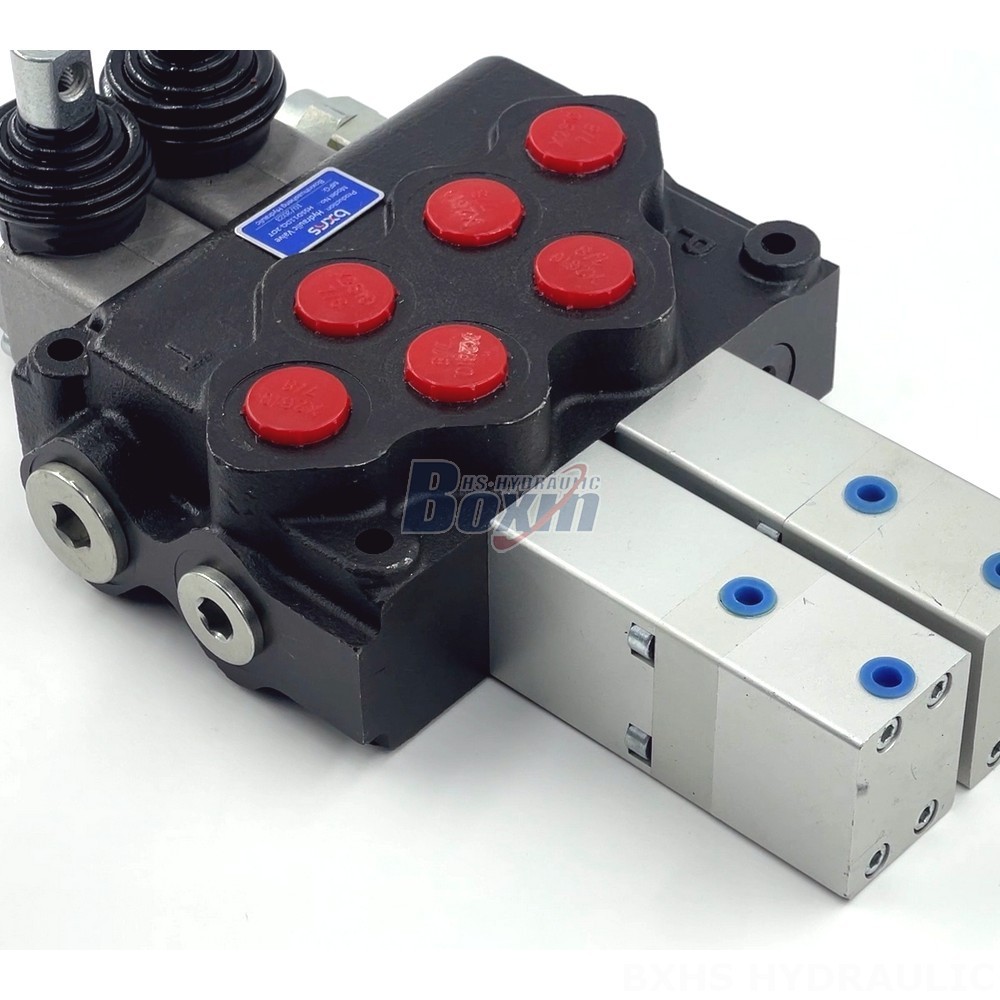

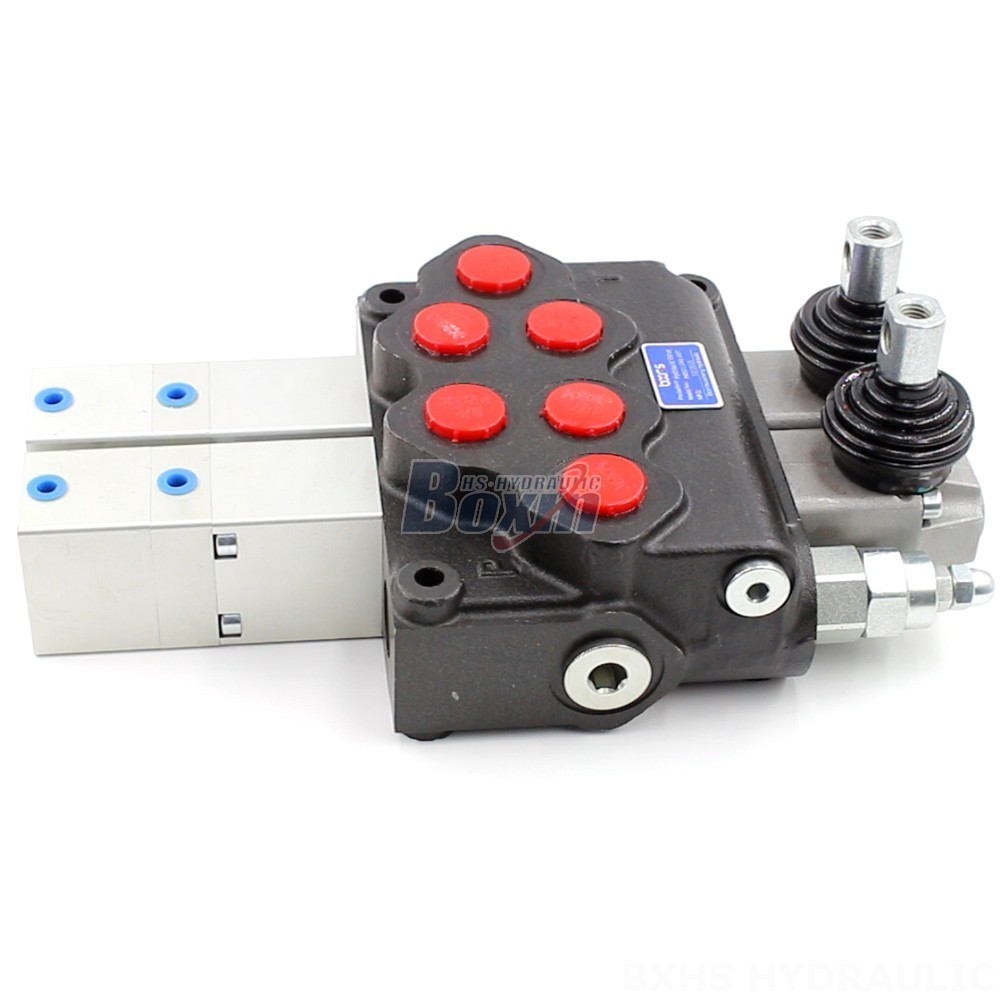

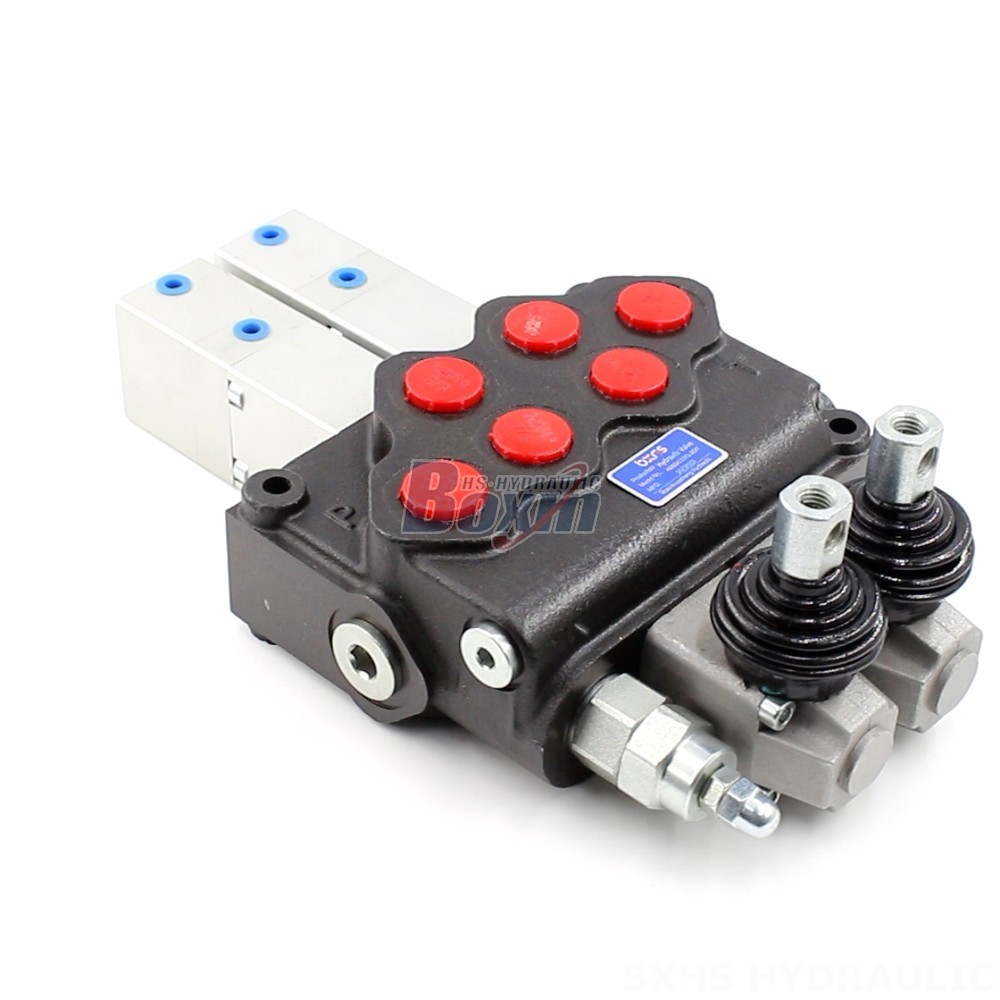

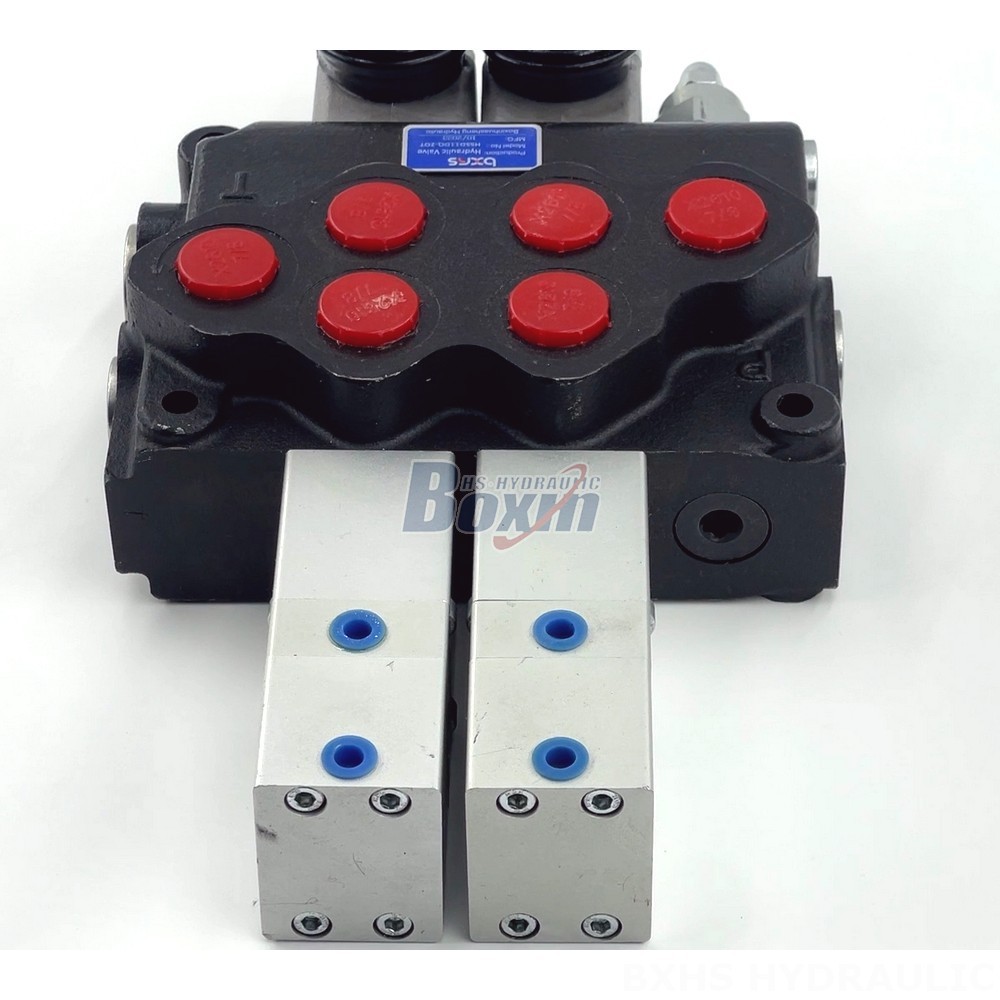

The SD11 Series Hydraulic Loader Control Valve is an ISO certified, pneumatic-controlled monoblock valve designed for demanding applications in material handling, construction, earth moving, agriculture, and industrial vehicles. This robust valve offers high flow rates, reliable performance, and expert engineering support.
| Seri SD11 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Listrik, Pneumatik dan Manual |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 70 L/menit (18,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi), 315 bar (4600 psi) |
| Port Masuk | G3/4, SAE 12 |
| Port Keluar | G3/4, SAE 12 |
| Ukuran Port | G3/4, SAE 12 |
The SD11 Series Hydraulic Loader Control Valve is a high-performance, 2-section monoblock valve with a 70 L/min flow rate and a maximum pressure of 250 bar. It features pneumatic control for precise operation, and is engineered for use in various demanding applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers. The valve is manufactured to ISO standards and backed by expert engineering support.
