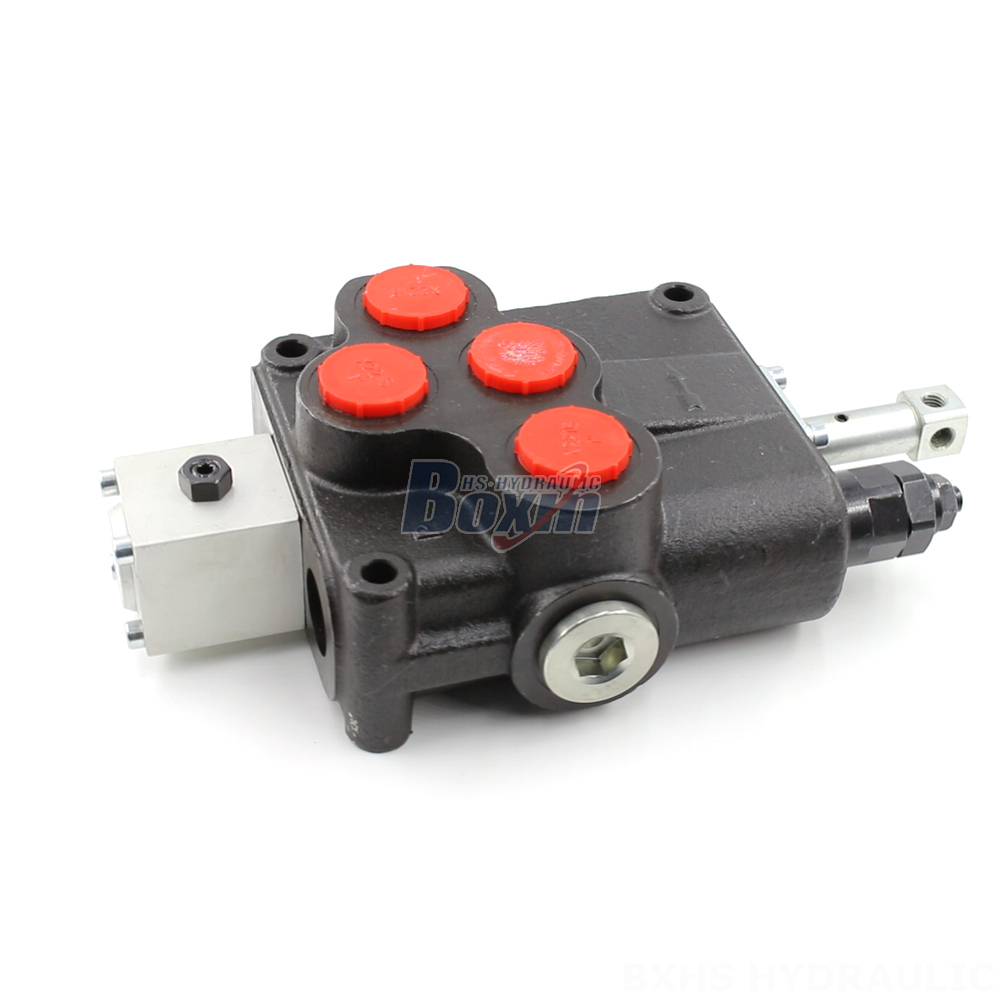

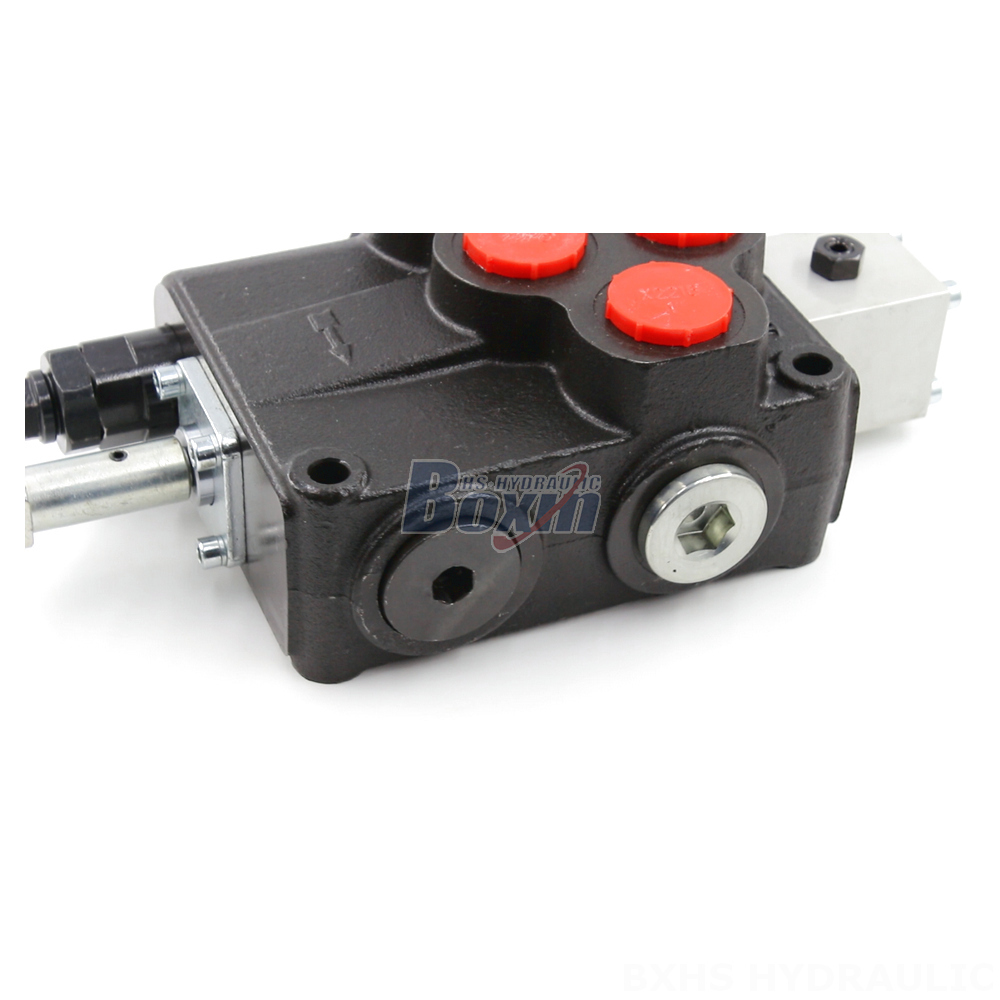

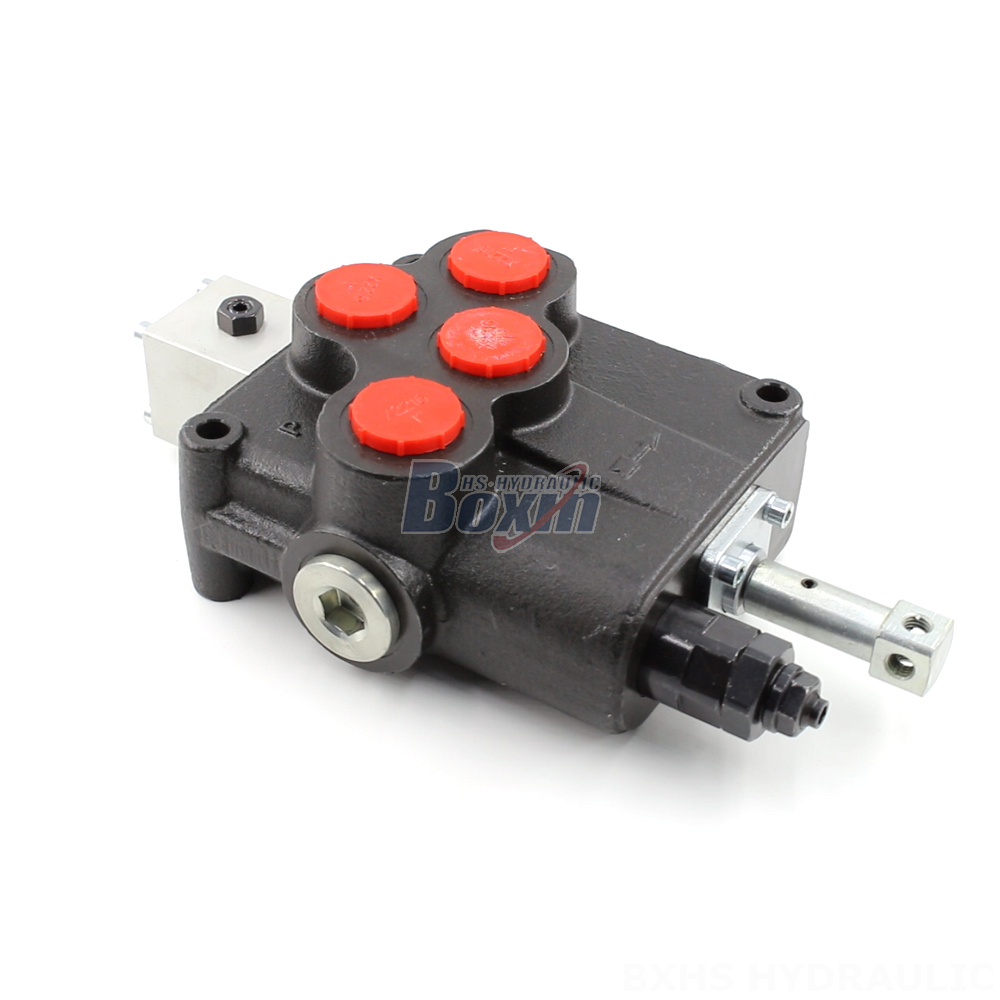

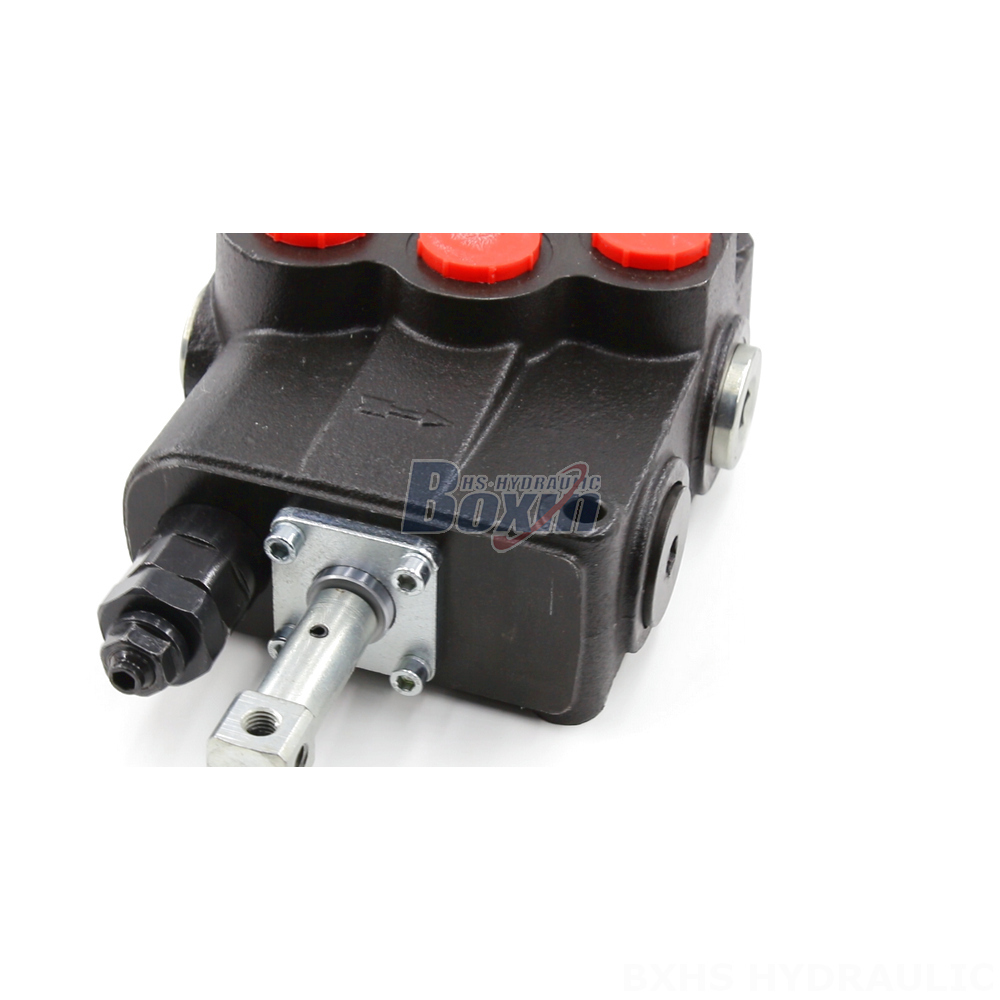

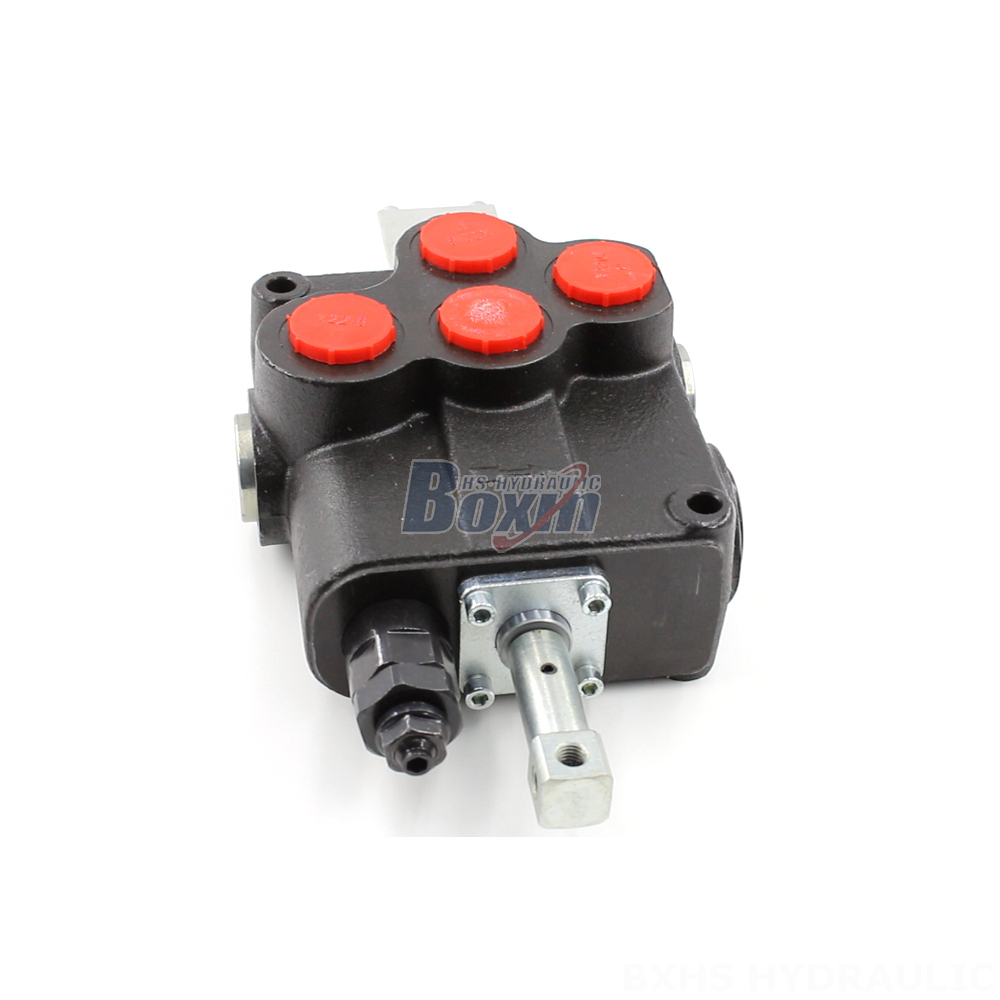

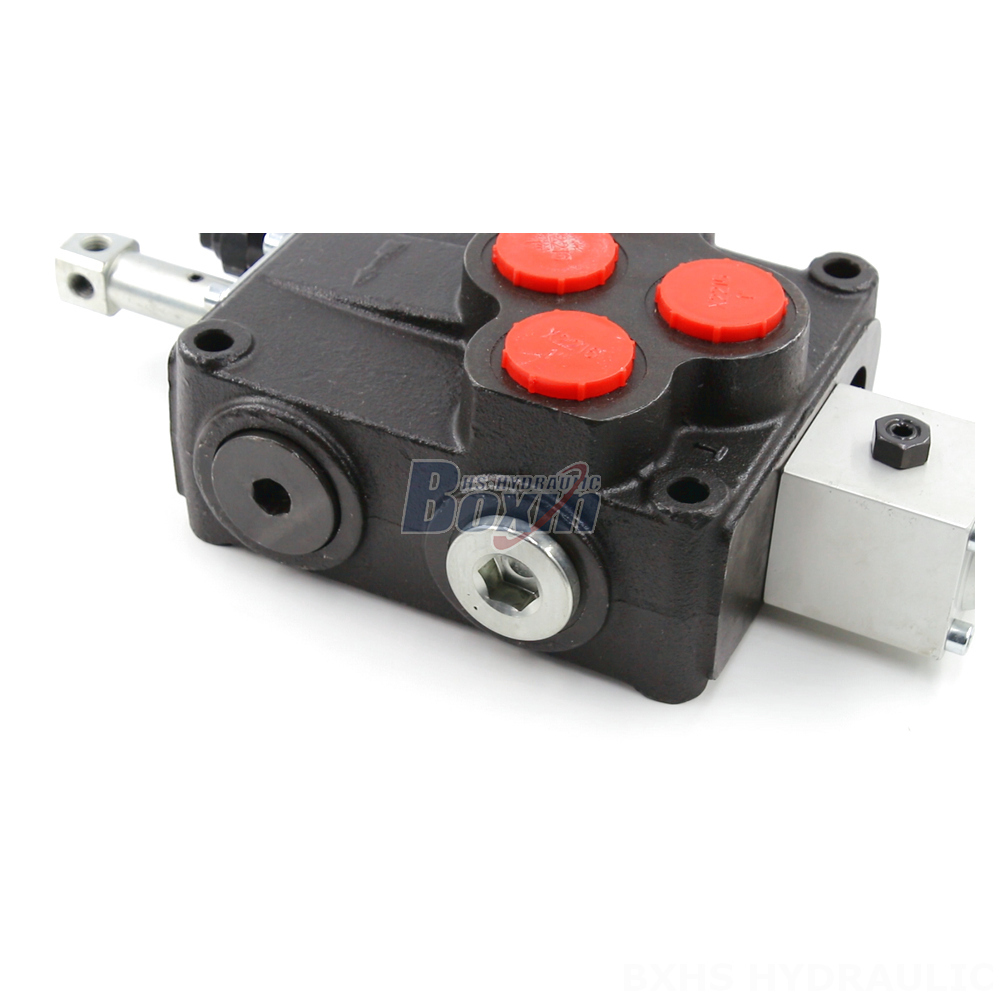

Introducing the SD18 Directional Control Valve, a high-performance hydraulic valve designed for demanding applications in various industries. With its advanced features, including manual control, a flow rate of 120 L/min, and a maximum pressure of 315 bar, this valve delivers exceptional precision, durability, and efficiency.
| Seri SD18 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 160 L/menit (42,2 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G1/2, G1, SAE 16 |
| Port Keluar | G1, SAE 16 |
| Ukuran Port | G1, SAE 16 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
**SD18 Directional Control Valve: Trusted by Industries Worldwide**
**Key Features:**
- Manual control for precise operation
- Flow rate of 120 L/min (31.7 US gpm)
- Maximum pressure of 315 bar (4600 psi)
- Operating viscosity range: 12 - 400 mm²/s (12 cSt to 400 cSt)
- Ambient temperature range: -40°C to +80°C (-40°F to +176°F), -40°C to +60°C (-40°F to +140°F)
- Monoblock valve construction for increased durability
- Single spool design for simplified control
- Suitable for a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles
- Compatible with various equipment models such as telehandlers, forklifts, all terrain cranes, stackers, backhoes, seeding machines, harvesters, balers, skip loaders, and wood splitters
