Produksi & Pengiriman
Waktu Produksi 15-30 Hari
972 Pandangan Mencari Produk Ini

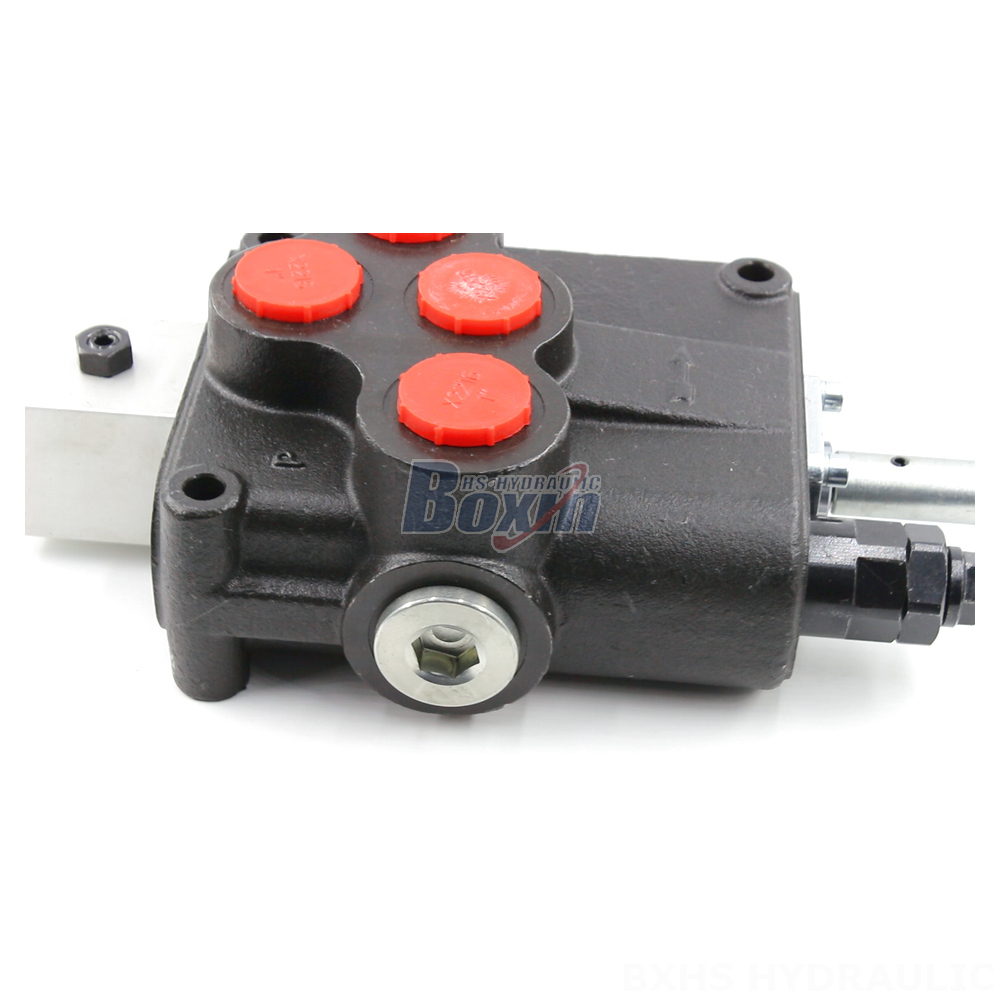

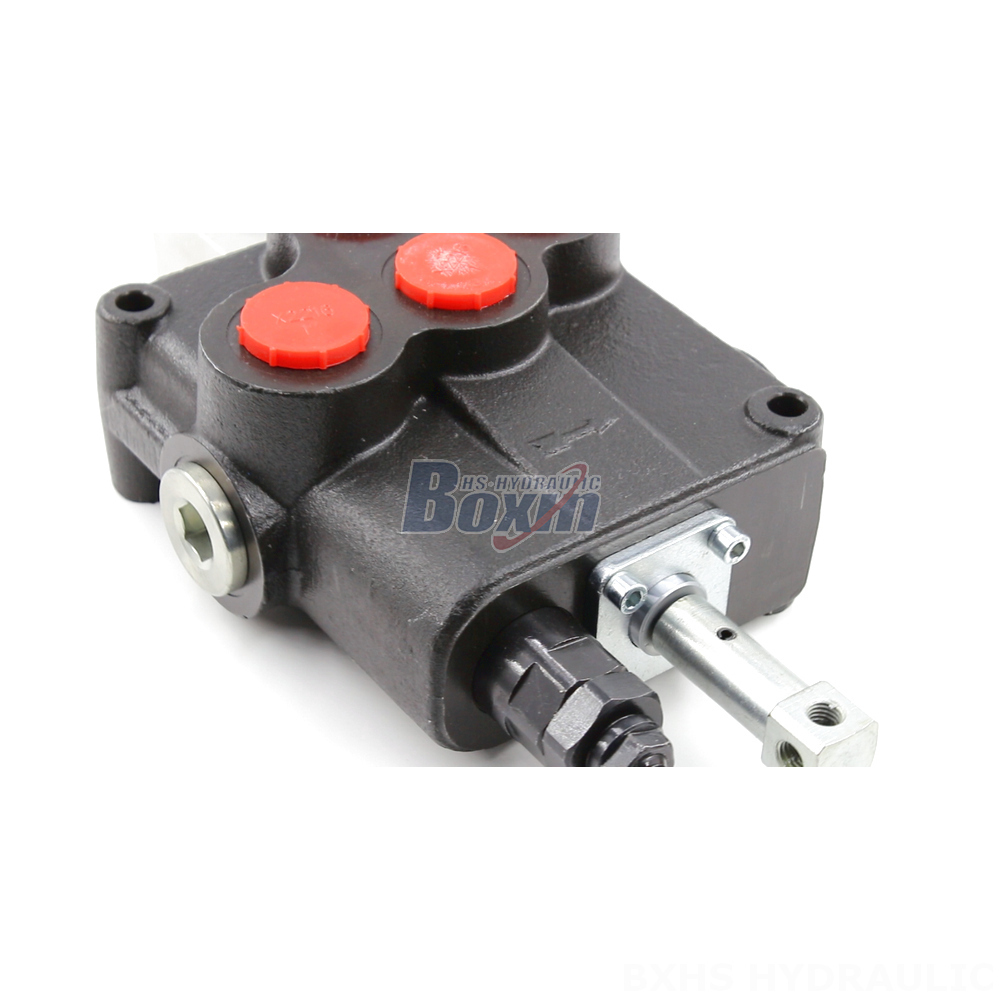

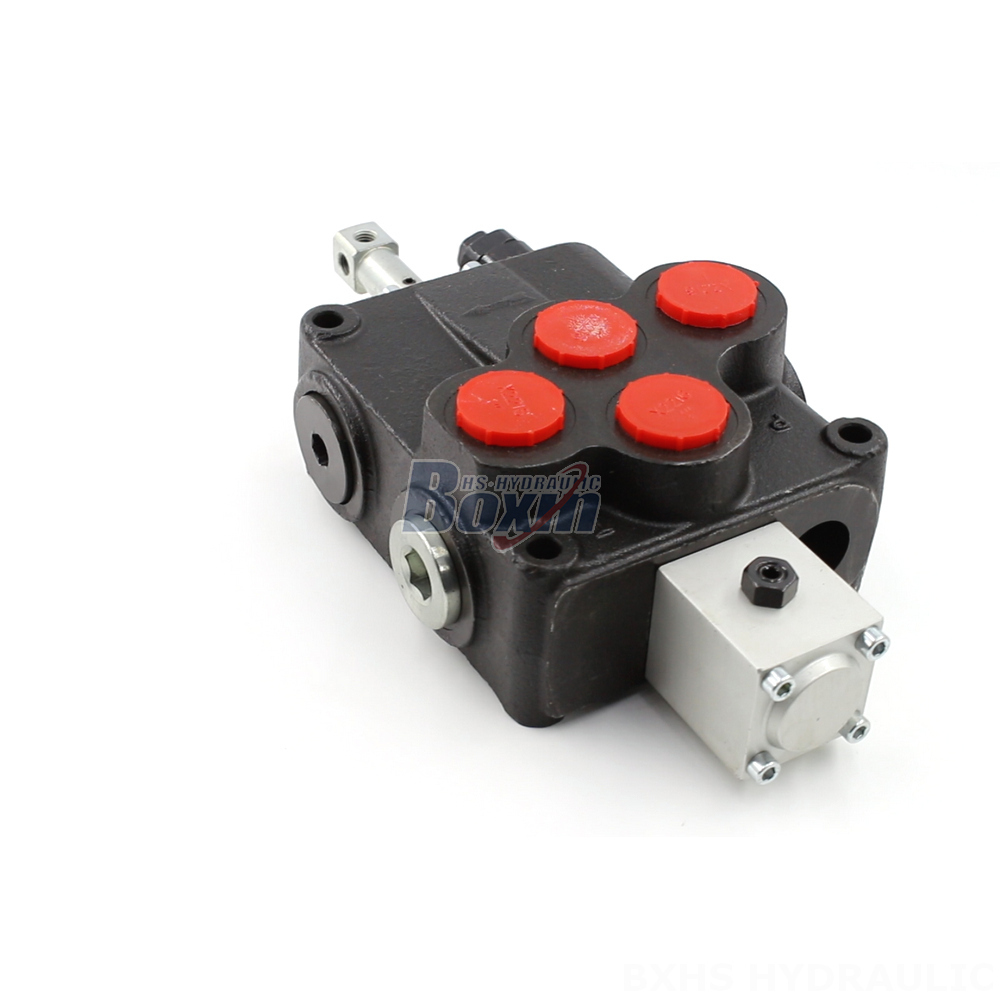

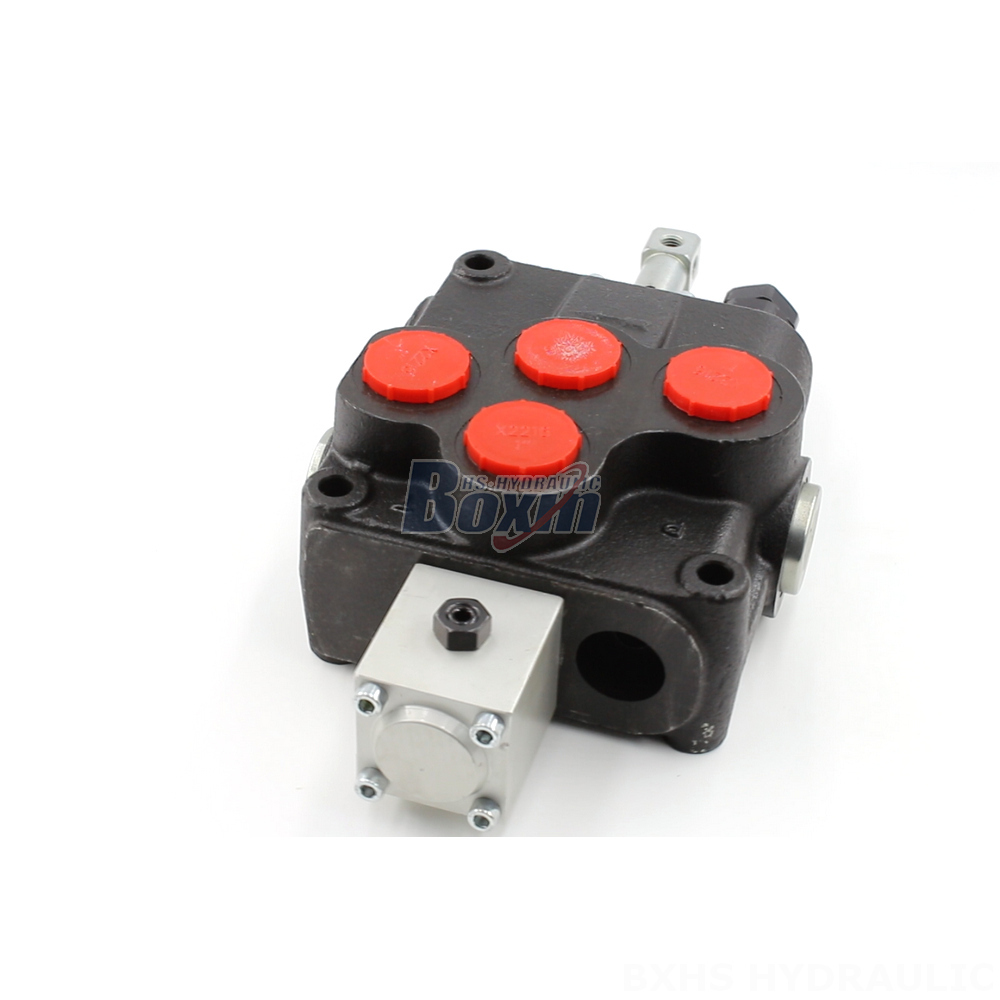

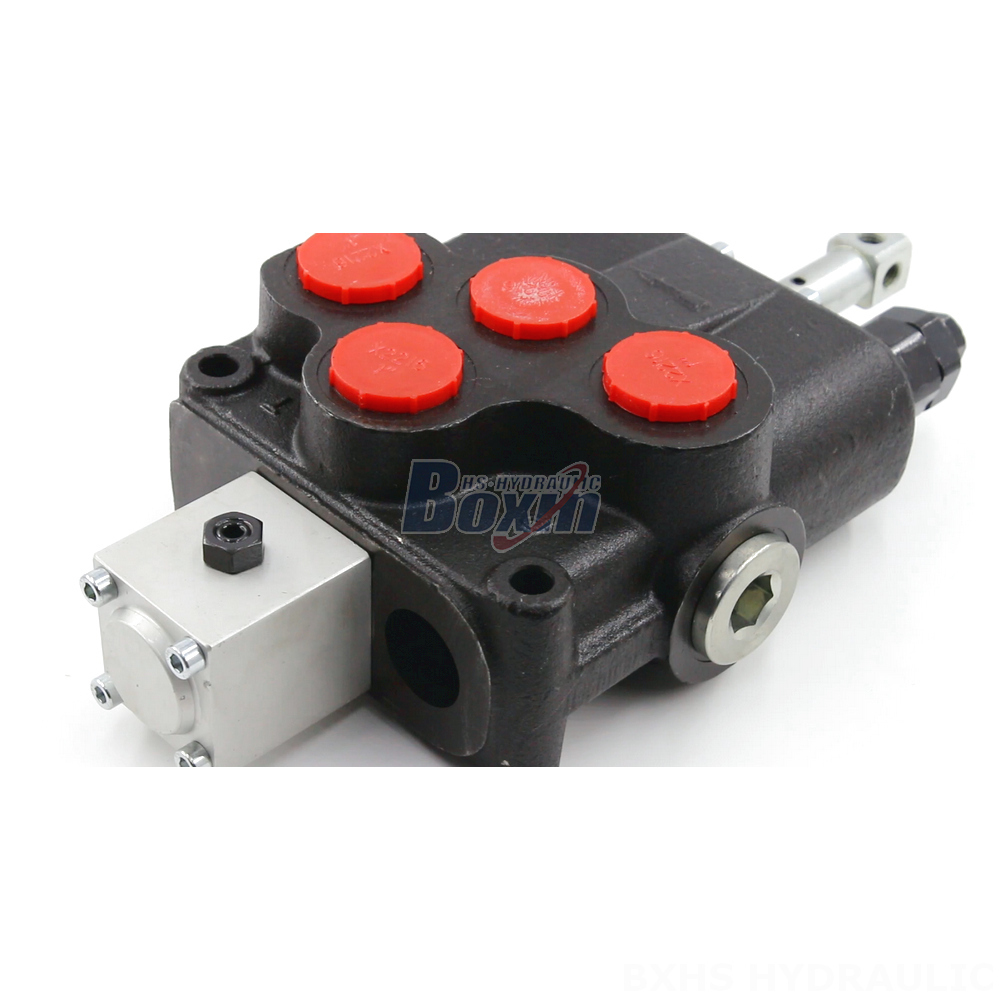

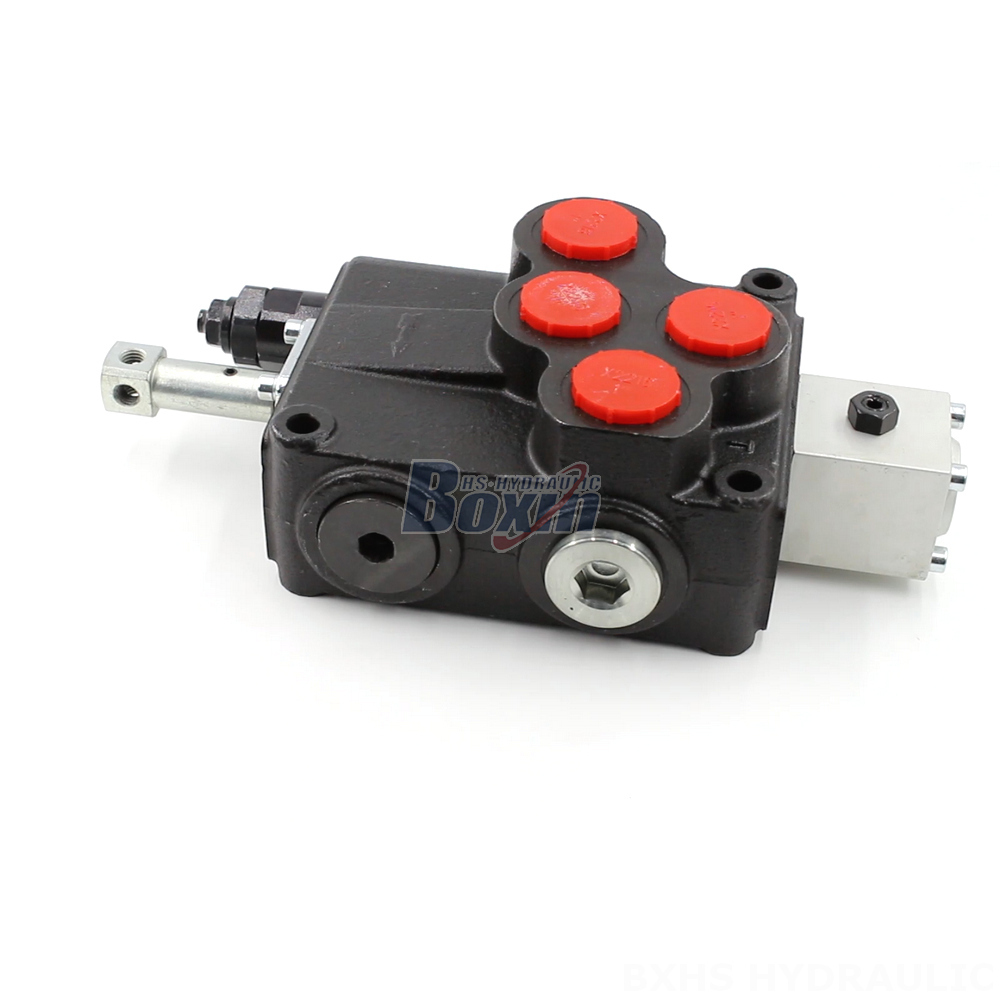

The SD18 Manual 1 Spool Monoblock Directional Valve is a high-performance valve designed for use in a wide range of hydraulic applications. It features a manual control method, a 1-section structure, and a monoblock design. With a rated flow of 120 L/min and a max pressure of 315 bar, this valve is suitable for various applications in material handling, construction, agriculture, and industrial vehicles.
| Seri SD18 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 160 L/menit (42,2 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G1/2, G1, SAE 16 |
| Port Keluar | G1, SAE 16 |
| Ukuran Port | G1, SAE 16 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
**SD18 Manual 1 Spool Monoblock Directional Valve**
**Product Features:**
* Manual control method
* 1-section structure
* Monoblock design
* Rated flow: 120 L/min (31.7 US gpm)
* Max pressure: 315 bar (4600 psi)
* Operating viscosity range: 12 - 400 mm²/s (12 cSt to 400 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F), -40°C to +60°C (-40°F to +140°F)
* Spool: 1 Spool
* Series: SD18 Series
**Application Areas:**
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Applicable Models:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* BACKHOE
* SEEDING MACHINE
* HARVESTER
* BALER
* SKIP LOADER
* WOOD SPLITTER
